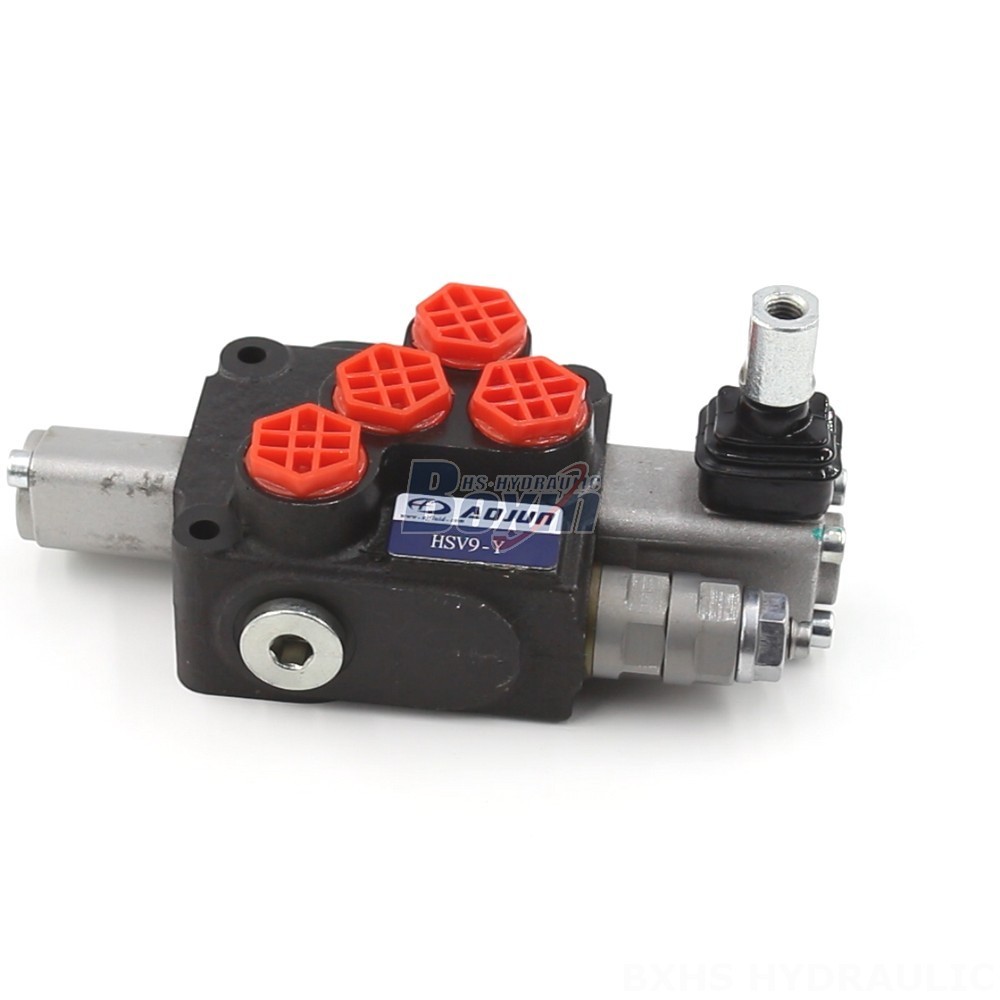

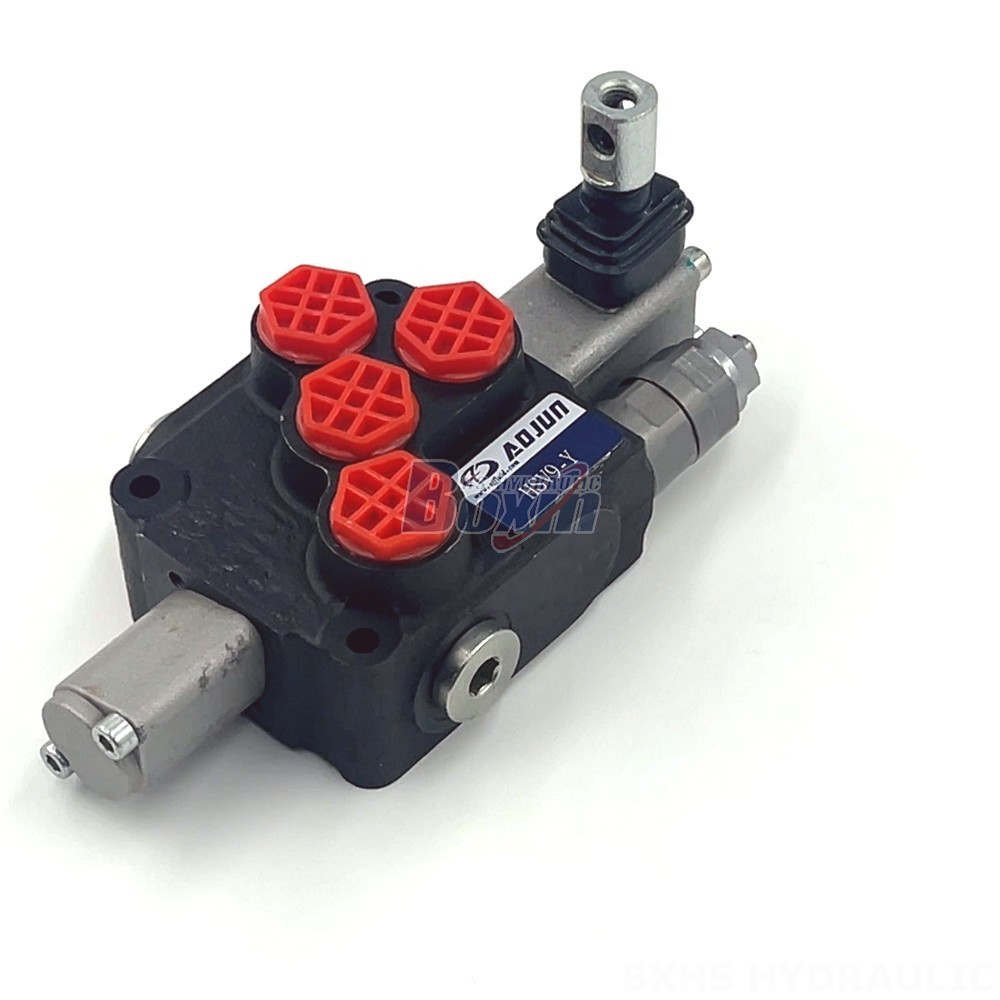

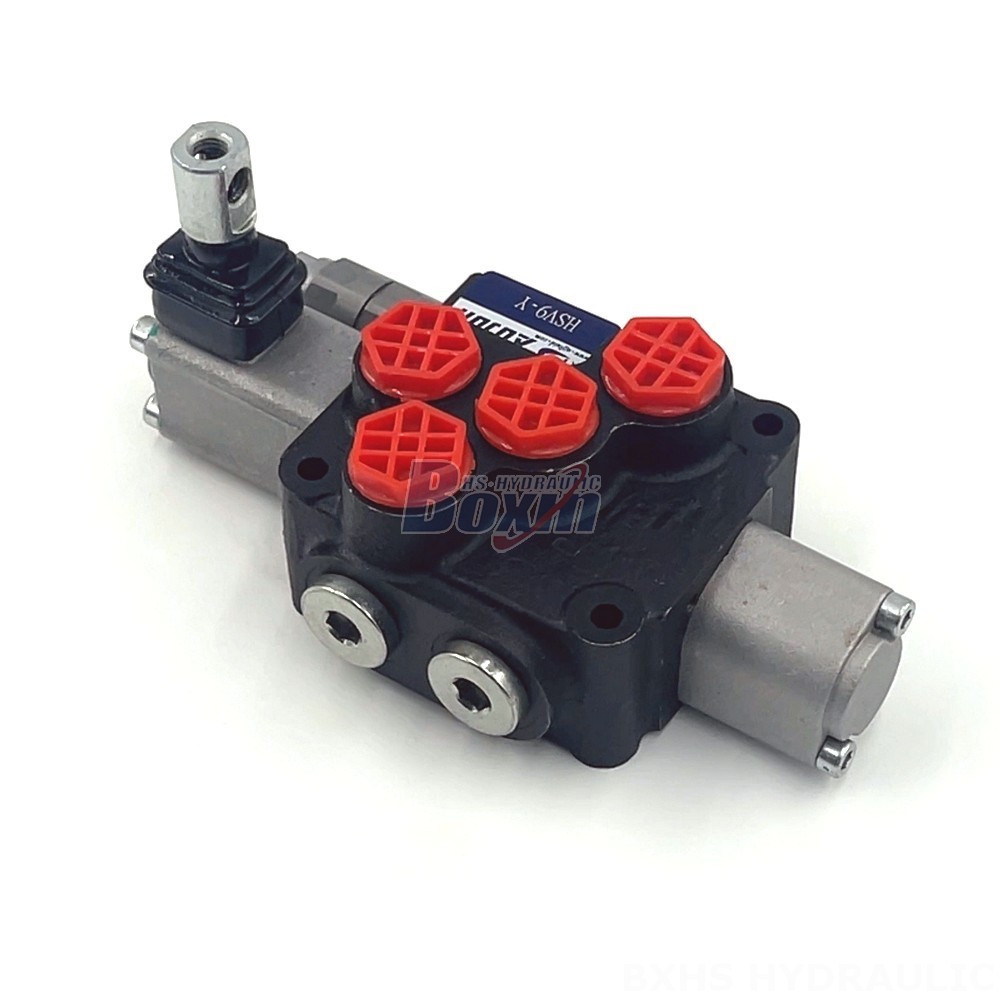

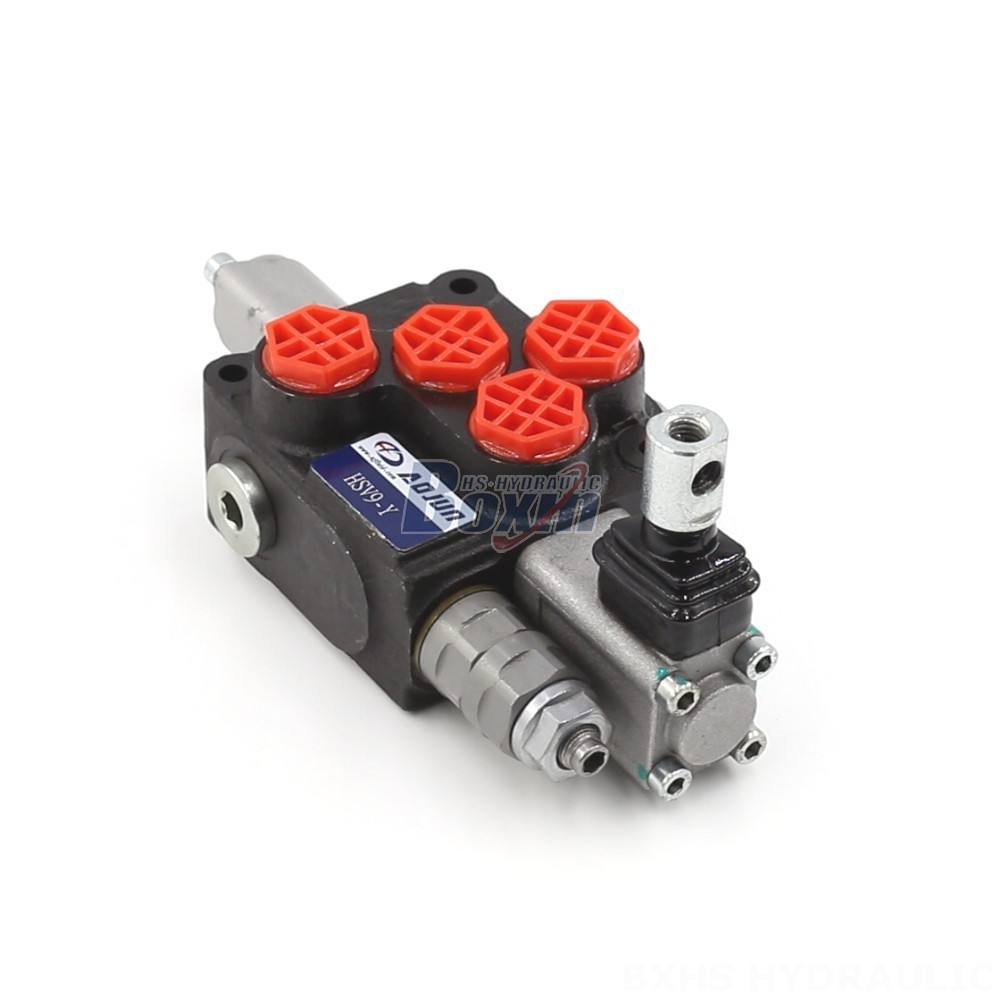

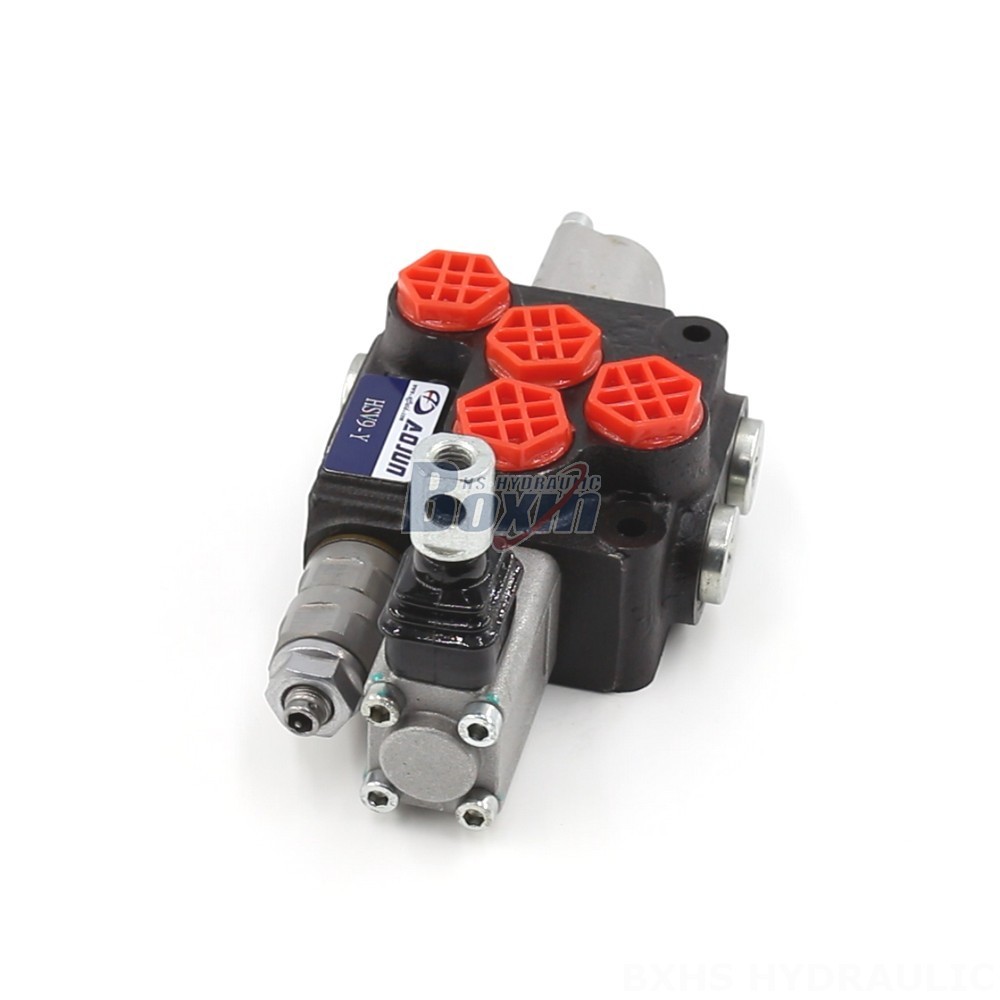

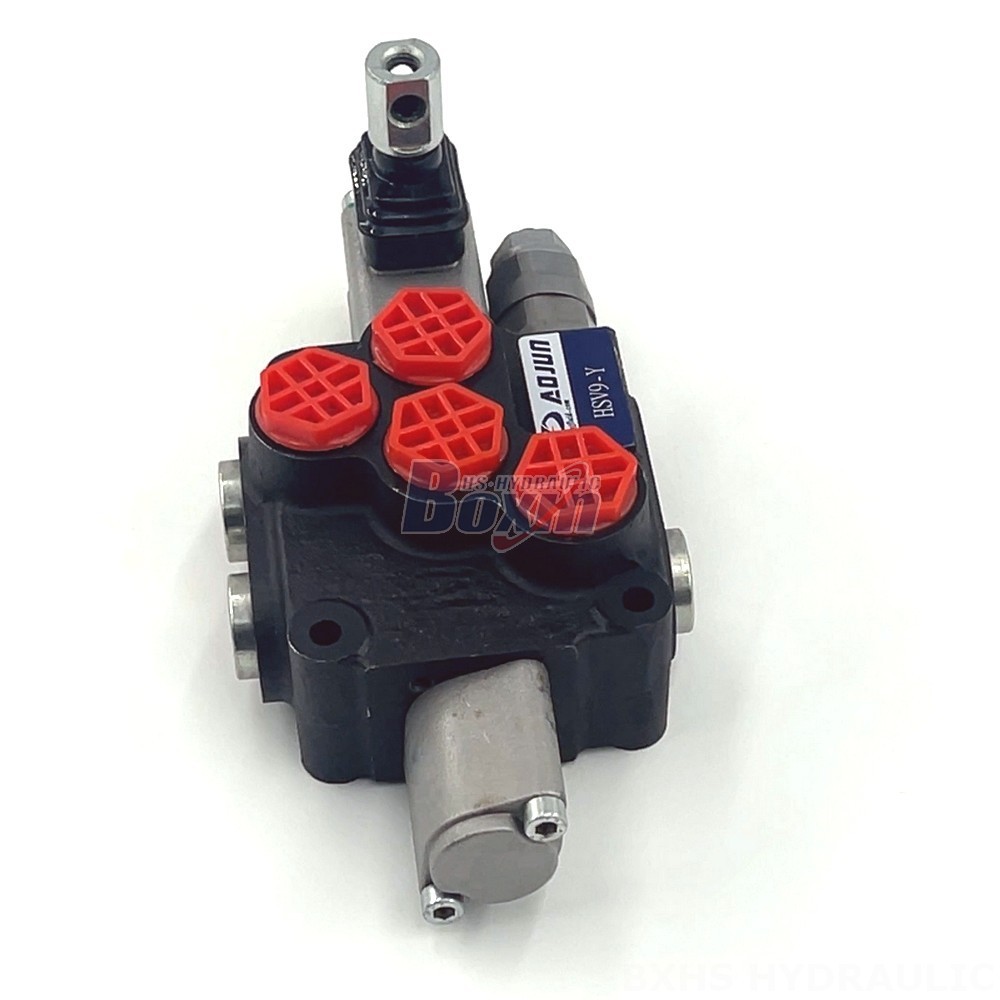

The DCV20 Series Manual Monoblock Directional Valve is a high-performance hydraulic control valve designed for use in a wide range of applications, including tractors, construction equipment, agricultural machinery, and industrial vehicles. It offers manual control, a compact monoblock design, and a rated flow of 20 L/min, making it ideal for various hydraulic systems.
| Seri DCV20 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Elektro-hidraulik, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 20 L/menit (5,2 US gpm) |
| Tekanan Maksimum | 350 bar (5100 psi) |
| Port Masuk | G3/8, M18×1.5, SAE 8, 3/8 NPT |
| Port Keluar | G3/8, M18×1.5, SAE 8, 3/8 NPT |
| Ukuran Port | G3/8, M18×1.5, SAE 8, 3/8 NPT |
The DCV20 Series Manual Monoblock Directional Valve is a robust and reliable hydraulic component designed for demanding applications. It features a compact monoblock structure, providing a space-saving design. The valve offers manual control, allowing for precise operation of hydraulic actuators. With a rated flow of 20 L/min and a maximum pressure rating of 350 bar, this valve is suitable for various hydraulic systems in tractors, construction equipment, agricultural machinery, and industrial vehicles. Its wide operating viscosity range and ambient temperature range ensure reliable performance in diverse environments. The DCV20 Series is available for wholesale and OEM applications, offering flexibility for manufacturers and distributors.
