Manual Monoblock Directional Valve - P80-AQF-G Series | Wholesale & OEM

Metode Kontrol:Buku Panduan

Spul:6 Spool

Aliran Terukur:80 L/menit (21,2 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P80 Katup Arah Monoblok

Ukuran kemasan:26*36*11

Kelas kotor:18.60 kg

Ketersediaan: Tersedia

1313 Pandangan Mencari Produk Ini

Manual Monoblock Directional Valve - P80-AQF-G Series | Wholesale & OEM

Manual Monoblock Directional Valve - P80-AQF-G Series | Wholesale & OEM

Manual Monoblock Directional Valve - P80-AQF-G Series | Wholesale & OEM drawing image

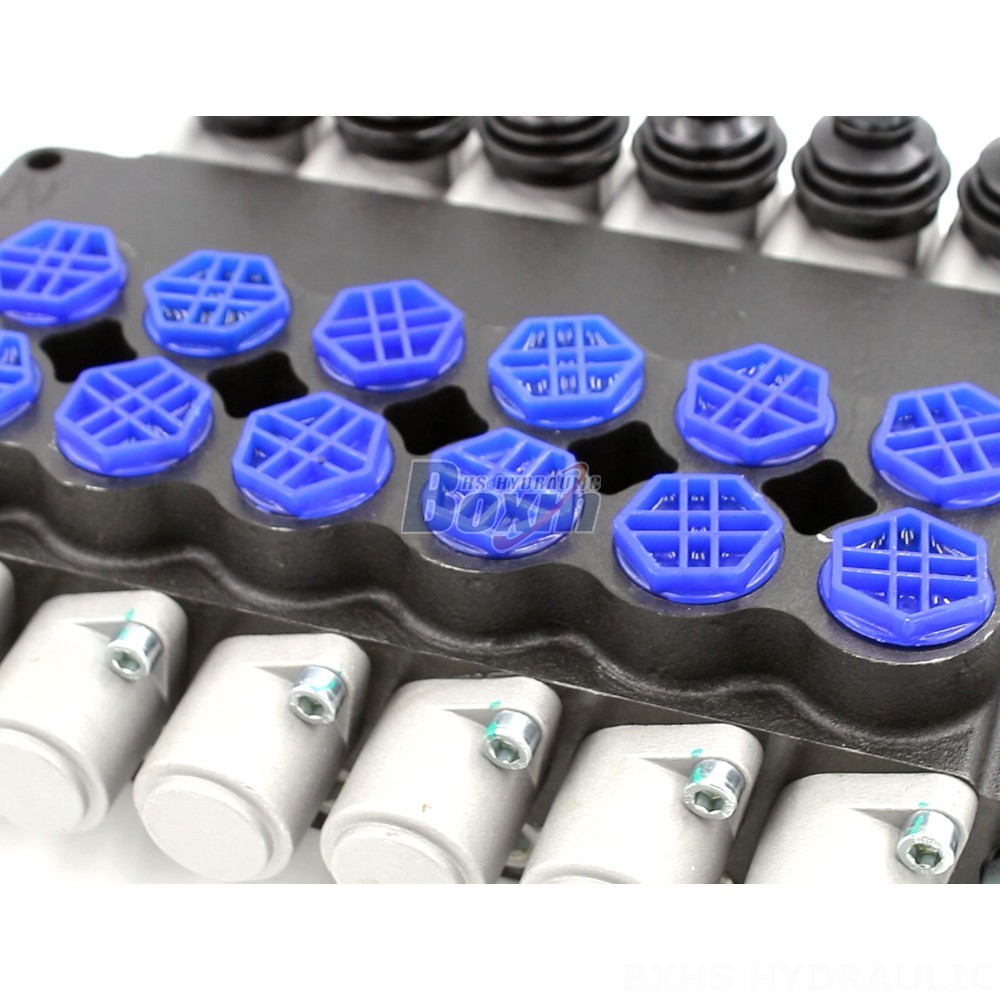

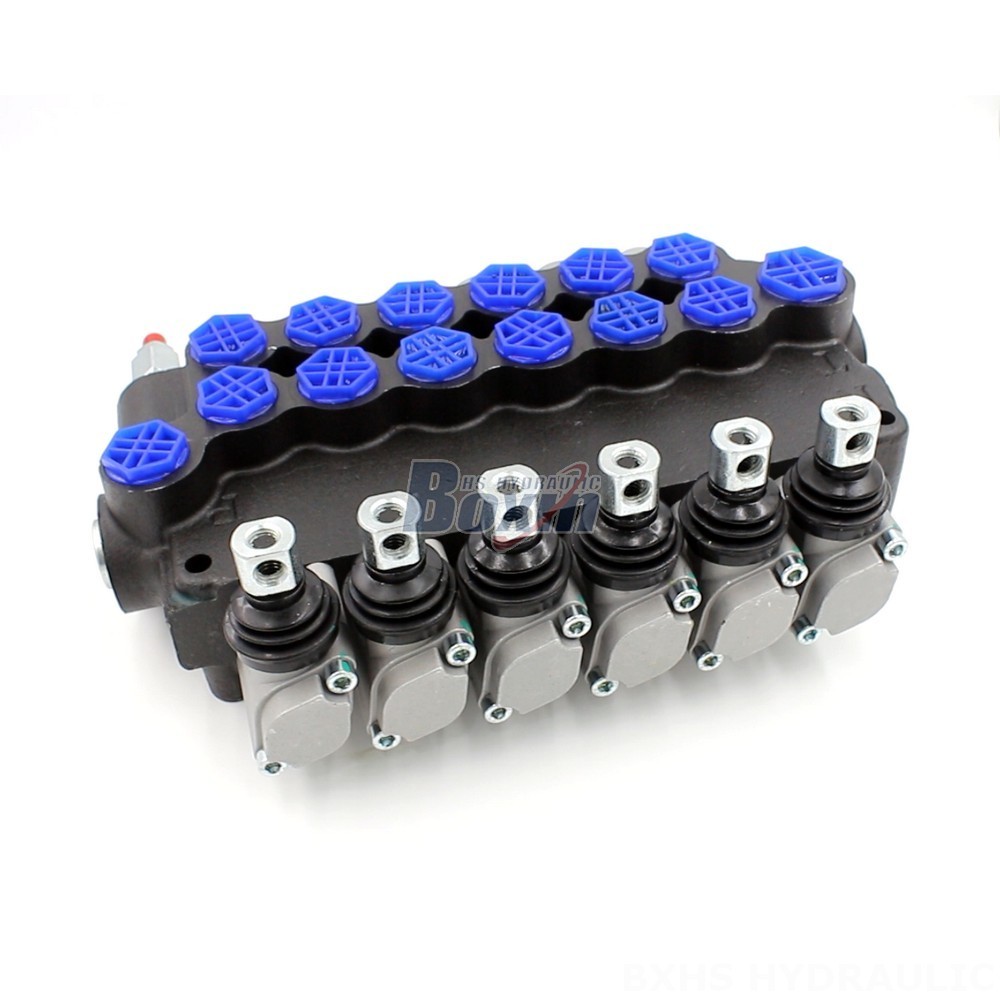

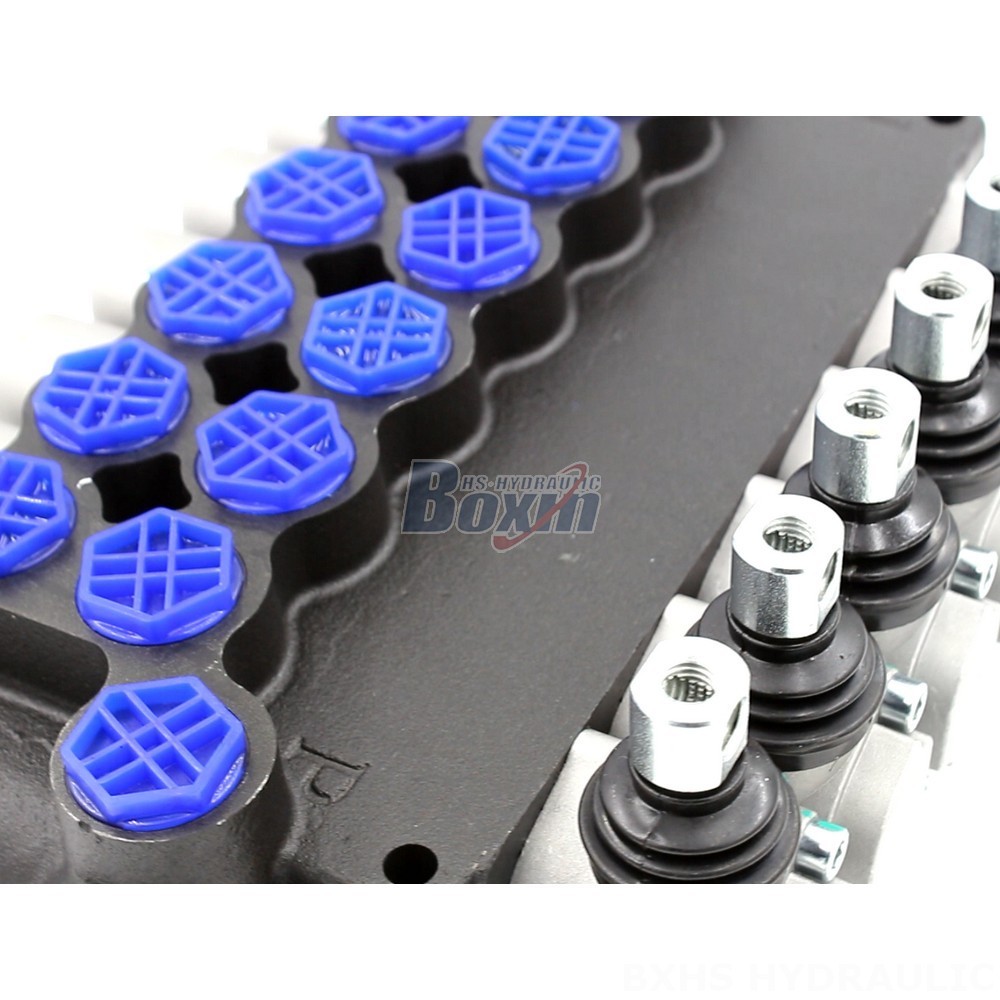

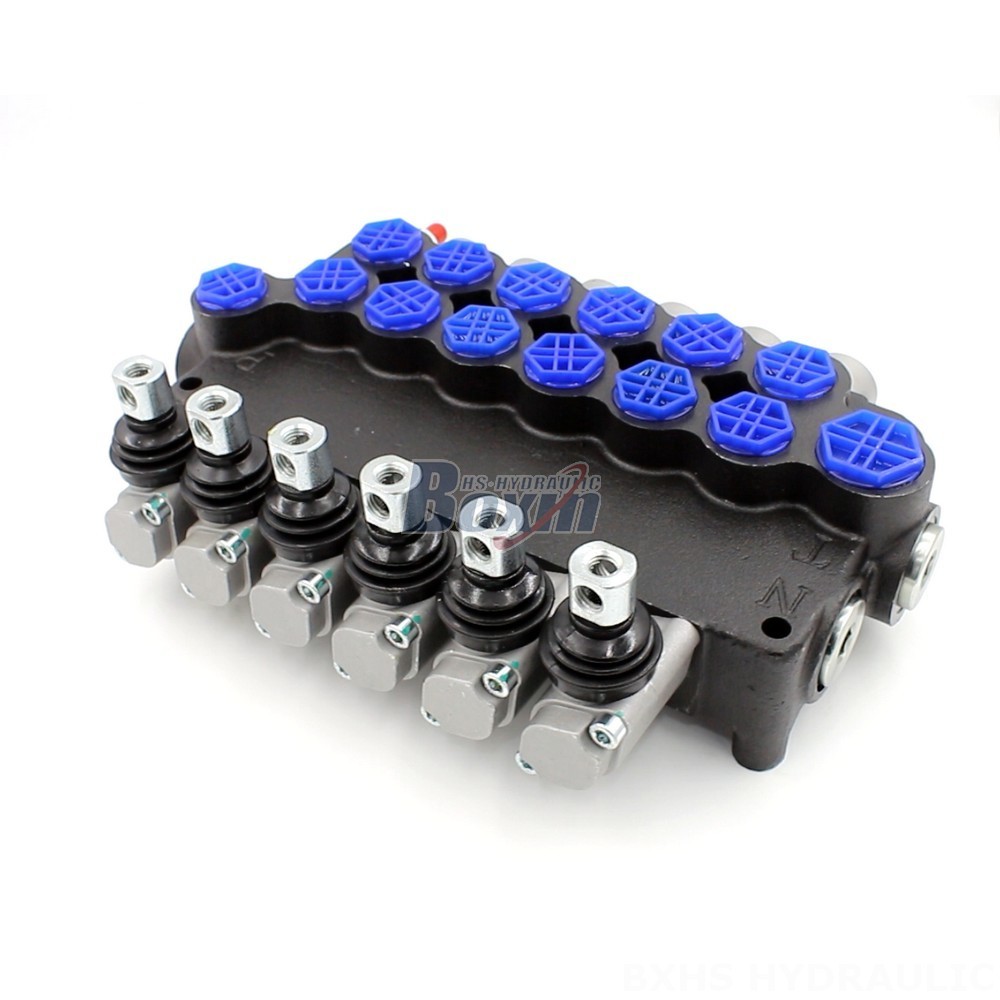

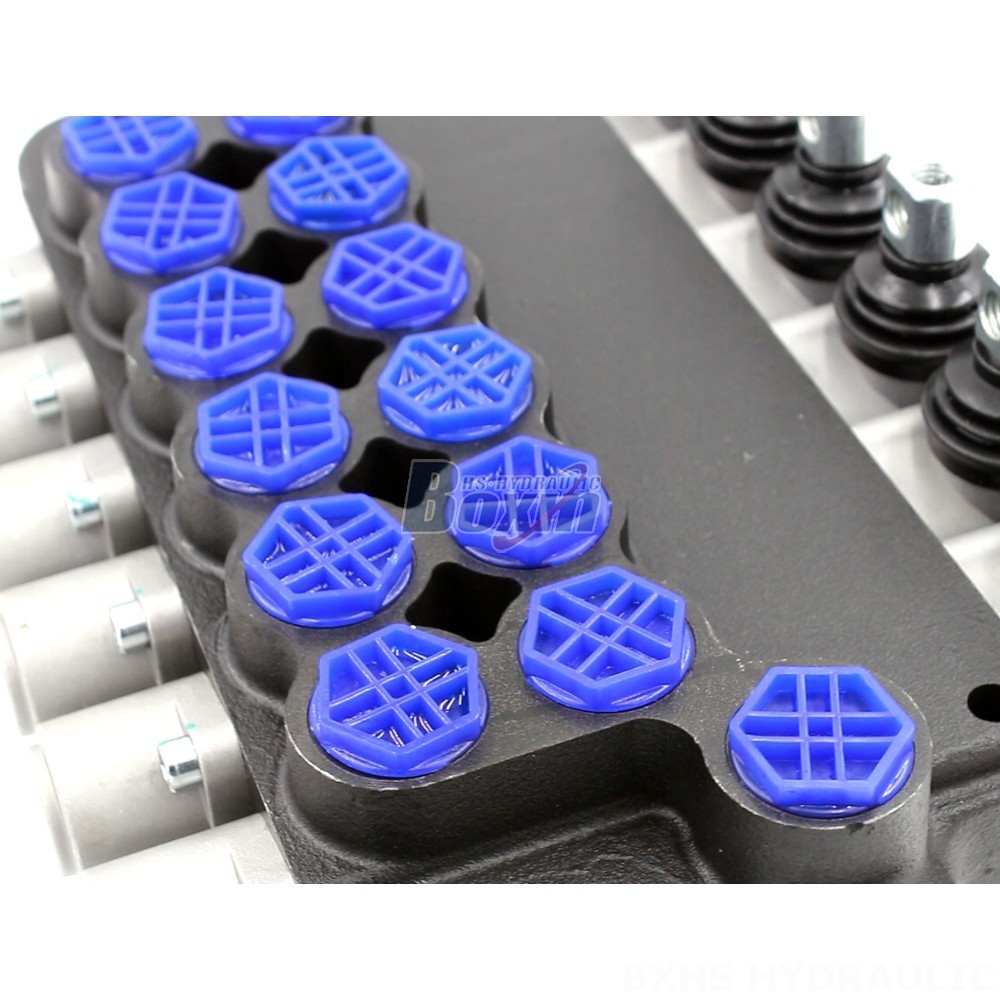

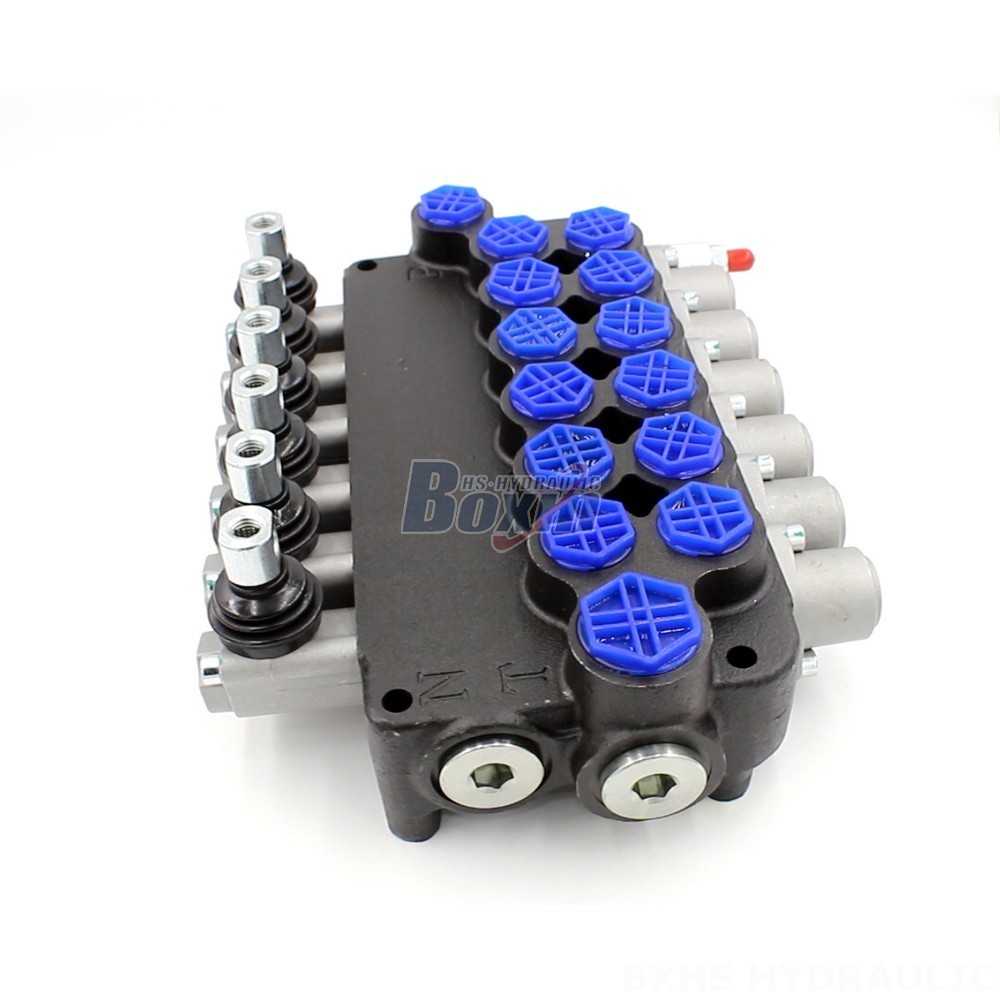

The P80-AQF-G series is a robust 6-section manual monoblock directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for various machinery including telehandlers, forklifts, cranes, and excavators. Available for wholesale and OEM orders, this valve offers reliability and performance for your hydraulic system.

Seri P80 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 80 L/menit (21,2 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Ukuran Port G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

The Fabricado En China Manual Monoblock Directional Valve - P80-AQF-G Series is a high-performance hydraulic valve designed for heavy-duty applications. It features a 6-section monoblock design, a rated flow of 80 L/min (21.2 US gpm), and a maximum pressure of 250 bar (3600 psi). This valve is suitable for a wide range of applications including material handling, construction, agriculture, and industrial vehicles. It is compatible with various machines like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The valve offers excellent flow control, durability, and reliability, making it a suitable choice for demanding hydraulic systems. We provide wholesale and OEM options to meet your specific requirements.
