The P80-U78-4OT series is a 4-section, manual monoblock directional valve designed for exceptional performance in demanding applications. Suitable for a wide range of industries, including material handling, construction, and agriculture, this valve offers exceptional control and reliability with a rated flow of up to 80 L/min, a max pressure of 250 bar, and a broad operating viscosity range.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

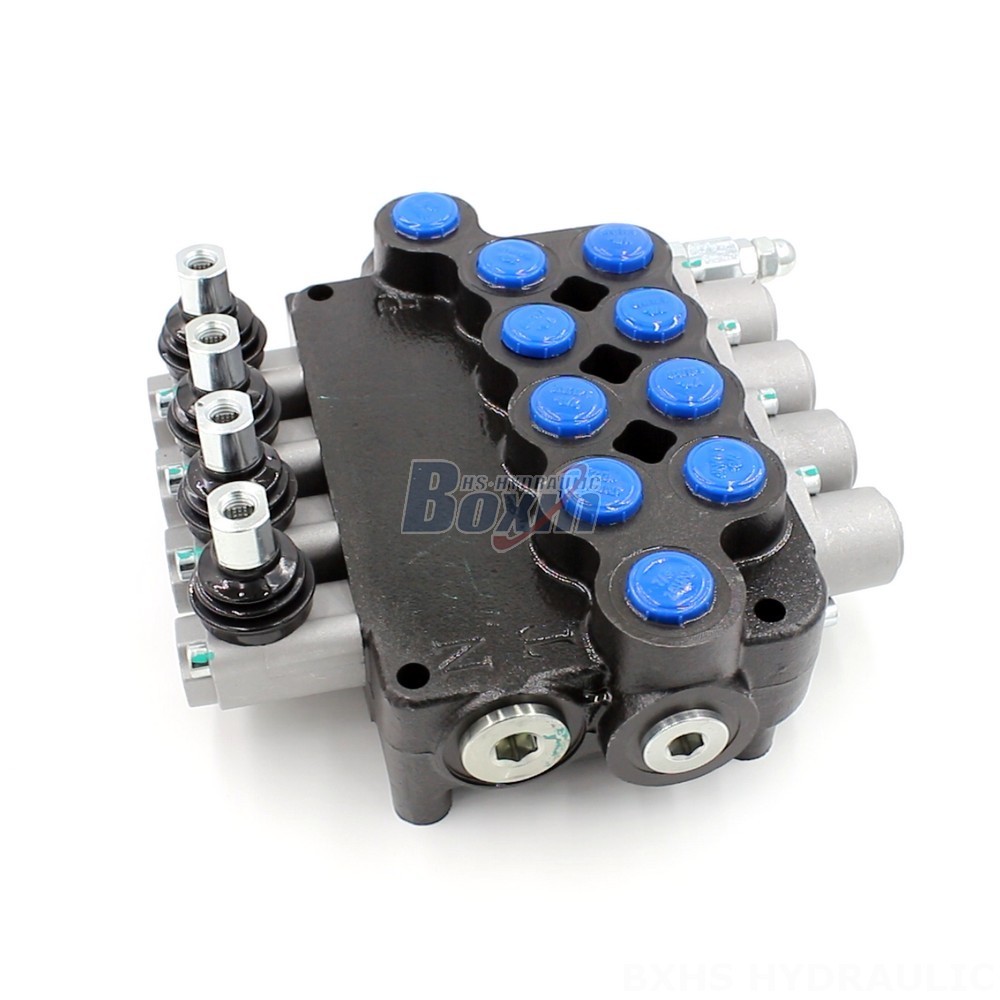

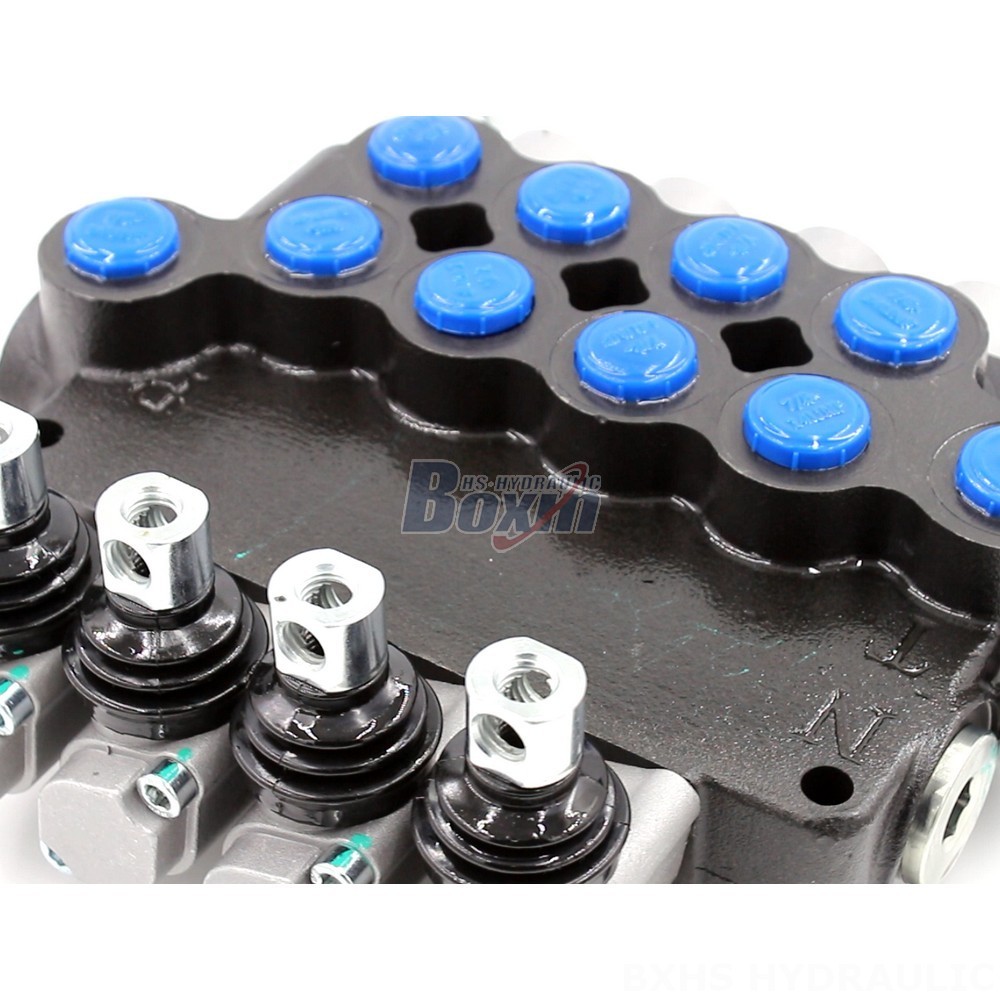

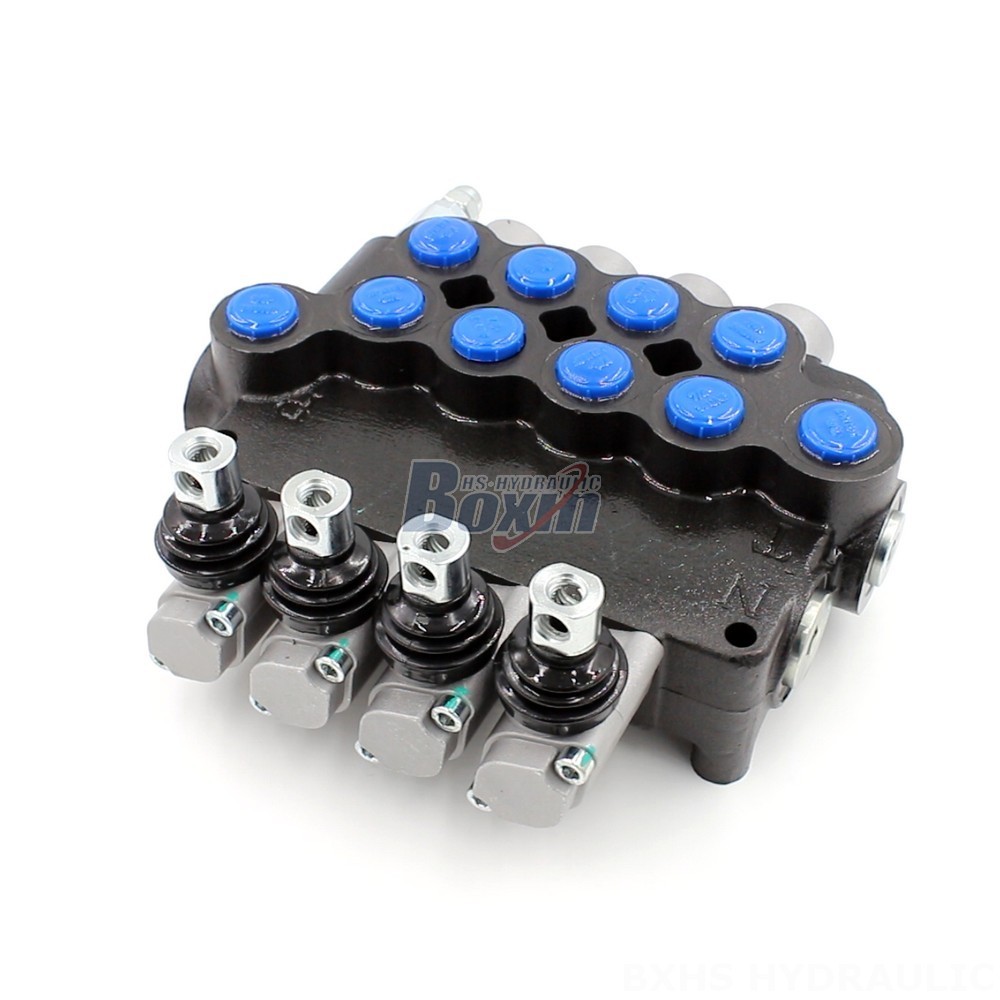

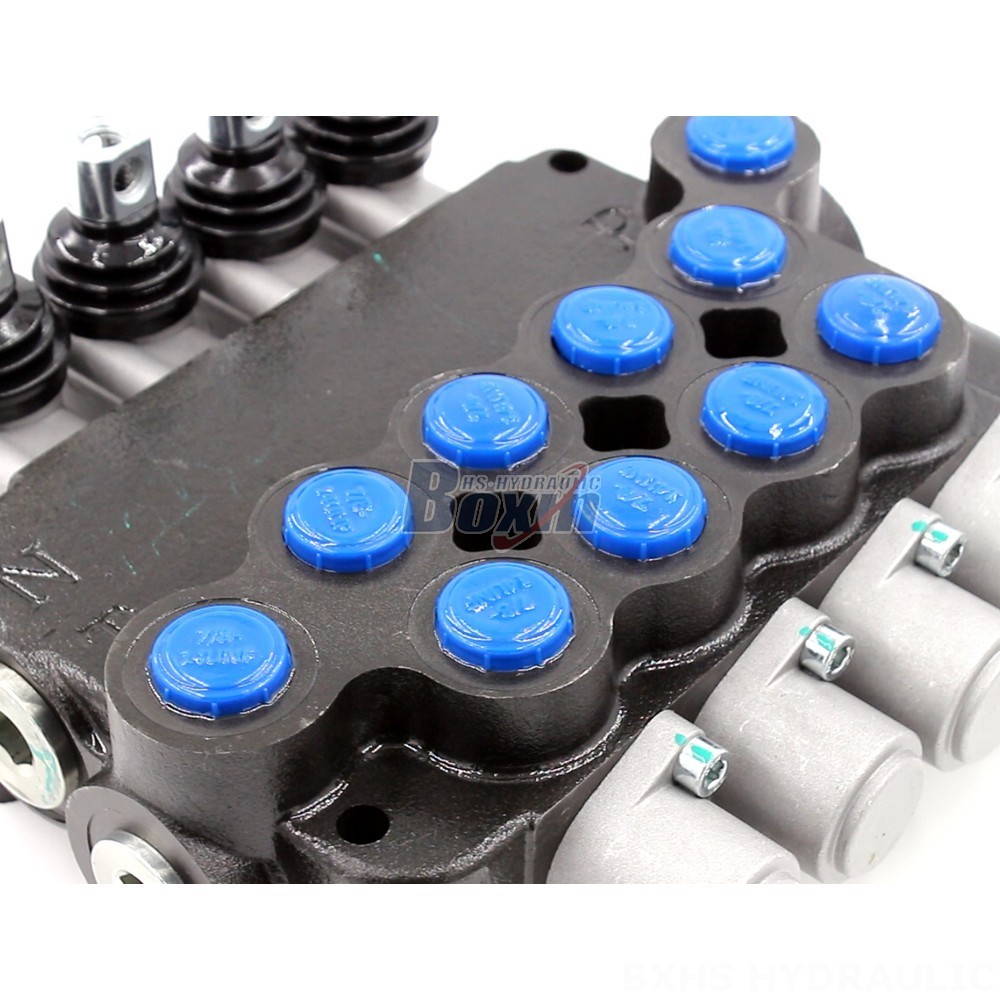

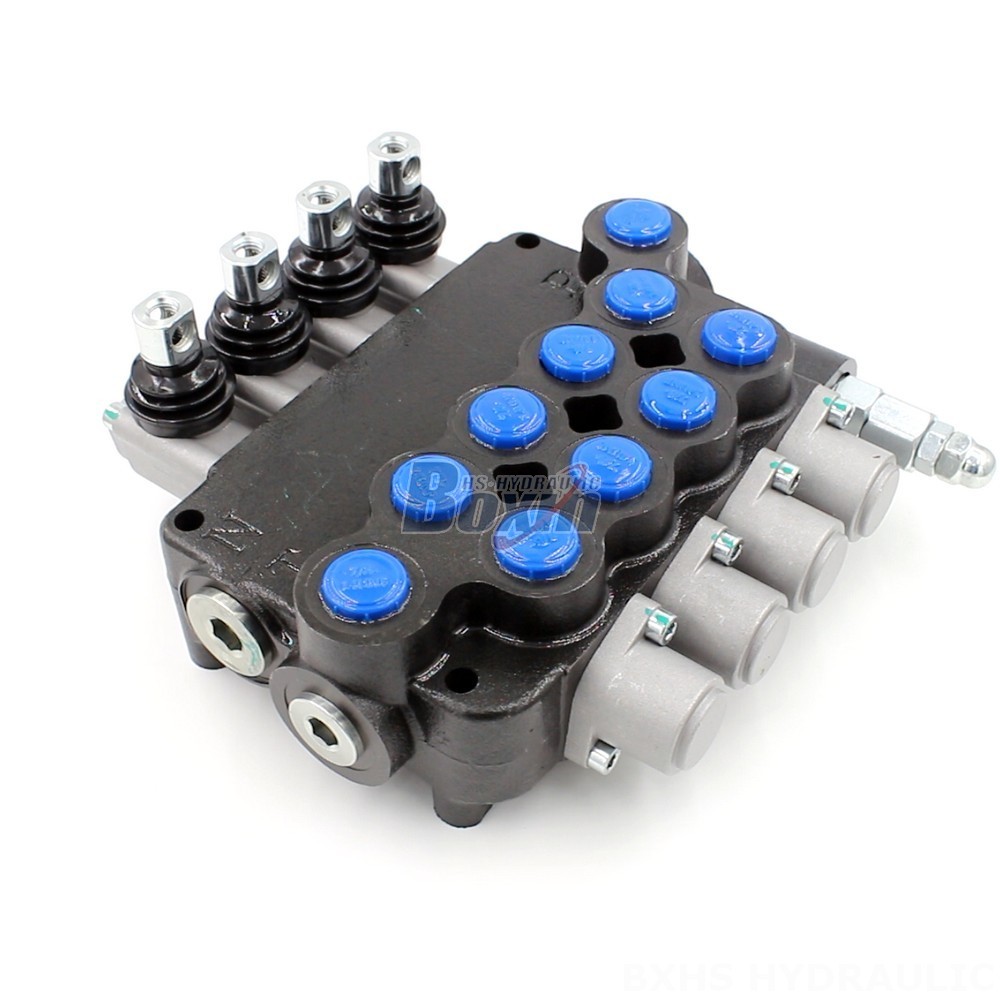

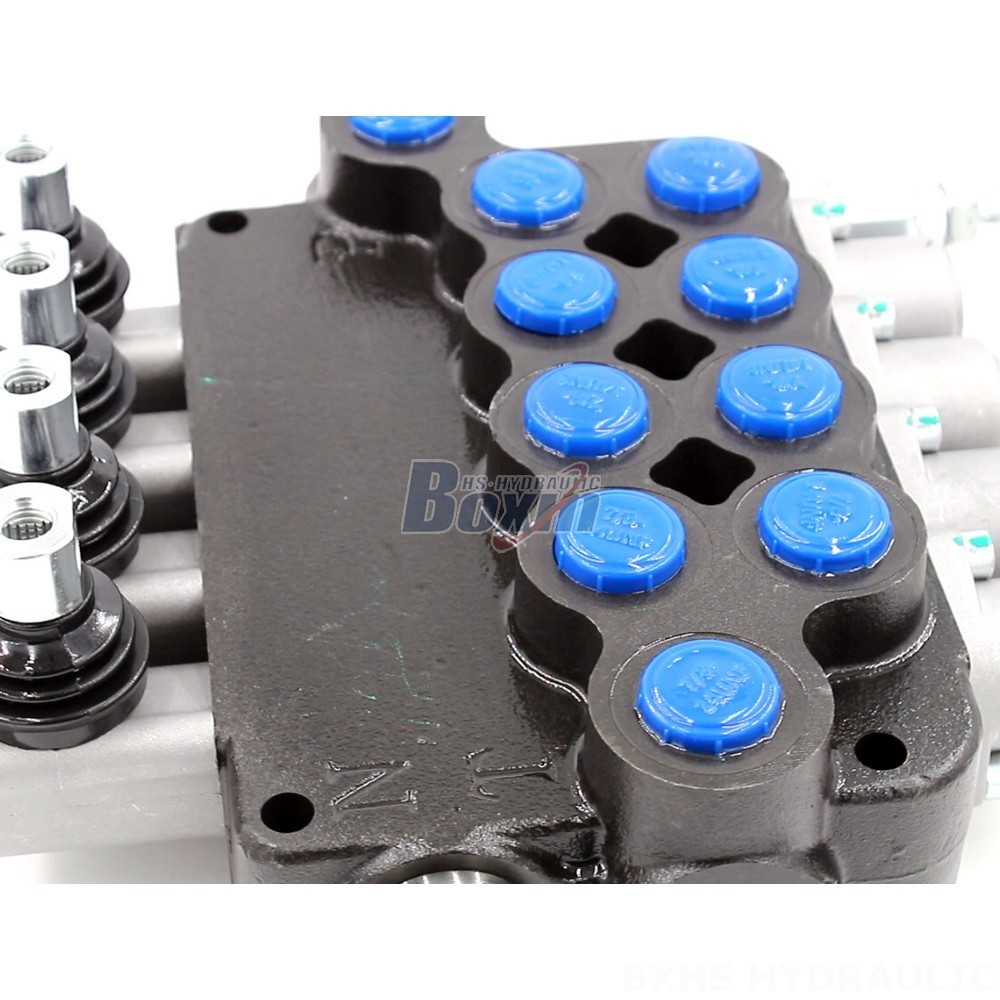

**P80-U78-4OT Series Manual Monoblock Directional Valve: Engineered for Performance**
**Control Method:** Manual
**Section:** 4 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 4 Spool
**Series:** P80 Series
**Key Features:**
- Robust and durable monoblock construction
- High flow capacity and pressure rating
- Precise and reliable manual control
- Versatile design suitable for a variety of applications
**Applications:**
- Material Handling Equipment (Forklifts, Telehandlers)
- Construction and Earth Moving Machinery (Excavators, Loaders)
- Agricultural Vehicles (Tractors, Harvesters)
- Industrial Vehicles (Aerial Platforms, Compact Loaders)
