P80-U78-OT Series Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, such as forklifts. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation in various industrial settings.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

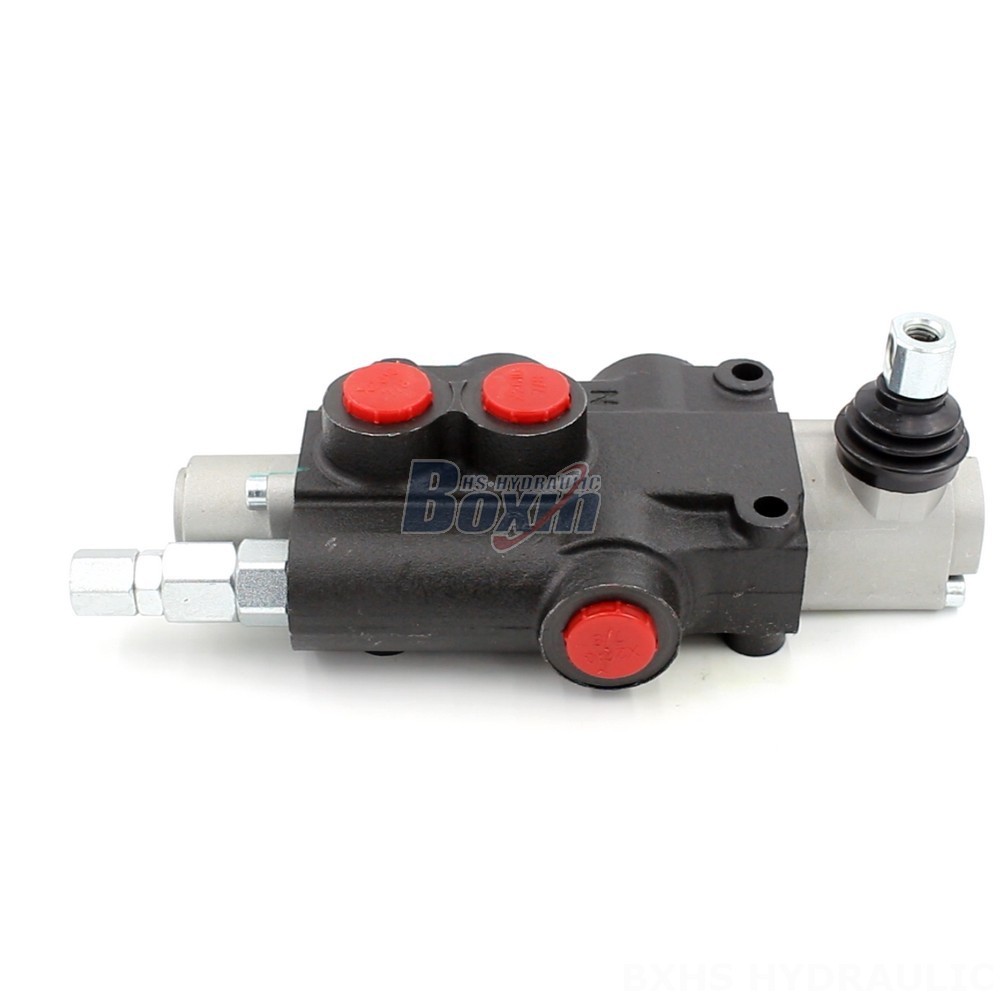

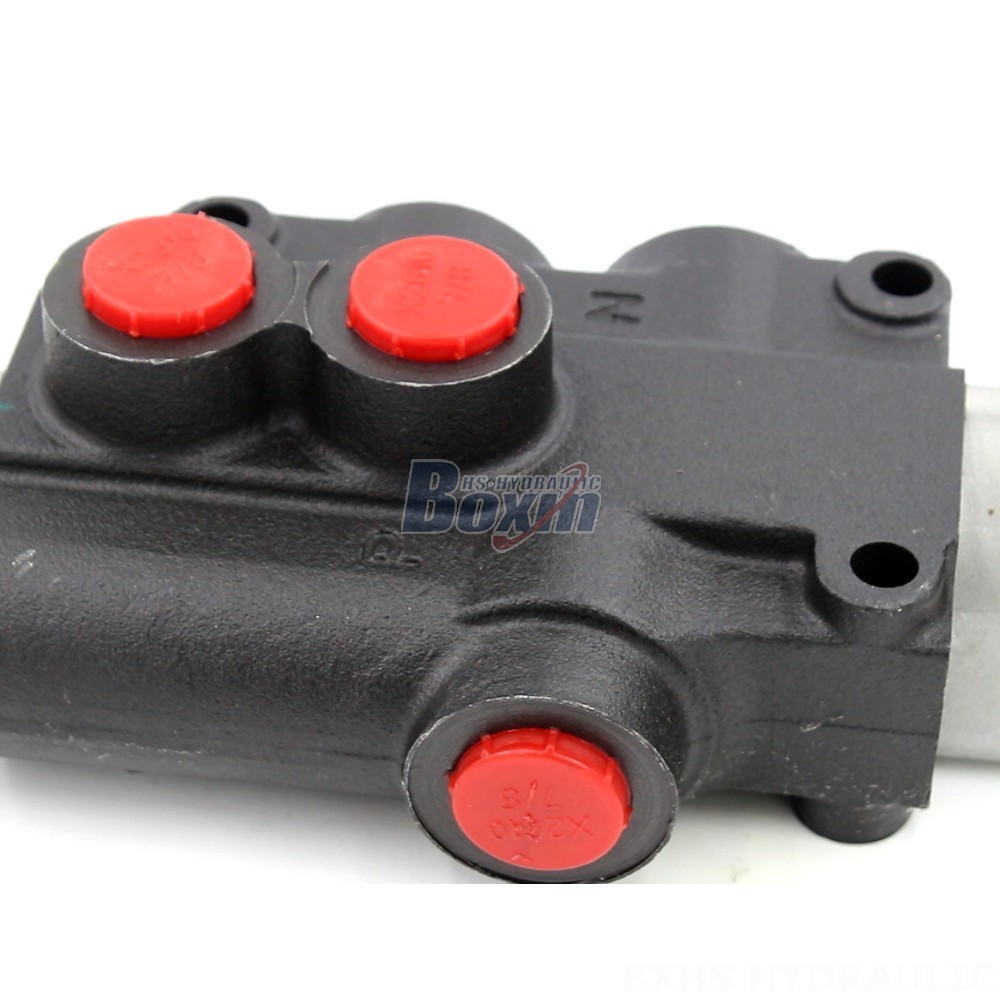

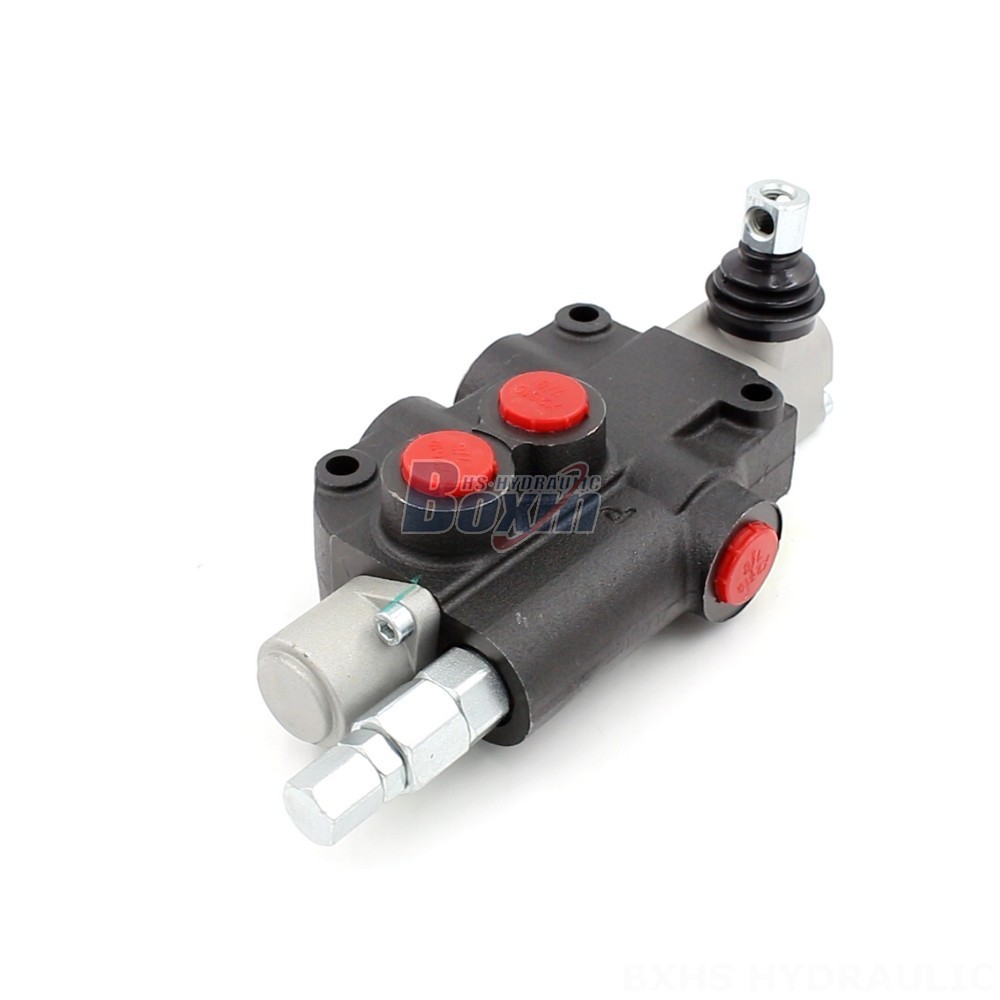

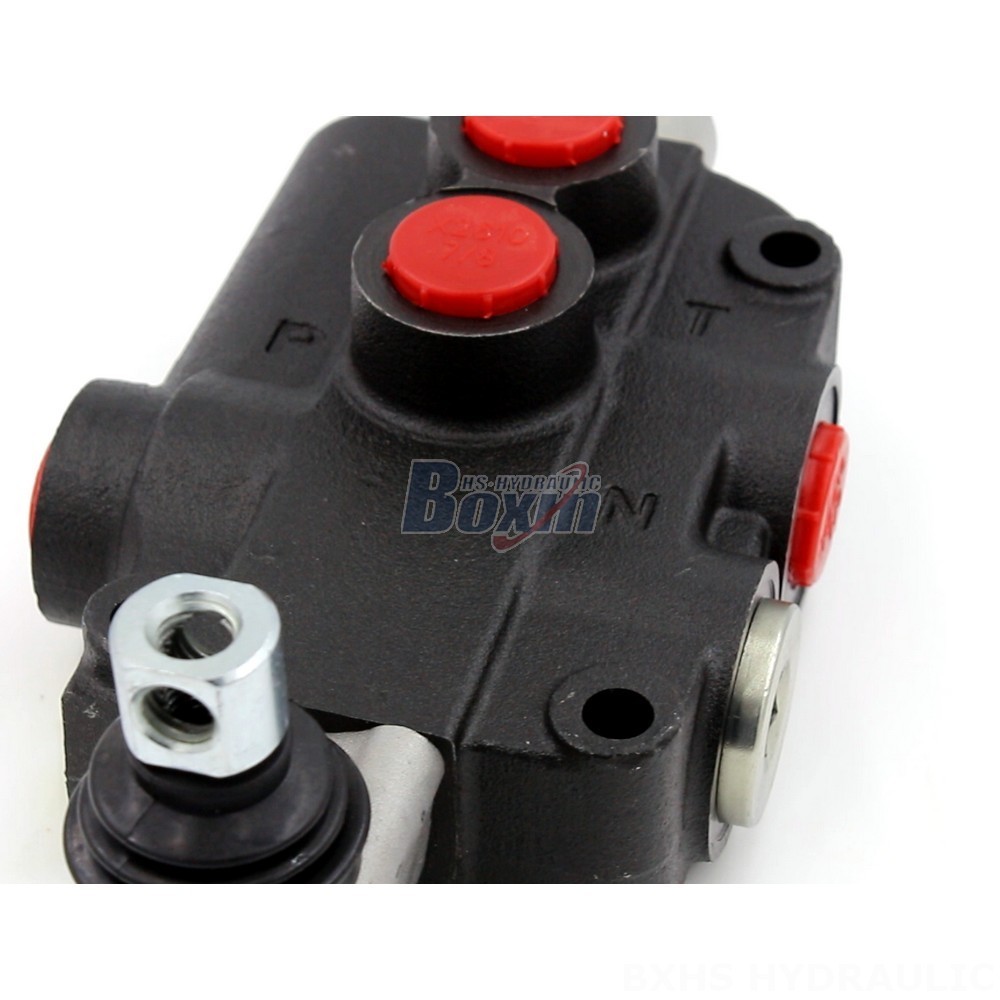

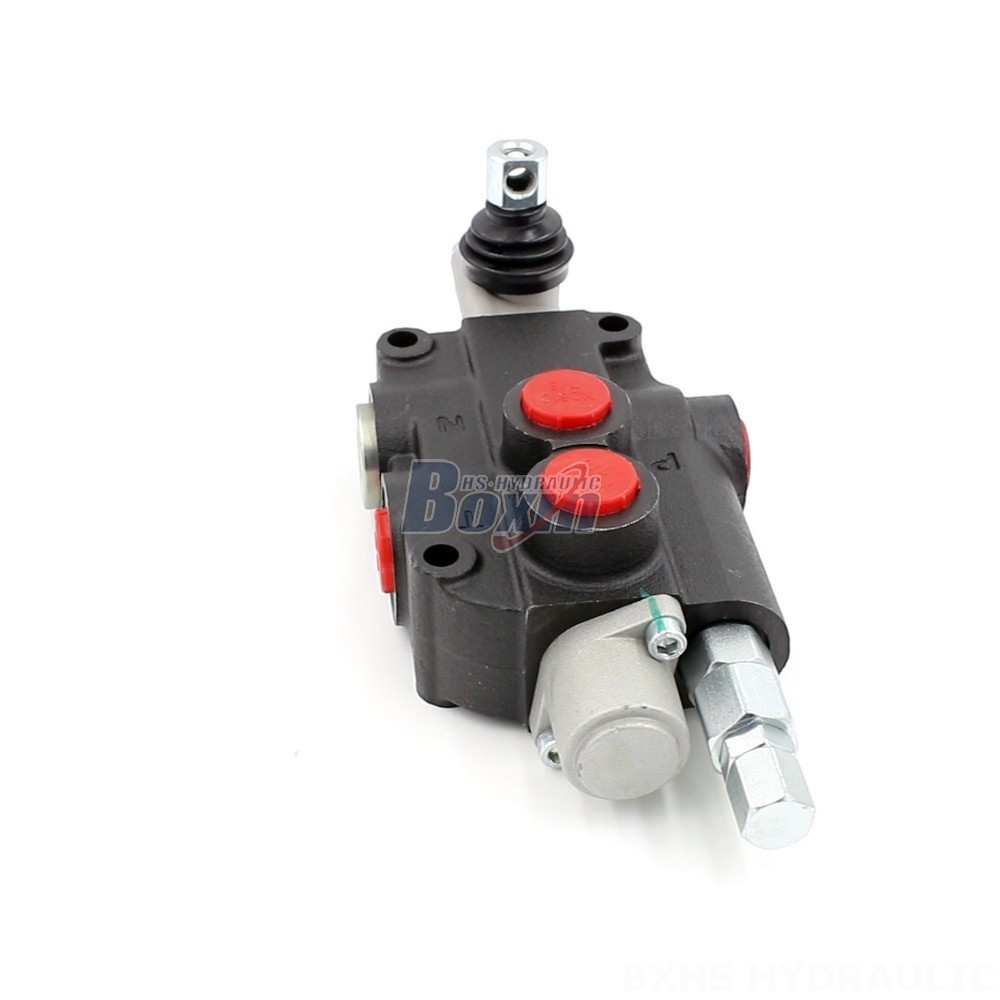

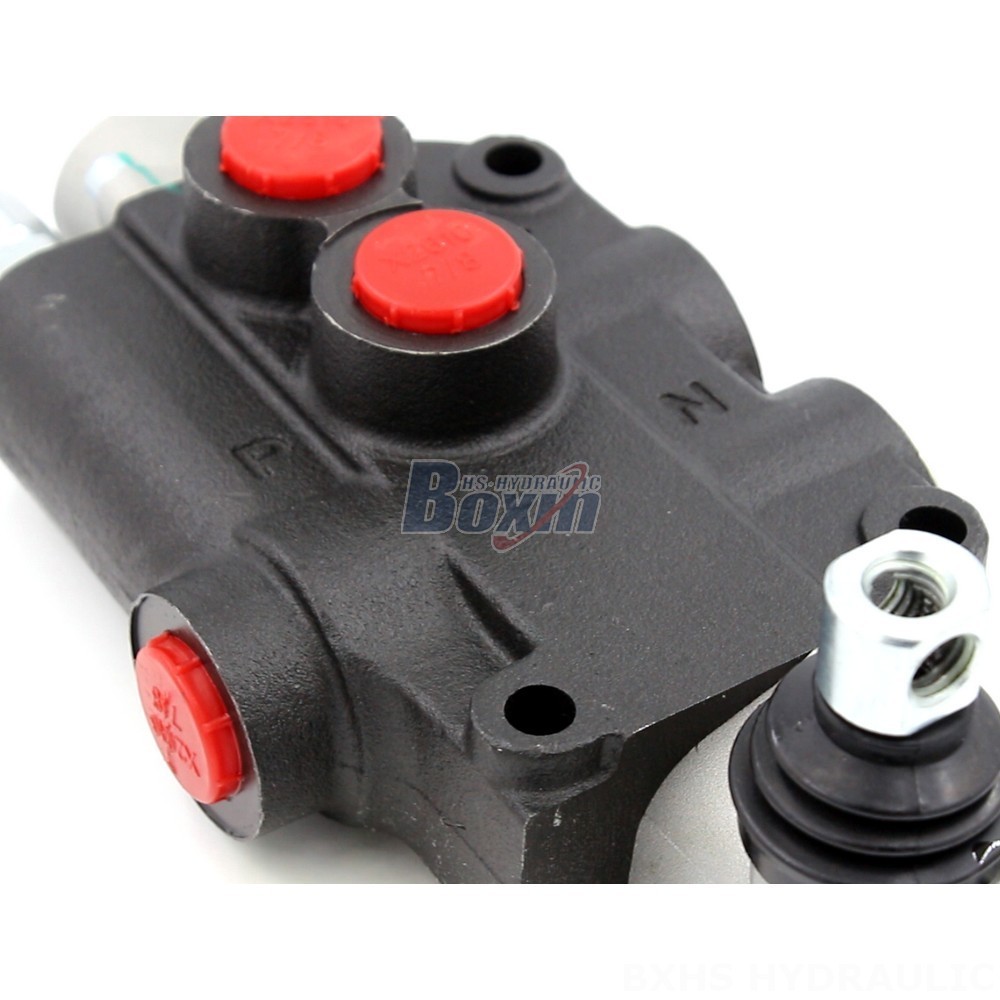

**Manual Monoblock Directional Valve - P80-U78-OT Series**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Application Area:** MATERIAL HANDLING
**Applicable Model:** FORKLIFT
The P80-U78-OT Series Manual Monoblock Directional Valve is designed for use in hydraulic systems requiring precise control of fluid flow. Its monoblock construction ensures durability and leak-free operation, while the manual control provides reliable and responsive operation. It is an ideal choice for applications where accurate and efficient flow control is critical, such as in forklifts and other material handling equipment.
