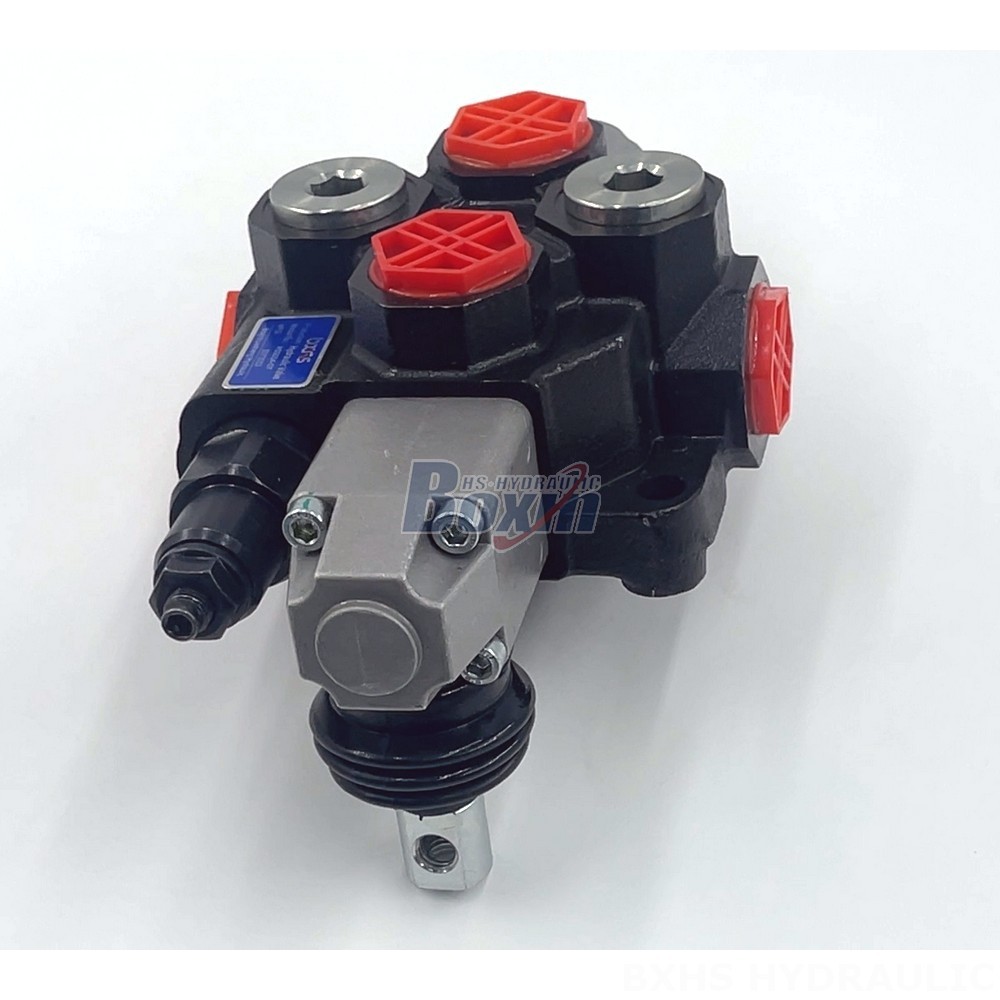

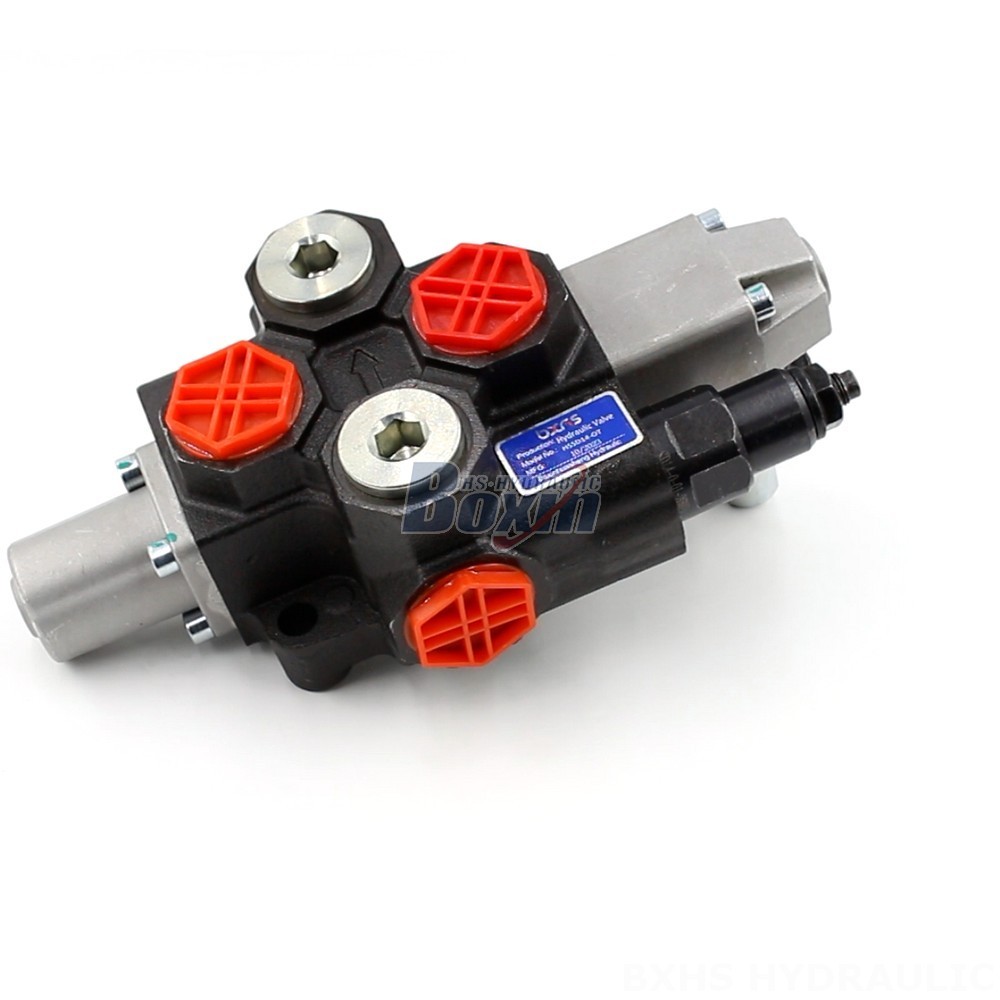

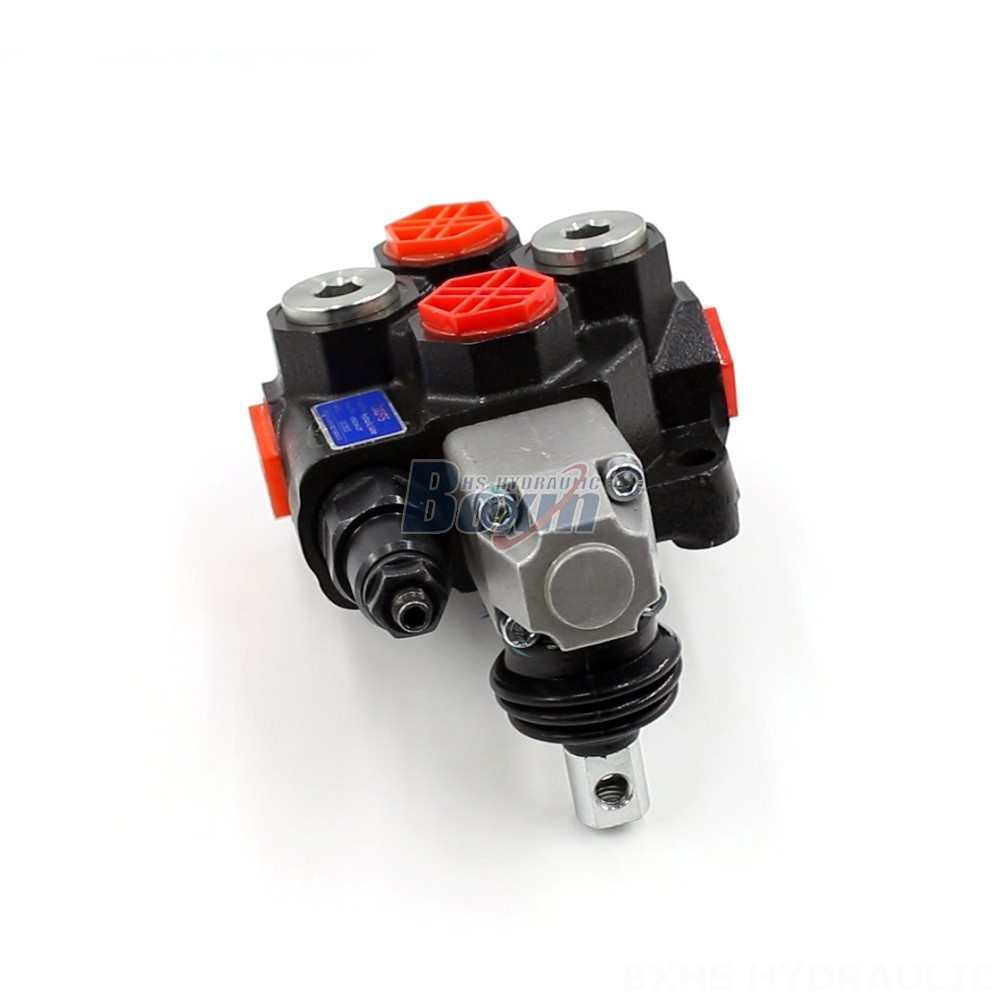

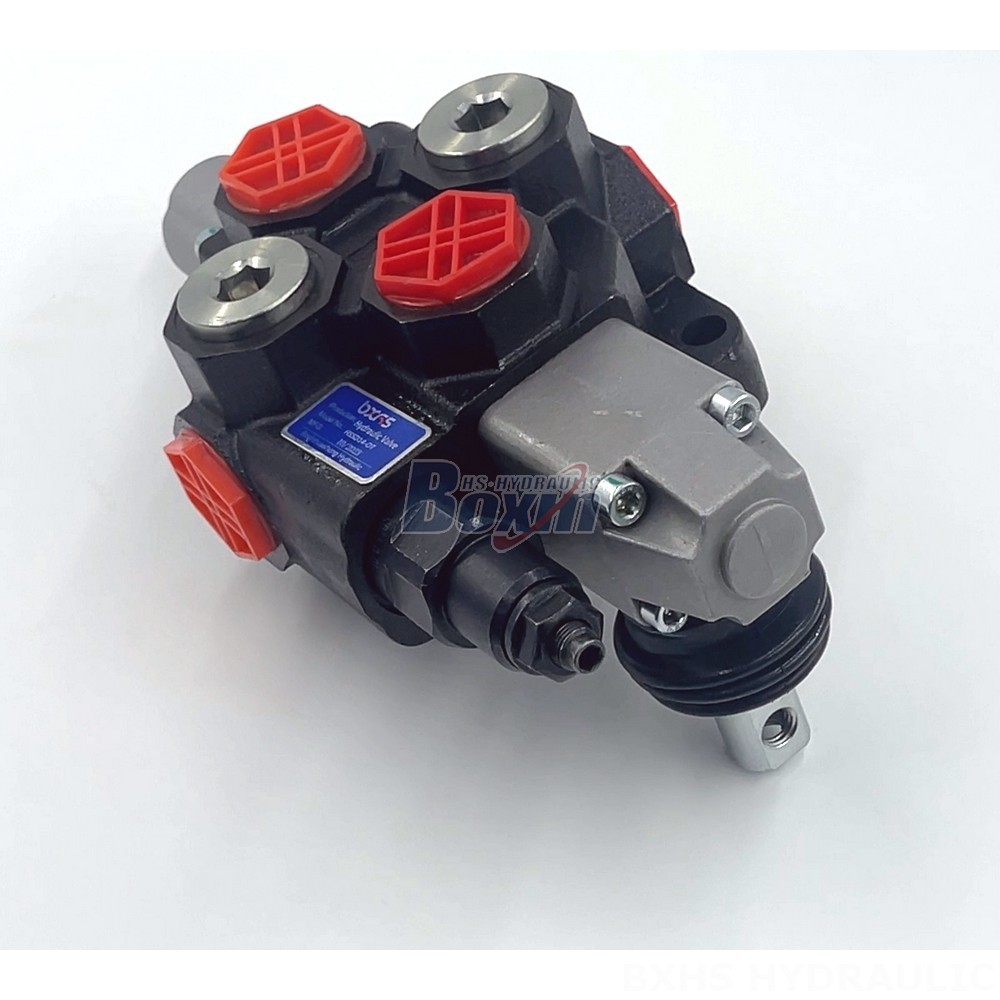

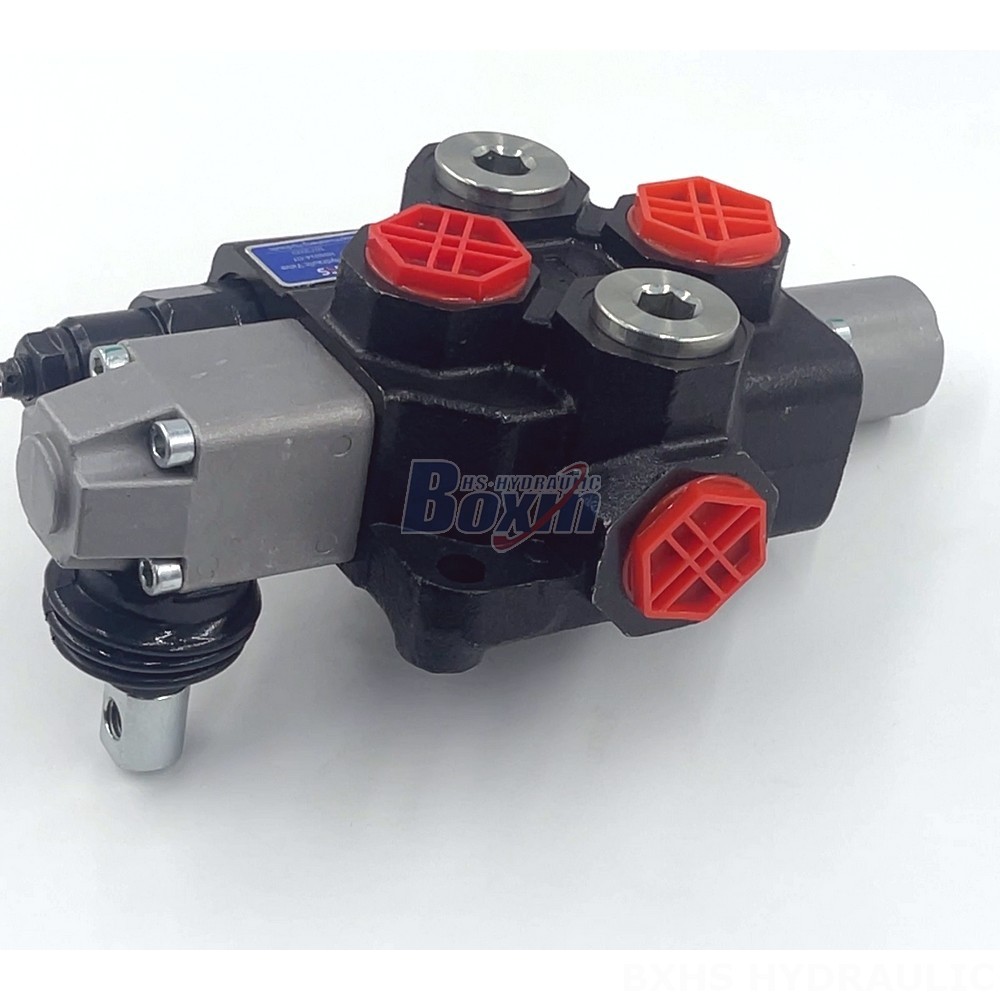

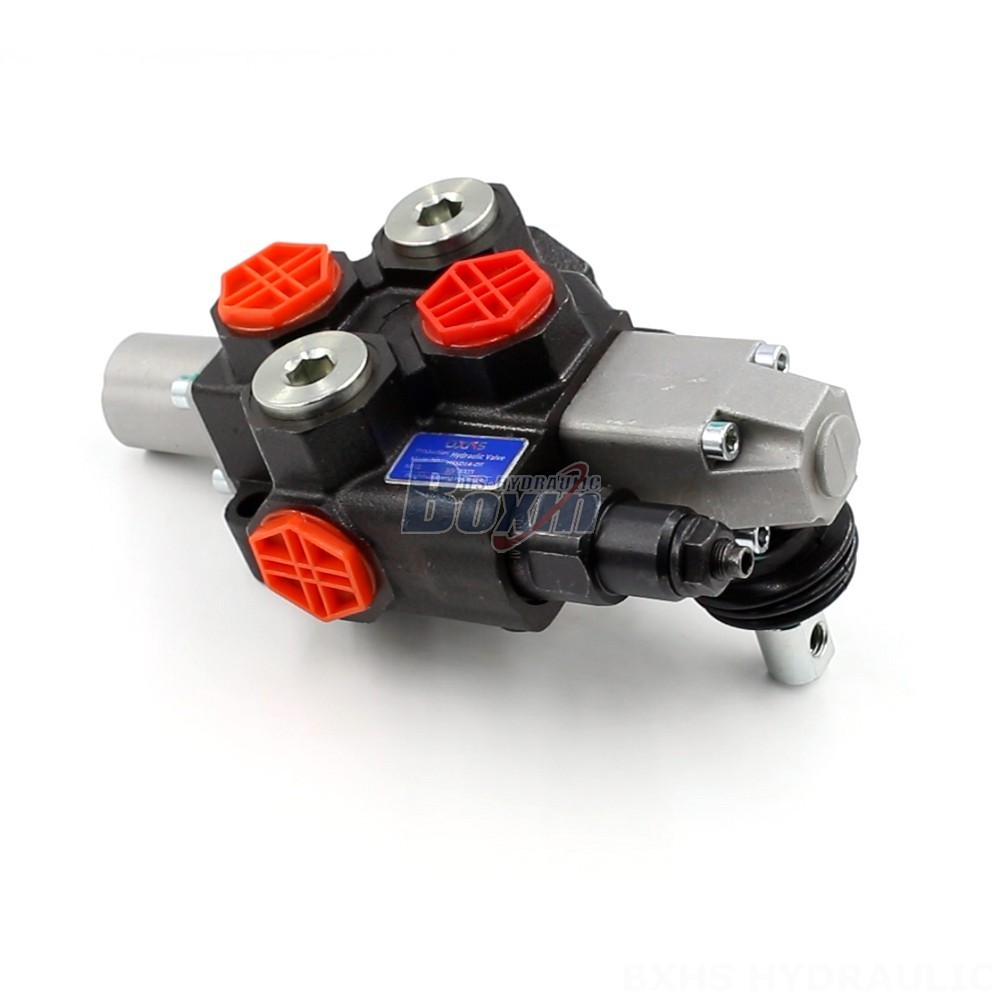

Manual Monoblock Directional Valve - SD14 Series | Wholesale & OEM

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:120 L/min (31,7 US gpm)

Tekanan Maksimum:305 bar (4400 psi)

Port Masuk:G3/4

Port Keluar:G3/4

Ukuran Port:G3/4

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri SD14 Katup Arah Monoblok

Ukuran kemasan:15*26*15

Kelas kotor:6.80 kg

Ketersediaan: Tersedia

1251 Pandangan Mencari Produk Ini

Manual Monoblock Directional Valve - SD14 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD14 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD14 Series | Wholesale & OEM drawing image

The SD14 Series Hydraulic Electric Generator Manual Monoblock Directional Valve is a high-performance valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. This manual control valve features a monoblock construction for reliability and durability, with a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi).

Seri SD14 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Hidraulis
Spul 1 Spool
Kisaran Suhu Sekitar -40°C hingga +60°C (-40°F hingga +140°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 120 L/min (31,7 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G3/4
Port Keluar G3/4
Ukuran Port G3/4

The SD14 Series Hydraulic Electric Generator Manual Monoblock Directional Valve is a robust and reliable valve ideal for demanding applications. This 1-section, manual control valve utilizes a monoblock design for strength and durability. It offers a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), making it suitable for a variety of applications. The valve is designed to operate in a wide temperature range of -40°C to +60°C (-40°F to +140°F). Its versatility makes it applicable for various equipment including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This valve can be purchased wholesale or OEM, enabling manufacturers to integrate it into their own equipment.
