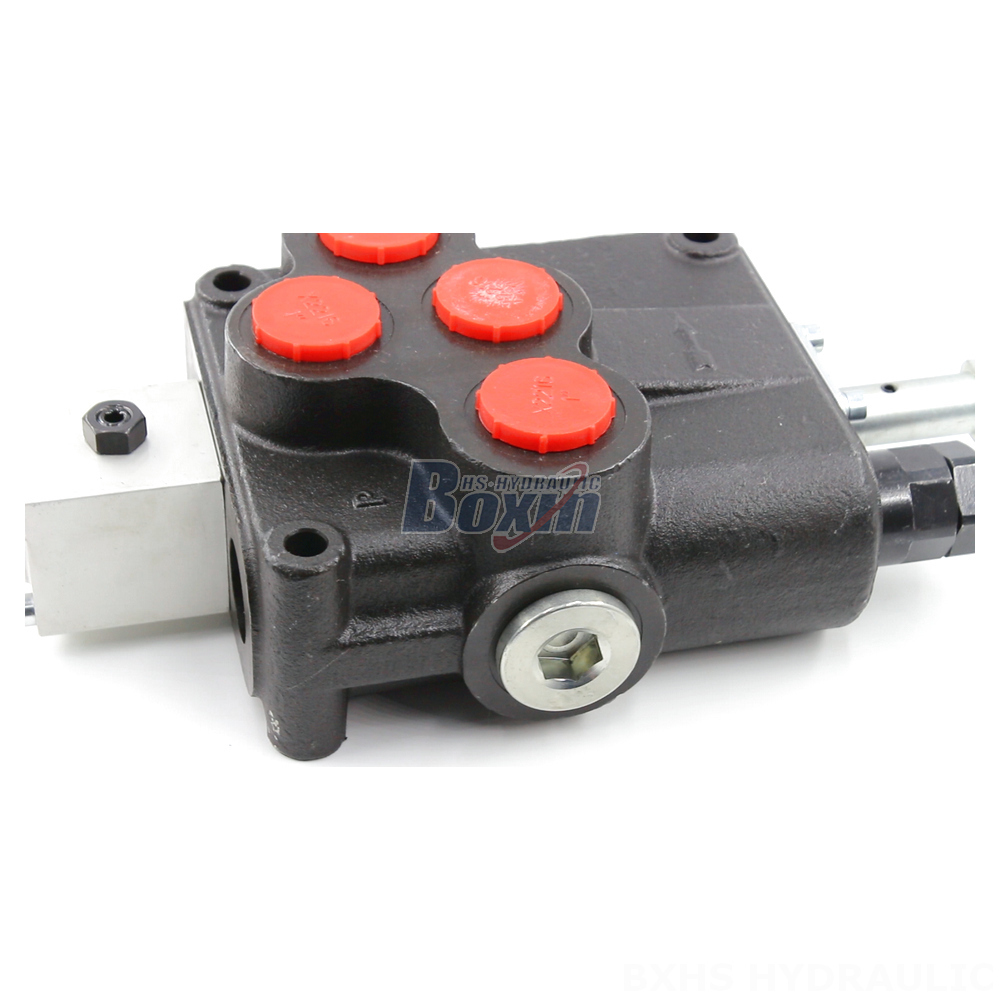

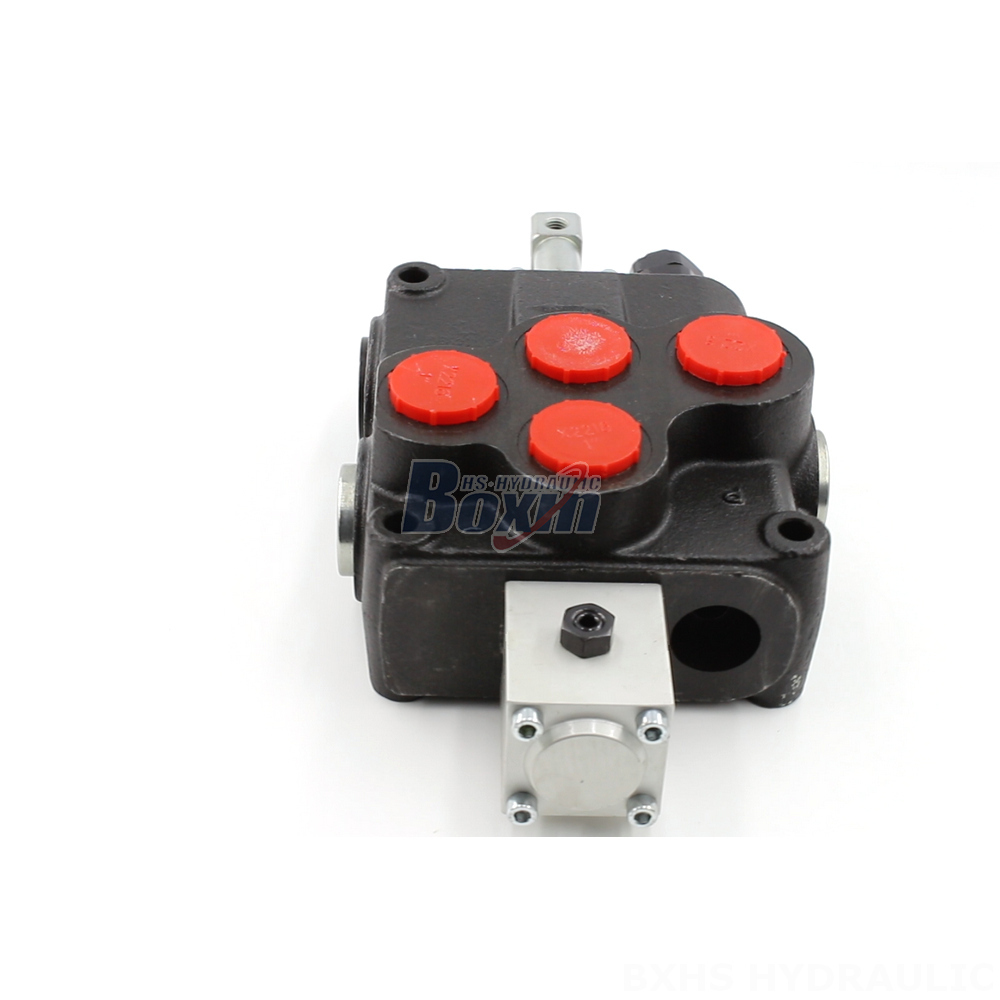

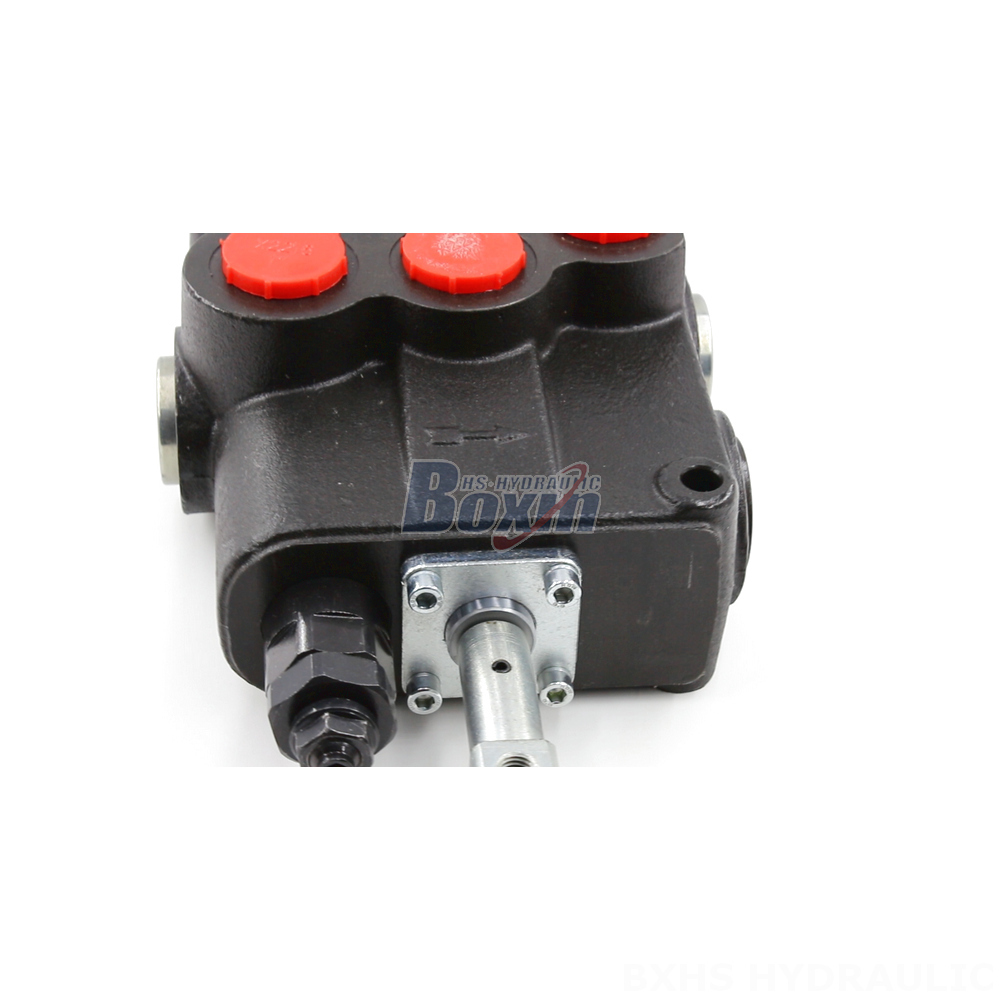

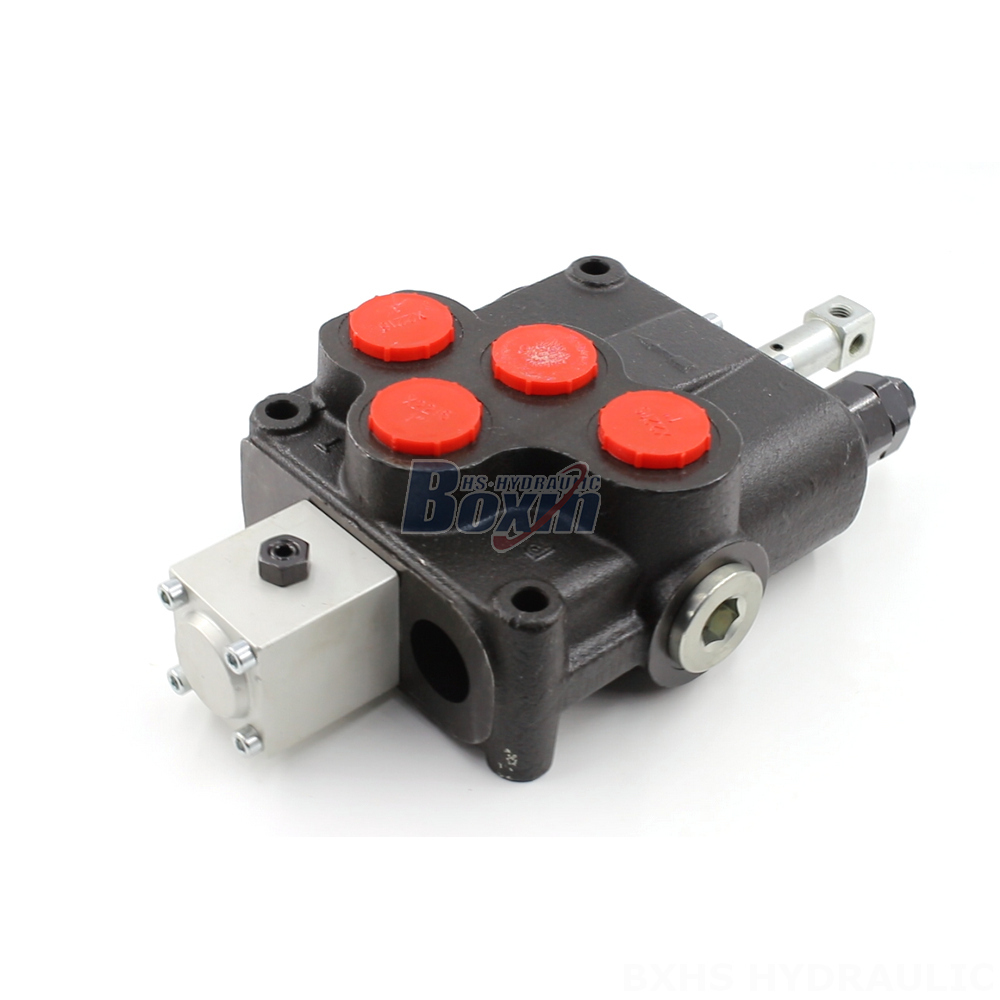

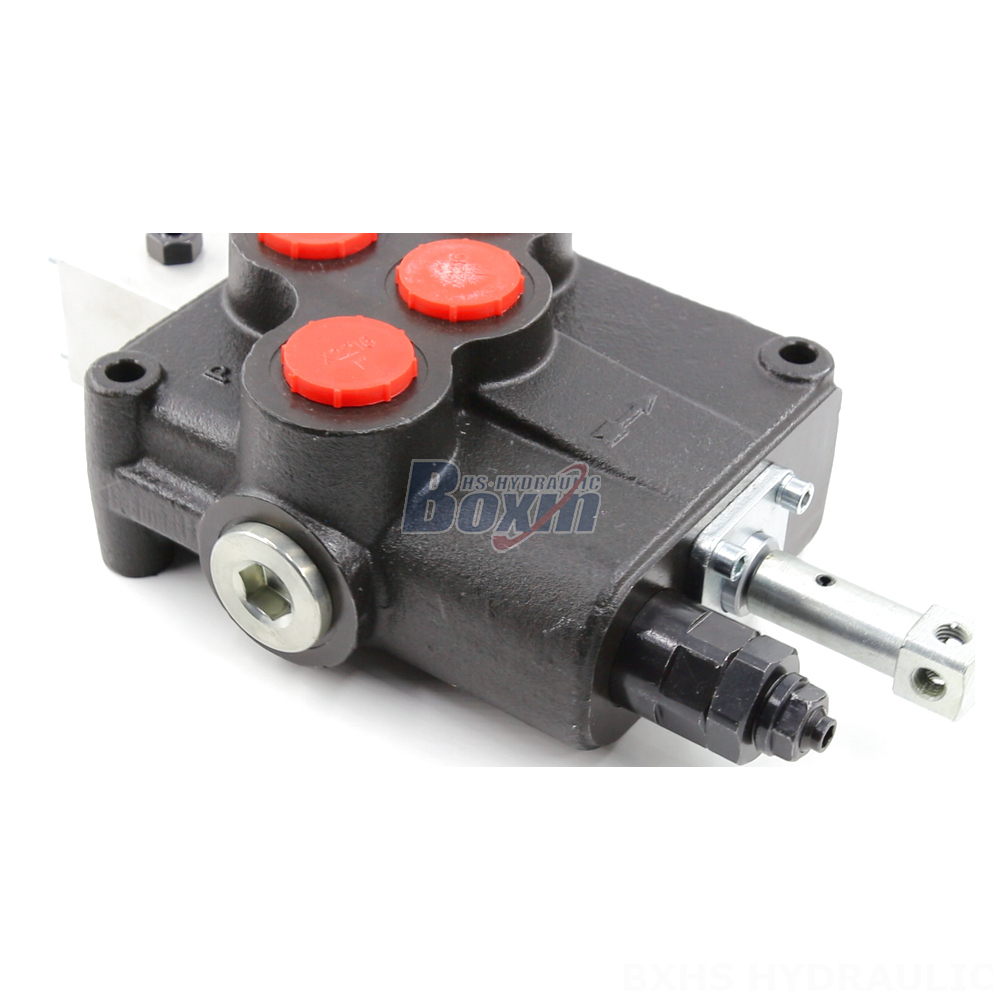

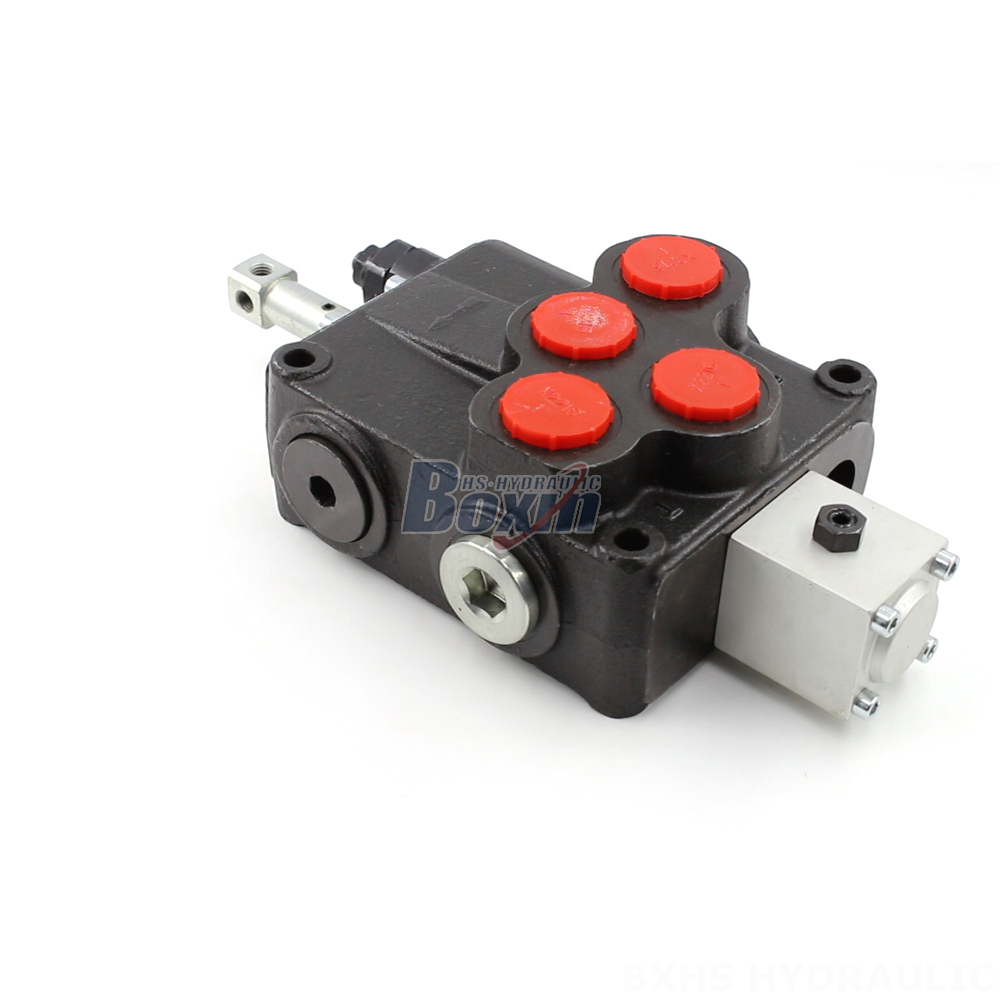

The SD18 Series Log Splitter Hydraulic Lever Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, manual control, and a rated flow of 120 L/min (31.7 US gpm) at a maximum pressure of 315 bar (4600 psi). Ideal for use in telehandlers, forklifts, cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters.
| Seri SD18 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G1/2, G1, SAE 16 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G1, SAE 16 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
This SD18 Series hydraulic valve is a manual, monoblock directional valve specifically designed for log splitting applications. It offers a single section with one spool, providing efficient and reliable control of hydraulic flow. The valve features a rated flow of 120 L/min (31.7 US gpm) and a maximum operating pressure of 315 bar (4600 psi), ensuring it can handle demanding tasks. Its robust construction and wide operating viscosity range (-40°C to +80°C/-40°F to +176°F) make it suitable for various environments. The SD18 Series is an excellent choice for manufacturers and distributors seeking a high-quality, reliable, and efficient hydraulic valve for their log splitting equipment.
