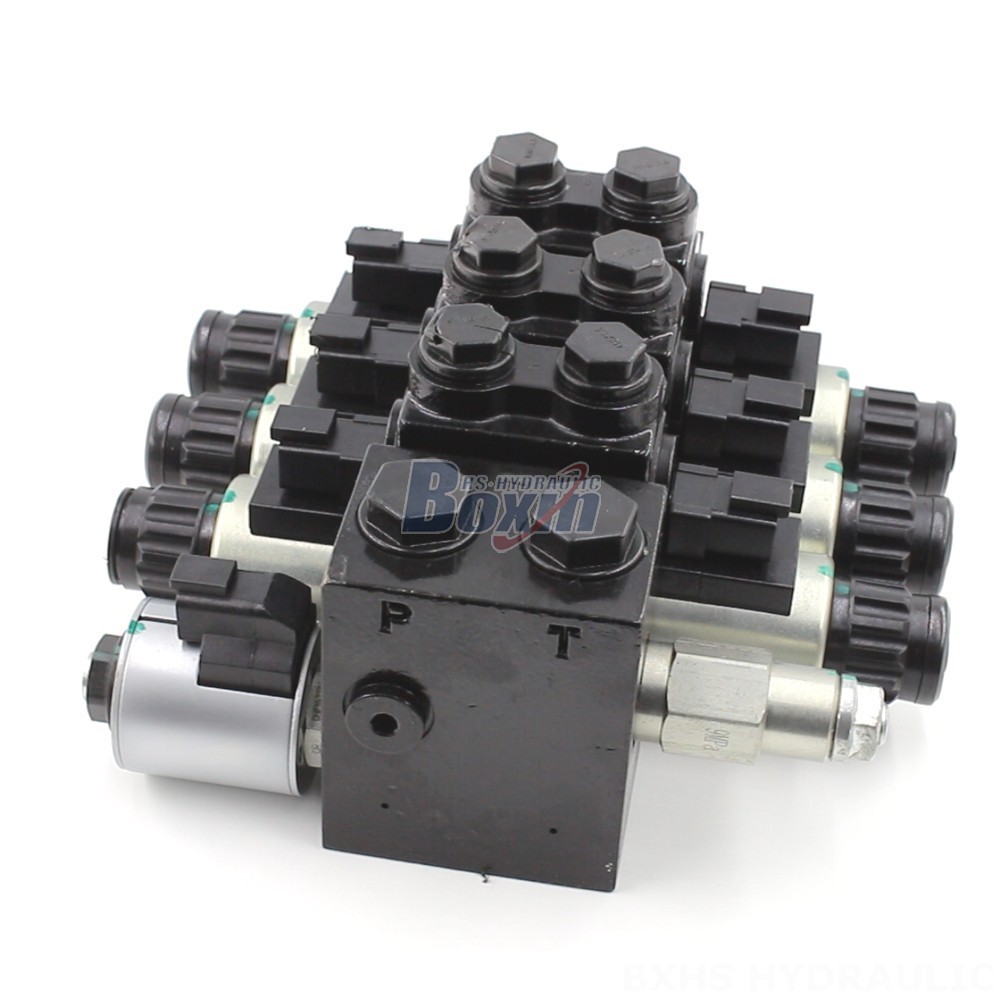

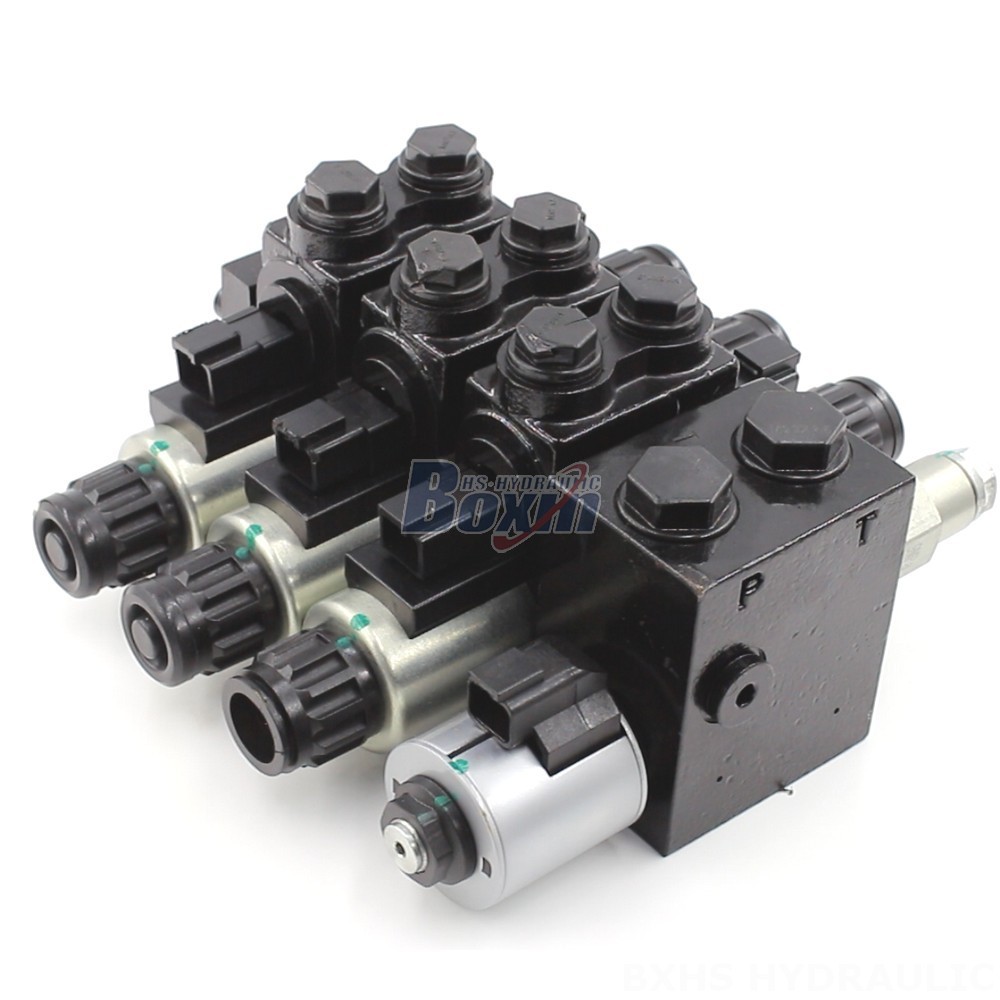

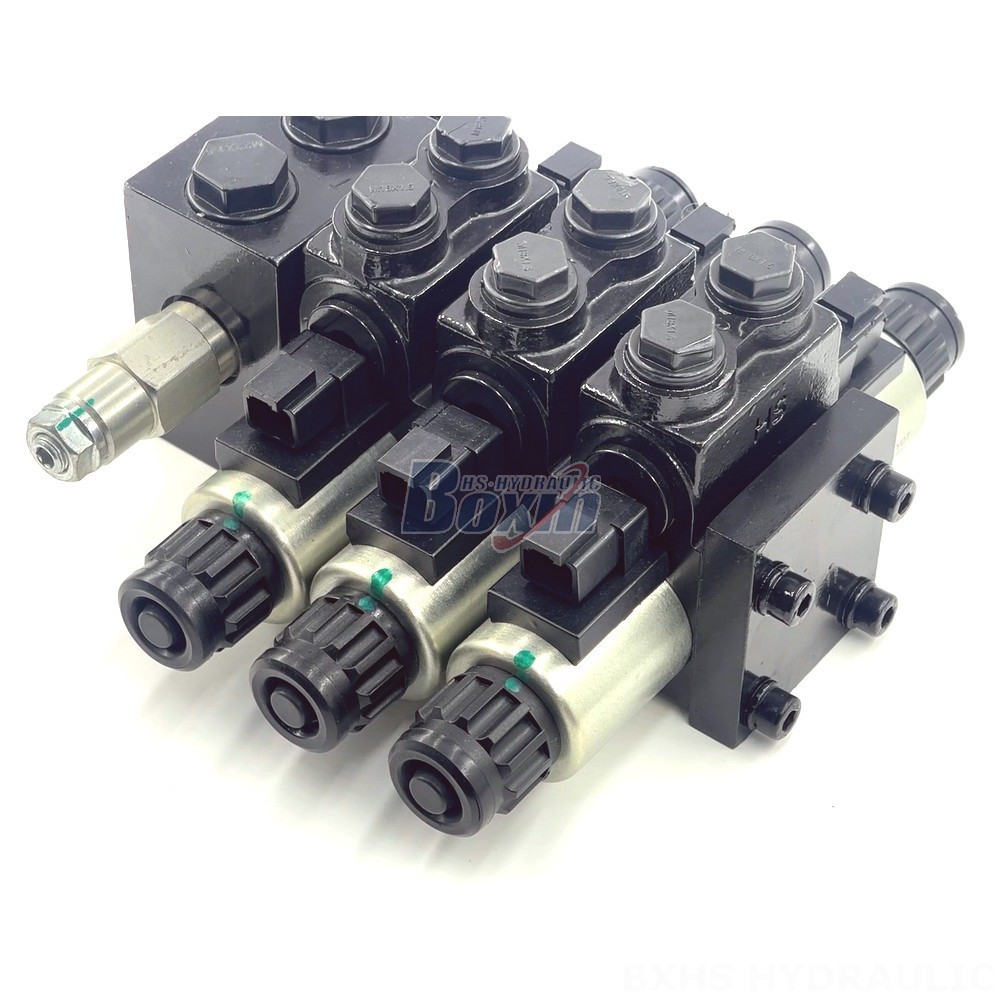

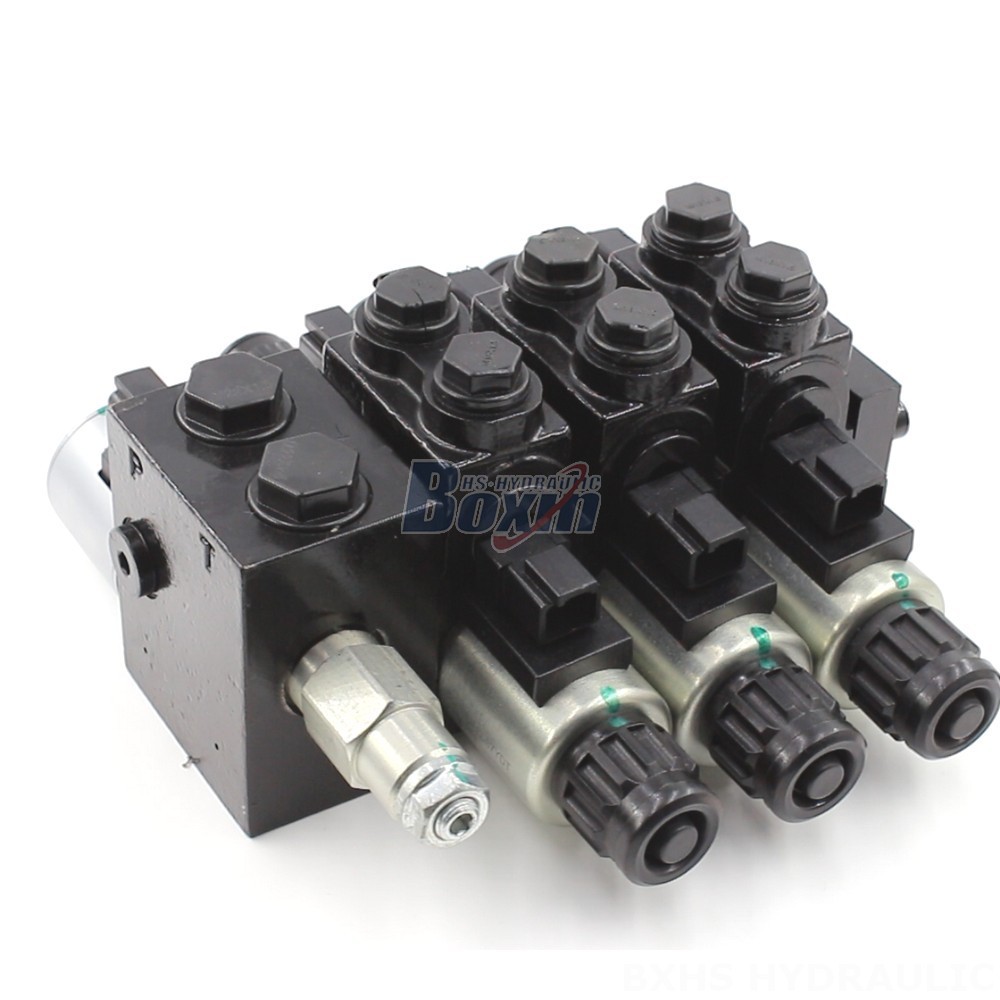

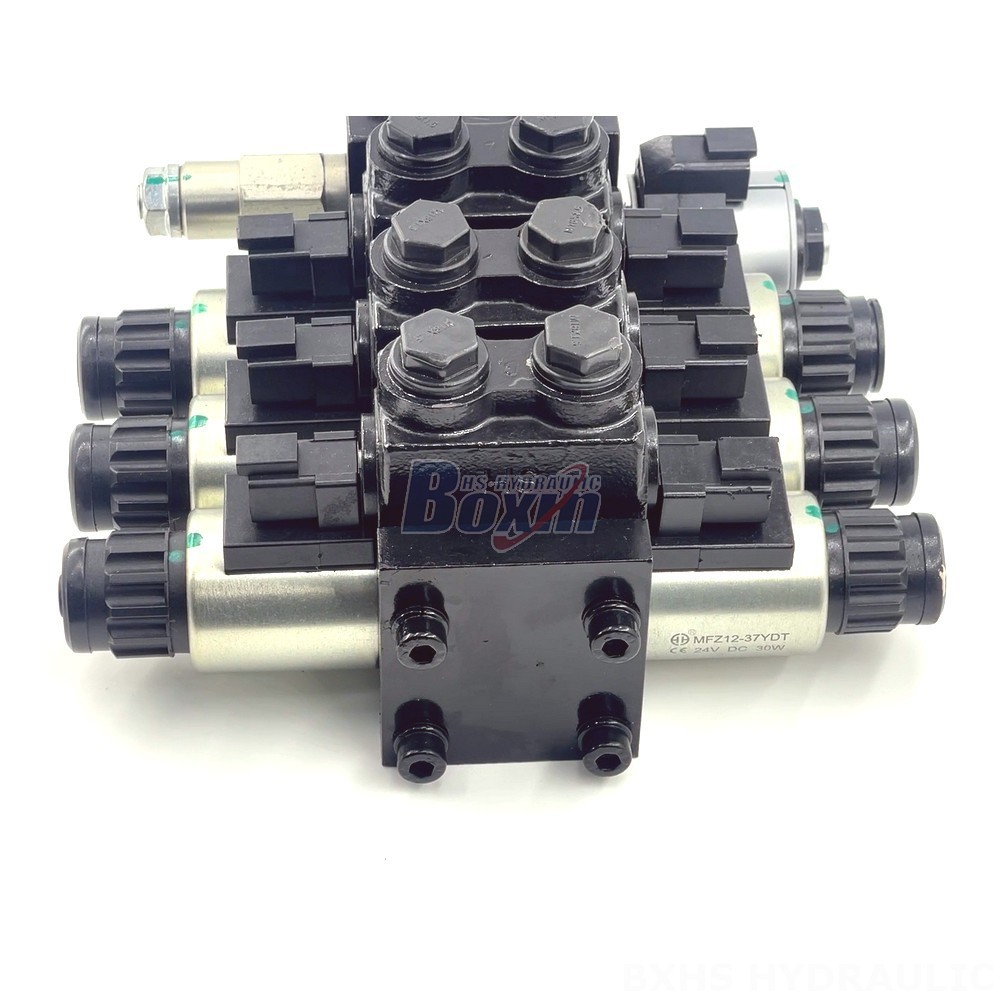

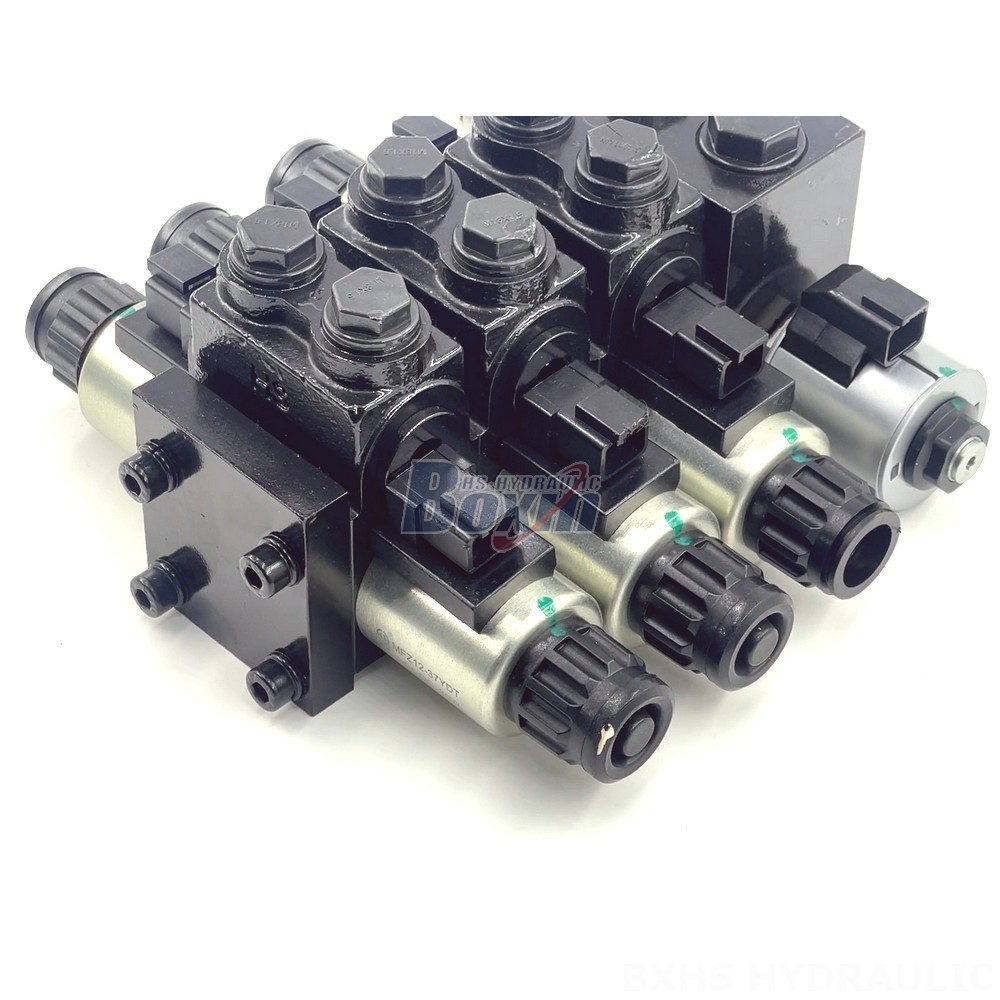

The HDCF50 series hydraulic joystick control valve is a high-performance, 3-section solenoid valve designed for material handling, construction, and agricultural applications. It offers a rated flow of 50 L/min and a maximum pressure of 160 bar. Available for wholesale and OEM.
| Seri HDCF50 Solenoid Kontrol Katup Parameter | |
|---|---|
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool |
| Metode Kontrol | Selenoid |
| Ukuran Port | M22×1.5, SAE 8 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Suhu Sekitar | -20°C hingga +80°C (-4°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Port Keluar | M18×1.5, M22×1.5, SAE 8 |
| Tekanan Maksimum | 160 bar (2300 psi) |
| Aliran Terukur | 50 L/menit (13,2 US gpm) |
| Tipe Struktur | Katup penampang |
| Port Masuk | M18×1.5, M22×1.5, SAE 8 |
This 3-section solenoid controlled hydraulic valve is a versatile solution for various applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi and mini excavators, and skid steer loaders. With a rated flow of 50 L/min and a maximum pressure of 160 bar, it provides reliable and precise control of hydraulic systems. The HDCF50 series is designed for demanding environments, featuring an operating viscosity range of 15-75 mm²/s and an ambient temperature range of -20°C to +80°C. Available in 12V and 24V voltage options, it offers flexibility for various equipment needs. This valve is ideal for wholesale purchase or OEM integration into your hydraulic systems. Contact us today for more information and customized solutions.
