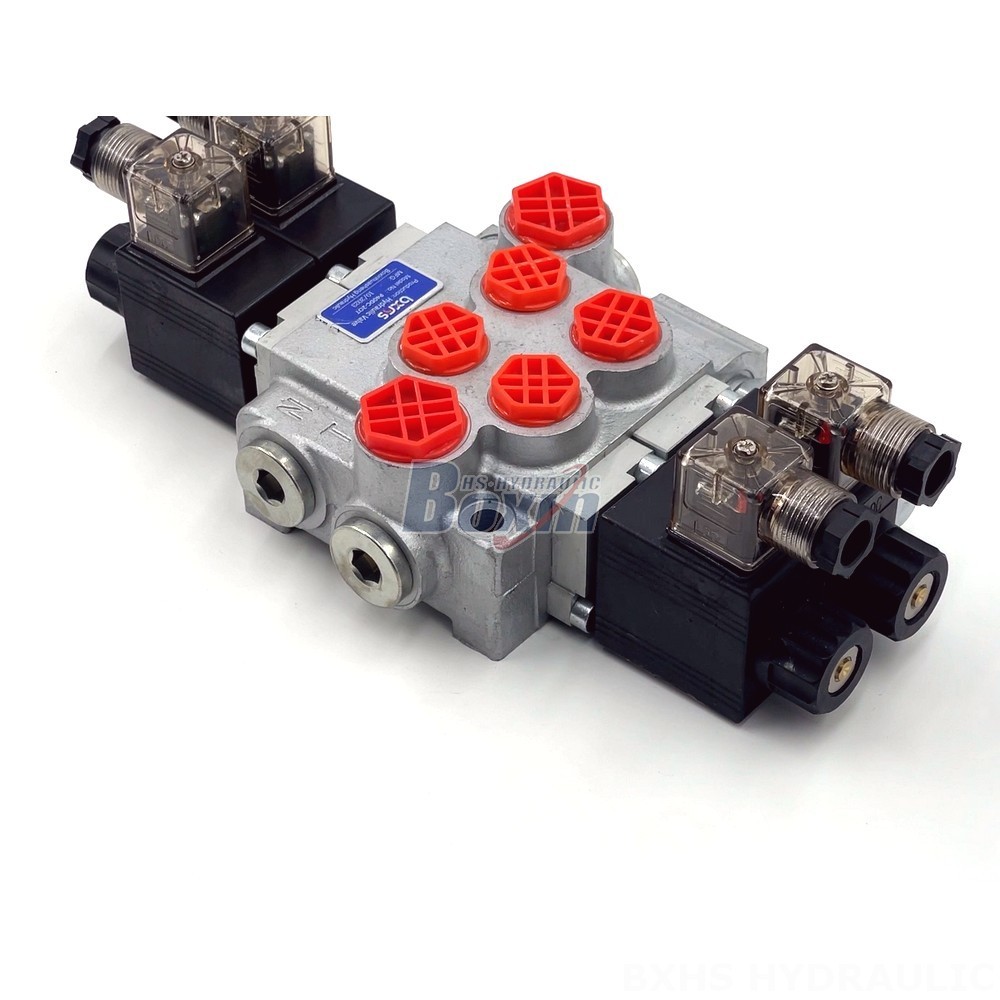

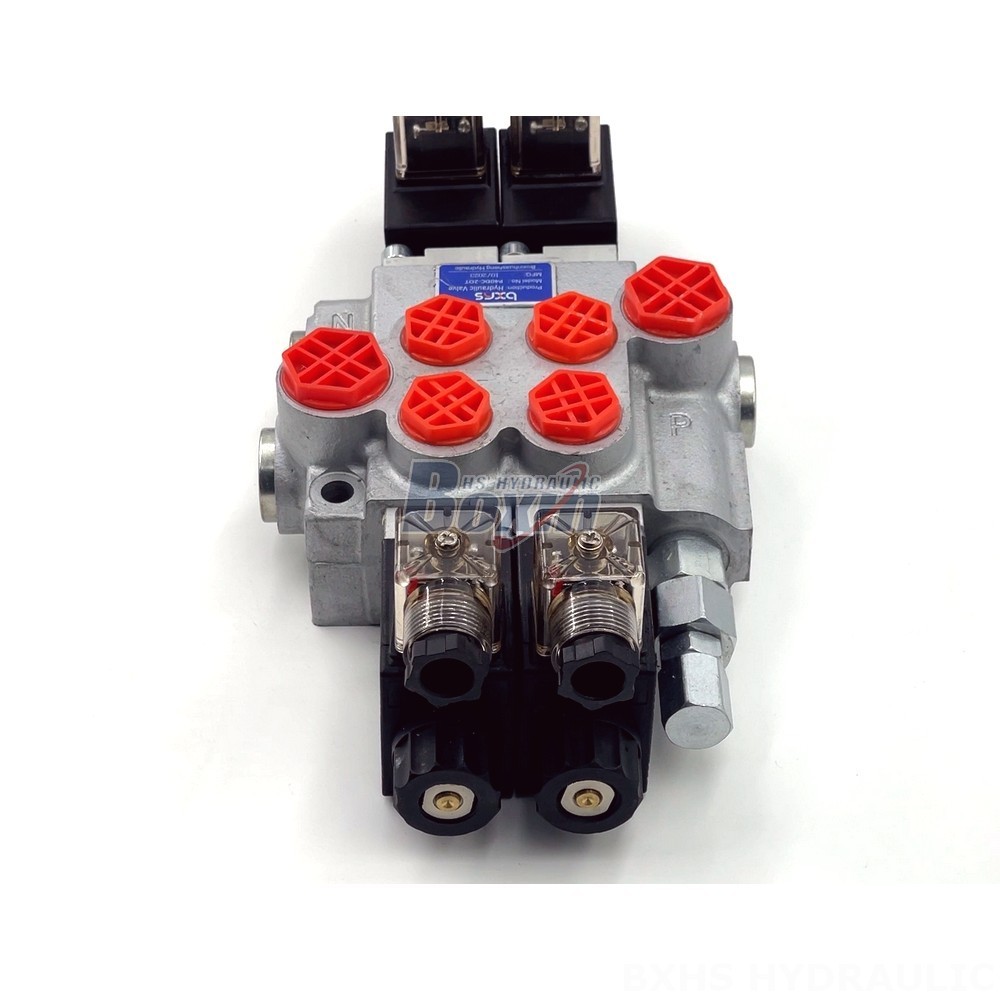

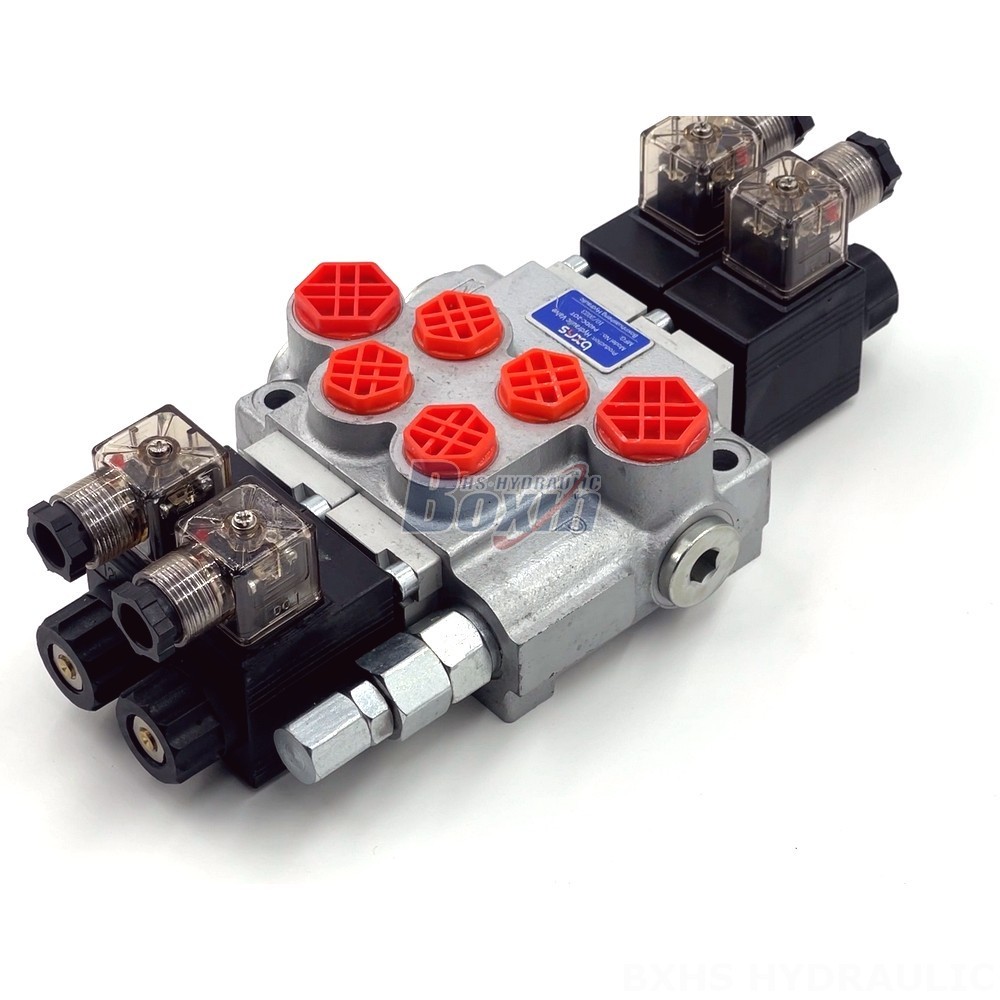

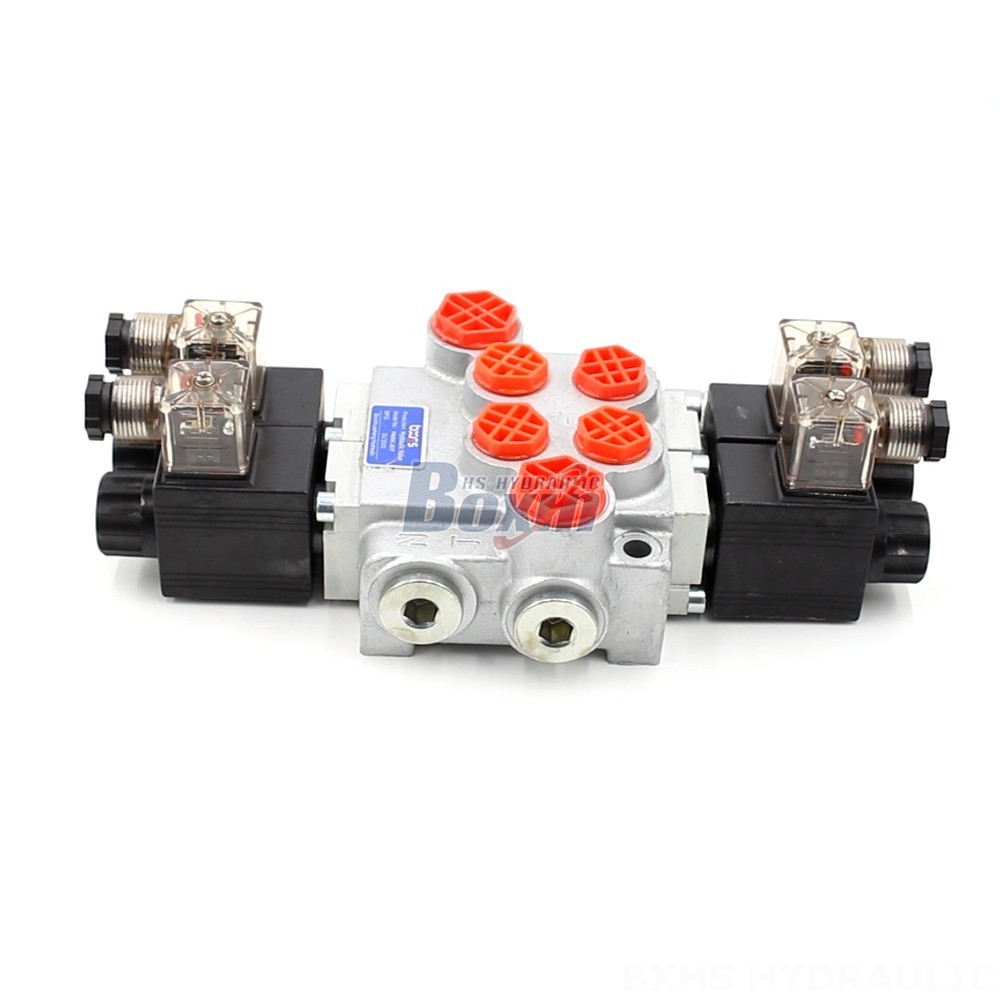

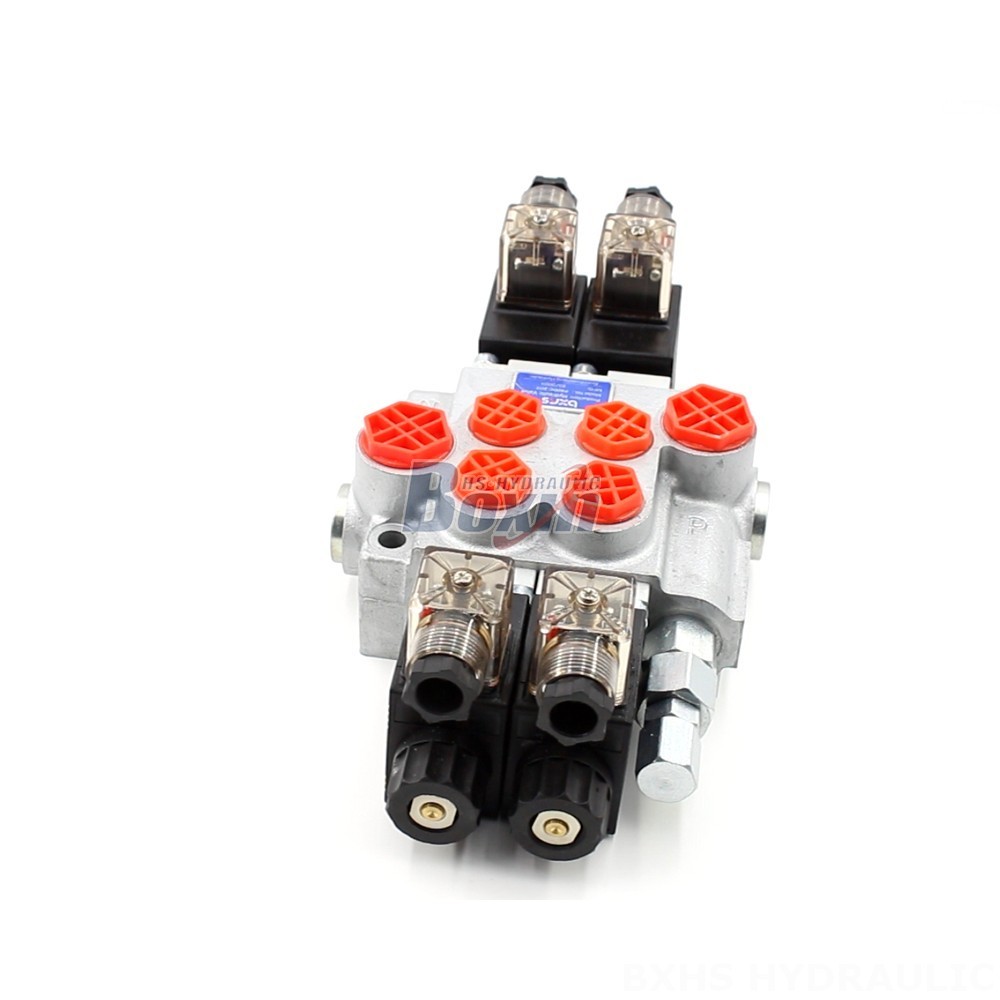

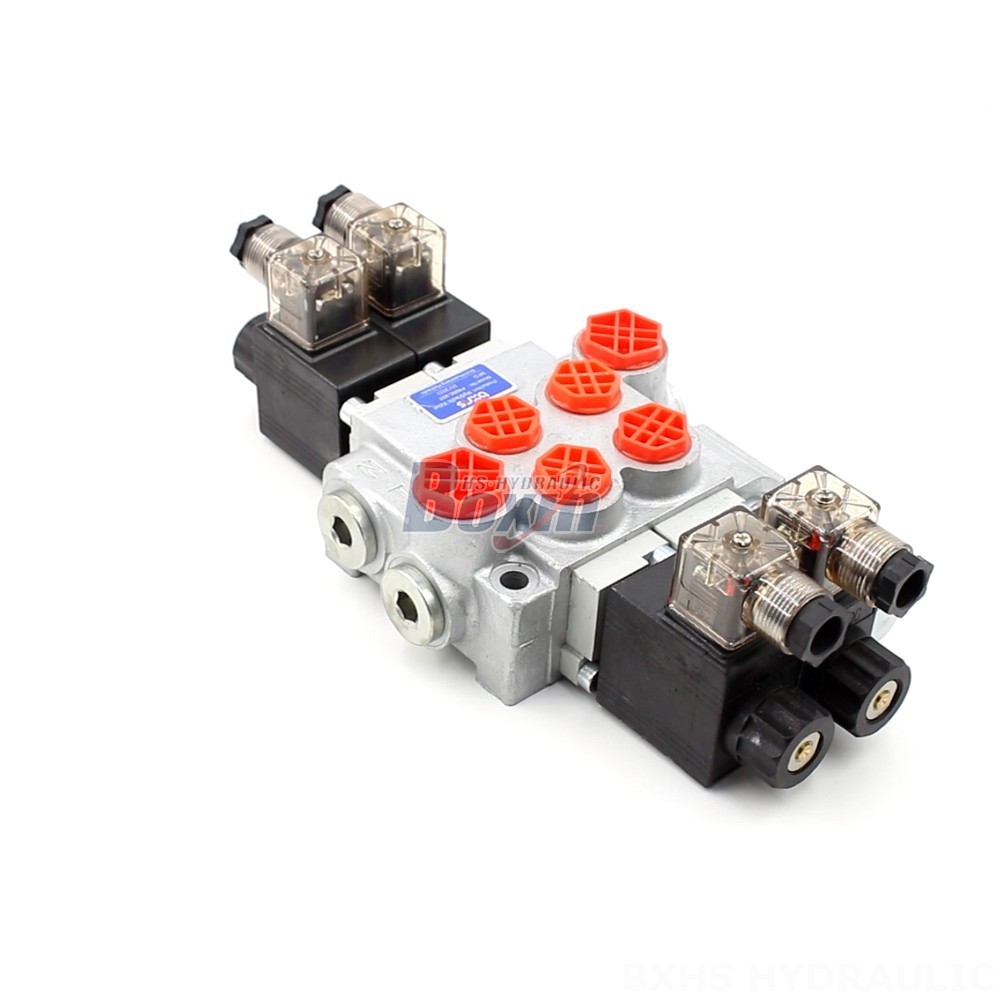

The P40-DKL Monoblock Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With its solenoid control, 2 section design, 40 L/min rated flow, and 250 bar max pressure, this valve offers precise and reliable control of hydraulic systems. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**Key Features:**
* Solenoid control for precise and responsive operation
* 2 section design for versatile flow control
* 40 L/min rated flow to handle demanding hydraulic systems
* 250 bar max pressure for high-pressure applications
* 15 - 75 mm²/s operating viscosity range for compatibility with various fluids
* -40°C to +80°C ambient temperature range for reliable performance in diverse environments
* 2 spool for efficient flow management
* Rugged construction for durability and long service life
* CE certified and ISO standard compliant for quality assurance
**Applications:**
The P40-DKL Monoblock Valve is widely used in a variety of industries, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
