Get your P40 Electro-pneumatic Valves straight from the source! Our valves are designed and manufactured to provide reliable and efficient performance in demanding applications like material handling, construction, earth moving, and industrial vehicles.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

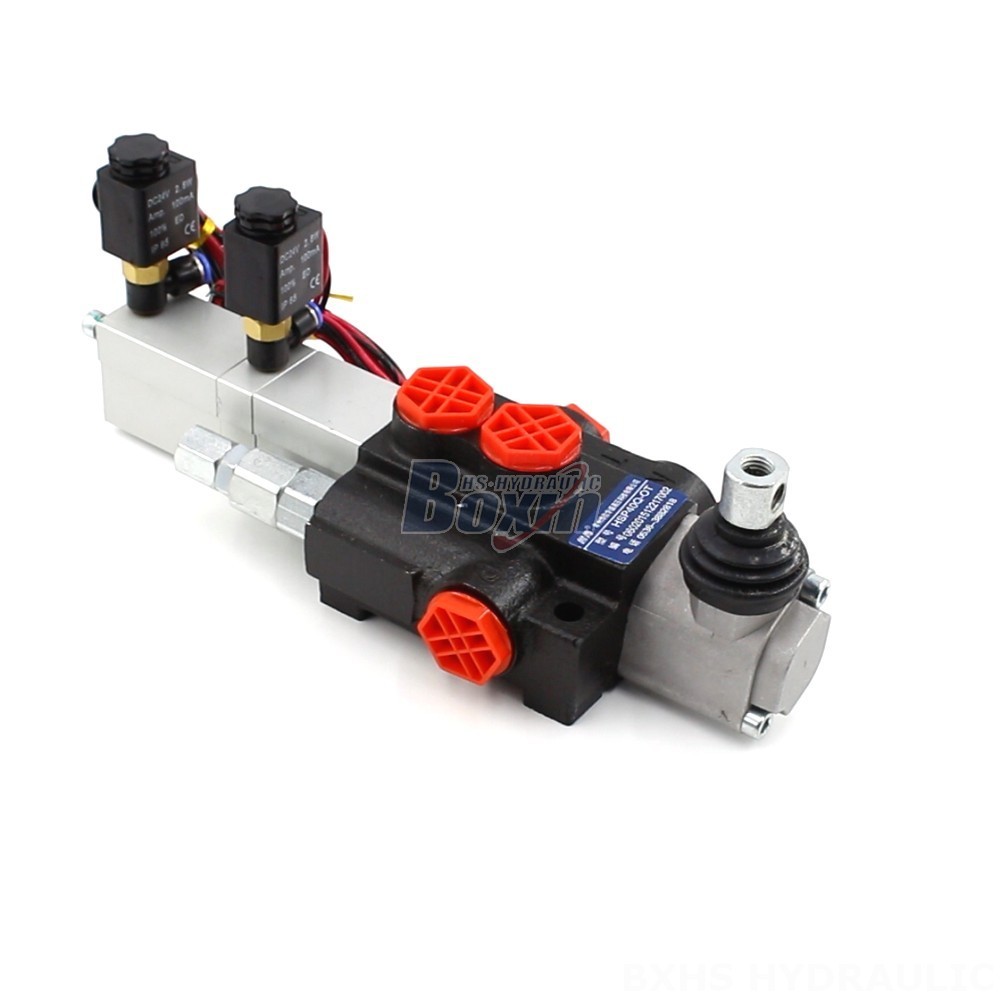

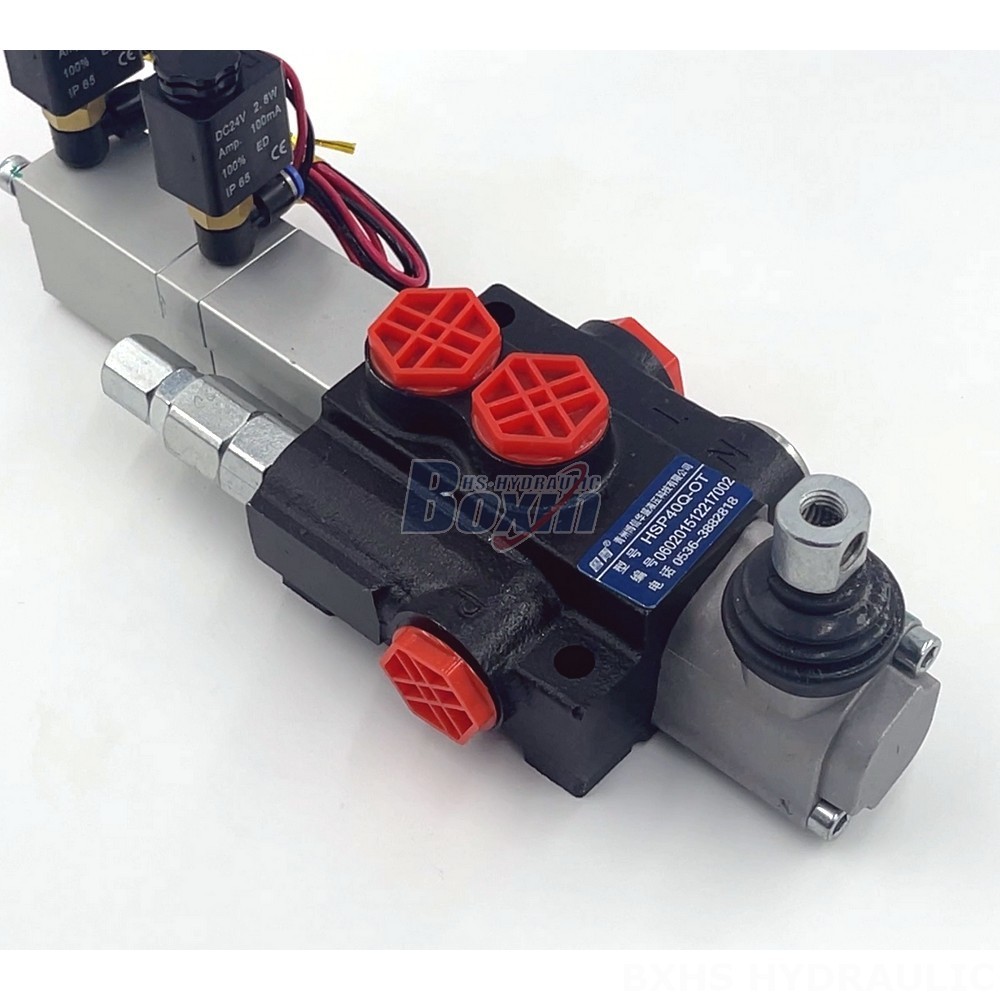

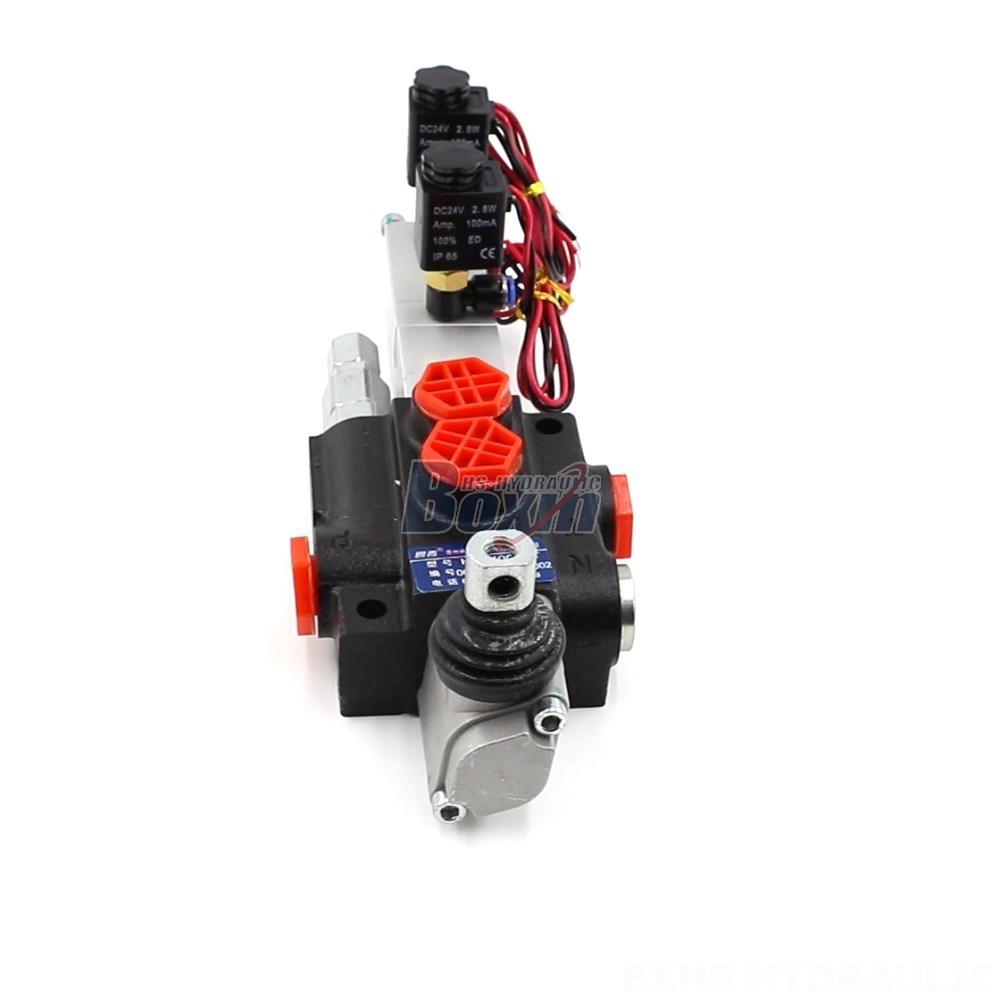

**P40 Electro-pneumatic Valves: Precision and Performance**
As a leading manufacturer and supplier of hydraulic and pneumatic components, we proudly offer our premium P40 Electro-pneumatic Valves. These high-quality valves are engineered to meet the specific demands of industrial applications, ensuring optimal performance and reliability.
**Key Features and Benefits:**
- Electro-pneumatic control for precise and responsive operation
- Monoblock valve construction for durability and compact design
- Rated flow rate of 40 L/min (10.5 US gpm) for efficient fluid handling
- Maximum pressure rating of 250 bar (3600 psi) for handling high-pressure applications
- Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility and adaptability
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in challenging environments
- Single spool design for simple and effective control
- Extensive applications in material handling, construction, earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders
**Direct from the Manufacturer: Quality and Reliability**
As the manufacturer of these P40 Electro-pneumatic Valves, we guarantee their quality and reliability. Our in-house production processes ensure strict adherence to industry standards and rigorous testing procedures. By purchasing directly from us, you can eliminate intermediaries and benefit from factory-direct pricing and expert technical support.
**Factory Supply and Wholesale:**
We offer competitive factory supply and wholesale options for large orders, providing cost-effective solutions for distributors, resellers, and end-users. Our flexible manufacturing capabilities allow us to meet your specific requirements and ensure timely delivery.
