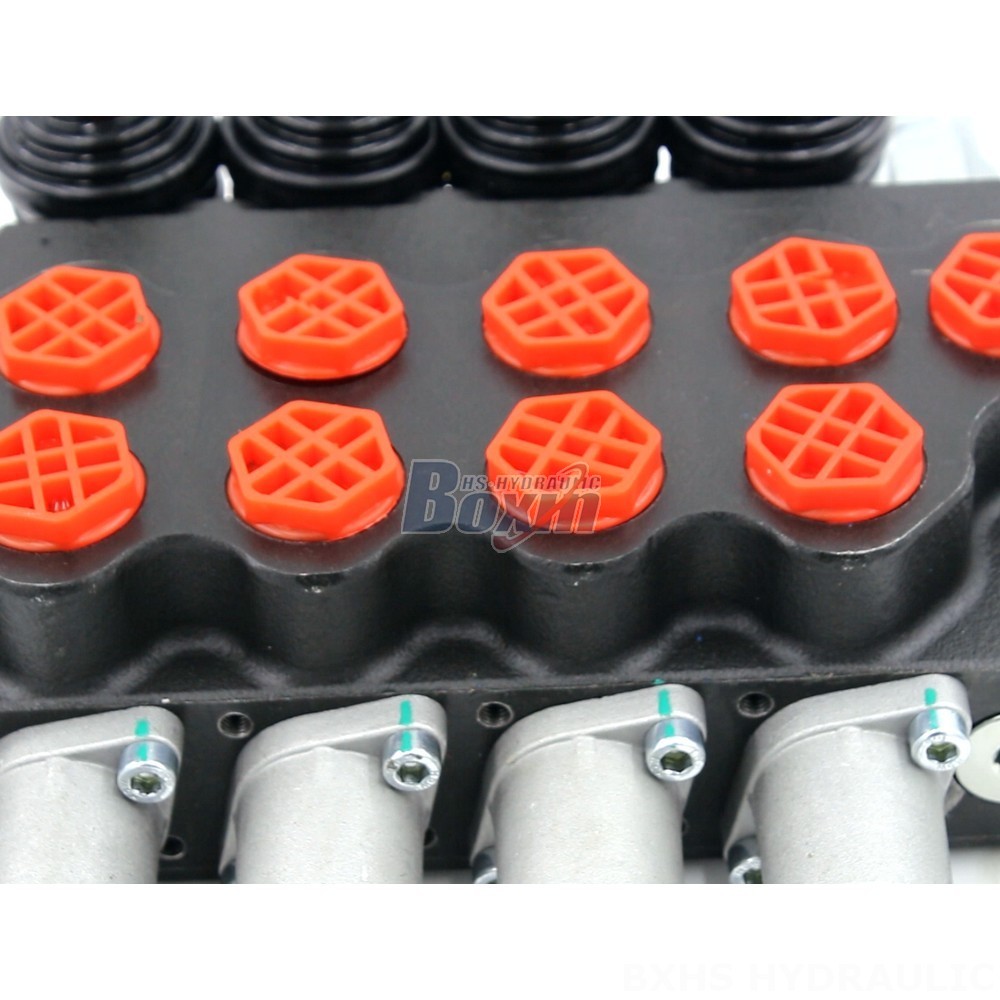

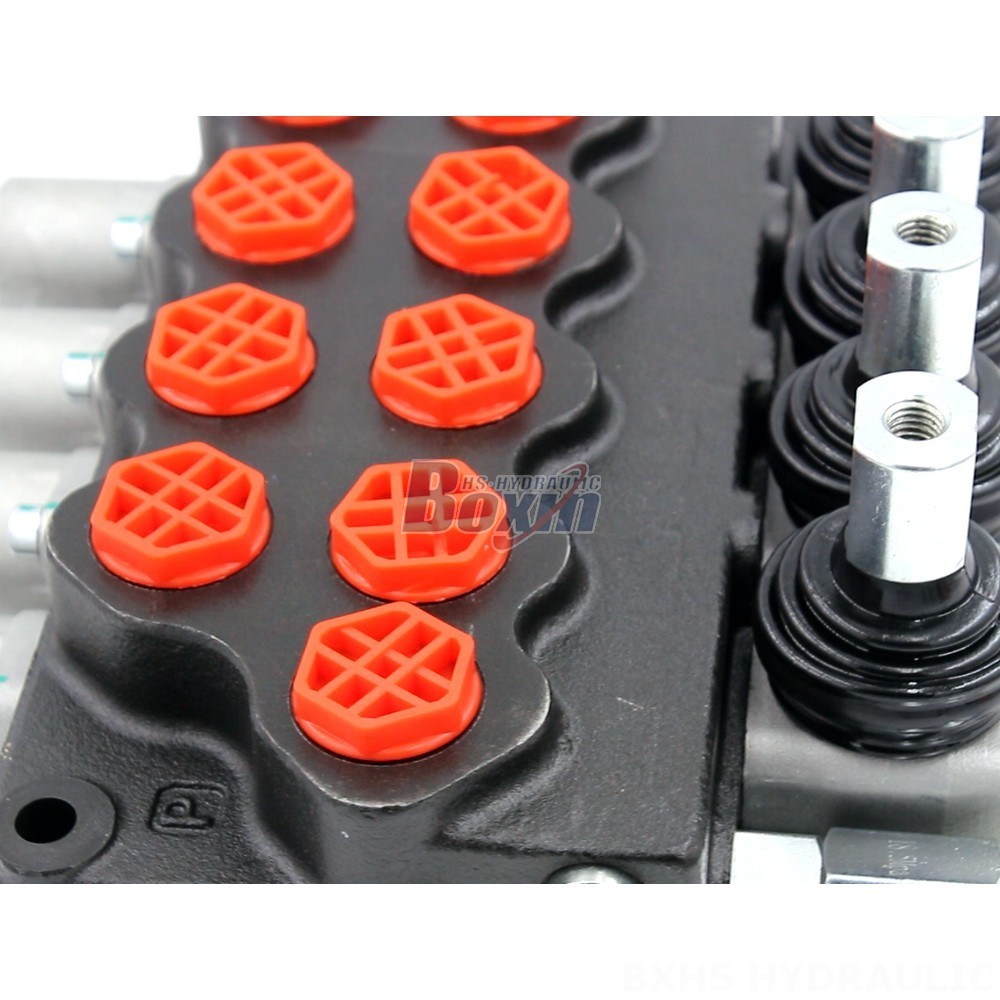

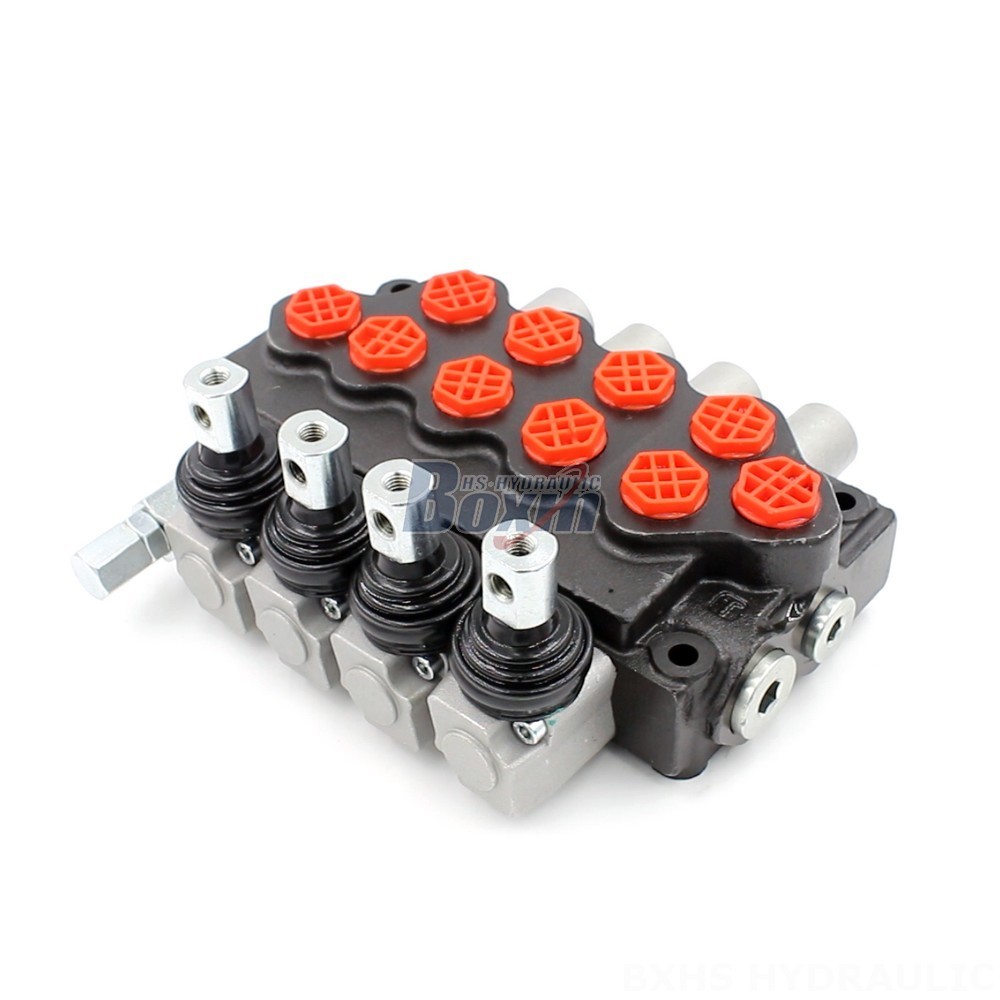

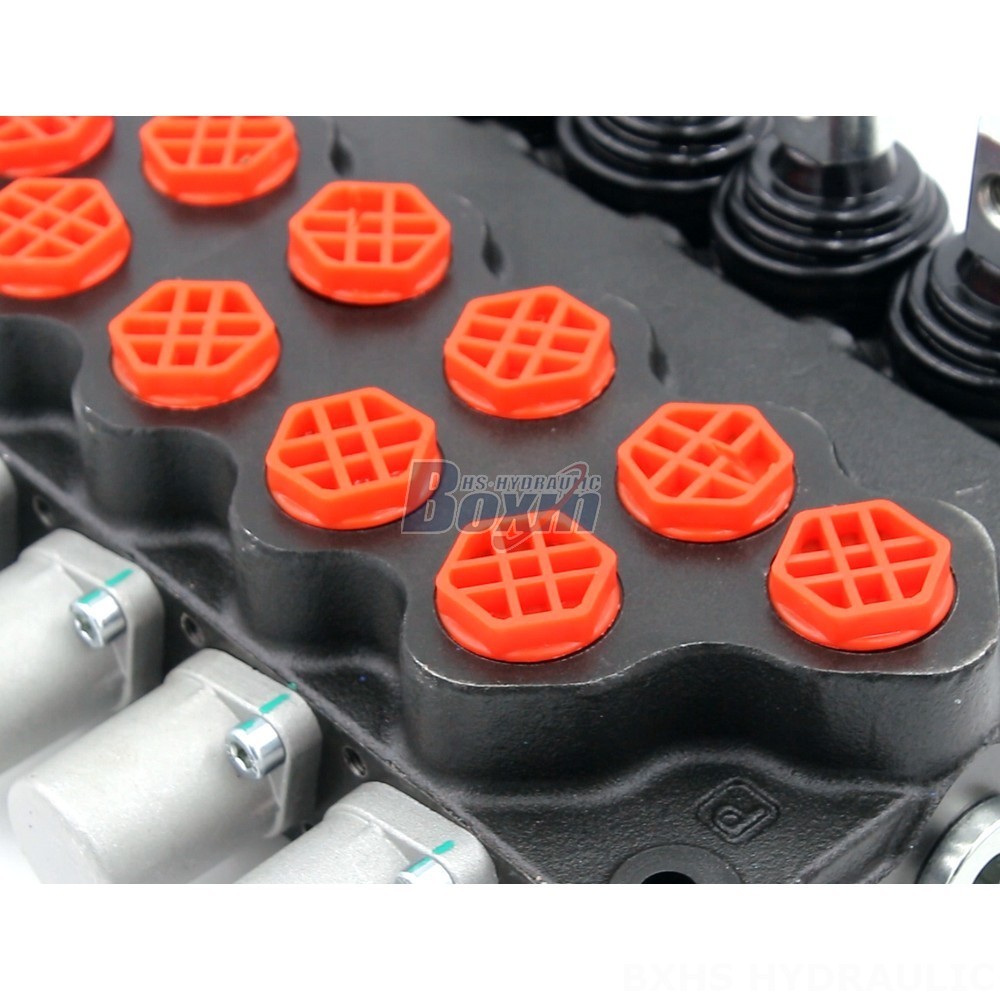

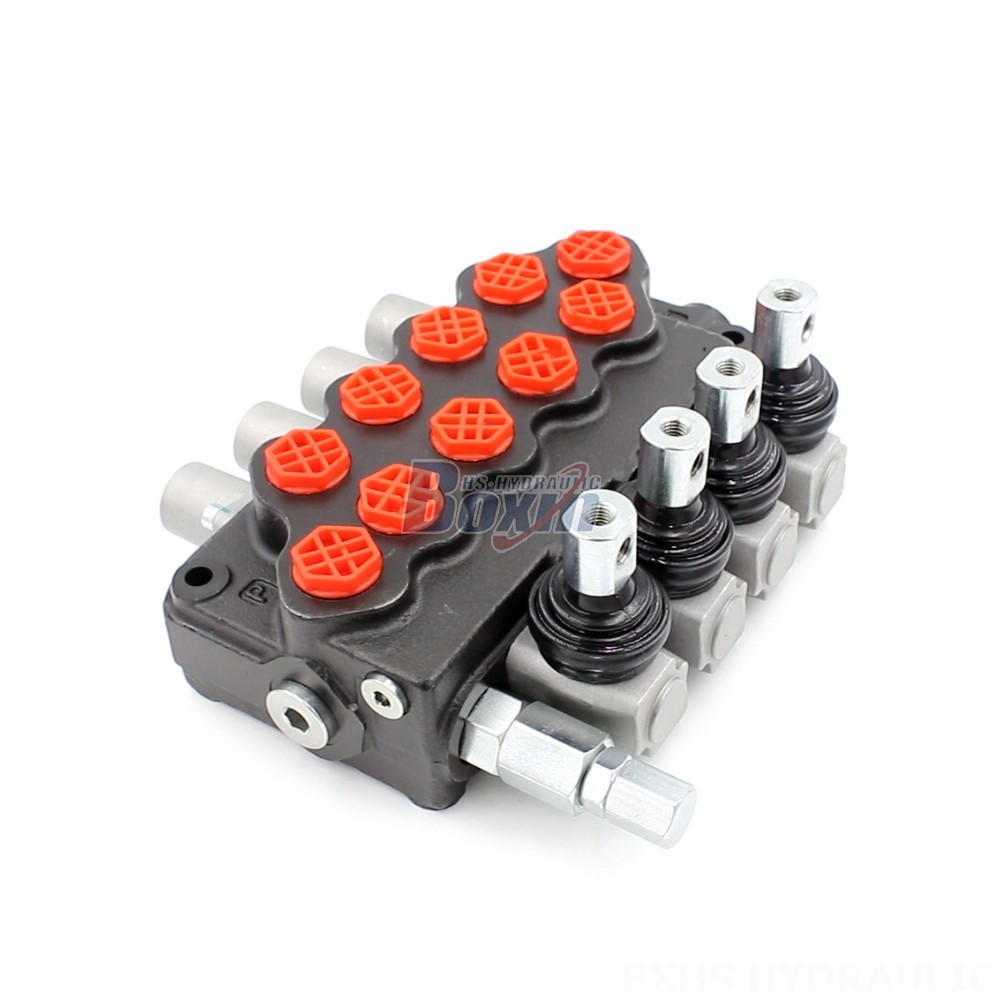

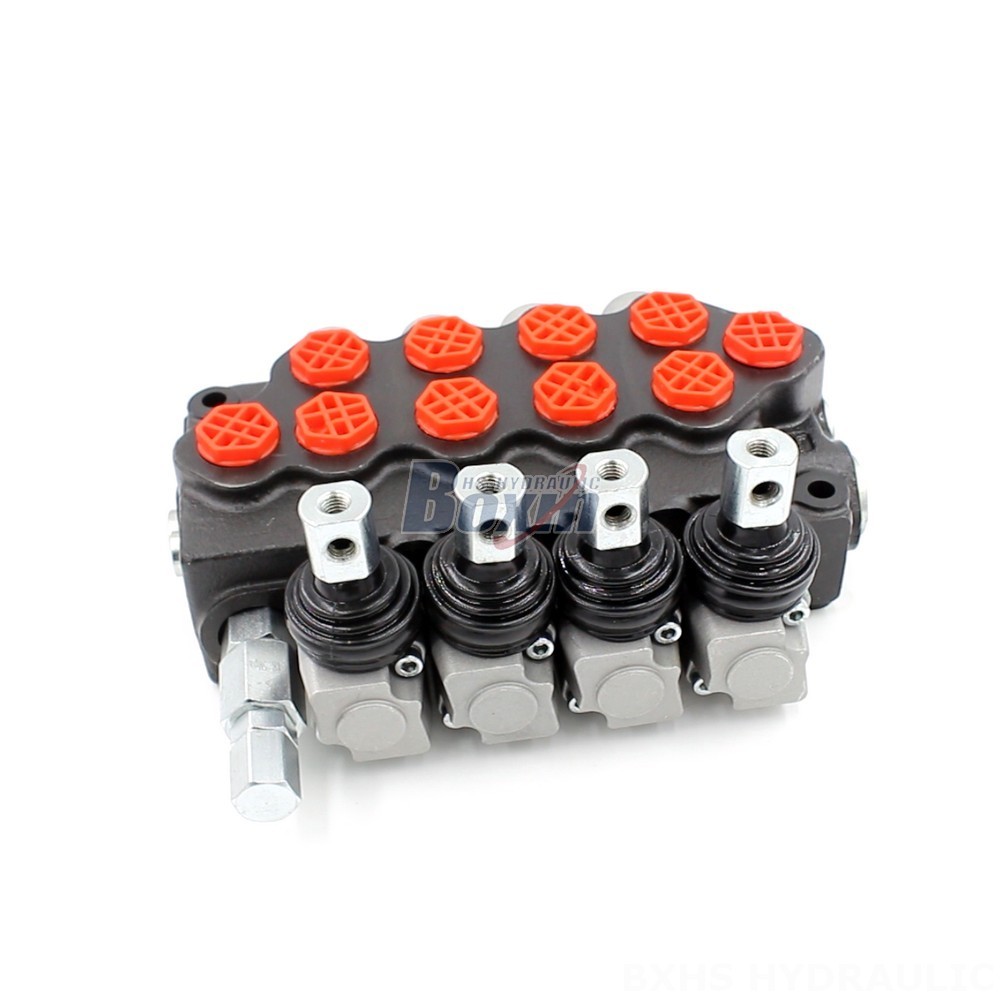

The SD5-G38 Hydraulic Valve is a high-performance, 4-section, monoblock valve designed for demanding applications. With a rated flow of 40 L/min and a maximum pressure of 305 bar, it is ideal for use in construction, agriculture, material handling equipment, and many others.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
**Manufacturer Wholesale: SD5-G38 Hydraulic Valve**
**Factory Supply & Quality Assurance**
The SD5-G38 Hydraulic Valve is manufactured by a leading hydraulics manufacturer with strict quality control measures in place. As a factory supplier, we offer competitive wholesale pricing and guarantee the highest quality products.
**Product Specifications:**
- Control Method: Manual
- Section: 4 Section
- Structure Type: Monoblock valve
- Rated Flow: 40 L/min (10.5 US gpm)
- Max Pressure: 305 bar (4400 psi)
- Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
- Ambient Temperature Range: -40°C to +60°C (-40°F to +140°F)
- Spool: 4 Spool
- Series: SD5 Series
- Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
- Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
Whether you are a distributor, wholesaler, agent, or trader, we invite you to partner with us to bring the SD5-G38 Hydraulic Valve to your customers. Contact us today for pricing and availability.
