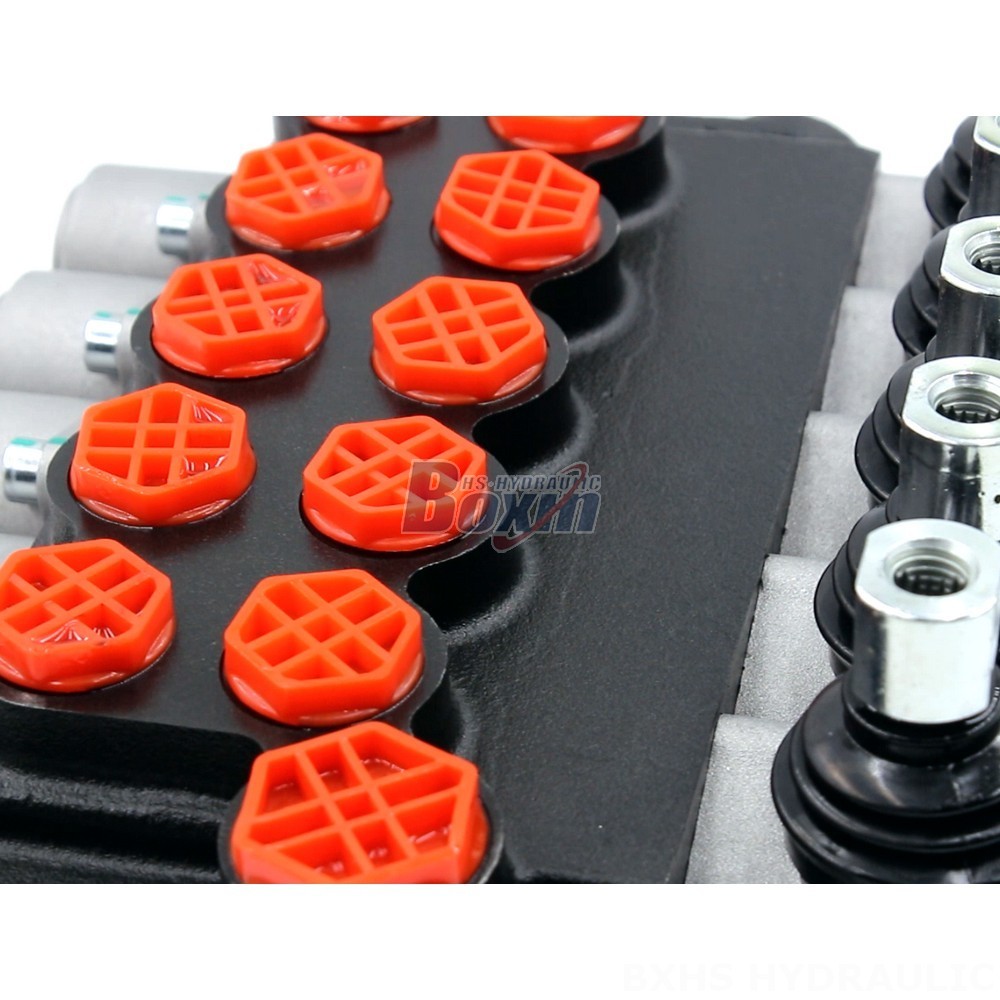

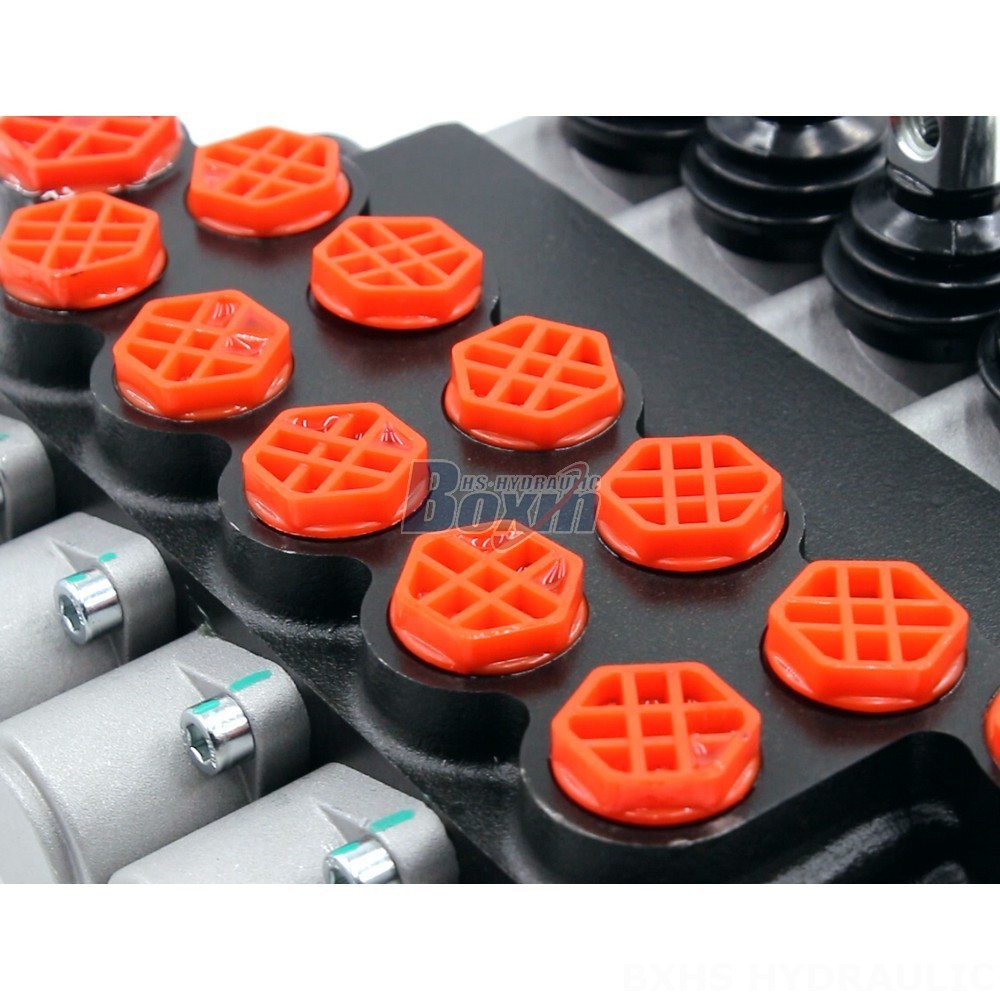

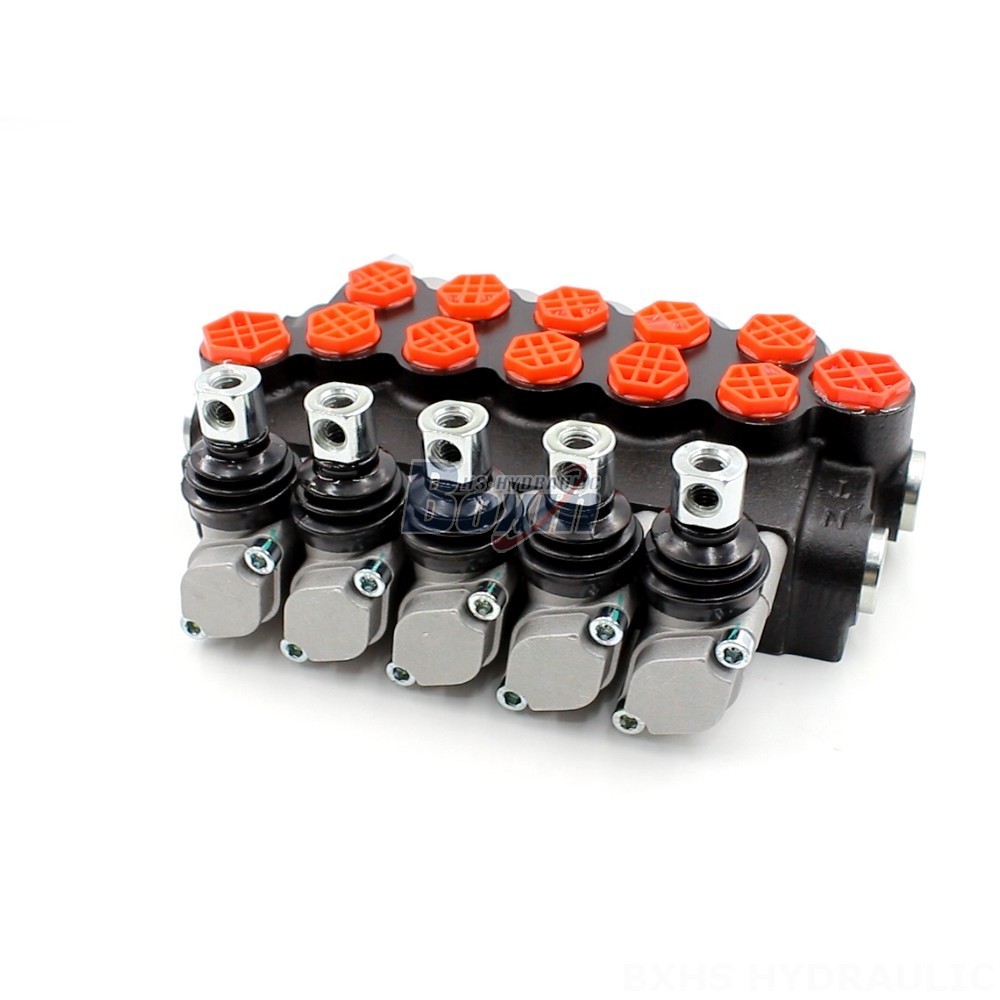

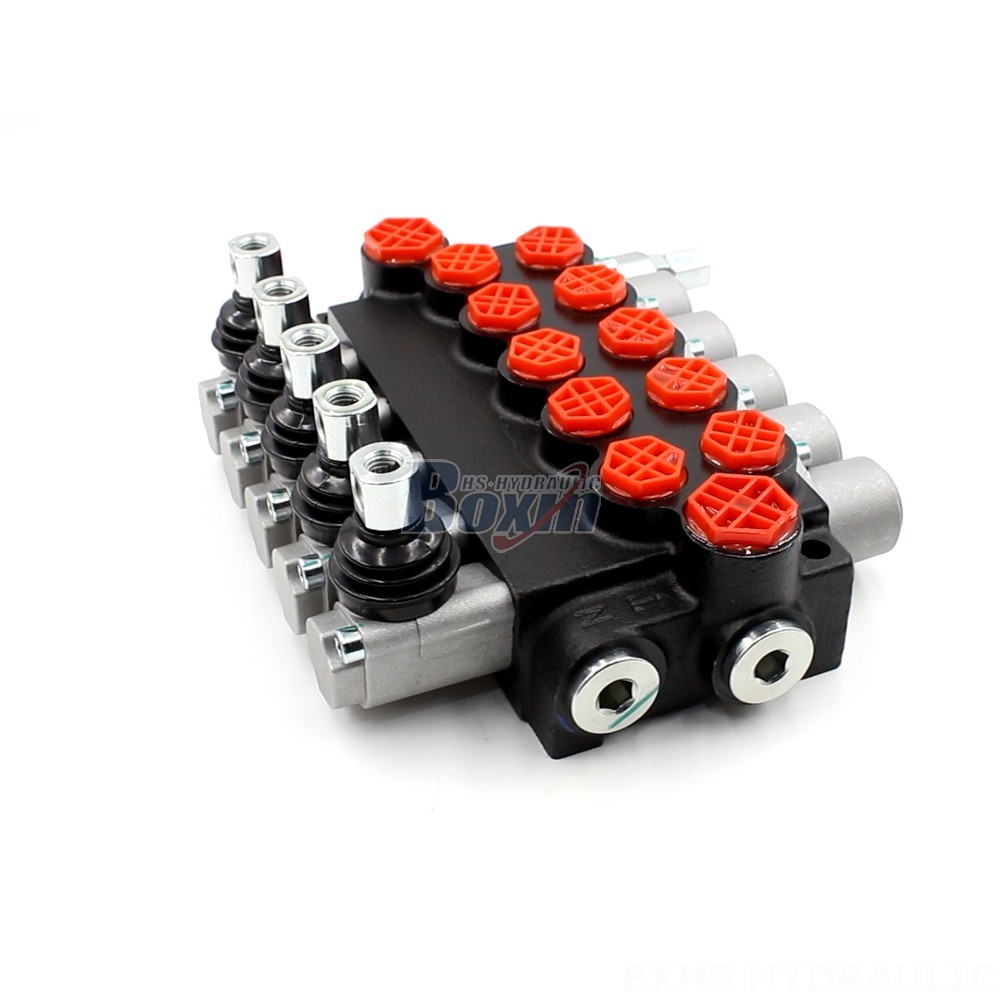

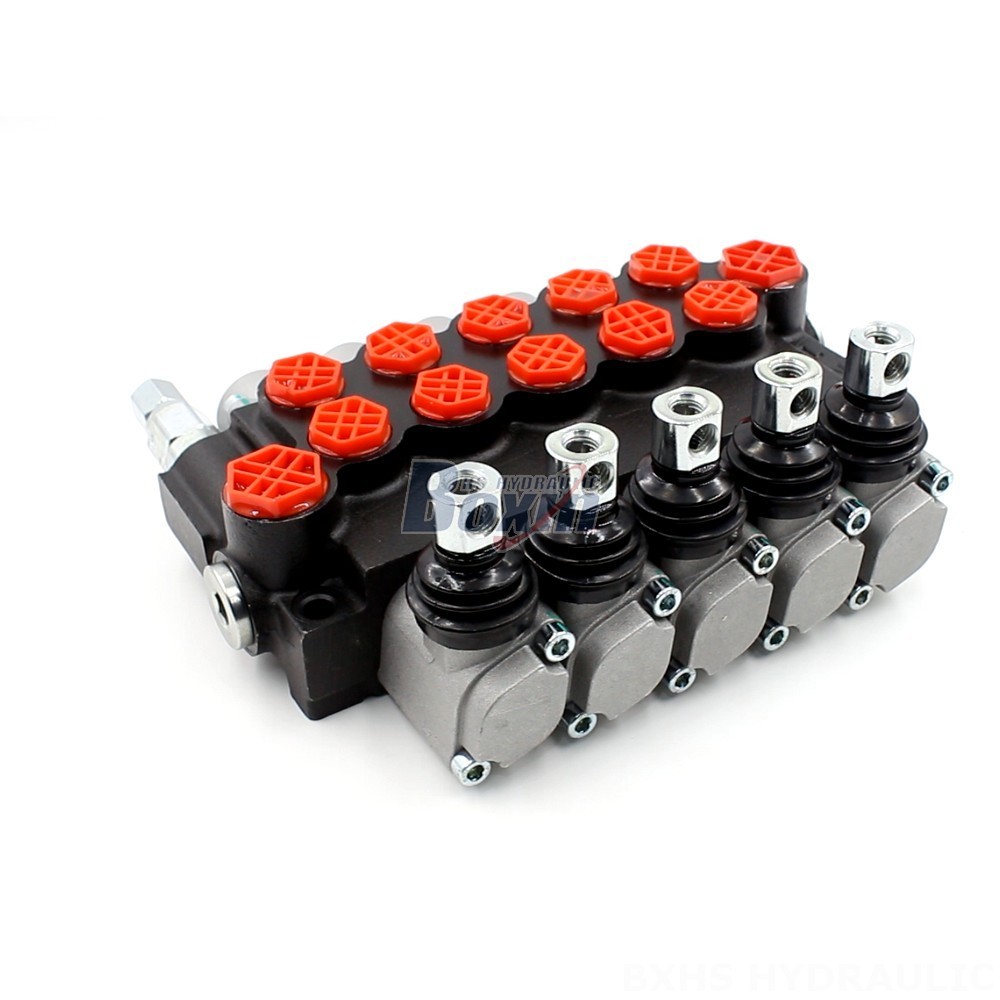

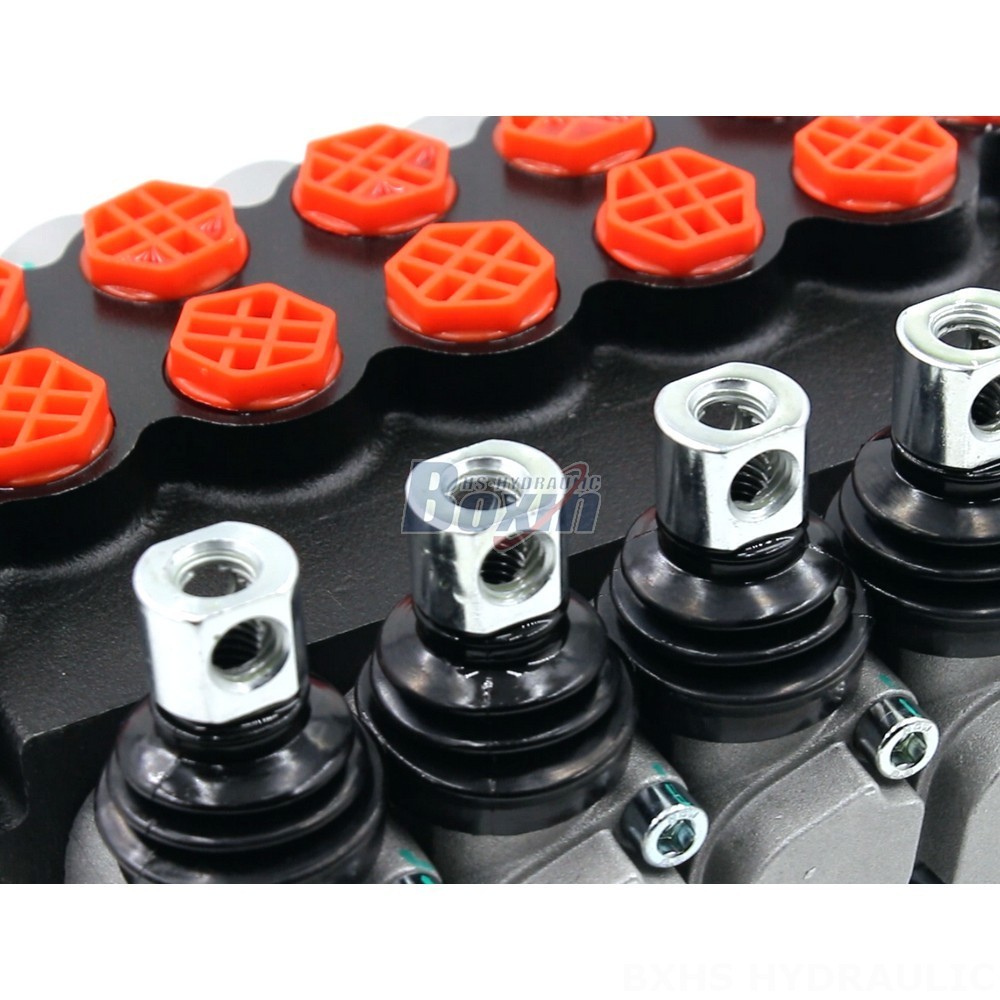

Meet Your Unique Needs: Customizable P40-G12-G38 Valves and Hydraulic Solutions
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
P40-G12-G38 valves are customizable to meet your specific requirements. We offer OEM, ODM, and private label services to help you create the perfect solution for your application. Our valves are designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles.
With a rated flow of 40 L/min (10.5 US gpm) and a max pressure of 250 bar (3600 psi), our valves are built to perform in the most demanding applications. They feature a monoblock design for increased durability and reliability. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F).
Our valves are available with a variety of spool options to meet your specific needs. The P40 series valves are also available in a variety of configurations to meet the space and performance requirements of any application.
