The SDS180 Series Hydraulic Solenoid Directional Valve is a 4-spool manual valve designed for heavy-duty applications in construction, material handling, and agriculture. With a rated flow of 160 L/min and a max pressure of 350 bar, this valve is suitable for use in a wide range of equipment.
| Seri SDS180 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G3/4, G1, SAE 12 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G3/4, G1, SAE 12 |

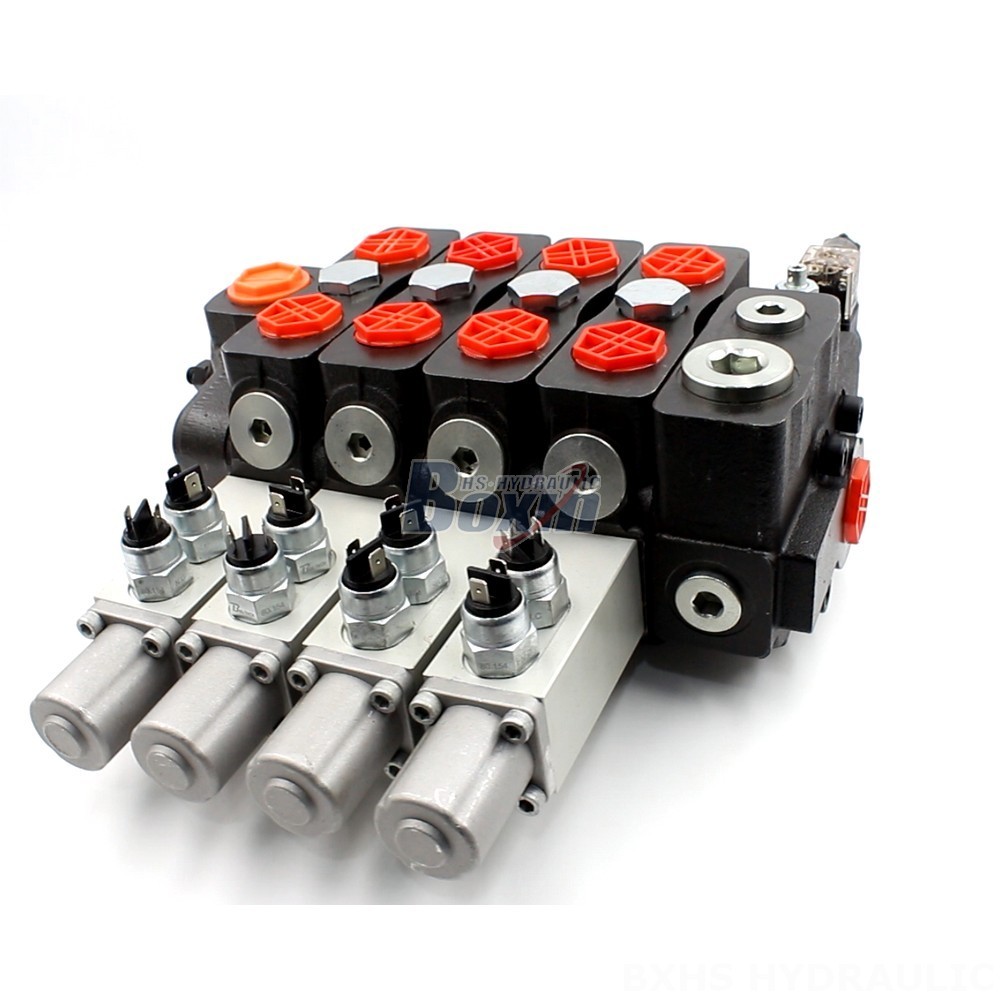

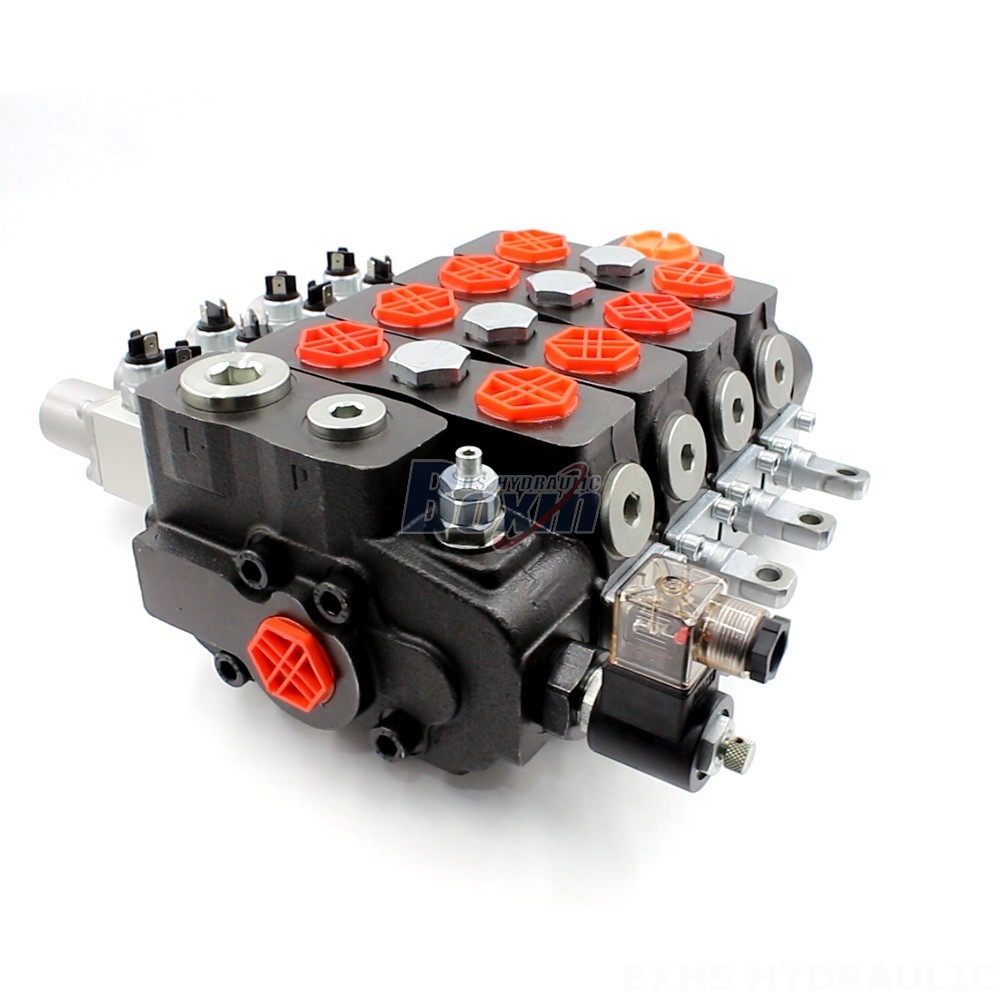

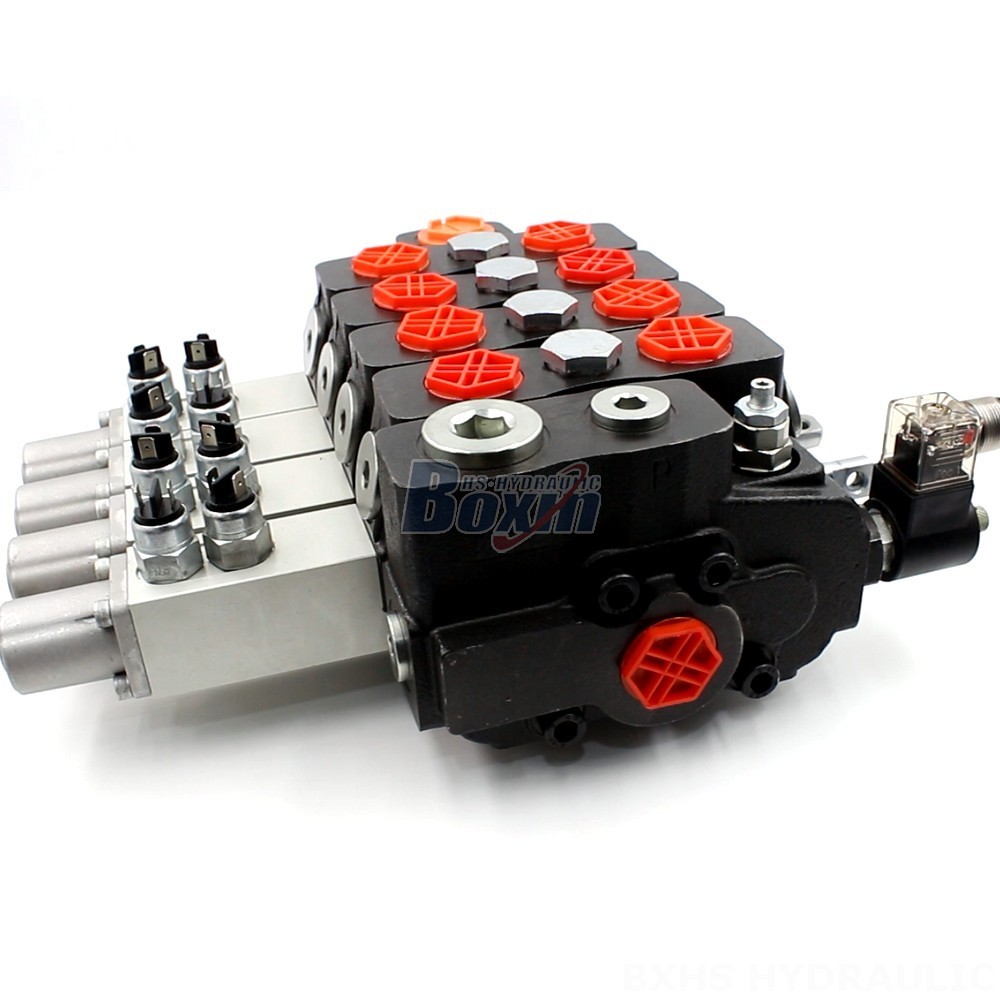

The DLS180 Manual 4 Spool Hydraulic Solenoid Directional Valve is a robust and reliable valve designed for demanding applications. It features a manual control method, a 4-section design, and a sectional valve structure. This valve has a rated flow of 160 L/min (42.2 US gpm) and a max pressure of 350 bar (5100 psi). It operates within a viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt). The DLS180 is suitable for a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. It is ideal for use in applications requiring precise and efficient hydraulic control.
