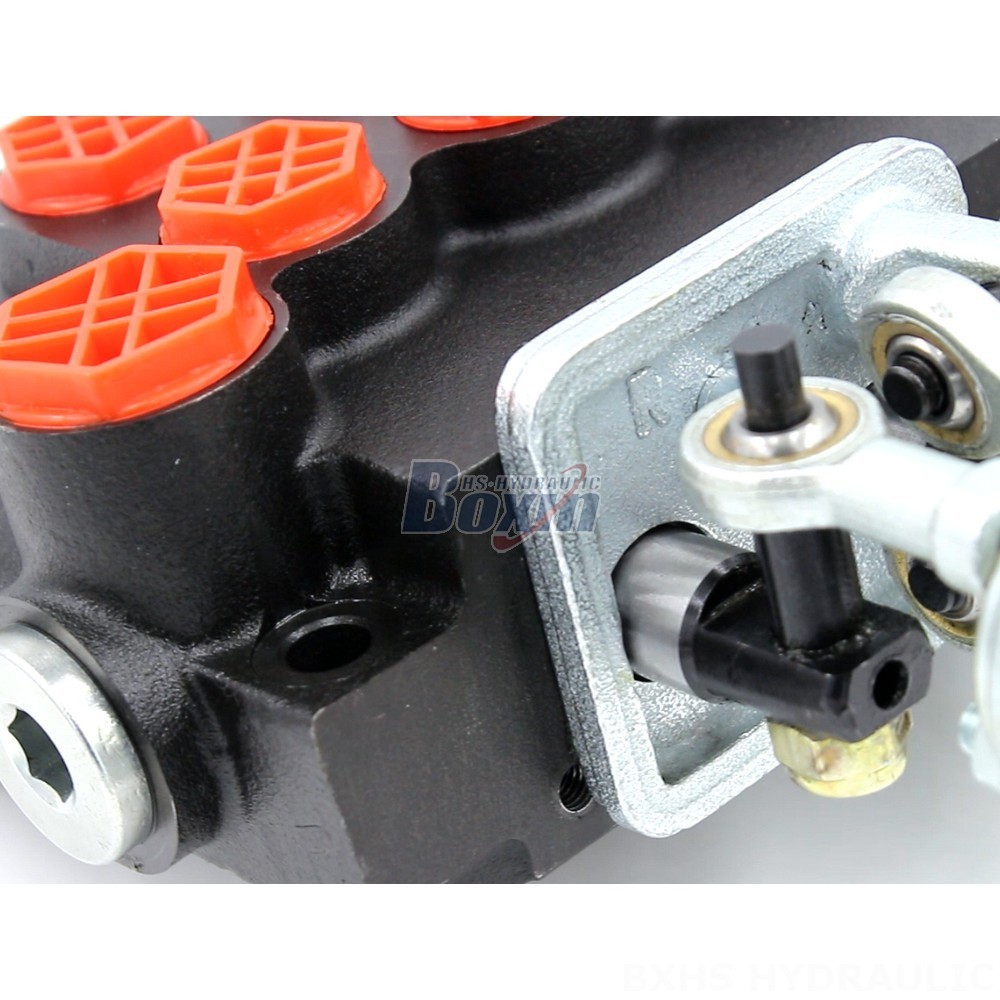

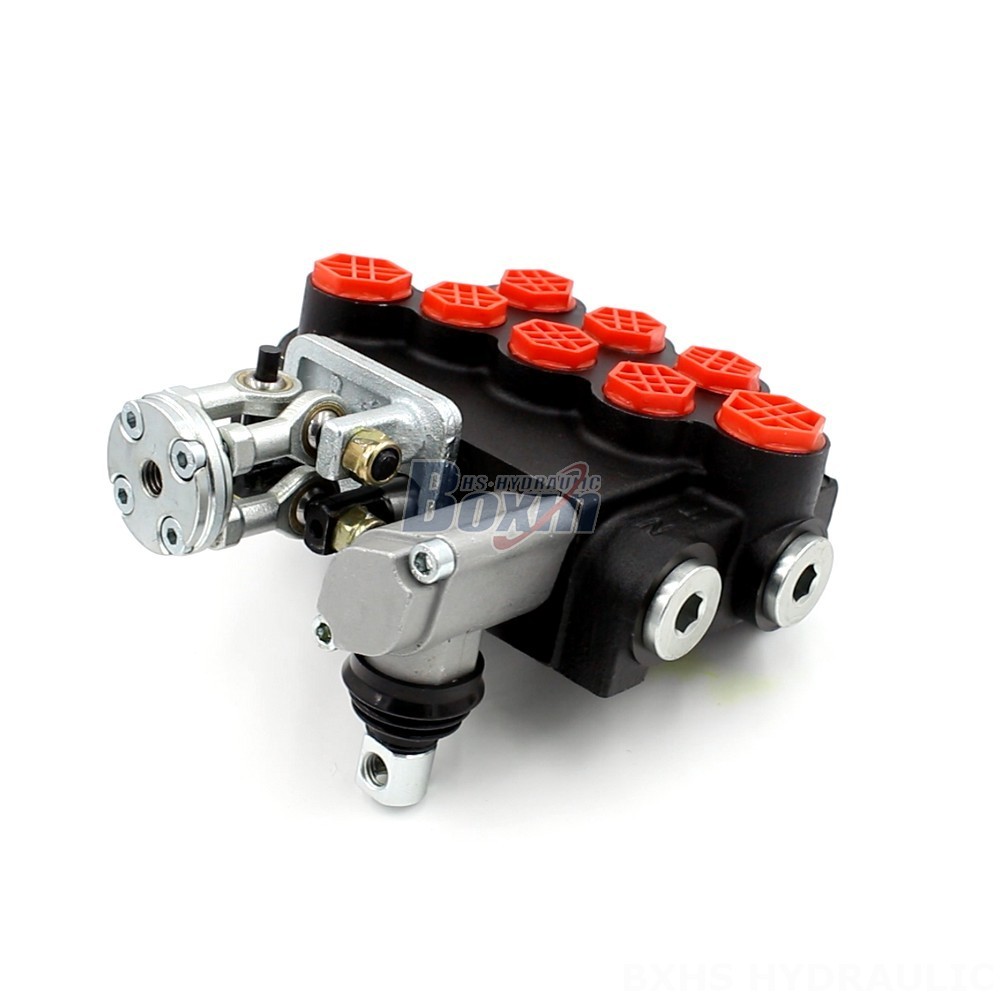

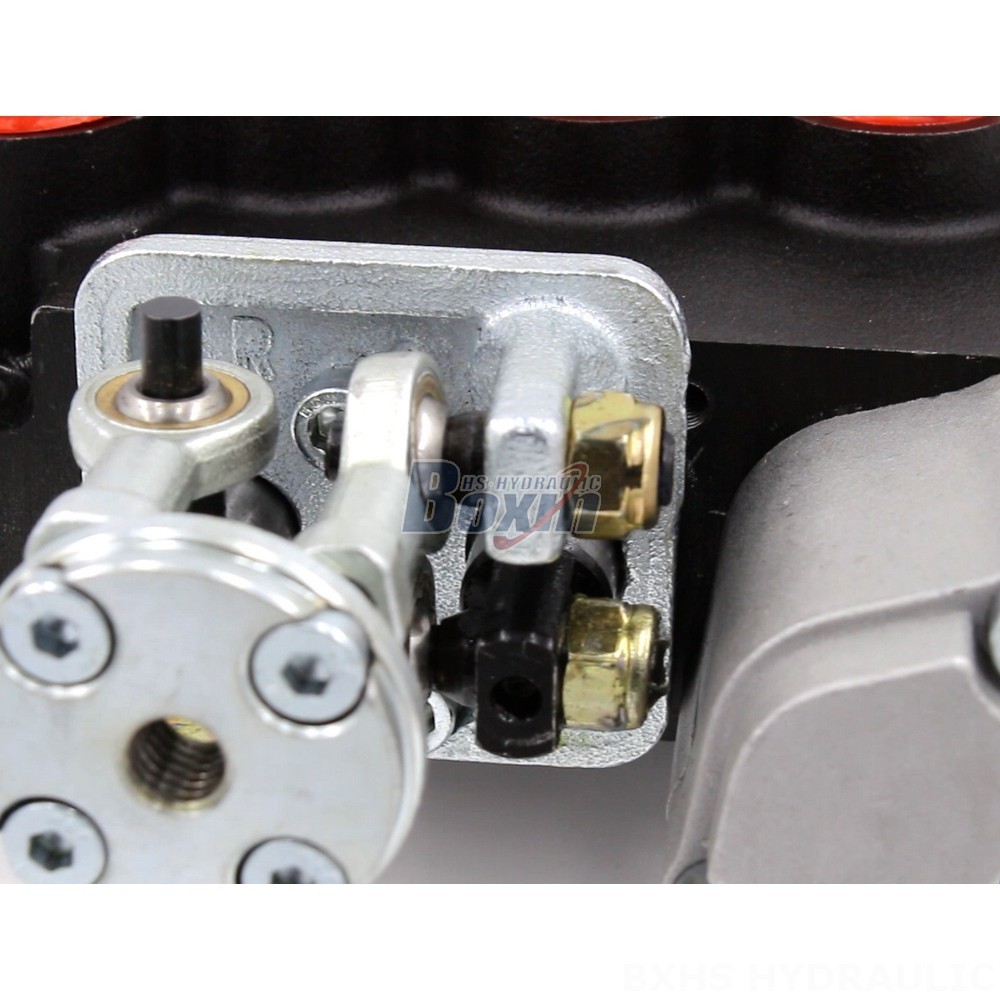

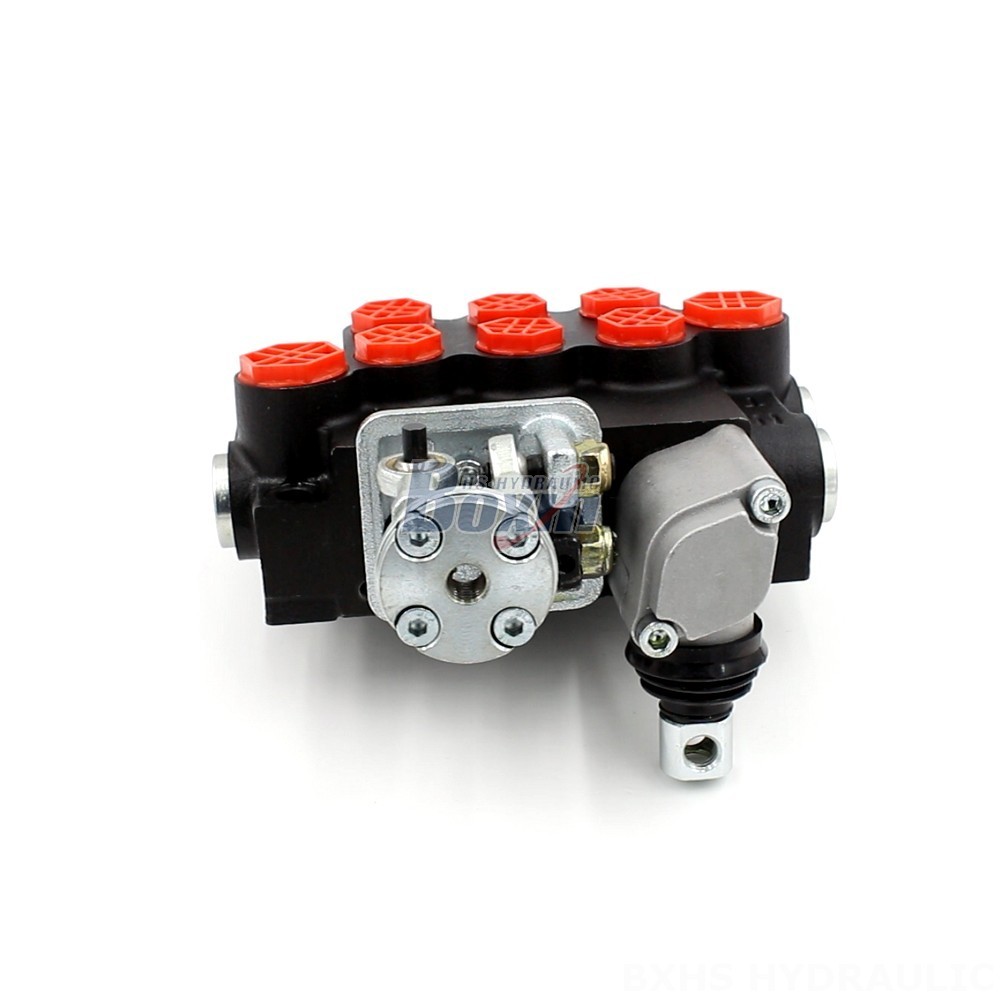

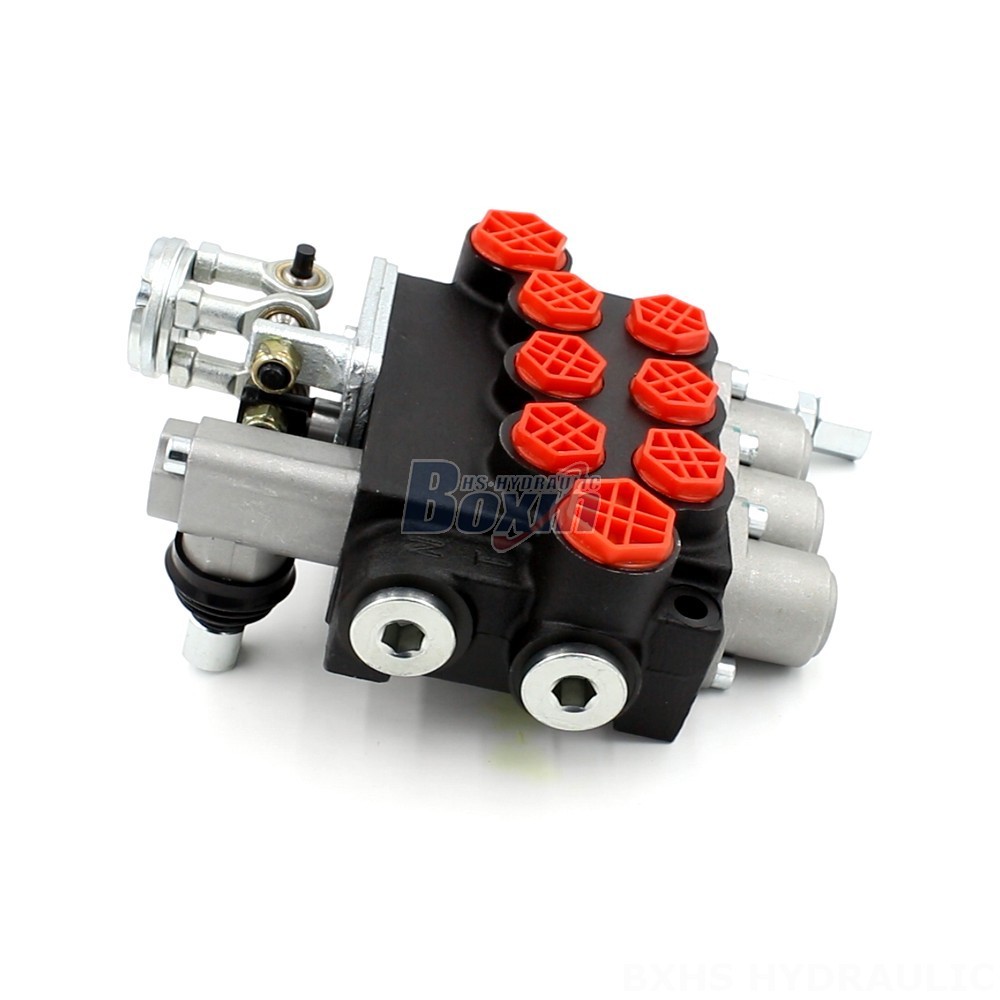

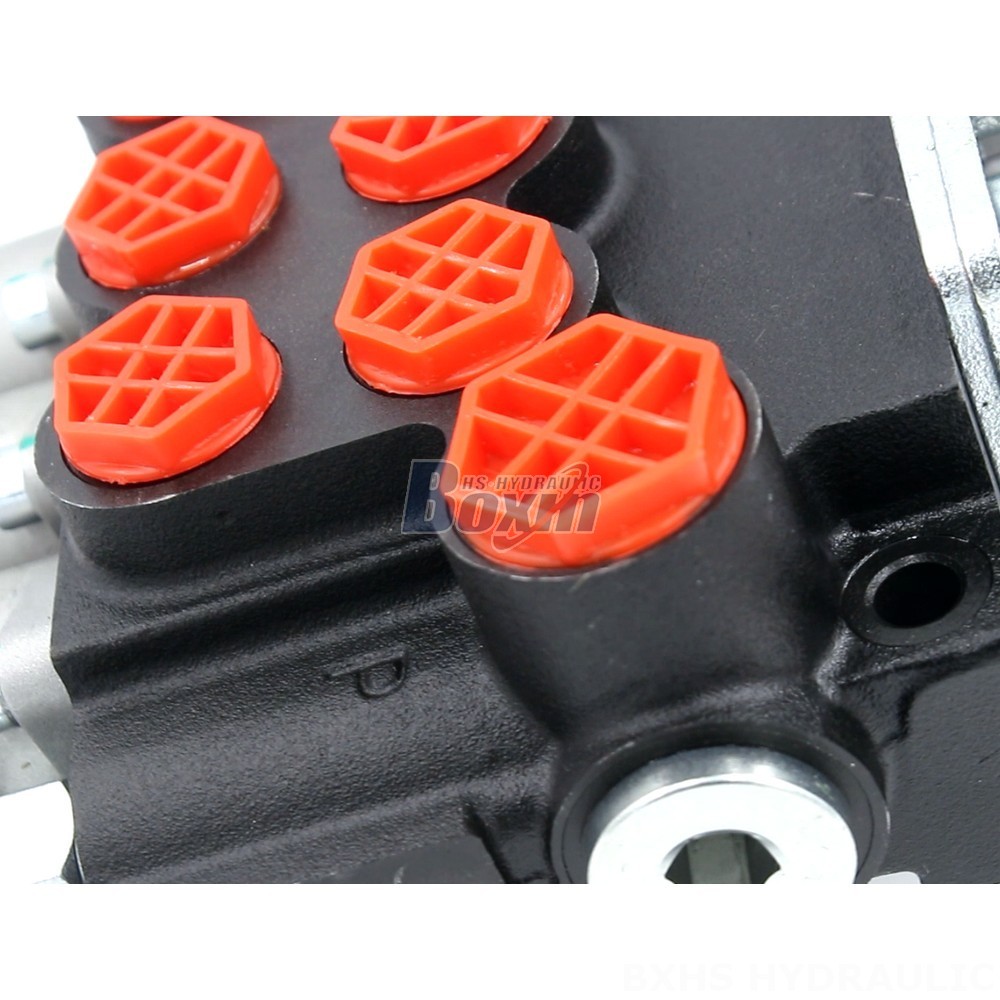

The P40 Valve is a monoblock construction valve that offers superior reliability and performance. It is manually and joystick controlled, has 3 sections, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The P40 Valve is available in 3 spool and is part of the P40 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications. It is specifically suitable for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Valve is a monoblock construction valve that offers superior reliability and performance. It is manually and joystick controlled, has 3 sections, and a rated flow of 40 L/min (10.5 US gpm). The valve has a maximum pressure of 250 bar (3600 psi) and an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). It operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The P40 Valve is available in 3 spool and is part of the P40 Series.
The P40 Valve is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles applications. It is specifically suitable for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
**Key Features:**
* Monoblock construction for superior reliability and performance
* Manual and joystick control
* 3 section
* Rated flow of 40 L/min (10.5 US gpm)
* Maximum pressure of 250 bar (3600 psi)
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* Available in 3 spool
* Part of the P40 Series
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
