Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1017 Pandangan Mencari Produk Ini

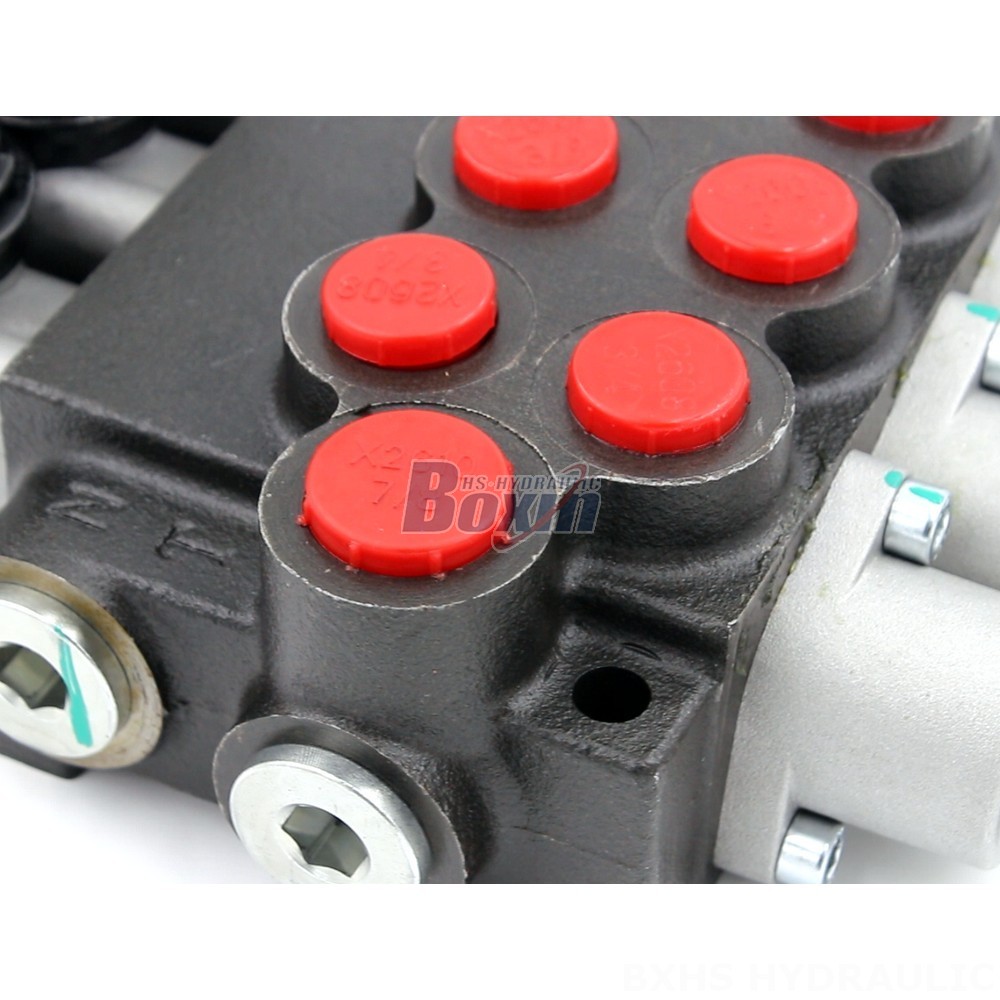

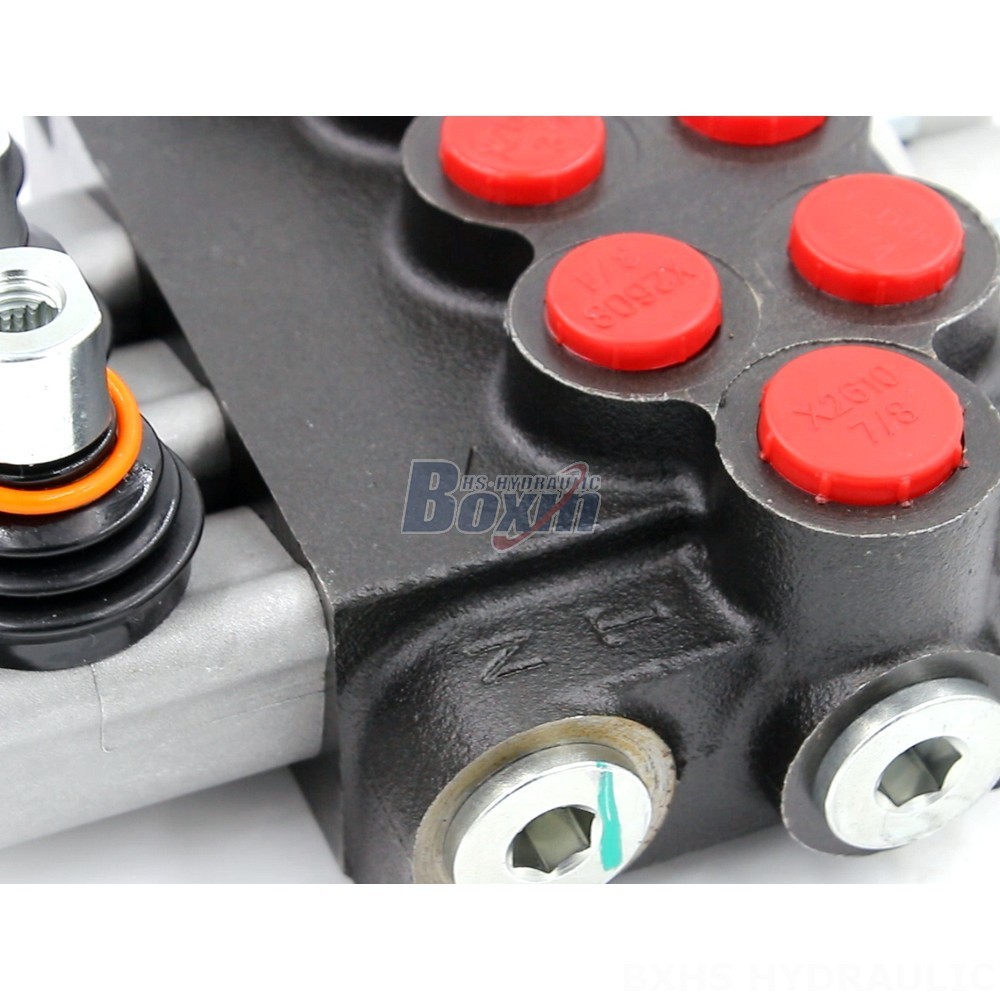

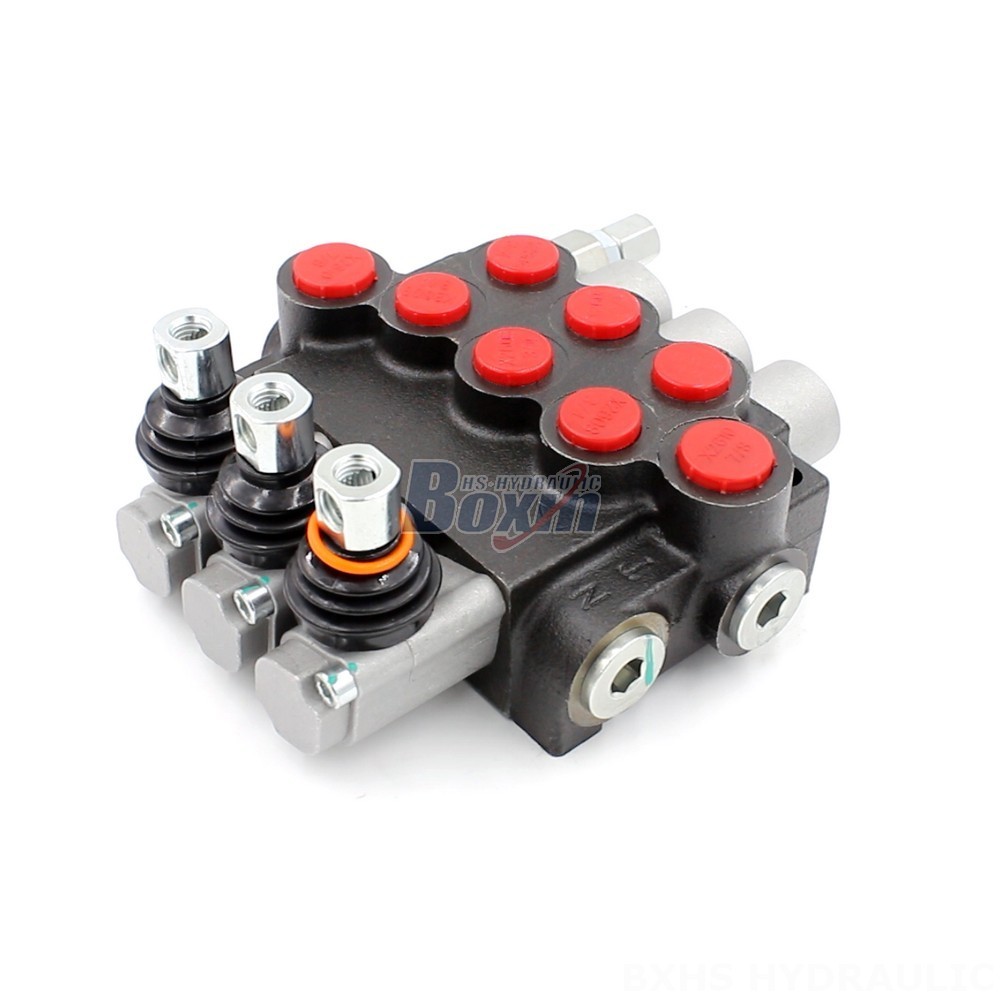

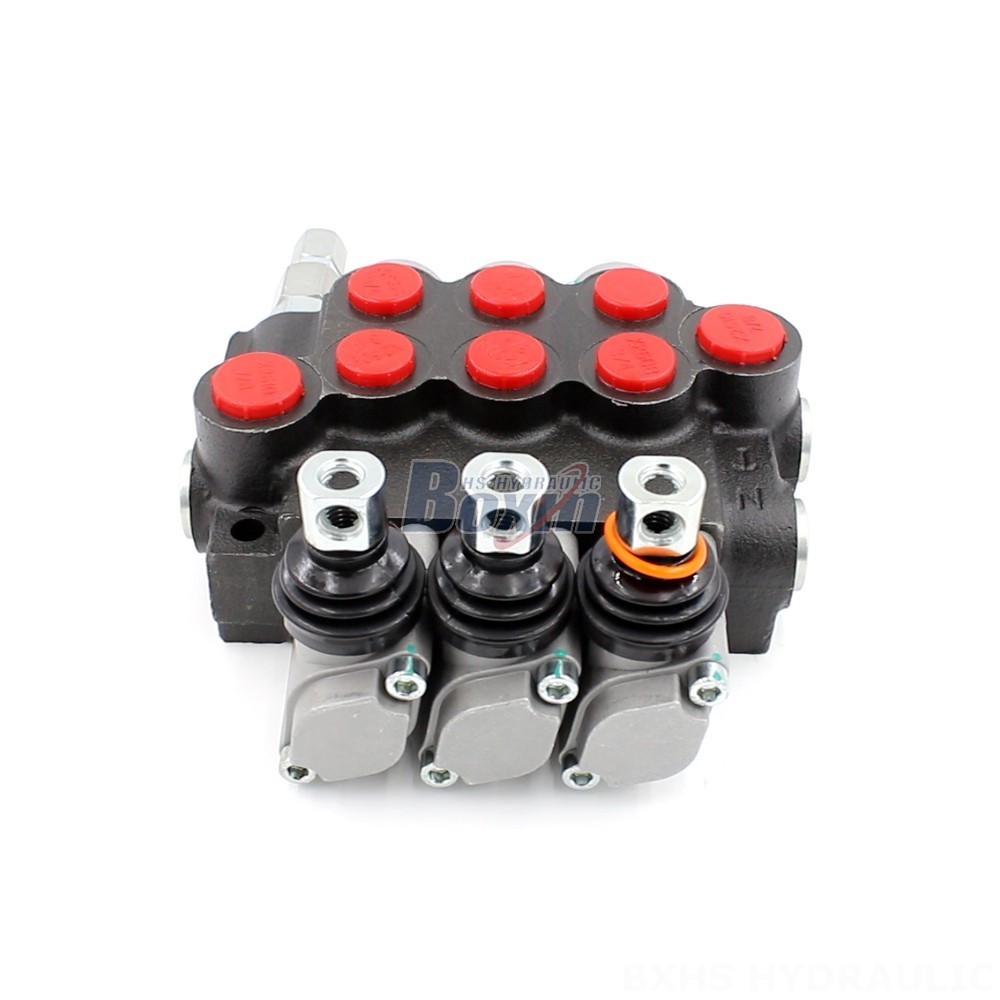

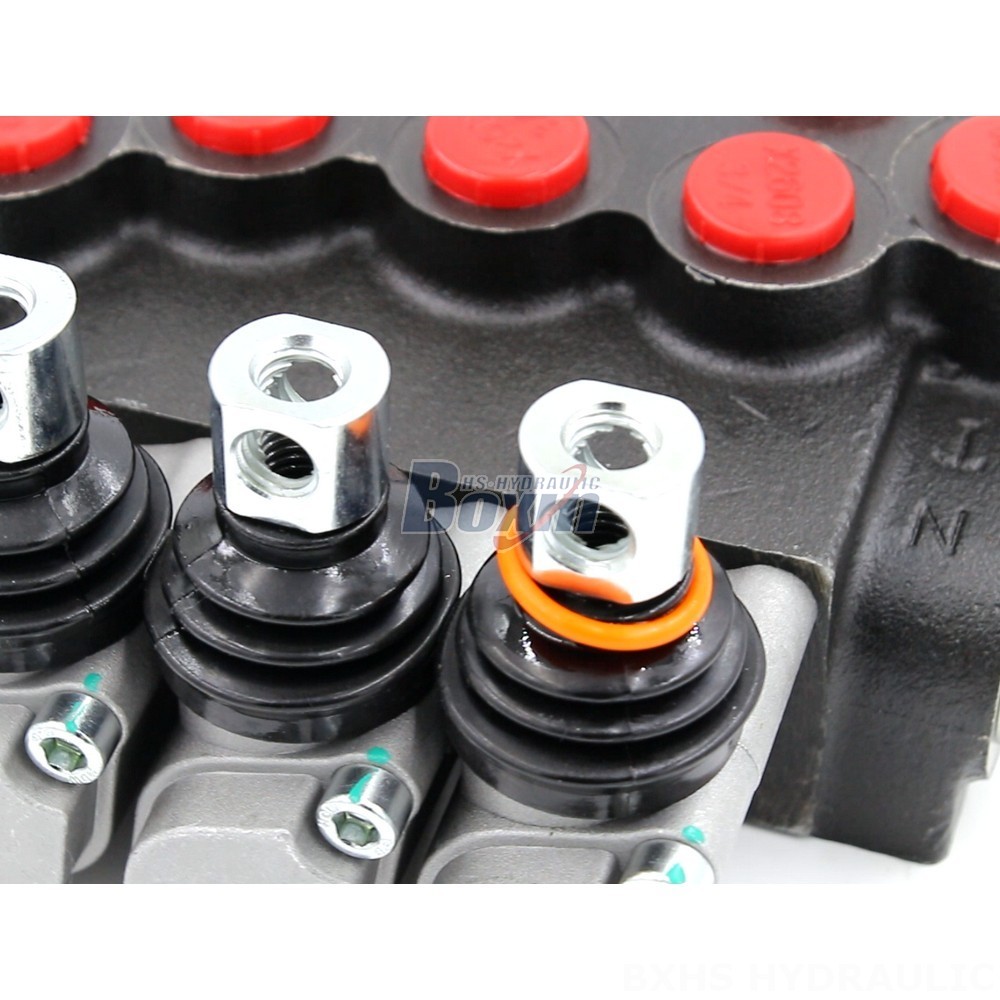

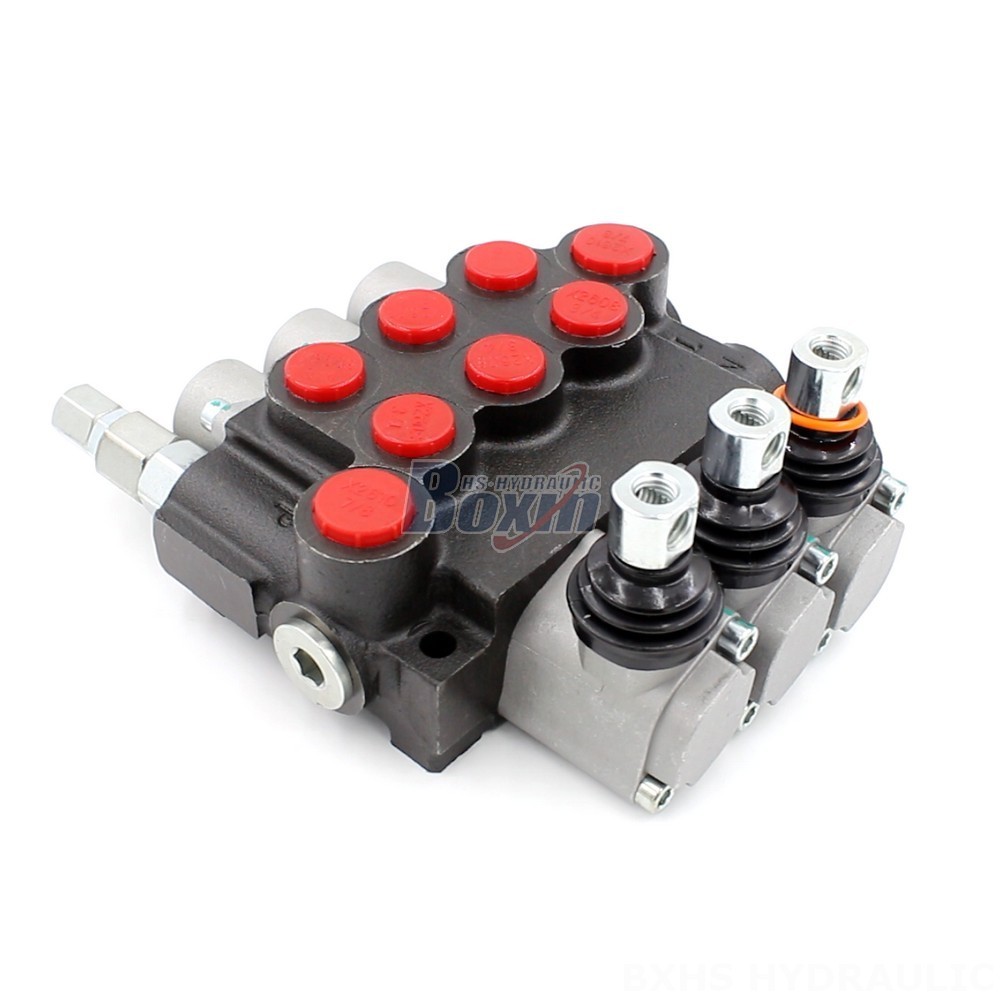

This is a high-performance Log Splitter Detent Valve, offering reliable directional control for hydraulic systems in various applications. It's a 3-section, monoblock valve with manual control, designed for demanding environments and available in customized options.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This Log Splitter Detent Valve is a robust, 3-section monoblock valve designed for demanding hydraulic applications. It features manual control and a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). This valve is ideal for use in material handling, construction, agriculture, and industrial vehicle applications, specifically for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, backhoe loaders, tractors, and front-end loaders. We offer factory-direct pricing and customization options to meet your specific needs.
