Produksi & Pengiriman
Waktu Produksi 15-30 Hari

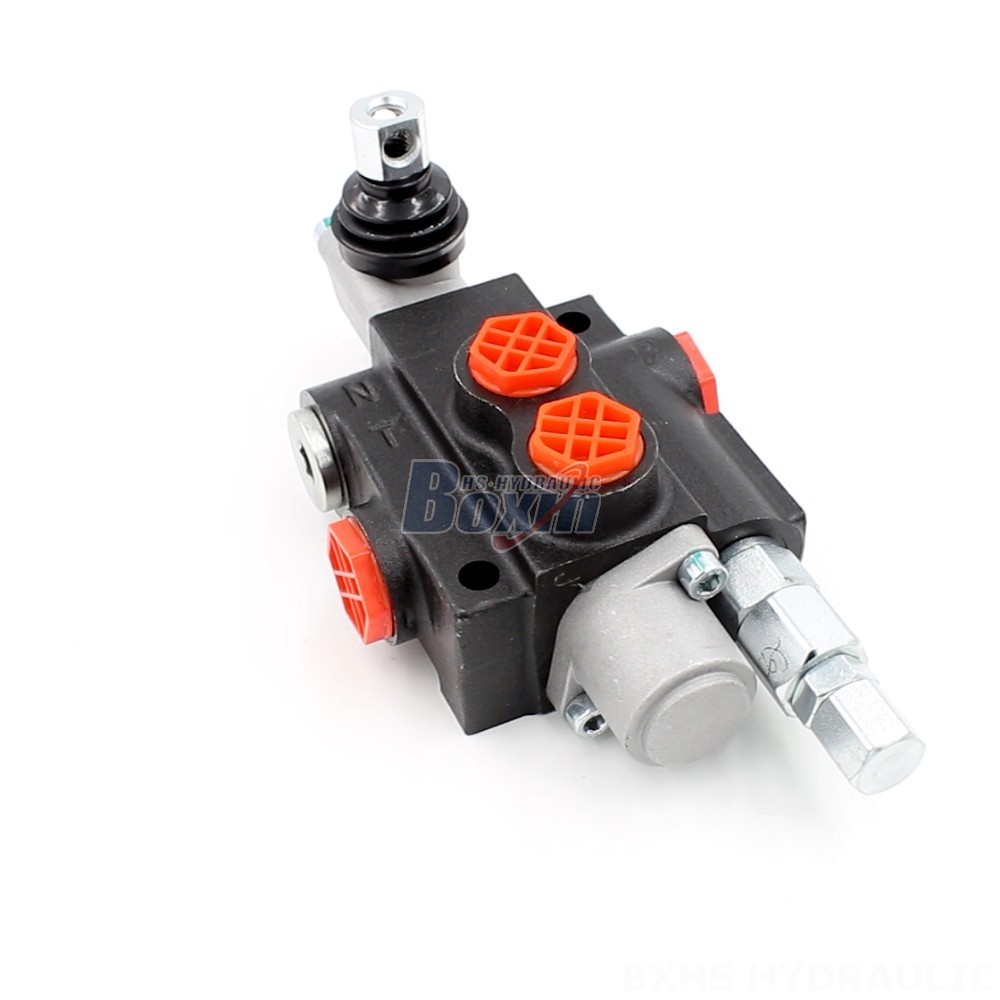

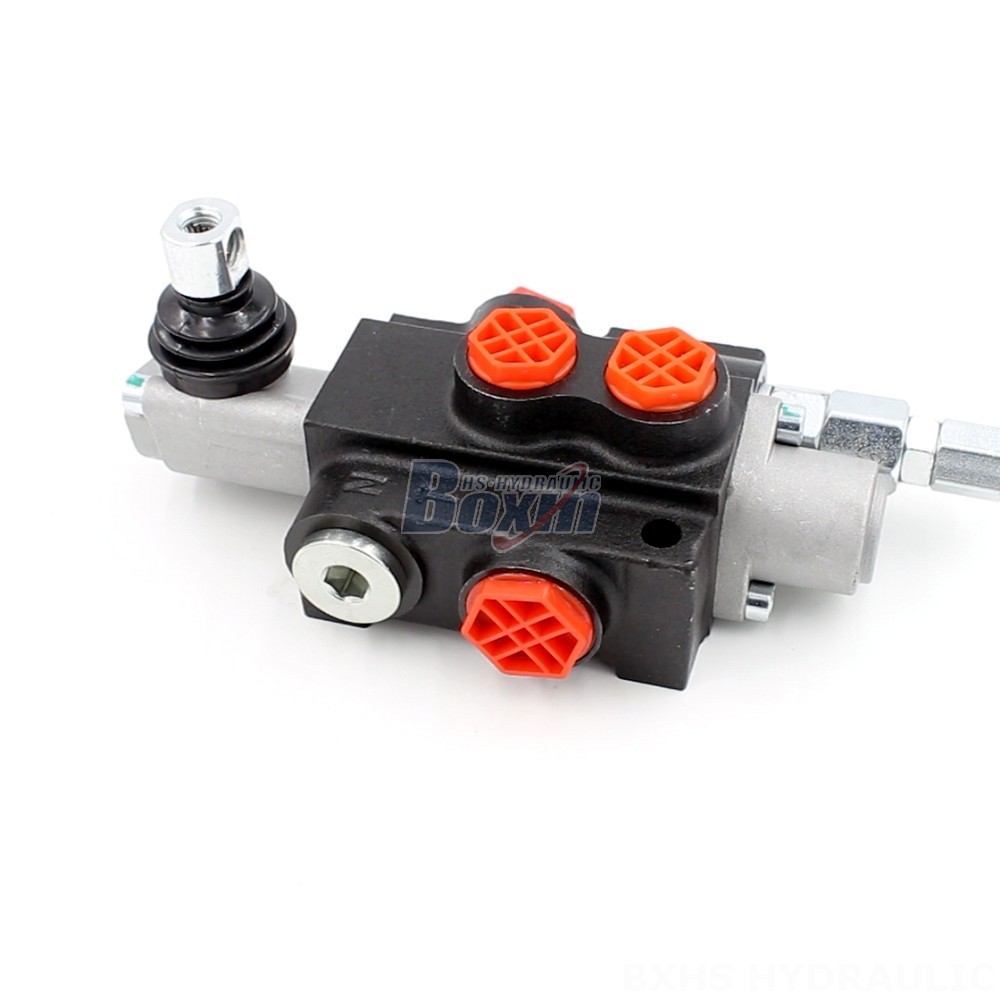

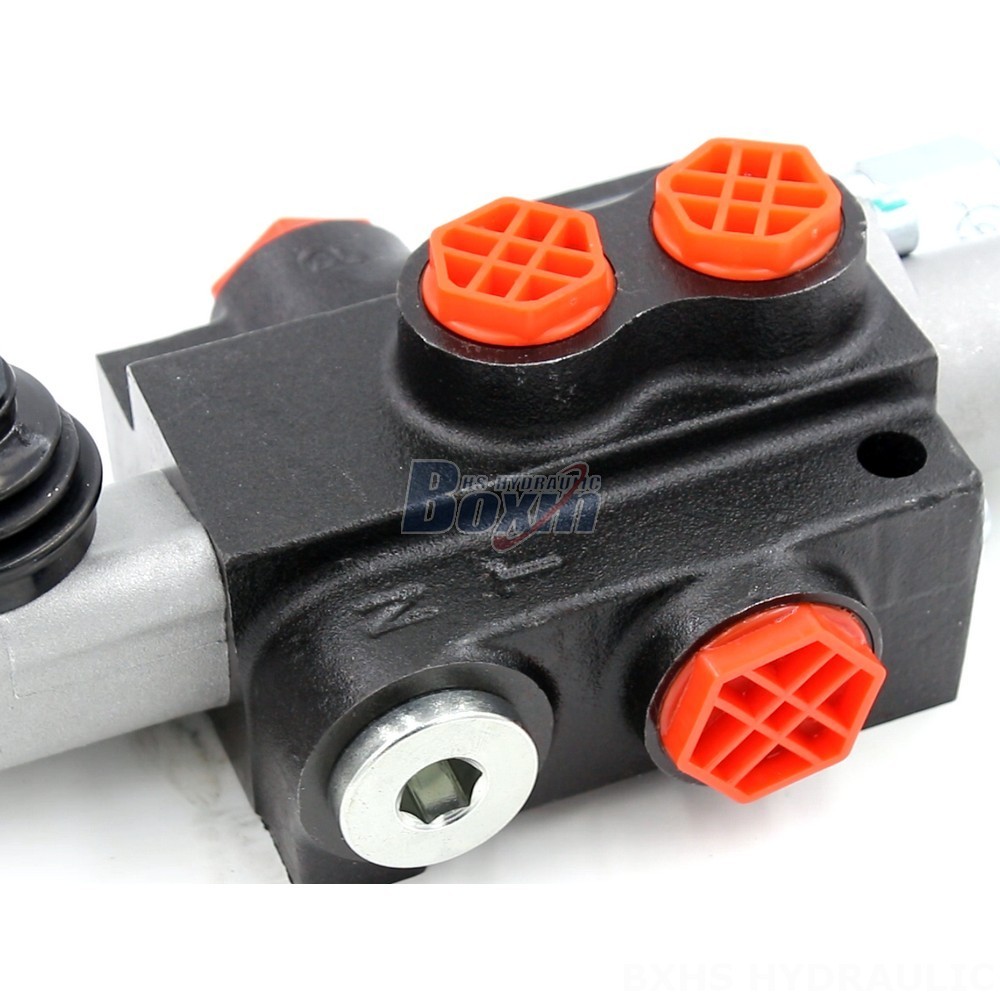

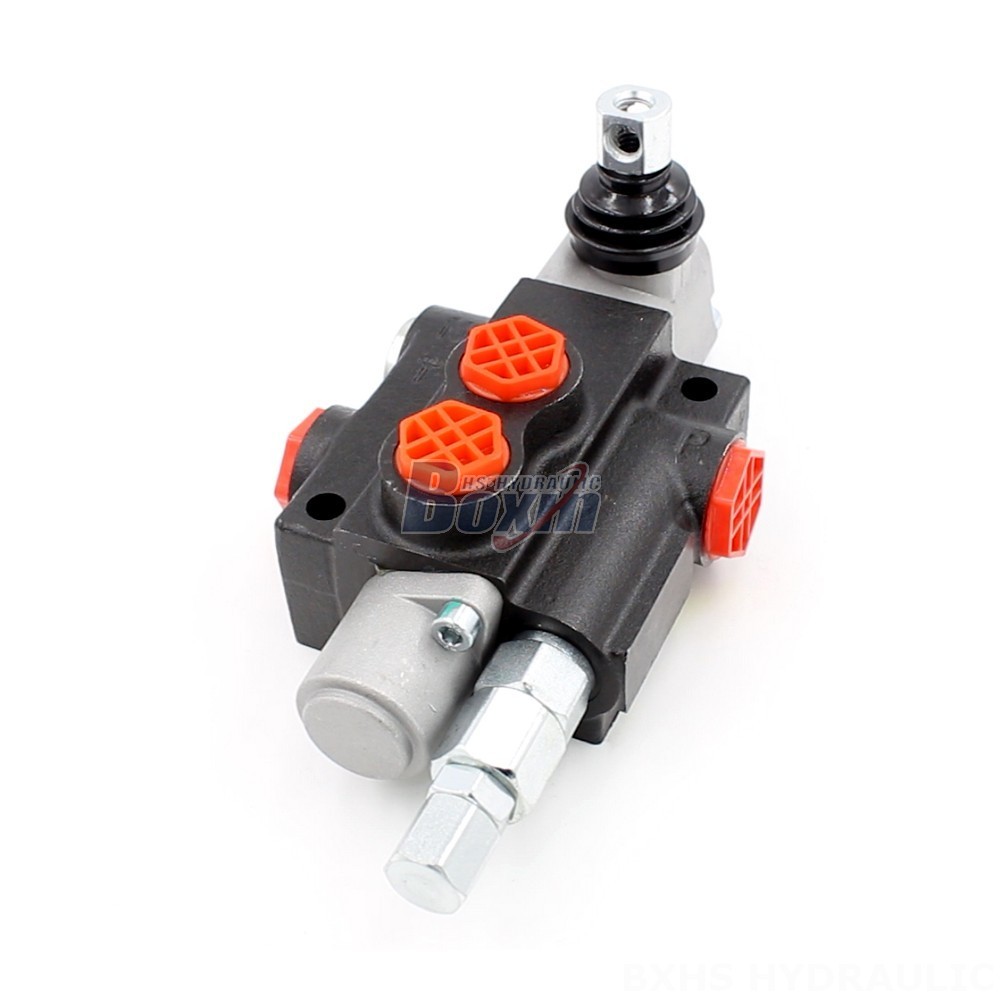

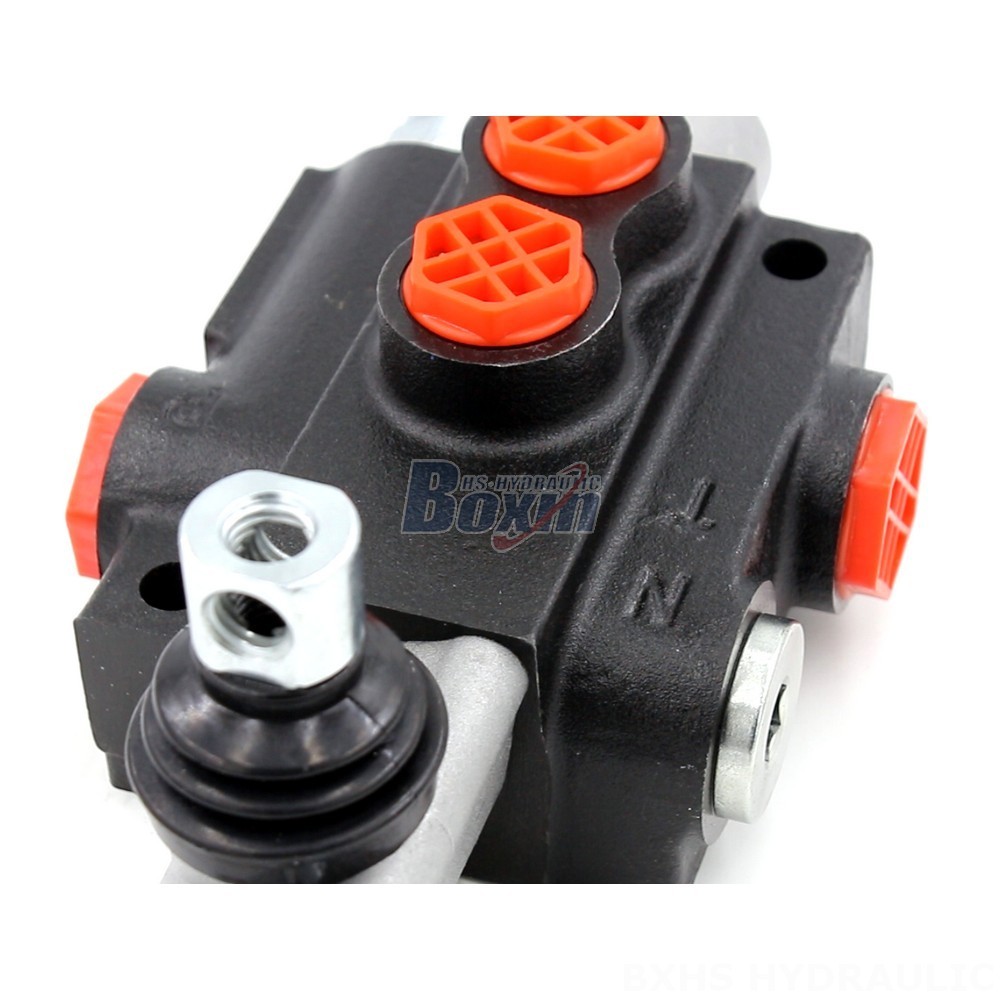

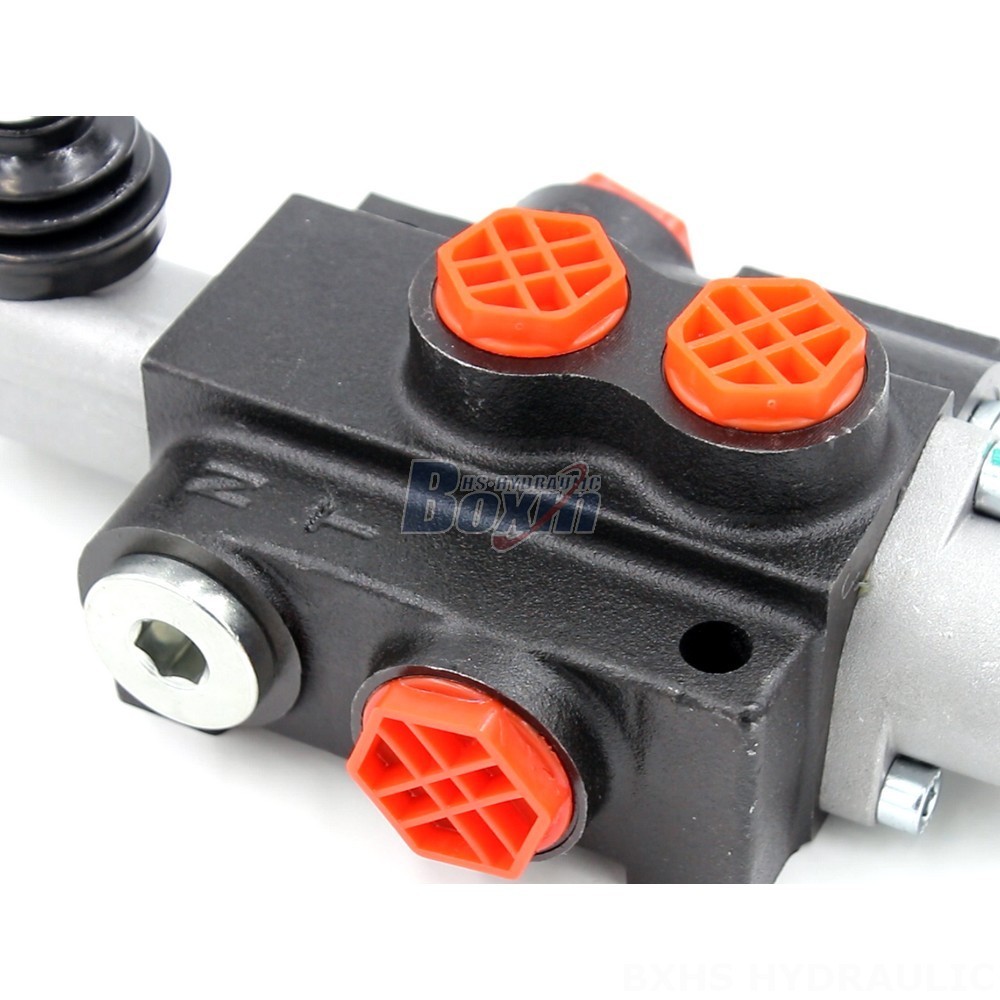

The P40-OT Wood Splitter Control Valve is a high-performance, manual directional control valve designed for demanding applications in construction, material handling, and agriculture. This robust monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering various hydraulic systems in heavy-duty machinery.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-OT Wood Splitter Control Valve is a reliable and durable hydraulic component that delivers superior performance in challenging environments. Its monoblock construction ensures exceptional strength and longevity, while its manual control offers precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for powering a wide range of hydraulic systems in construction equipment, material handling machinery, and agricultural vehicles. The P40-OT is specifically designed for applications such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its robust construction and high flow rate make it an ideal choice for heavy-duty applications where reliability and performance are paramount.
