Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Metode Kontrol:Buku Panduan

Spul:5 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:SAE 10

Port Keluar:SAE 10

Ukuran Port:SAE 10

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:28*23*13

Kelas kotor:9.80 kg

Ketersediaan: Tersedia

1071 Pandangan Mencari Produk Ini

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM

Monoblock Directional Control Valve: P40-U78 Series | Wholesale & OEM drawing image

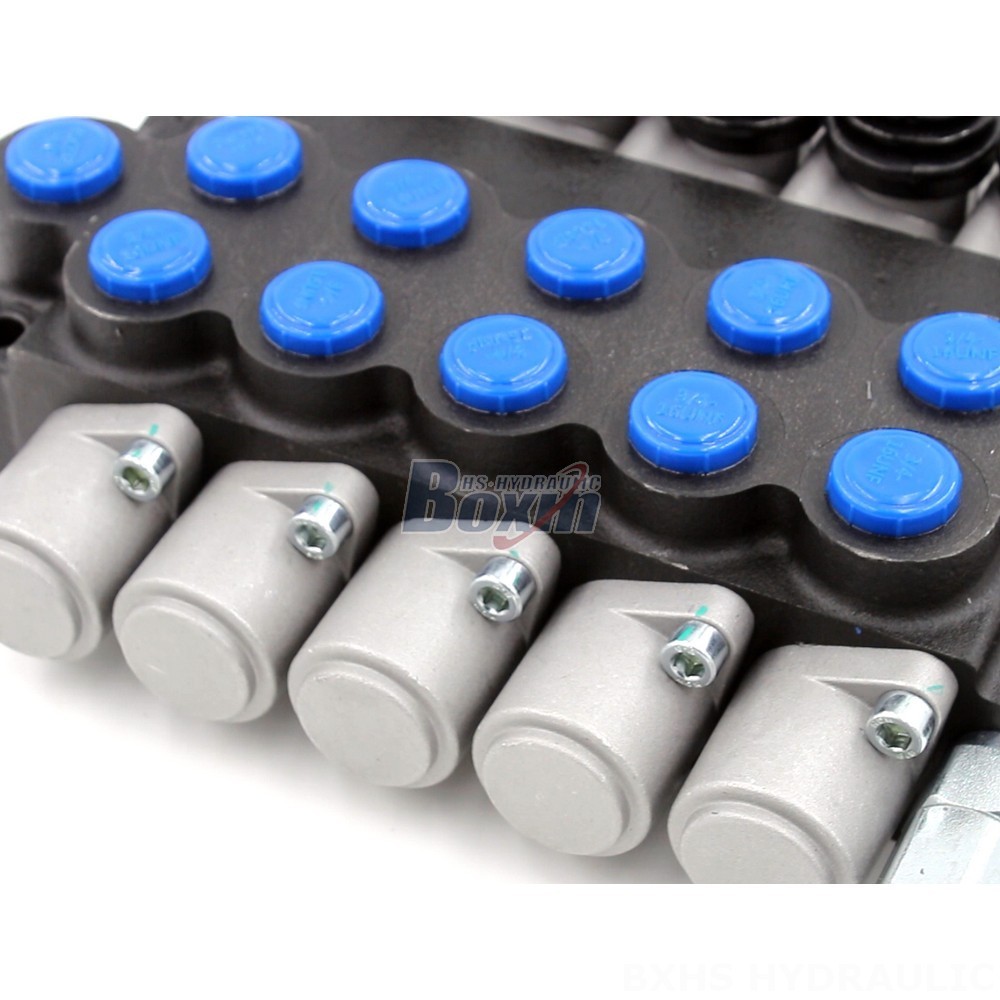

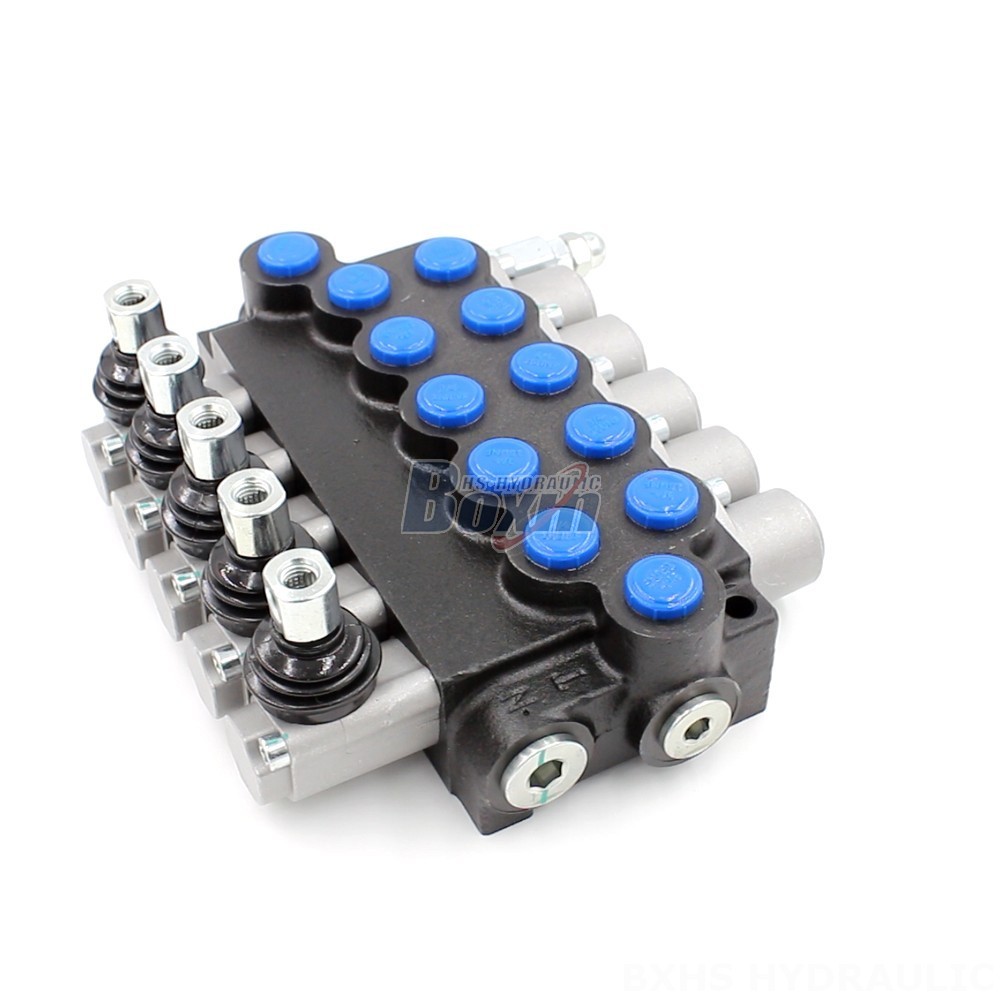

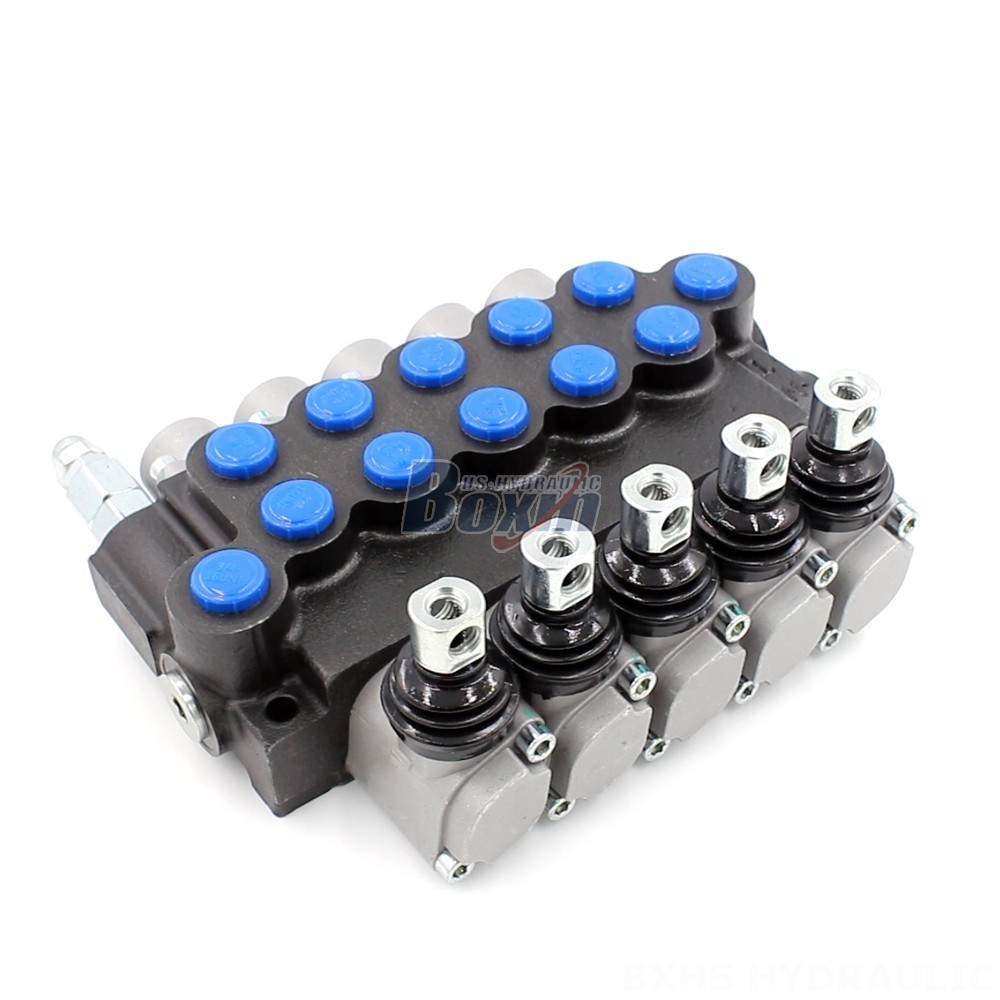

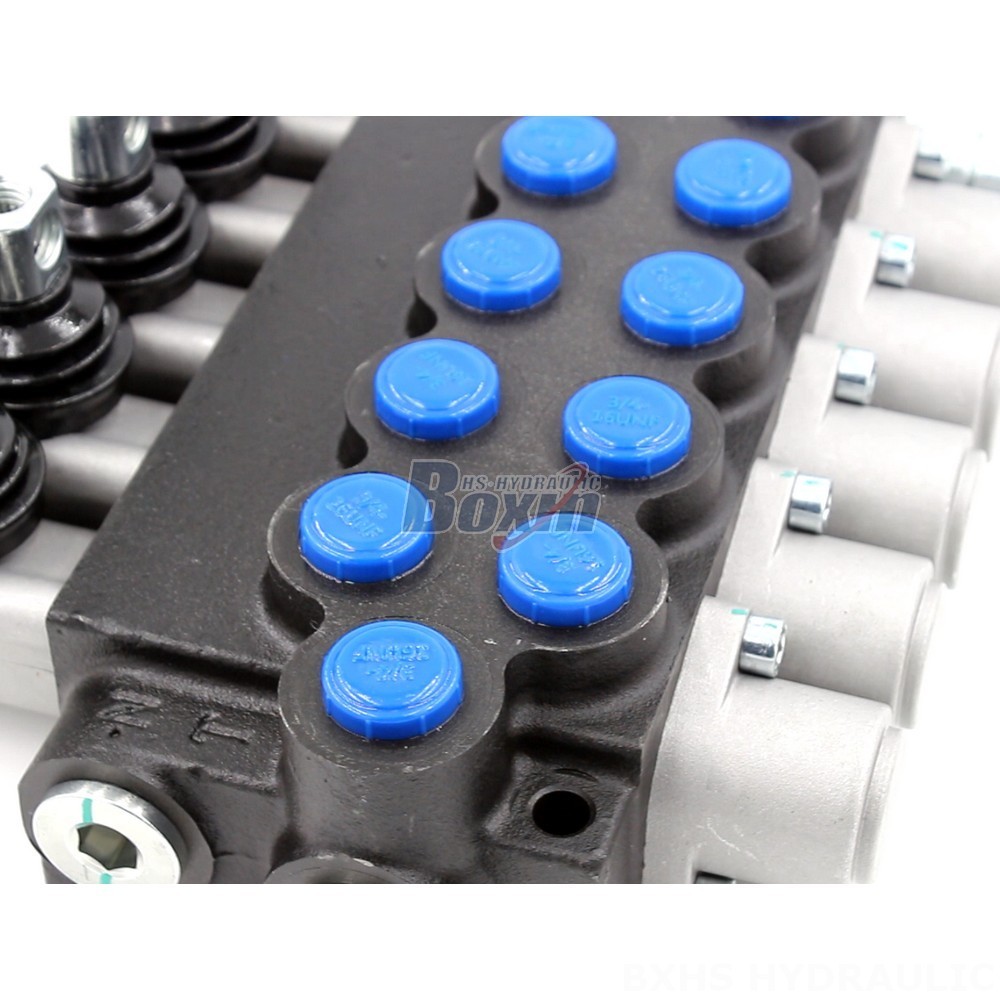

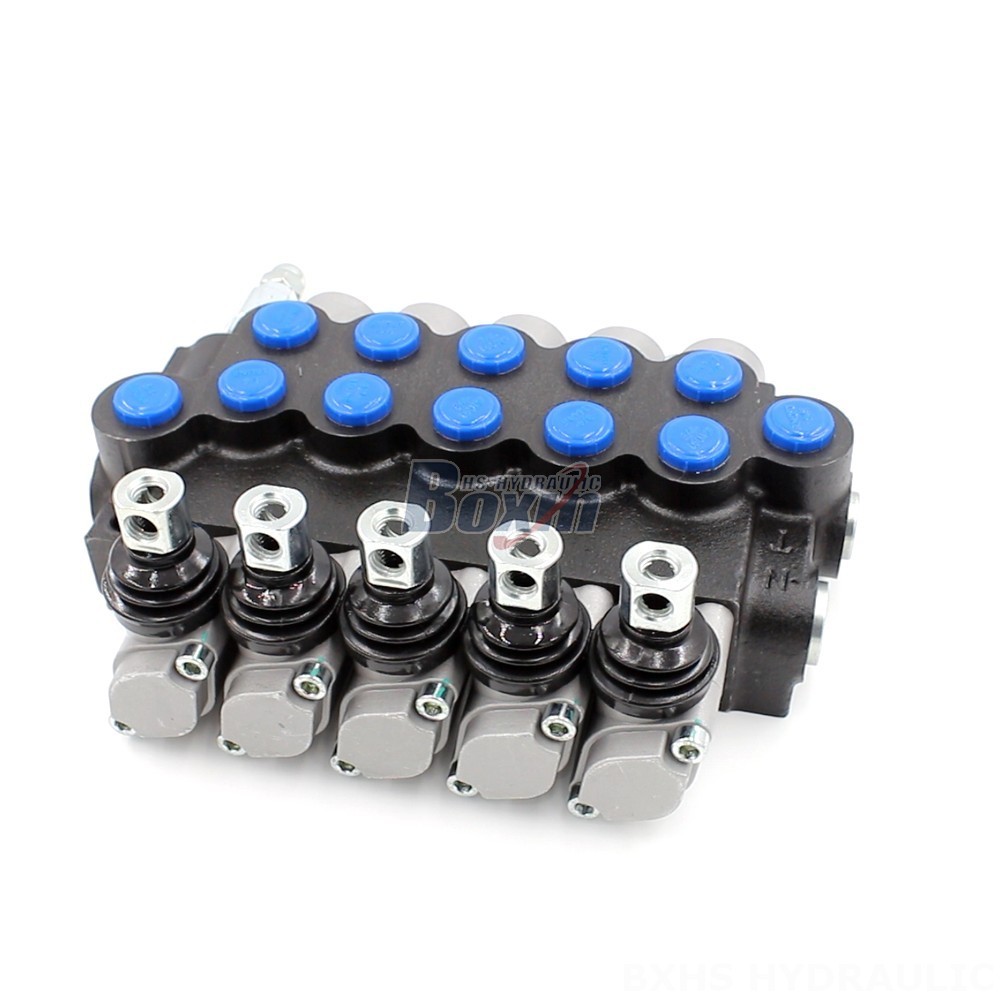

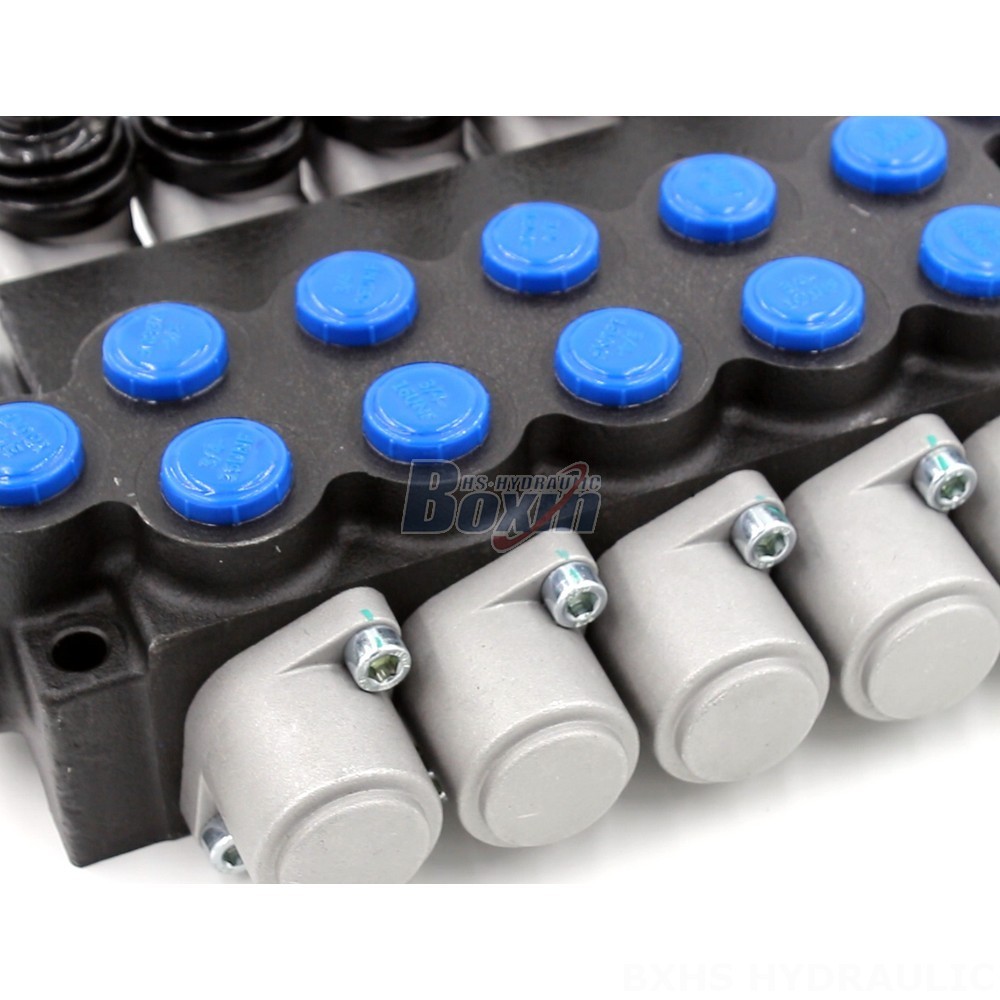

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a high-performance valve designed for use in a wide range of applications, including material handling, construction, and agriculture. This 5-section, manually controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for powering log splitters and other heavy-duty equipment.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-U78 Series Hydraulic Log Splitter Monoblock Directional Control Valve is a robust and reliable solution for controlling hydraulic systems in a variety of applications. This 5-section, monoblock valve features a manual control method, making it easy to operate. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic tasks. Its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C) ensure optimal performance in a variety of environments. The P40-U78 Series is available in OEM and wholesale quantities, making it a perfect choice for manufacturers and distributors looking for high-quality hydraulic components. This valve is suitable for use in various types of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
