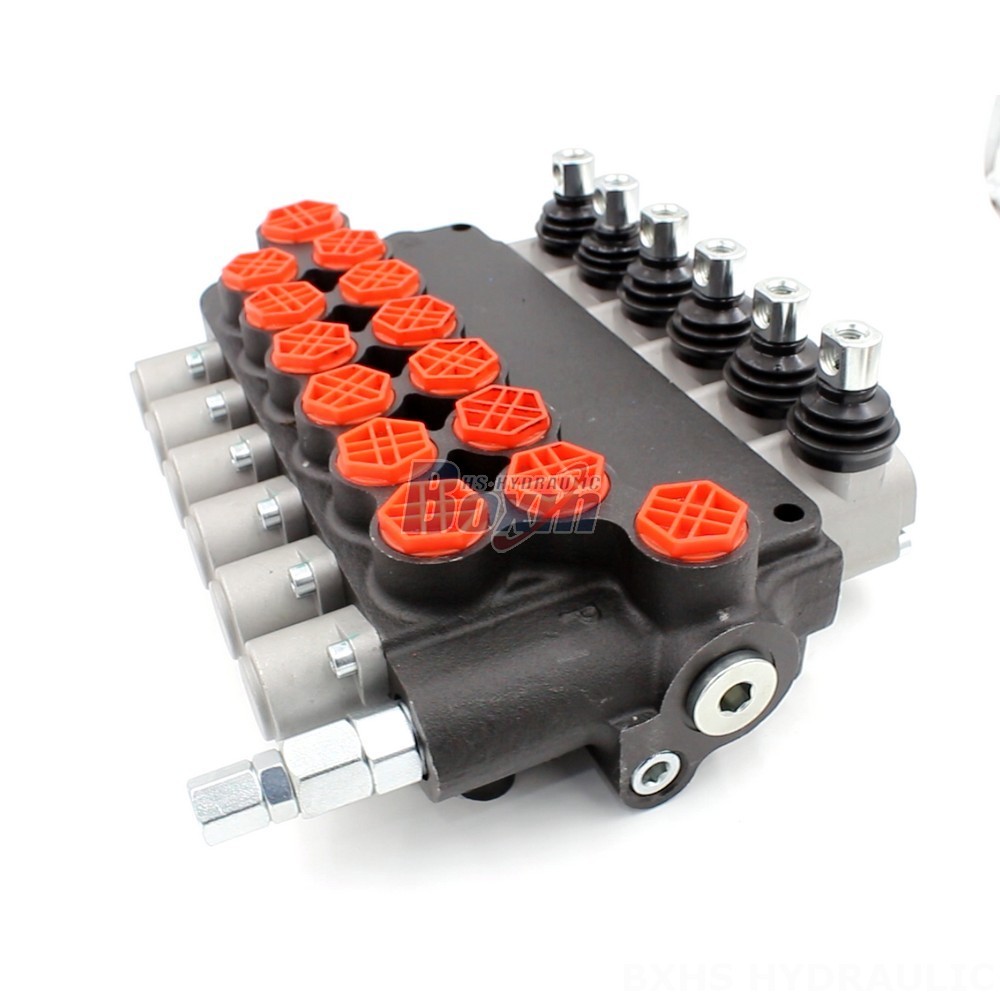

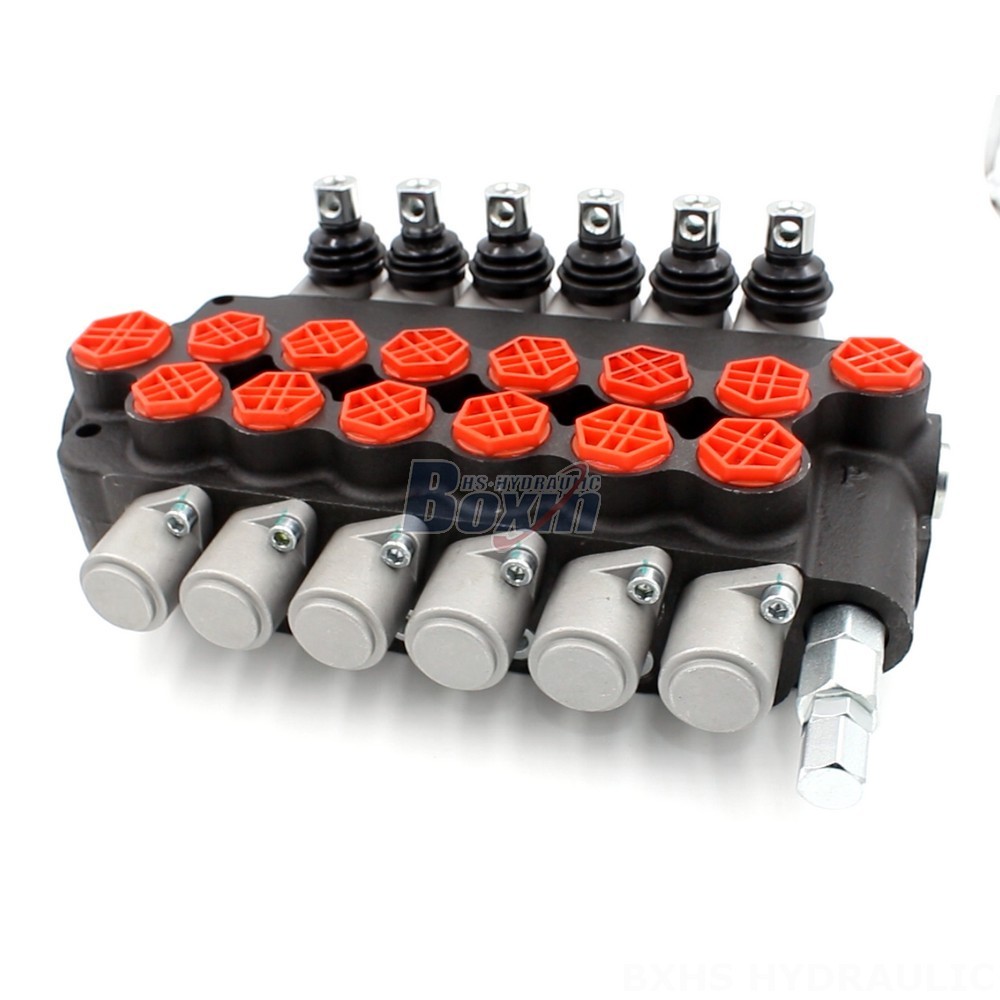

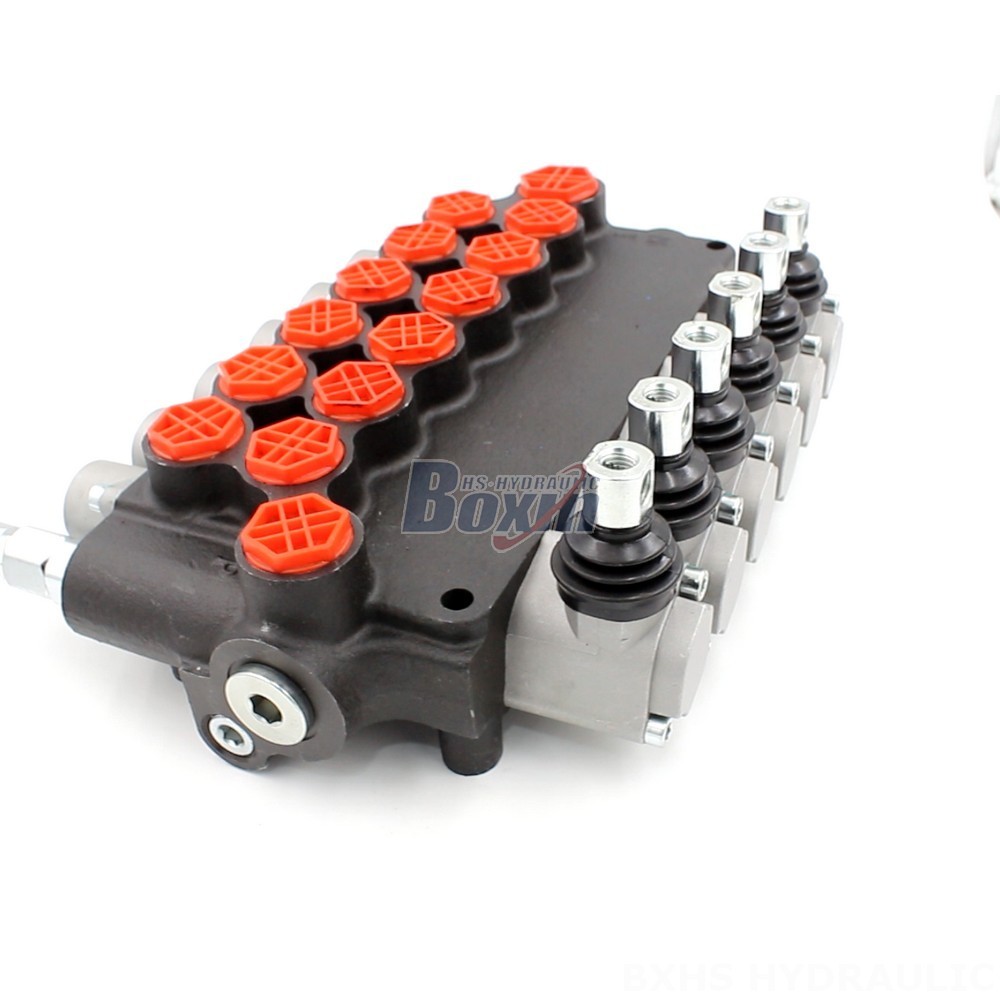

The P80-G12-G34-OT Hydraulic Diverter Valve is a 3 way monoblock directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This high-performance valve features a 6 section spool, 80 L/min rated flow, and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This manual control valve is built for durability and reliability with an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. It is suitable for use in various equipment, including telehandlers, forklifts, motor graders, mini-excavators, skid steer loaders, wheel loaders, backhoe loaders, tractors, and harvesters. The P80 Series offers OEM and ODM options to meet your specific needs. This product is an ideal solution for controlling hydraulic fluid flow in demanding applications.
