Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1269 Pandangan Mencari Produk Ini

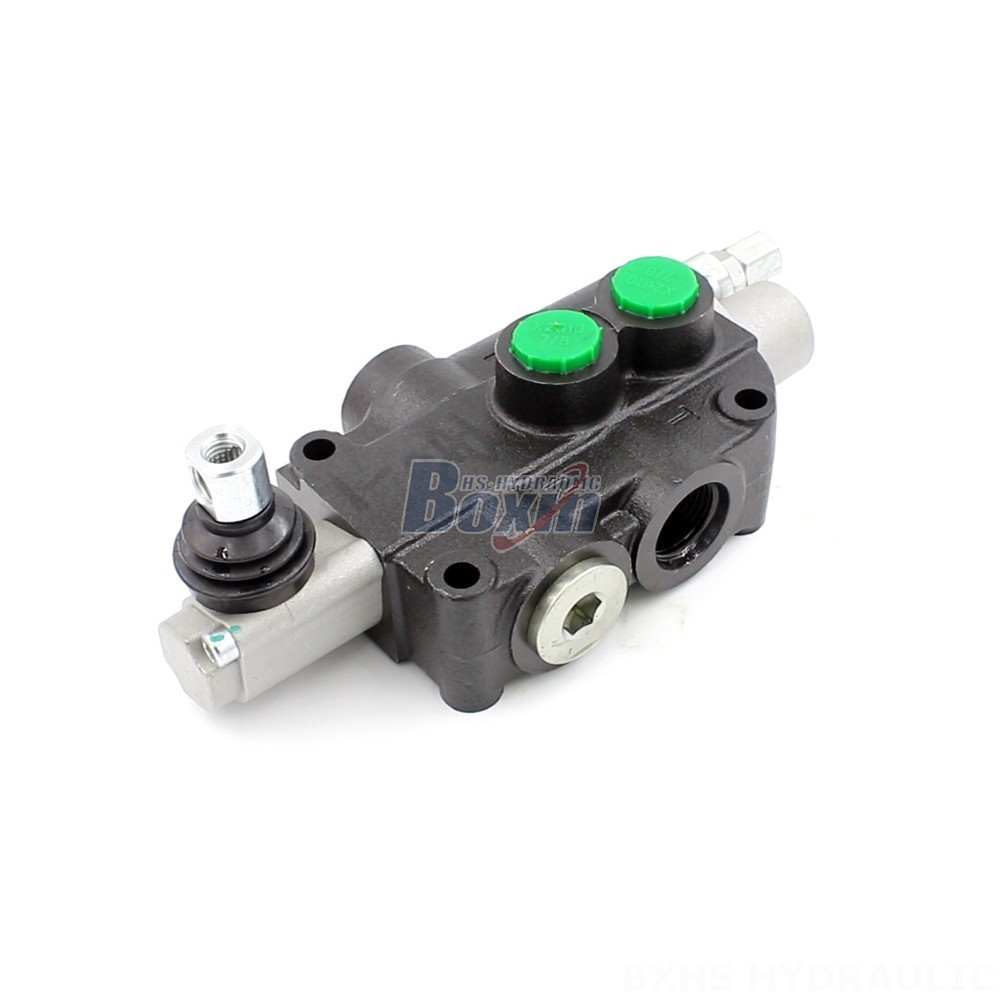

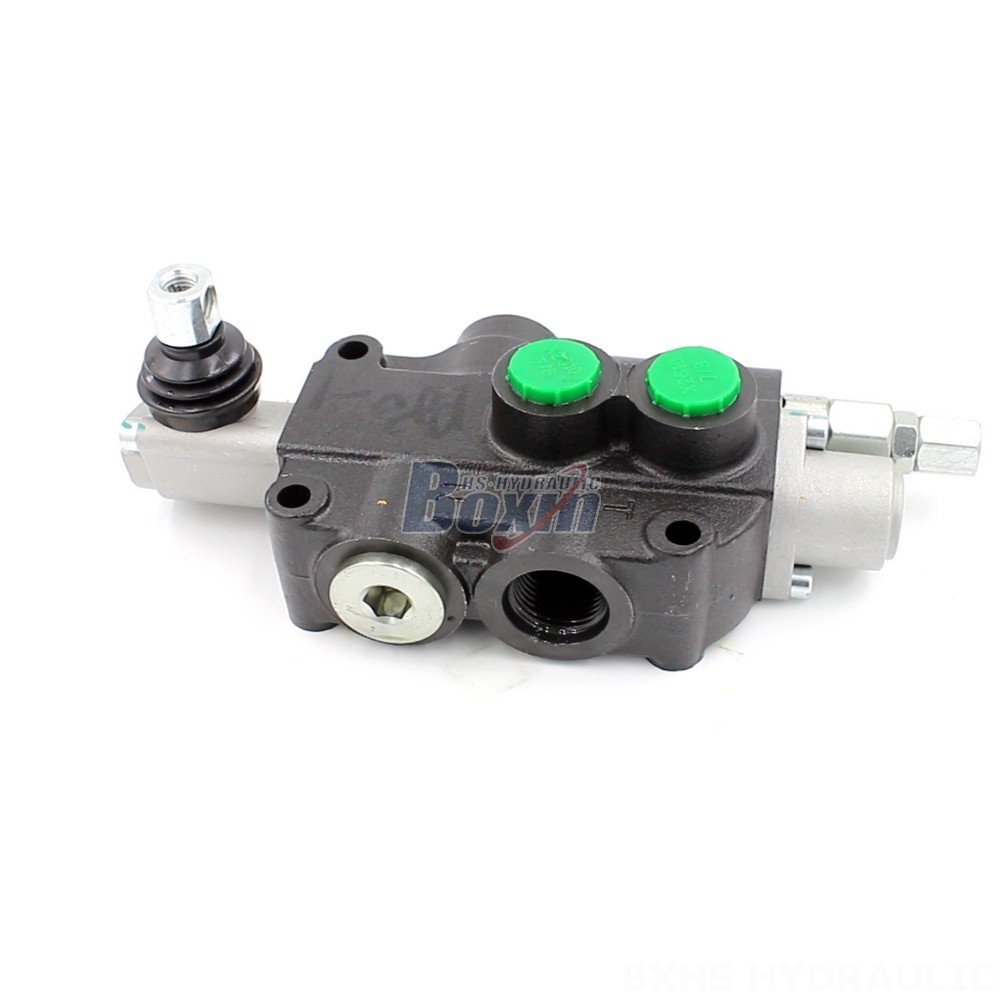

The P80-LDG-U78-OT Hydraulic Lift Solenoid Monoblock Directional Control Valve is a reliable and durable solution for a variety of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a manual control method, 1 section, and a monoblock structure, it delivers a rated flow of 80 L/min and a maximum pressure of 250 bar.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This P80 Series valve is designed for demanding applications and offers a range of features including:
* **Manual Control:** Provides user-friendly operation with a simple and intuitive interface.
* **Monoblock Structure:** Offers a robust and compact design, minimizing space requirements.
* **Rated Flow:** 80 L/min (21.2 US gpm) ensures efficient hydraulic fluid flow.
* **Maximum Pressure:** 250 bar (3600 psi) handles high-pressure applications with ease.
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt) allows for compatibility with various hydraulic fluids.
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F) ensures reliable operation in diverse environmental conditions.
Suitable for a wide array of applications, including:
* **Telehandlers:** For lifting heavy materials and equipment
* **Forklifts:** Essential for material handling and warehousing operations
* **All Terrain Cranes:** For lifting and positioning heavy loads in challenging terrain
* **Stackers:** For storing and retrieving materials in warehouses
* **Aerial Platforms:** For reaching elevated work areas
* **Motor Graders:** For grading and leveling surfaces
* **Midi-Excavators:** For digging and excavating operations
* **Mini-Excavators:** For compact construction projects
* **Skid Steer Loaders:** For versatile material handling and construction tasks
* **Compact Wheel Loaders:** For loading and transporting materials in tight spaces
