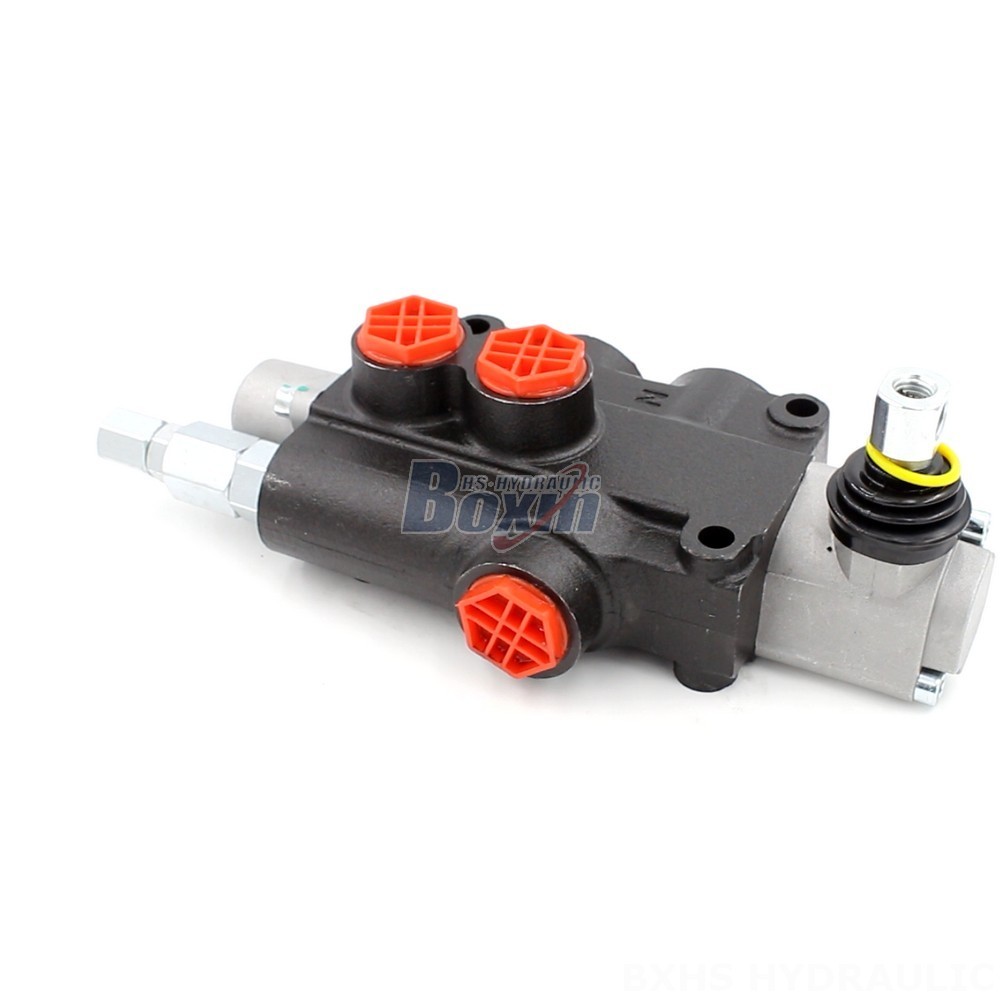

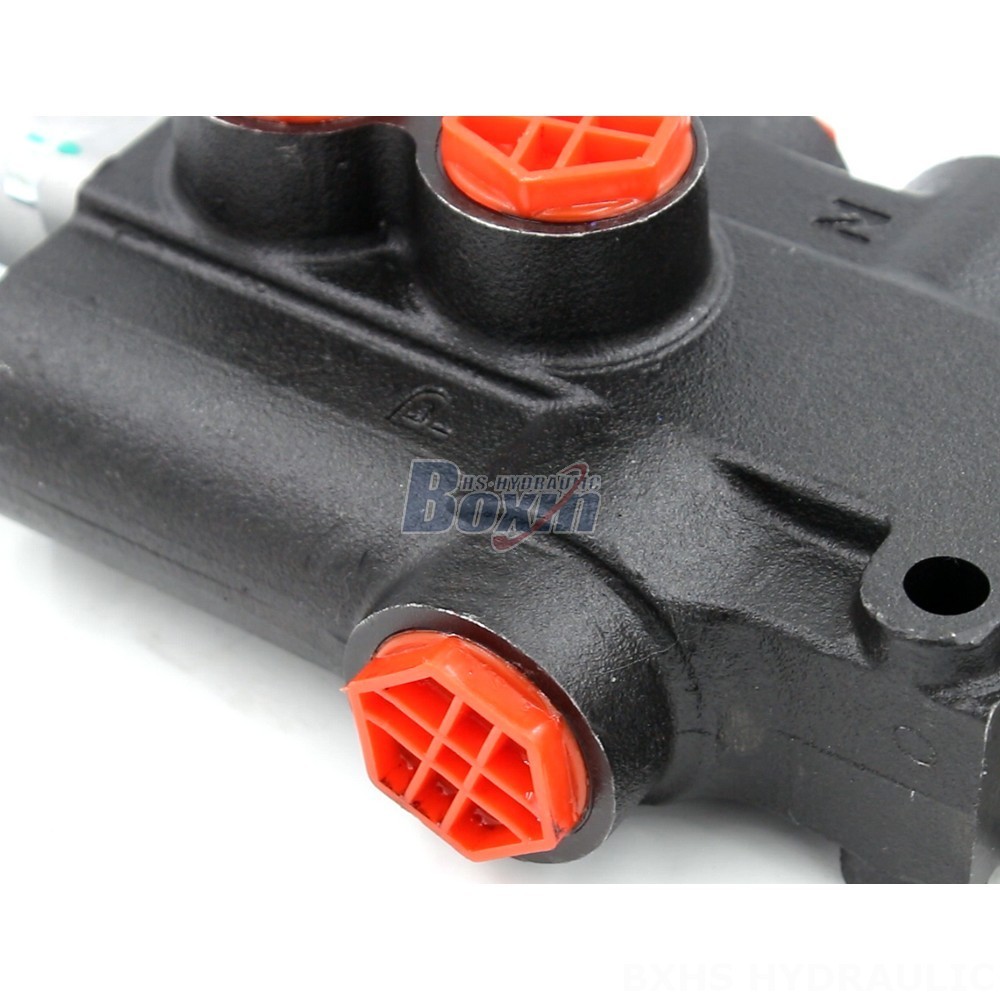

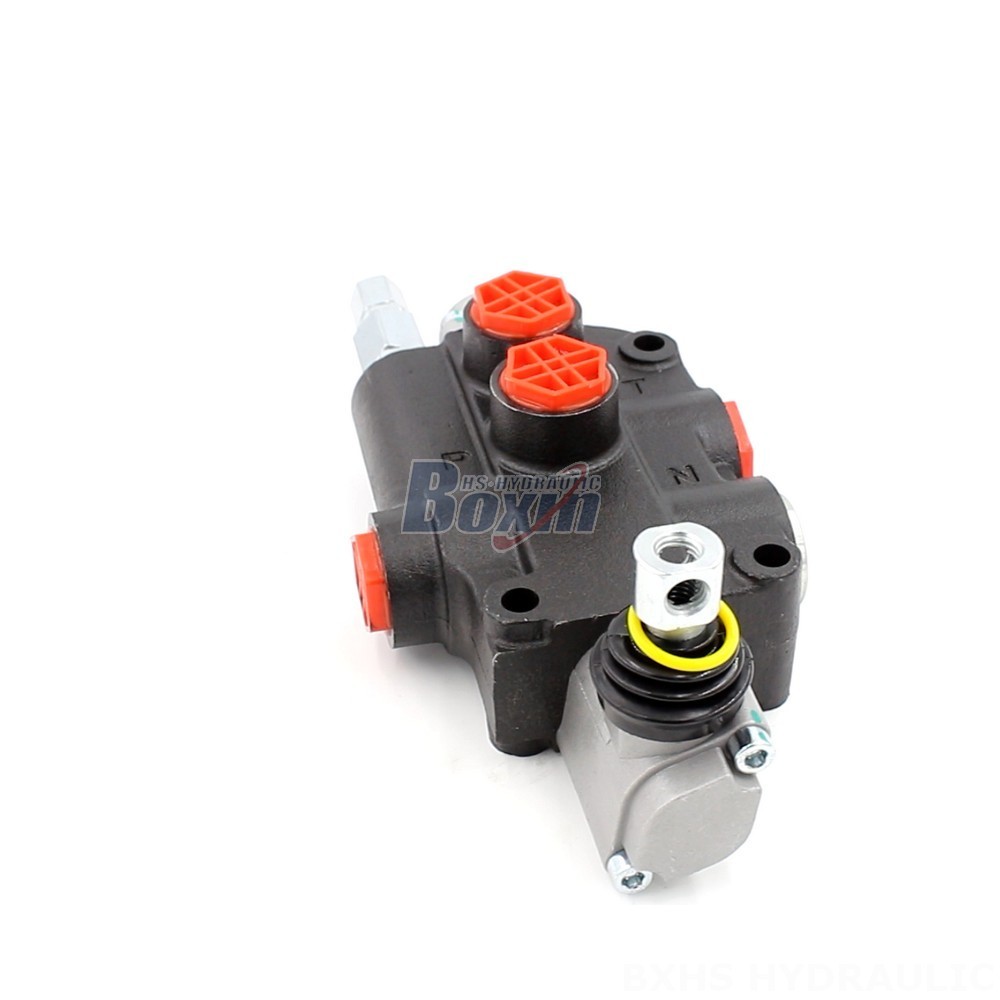

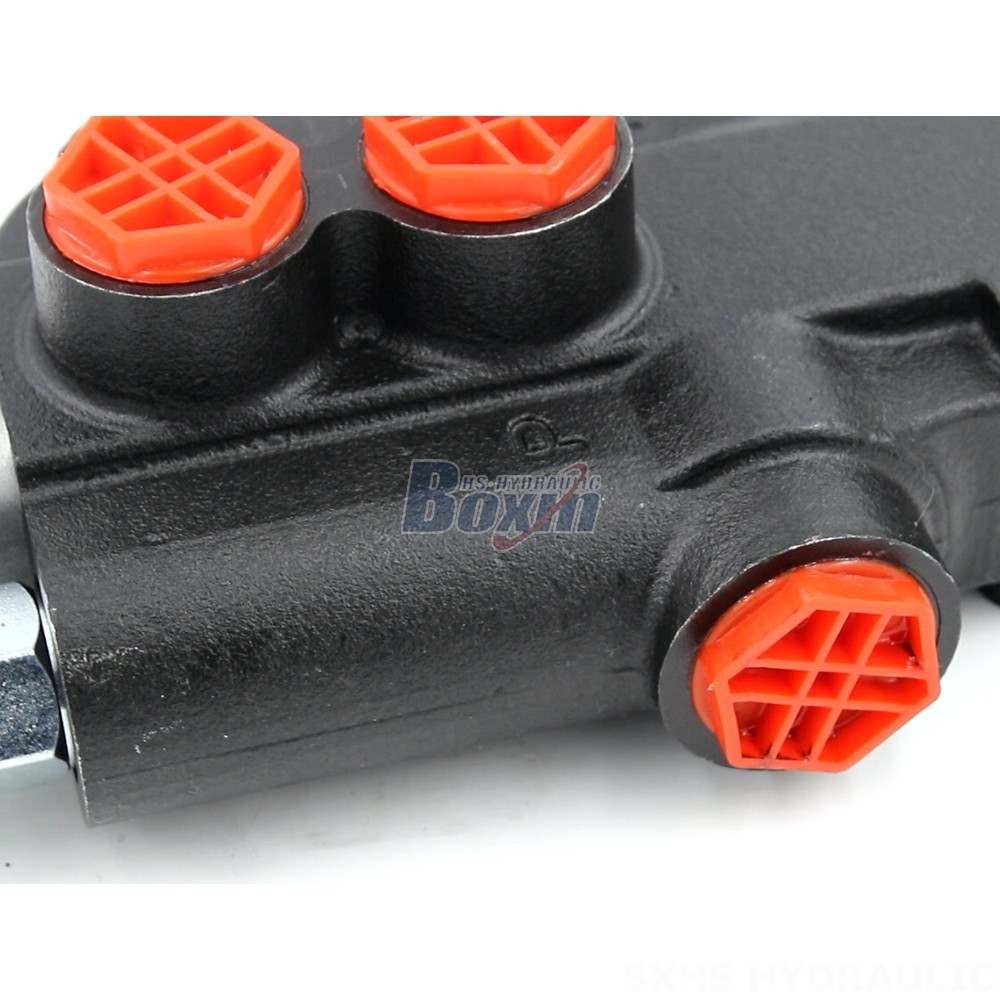

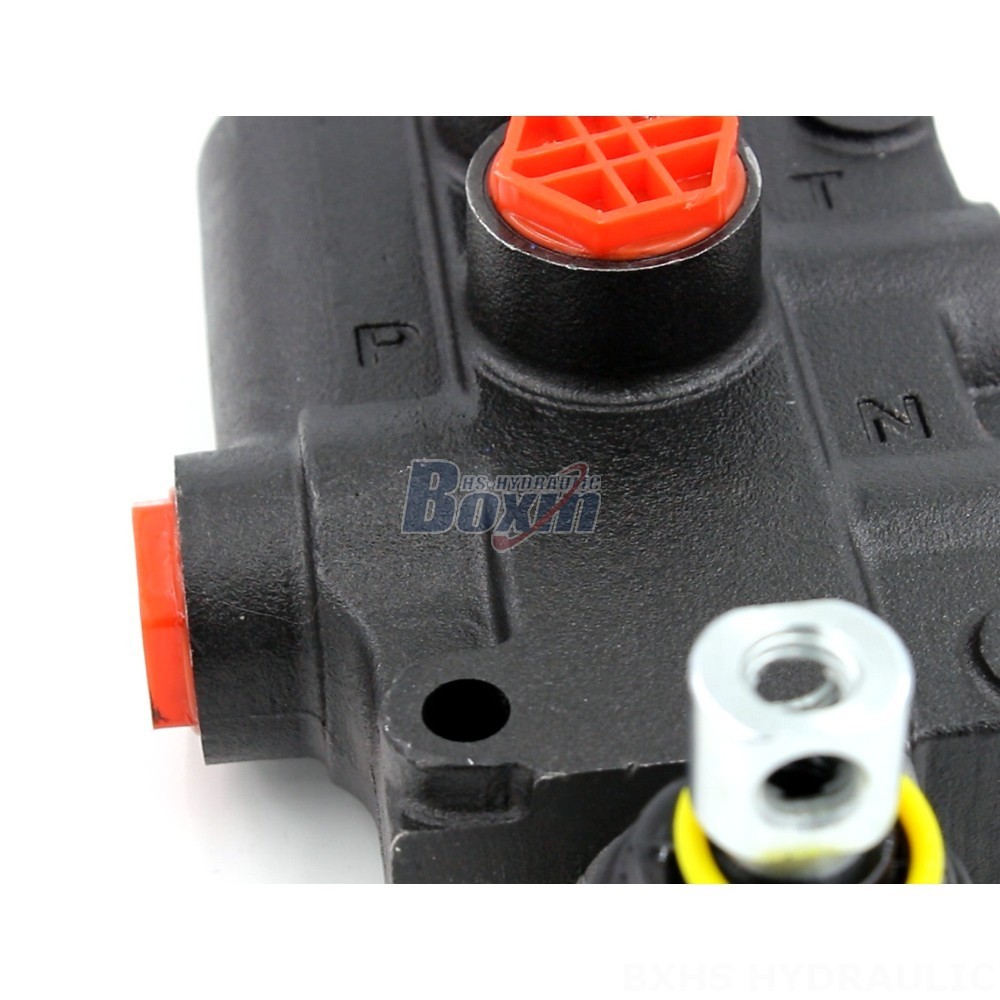

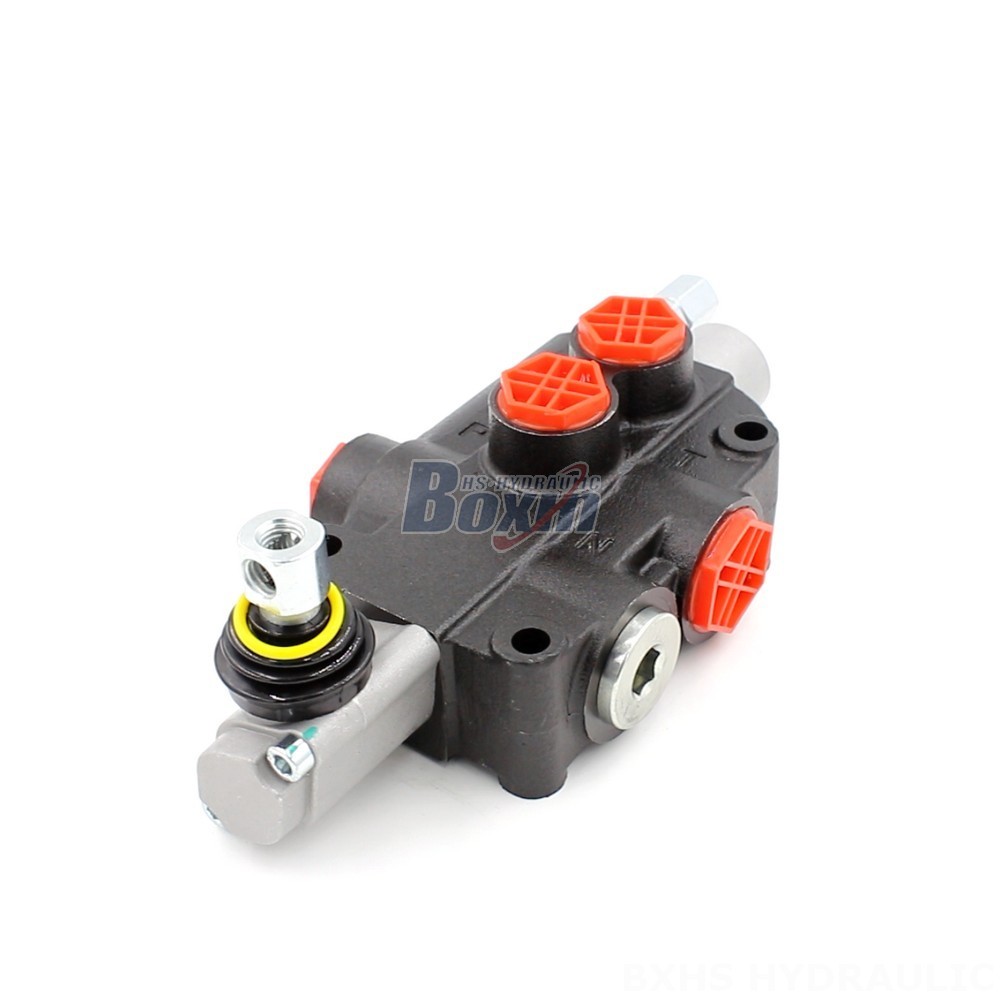

The P80-G12-1OW Globe Valve is a high-performance, manual directional hydraulic valve designed for a wide range of applications in material handling, construction, and industrial vehicles. Featuring a monoblock structure and a rated flow of 80 L/min, this valve is ideal for operating telehandlers, forklifts, excavators, and other heavy equipment.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12-1OW Globe Valve is a robust and reliable directional hydraulic valve designed for demanding applications. With its monoblock construction, it offers exceptional durability and performance. The valve operates manually and features a single spool for precise control. Its rated flow of 80 L/min (21.2 US gpm) and maximum pressure rating of 250 bar (3600 psi) make it suitable for a wide variety of applications, including material handling, construction, and industrial vehicles. Designed for use in various equipment types like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. The P80-G12-1OW is a versatile and reliable choice for demanding hydraulic applications.
