Produksi & Pengiriman
Waktu Produksi 15-30 Hari

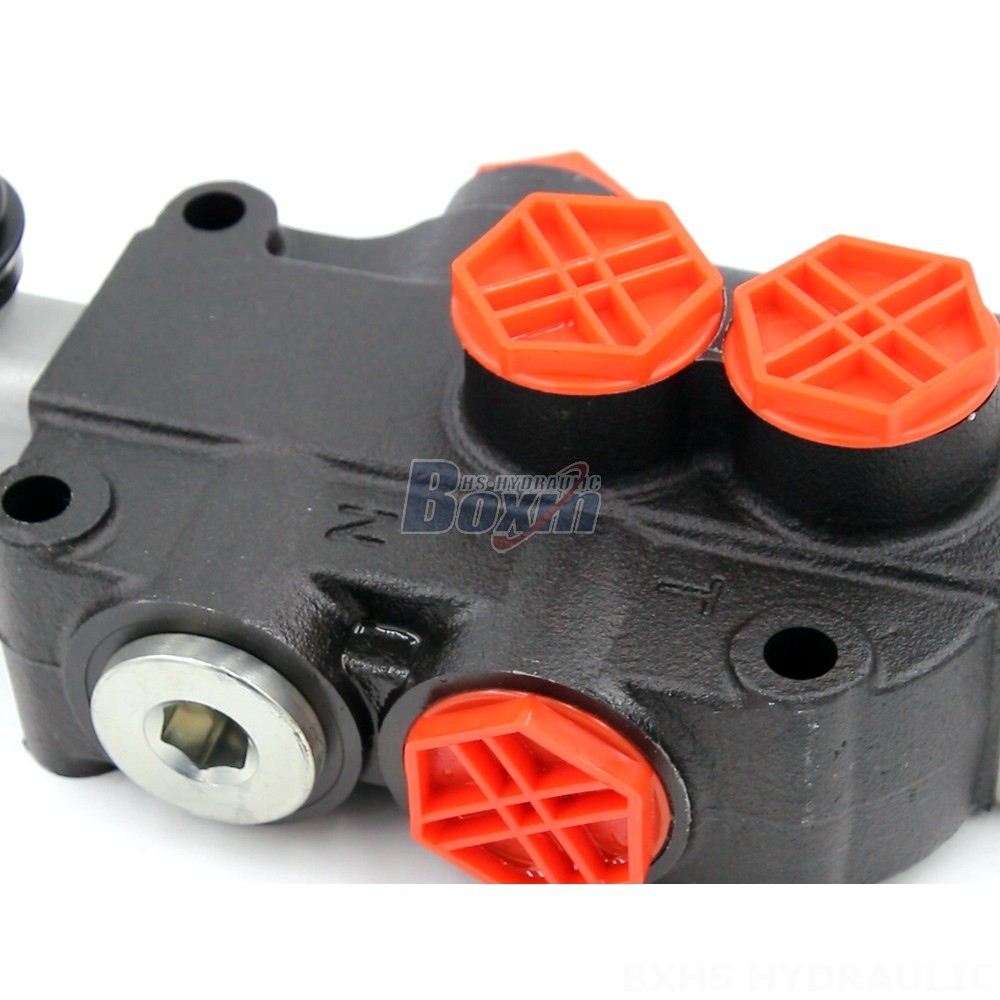

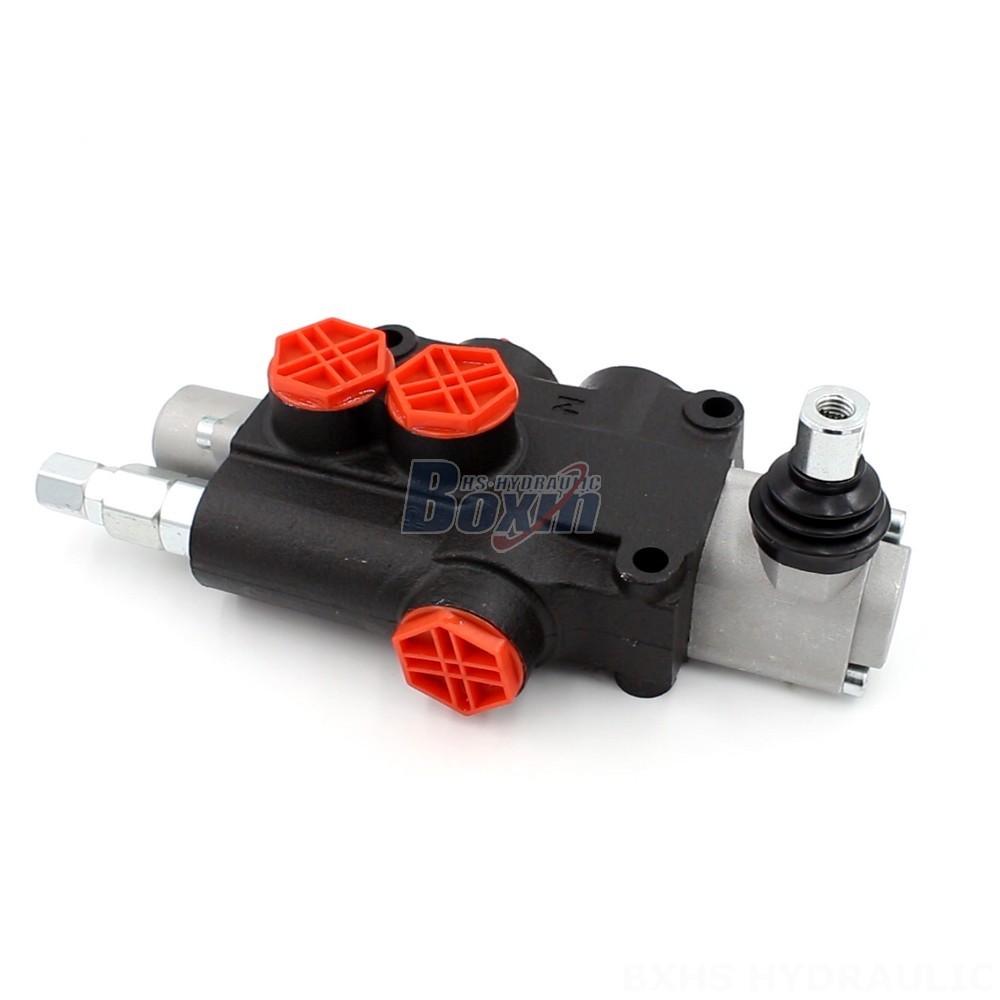

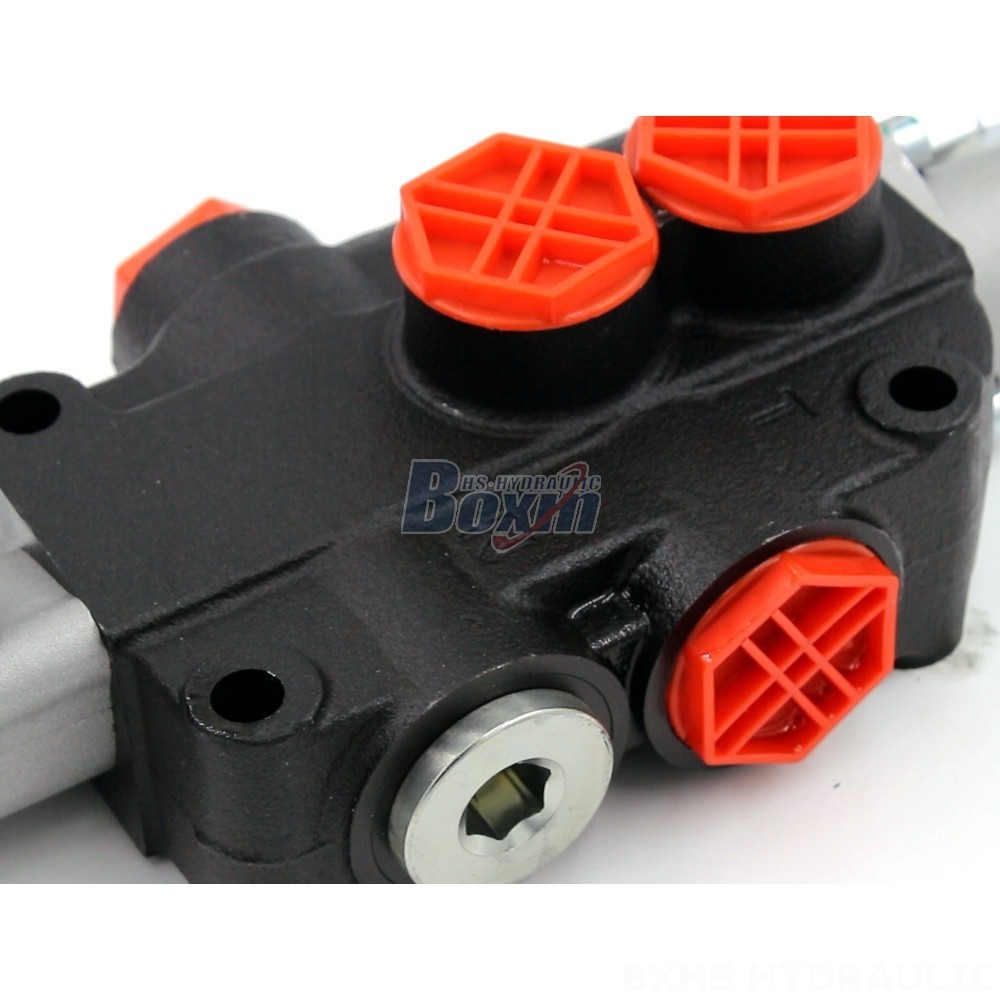

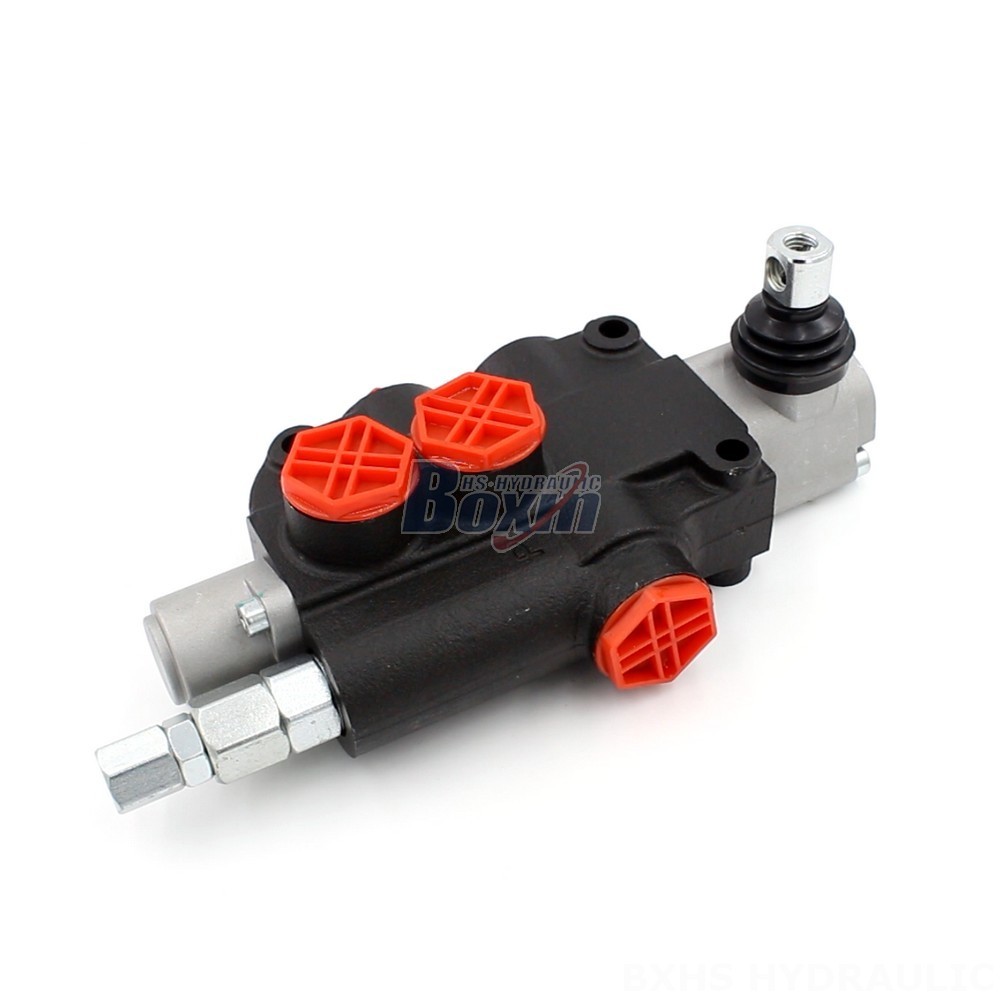

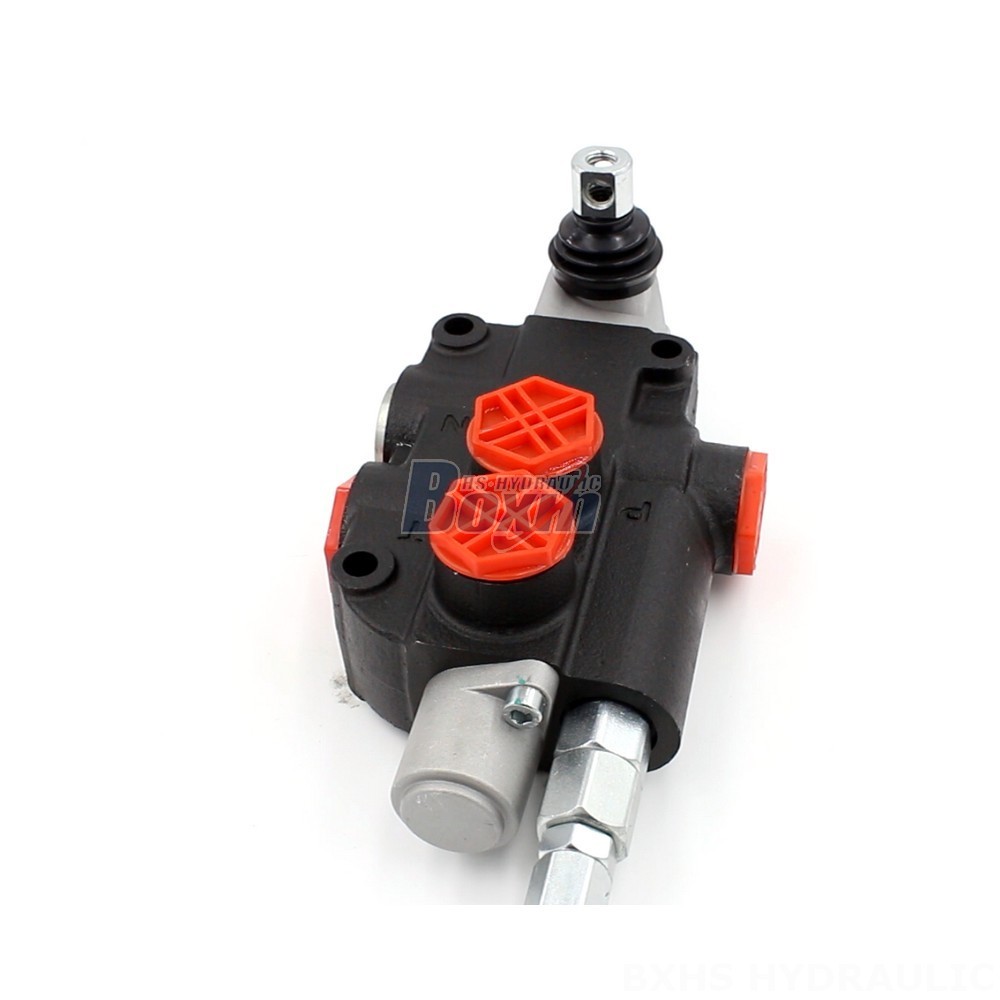

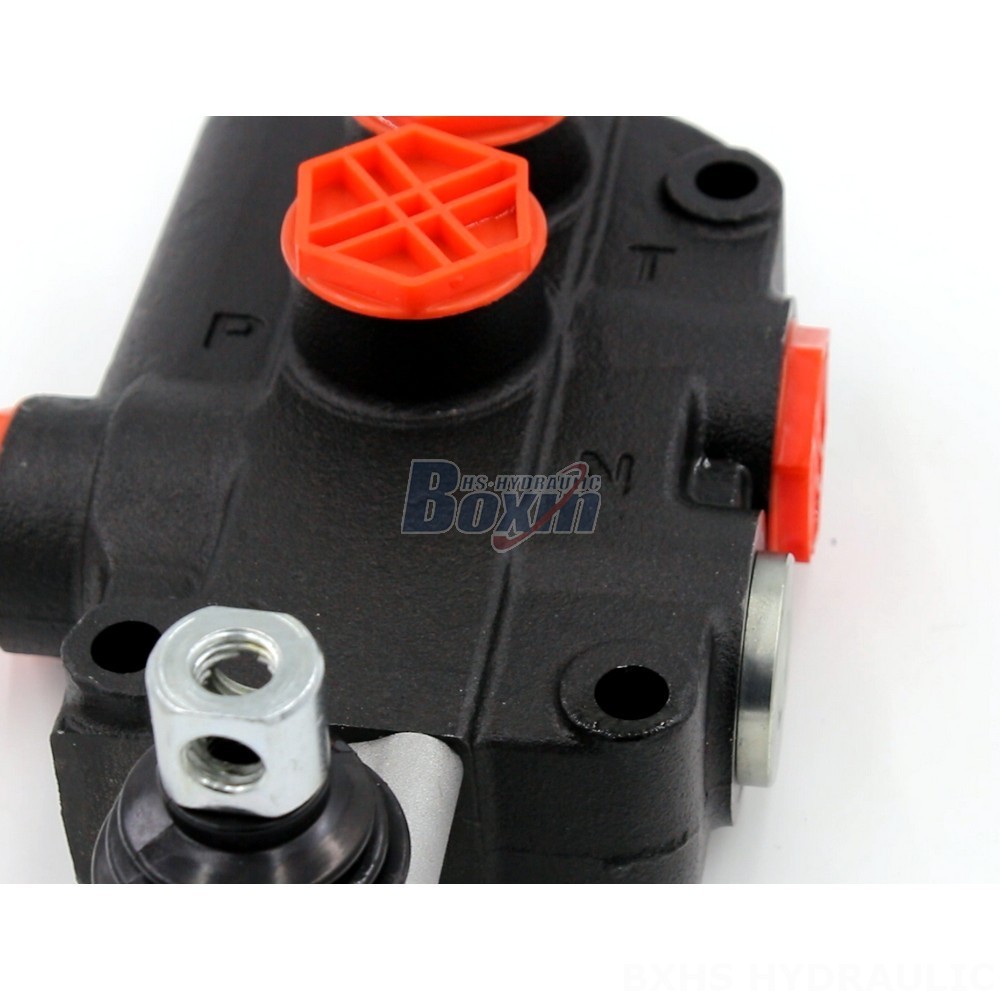

This P80 Series 3 Way Directional Monoblock Valve is a robust and reliable hydraulic valve designed for demanding applications in industrial vehicles, material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it is ideal for controlling the flow of hydraulic fluid in various equipment such as telehandlers, forklifts, cranes, and loaders.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This manual 3 way directional valve features a monoblock structure and a single spool, providing a compact and efficient solution for your hydraulic system. Its rated flow of 80 L/min (21.2 US gpm) and maximum pressure of 250 bar (3600 psi) ensure high performance and durability. The valve operates reliably across a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and withstands ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its versatility makes it suitable for use in a wide range of applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors and front-end loaders, telehandlers, harvesters, bale wrappers, backhoes, seeding machines, balers, wood splitters, skip loaders, and hook-loaders.
