Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1274 Pandangan Mencari Produk Ini

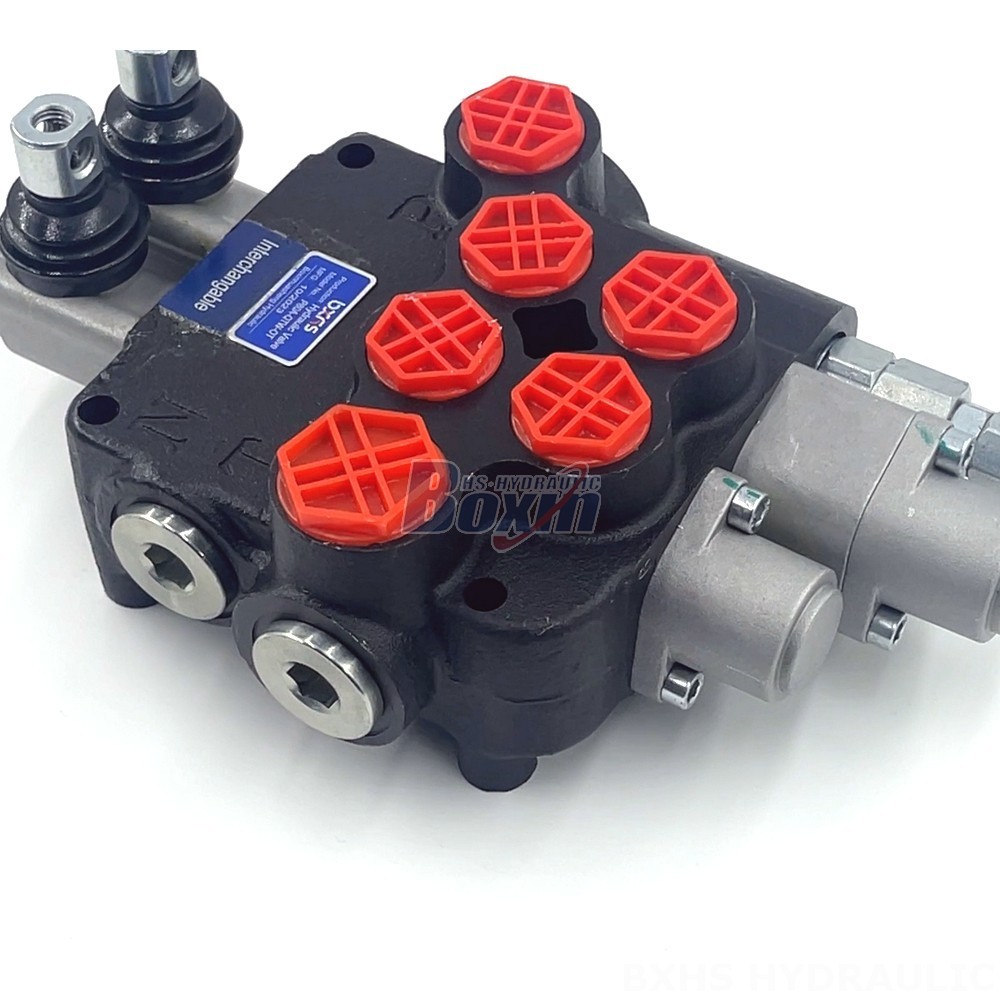

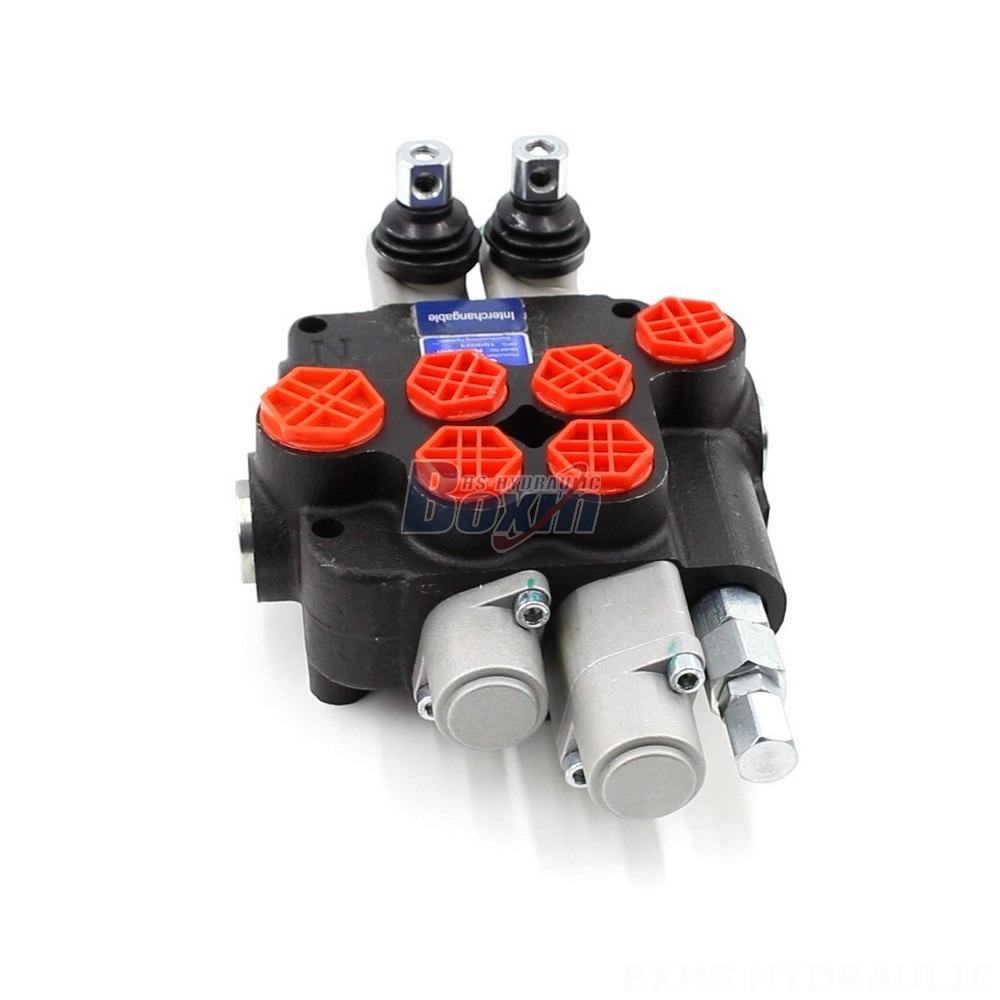

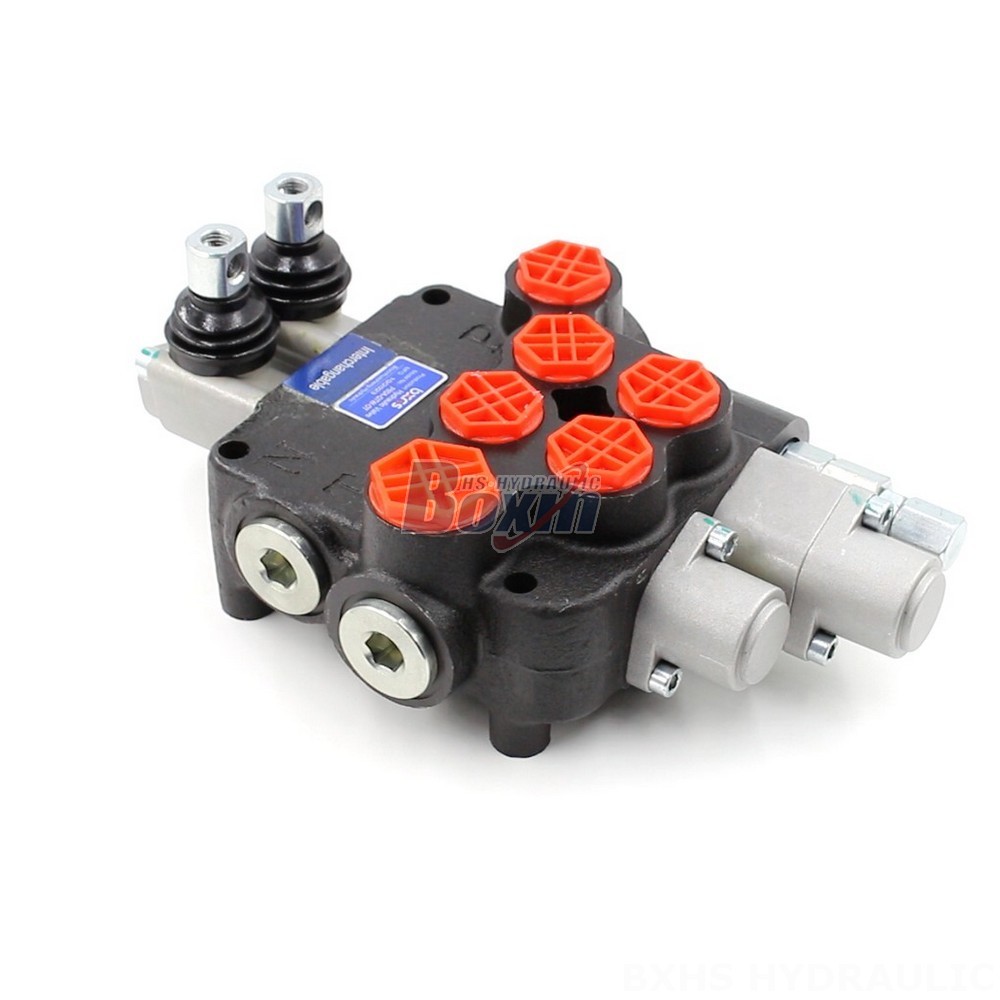

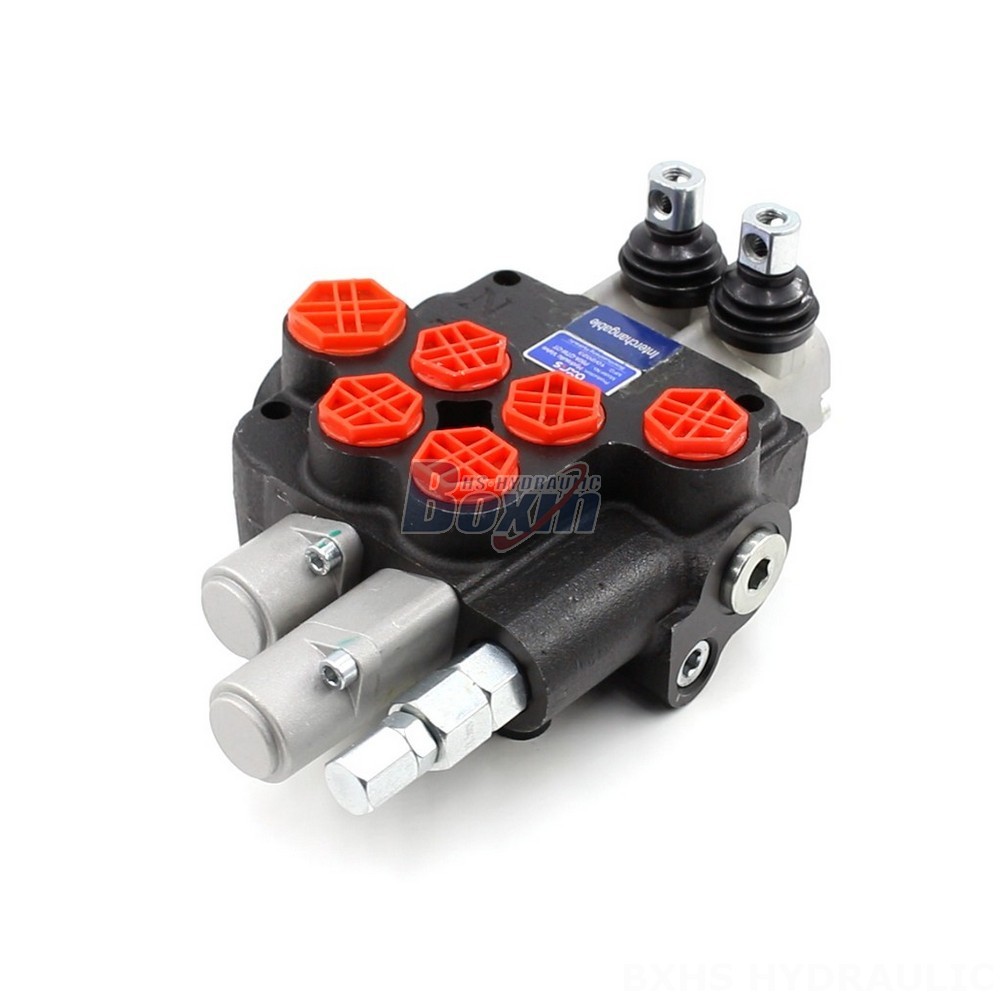

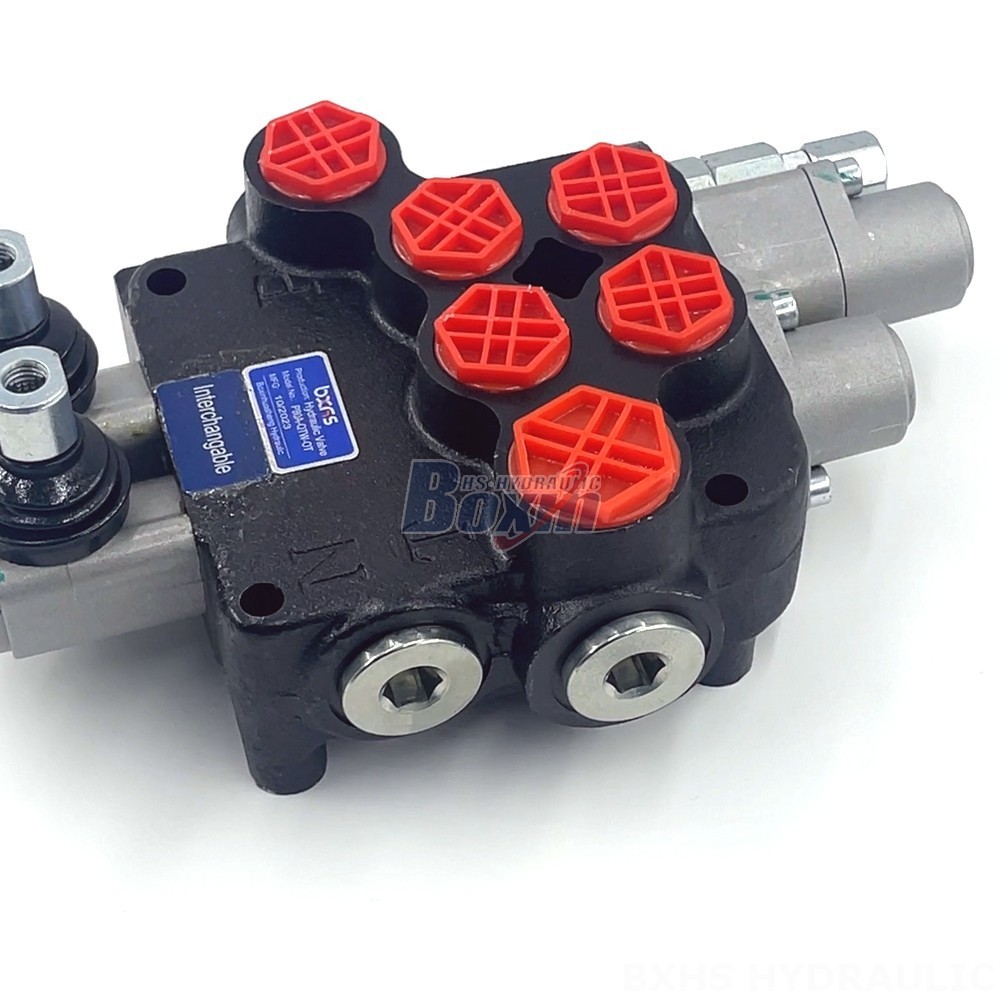

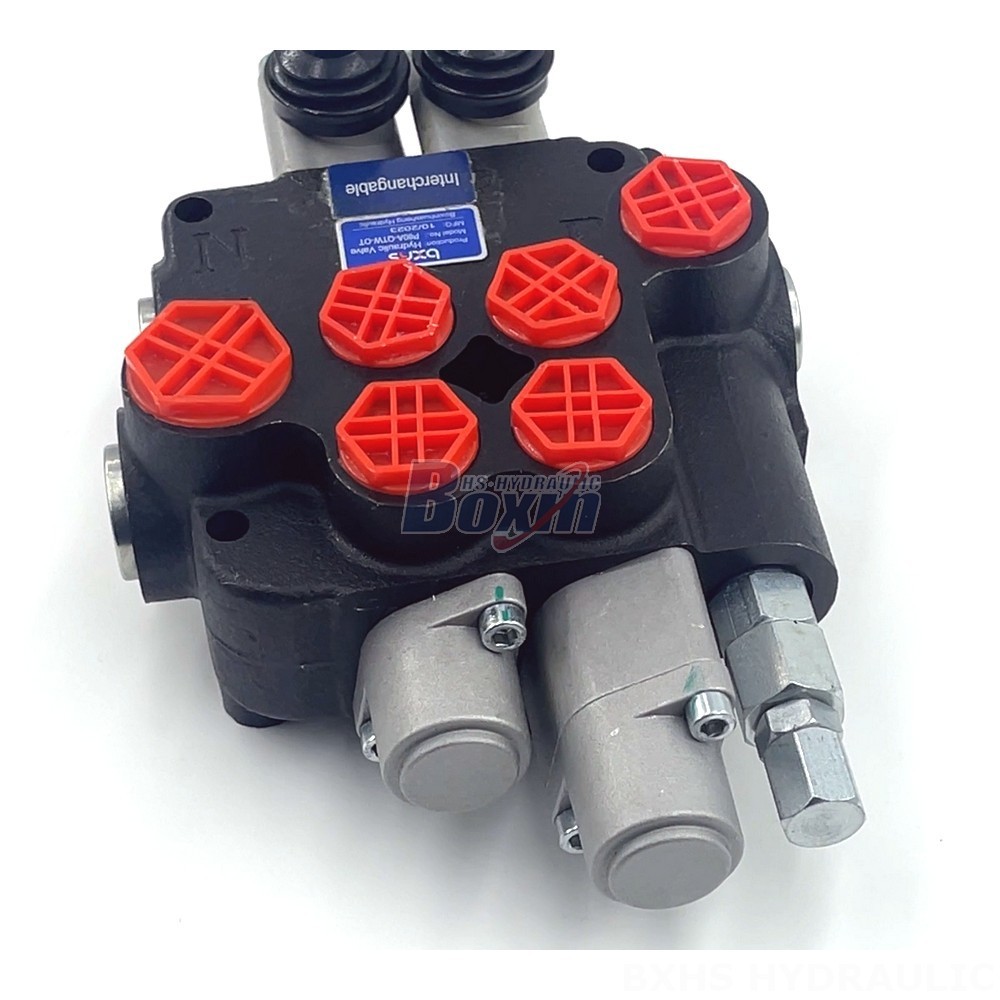

The P80A Series is a high-performance 2-section monoblock directional valve designed for demanding applications in material handling, construction, and agriculture. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this manual control valve offers superior reliability and durability. It is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators.
| Seri P80A Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Listrik, Solenoid dan Manual, Selenoid dan Joystick, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The P80A Series is a 2-section monoblock directional valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. This valve features a manual control method and a 2-spool design. It is available in OEM and ODM options, making it suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Some specific applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, and mini-excavators. This valve is known for its high reliability, durability, and performance, making it an excellent choice for demanding applications.
