Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*21*13

Kelas kotor:6.60 kg

Ketersediaan: Tersedia

1101 Pandangan Mencari Produk Ini

Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM

Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM

Monoblock Directional Valve P40-G12-G38-OT: Wholesale & OEM drawing image

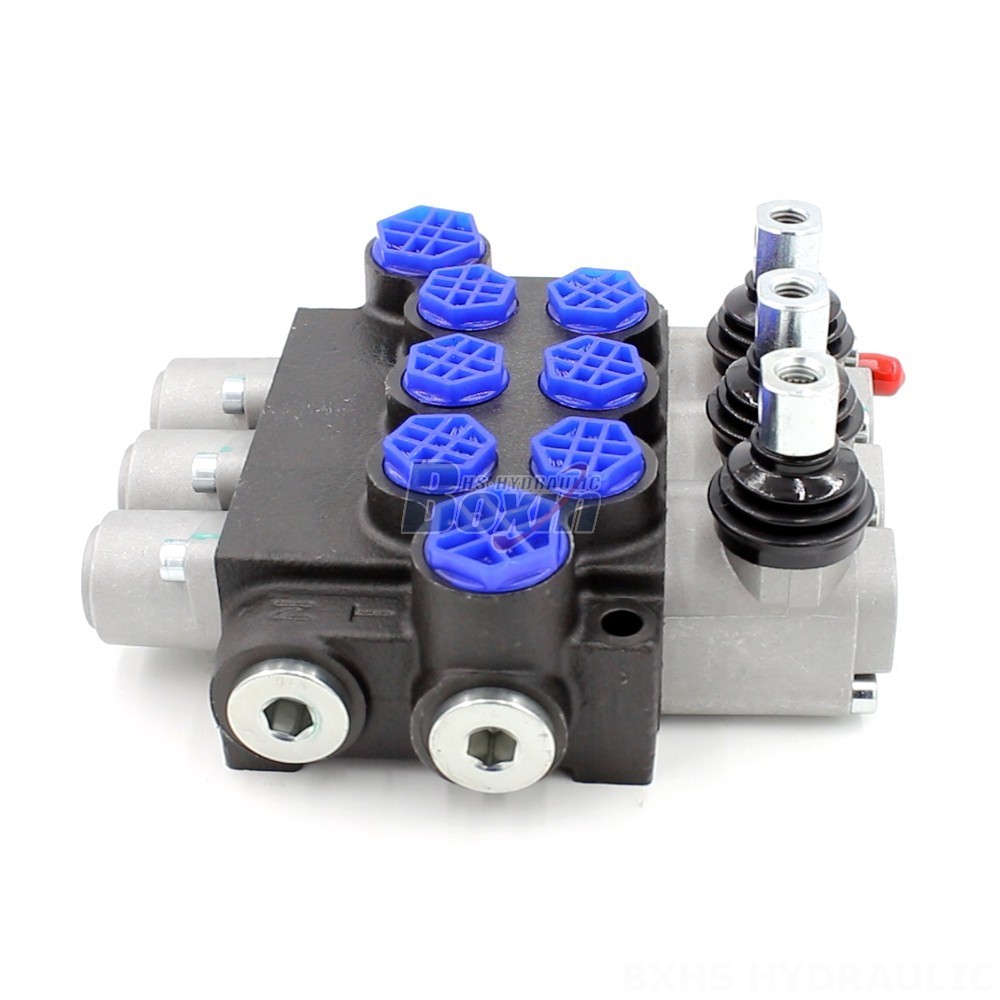

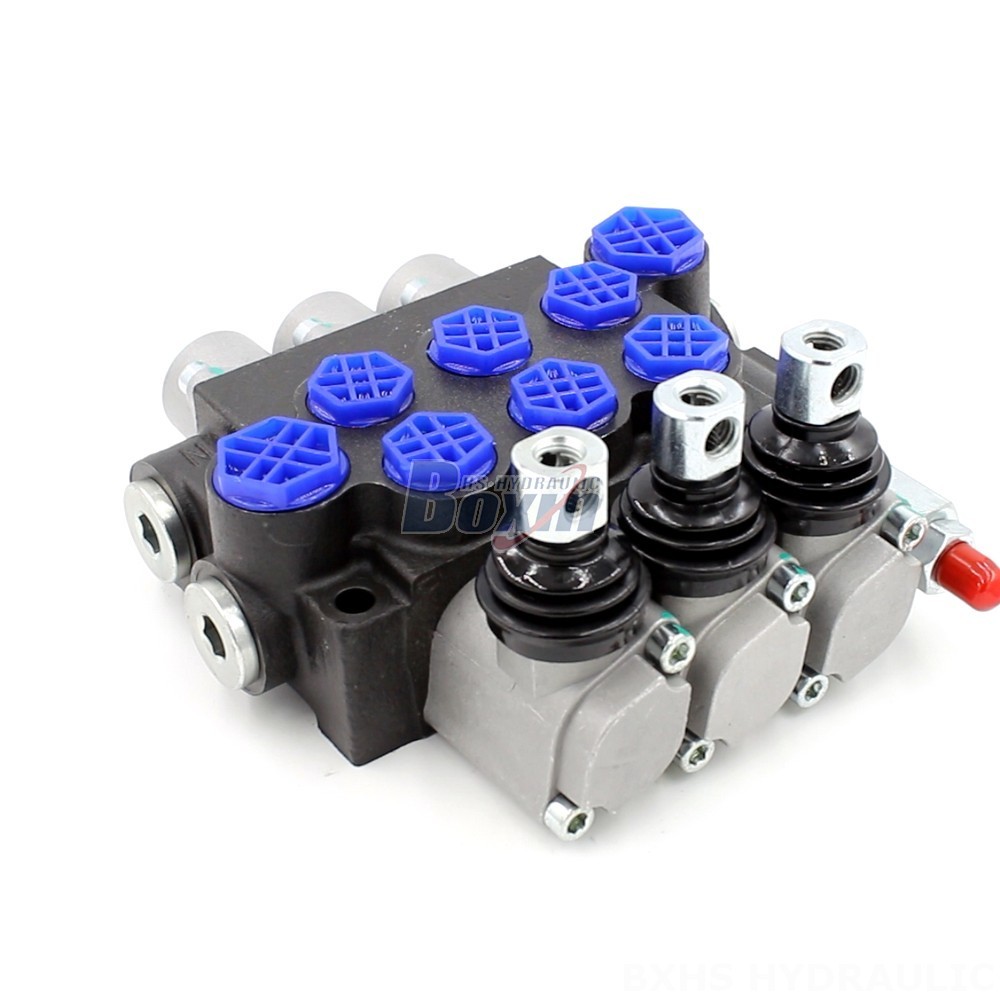

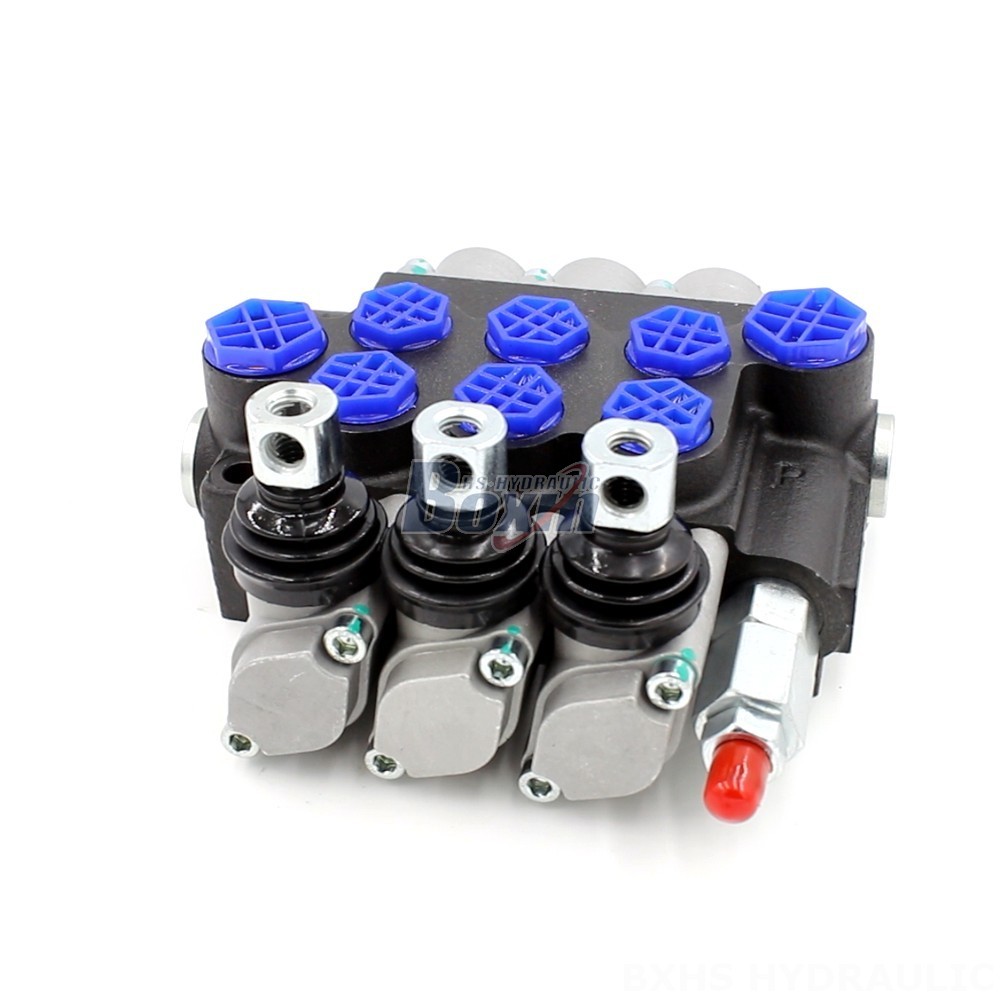

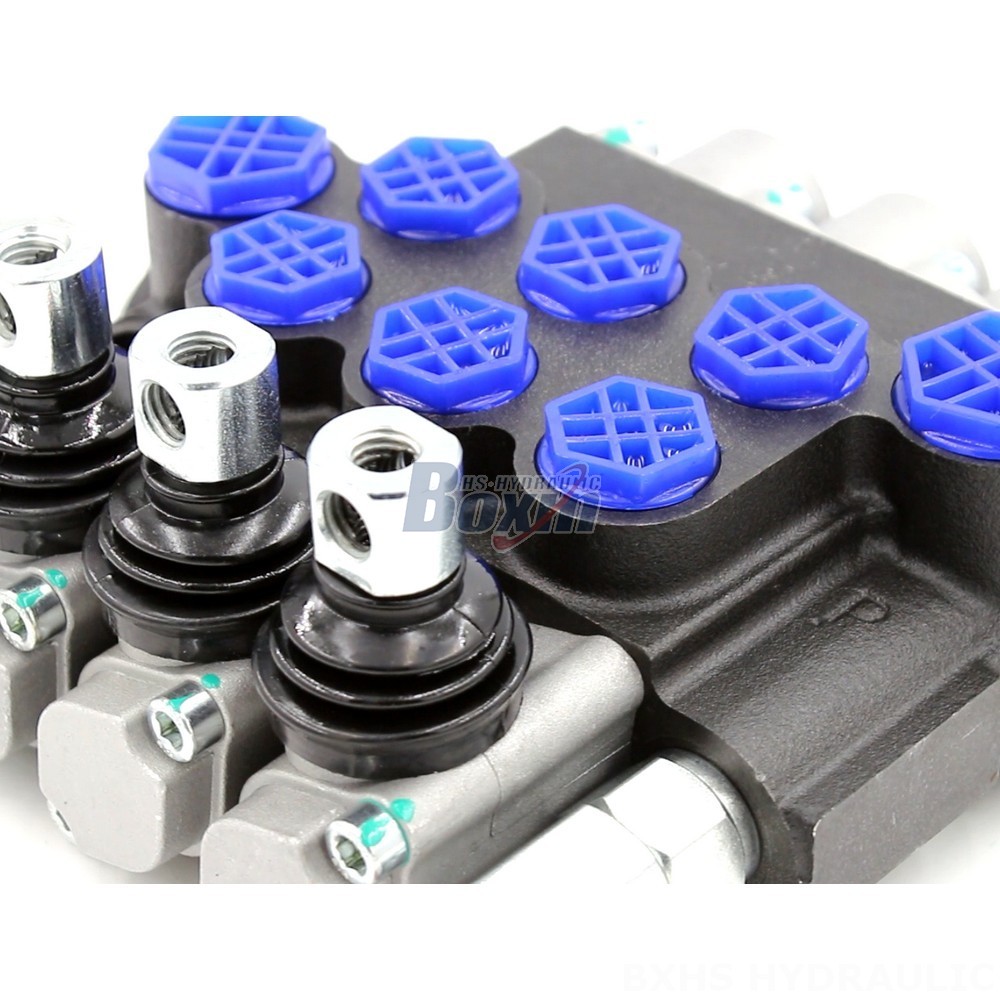

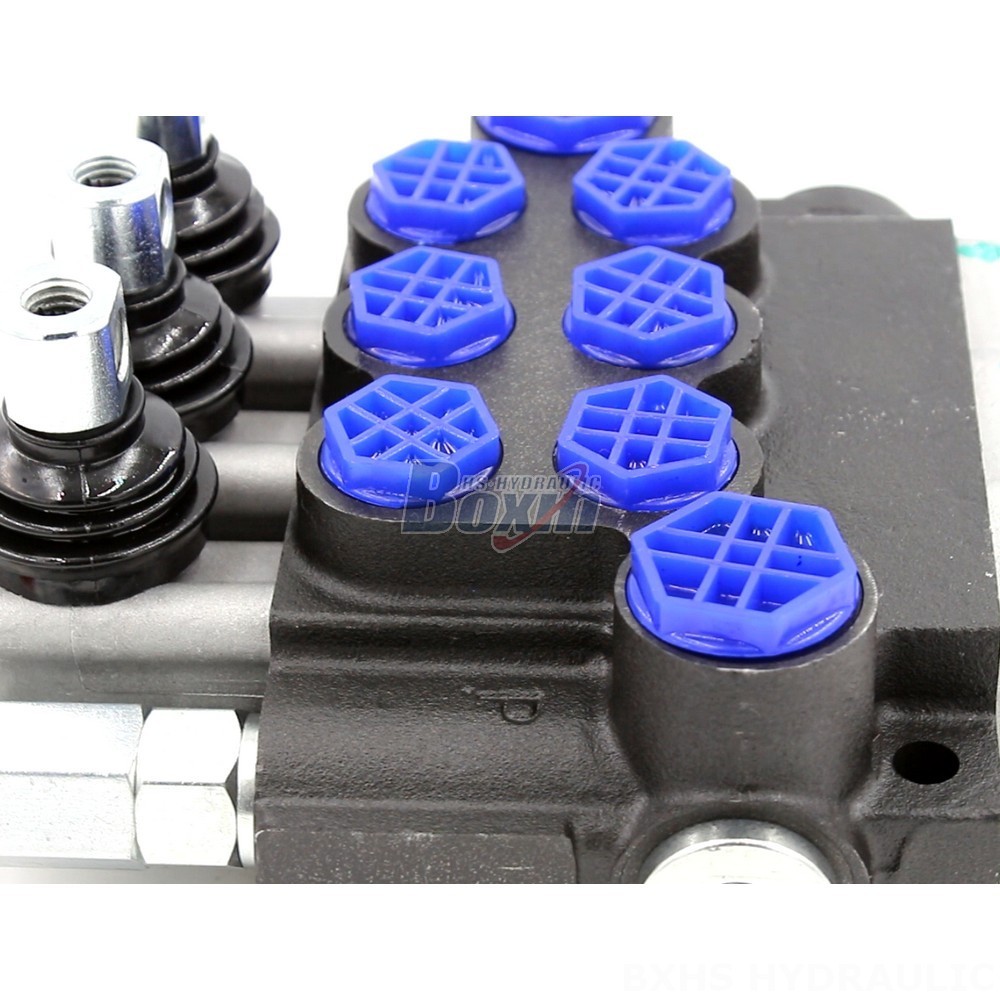

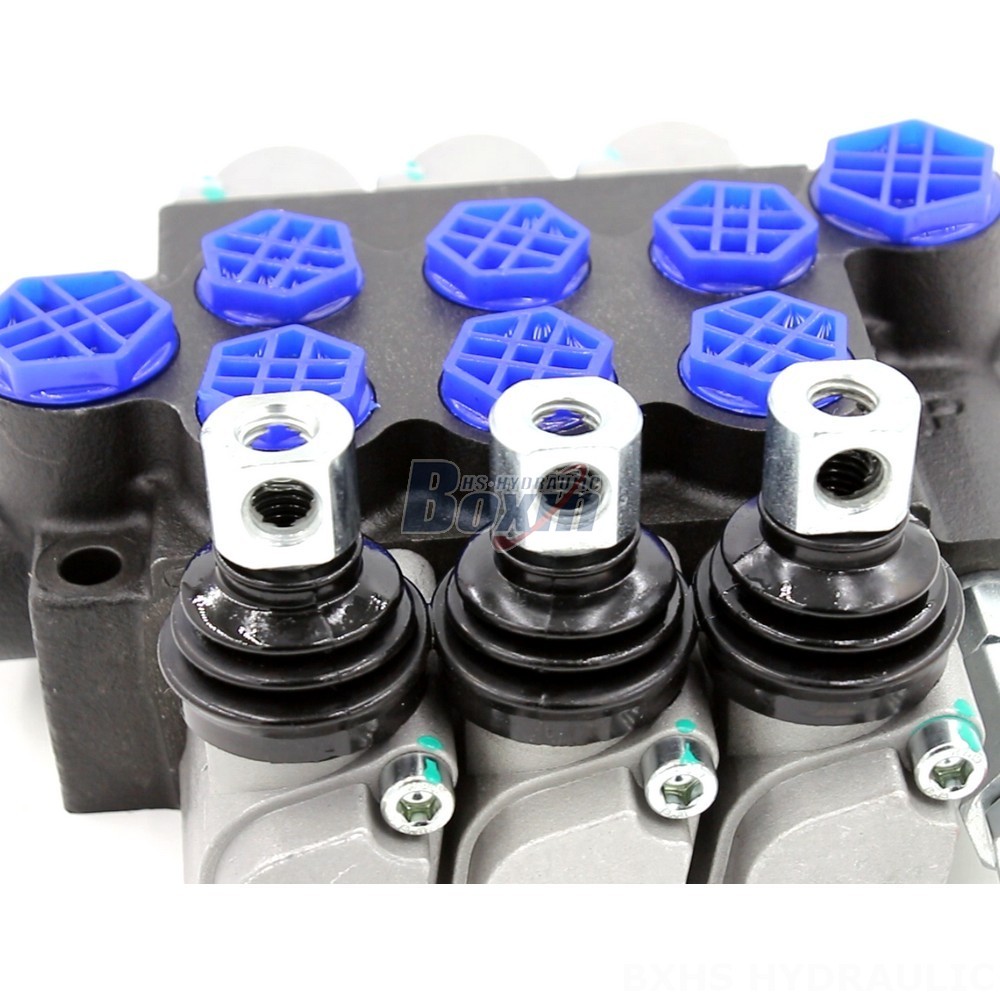

The P40-G12-G38-OT is a high-performance, 3-section monoblock directional control valve designed for various applications in material handling, construction, and industrial vehicles. It features a manual control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar. This valve is ideal for OEM and wholesale customers seeking a reliable and durable solution for their hydraulic systems.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38-OT is a pressure independent control valve designed for demanding applications in material handling, construction, and industrial vehicles. It features a 3-section monoblock design, providing a compact and robust solution for controlling hydraulic circuits. The valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of applications. Its manual control method allows for easy and precise operation. This versatile valve is compatible with a variety of equipment, including telehandlers, forklifts, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders. Its reliable performance, durability, and wide operating temperature range make it an excellent choice for OEM and wholesale customers seeking a high-quality hydraulic valve for their equipment.
