Monoblock Directional Valve P40-G12-OT | Wholesale & OEM

Metode Kontrol:Buku Panduan

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:24*21*13

Kelas kotor:6.60 kg

Ketersediaan: Tersedia

1151 Pandangan Mencari Produk Ini

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM

Monoblock Directional Valve P40-G12-OT | Wholesale & OEM drawing image

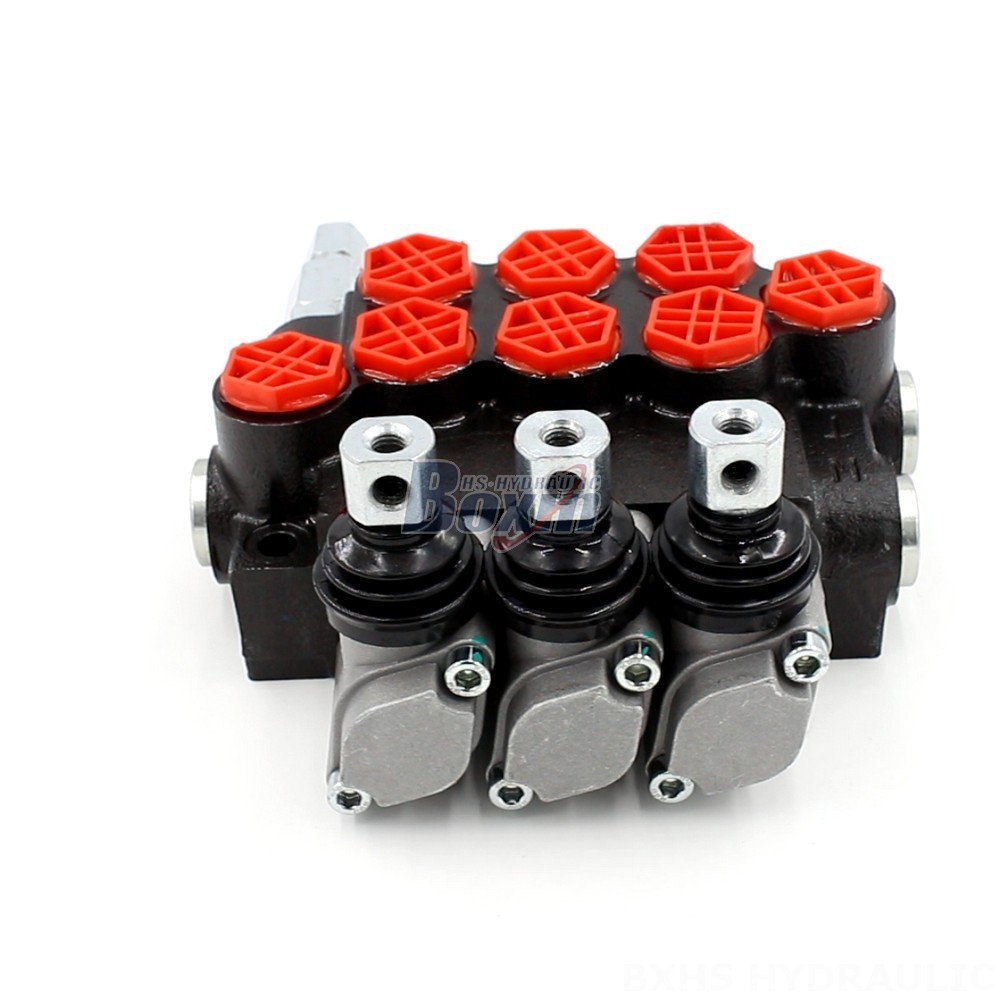

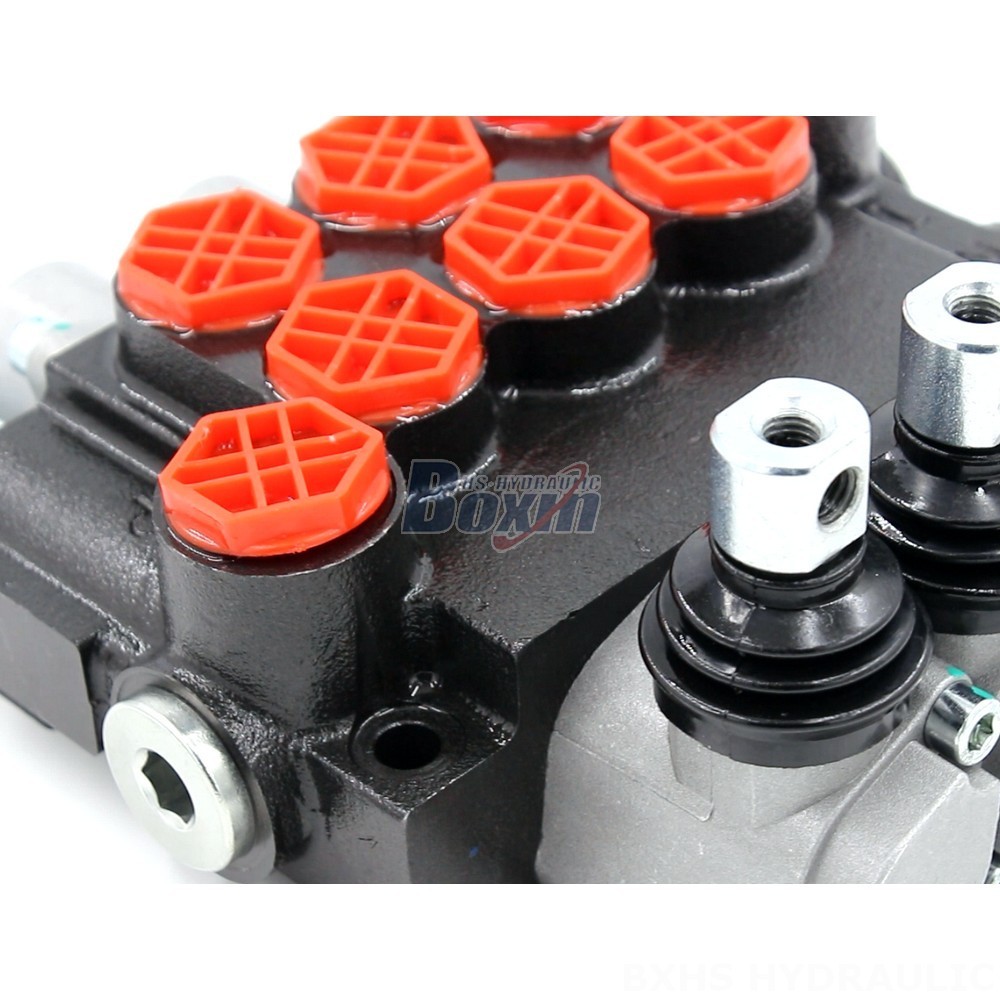

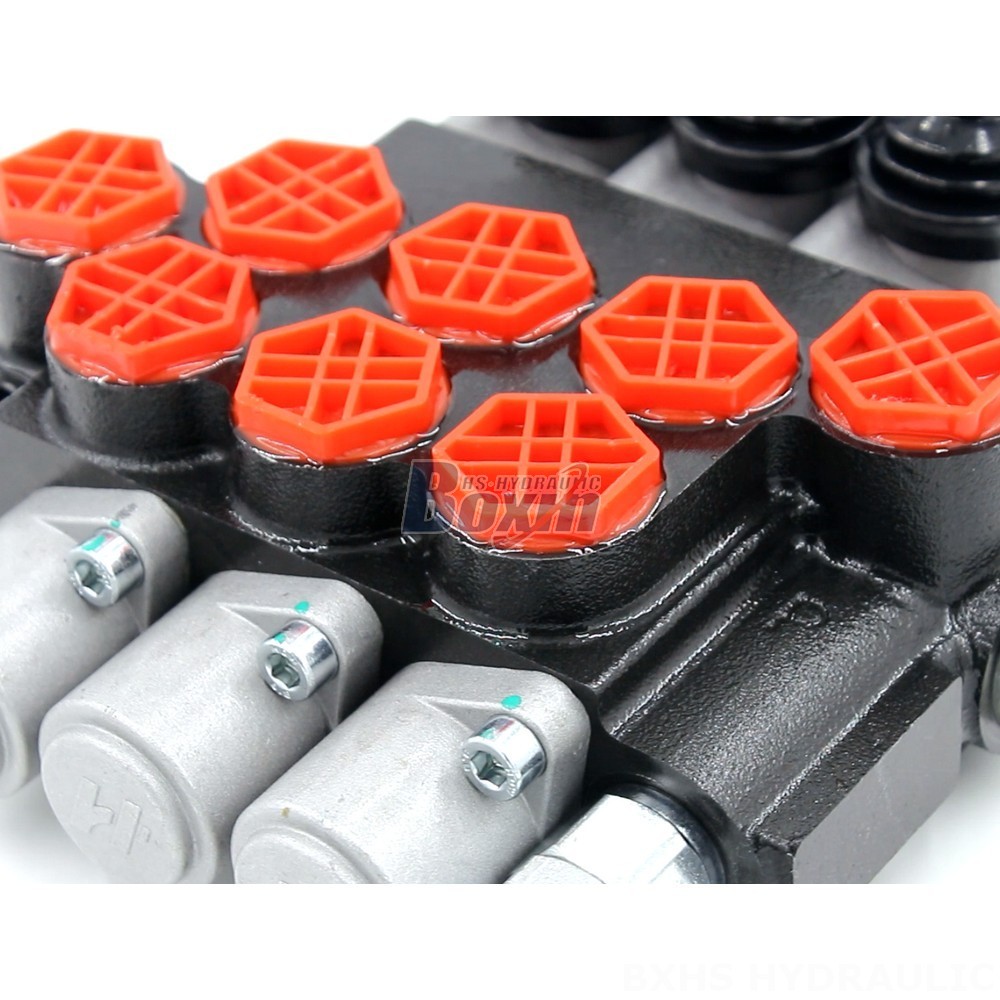

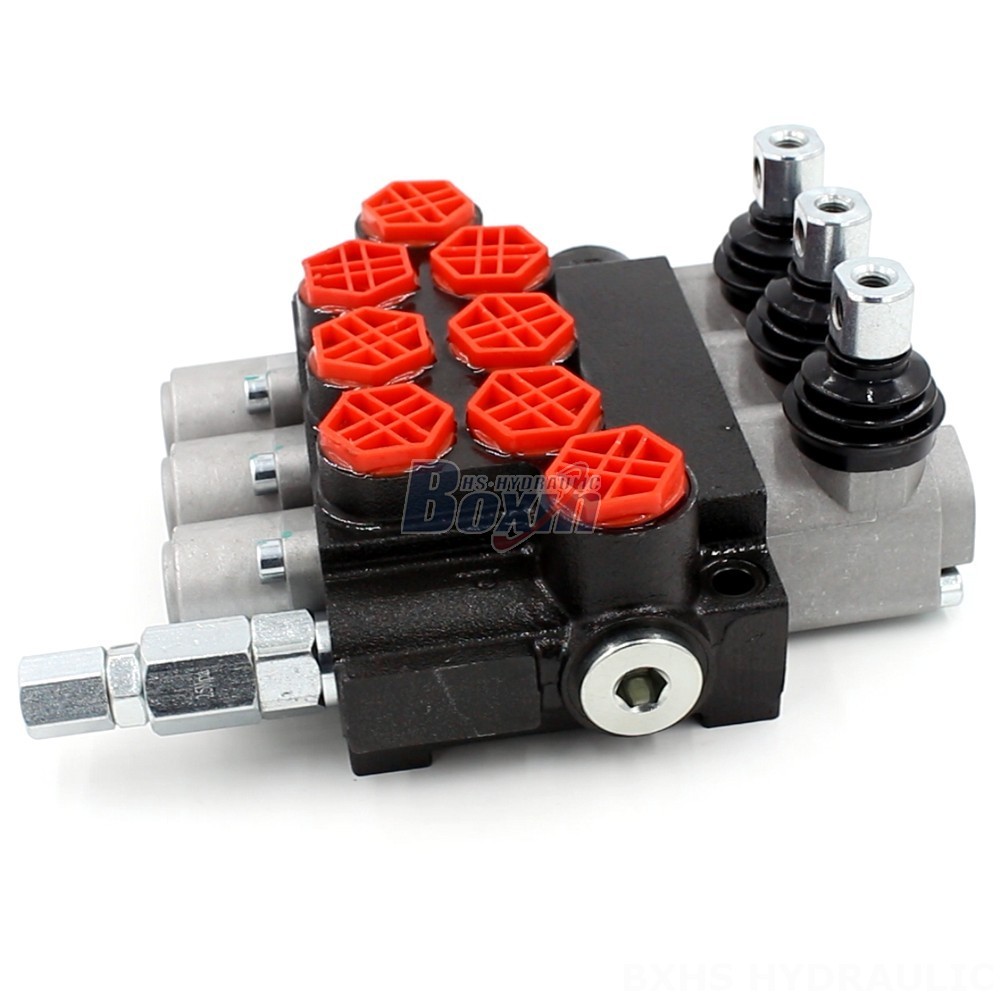

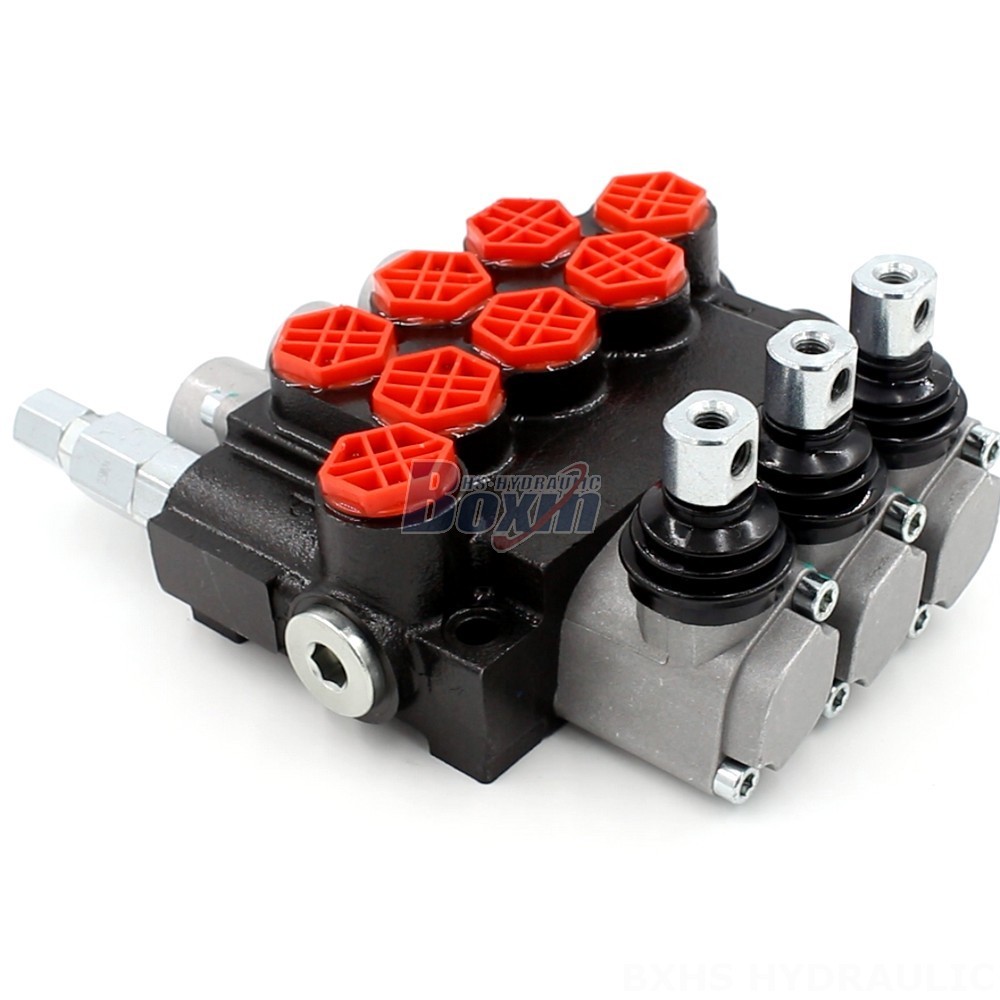

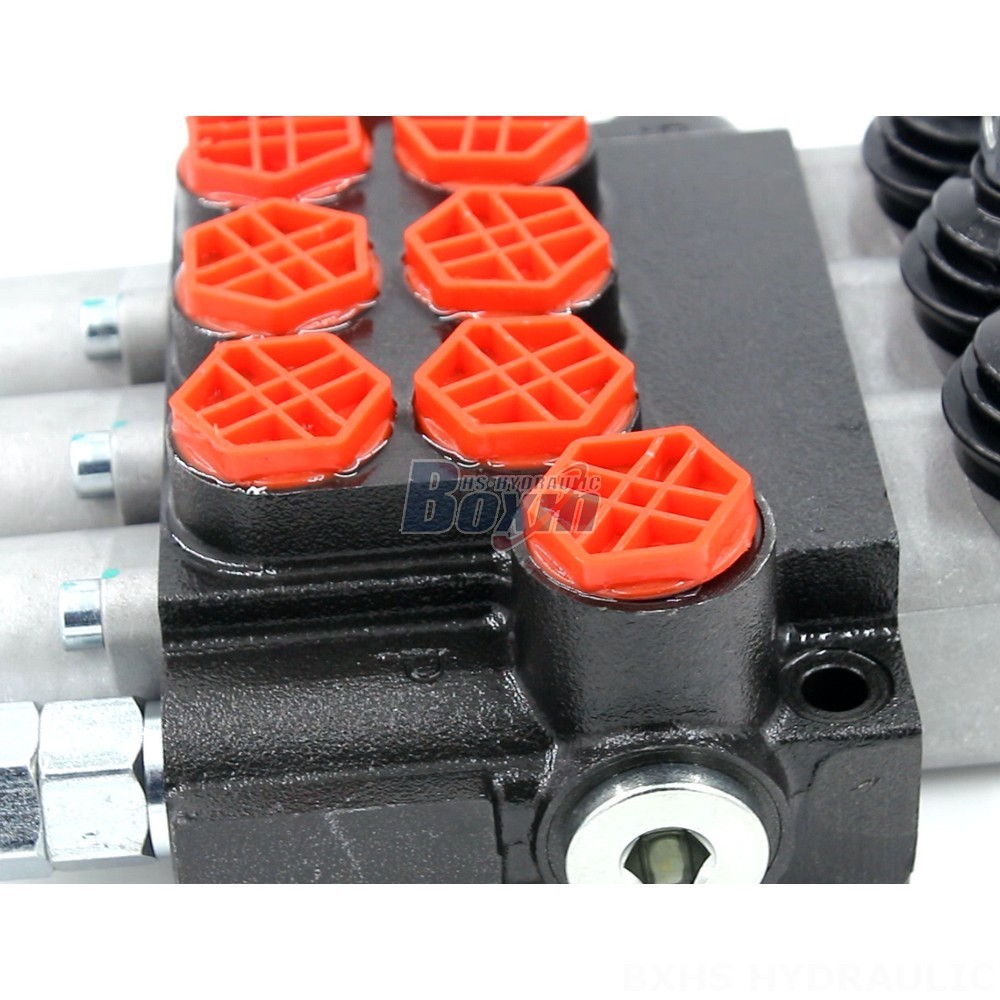

This P40 Series 3-section monoblock directional valve is a compact and powerful hydraulic valve designed for mini excavators and other construction equipment. It features a manual control method, a rated flow of 40 L/min, and a maximum pressure of 250 bar.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-G12-OT mini excavator monoblock directional valve is a high-performance hydraulic component for a variety of applications. It offers a 3-section design with a manual control method, making it easy to operate. The valve boasts a rated flow of 40 L/min and can withstand a maximum pressure of 250 bar. Its operating viscosity range is 15 - 75 mm²/s, and it can withstand ambient temperatures from -40°C to +80°C. This versatile valve is suitable for a wide range of applications in material handling, construction and earth moving, agriculture, and industrial vehicles. Some common applications include telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
