Produksi & Pengiriman
Waktu Produksi 15-30 Hari
4671 Pandangan Mencari Produk Ini

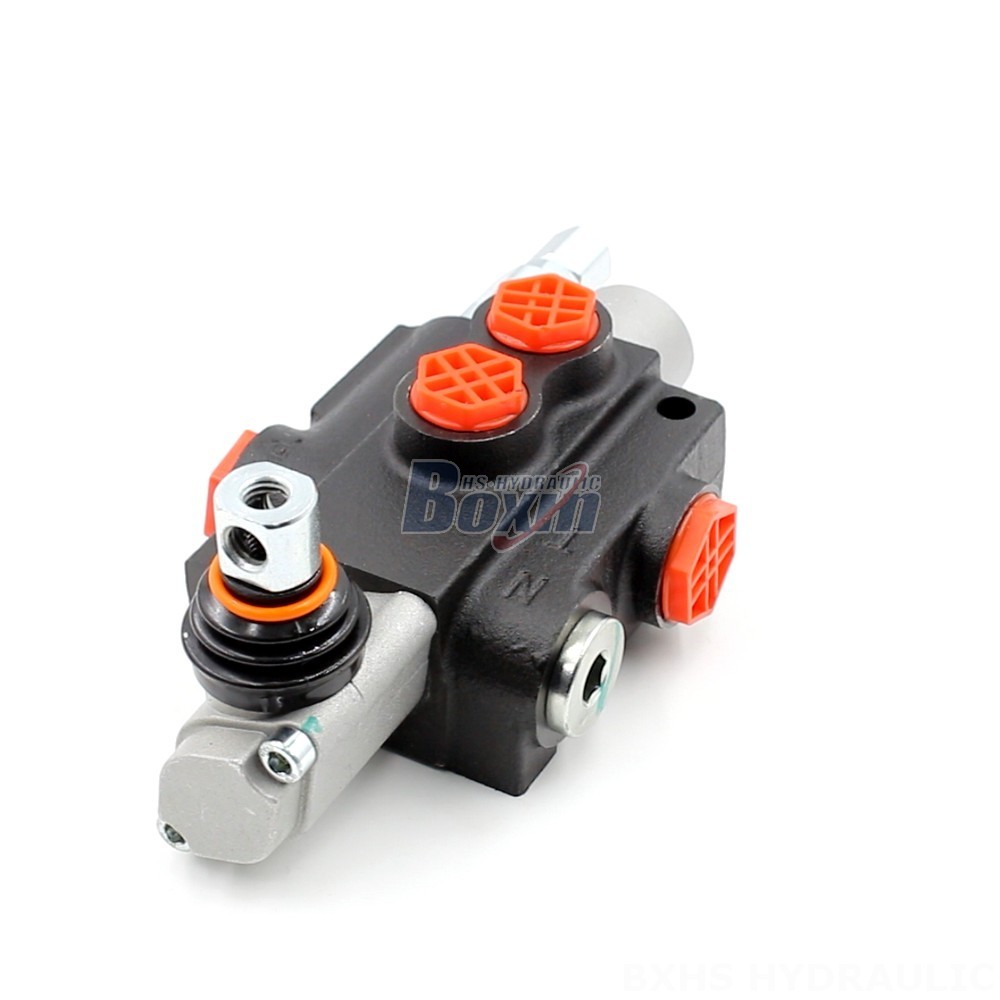

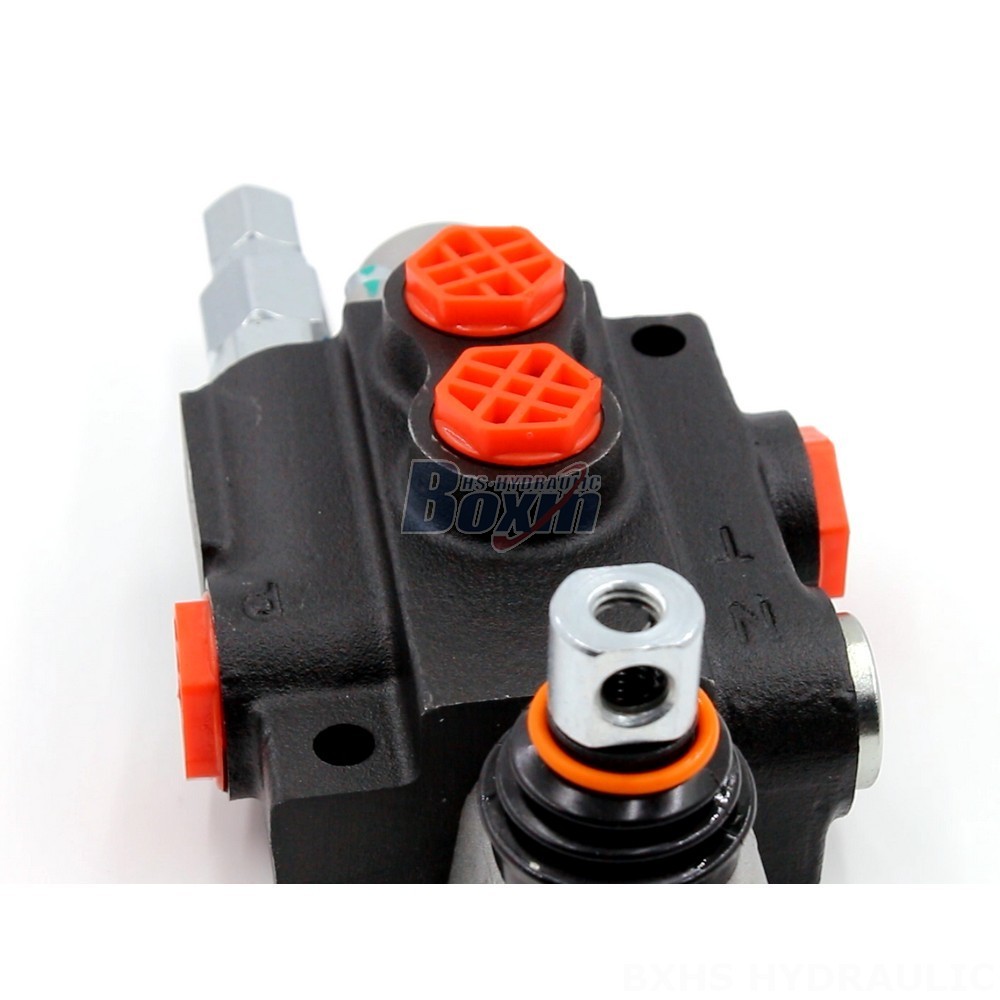

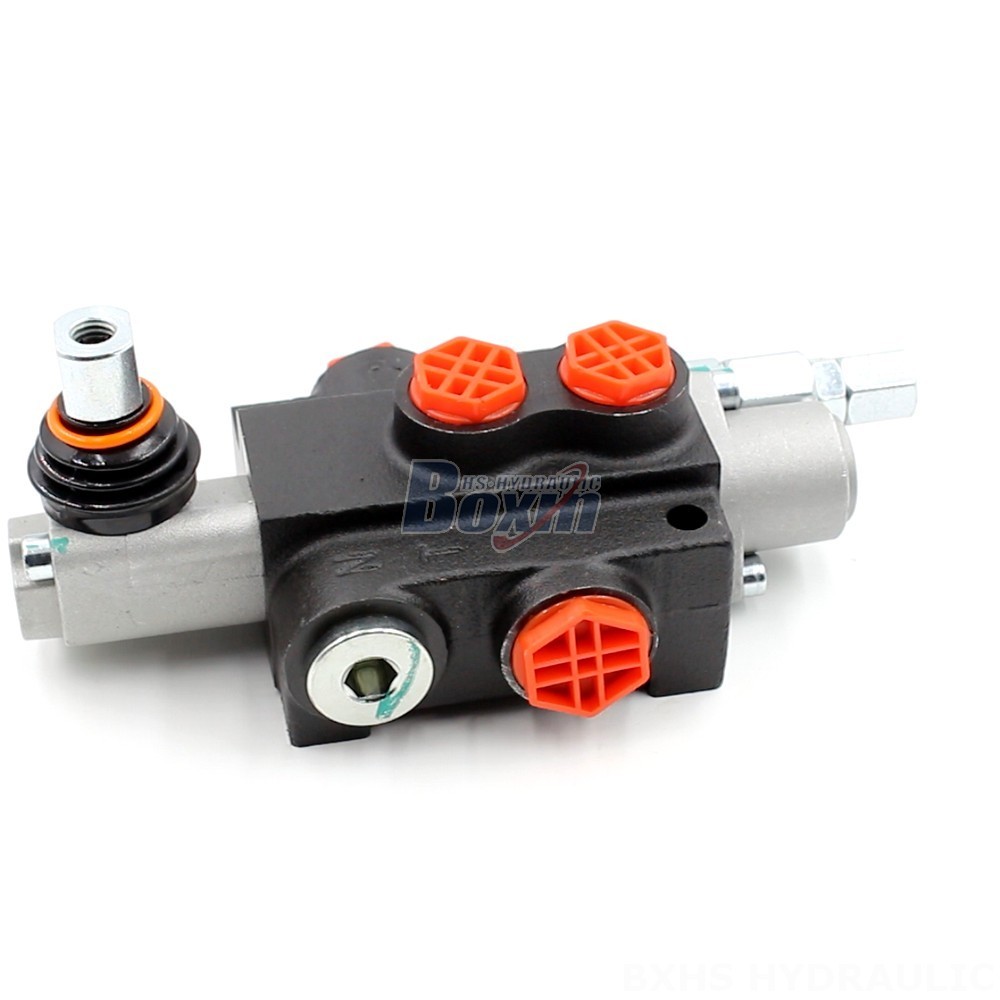

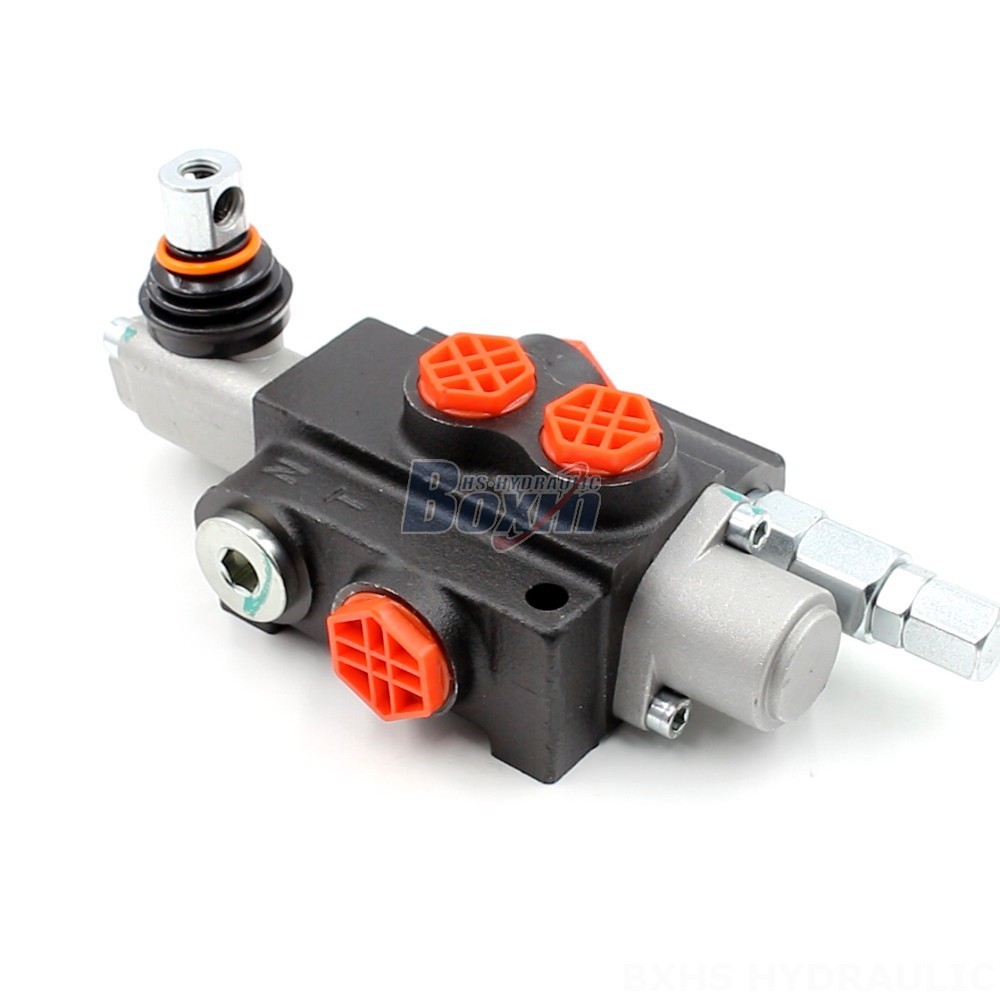

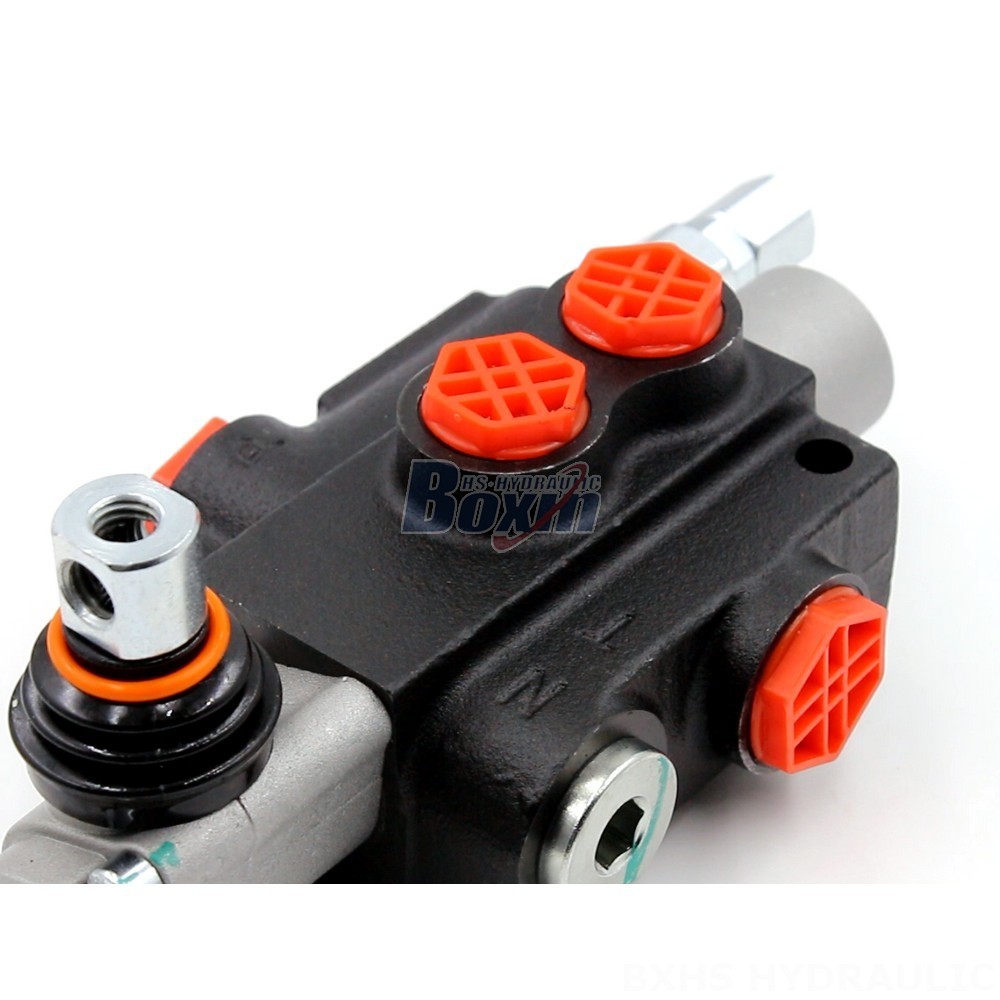

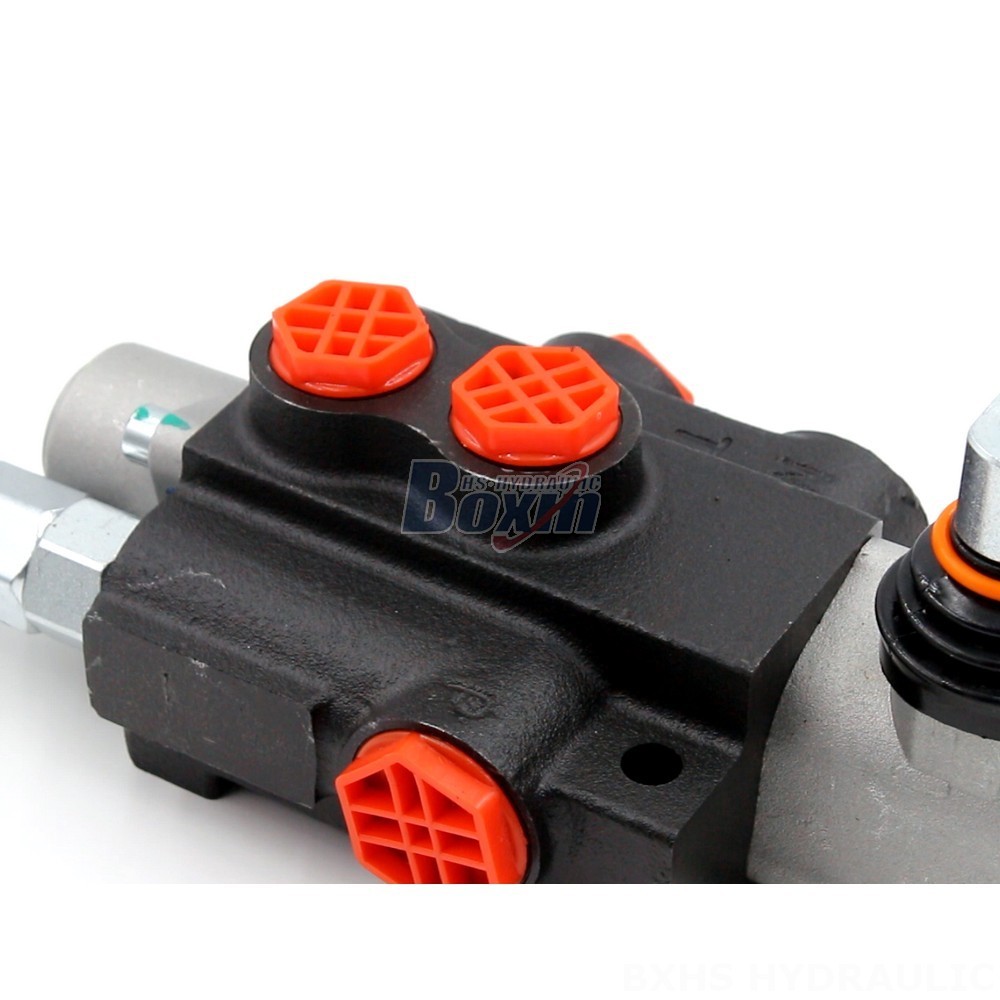

The P40-G12-YW is a high-performance 4-way directional control valve, designed for demanding applications in material handling, construction, and industrial vehicles. It features a compact monoblock design, manual control, and a rated flow of 40 L/min. This valve is ideal for OEM and ODM applications.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-YW is a 4-way directional control valve with a monoblock structure. It offers a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is manually controlled and features a single spool. It is suitable for a wide range of applications including material handling, construction, and industrial vehicles. The P40 series is known for its reliability and durability, making it an ideal choice for demanding applications. We also offer OEM and ODM services to meet your specific requirements. This valve is commonly used in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
