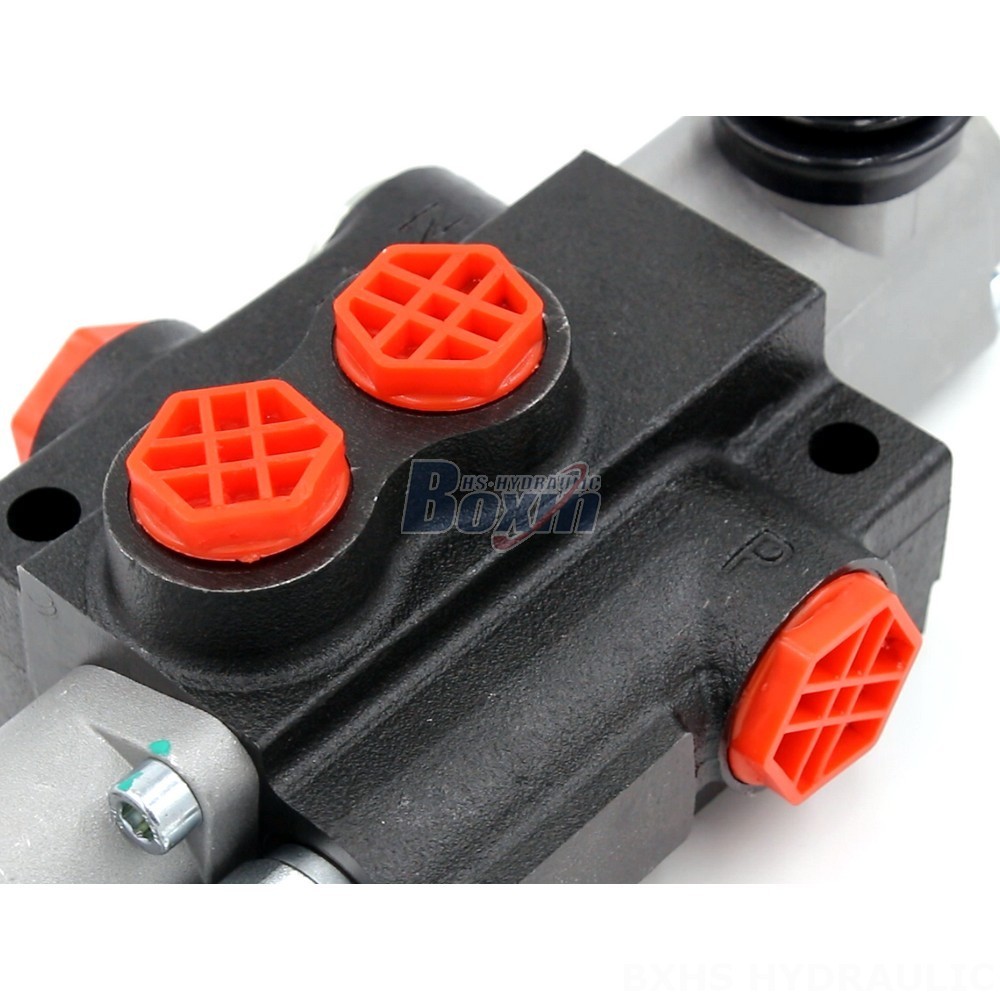

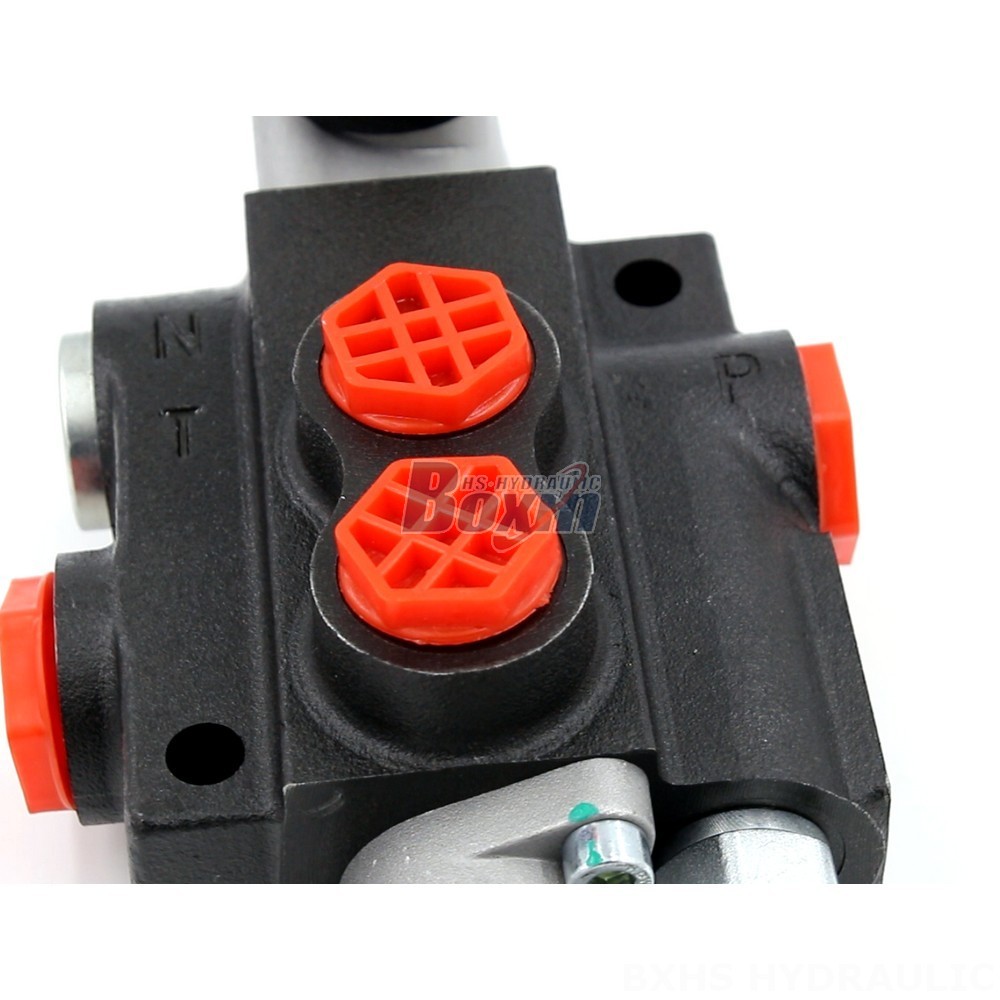

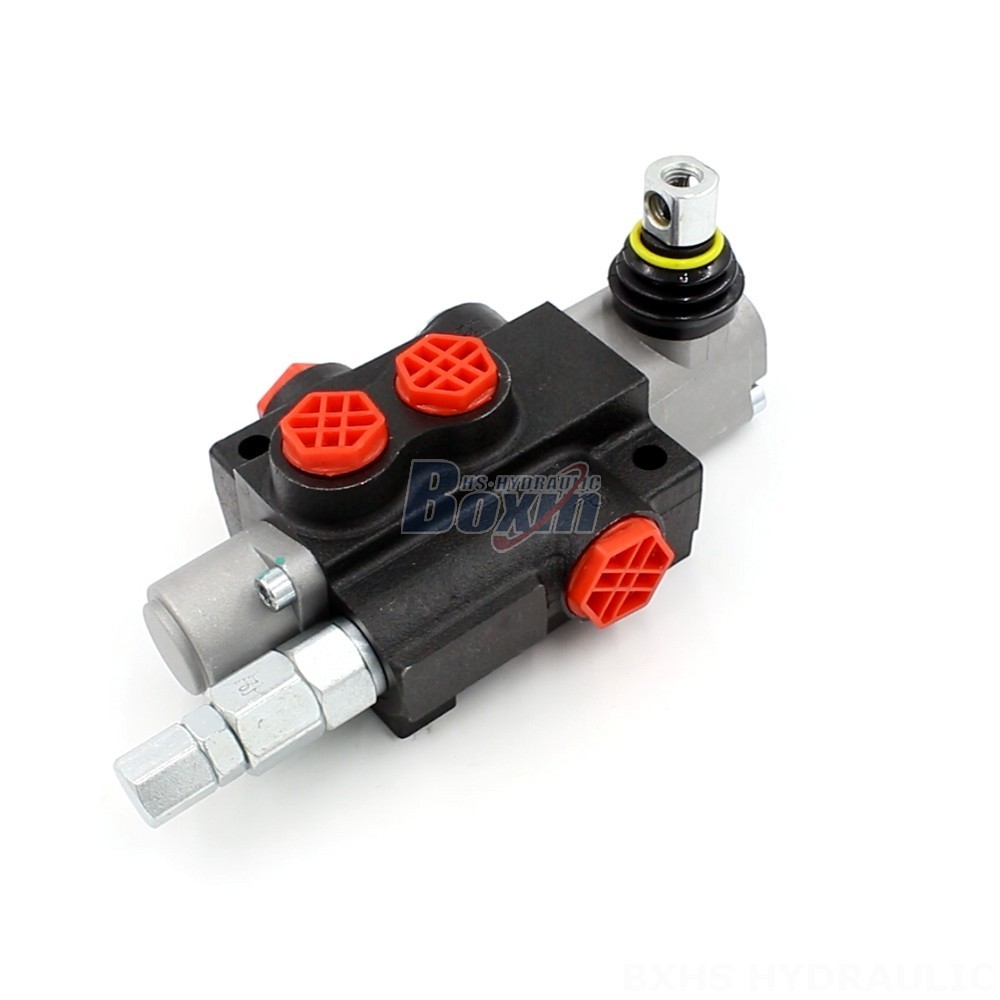

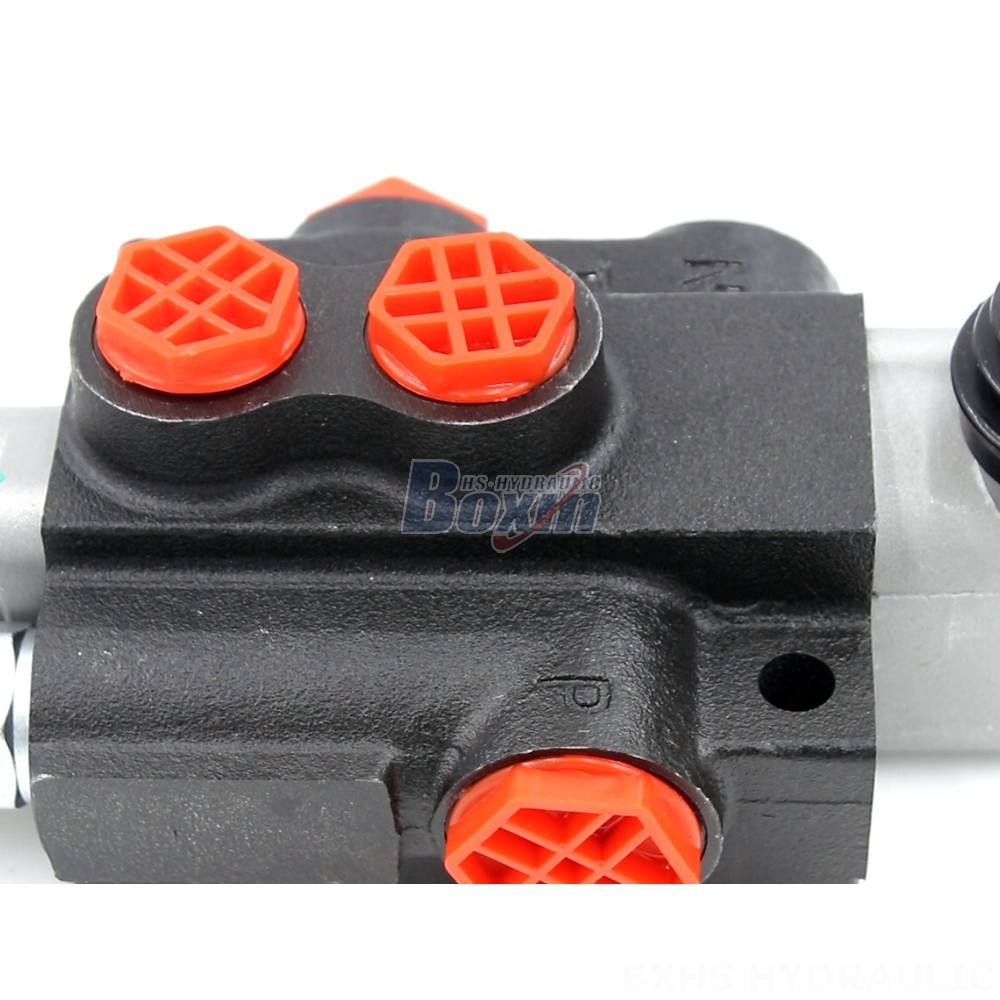

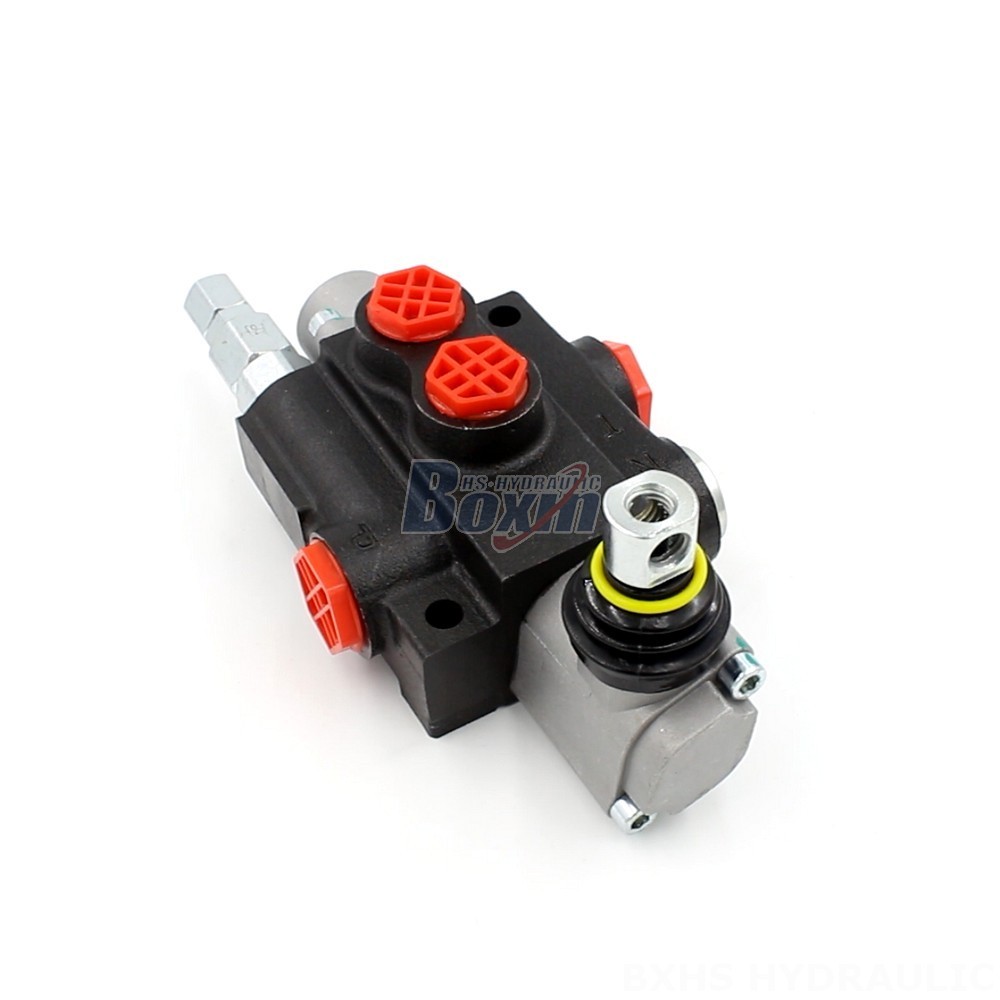

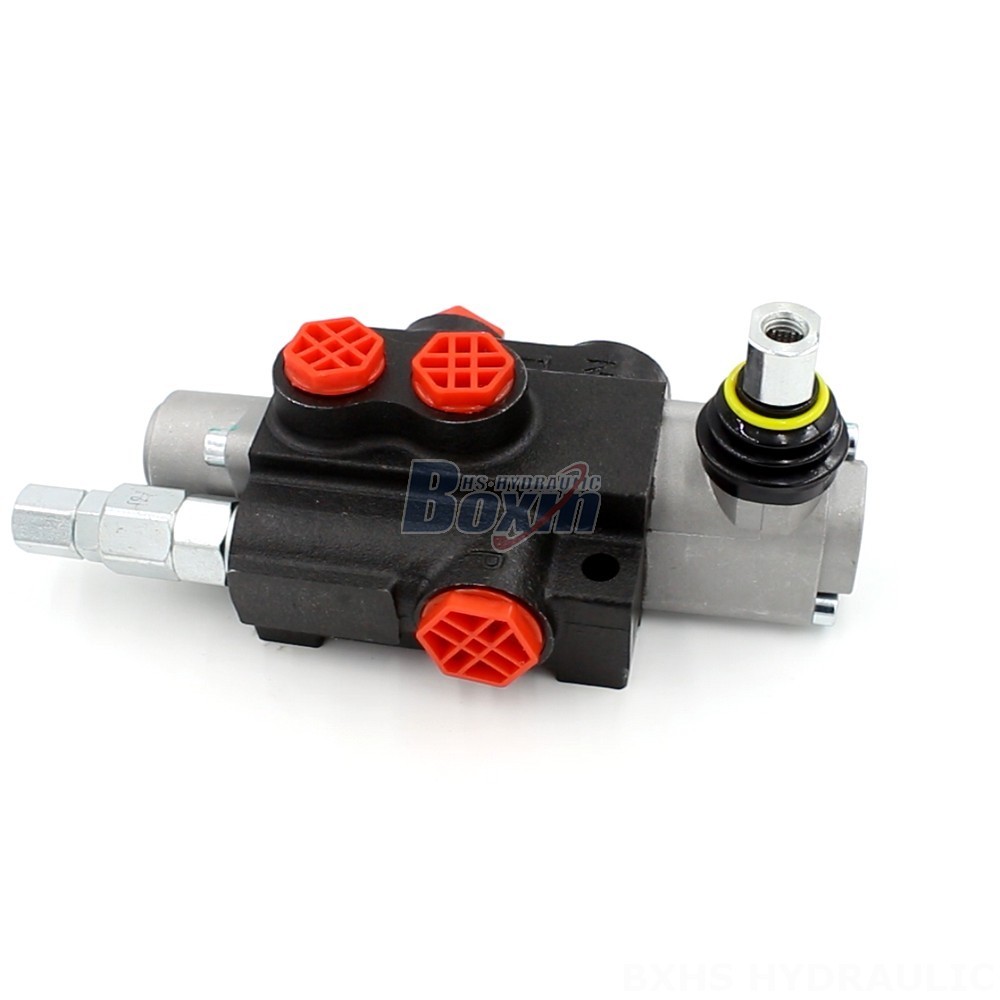

Introducing the P40-OW Monoblock Directional Valve, an innovative and reliable solution for your fluid power needs. This valve boasts a compact monoblock design, ensuring durability and space efficiency. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it offers excellent performance in diverse applications.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-OW Monoblock Directional Valve features manual control and a single section design, providing precise and efficient operation. Its operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure compatibility with various fluids and environments. The valve's single spool design simplifies maintenance and reduces complexity.
This valve is widely applicable in industries such as material handling, construction and earth moving, agriculture, and industrial vehicles. It is particularly suitable for use in equipment like telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
The P40-OW Monoblock Directional Valve is customizable to meet specific requirements, making it an ideal choice for OEMs and end-users seeking a reliable and efficient solution for their hydraulic systems.
