The P80-G12-G34 Series Monoblock Directional Valve is a high-performance hydraulic valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is designed for manual control and features a monoblock construction for durability and reliability. The valve is highly customizable to meet the specific requirements of various applications, making it a perfect choice for industries such as construction, agriculture, and material handling.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

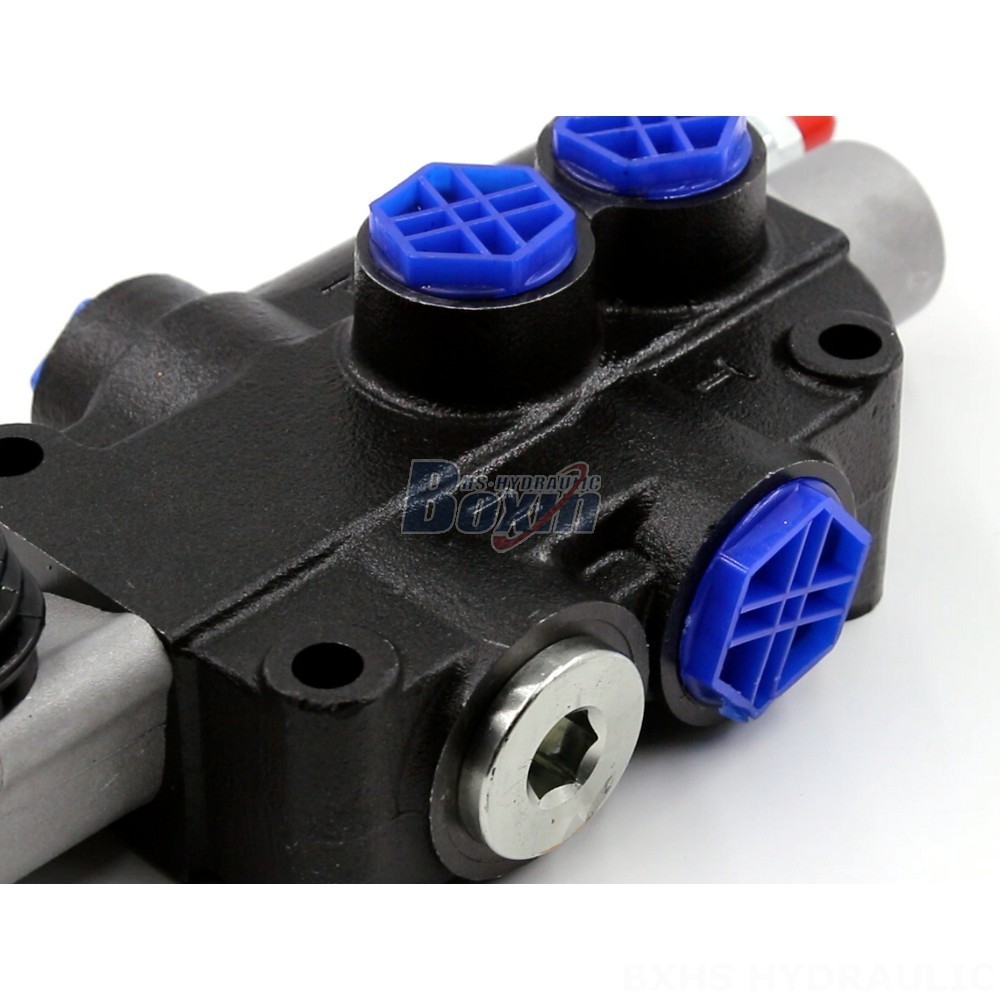

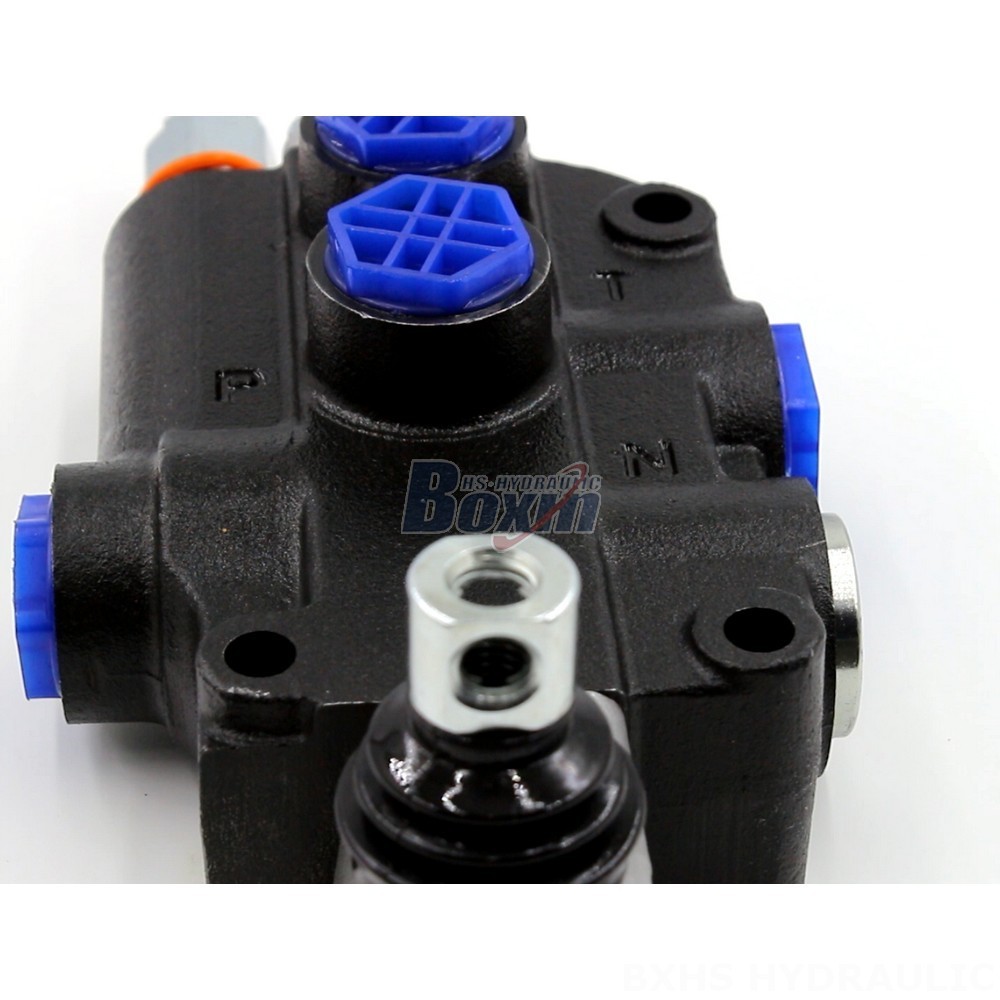

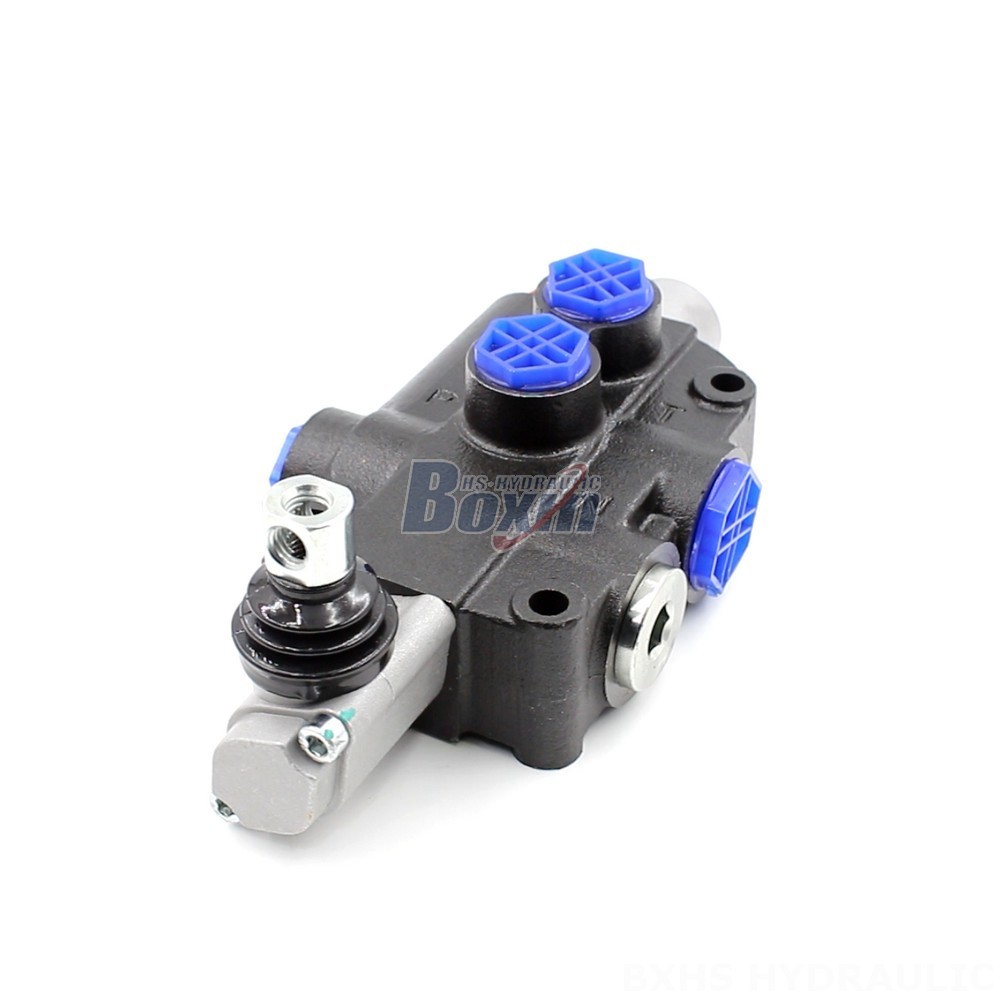

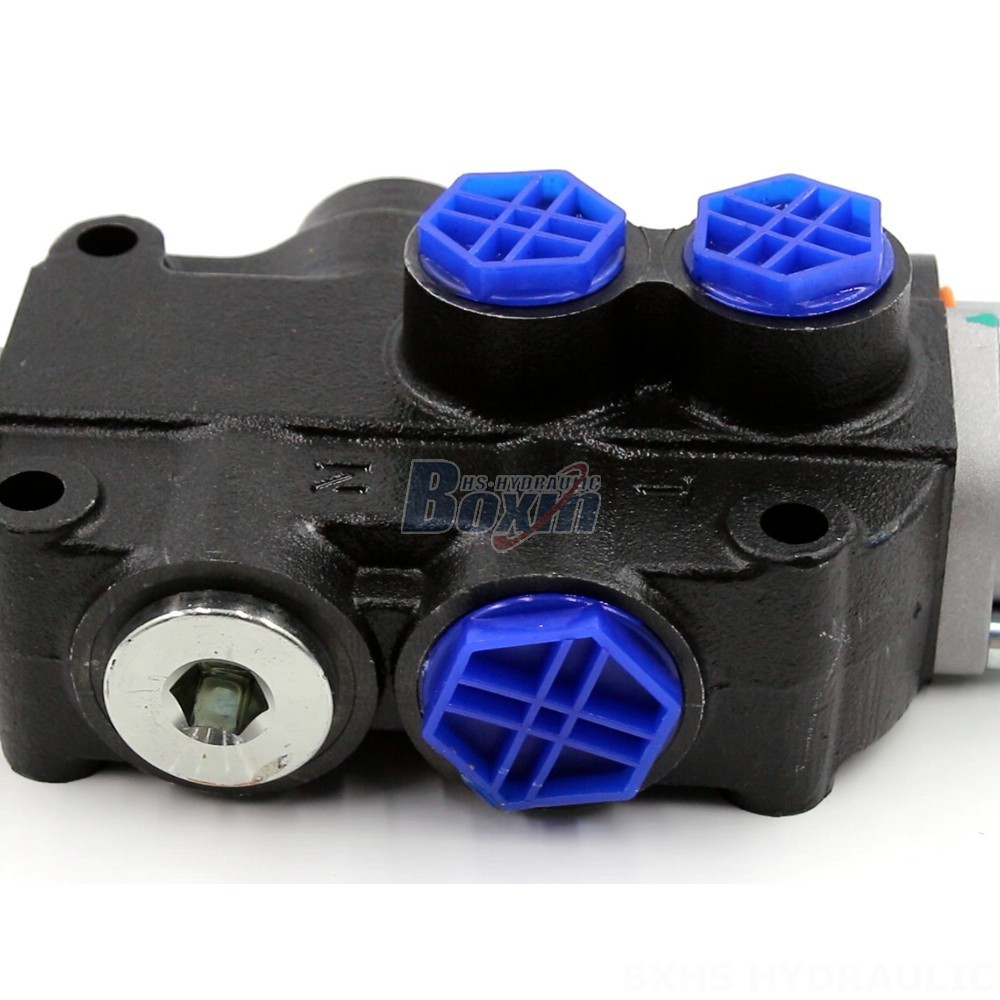

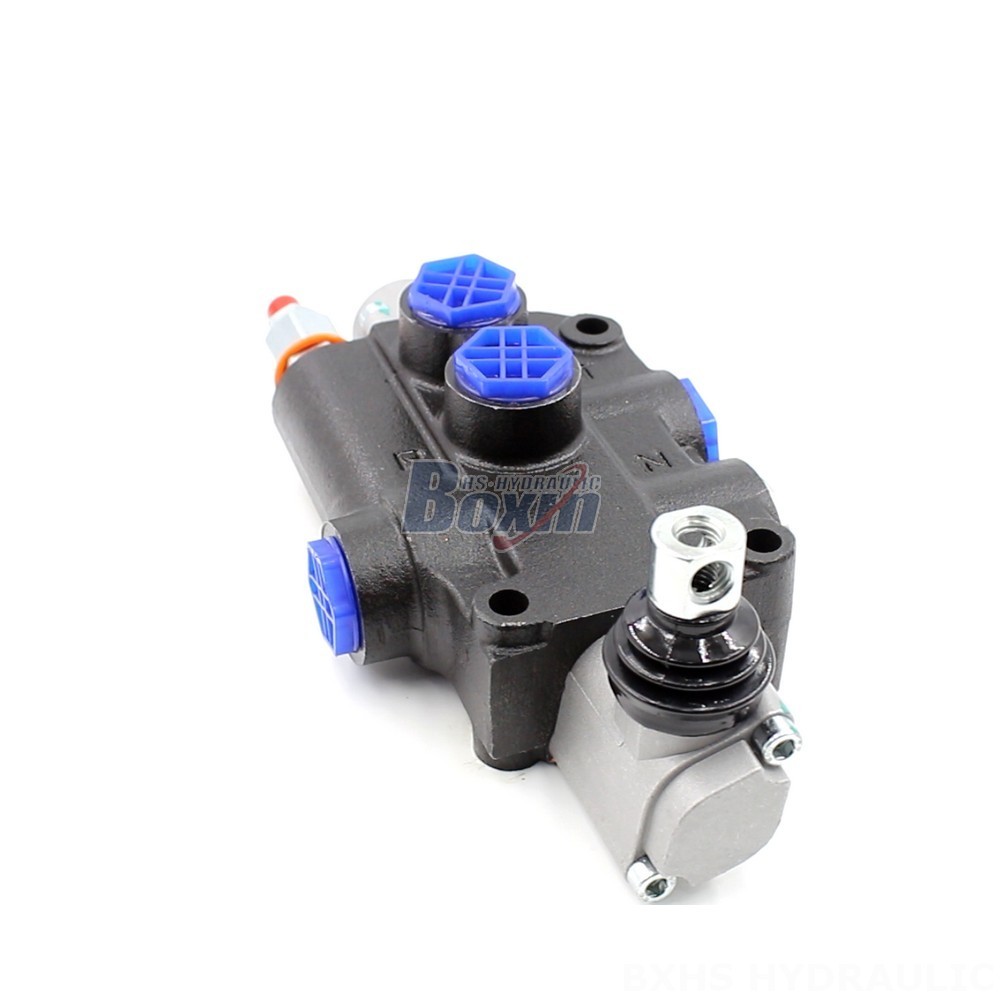

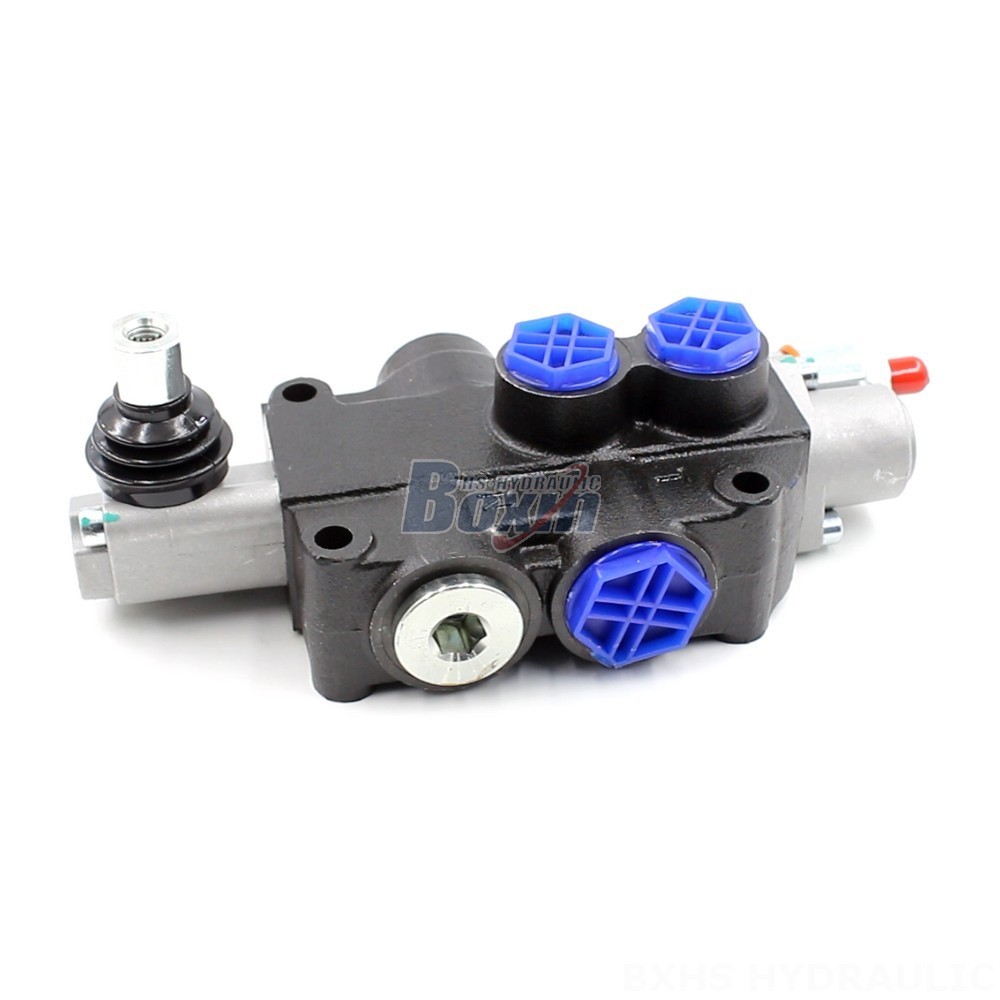

**P80-G12-G34 Series Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
The P80-G12-G34 Monoblock Directional Valve is a robust and reliable choice for a wide range of hydraulic applications. Its customizable design and high performance make it an excellent option for demanding applications in various industries.
