Produksi & Pengiriman
Waktu Produksi 15-30 Hari
87 Pandangan Mencari Produk Ini

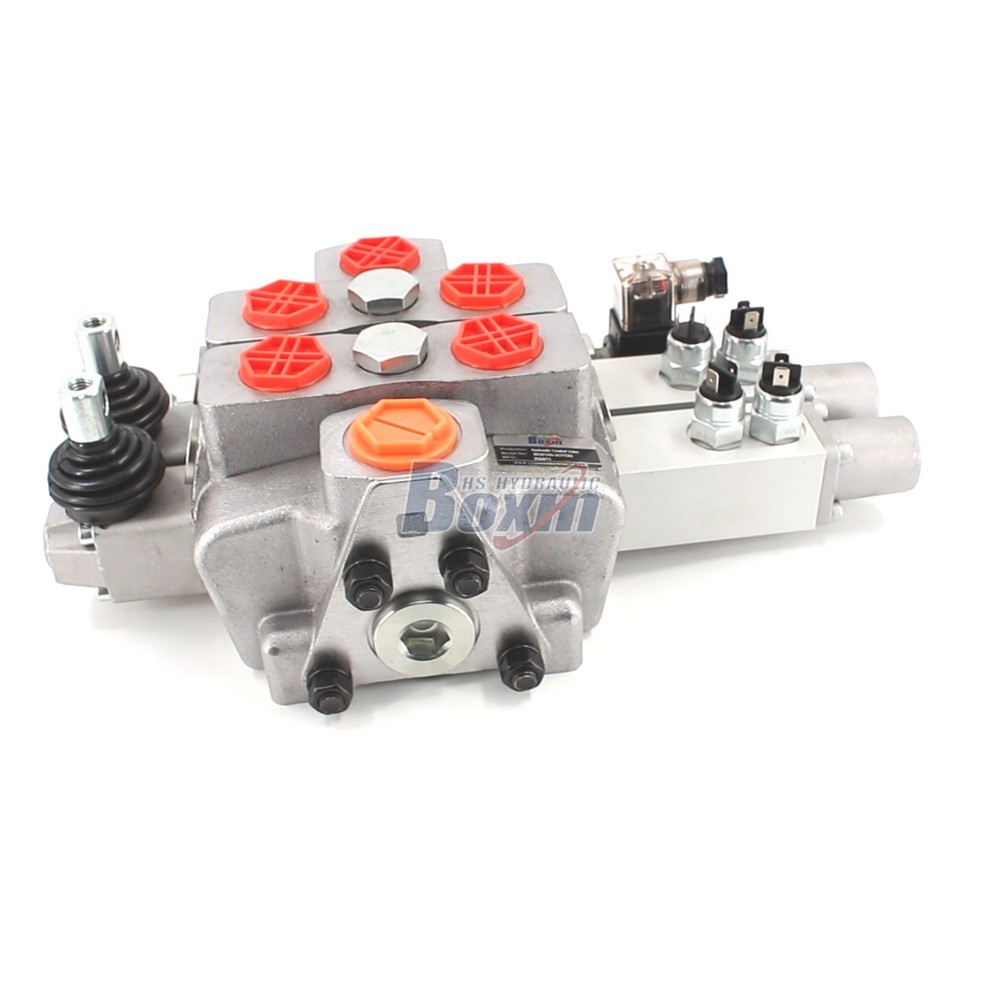

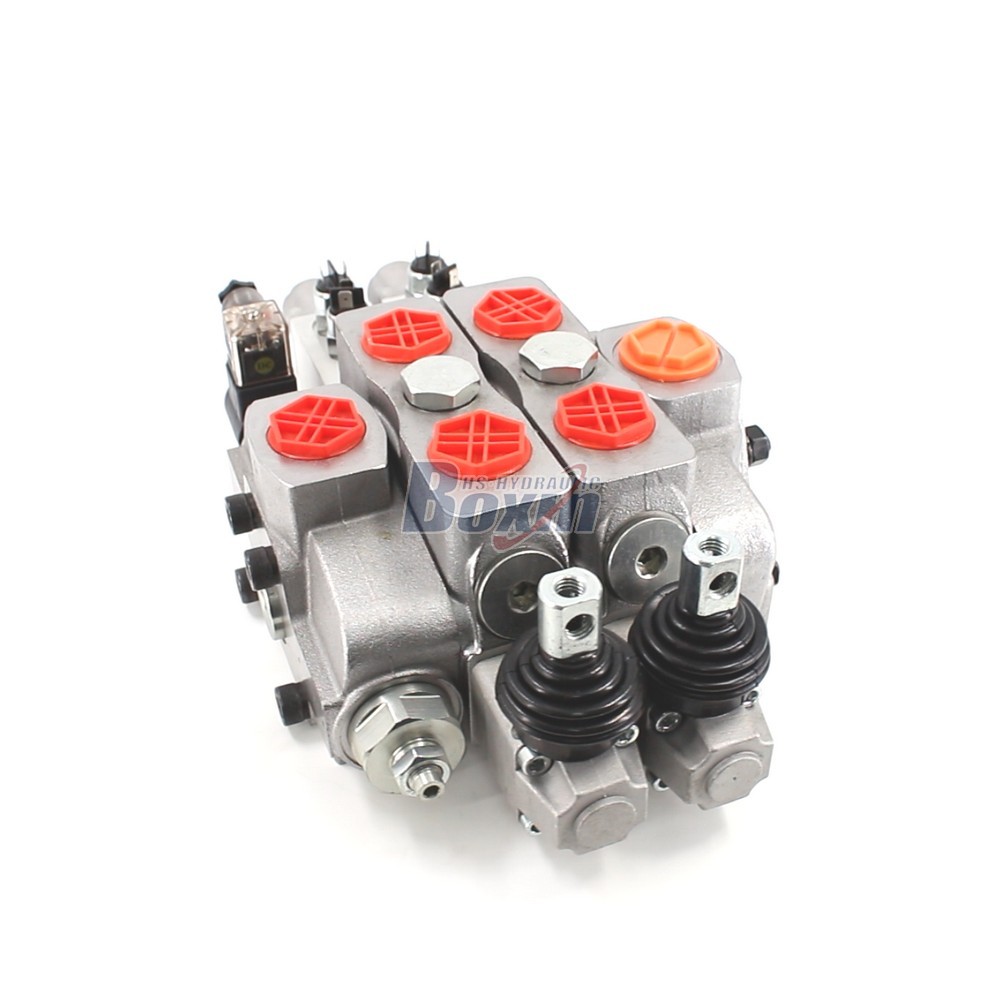

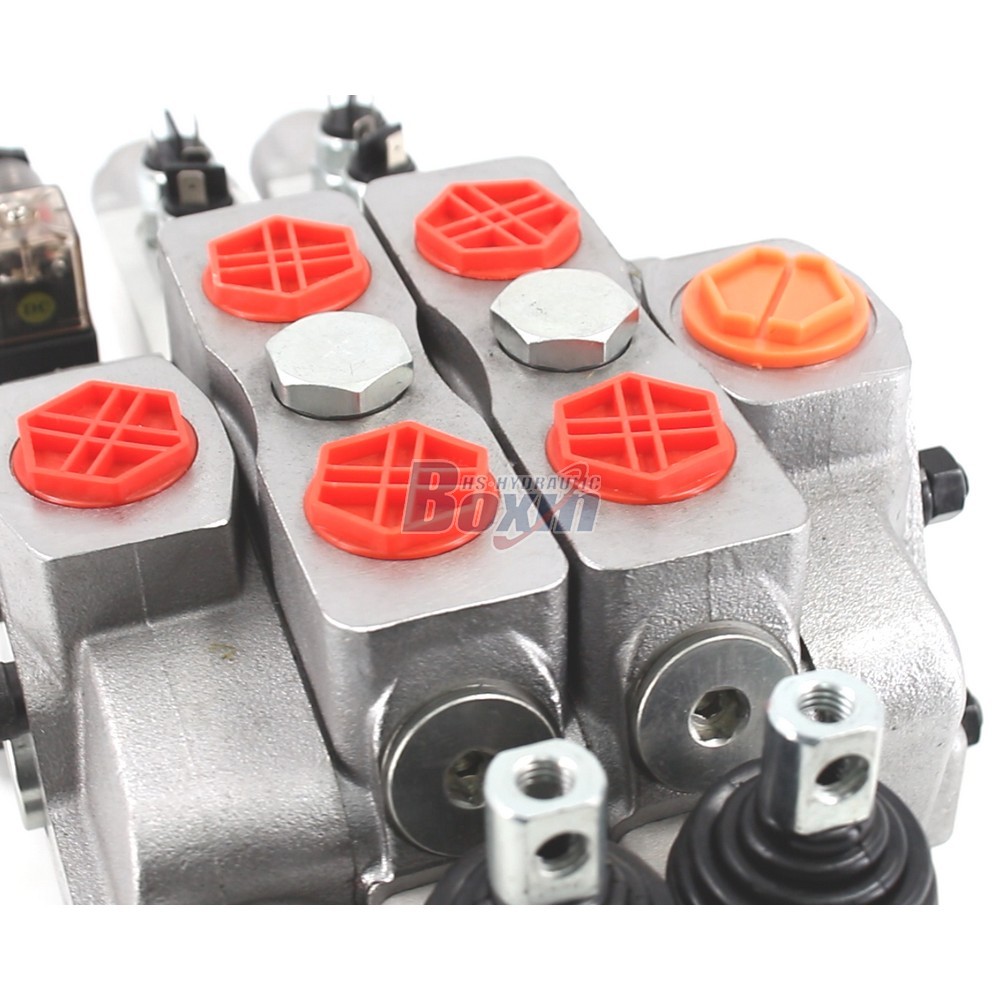

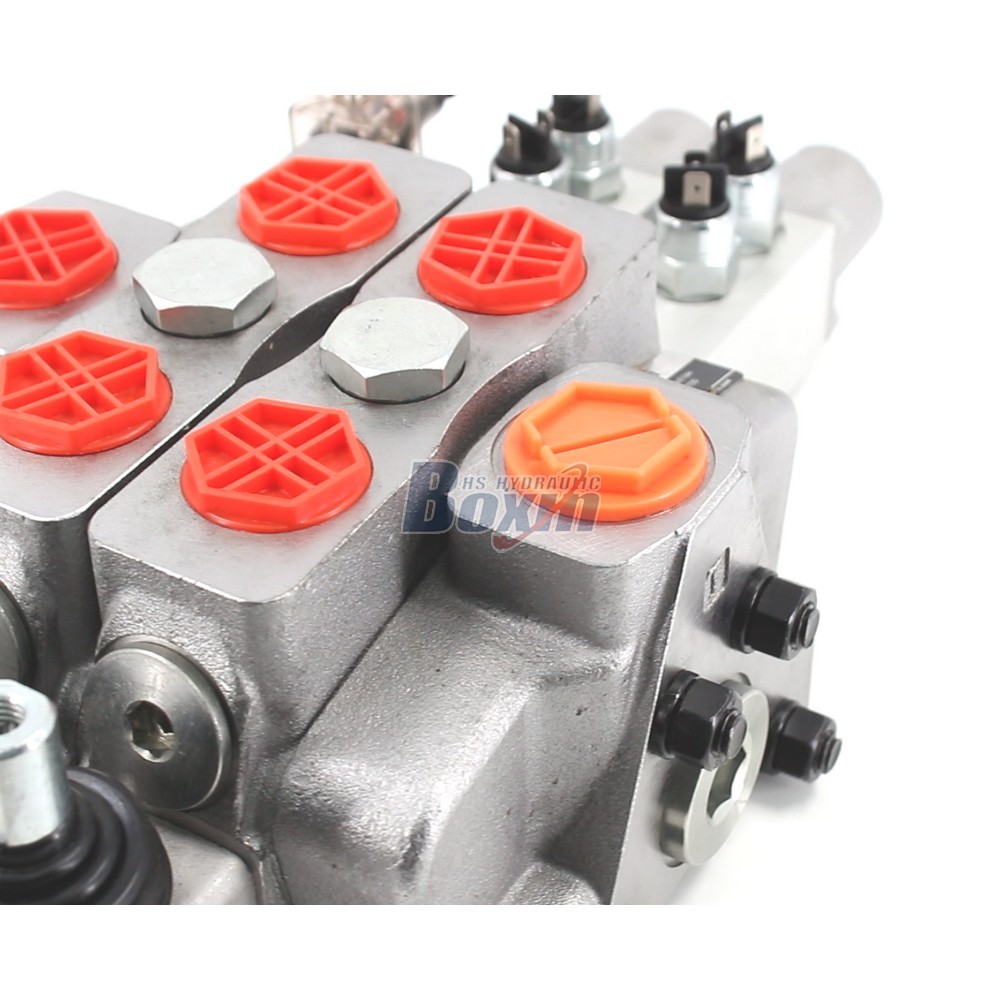

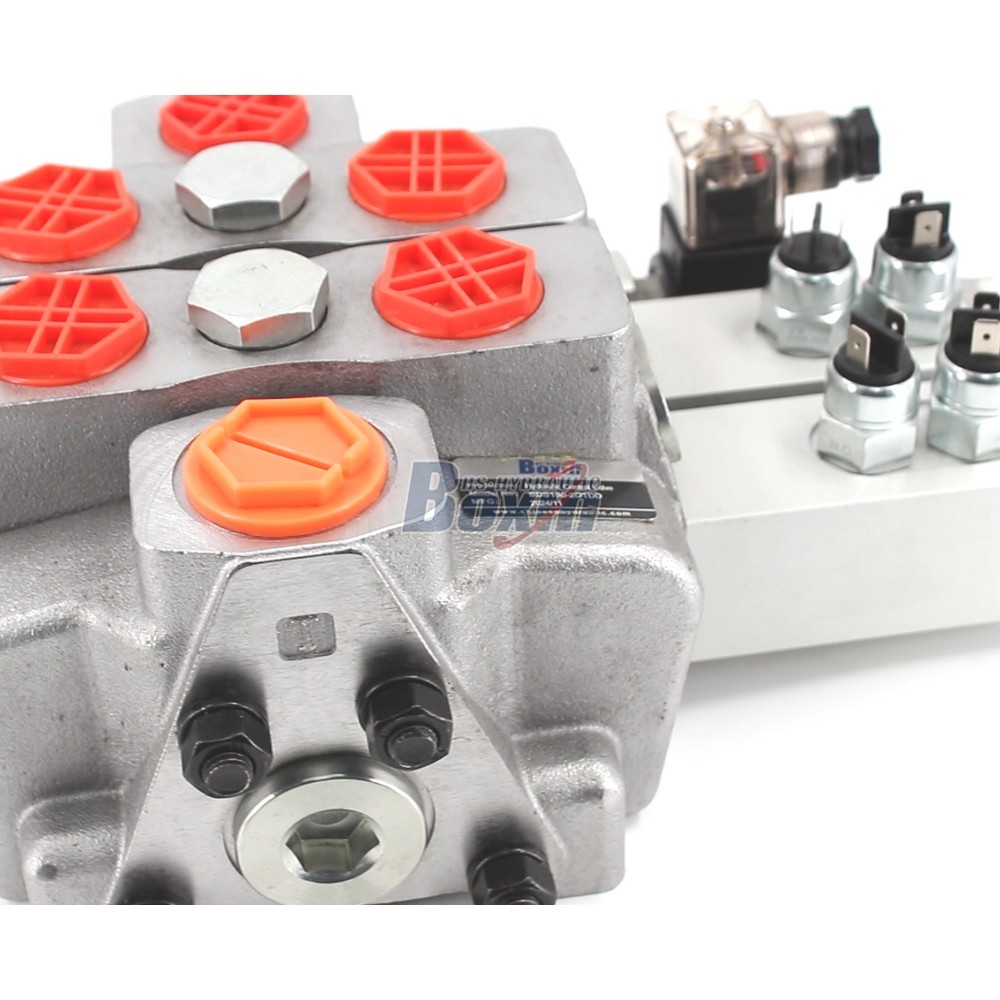

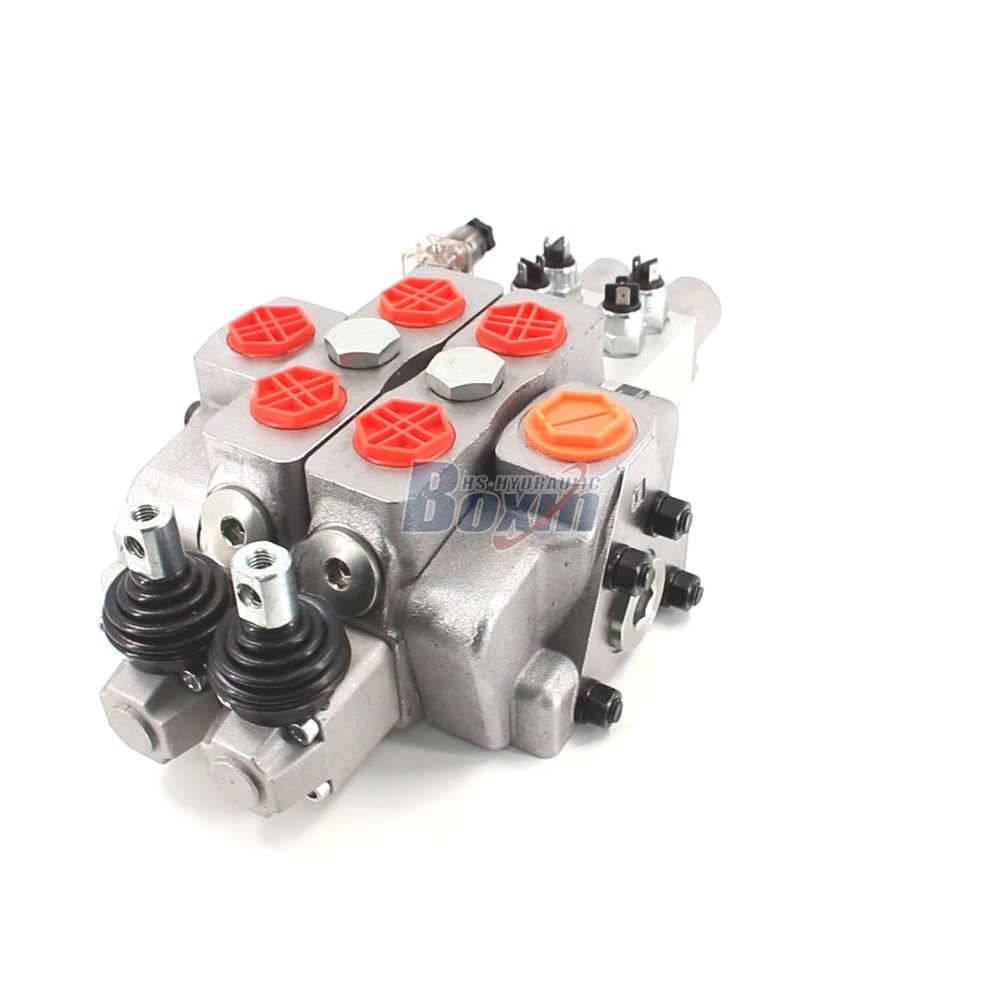

The SDS180-PG2-2OTDD is a high-performance 2-spool sectional directional control valve designed for demanding fluid power applications, offering a rated flow of 160 L/min and pressure handling up to 315 bar.
| Seri SDS180 Kran Arah Bagian Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Hidraulis |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup penampang |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian |
| Kisaran Viskositas Operasional | 12 - 400 mm²/dt (12 cSt hingga 400 cSt) |
| Aliran Terukur | 160 L/menit (42,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi), 350 bar (5100 psi) |
| Port Masuk | G3/4, G1, SAE 12 |
| Port Keluar | G1, SAE 16 |
| Ukuran Port | G3/4, G1, SAE 12 |
Our SDS180-PG2-2OTDD series sectional directional valves are engineered for versatility in construction, agriculture, and material handling machinery. Built for reliability, this valve supports manual operation and is ideal for wheel loaders, tractors, forklifts, and concrete pumps. As a leading manufacturer, we provide comprehensive manufacturing solutions including OEM, private labeling, and custom engineering to meet specific technical requirements. We invite global distributors, wholesalers, and trading partners to collaborate with our factory for volume procurement. Benefit from our direct factory supply, competitive wholesale pricing, and robust production capacity to support your supply chain needs. Contact us today to explore partnership opportunities and custom service options.
