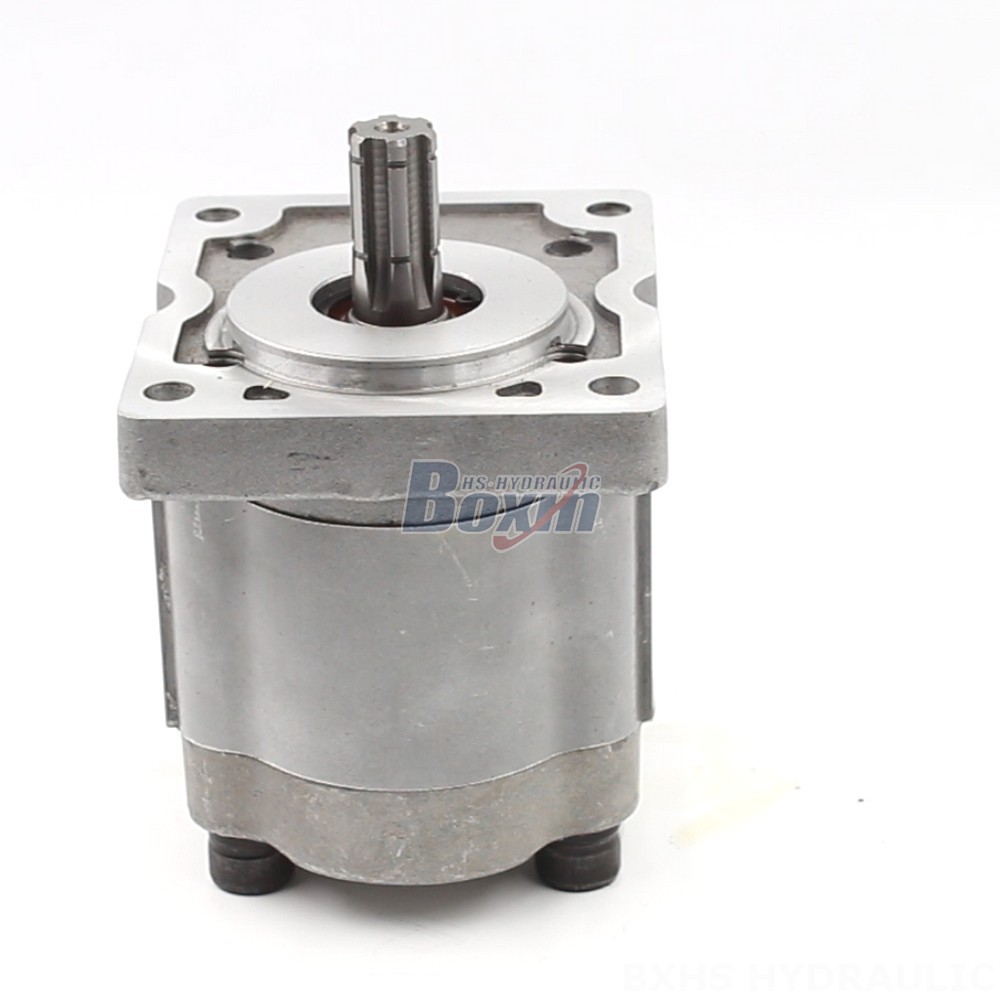

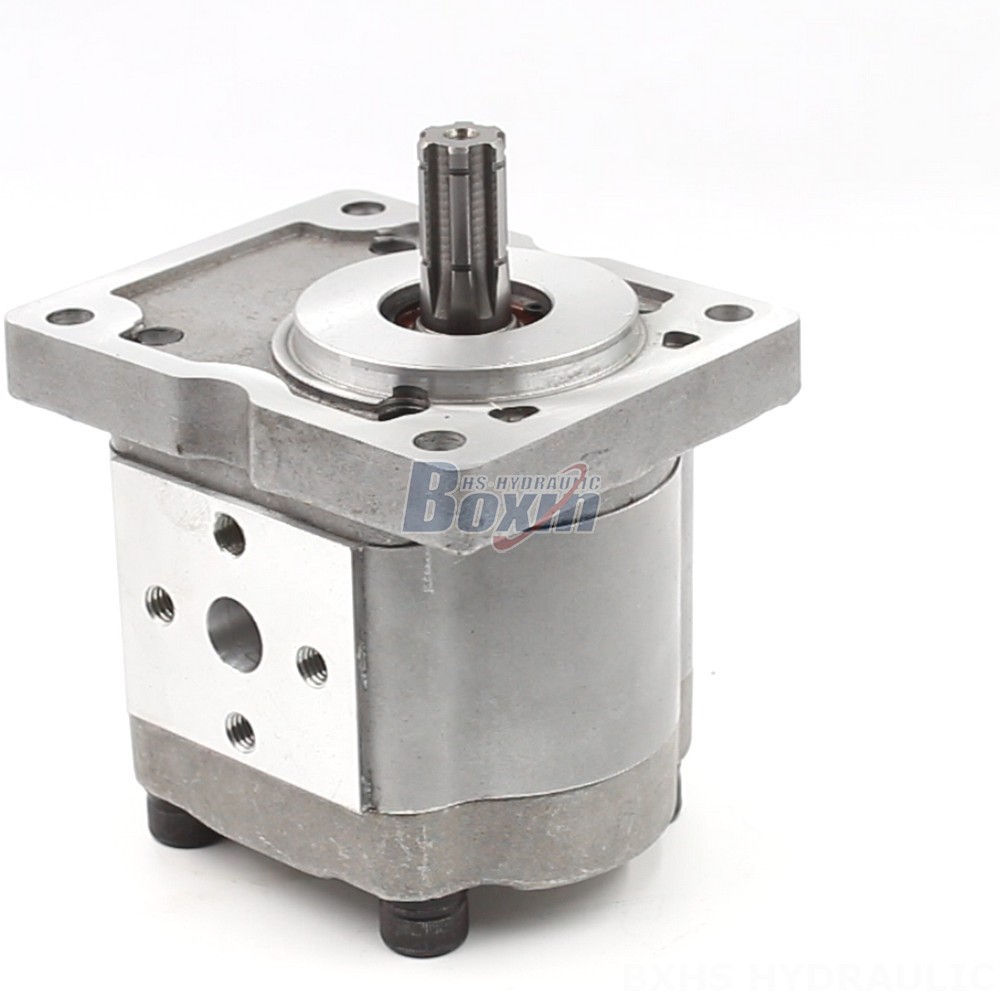

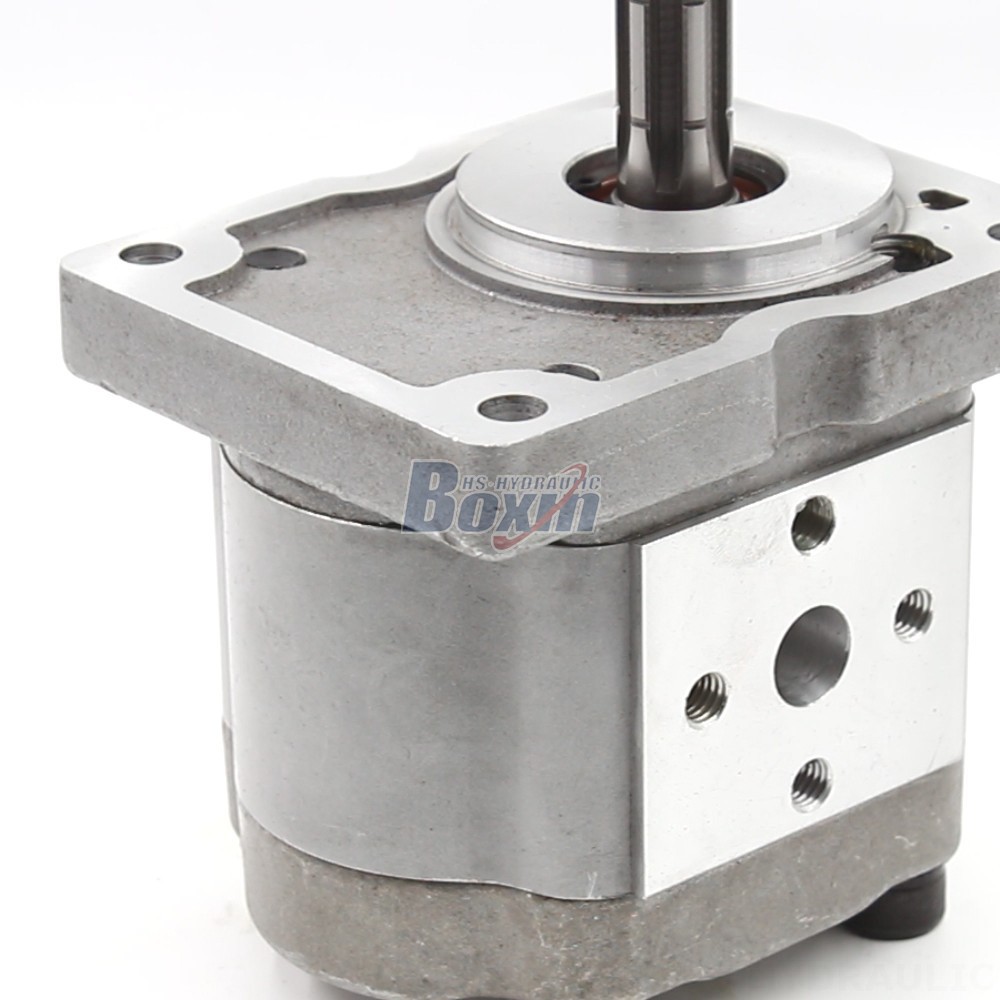

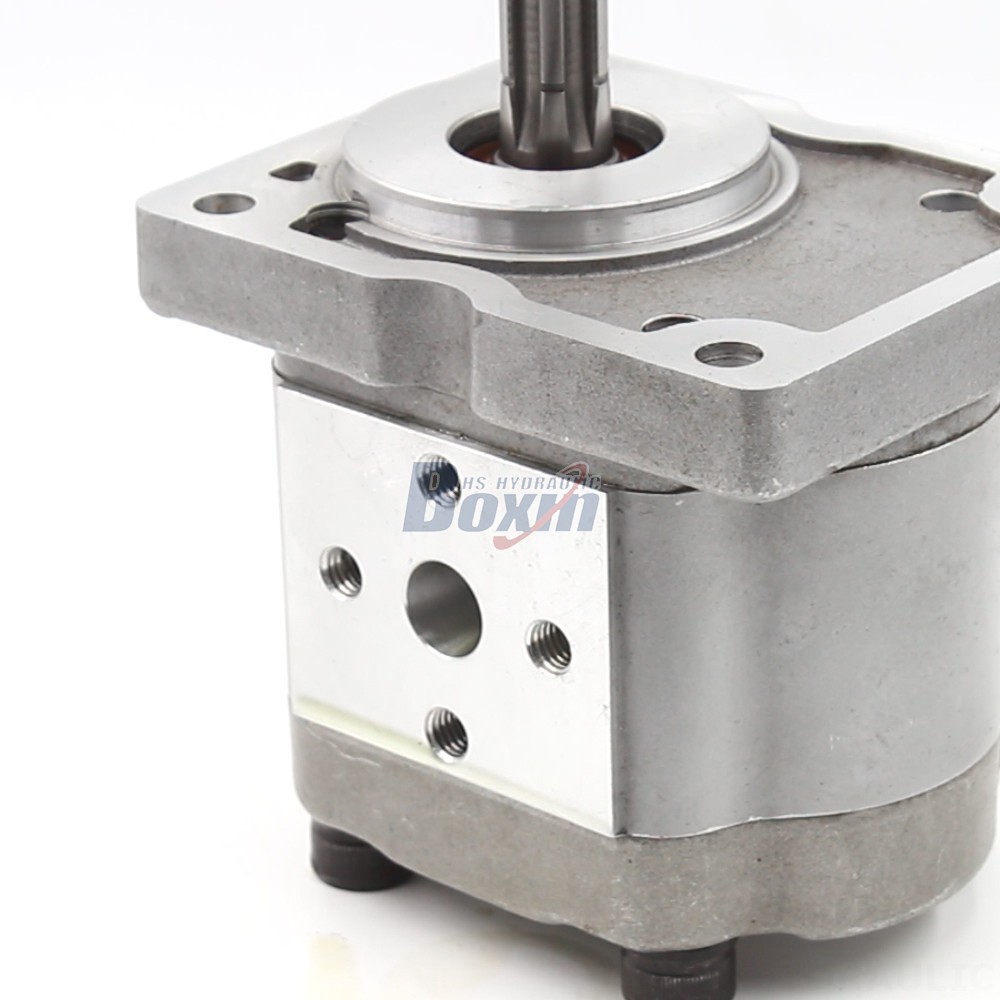

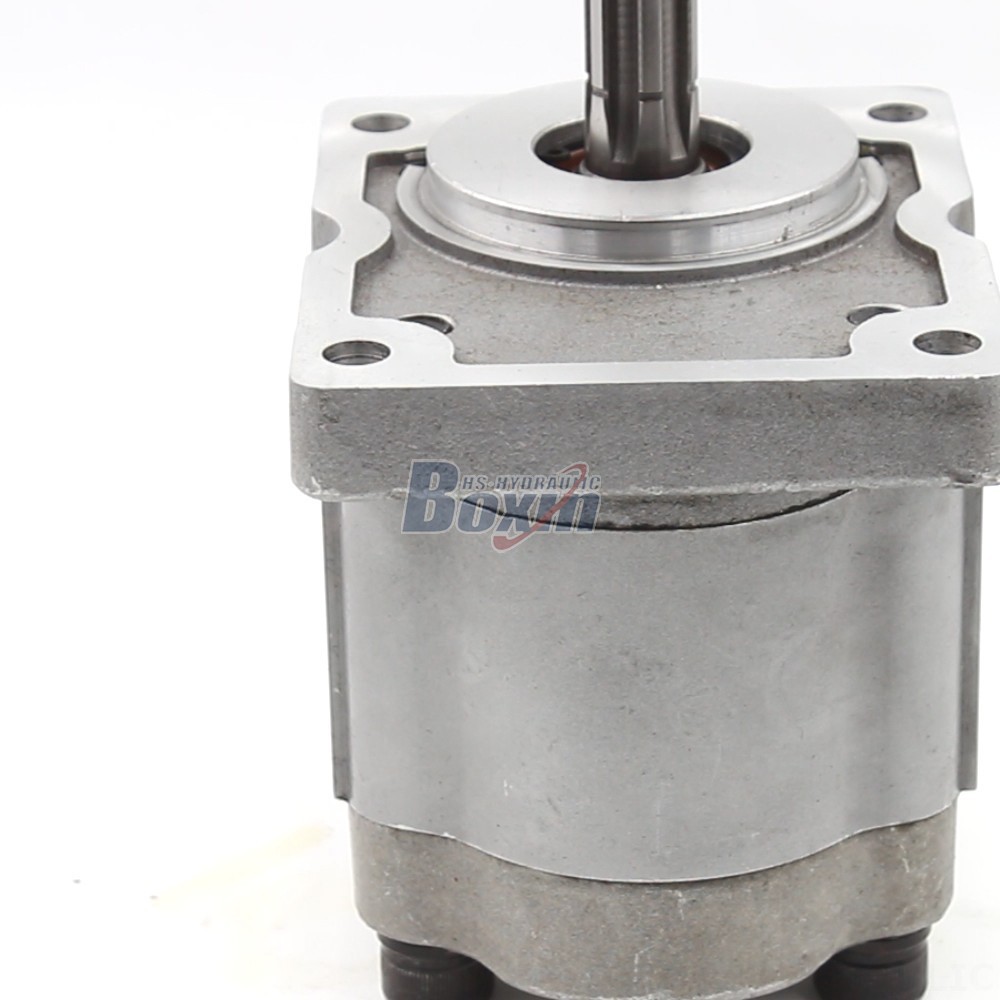

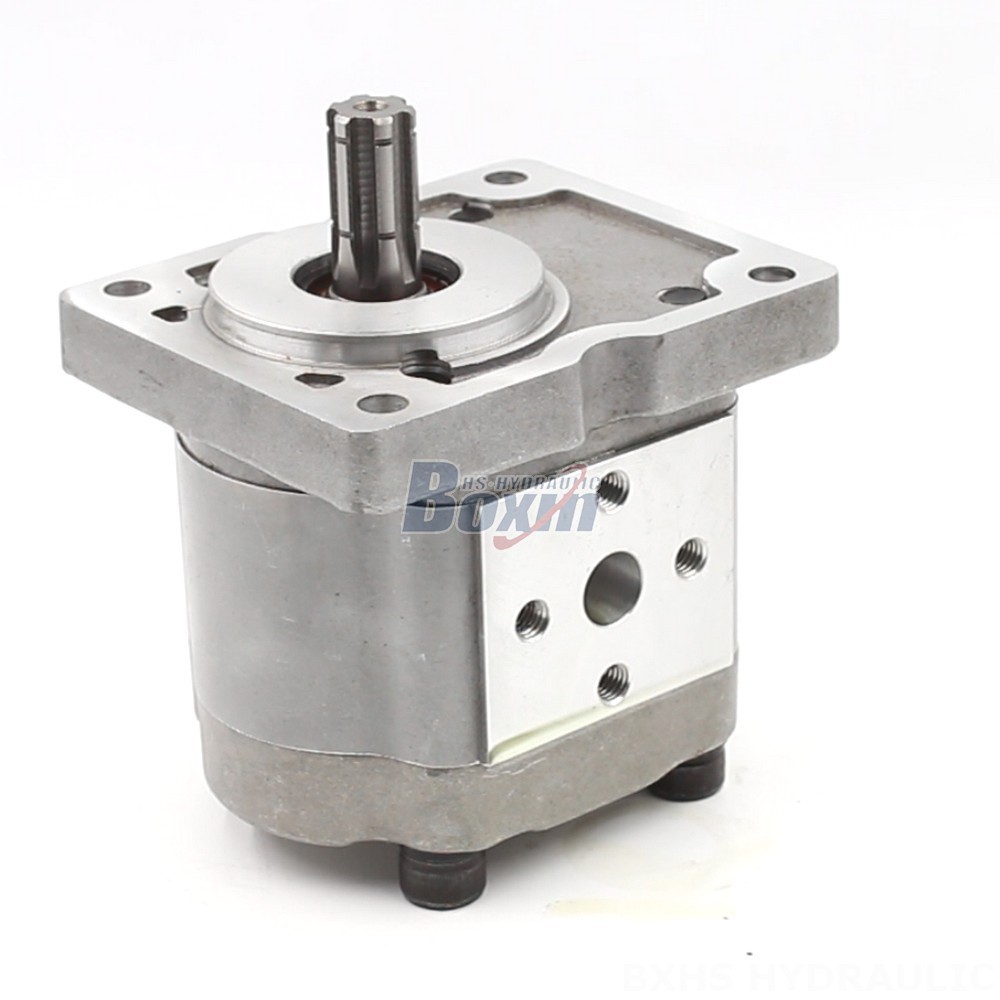

The NSH-10 10 cc/rev Gear Pump is a high-performance hydraulic pump designed for a wide range of industrial applications. With a rated pressure of 18 MPa (2610 psi) and a rated speed of 2000 r/min, this pump delivers reliable and efficient hydraulic power.
| Seri NSH Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 32 cc/putaran, 40 cc/putaran, 50 cc/putaran, 100 cc/putaran |
| Tekanan Terukur | 18 MPa (2610 psi) |
| Tekanan Maksimum | 20 MPa (2900 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 4200 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Persegi-B |
| Tipe Poros | X: Spline Involute |
**Product Name:** NSH-10 10 cc/rev Gear Pump
**Key Specifications:**
* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: L: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: X: Involute Spline
* Series: NSH Series
**Applications:**
* MATERIAL HANDLING
* CONSTRUCTION AND EARTH MOVING
* AGRICULTURE
* INDUSTRIAL VEHICLES
**Applicable Models:**
* TELEHANDLER
* FORKLIFT
* ALL TERRAIN CRANE
* STACKER
* AERIAL PLATFORM
* MOTOR GRADER
* TELEHANDLER
* MIDI-EXCAVATOR
* MINI-EXCAVATOR
* SKID STEER LOADER
