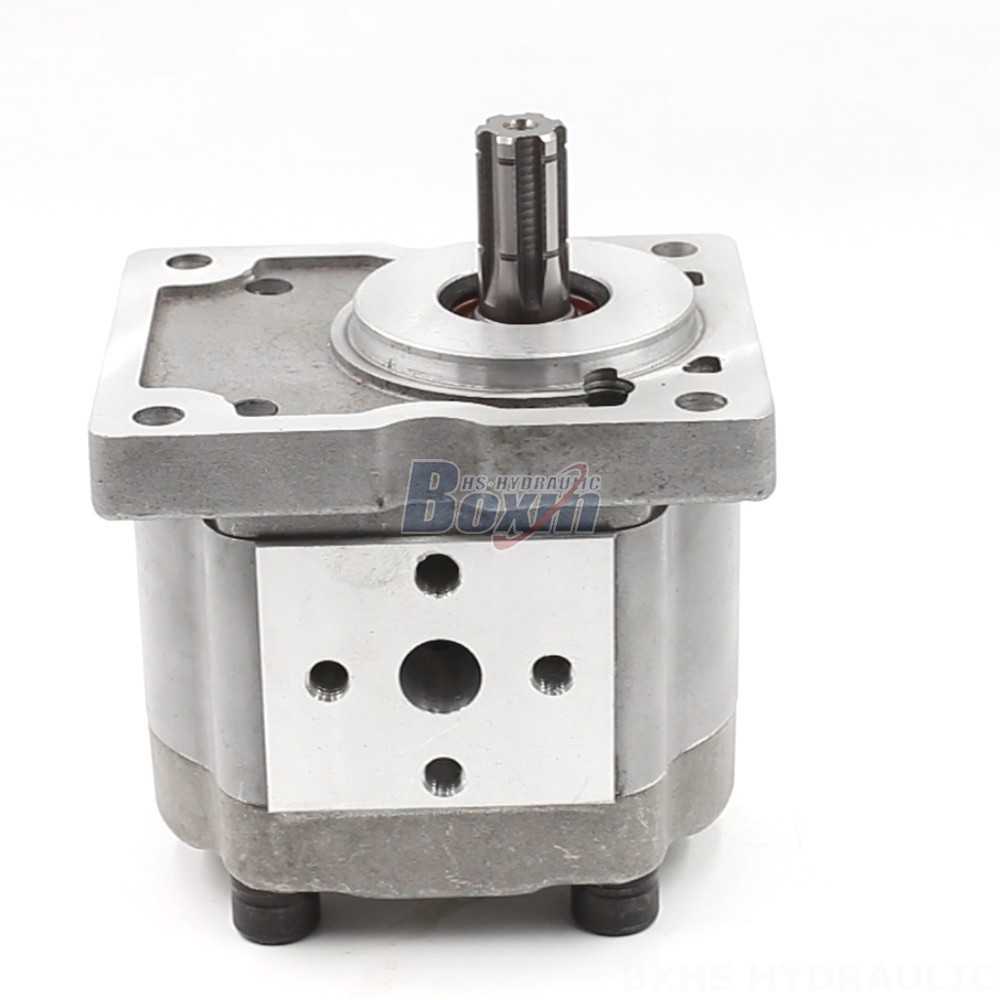

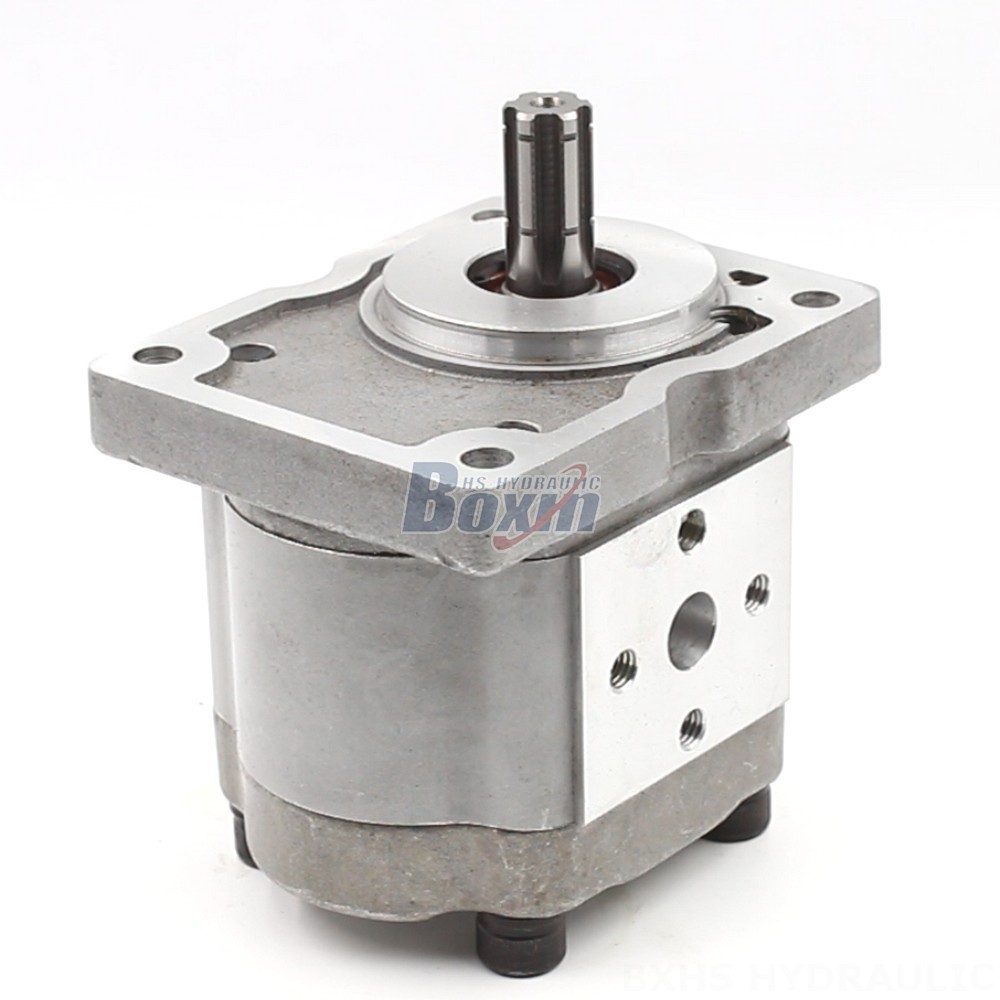

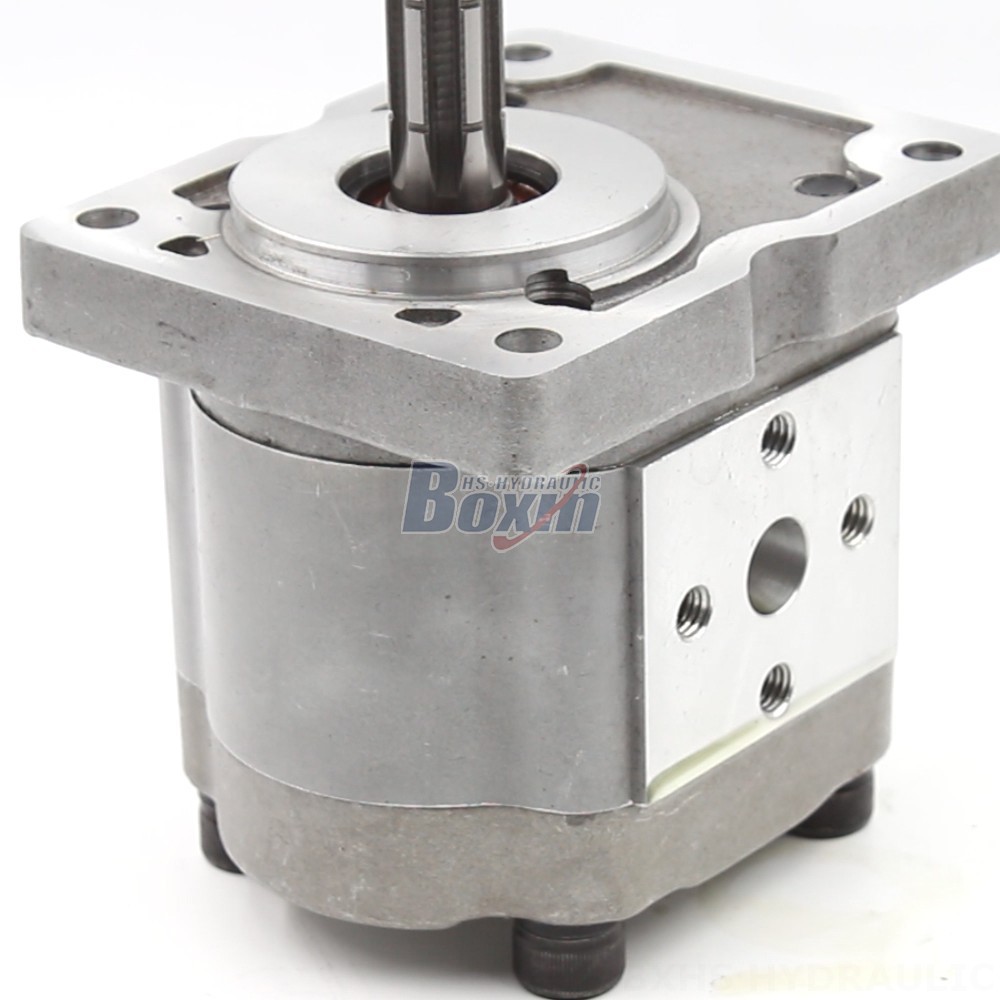

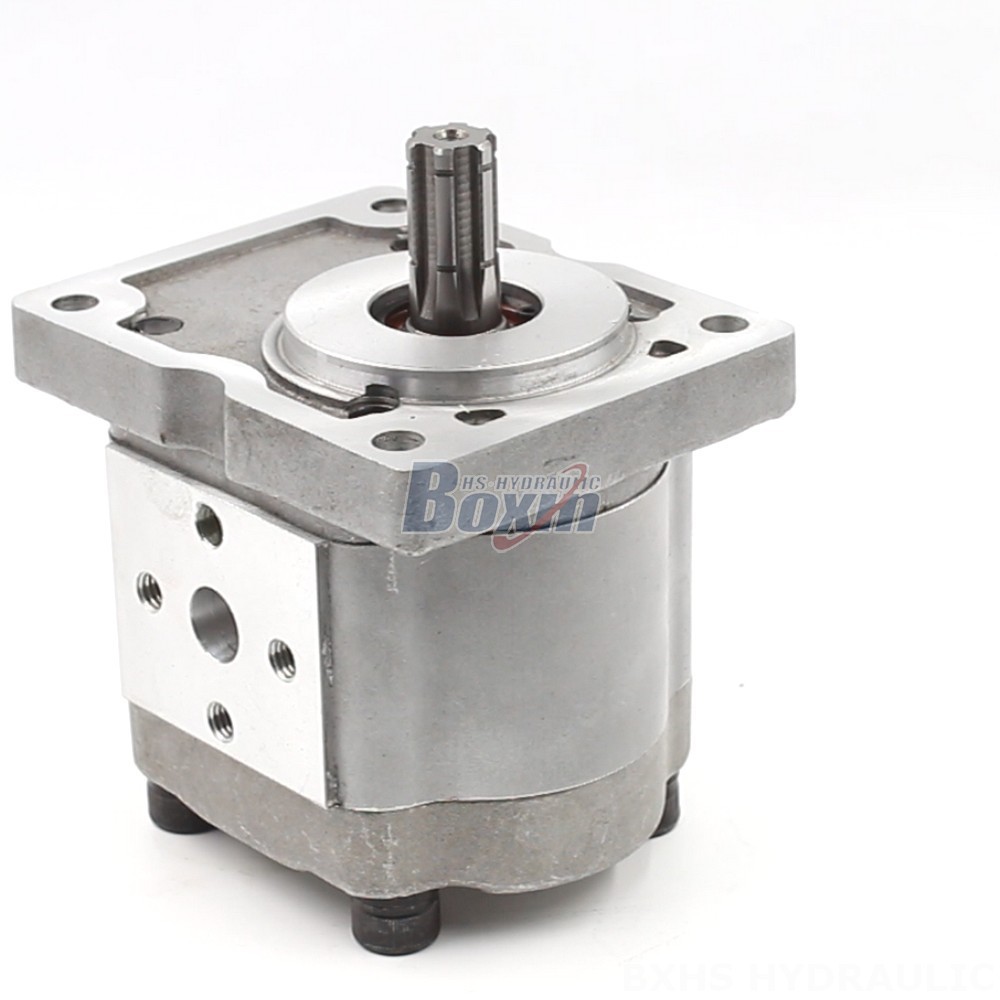

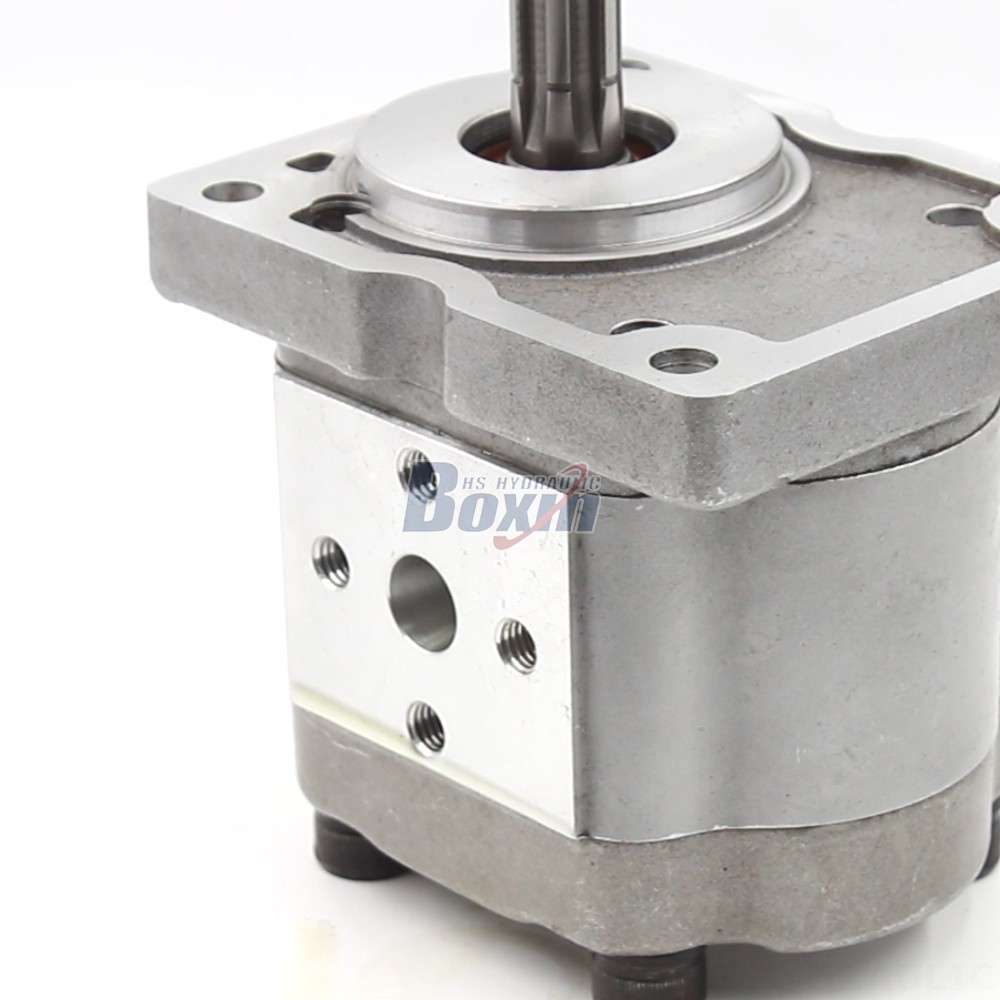

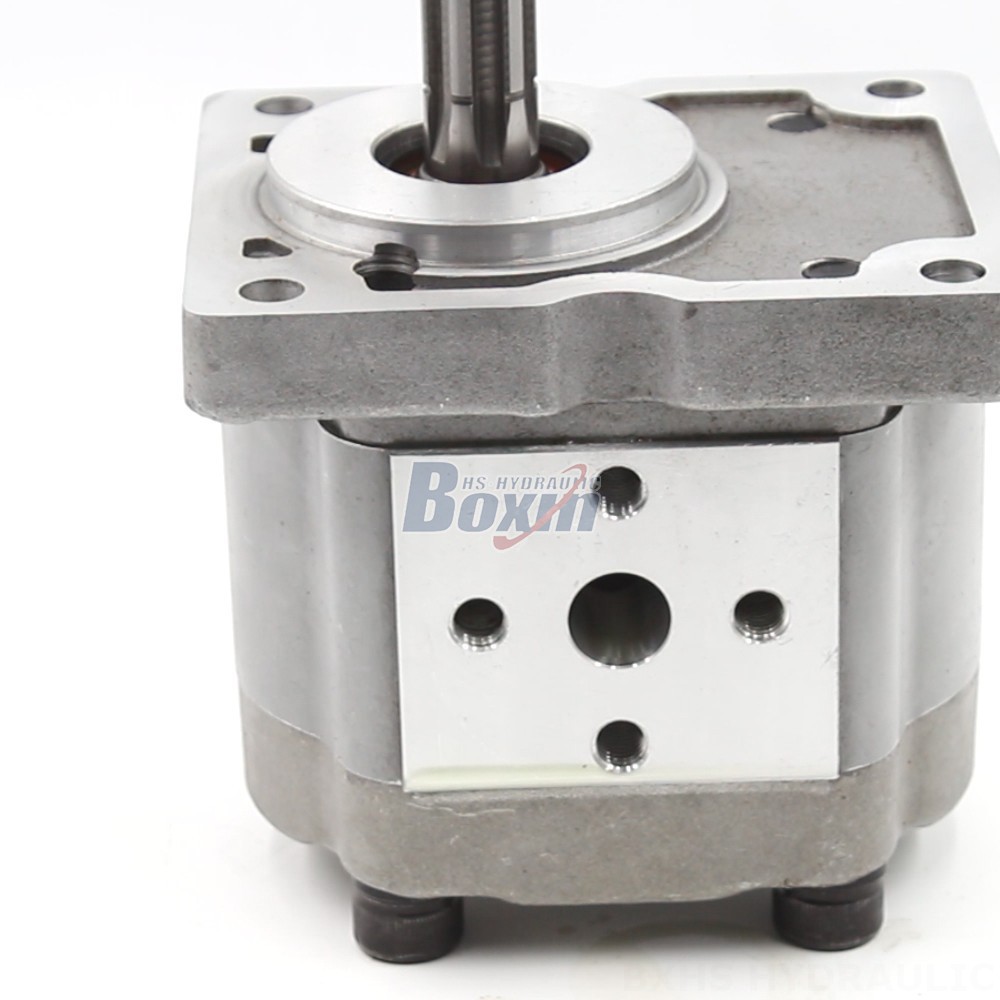

The NSH-10 Gear Pump is a high-performance and reliable hydraulic gear pump designed for fluid power systems. It features a displacement of 100 cc/rev, 10 cc/rev, 40 cc/rev, or 50 cc/rev, a rated pressure of 18 MPa (2610 psi), and a rated speed of 2000 r/min. The pump is constructed from aluminium and has a B-Square flange version and an involute spline shaft type.
| Seri NSH Pompa Roda Gigi Hidrolik Parameter | |
|---|---|
| Perpindahan | 10 cc/putaran, 32 cc/putaran, 40 cc/putaran, 50 cc/putaran, 100 cc/putaran |
| Tekanan Terukur | 18 MPa (2610 psi) |
| Tekanan Maksimum | 20 MPa (2900 psi) |
| Kecepatan Terukur | 2000 r/min |
| Kecepatan Maksimum | 4200 r/min |
| Putaran | L: Kiri (berlawanan arah jarum jam) |
| Bahan | Aluminium |
| Struktur | Pompa Roda Gigi Eksternal |
| Versi Flens | Flange Persegi-B |
| Tipe Poros | X: Spline Involute |
The NSH-10 Gear Pump is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is commonly used in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, and skid steer loaders. The pump's external gear design provides high efficiency and low noise levels, while its aluminium construction ensures durability and corrosion resistance.
