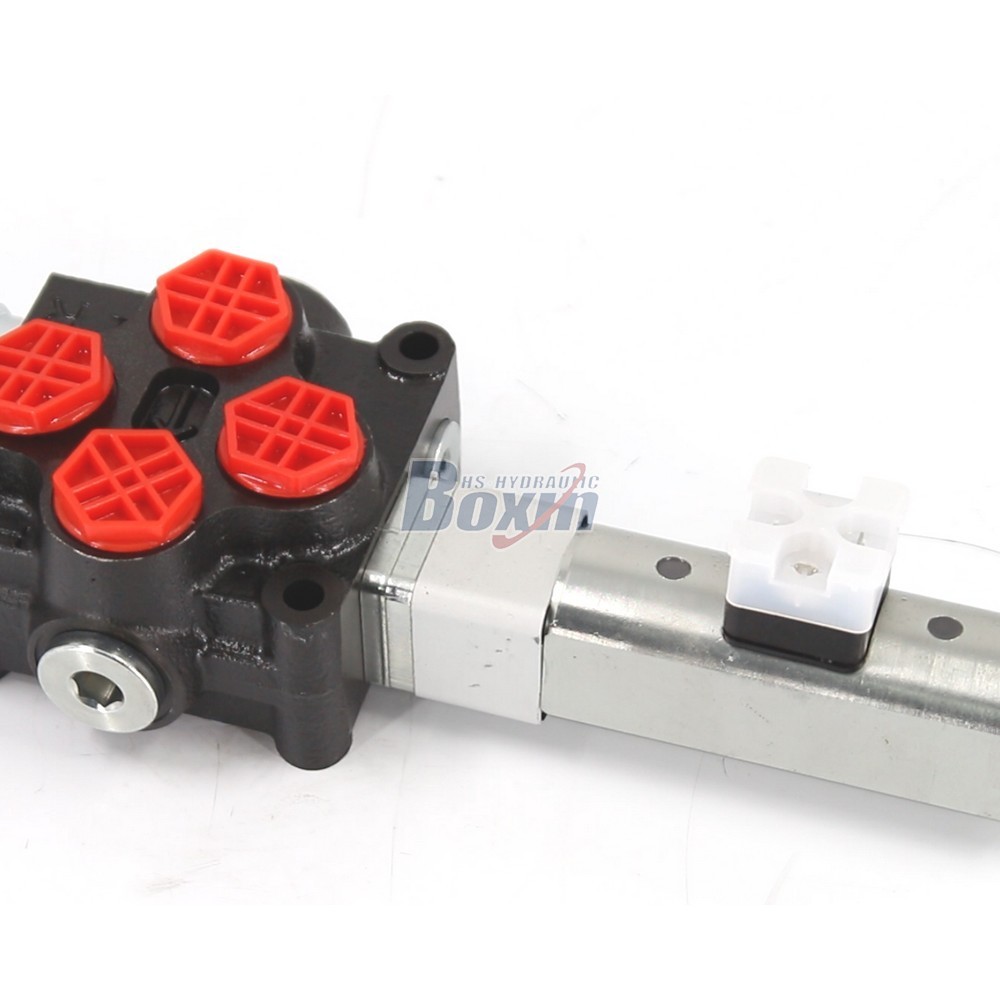

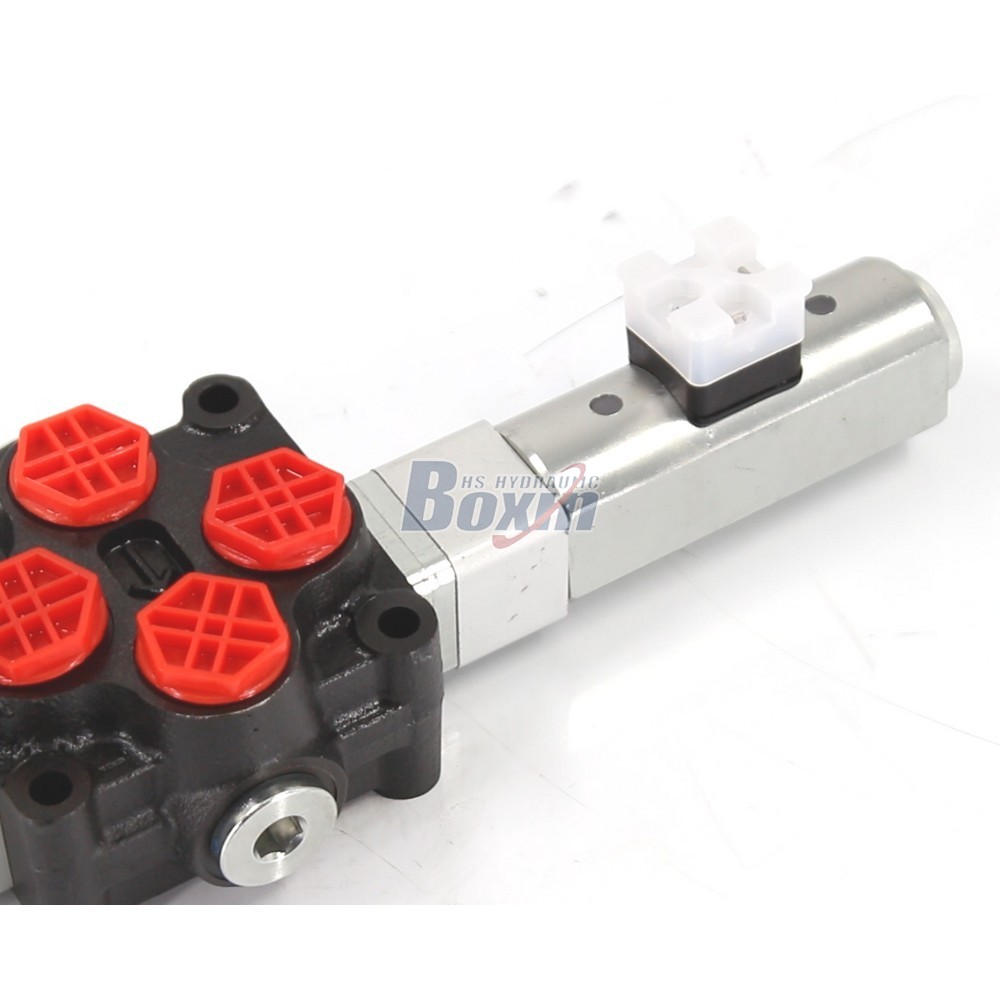

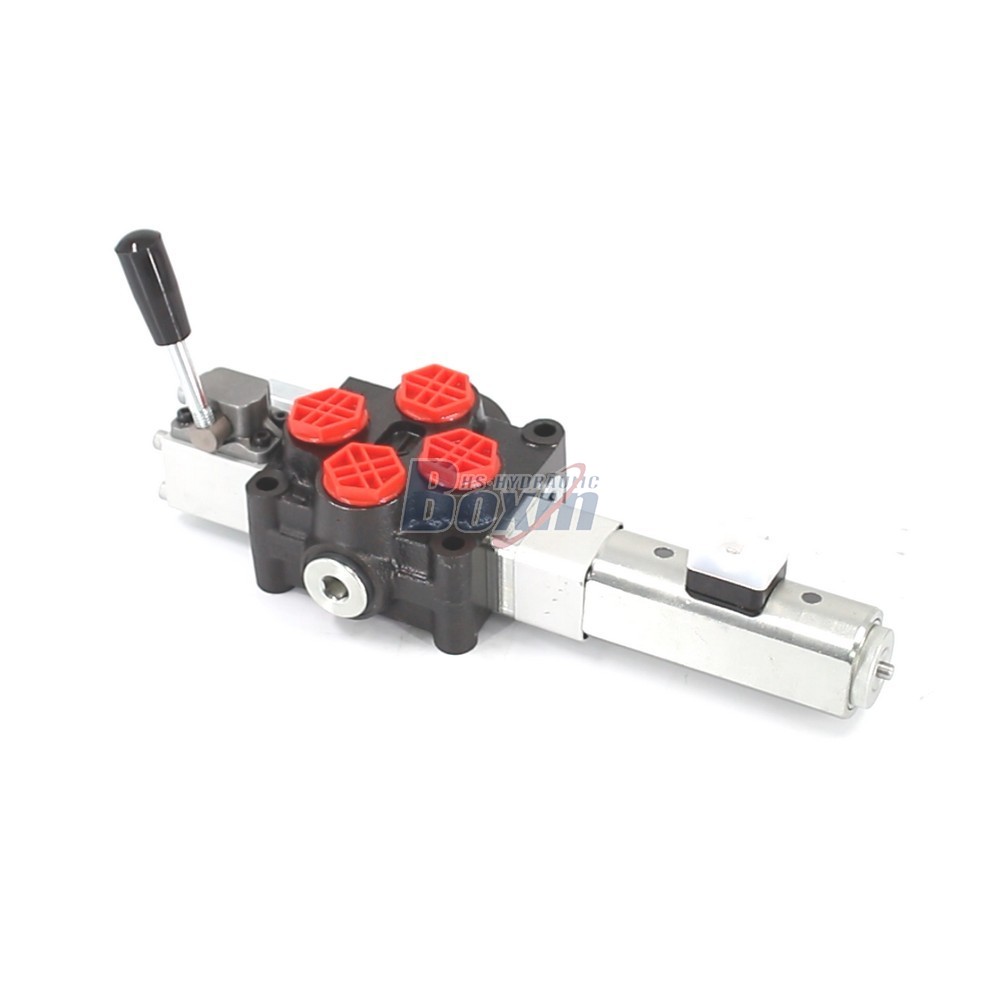

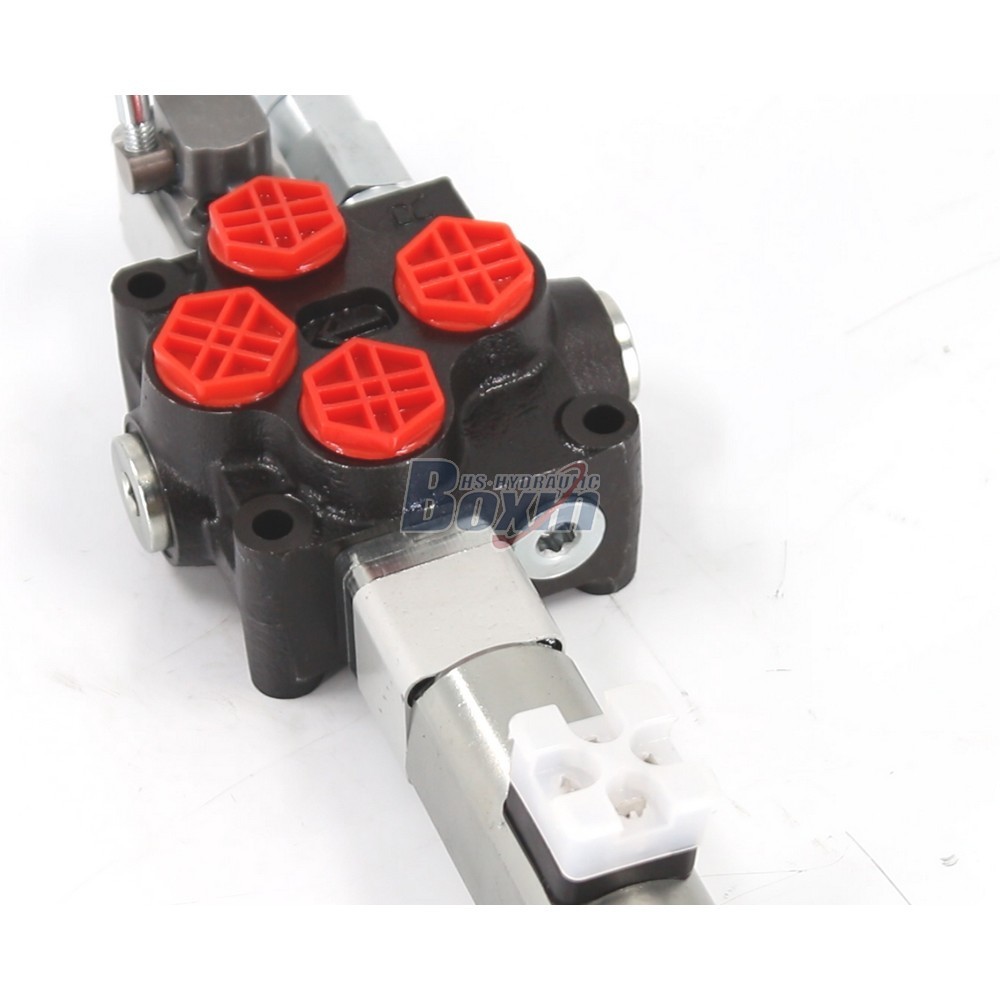

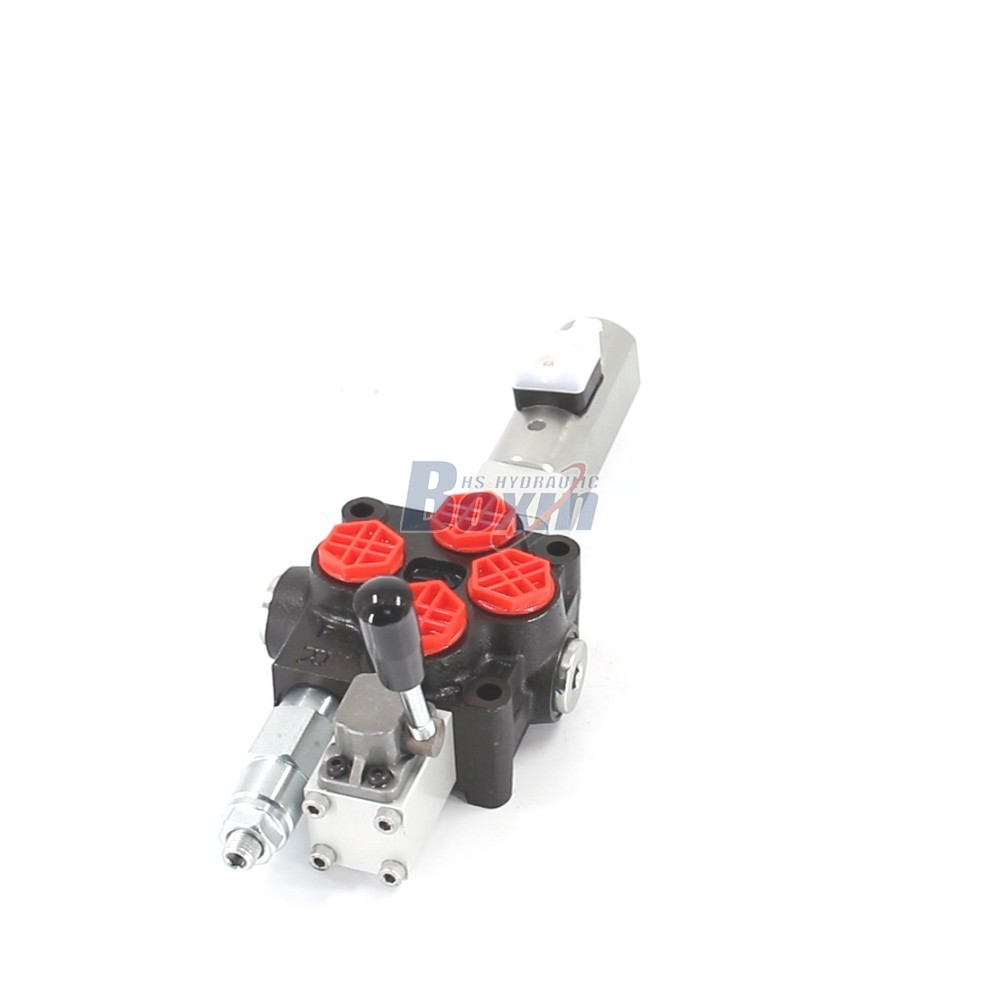

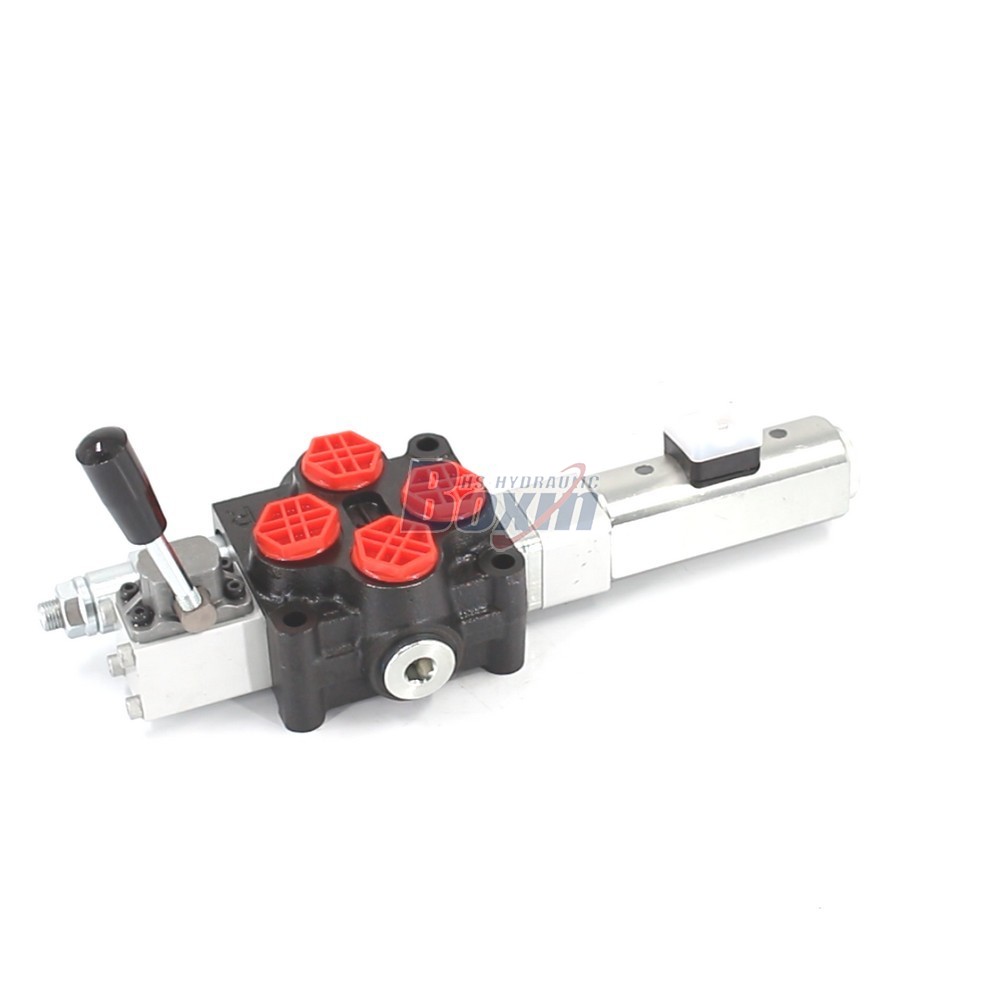

OEM and Custom Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve

Metode Kontrol:Elektromagnet Manual dan Push-pull

Spul:1 Spool

Aliran Terukur:45 L/menit (11,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri Q45 Katup Arah Monoblok

Ukuran kemasan:28* 18*16

Kelas kotor:8.00 kg

Ketersediaan: Tersedia

87 Pandangan Mencari Produk Ini

OEM and Custom Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve

OEM and Custom Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve

OEM and Custom Q45 Solenoid and Manual 1 Spool Monoblock Directional Valve drawing image

The Q45 Series is a versatile 1-spool monoblock directional valve featuring dual solenoid and manual control. Supporting a rated flow of 45 L/min and pressures up to 315 bar, it is engineered for heavy-duty applications in agriculture, construction, and material handling machinery.

Seri Q45 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Stik Kontrol, Solenoid dan Manual, Elektromagnet Manual dan Push-pull, Elektromagnet Push-pull
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -20°C hingga +80°C (-4°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 45 L/menit (11,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2
Port Keluar G1/2
Ukuran Port G1/2

Our factory specializes in high-performance hydraulic solutions, presenting the Q45 1 Spool Monoblock Directional Valve. Designed as a dual-control unit, it combines solenoid and manual operation to ensure reliable performance for forklifts, tractors, mini-excavators, and wood splitters. This Q45 series valve handles a flow rate of 45 L/min (11.8 US gpm) with a maximum pressure of 315 bar (4600 psi), featuring standard G1/2 inlet and outlet ports for easy integration. As a leading manufacturer, we provide comprehensive OEM, ODM, and custom branding (private label) services to meet specific technical requirements. We offer competitive factory wholesale pricing and are actively seeking global business partners, including distributors, wholesalers, and trade agents. Our factory supply chain ensures stable capacity for large-scale orders, making us a preferred partner for international hydraulic equipment traders and equipment manufacturers (OEM). Whether you need customized spool configurations or bulk wholesale shipments for industrial vehicles and harvesters, our engineering team provides robust support for your market growth.
