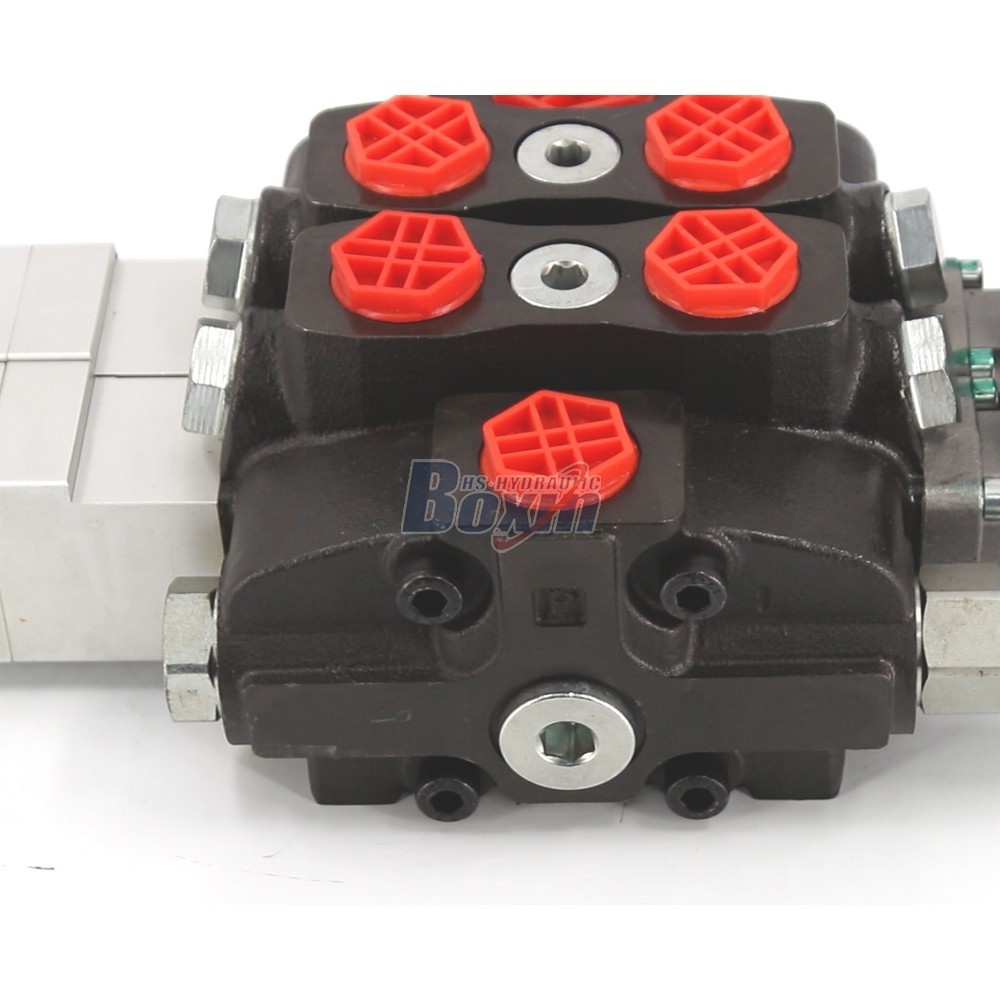

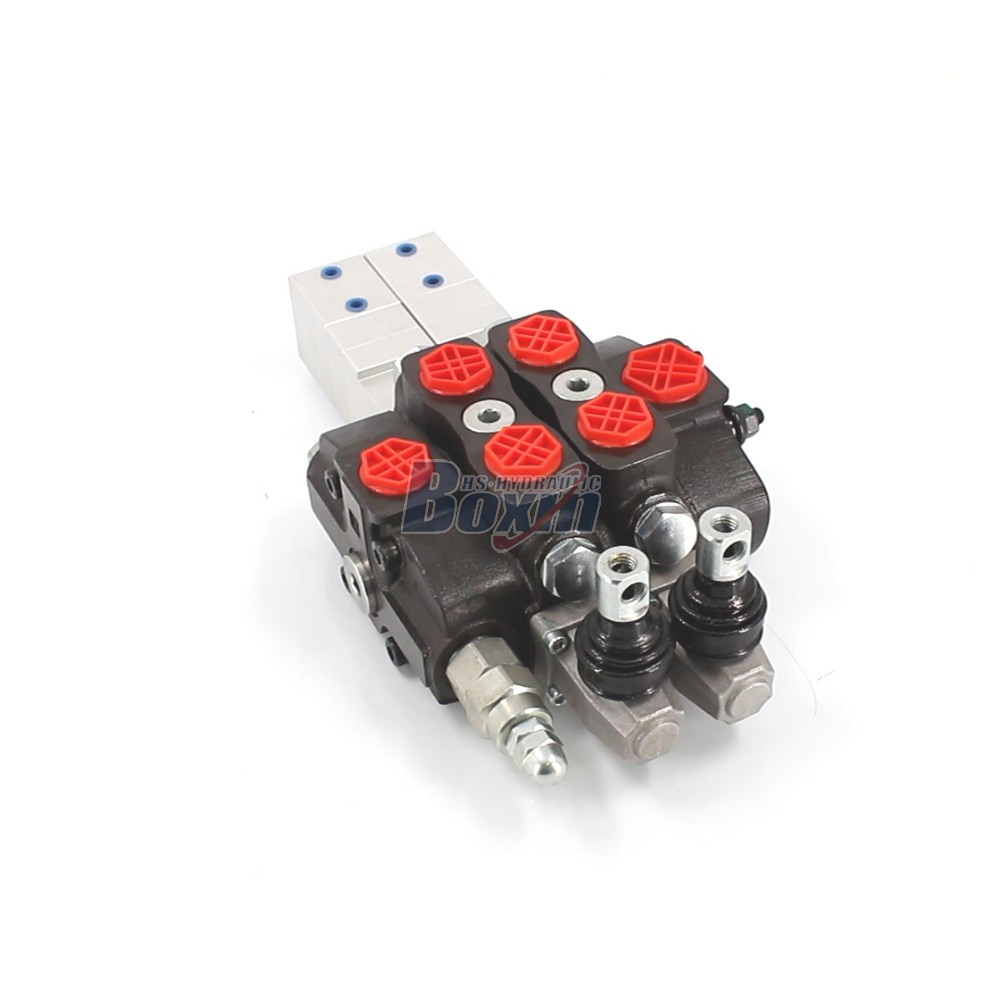

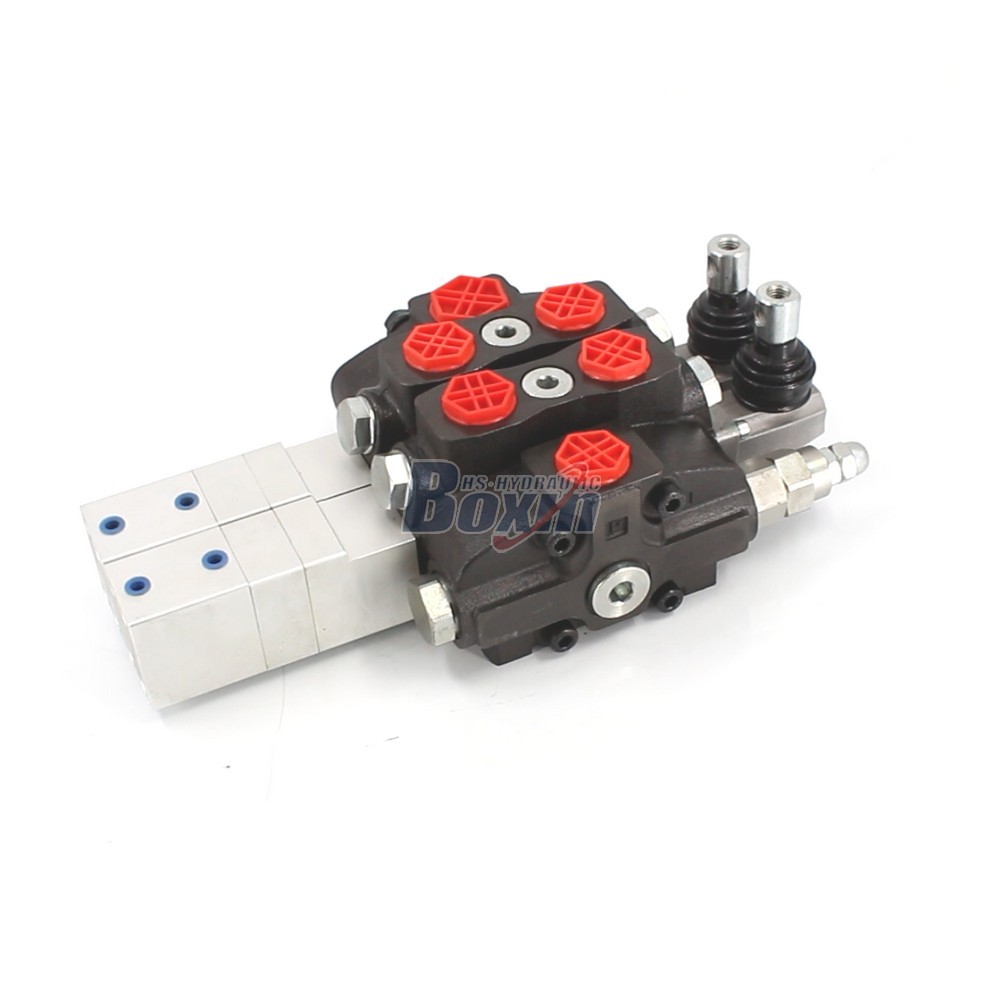

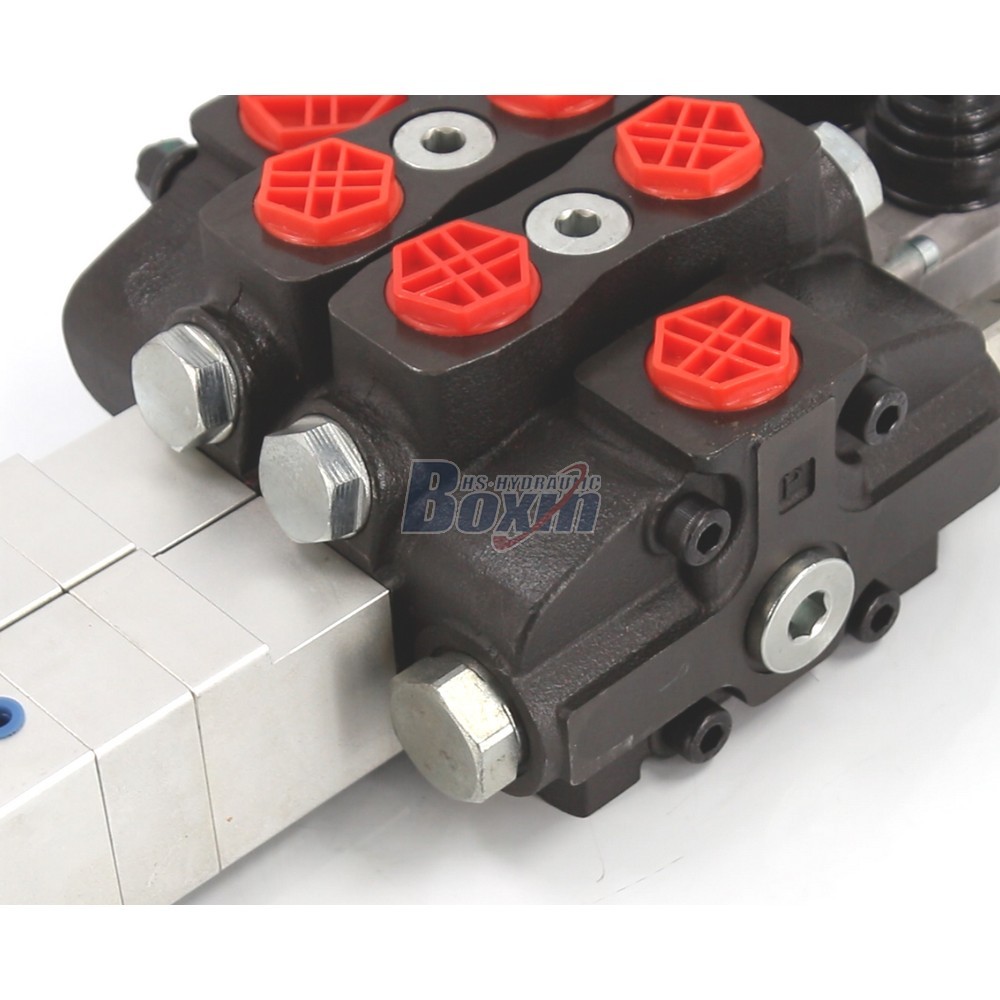

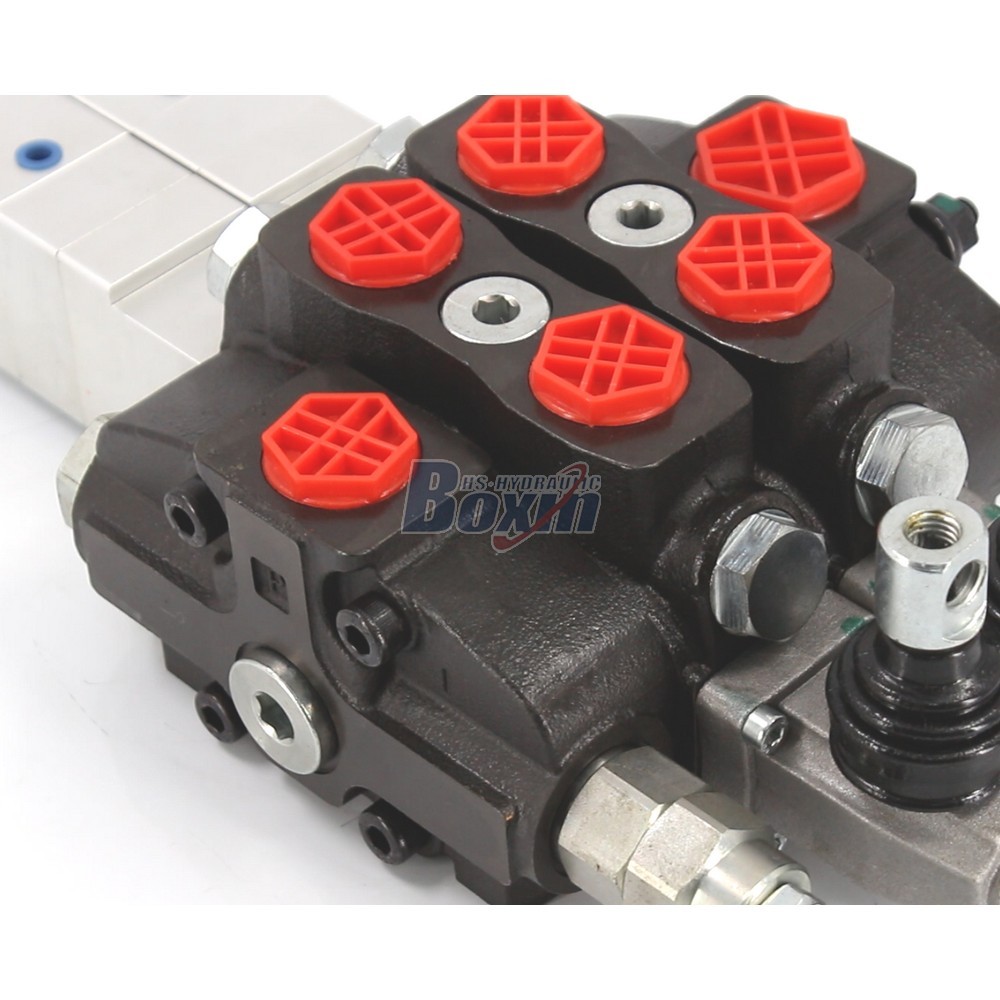

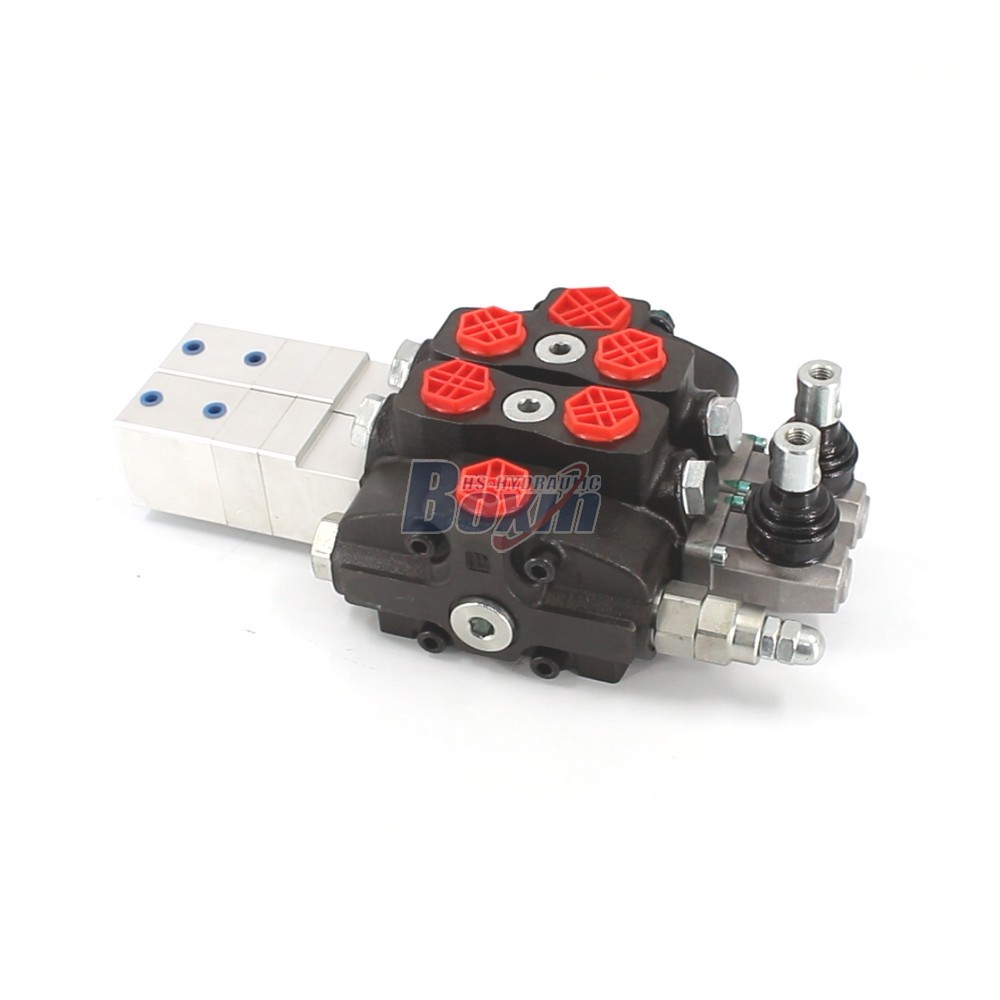

OEM and ODM SD8 Pneumatic 2 Spool Sectional Directional Valve Customization

Metode Kontrol:Pneumatik

Spul:2 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:SAE 10

Port Keluar:SAE 10

Ukuran Port:SAE 10

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:34*24*15.5

Kelas kotor:12.50 kg

Ketersediaan: Tersedia

93 Pandangan Mencari Produk Ini

OEM and ODM SD8 Pneumatic 2 Spool Sectional Directional Valve Customization

OEM and ODM SD8 Pneumatic 2 Spool Sectional Directional Valve Customization

OEM and ODM SD8 Pneumatic 2 Spool Sectional Directional Valve Customization drawing image

The SD8 Series is a high-performance 2-spool pneumatic sectional directional control valve designed for demanding hydraulic systems. Featuring a rated flow of 80 L/min and a maximum pressure capacity of 350 bar, this valve provides precise air-actuated control for various heavy-duty machinery. It is an ideal solution for material handling, agricultural equipment, and construction vehicles requiring reliable and scalable hydraulic distribution.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

As a leading large-scale hydraulic manufacturer, we offer the SD8 Series Pneumatic 2 Spool Sectional Directional Valve, engineered for professional-grade applications. This robust valve supports a flow rate of 80 L/min (21.2 US gpm) and handles operating pressures up to 350 bar (5100 psi), ensuring stable performance in forklifts, mini-excavators, and wood splitters. Our factory provides comprehensive OEM and ODM services, allowing for complete customization of port sizes and spool configurations to meet specific technical requirements. We specialize in factory wholesale and mass production, serving as a reliable partner for global businesses. We are actively seeking long-term cooperation with distributors, wholesalers, agents, and traders worldwide. Whether you need private labeling (white label) services or custom-engineered hydraulic components, our manufacturing facility ensures consistent quality and steady supply. The SD8 series is widely utilized in sectors such as agriculture, waste management, and industrial vehicle manufacturing, making it a versatile addition to any hydraulic parts portfolio.
