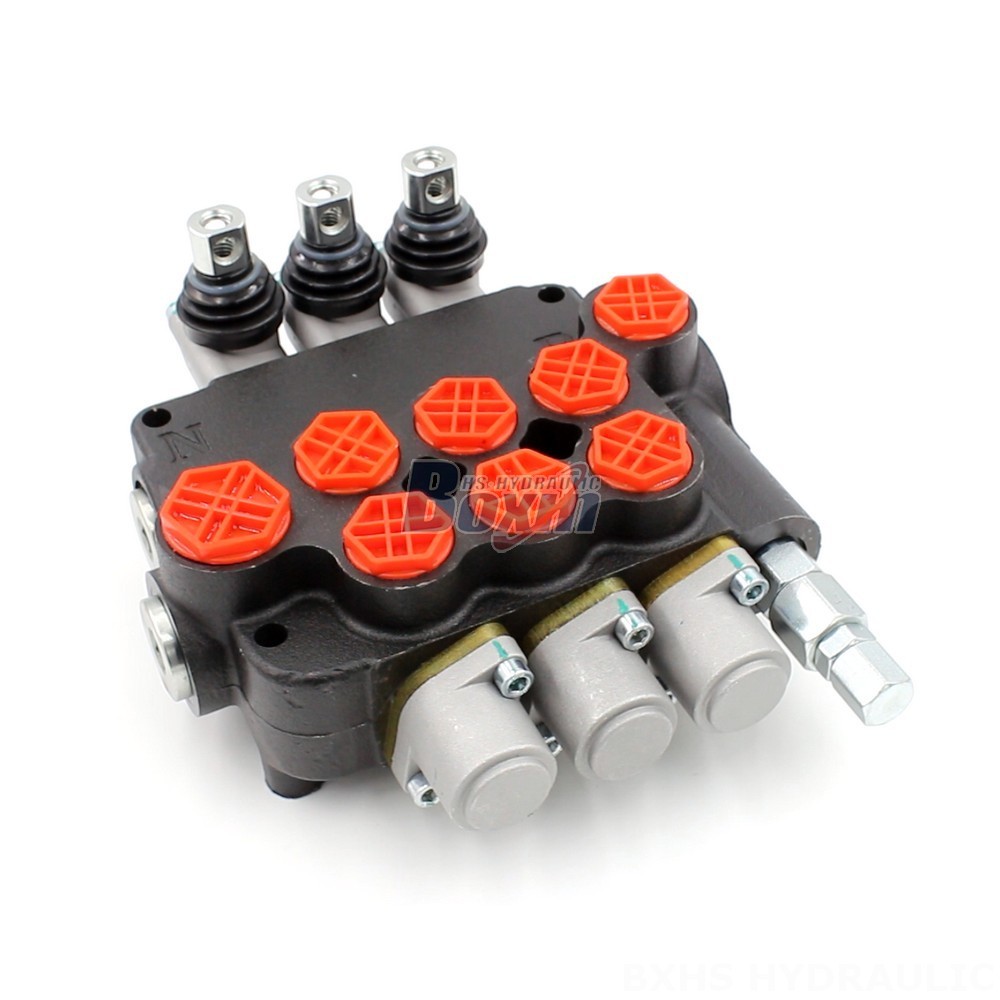

Our P80 Series Tipper Valves are high-performance hydraulic valves designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. These robust valves offer reliable operation and durability, with customizable features to meet your specific needs.
| Seri P80 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 80 L/menit (21,2 US gpm) |
| Tekanan Maksimum | 315 bar (4600 psi) |
| Port Masuk | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Port Keluar | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Ukuran Port | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
We are a leading manufacturer of hydraulic products, offering a comprehensive range of services including manufacturing, OEM, private label, customization, and wholesale. Our P80 Series Tipper Valves are renowned for their quality and performance. They feature a 3-section monoblock design, rated flow of 80 L/min, and a maximum pressure of 250 bar. With a manual control method and 3 spools, these valves are ideal for a variety of heavy-duty applications. We offer private label and branding options, allowing you to tailor the valves to your brand identity. Our team of experienced engineers can also provide customized solutions to meet your specific requirements. Contact us today to discuss your project and discover how our P80 Series Tipper Valves can help you achieve optimal performance.
