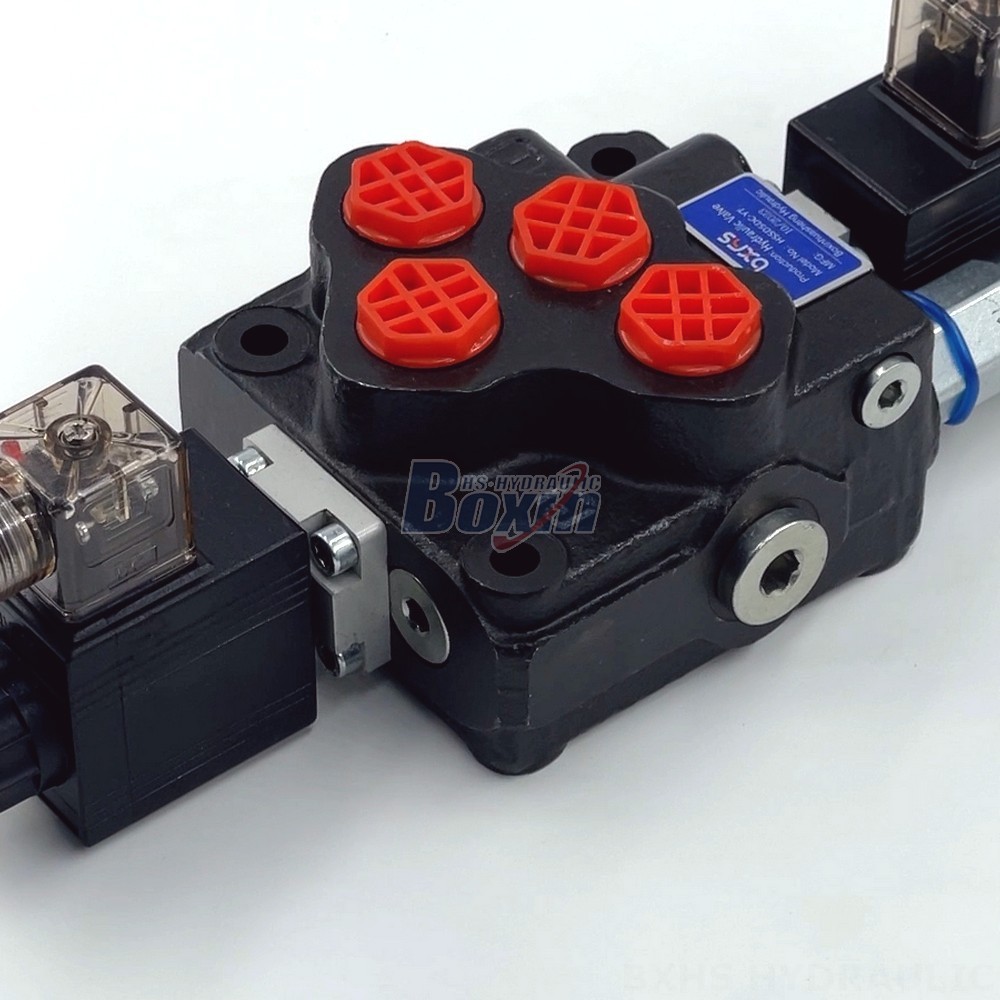

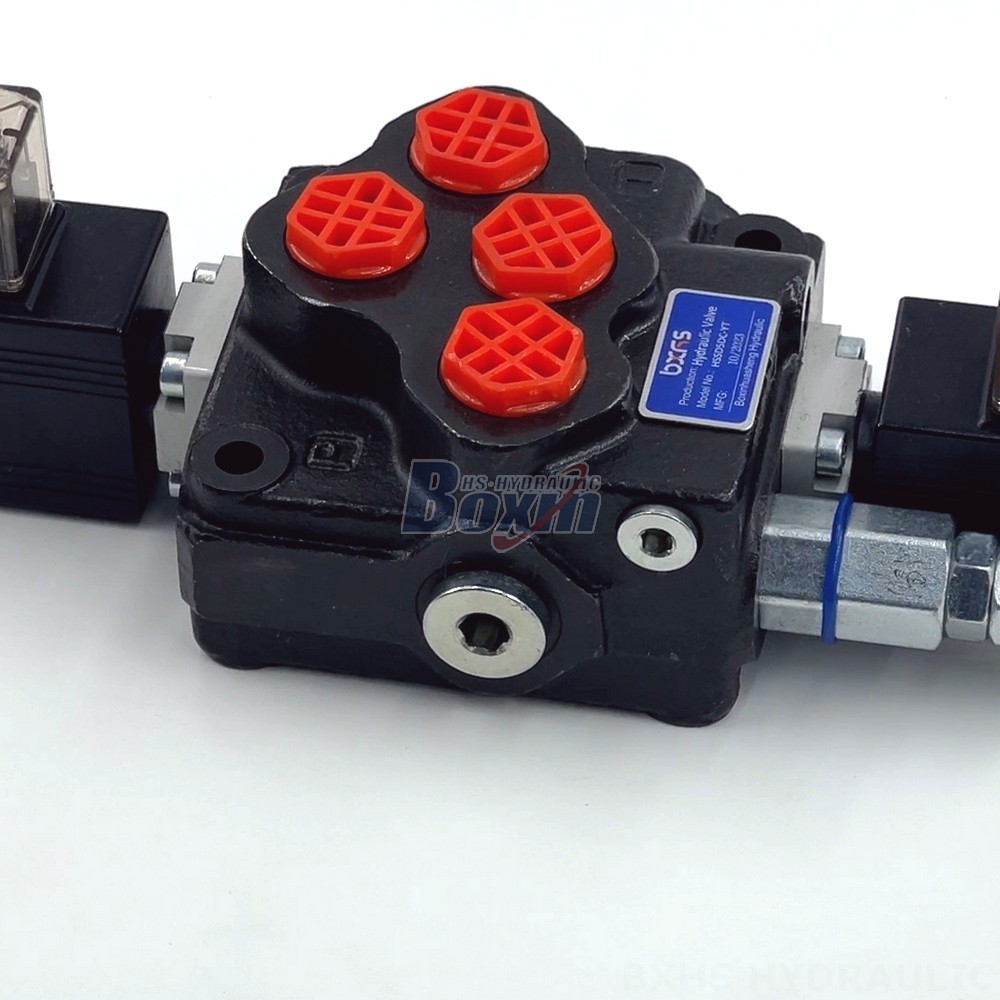

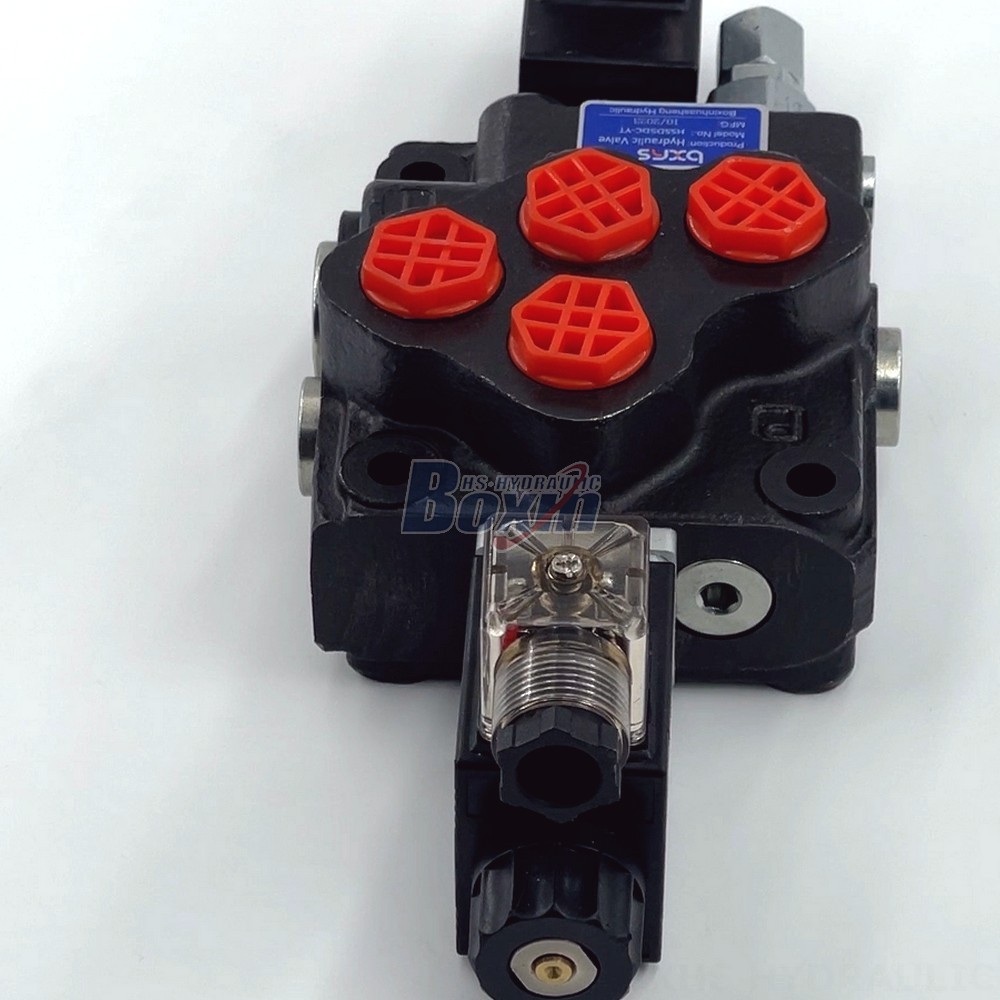

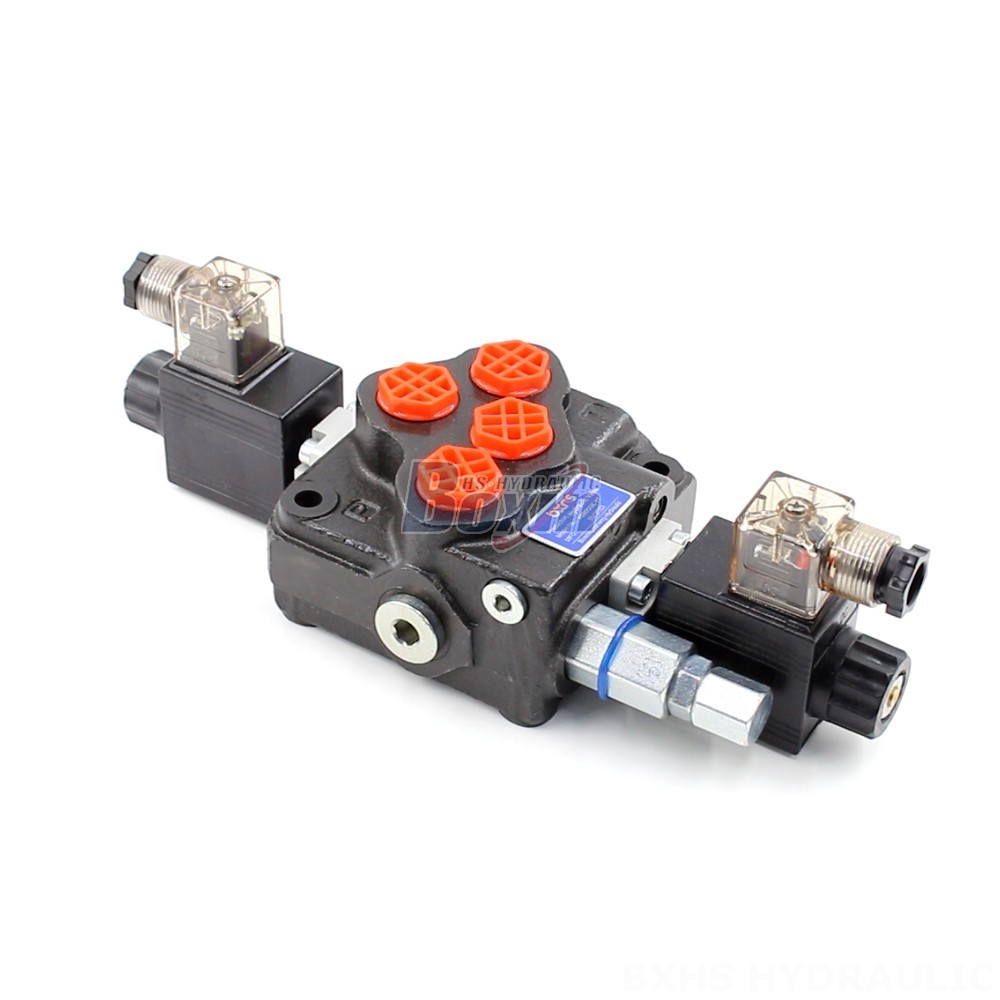

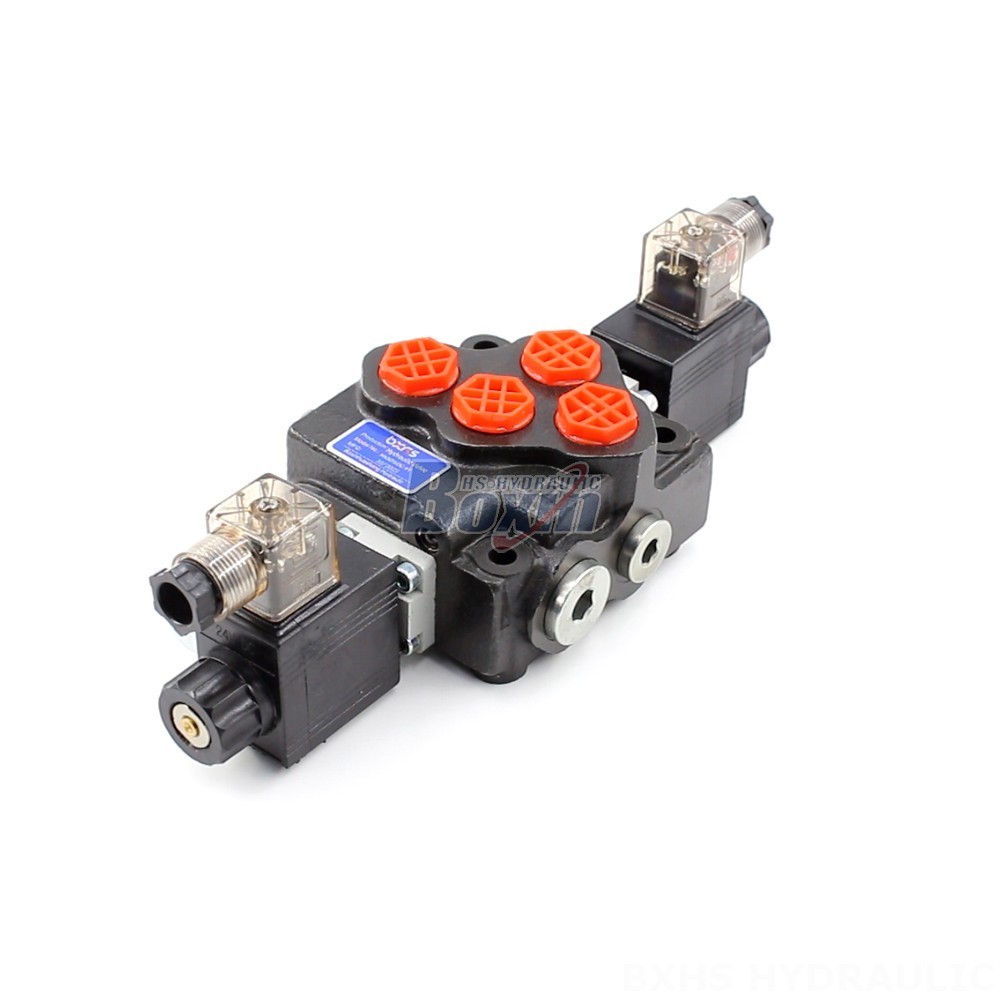

SD5 Series 3/8 Hydraulic Ball Valve is a high-performance, solenoid-operated valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, rated flow of 40 L/min, and max pressure of 305 bar. We offer OEM manufacturing, private label, and custom options to meet your specific needs.
| Seri SD5 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +60°C (-40°F hingga +140°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 305 bar (4400 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Port Keluar | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Ukuran Port | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
The SD5 Series 3/8 Hydraulic Ball Valve is a compact and reliable solution for controlling hydraulic systems in a wide range of applications. Featuring a solenoid control method, this monoblock valve provides a rated flow of 40 L/min and can withstand pressures up to 305 bar. Designed for demanding environments, it operates effectively in ambient temperatures from -40°C to +60°C. We are a leading manufacturer of hydraulic products and offer OEM manufacturing, private label, and custom options to meet your specific requirements. We also welcome distributors, wholesalers, agents, and traders to join our global network.
