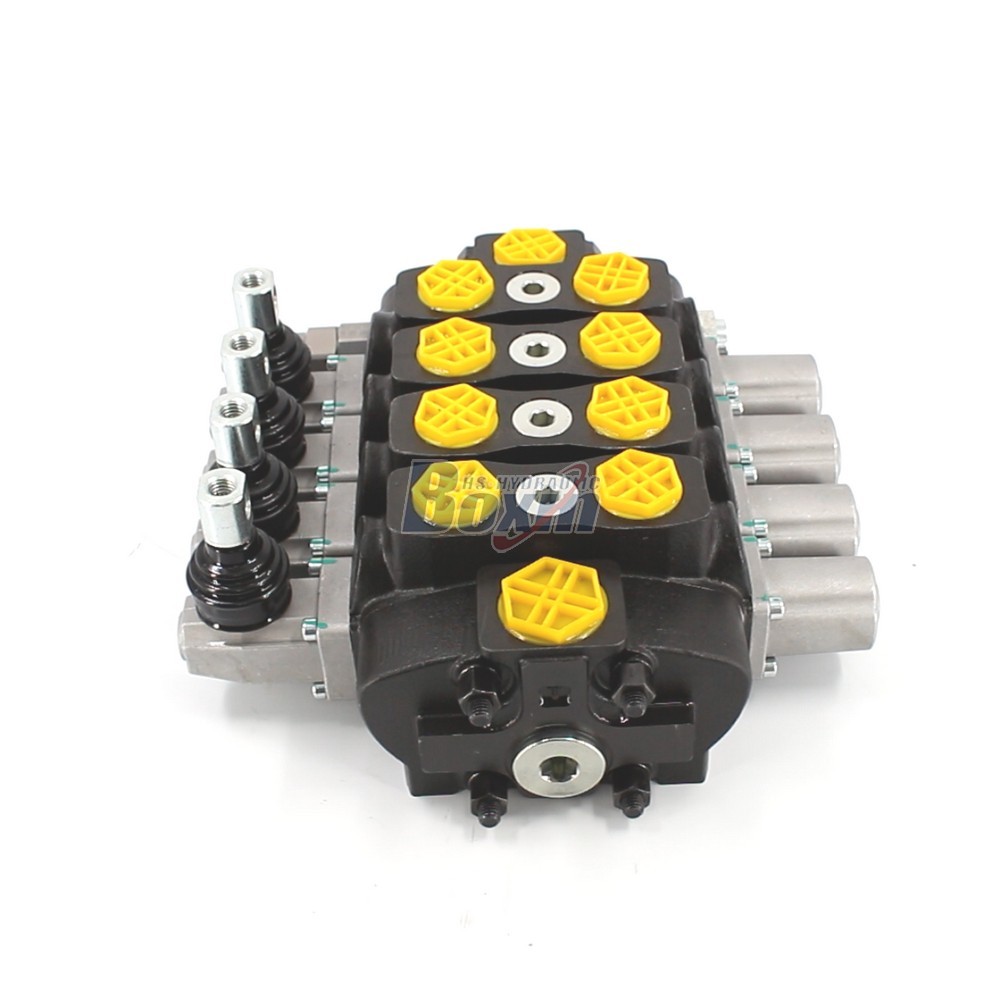

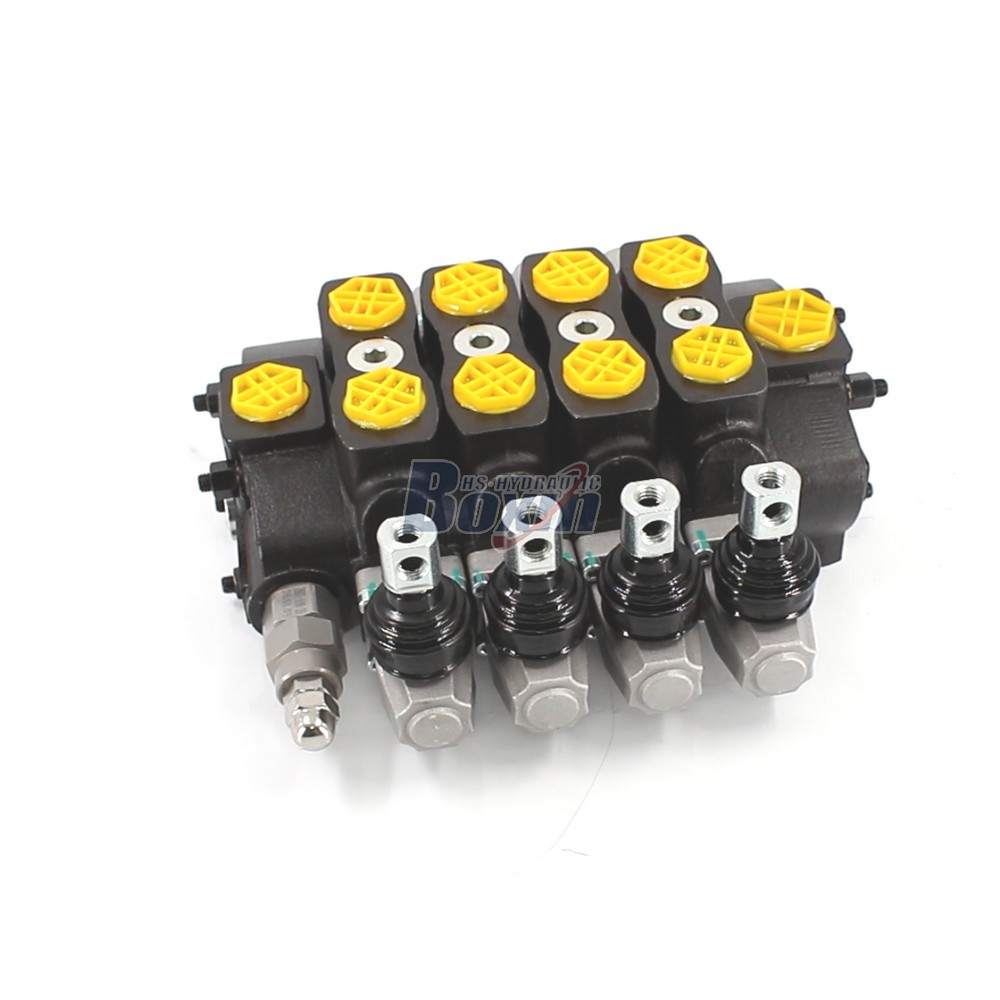

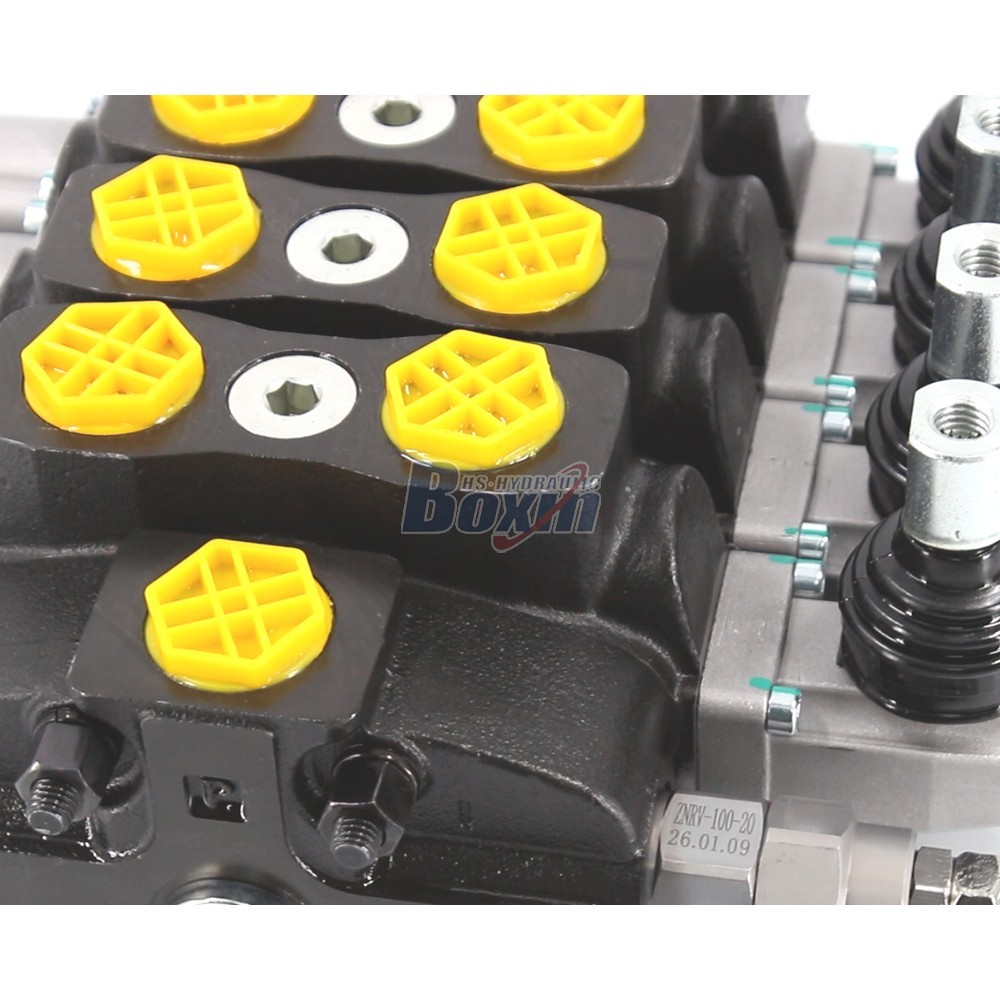

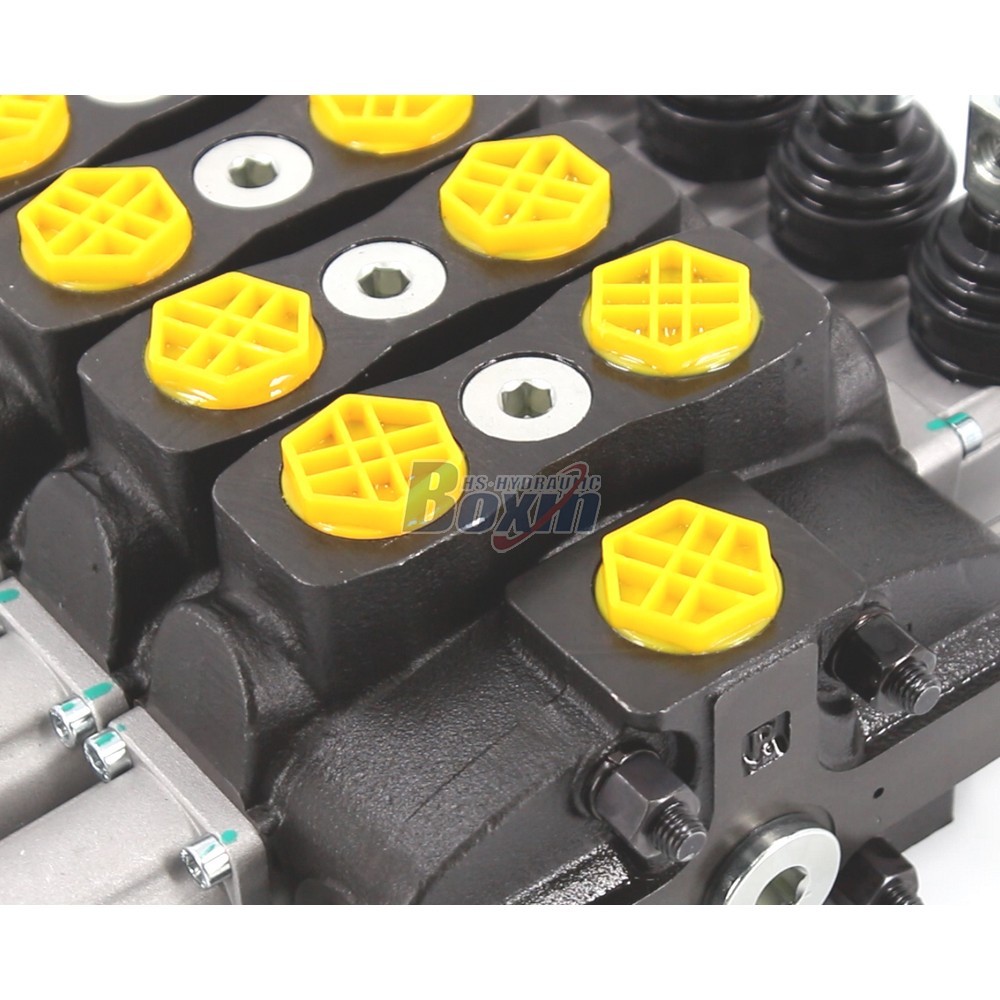

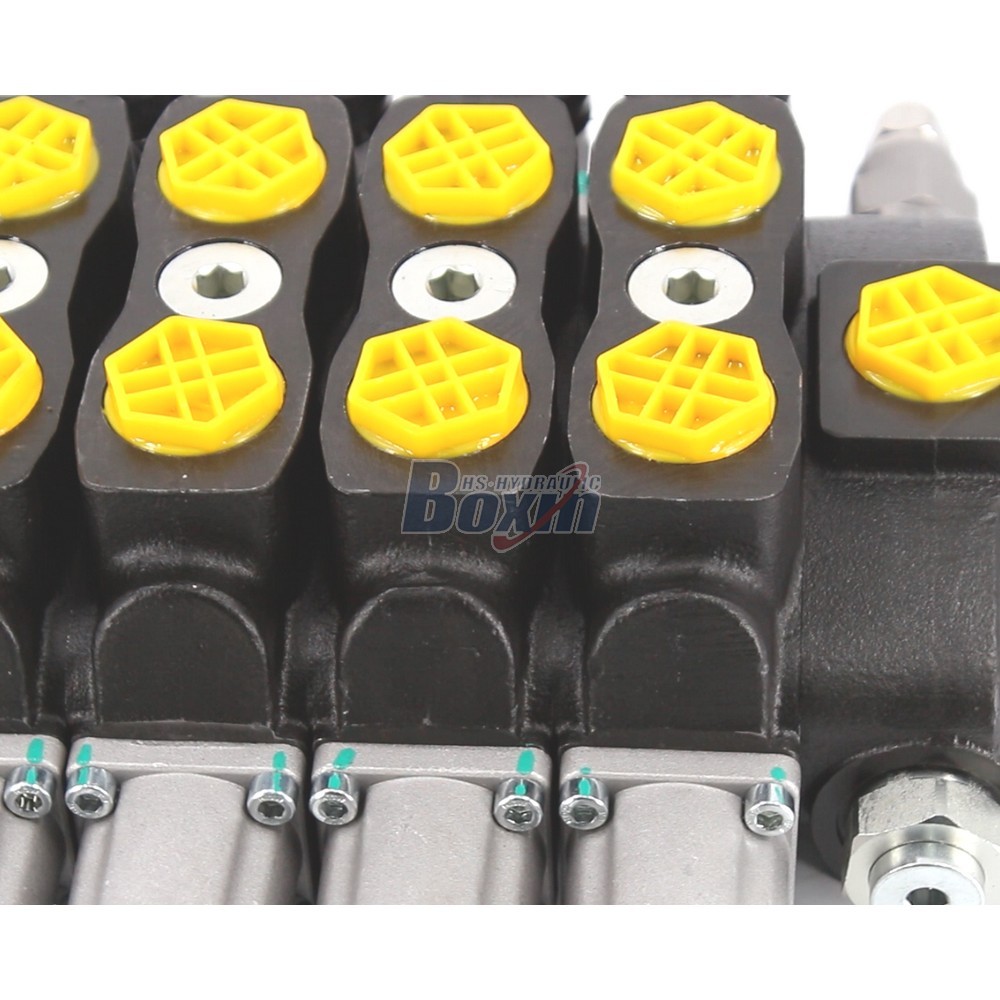

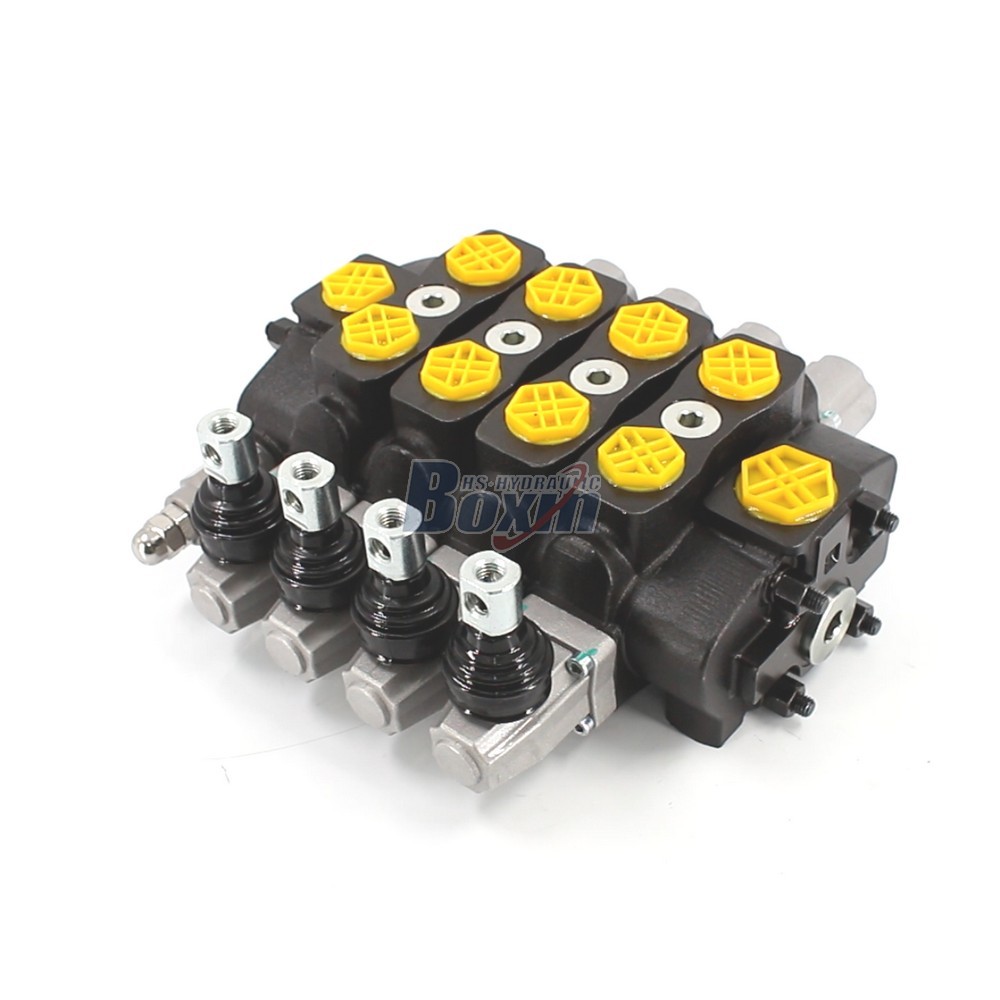

OEM/ODM Customization for SD8 Manual 4 Spool Sectional Directional Valve

Metode Kontrol:Buku Panduan

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:G1/2

Port Keluar:G3/4

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:32*36*16

Kelas kotor:18.00 kg

Ketersediaan: Tersedia

99 Pandangan Mencari Produk Ini

OEM/ODM Customization for SD8 Manual 4 Spool Sectional Directional Valve

OEM/ODM Customization for SD8 Manual 4 Spool Sectional Directional Valve

OEM/ODM Customization for SD8 Manual 4 Spool Sectional Directional Valve drawing image

A high-performance SD8 series 4-spool sectional manual directional valve designed for precision control in mobile and industrial hydraulic systems, offering a rated flow of 80 L/min and operating pressure up to 315 bar.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, SAE 10
Port Keluar G1/2, G3/4, SAE 10, 3/4 NPT
Ukuran Port G1/2, SAE 10

Our SD8 series manual 4-spool sectional directional valve is engineered for heavy-duty applications including agriculture, construction, and material handling. As a leading manufacturer, we provide comprehensive OEM, ODM, and custom branding services to meet specific technical requirements. This valve features a robust sectional design with a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure capability of 315 bar. It is compatible with forklifts, mini-excavators, and tractors. We offer competitive factory wholesale pricing and are actively seeking global distributors, wholesalers, agents, and traders for long-term collaboration. Our factory ensures stable supply and high manufacturing standards for all customized and wholesale orders tailored to your brand's market needs.
