OEM ODM Customization Service for SD8EMA-4OT Electric Motor 4 Spool Sectional Directional Valve

Metode Kontrol:Motor listrik

Spul:4 Spool

Aliran Terukur:90 L/menit (23,8 US gpm)

Tekanan Maksimum:315 bar (4600 psi)

Port Masuk:M22×1.5

Port Keluar:M27×2.0

Ukuran Port:M22×1.5

Merek:BXHS

Tipe Produk:Kran Arah Bagian

Seri Produk:Seri SD8 Kran Arah Bagian

Ukuran kemasan:40*35*15

Kelas kotor:24.30 kg

Ketersediaan: Tersedia

306 Pandangan Mencari Produk Ini

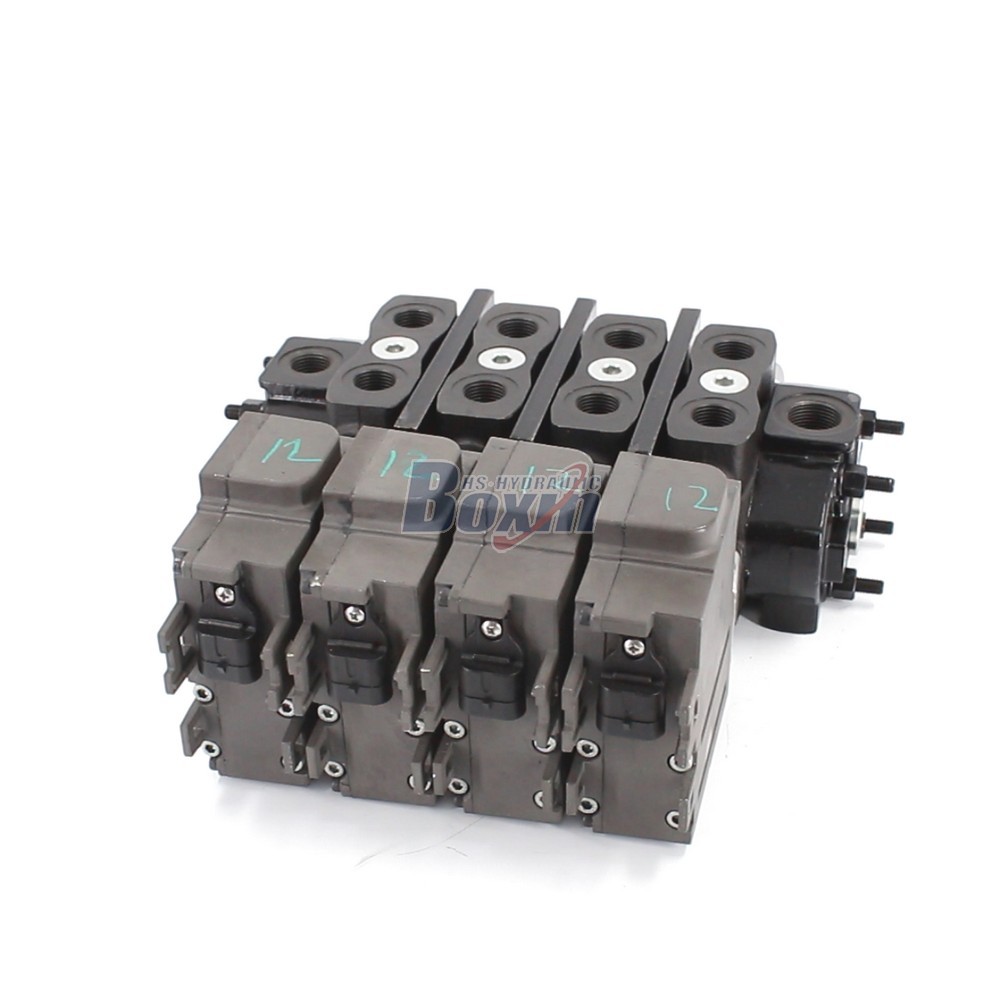

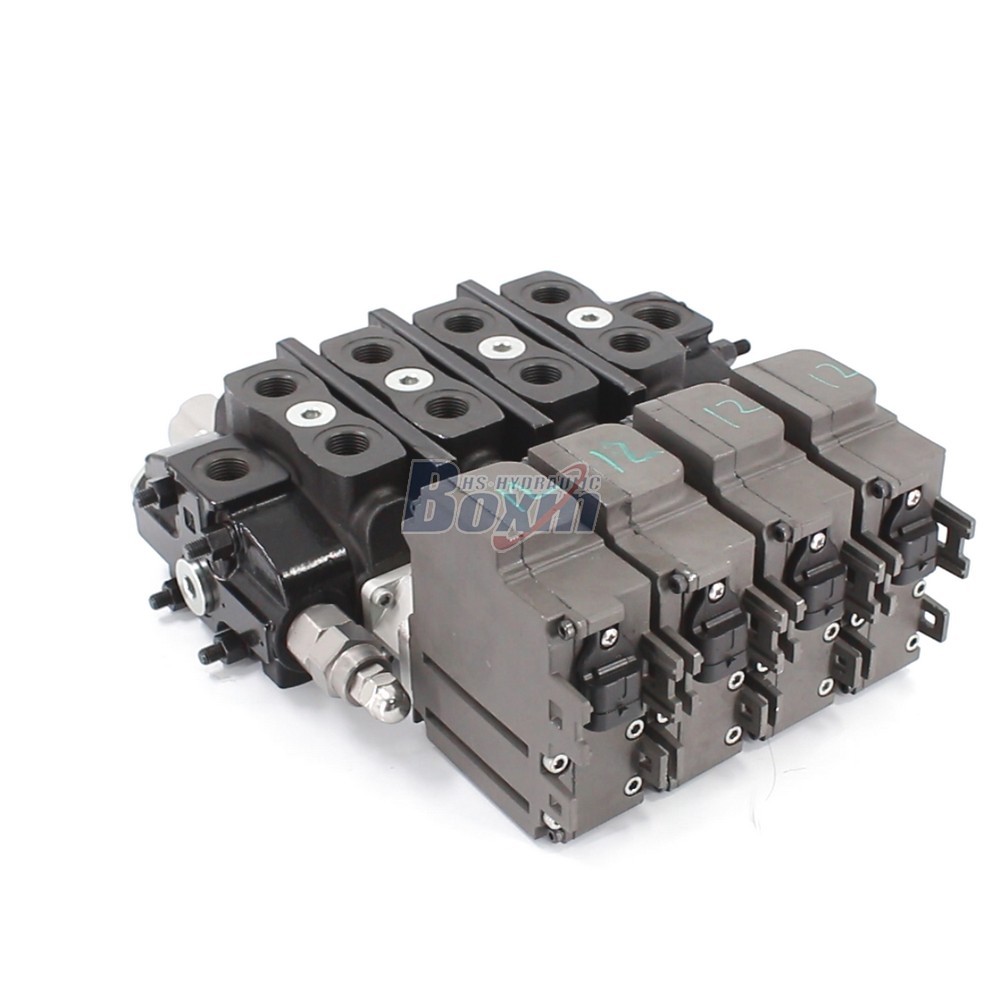

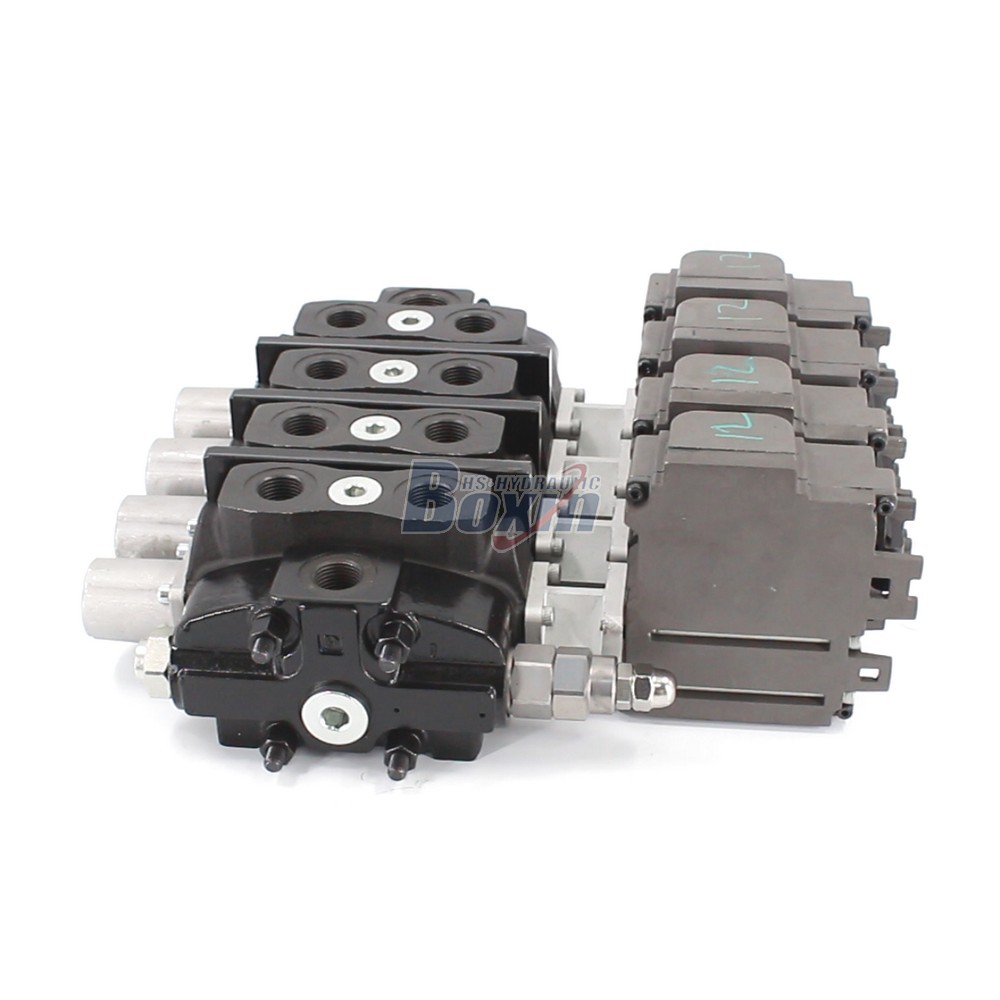

OEM ODM Customization Service for SD8EMA-4OT Electric Motor 4 Spool Sectional Directional Valve

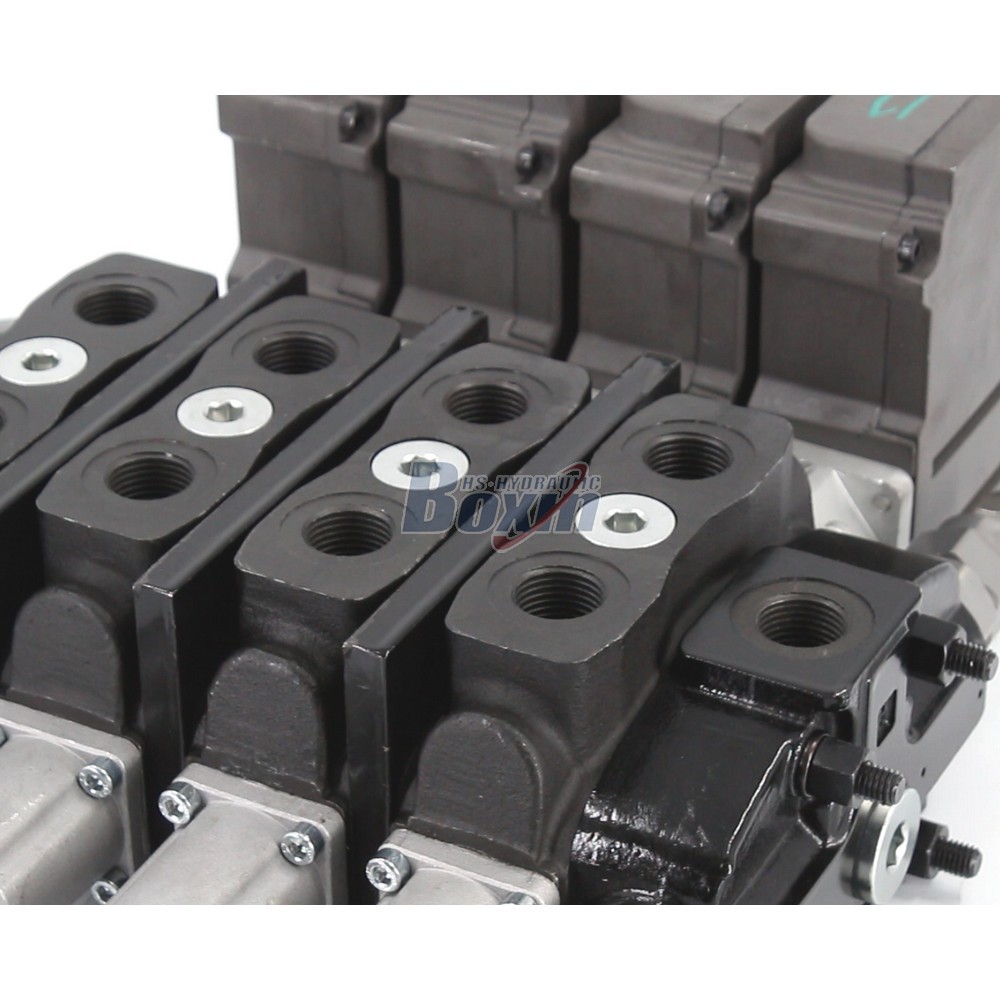

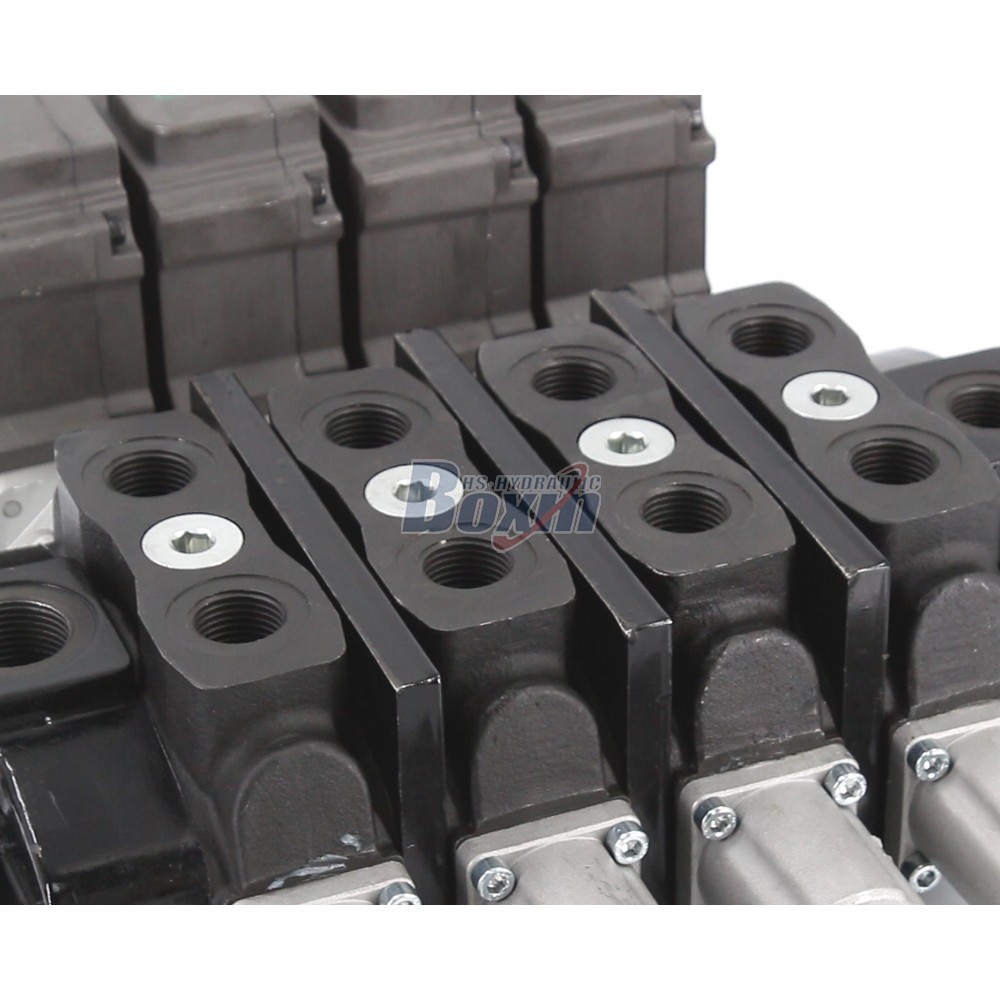

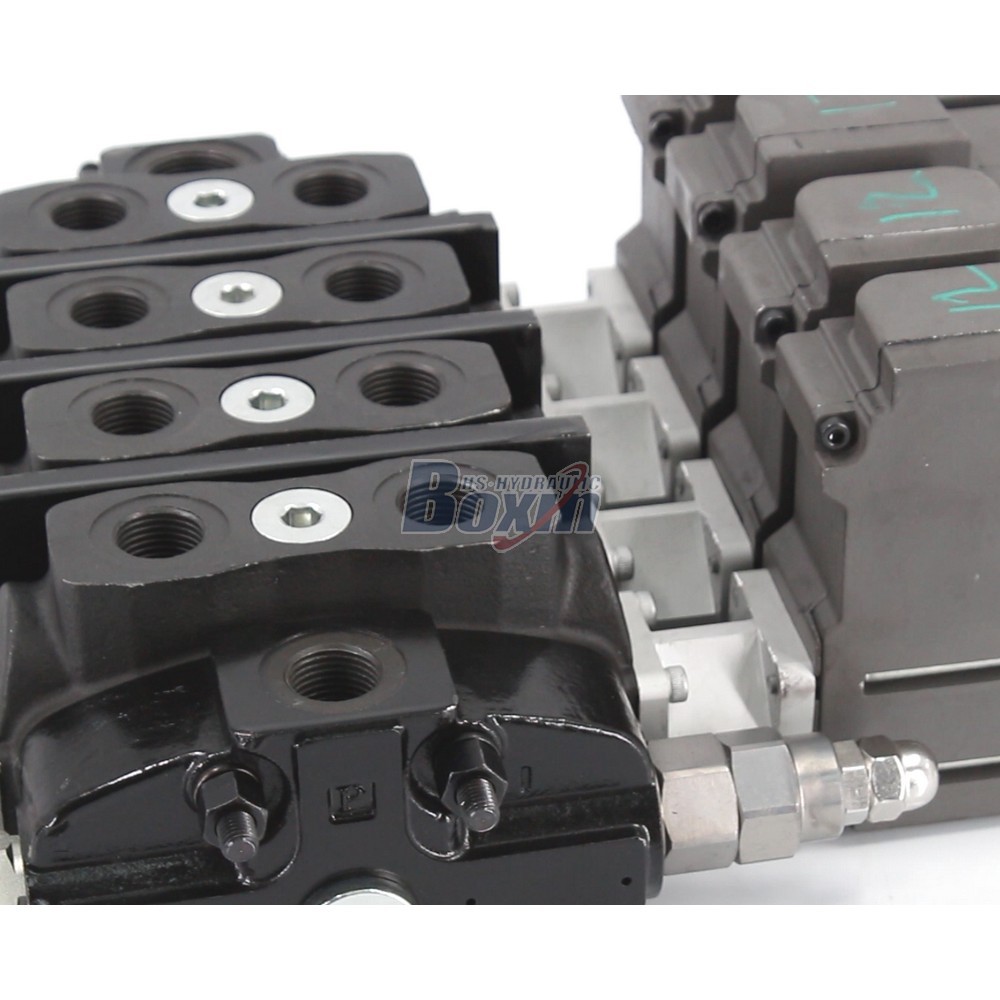

OEM ODM Customization Service for SD8EMA-4OT Electric Motor 4 Spool Sectional Directional Valve

OEM ODM Customization Service for SD8EMA-4OT Electric Motor 4 Spool Sectional Directional Valve drawing image

This SD8 Series Sectional Directional Valve features a 4-spool electric motor control, handling 90 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it offers reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM customization support.

Seri SD8 Kran Arah Bagian Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Motor listrik
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool, 8 Spool, 9 Spool, 10 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup penampang
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian, 8 Bagian, 9 Bagian, 10 Bagian
Kisaran Viskositas Operasional 12 - 400 mm²/dt (12 cSt hingga 400 cSt)
Aliran Terukur 90 L/menit (23,8 US gpm)
Tekanan Maksimum 315 bar (4600 psi)
Port Masuk G1/2, G3/4, M22×1.5, SAE 10
Port Keluar G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT
Ukuran Port G1/2, M22×1.5, SAE 10

**1. Factory Direct Sales: High-Capacity Sectional Directional Valve**
- Engineered for demanding applications, this valve supports a rated flow of 90 L/min (23.8 US gpm) and withstands max pressure up to 315 bar (4600 psi).
- Ideal for material handling and construction equipment, ensuring stable hydraulic control under heavy loads.

**2. Professional Manufacturer: 4 Spool Directional Control Valve Precision**
- Produced in our 68,000 sqm facility with 260+ CNC machines, each unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Certified under IATF 16949 and CE, guaranteeing consistent quality and compatibility with international mainstream brands.

**3. Wholesale Hot Sale: Electric Motor Hydraulic Valve Versatility**
- Features M22×1.5 inlet and M27×2.0 outlet ports, designed for seamless integration into telehandlers, mini-excavators, and skid steer loaders.
- The electric motor control method provides precise operation for aerial platforms and wood splitters, enhancing machine efficiency.

**4. OEM/ODM Available: Custom Hydraulic Solutions**
- Backed by 35+ senior engineers with 10+ years of experience, we offer tailored spool configurations, logo laser marking, and private label services.
- From appearance design to casting modifications, our team ensures your specific technical requirements are met for diverse industrial vehicles.

**5. Exported Worldwide: Reliable Supply Chain & Packaging**
- With an annual capacity of 1,500,000 pieces since 2001, we ensure timely delivery for bulk orders from distributors and wholesalers.
- Products are secured with anti-rust treatment and heavy-duty wooden crates, ensuring safe transit and ready-to-install condition upon arrival.
