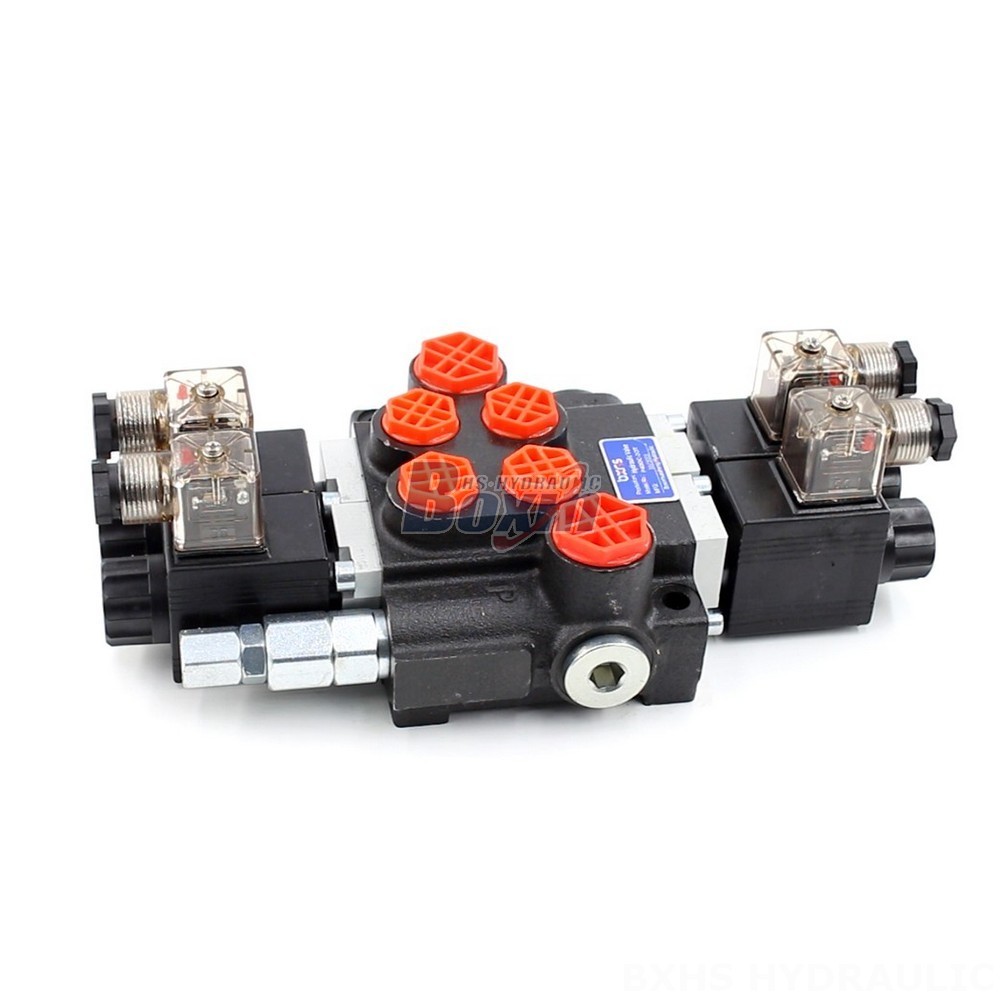

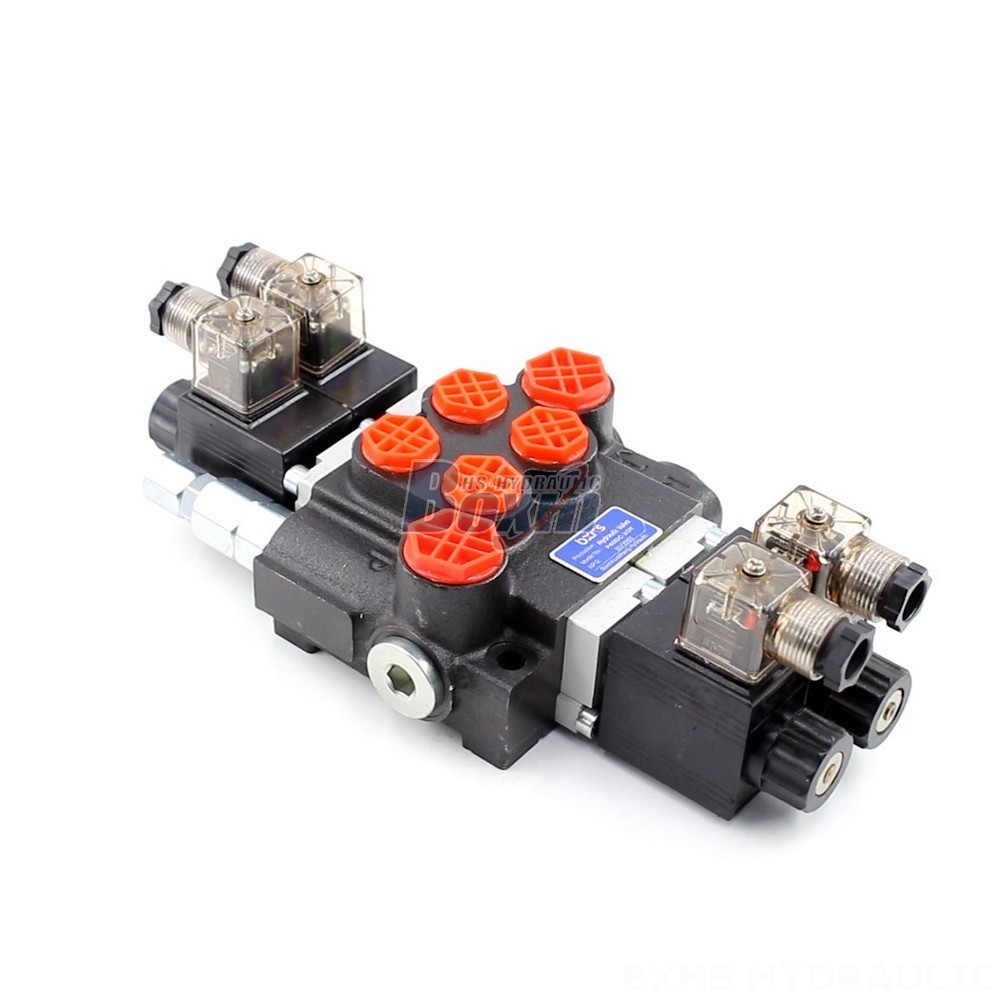

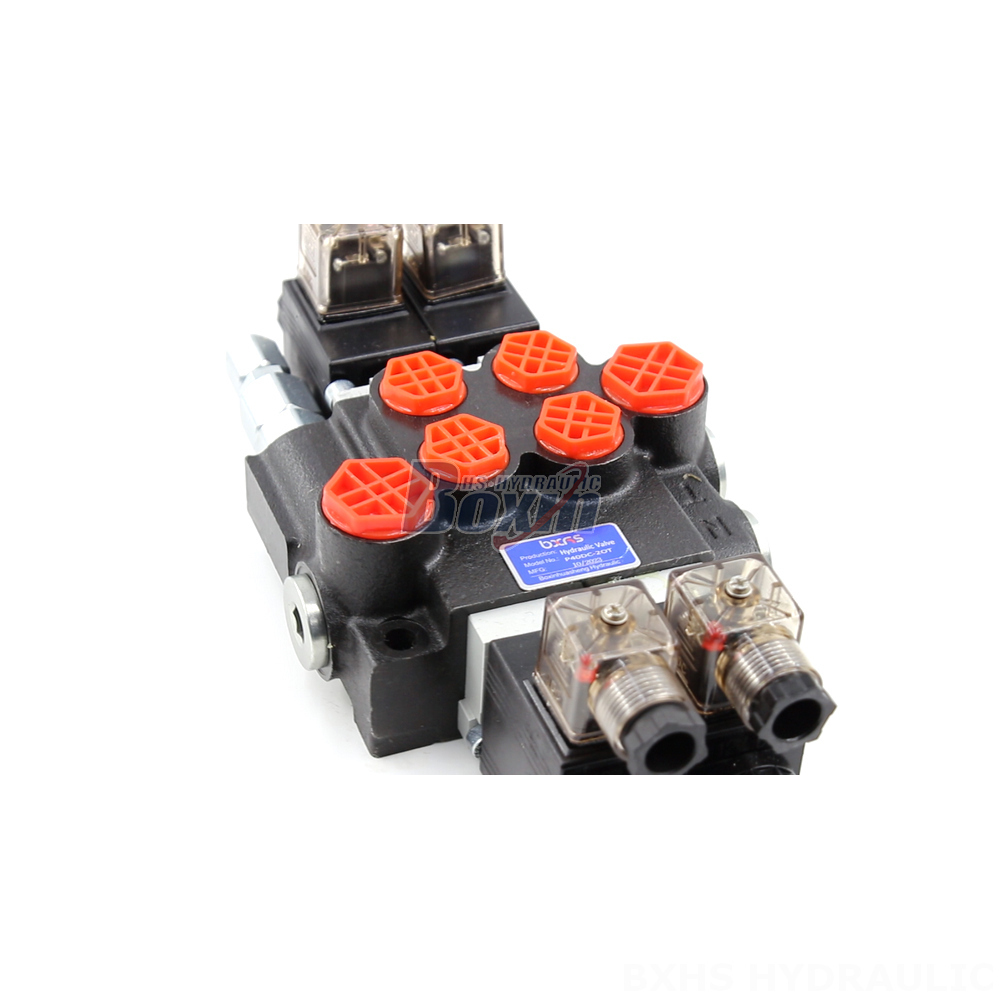

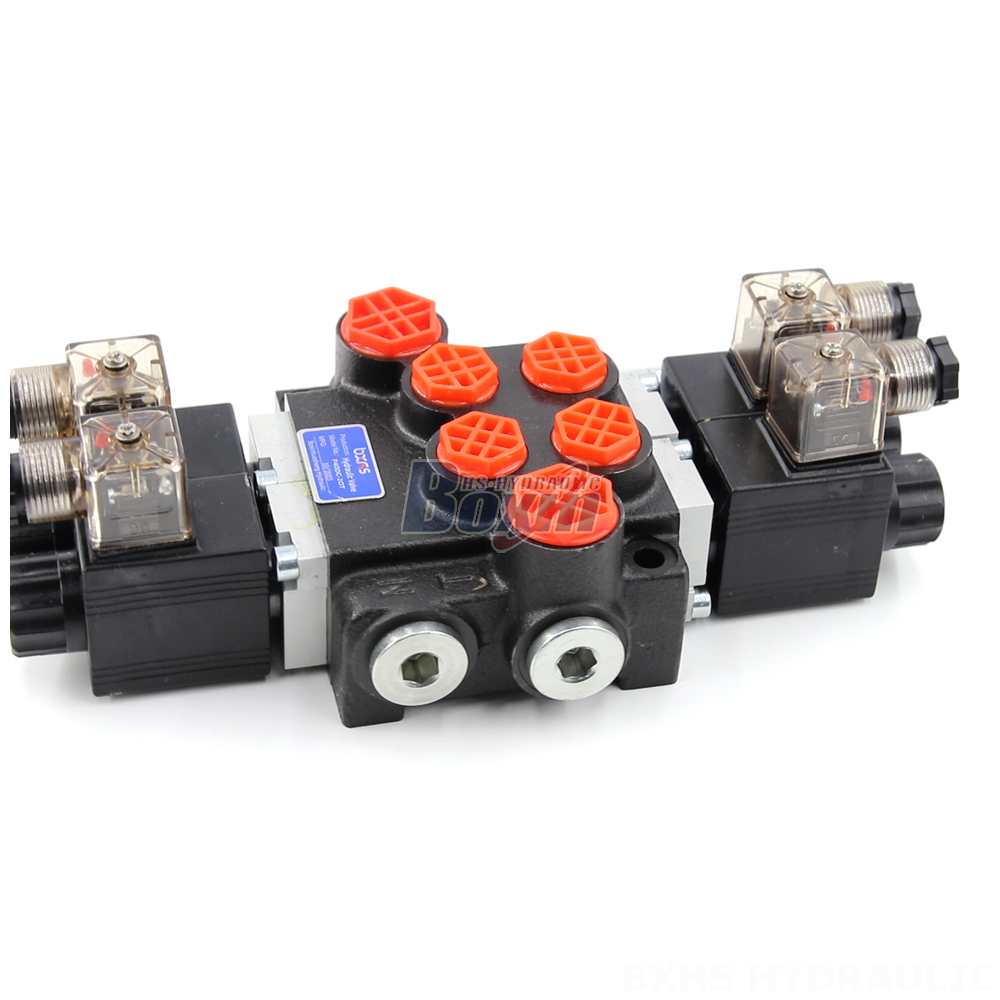

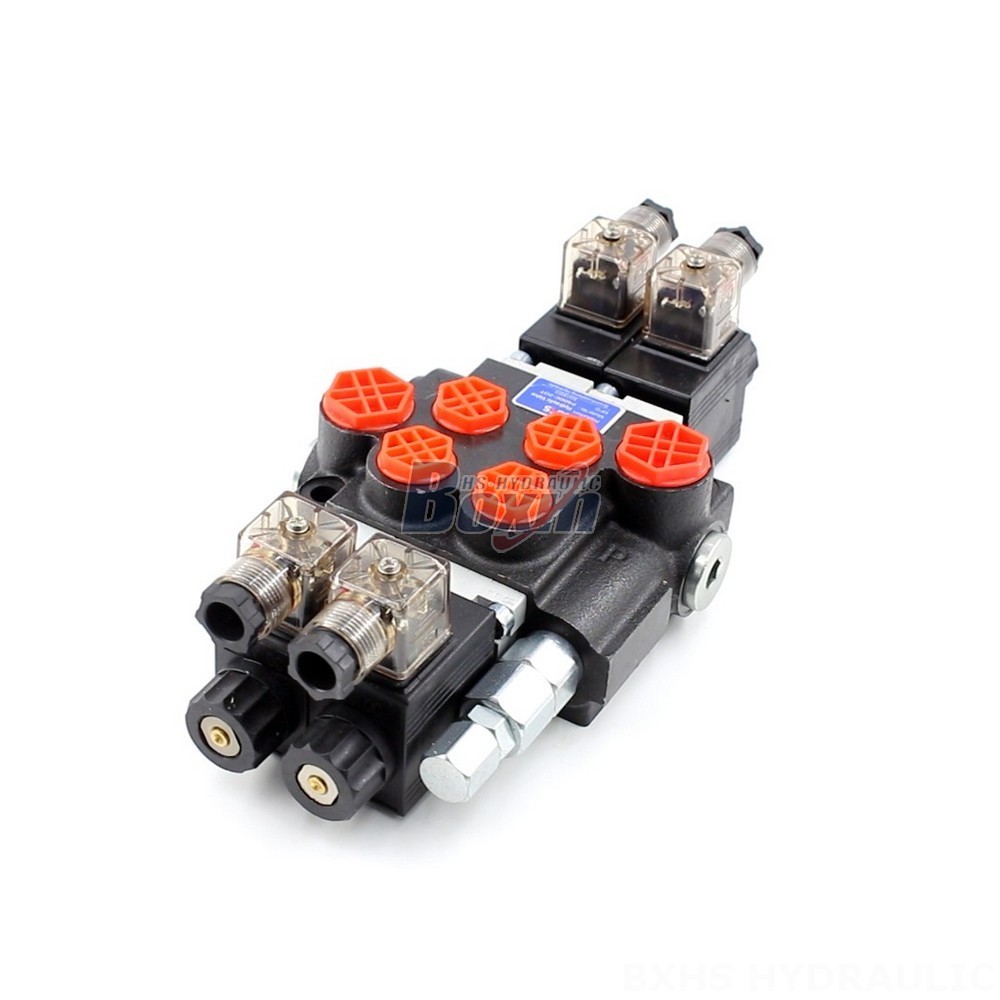

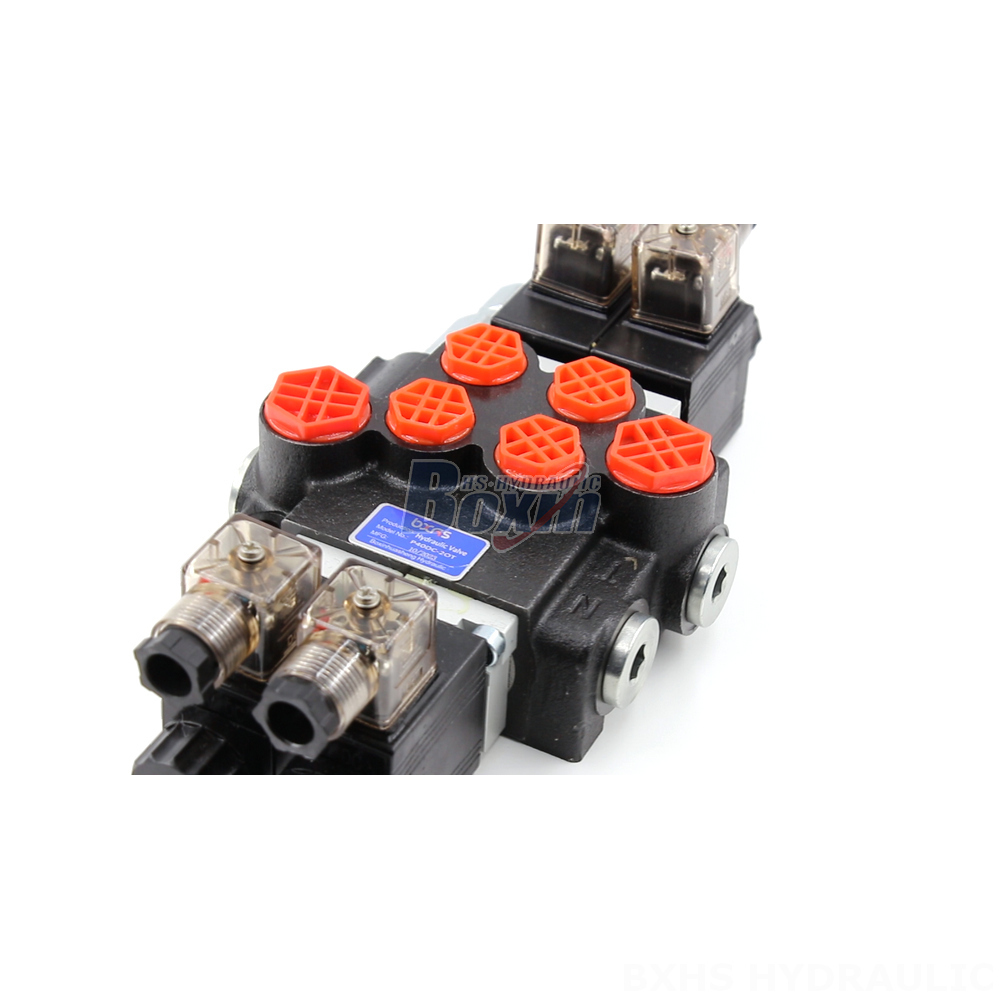

OEM P40 Solenoid 2 Spool Monoblock Directional Valves

Metode Kontrol:Selenoid

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:30*18*12

Kelas kotor:6.50 kg

Ketersediaan: Tersedia

1480 Pandangan Mencari Produk Ini

OEM P40 Solenoid 2 Spool Monoblock Directional Valves

OEM P40 Solenoid 2 Spool Monoblock Directional Valves

OEM P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

The P40 Series Hydraulic Control Pressure Reducing Valve is a high-performance solenoid-operated, monoblock directional valve designed for demanding applications in material handling, construction, and agriculture. With its 2 spool design and 40 L/min flow rate, this valve is ideal for controlling hydraulic systems in a wide range of equipment.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series Hydraulic Control Pressure Reducing Valve is a robust and reliable solution for controlling hydraulic systems. It features a solenoid control method, a 2-section monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). This valve can withstand a maximum pressure of 250 bar (3600 psi) and operates efficiently within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for a wide range of applications, it's suitable for use in various types of equipment like telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. Its compact design and durable construction make it a reliable and versatile choice for various hydraulic applications.
