Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1112 Pandangan Mencari Produk Ini

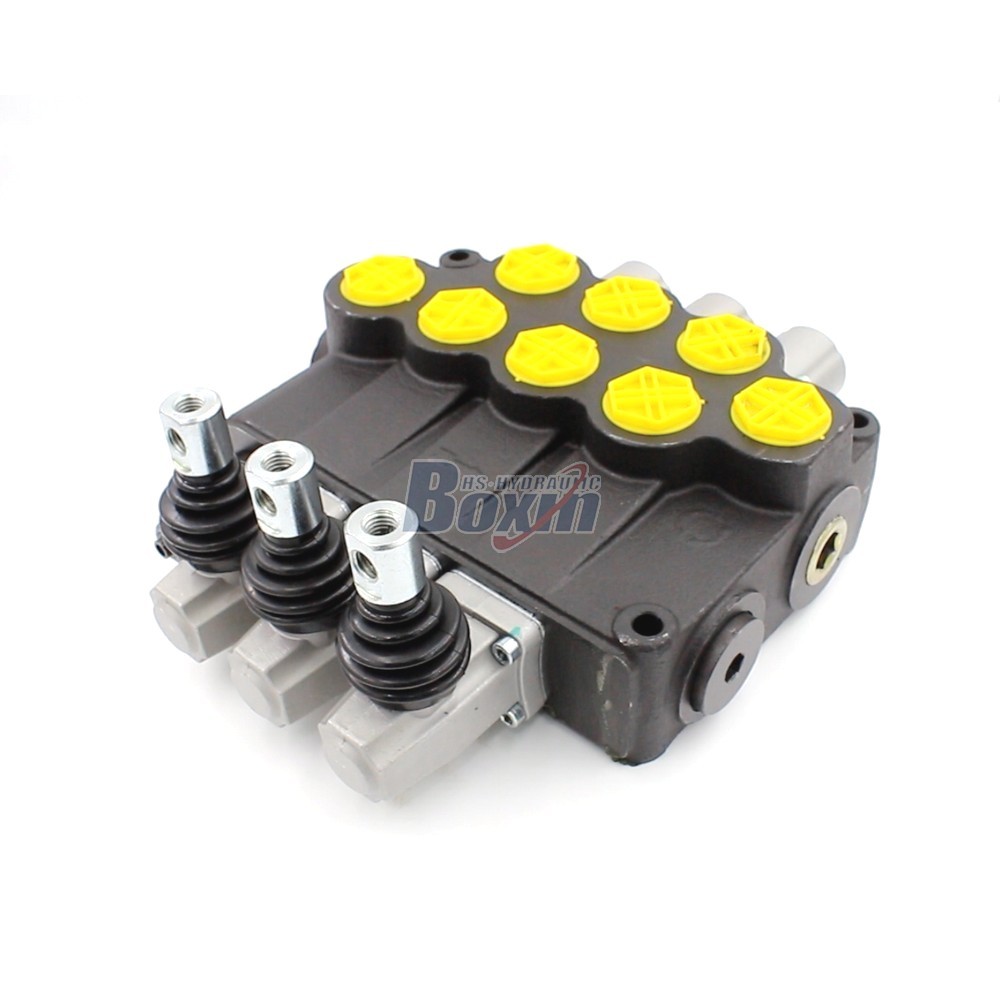

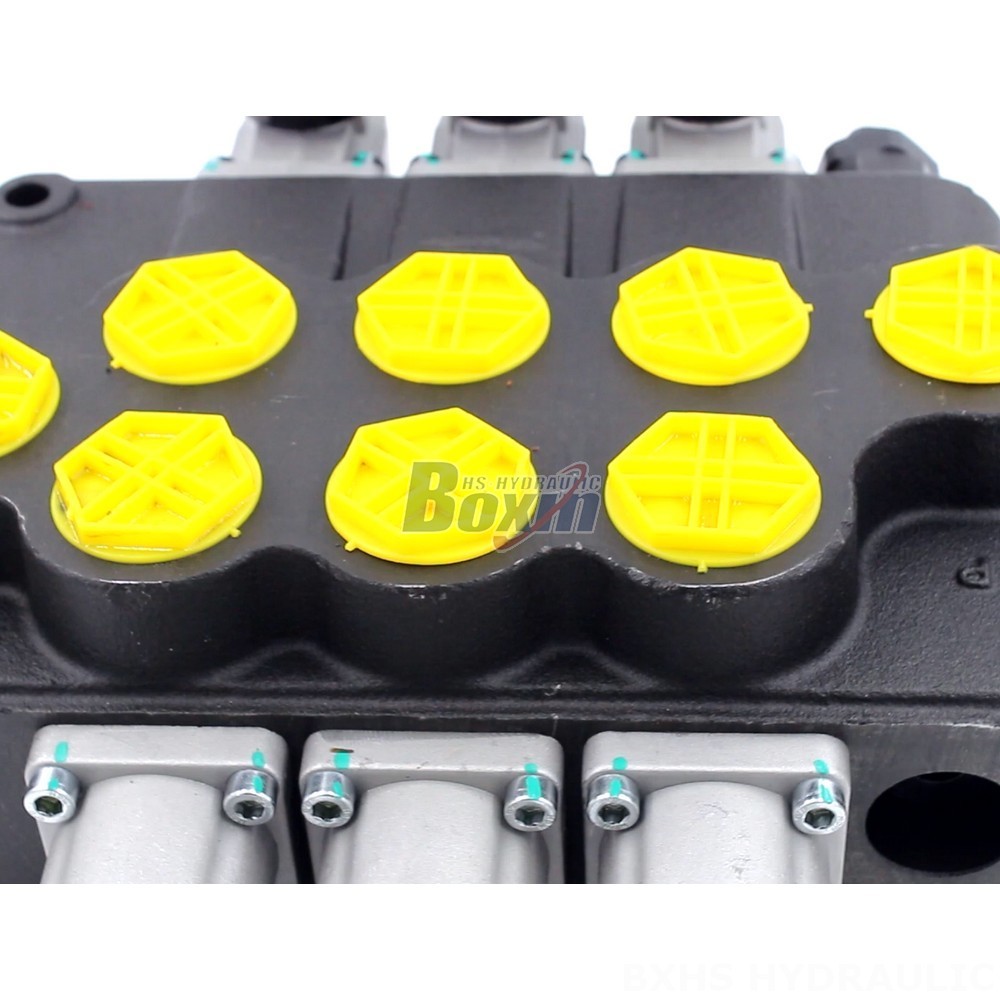

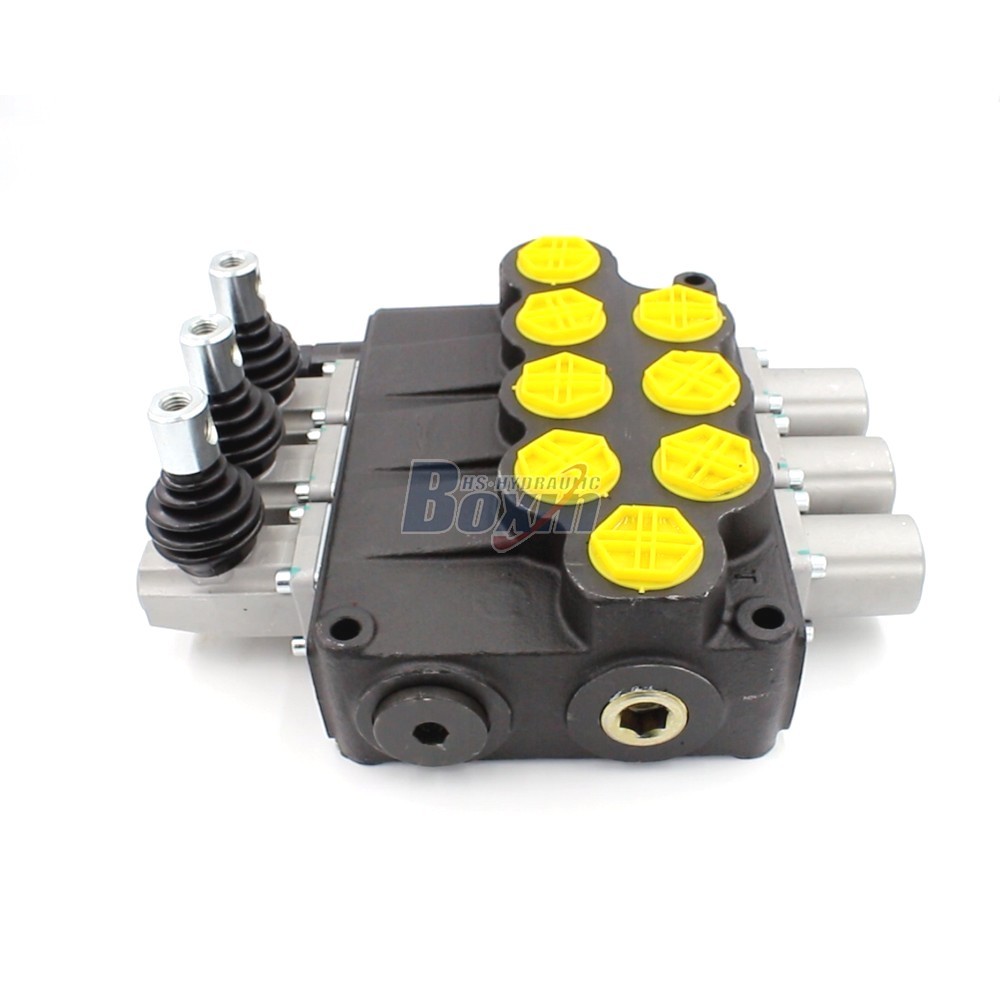

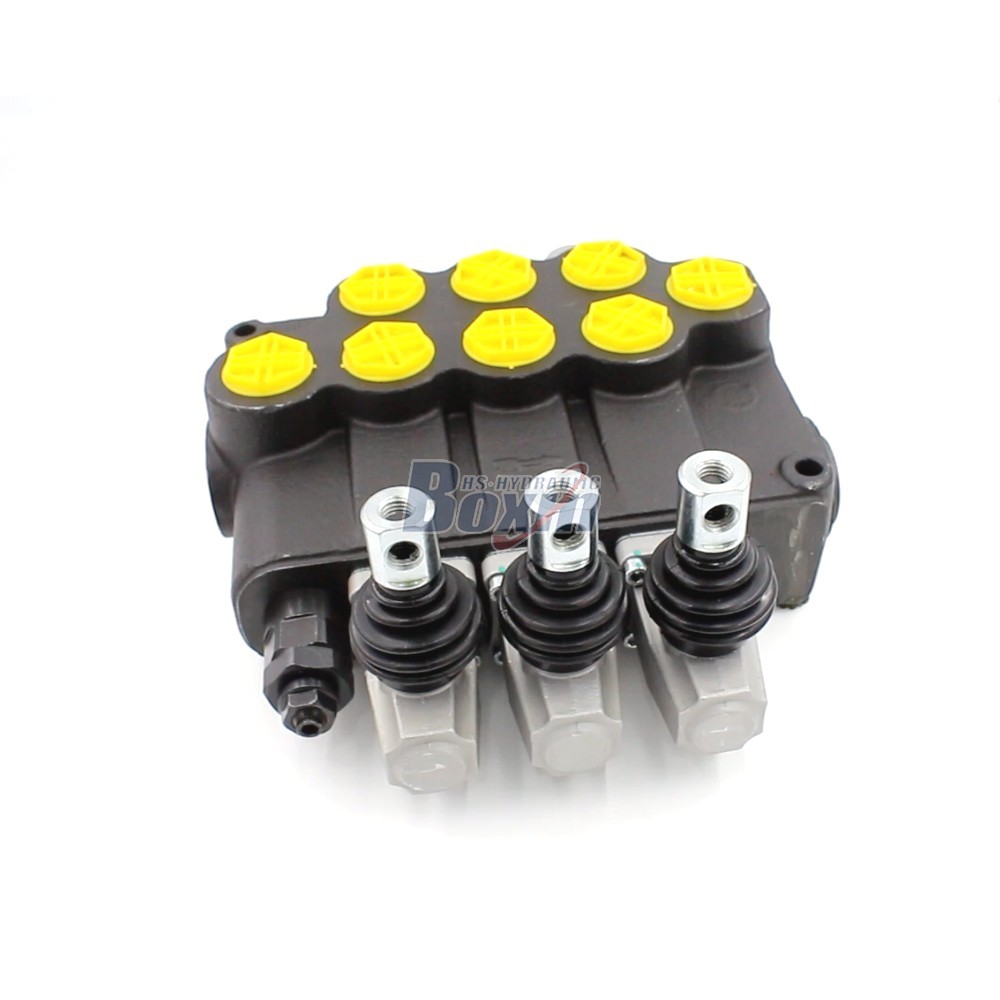

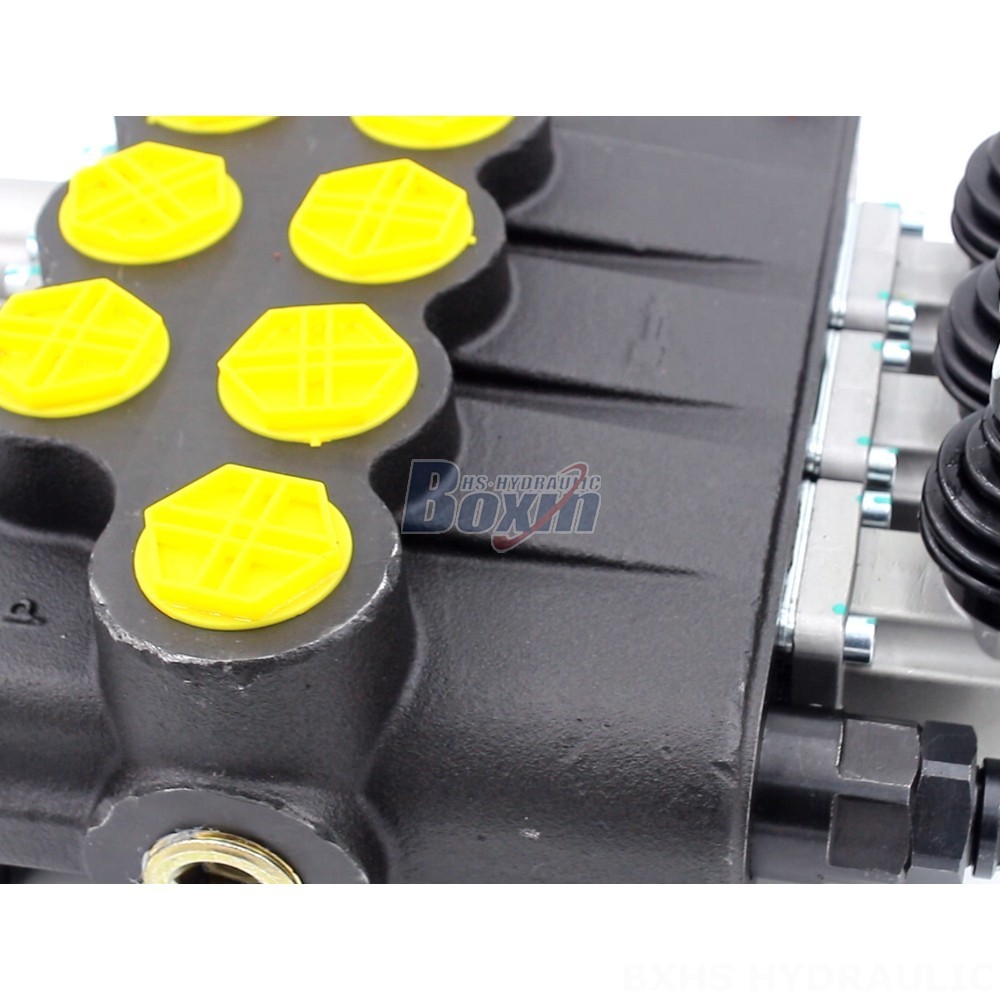

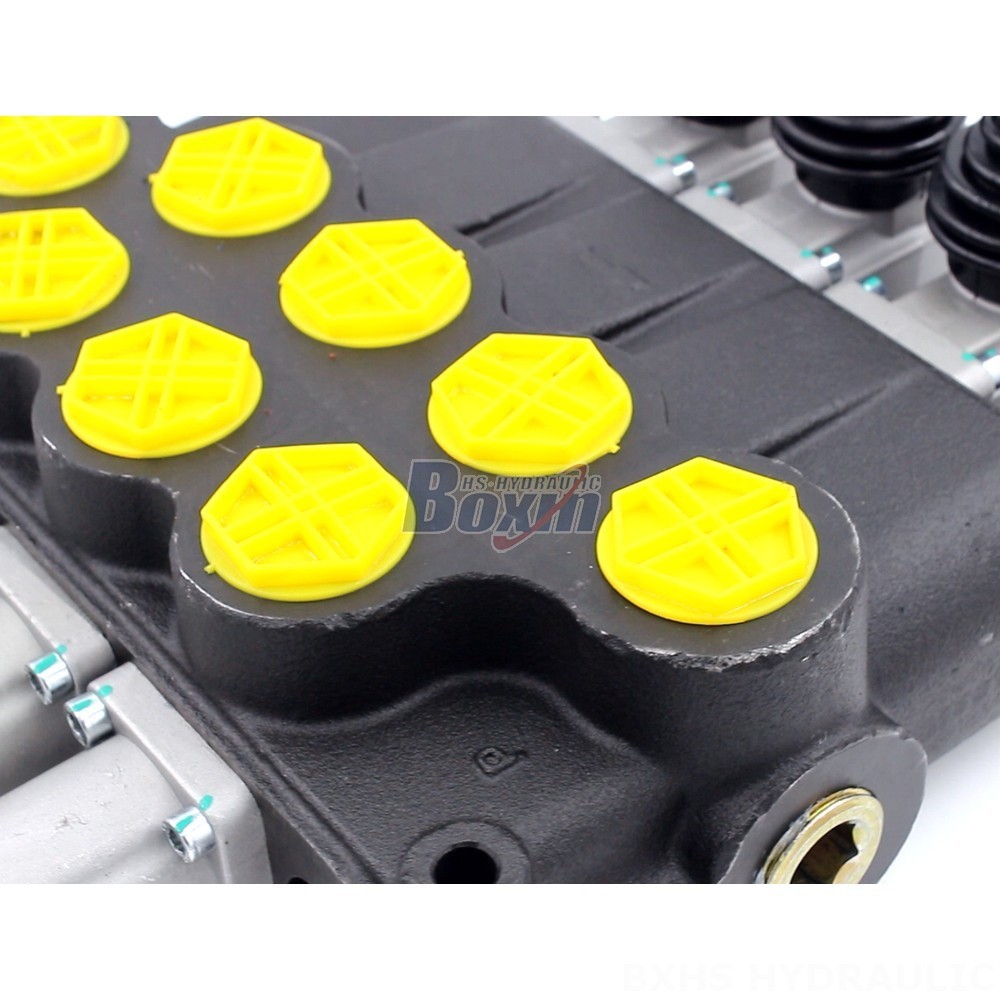

The P120-G1-OT Manual 3 Spool Monoblock Directional Valve is designed for demanding hydraulic systems. With a rated flow of 120 L/min and a maximum pressure of 250 bar, it delivers reliable performance in various applications. Its monoblock construction ensures durability and compact design.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**P120-G1-OT Manual 3 Spool Monoblock Directional Valve**
**Product Highlights:**
- Manual control for precise operation
- 3 spool design for versatile flow control
- Monoblock structure for durability and compact size
- High flow capacity of 120 L/min
- Robust performance with a maximum pressure of 250 bar
- Wide operating viscosity range from 15 to 75 mm²/s
- Suitable for ambient temperatures ranging from -40°C to +80°C
**Applications:**
- Material Handling: Telehandlers, forklifts, stackers
- Construction and Earth Moving: Excavators, skid steer loaders, wheel loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, motor graders
