Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1331 Pandangan Mencari Produk Ini

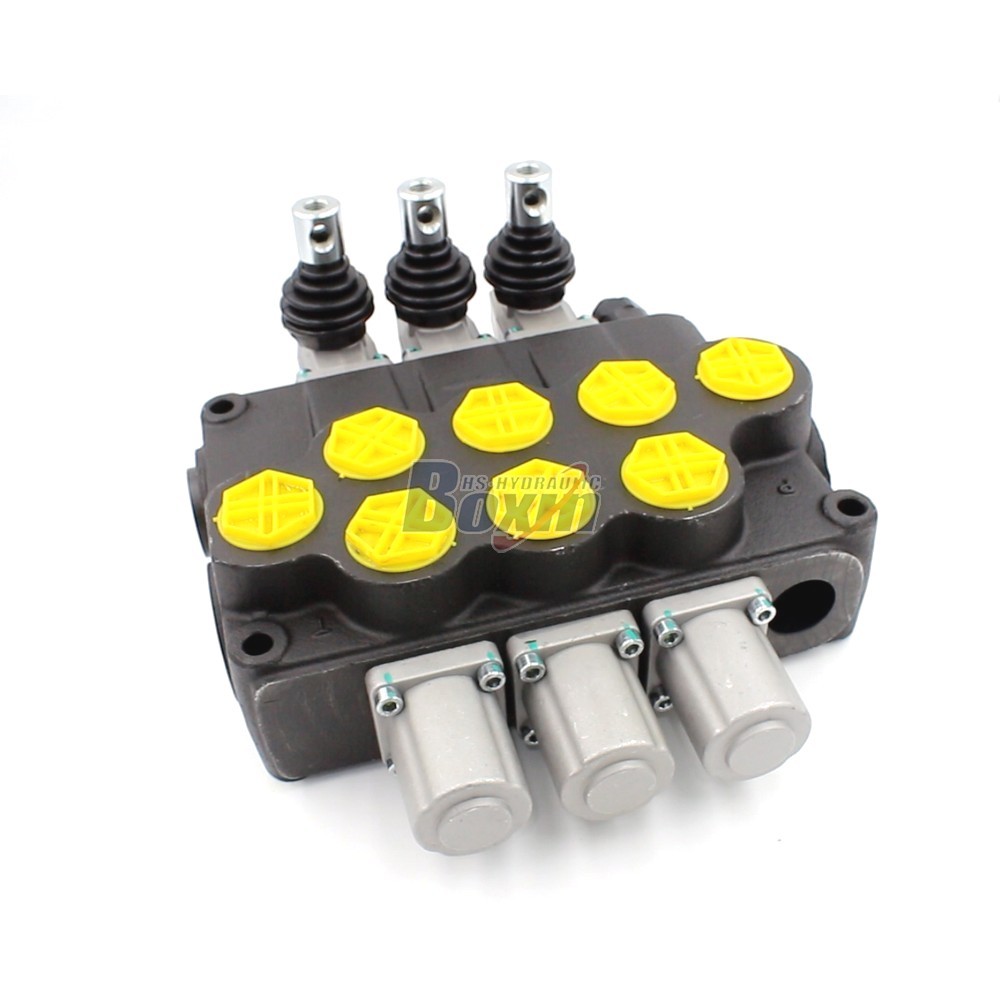

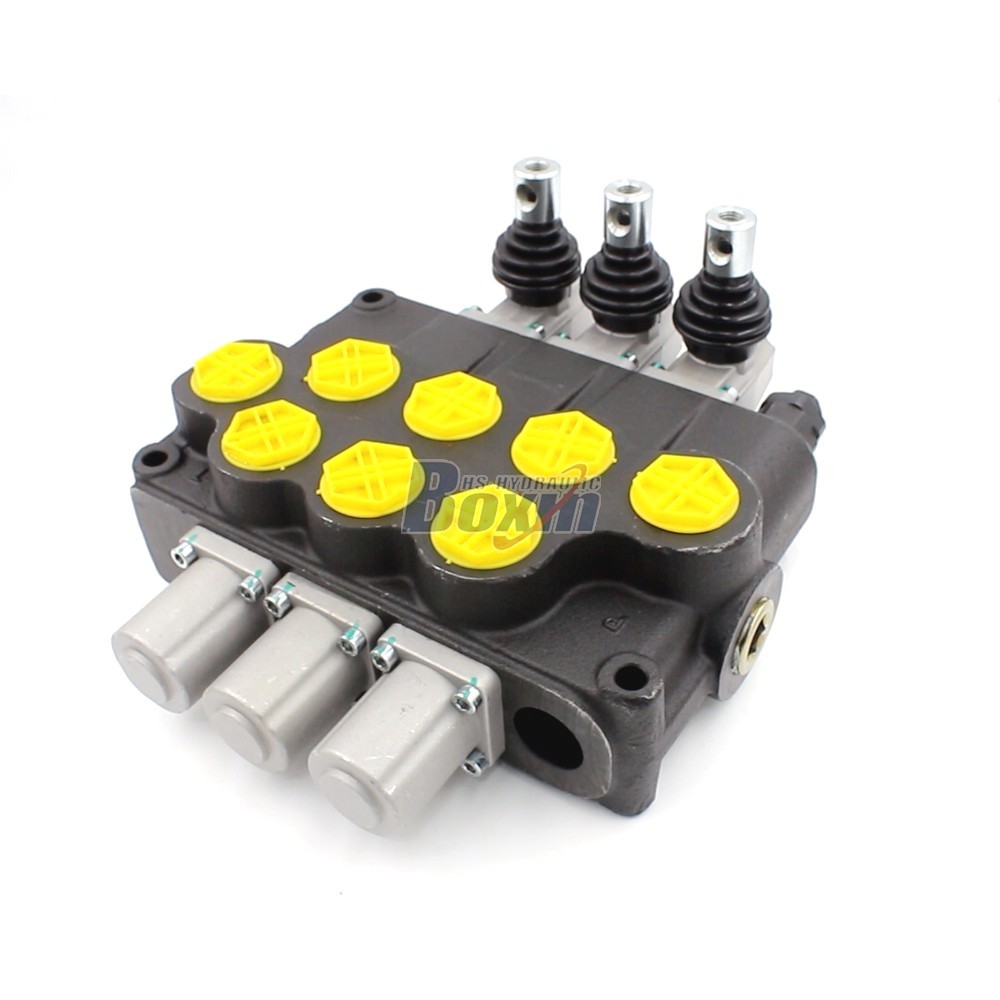

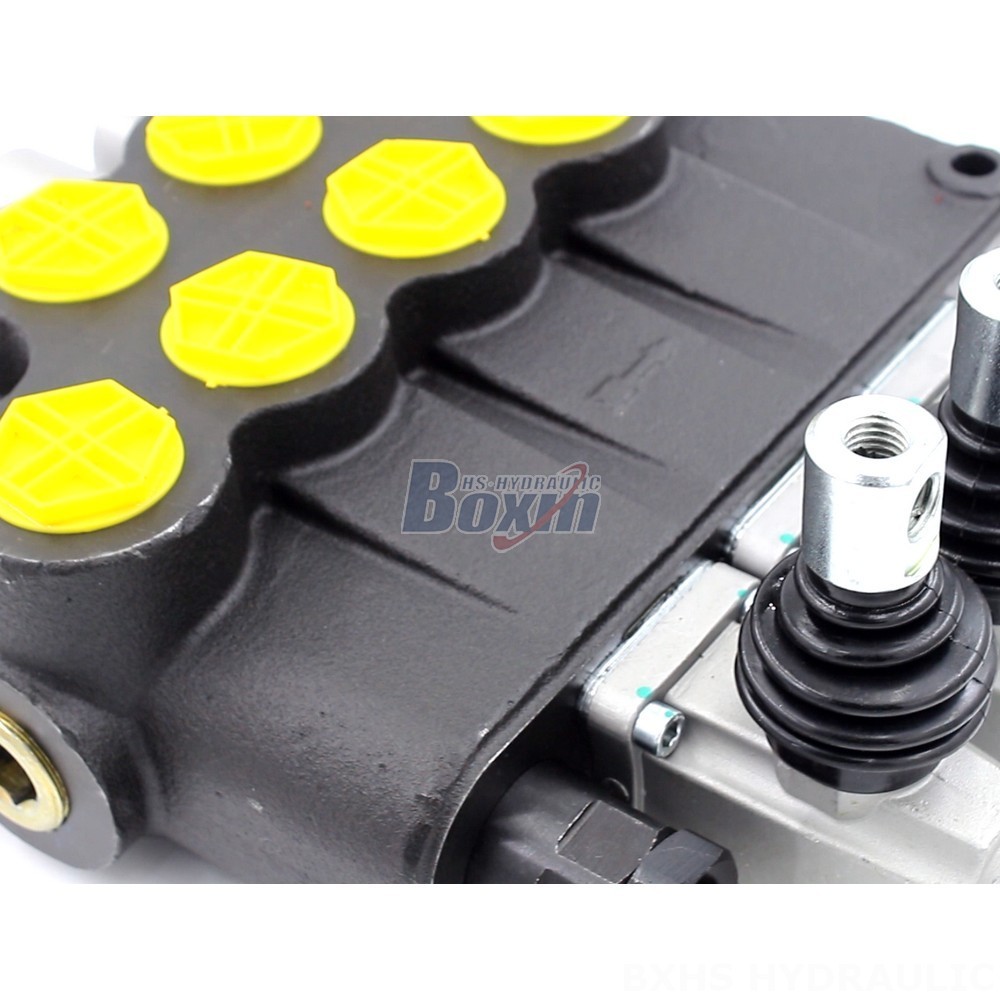

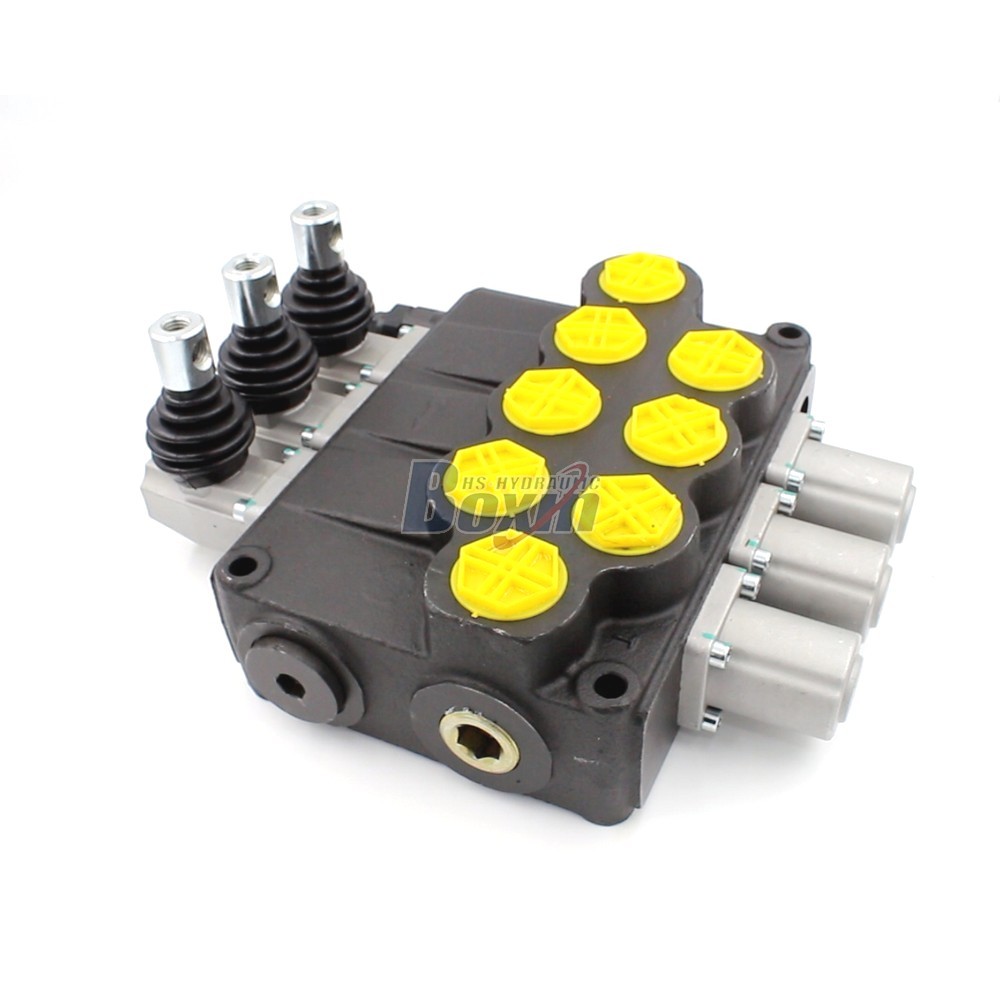

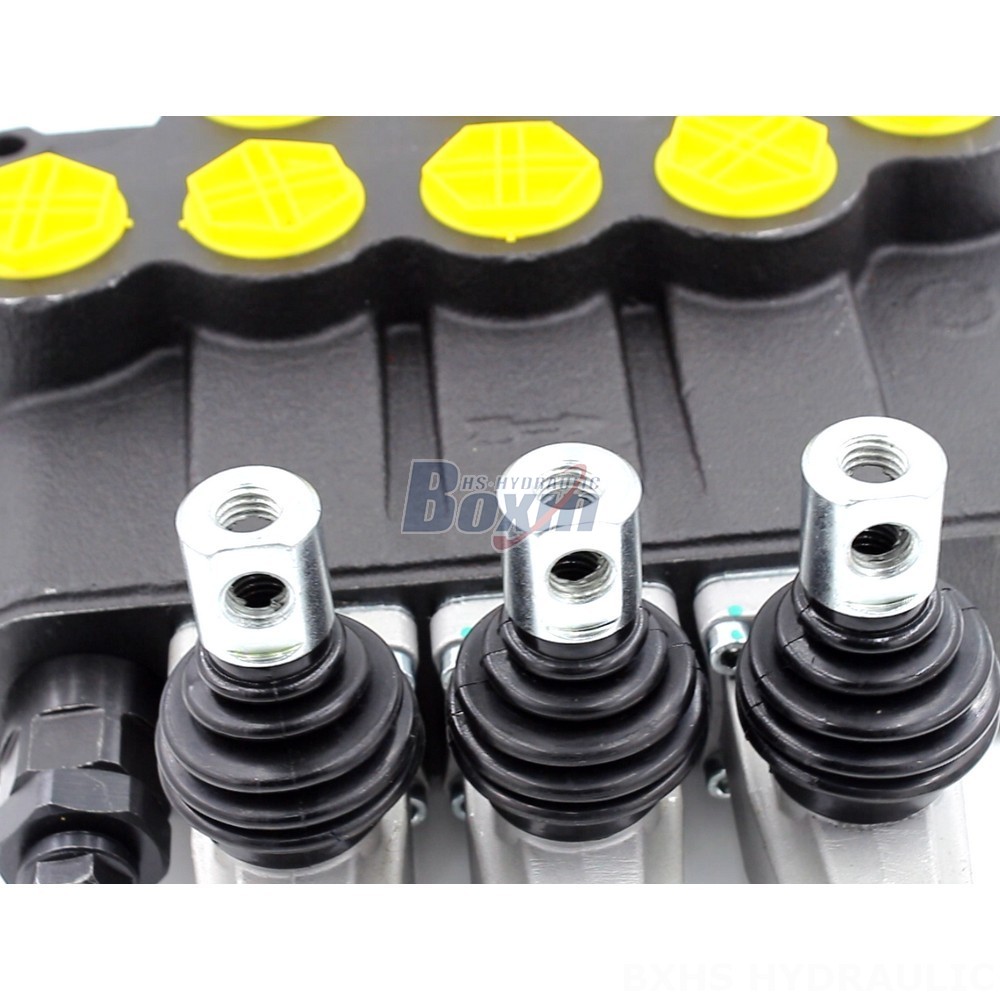

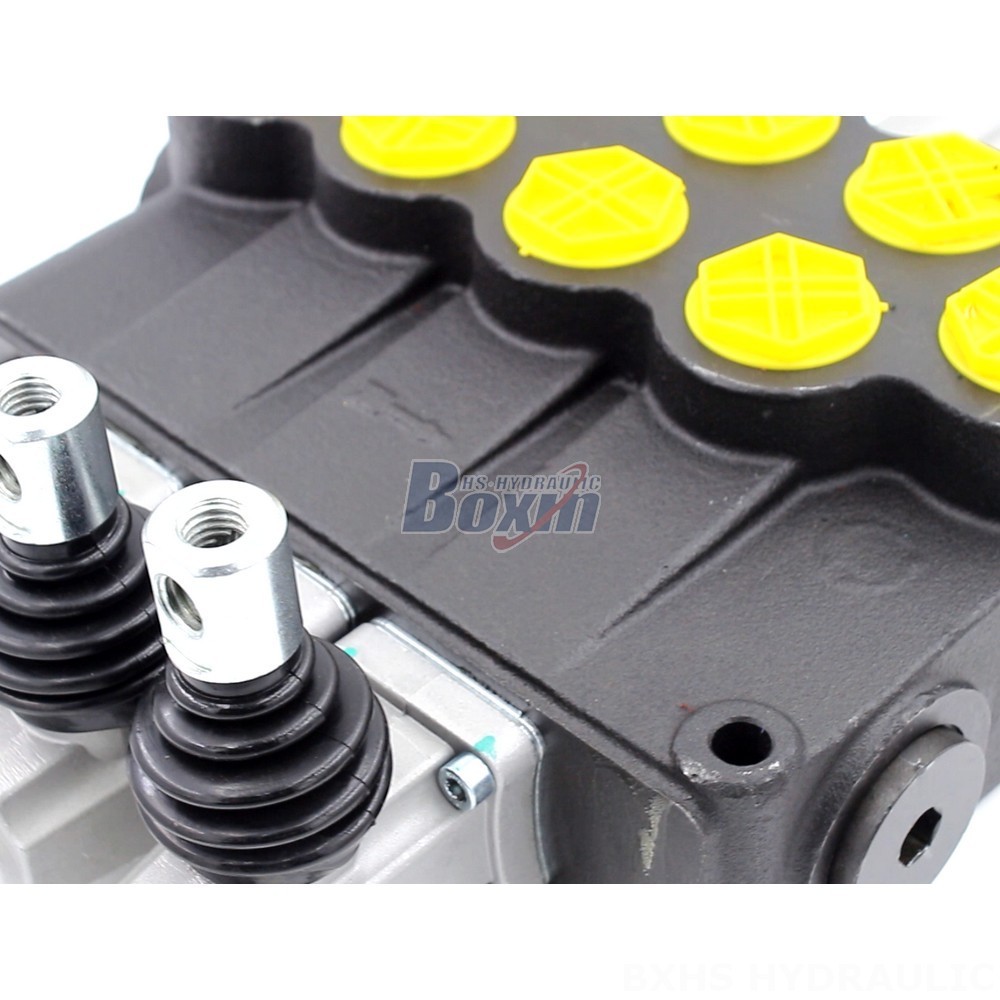

The P120-G1-OT Hydraulic Forward And Reverse Valve is a high-performance, manual control monoblock valve designed for a variety of construction, material handling, and industrial applications. It features a 3-section design, 120 L/min rated flow, and a maximum pressure of 250 bar.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
This P120 Series hydraulic valve is a 3-section, manual control monoblock valve with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is ideal for use in a wide range of applications, including construction equipment (telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders), material handling equipment (telehandlers, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers), and agricultural machinery. The valve operates with an operating viscosity range of 15 - 75 mm²/s and is suitable for ambient temperatures ranging from -40°C to +80°C. The P120-G1-OT valve offers reliable performance and durability, making it an excellent choice for demanding applications.
