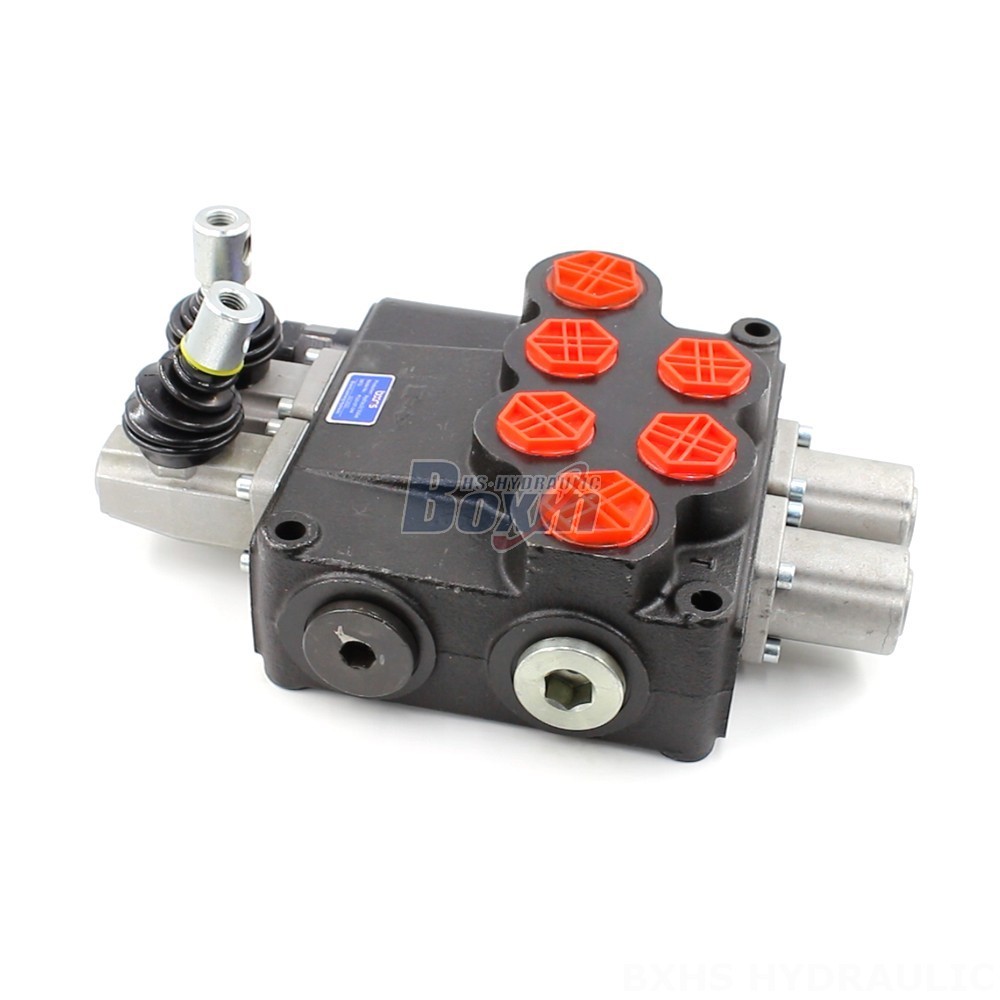

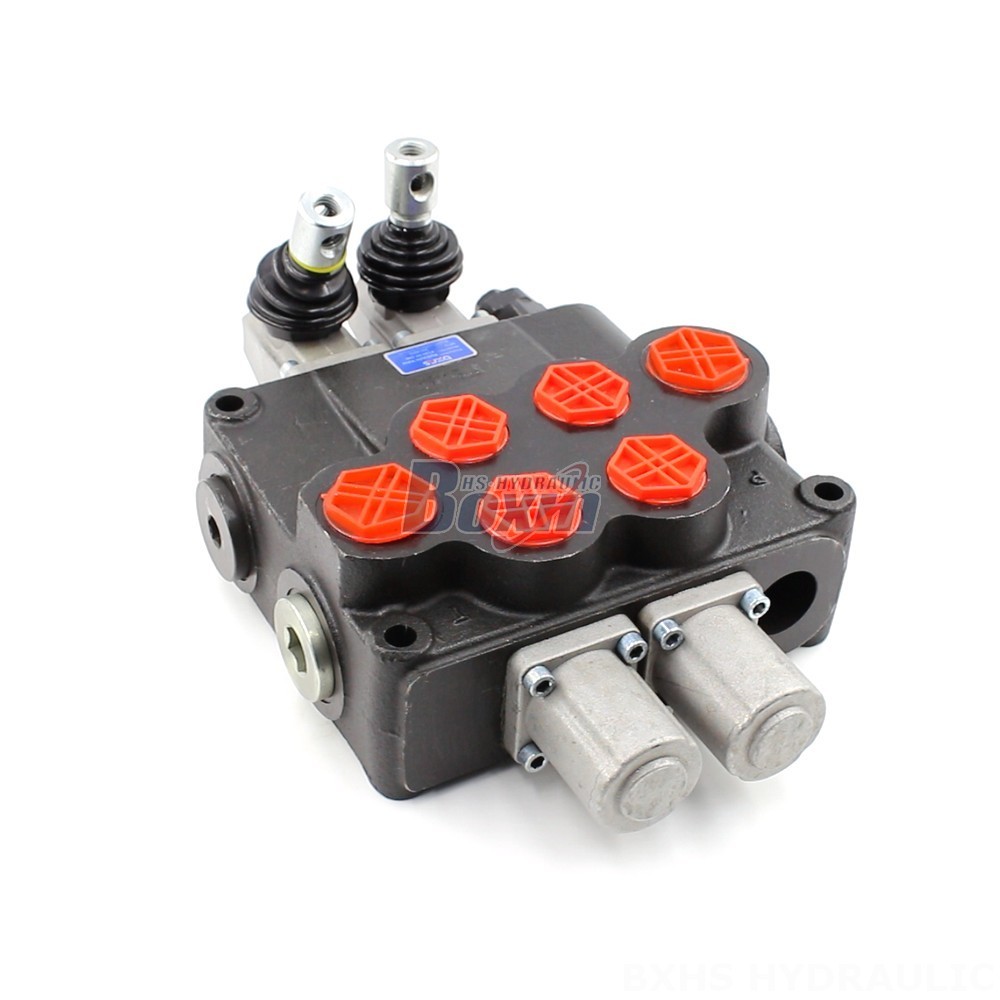

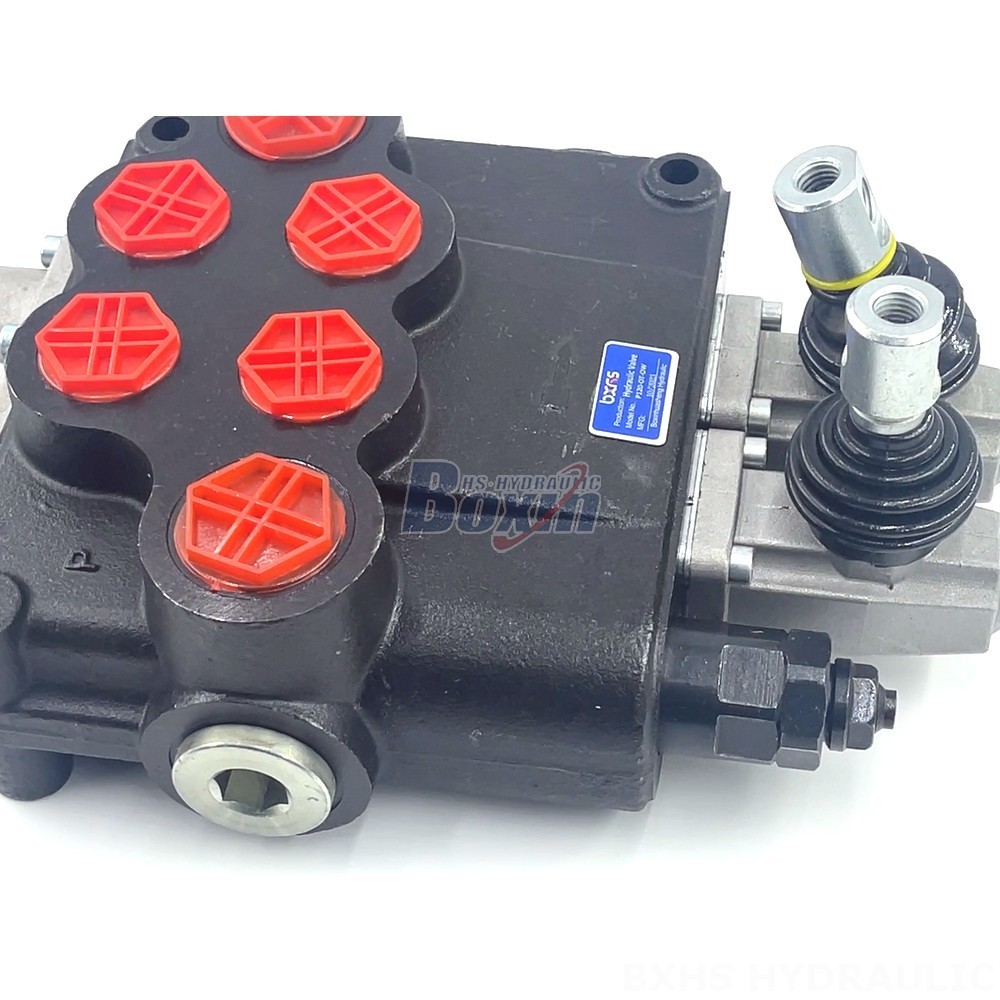

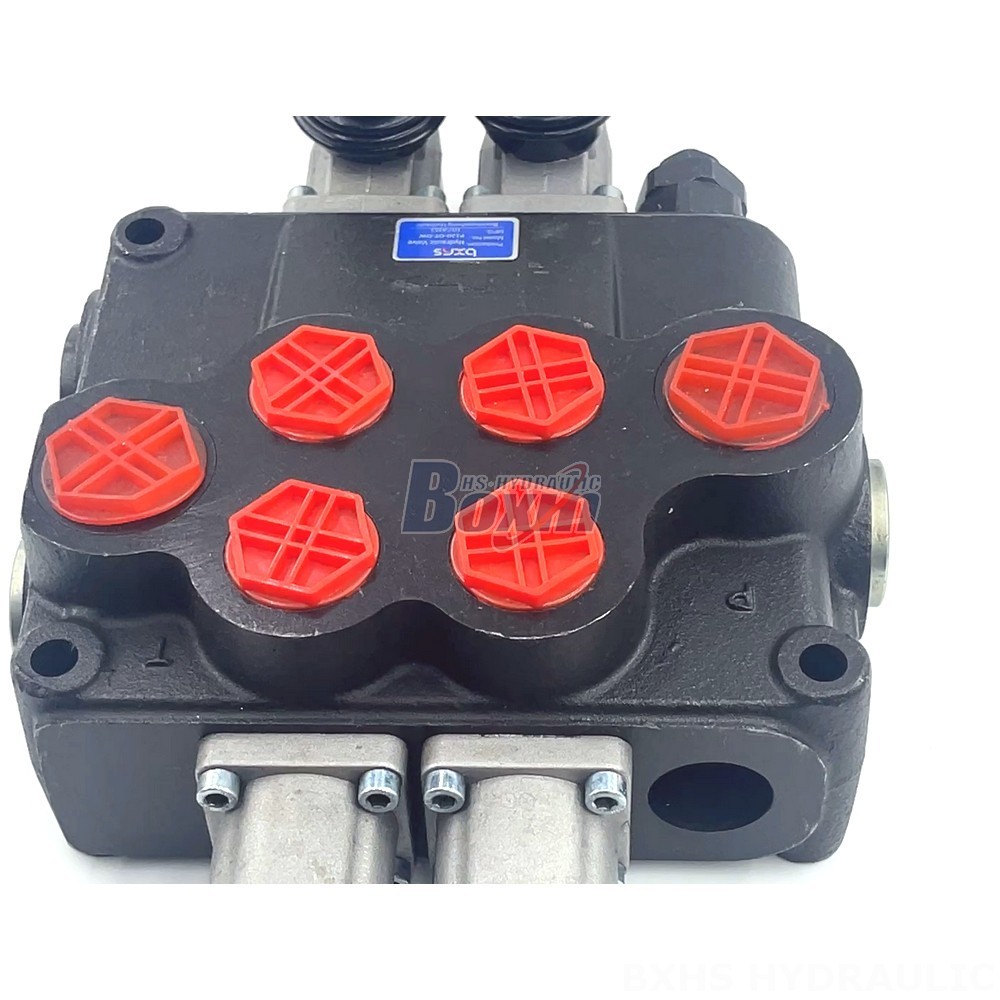

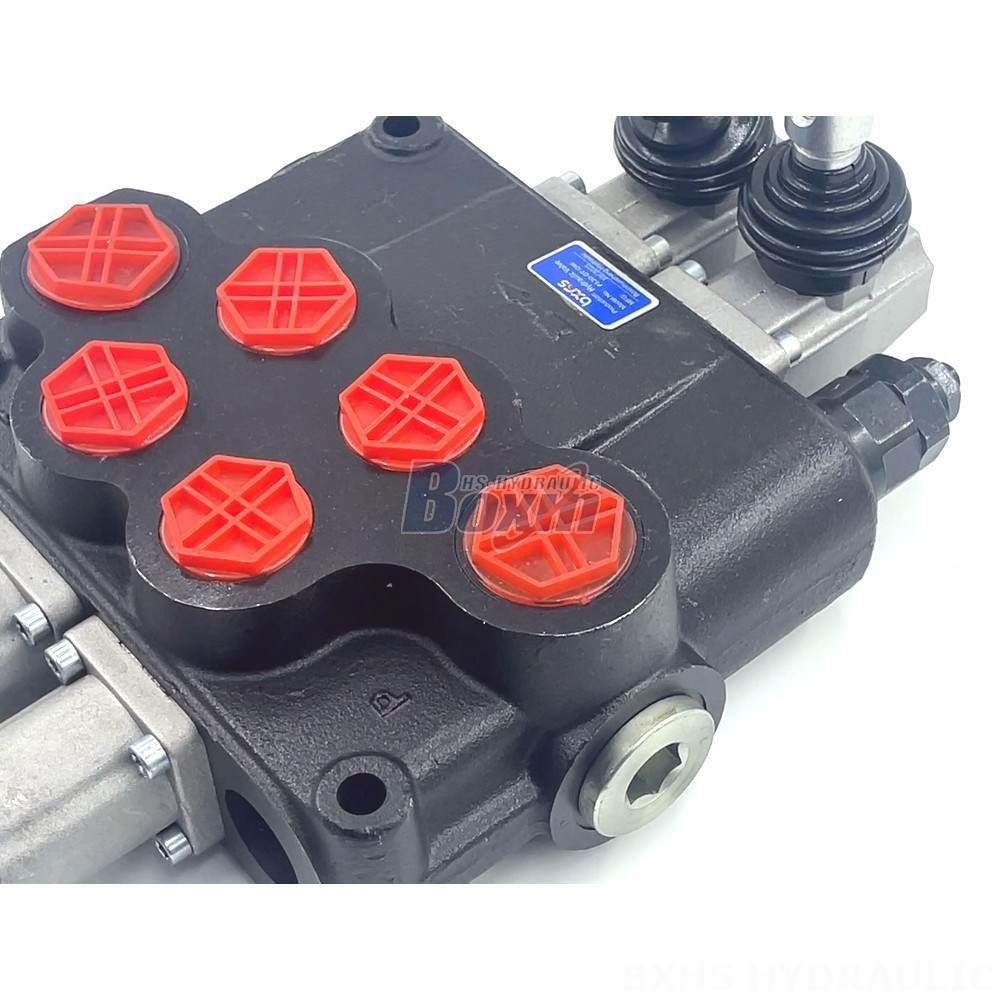

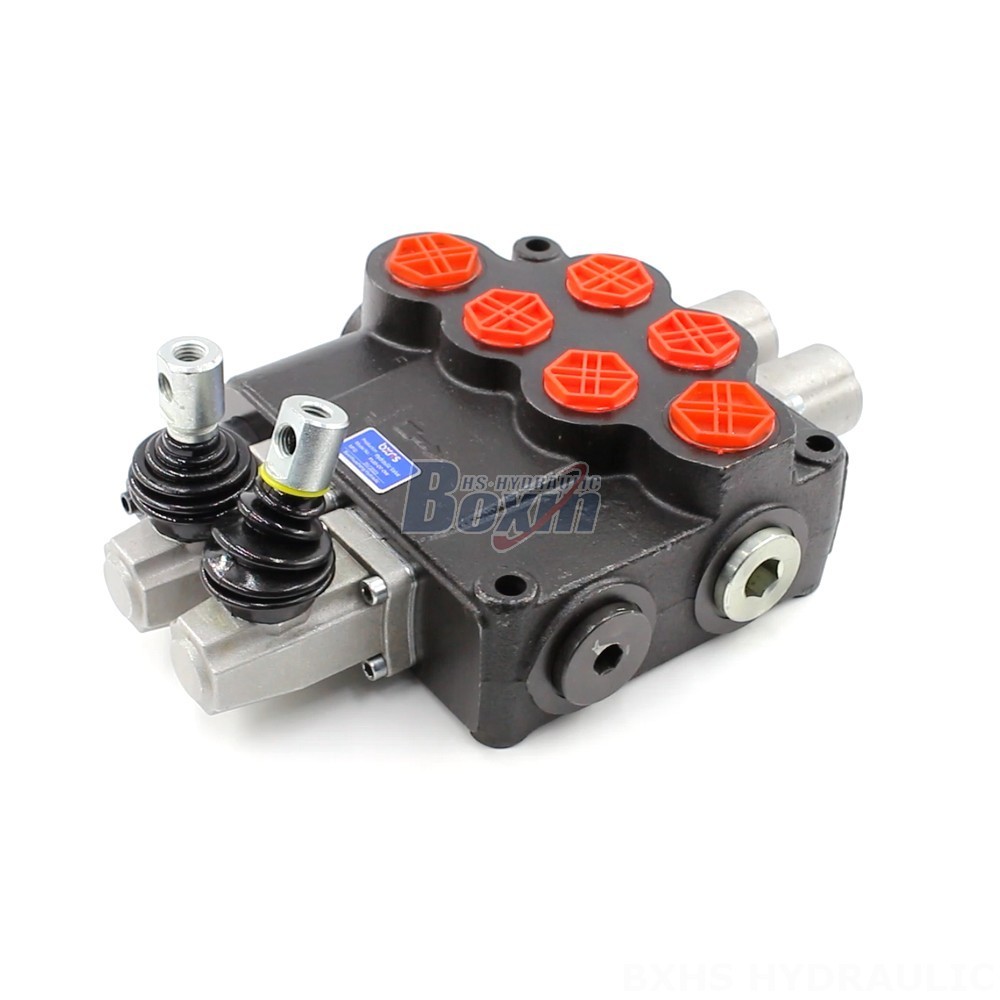

The P120 Manual 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve is capable of handling demanding hydraulic systems.
| Seri P120 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool |
| Aliran Terukur | 120 L/min (31,7 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Port Keluar | G1, SAE 16, 1 NPT, M36×2 |
| Ukuran Port | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**P120 Manual 2 Spool Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 120 L/min (31.7 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P120 Series
**Application Area:** MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
