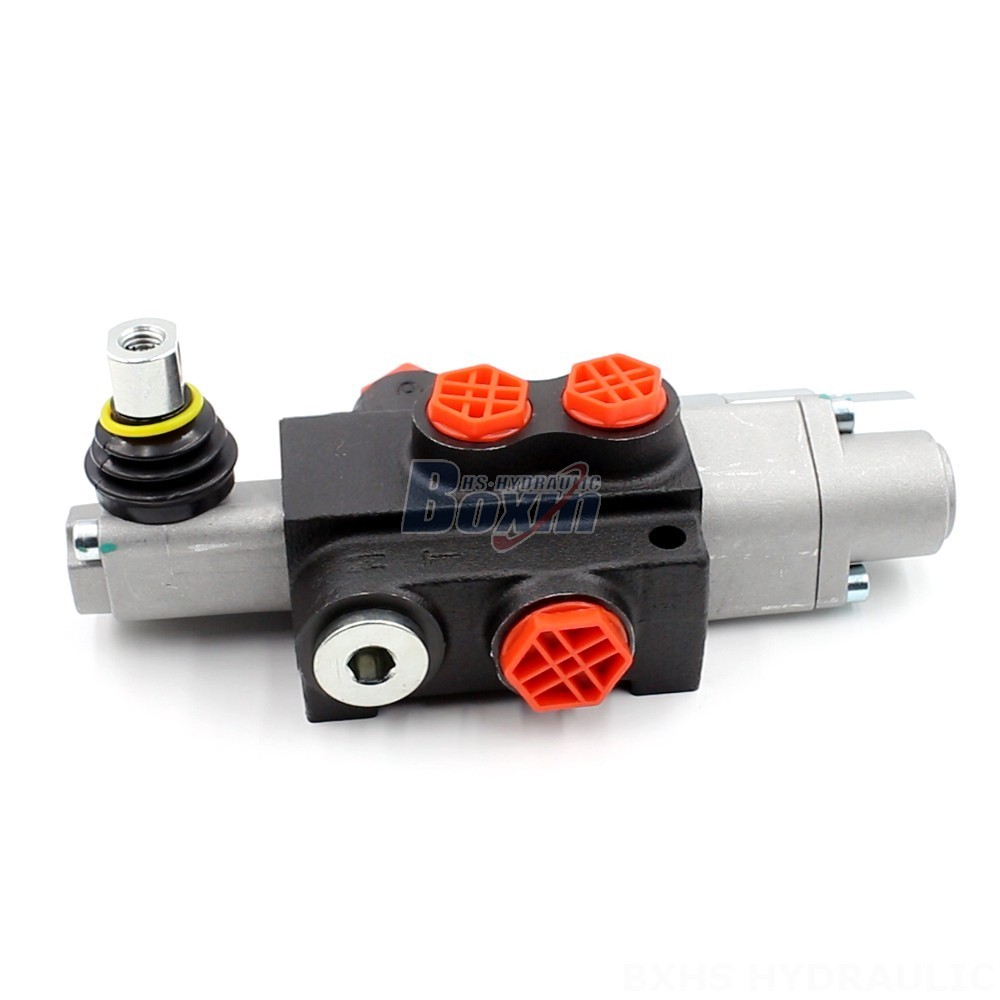

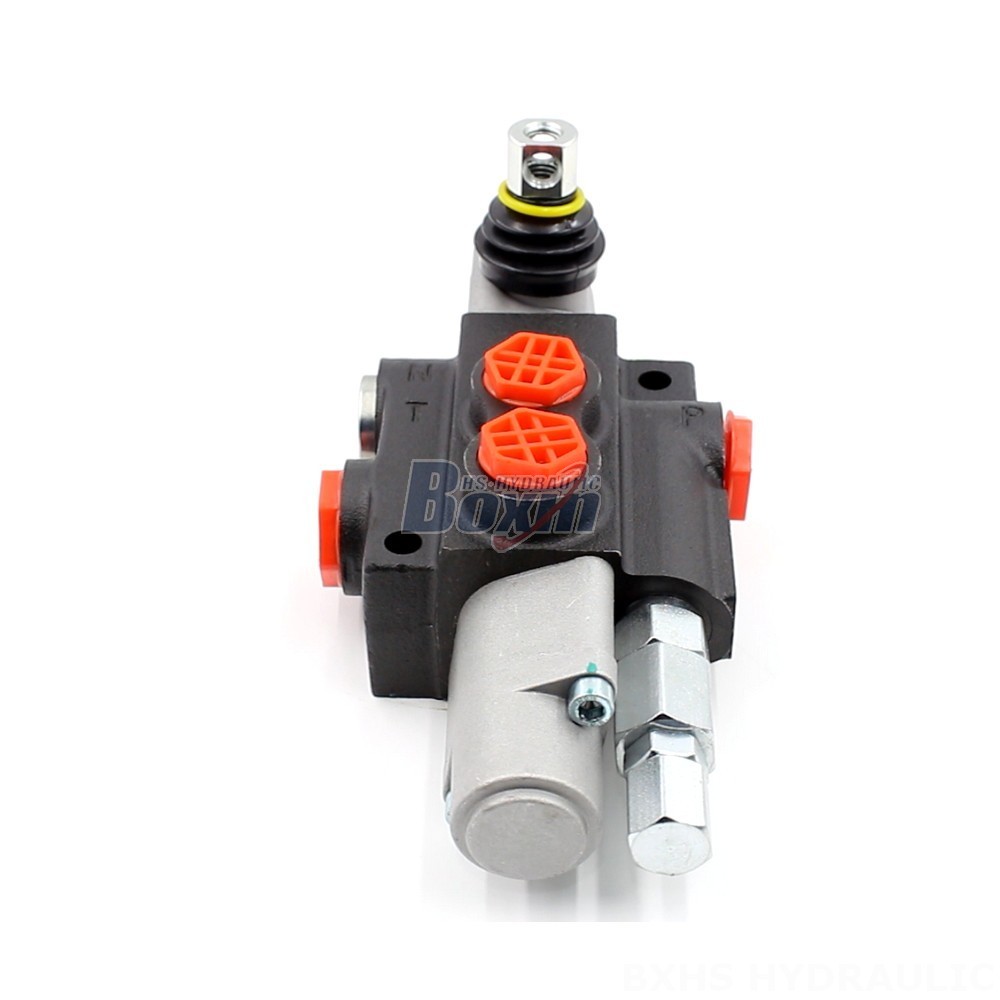

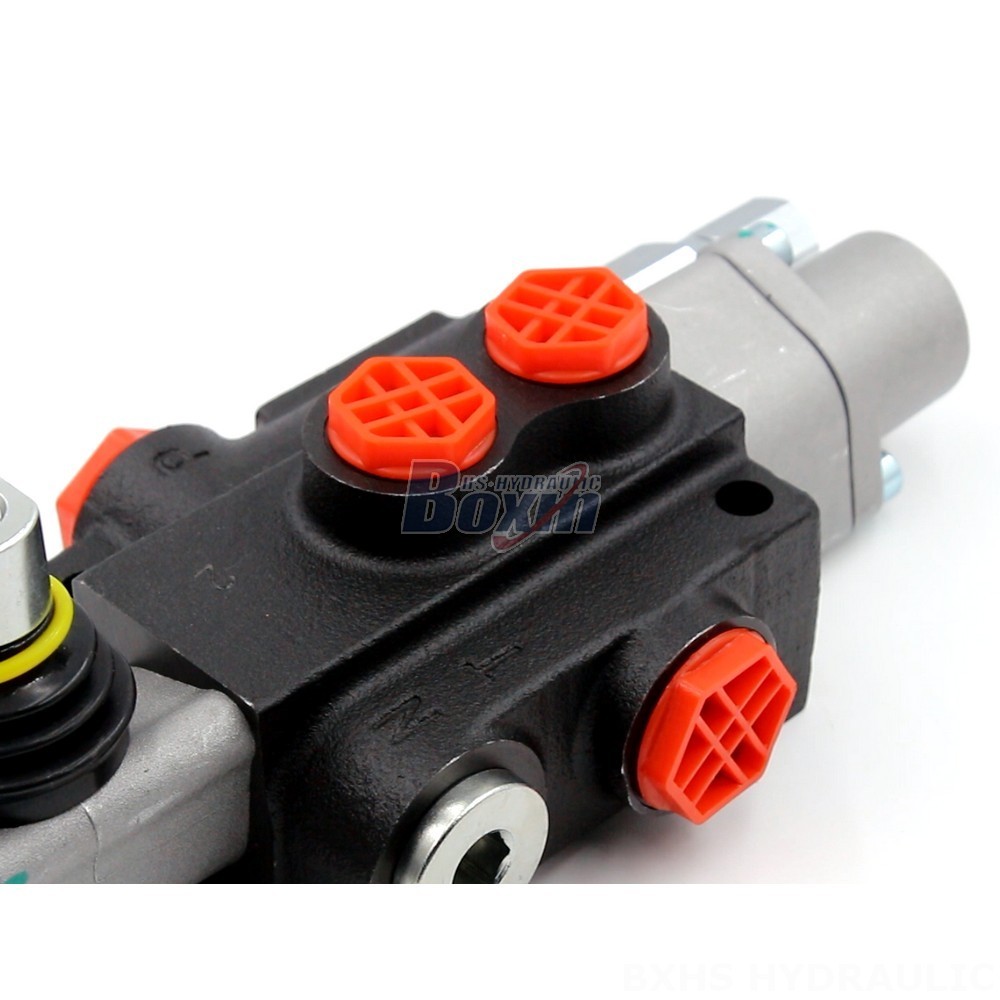

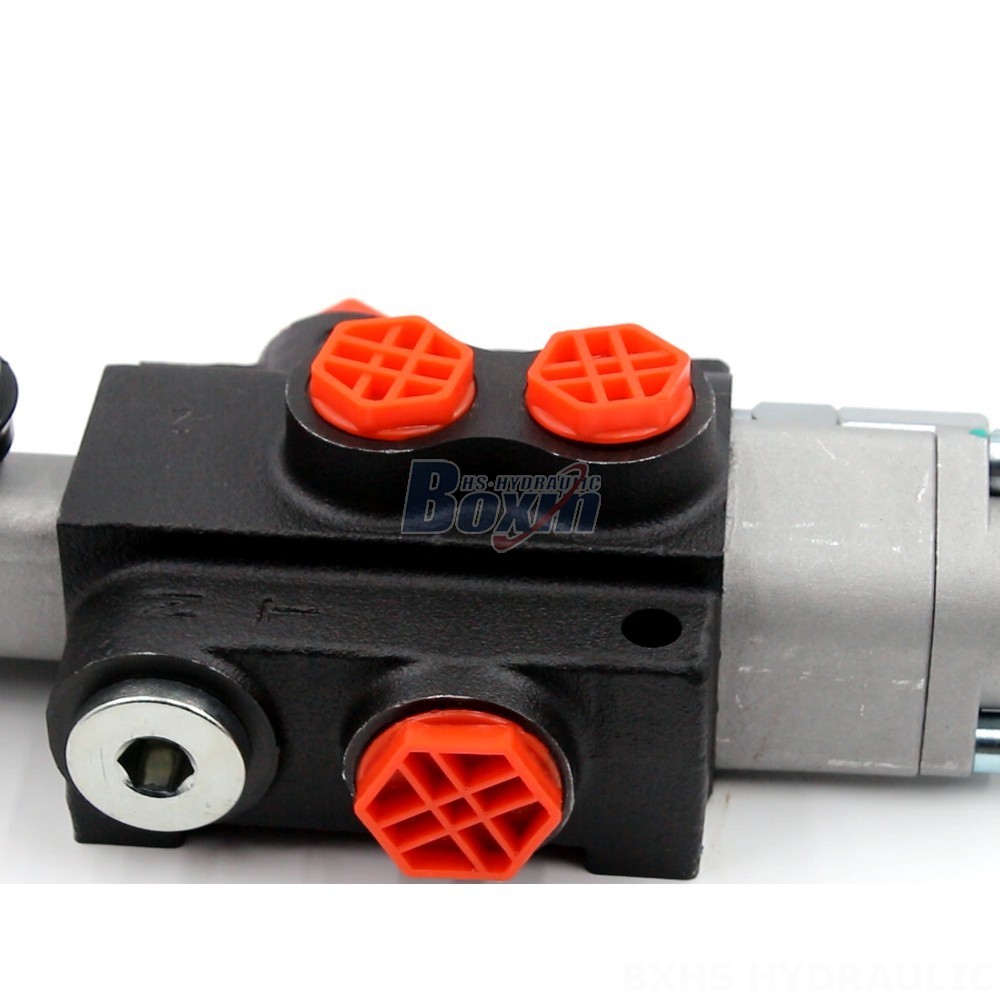

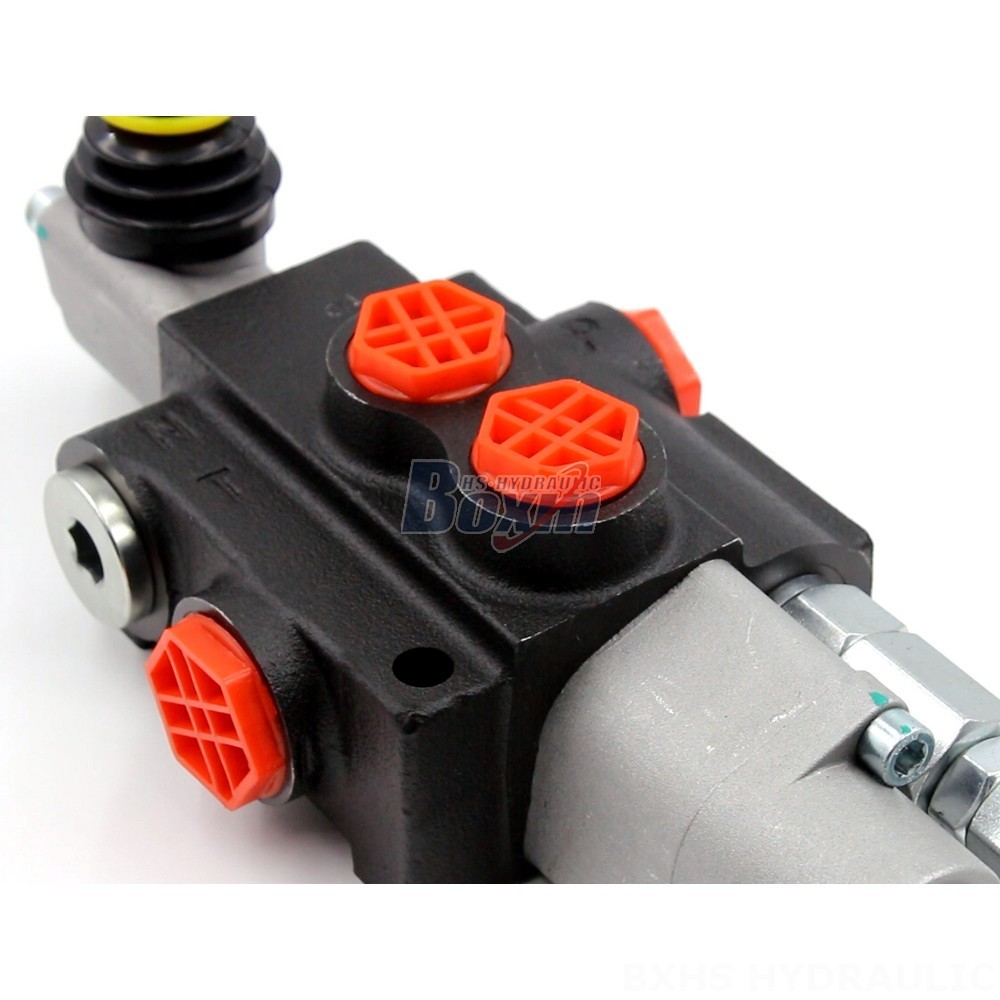

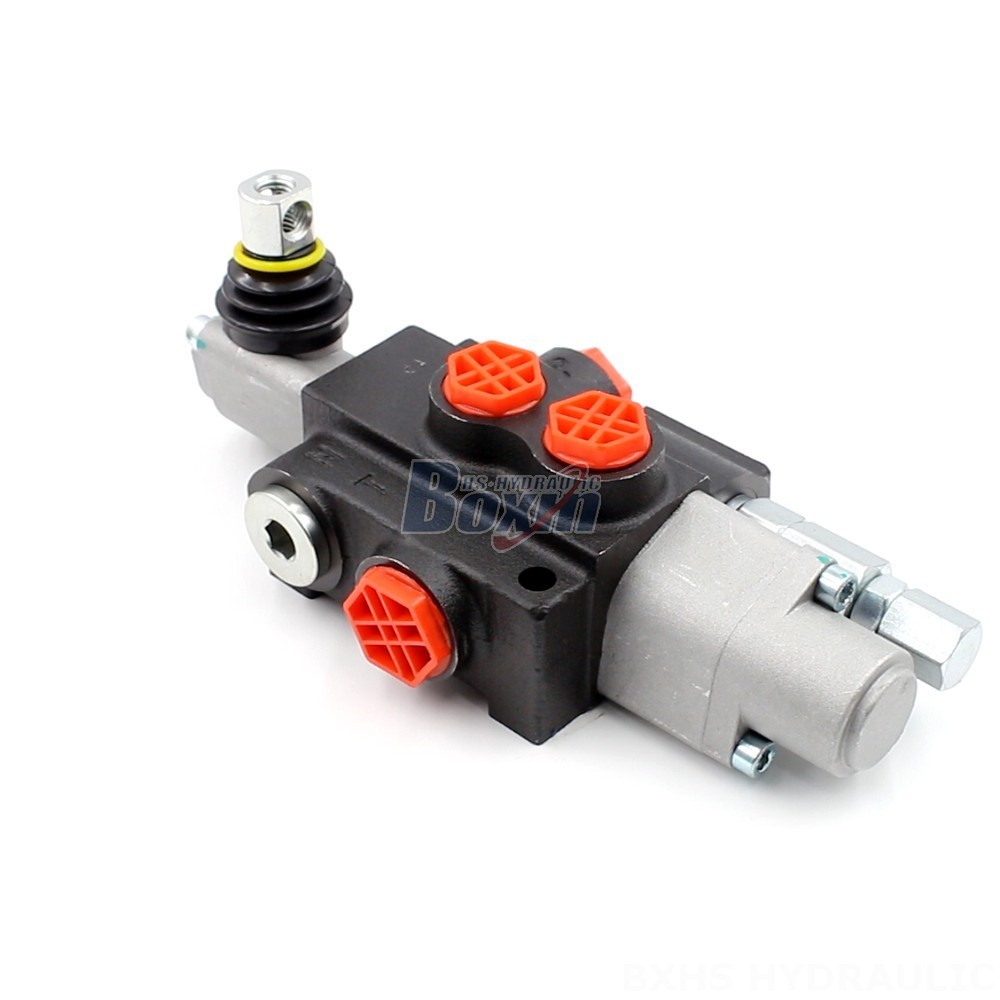

The Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a high-performance, durable valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, a rated flow of 40 L/min, and a maximum pressure of 250 bar. Available for customization, this valve is perfect for a variety of applications including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This Valve Wood Splitter P40 1-Spool Hydraulic Directional Valve is a manual control, 1-section, monoblock valve. With a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve can handle demanding applications. Its operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt) and it operates in an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is designed for use in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, and aerial platforms. This valve is available for customization and is factory direct.
