Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1146 Pandangan Mencari Produk Ini

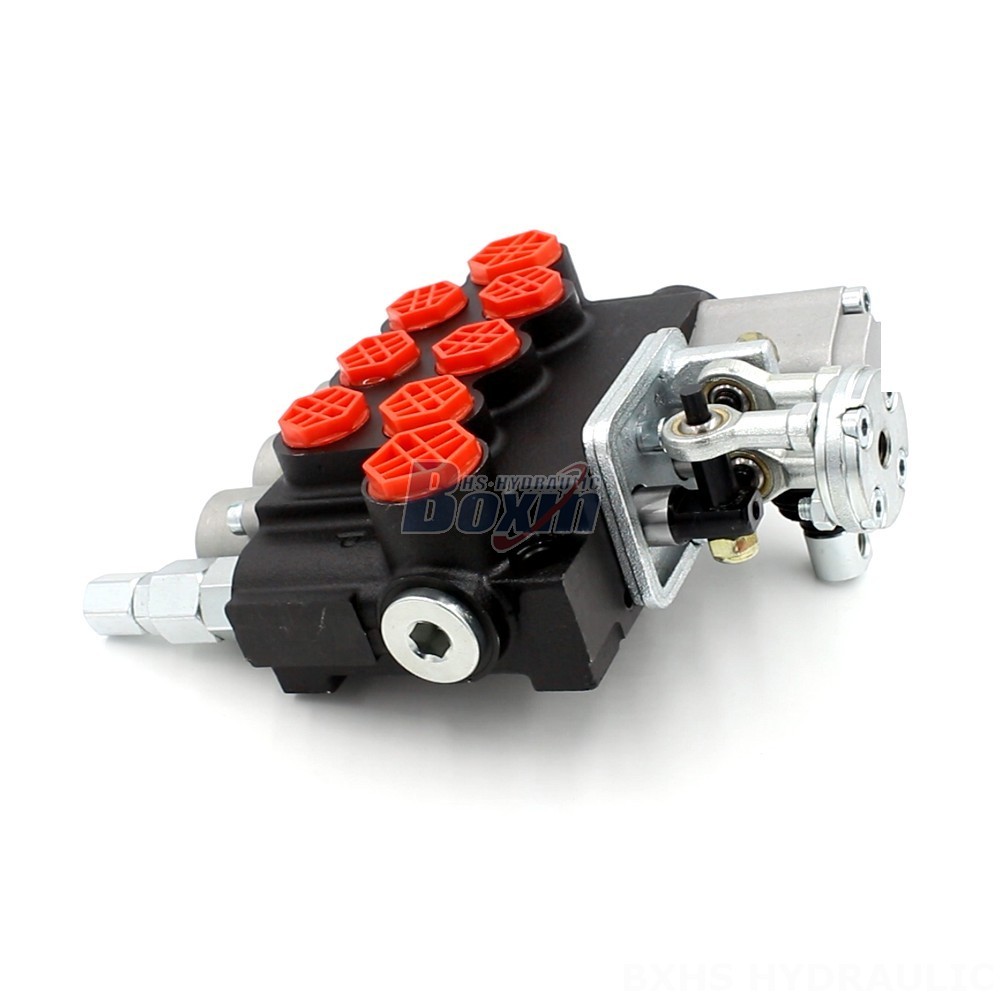

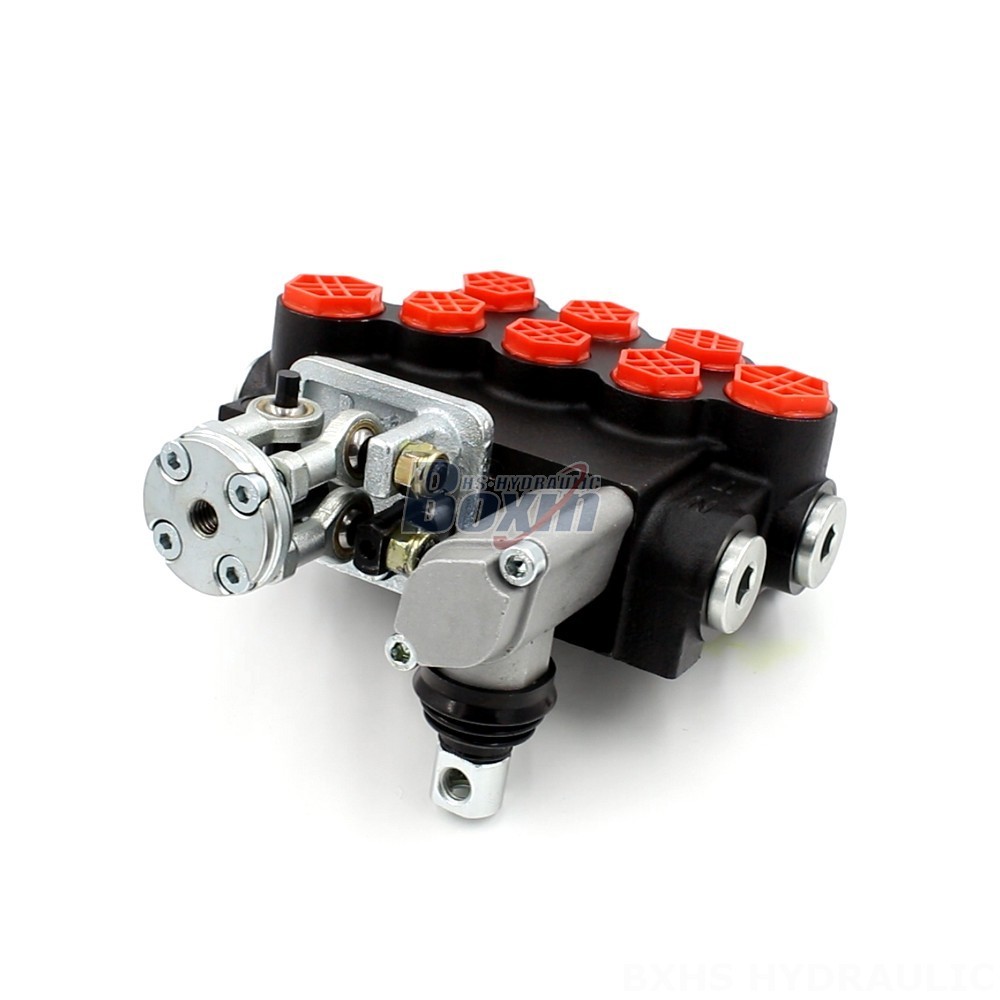

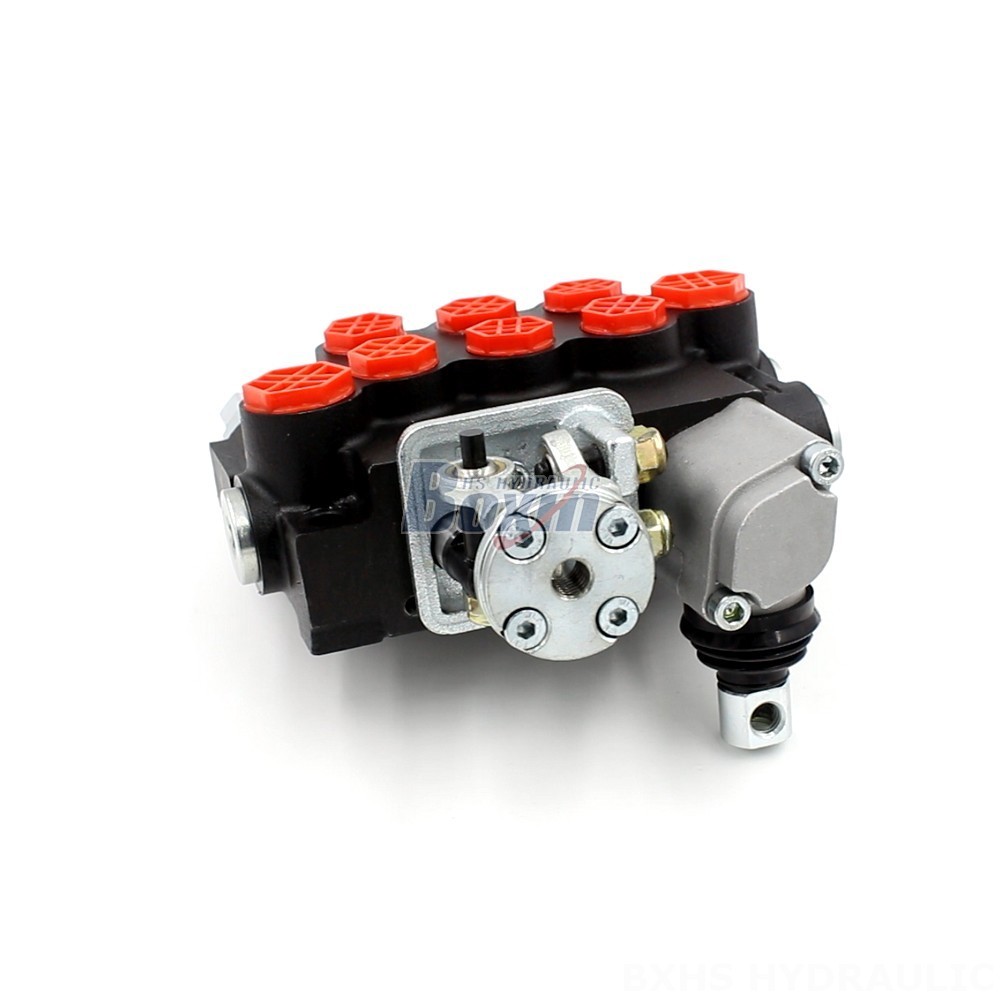

The P40 Series Level Control Valve is a high-performance, 3-spool directional valve designed for demanding applications in construction, agriculture, and material handling. This robust monoblock valve offers manual and joystick control options, providing precise and reliable hydraulic control.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40 Series Level Control Valve features a compact design, high flow rate (40 L/min), and a maximum pressure rating of 250 bar. It is suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders. This valve is built for durability and reliable performance in challenging environments, with an operating temperature range of -40°C to +80°C.
