P40 3 Spool Monoblock Directional Valve - Wholesale, OEM & Customization Options

Metode Kontrol:Selenoid dan Joystick

Spul:3 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G3/8

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:30*22*15

Kelas kotor:10.00 kg

Ketersediaan: Tersedia

922 Pandangan Mencari Produk Ini

P40 3 Spool Monoblock Directional Valve - Wholesale, OEM & Customization Options

P40 3 Spool Monoblock Directional Valve - Wholesale, OEM & Customization Options

P40 3 Spool Monoblock Directional Valve - Wholesale, OEM & Customization Options drawing image

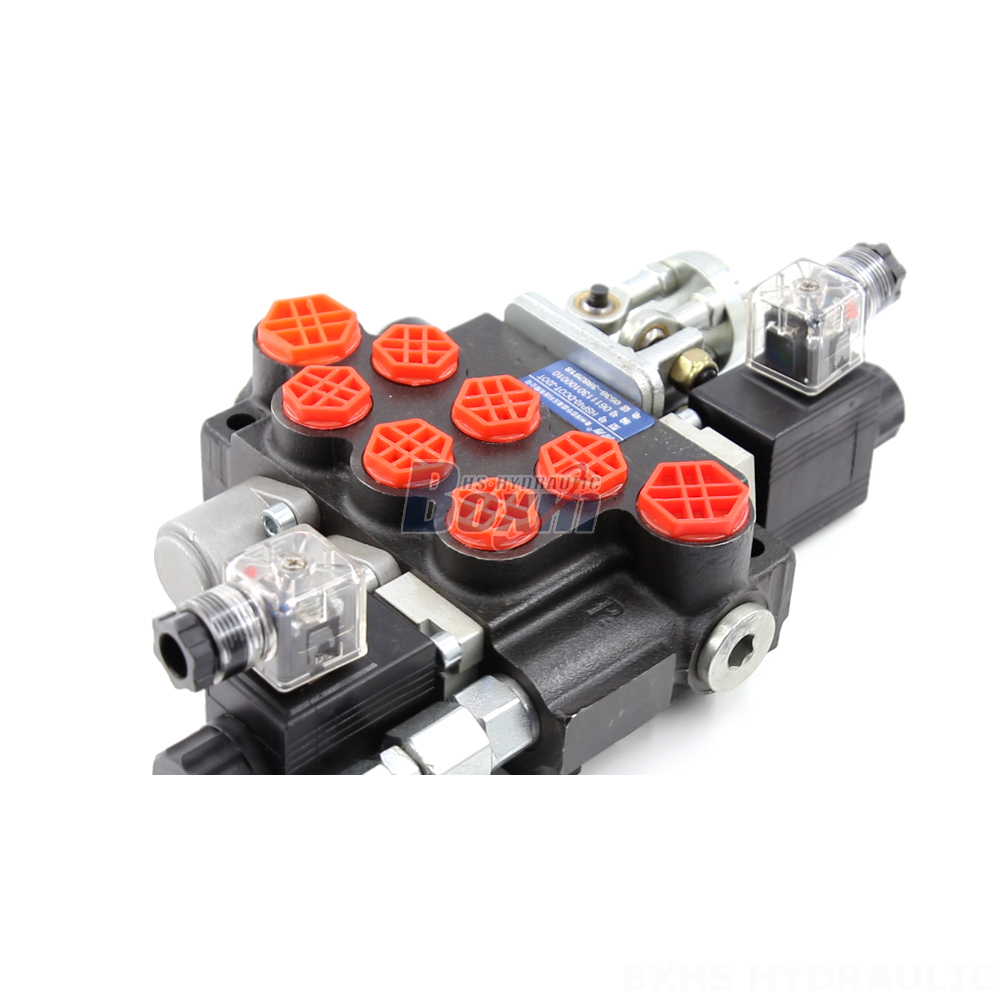

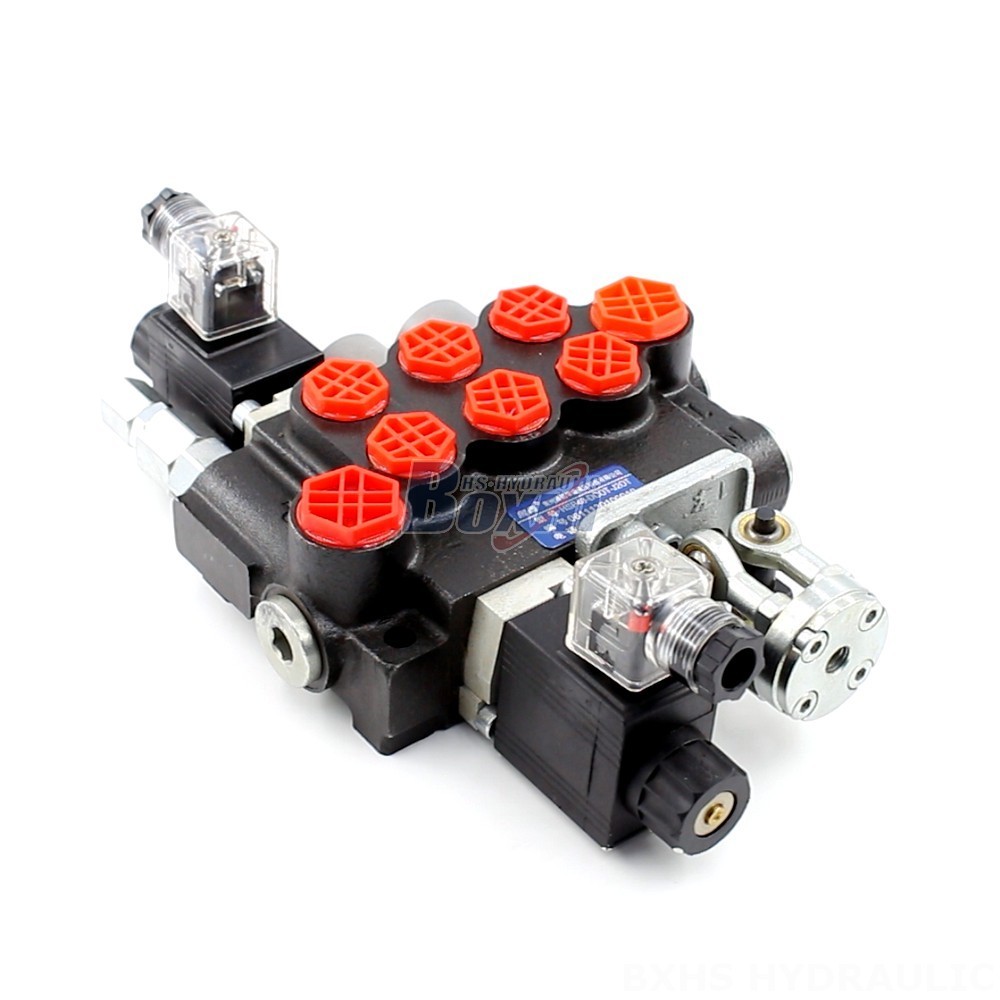

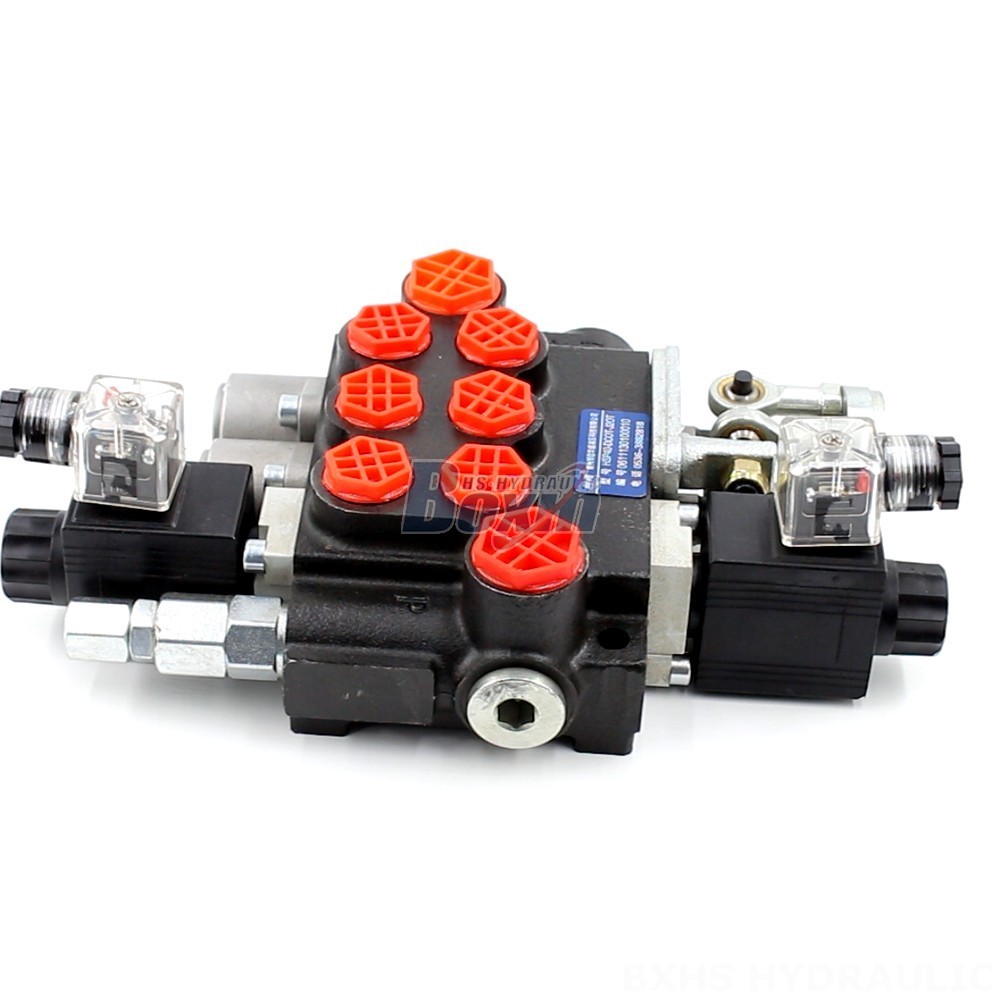

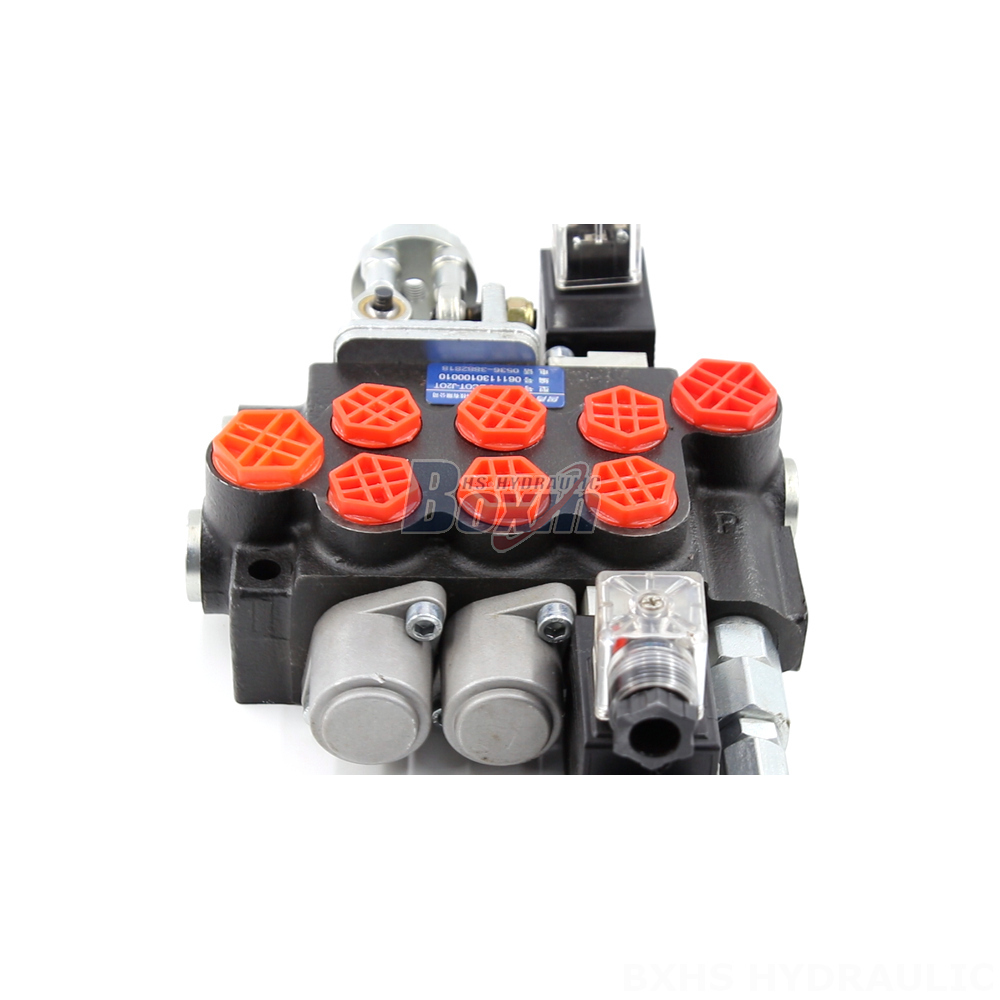

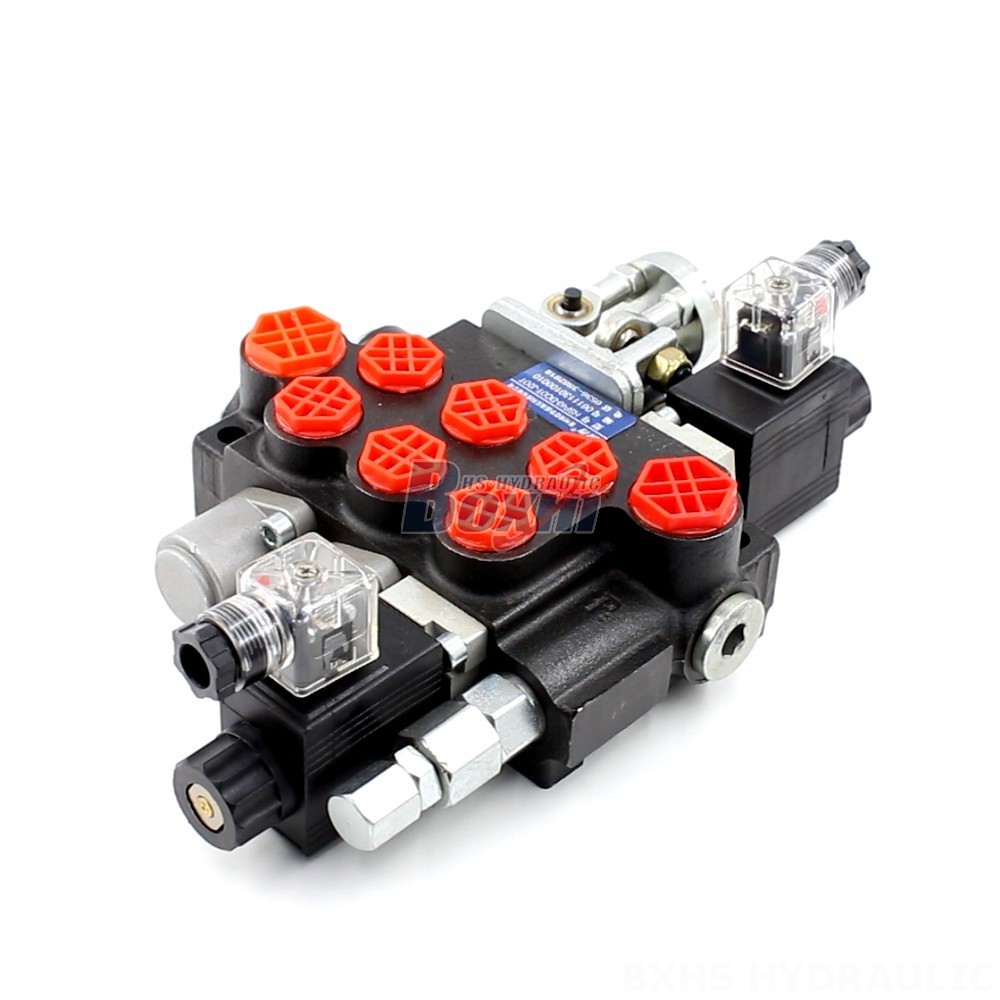

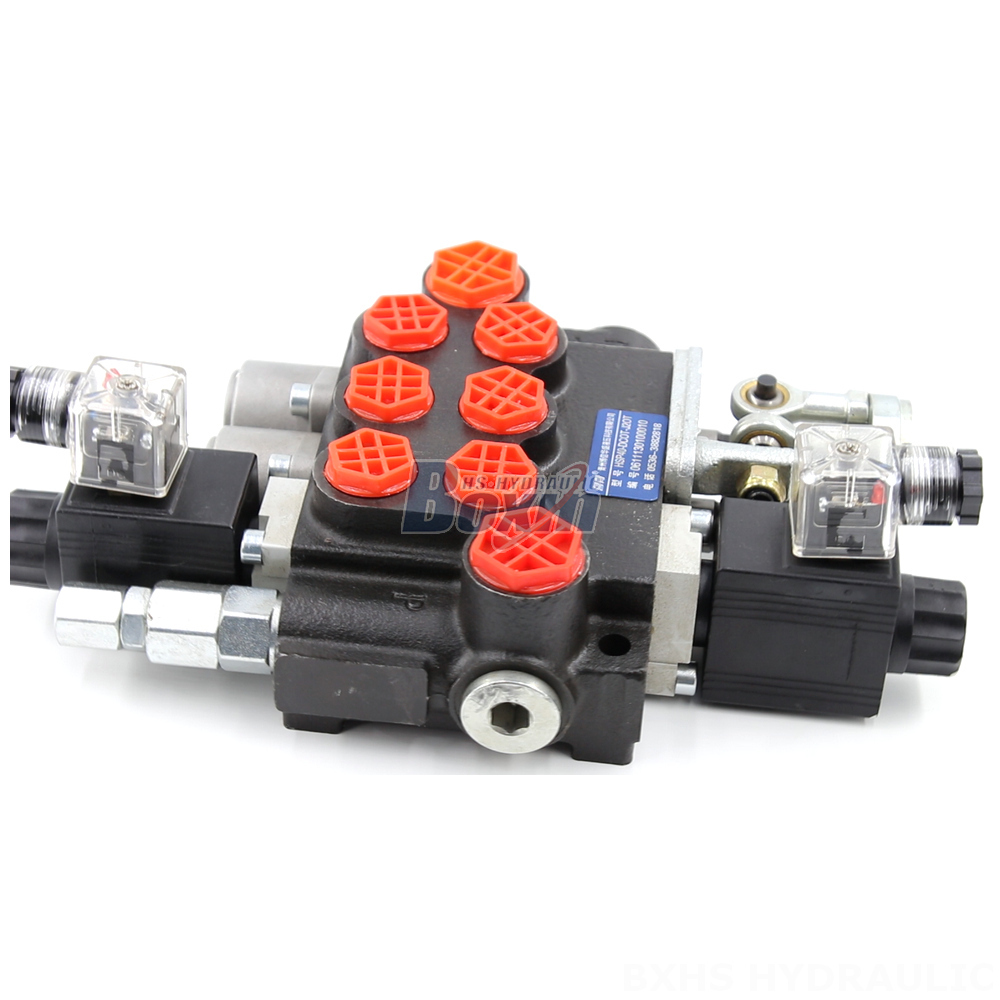

The P40 3 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, earthmoving, agriculture, and industrial vehicles. With its robust construction and versatile control options, this valve is ideal for demanding environments.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40 3 Spool Monoblock Directional Valve is a reliable and efficient hydraulic component offering both solenoid and joystick control options. This 3-section valve features a robust monoblock design and boasts a rated flow of 40 L/min with a maximum pressure rating of 250 bar. Operating in a wide viscosity range from 15 to 75 mm²/s, this valve can withstand temperatures from -40°C to +80°C. Designed for heavy-duty applications, the P40 series is suitable for various mobile machinery including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, tractors, and harvesters. We offer wholesale, OEM, and customization options to meet specific requirements. We are actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
