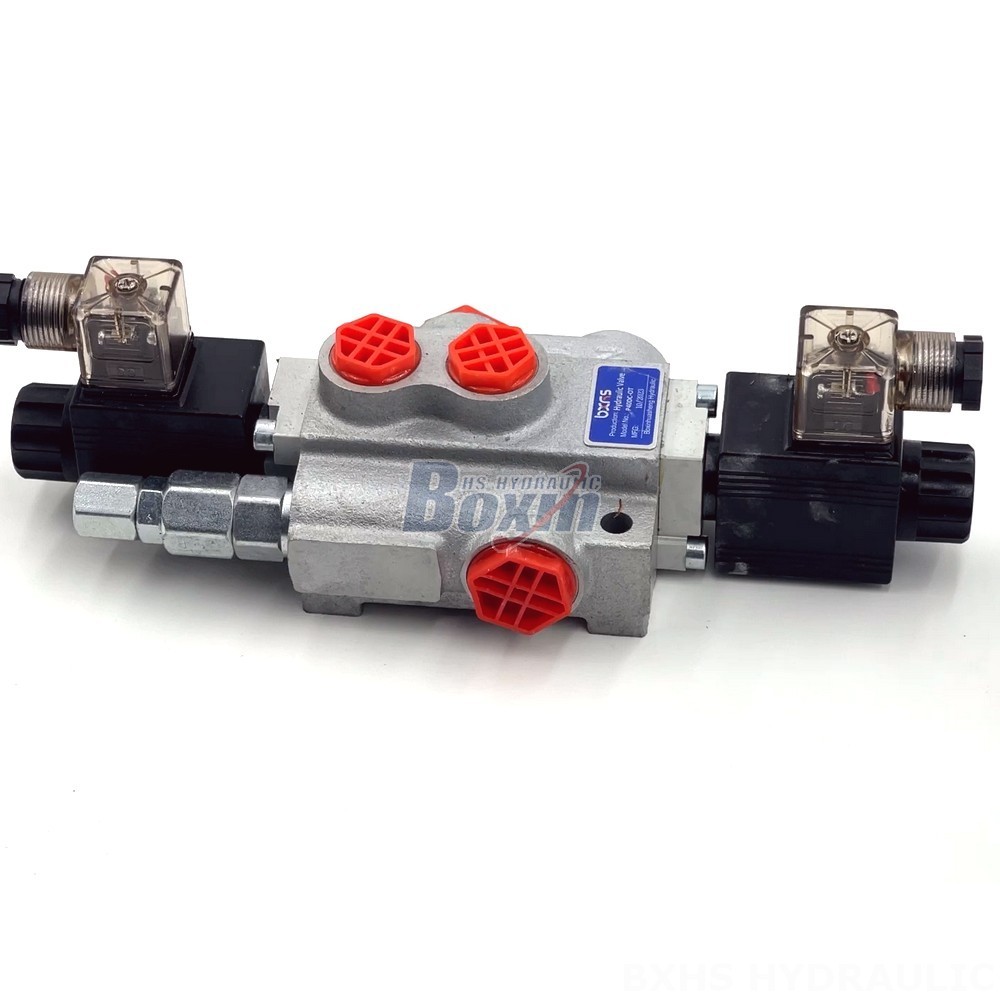

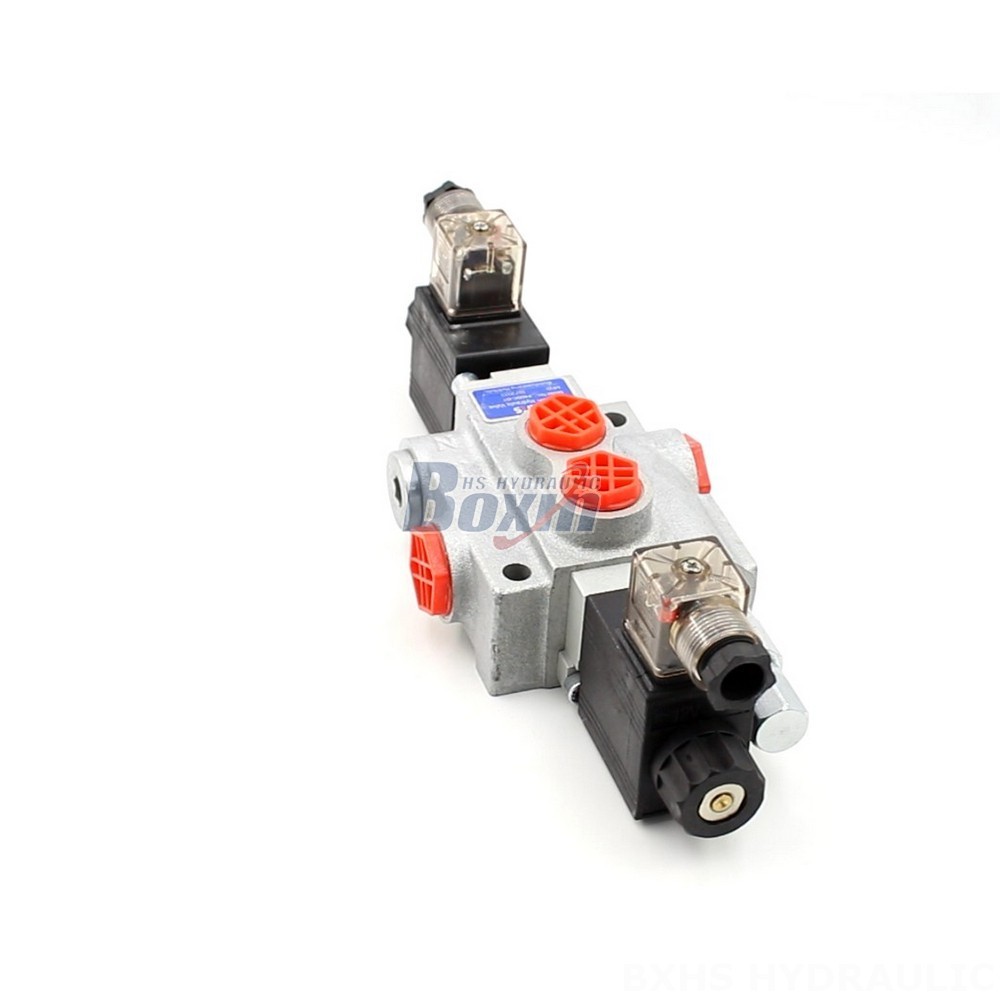

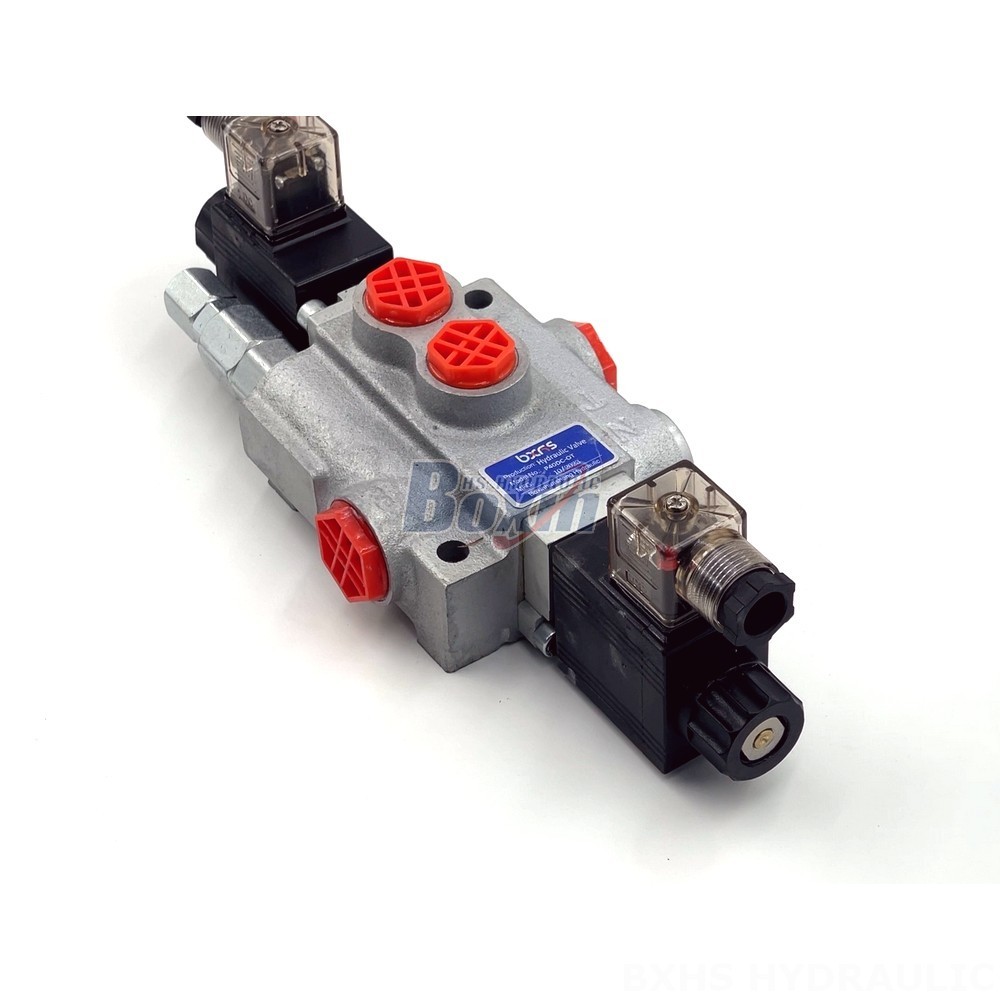

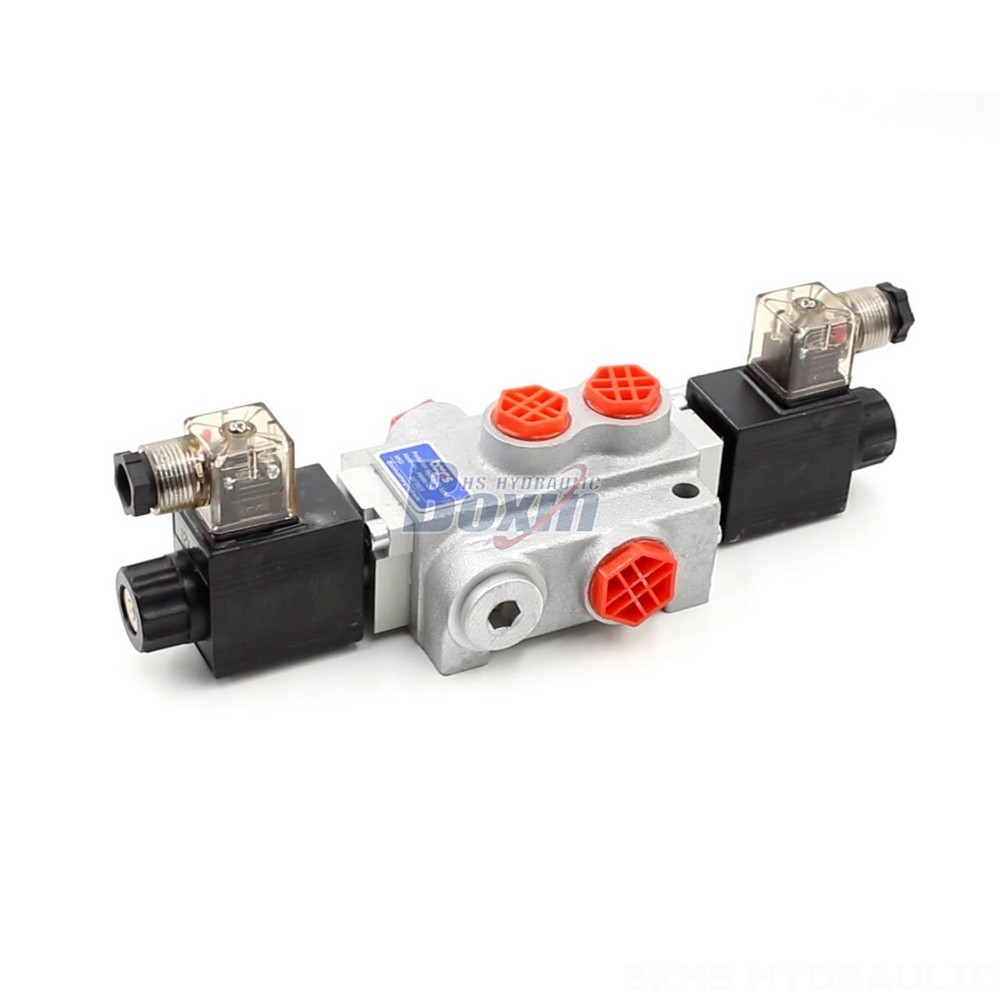

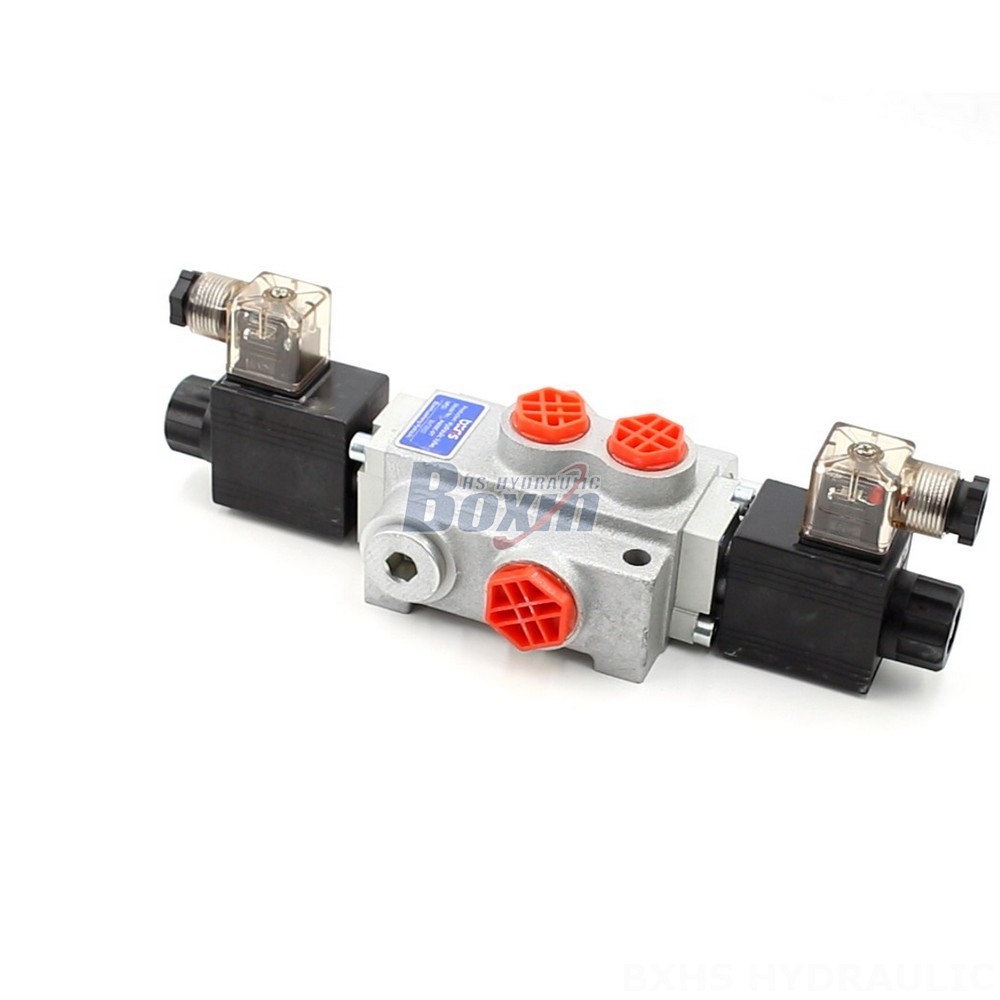

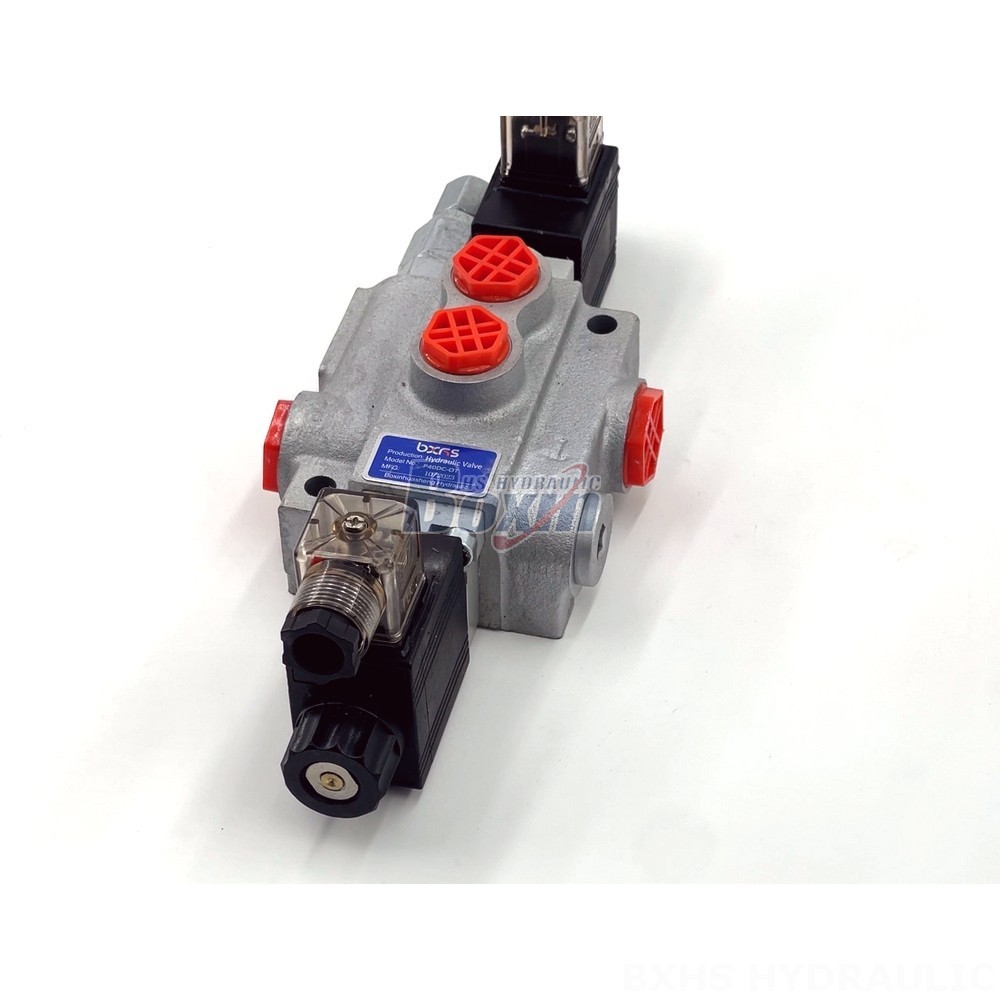

The P40-DKL Solenoid 1 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for use in a wide range of industrial applications. It features a solenoid control method, a single section, and a monoblock valve structure. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding applications requiring precise control and reliability.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
**Key Features:**
* Solenoid control method for precise and responsive operation
* Single section design for easy installation and maintenance
* Monoblock valve structure for improved durability and reduced leakage
* Rated flow of 40 L/min to handle high flow rates
* Maximum pressure of 250 bar for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F)
* 1 spool for versatile control options
* P40-DKL Series for compatibility with other components
* Applications in material handling, construction and earth moving, agriculture, and industrial vehicles
* Suitable for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, skid steer loaders, compact wheel loaders, and wheel loaders
