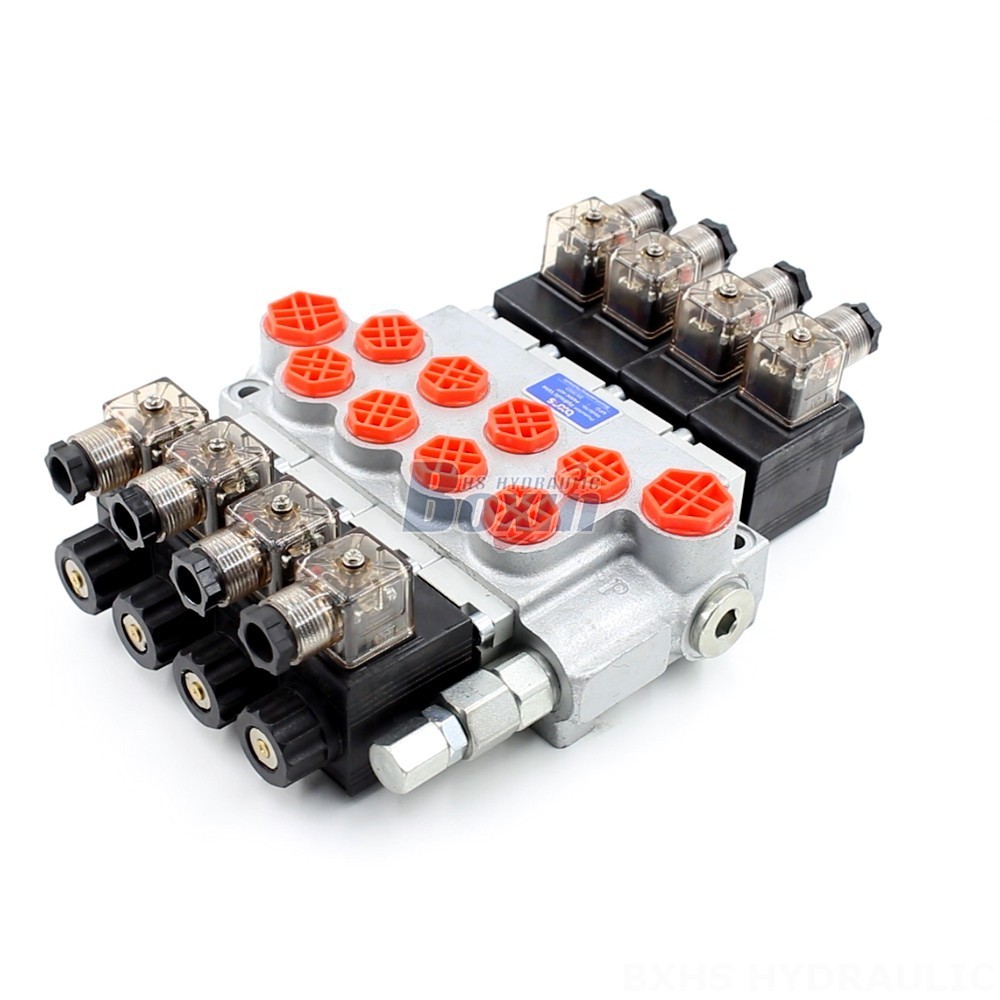

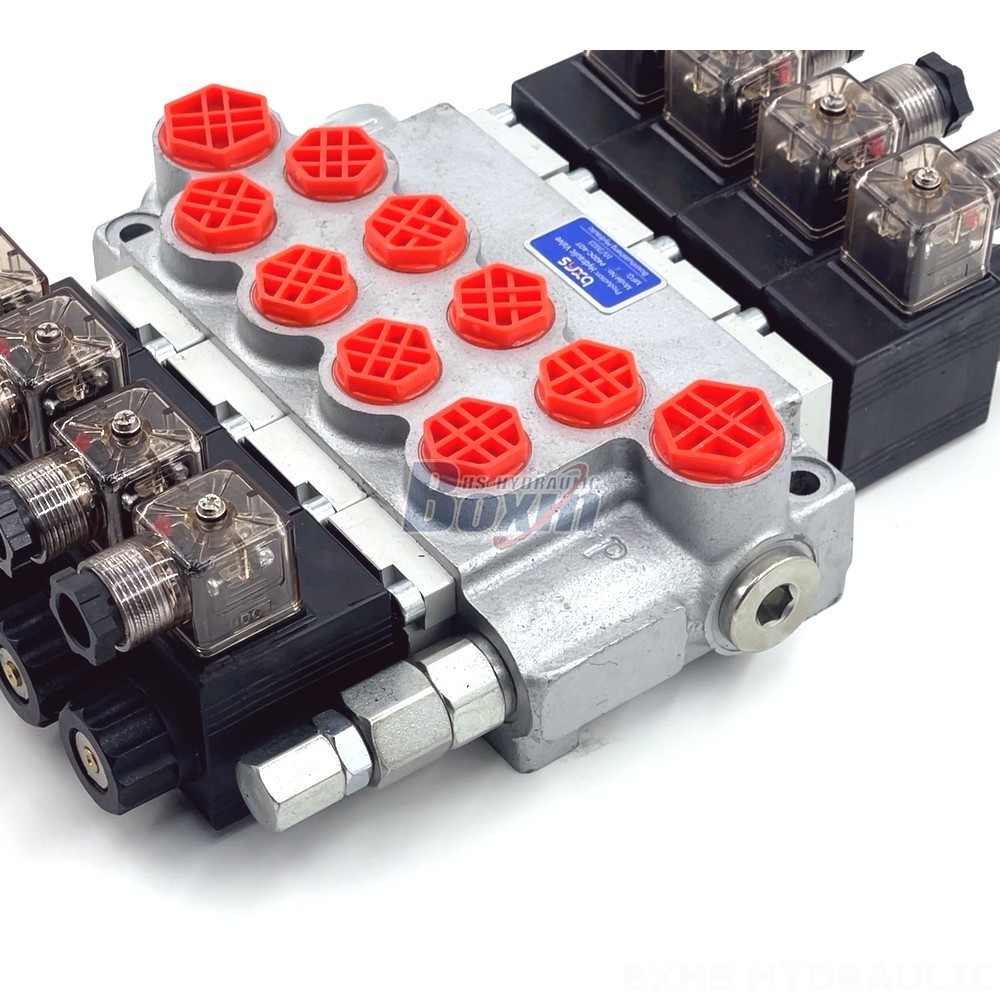

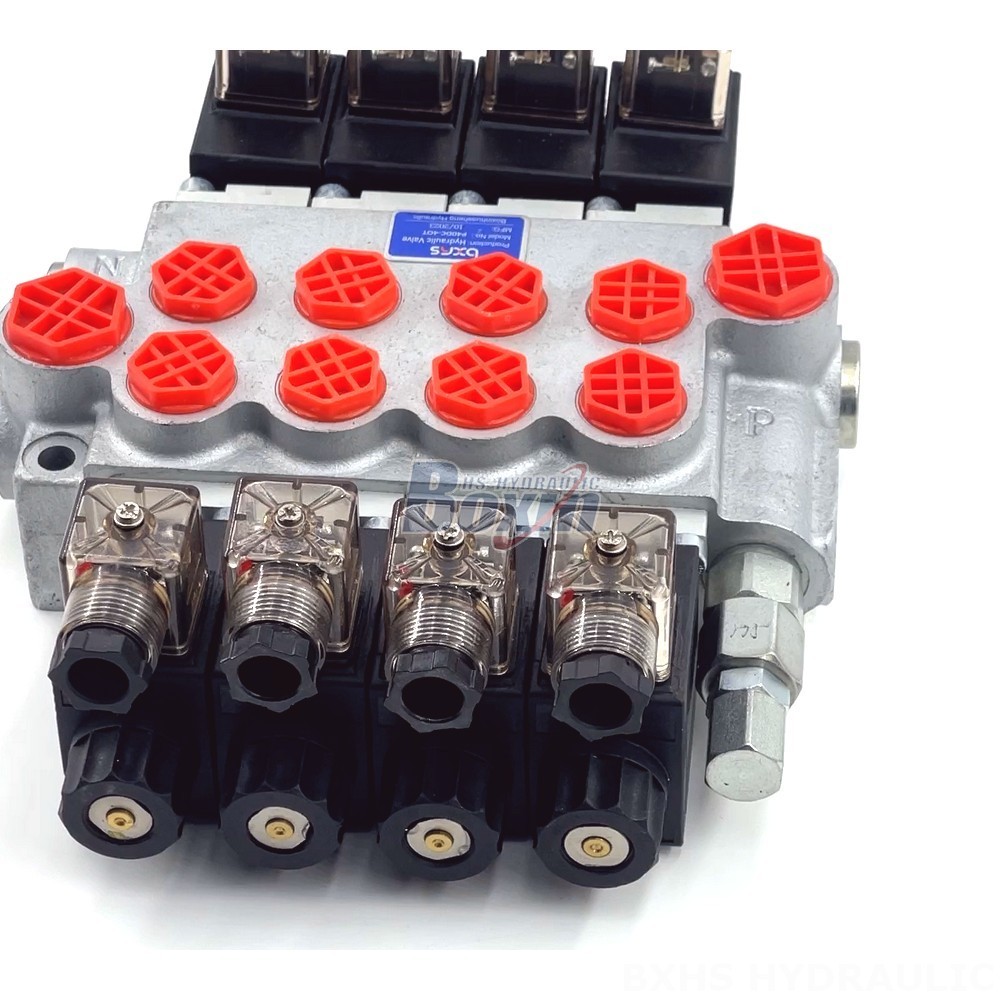

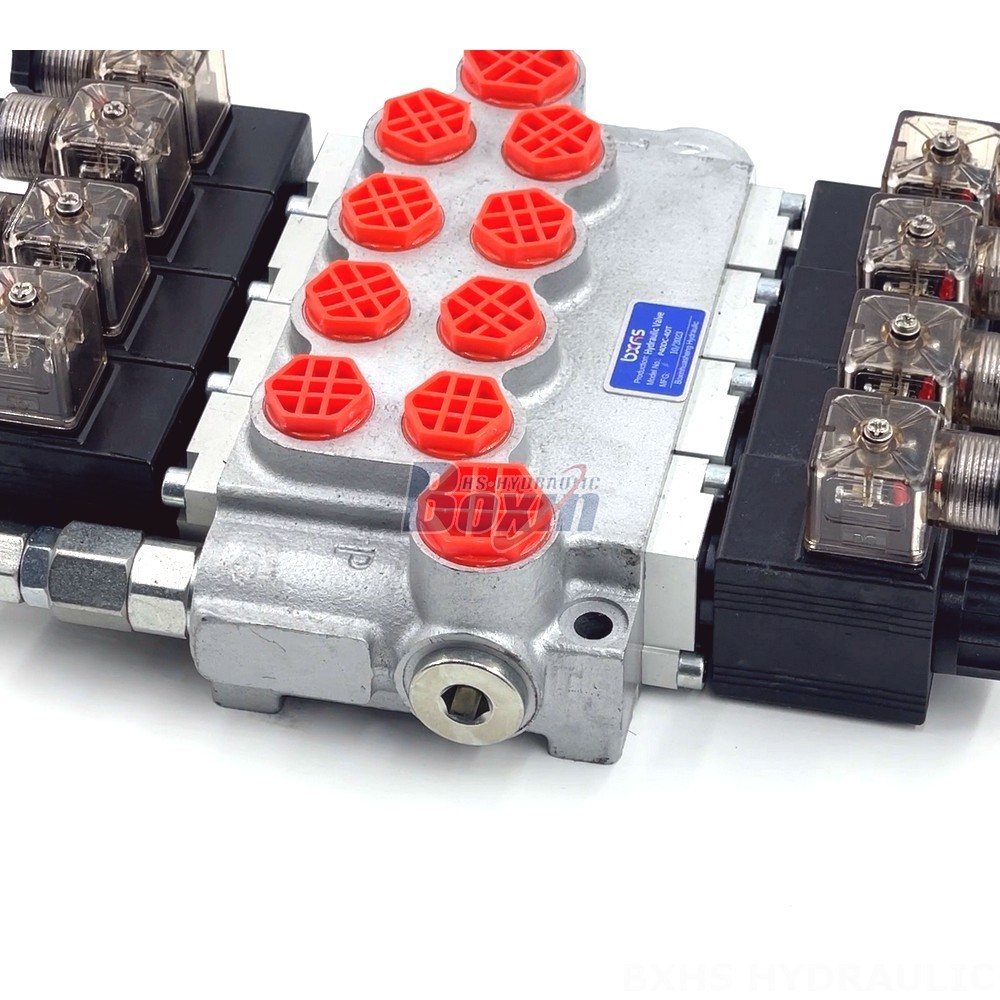

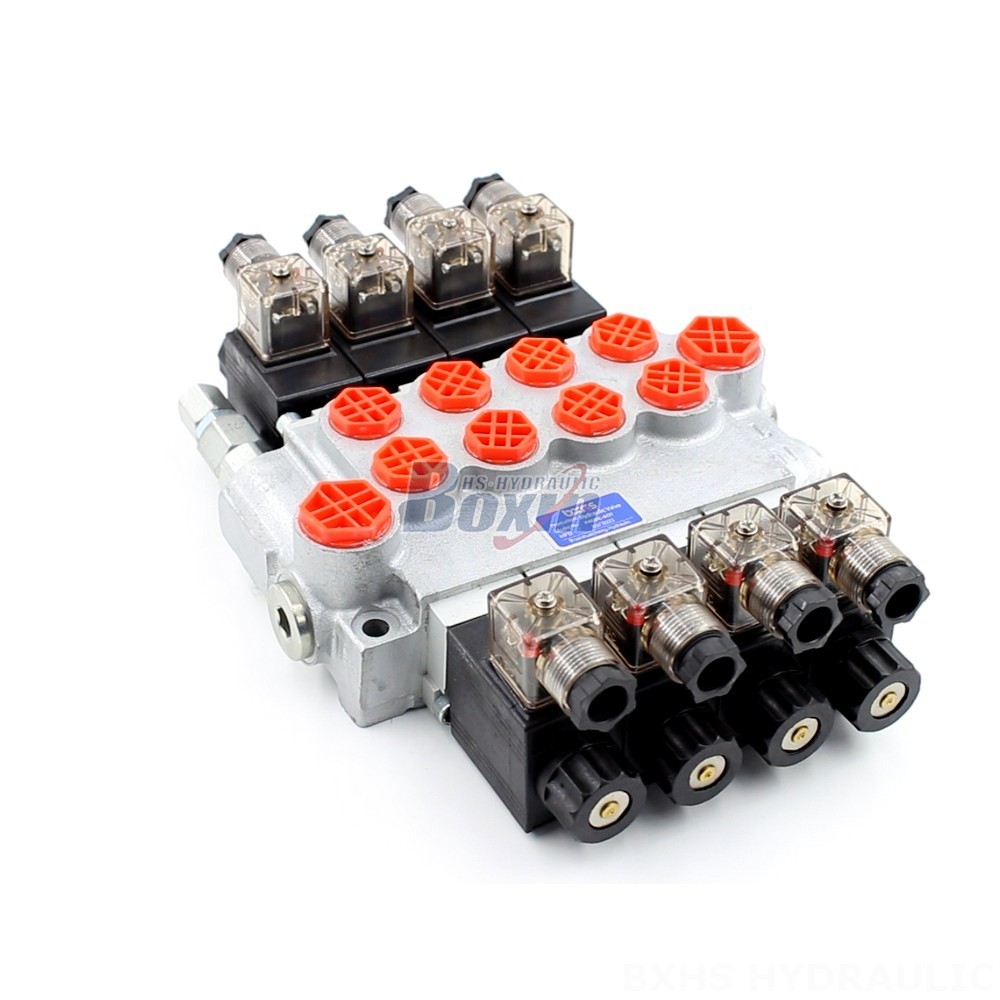

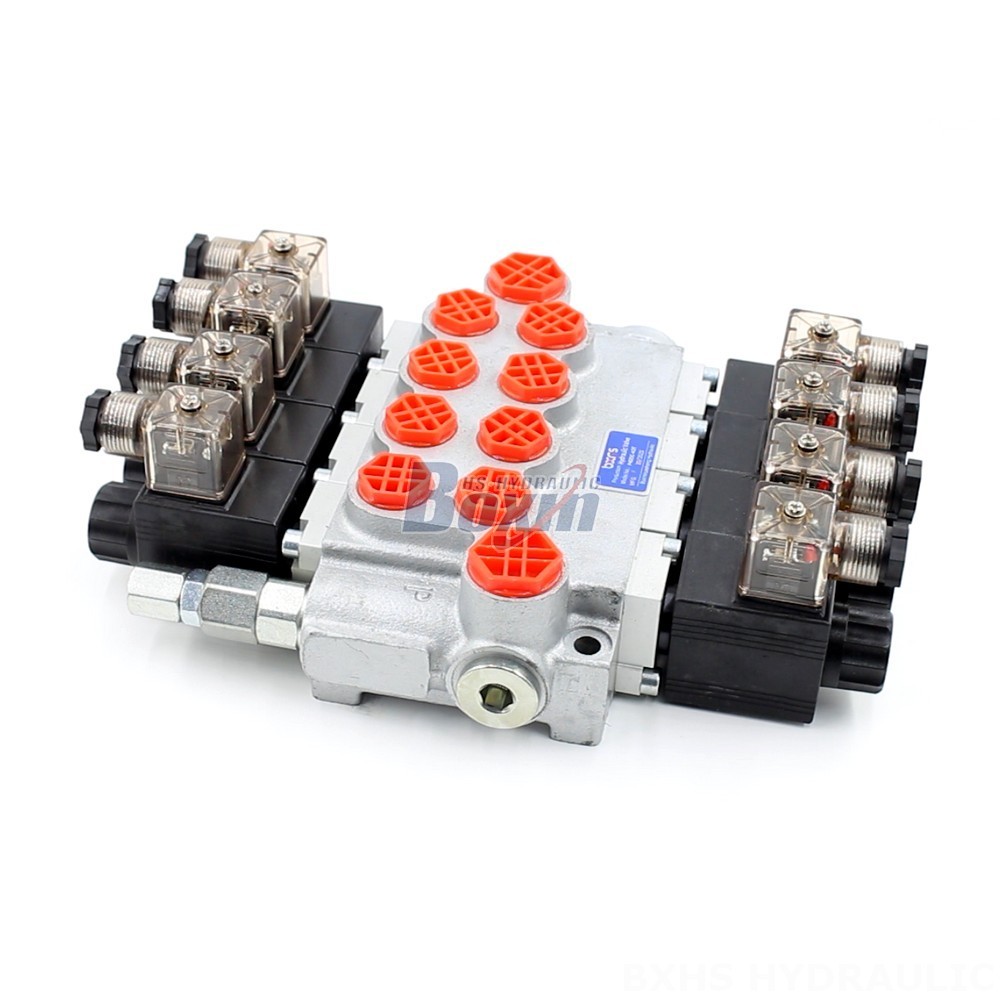

The P40-DKL Series Hydraulic Distributor is a high-performance, 4-section solenoid directional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This monoblock valve offers a rated flow of 40 L/min, a maximum pressure of 250 bar, and a wide operating viscosity range.
| P40-DKL Series Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Manual dan Joystick |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Tipe Struktur | Katup monoblok |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
The P40-DKL Series Hydraulic Distributor is a reliable and efficient solution for controlling hydraulic systems in a variety of applications. It features a compact and robust monoblock design with 4 sections and 4 spools, providing precise control over hydraulic fluid flow. The valve is capable of handling a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for heavy-duty applications. Its wide operating viscosity range ensures reliable performance in a variety of operating conditions. The P40-DKL Series is ideal for use in telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
