P40-G12-1OT Hydraulic Directional Valve | Manufacturer & Global Supplier

Metode Kontrol:Buku Panduan

Spul:1 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*16*11

Kelas kotor:3.00 kg

Ketersediaan: Tersedia

1191 Pandangan Mencari Produk Ini

P40-G12-1OT Hydraulic Directional Valve | Manufacturer & Global Supplier

P40-G12-1OT Hydraulic Directional Valve | Manufacturer & Global Supplier

P40-G12-1OT Hydraulic Directional Valve | Manufacturer & Global Supplier drawing image

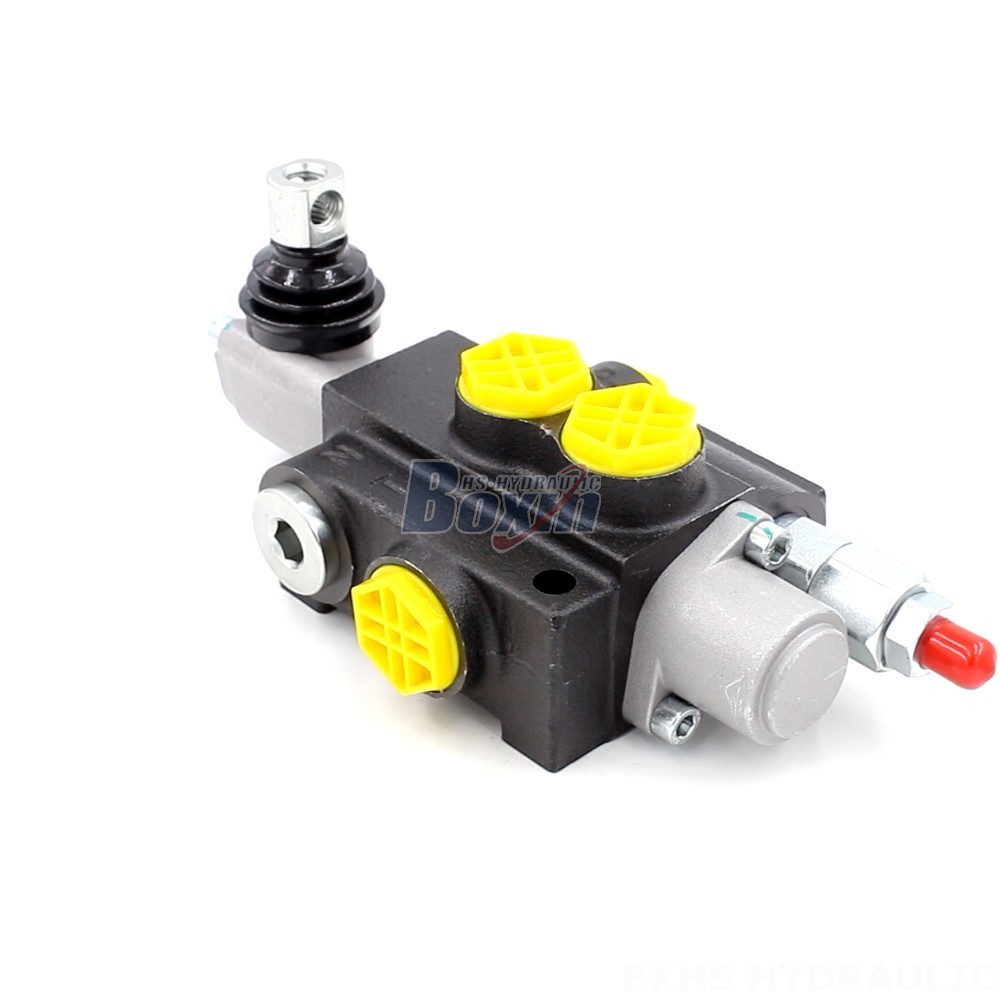

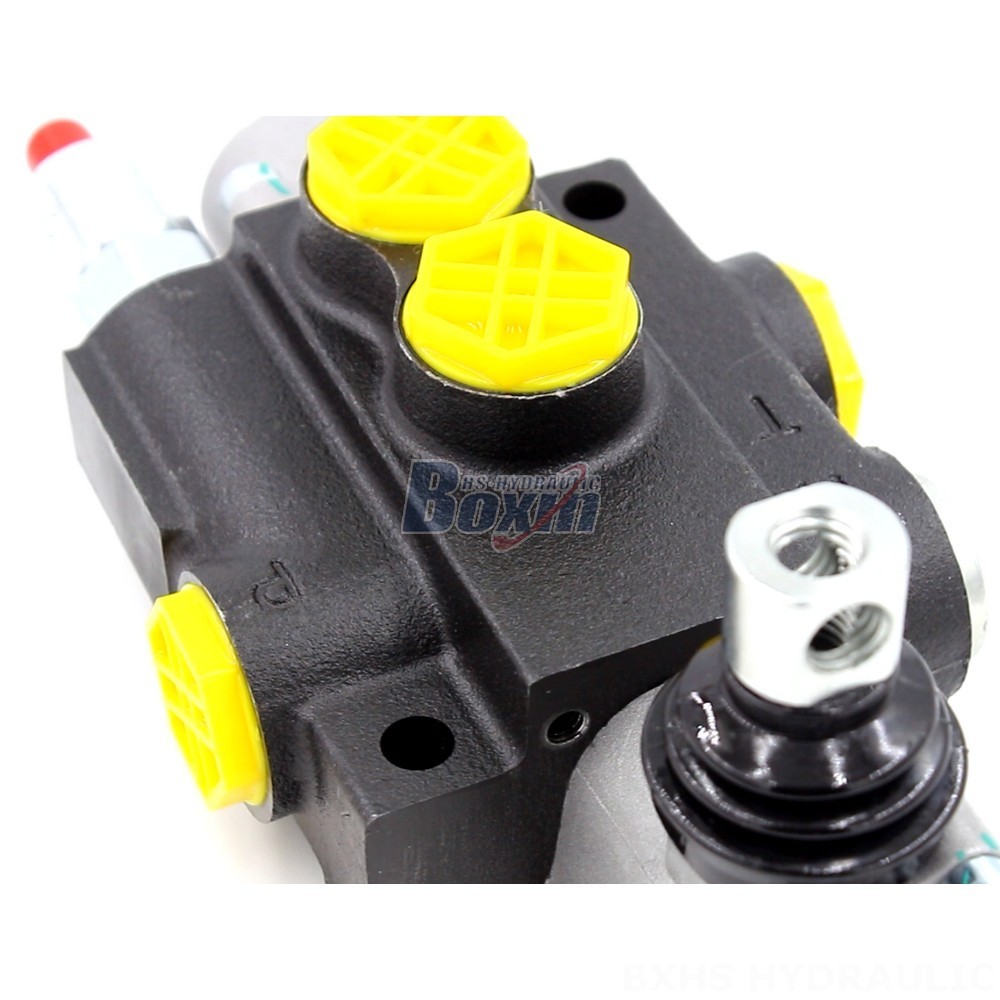

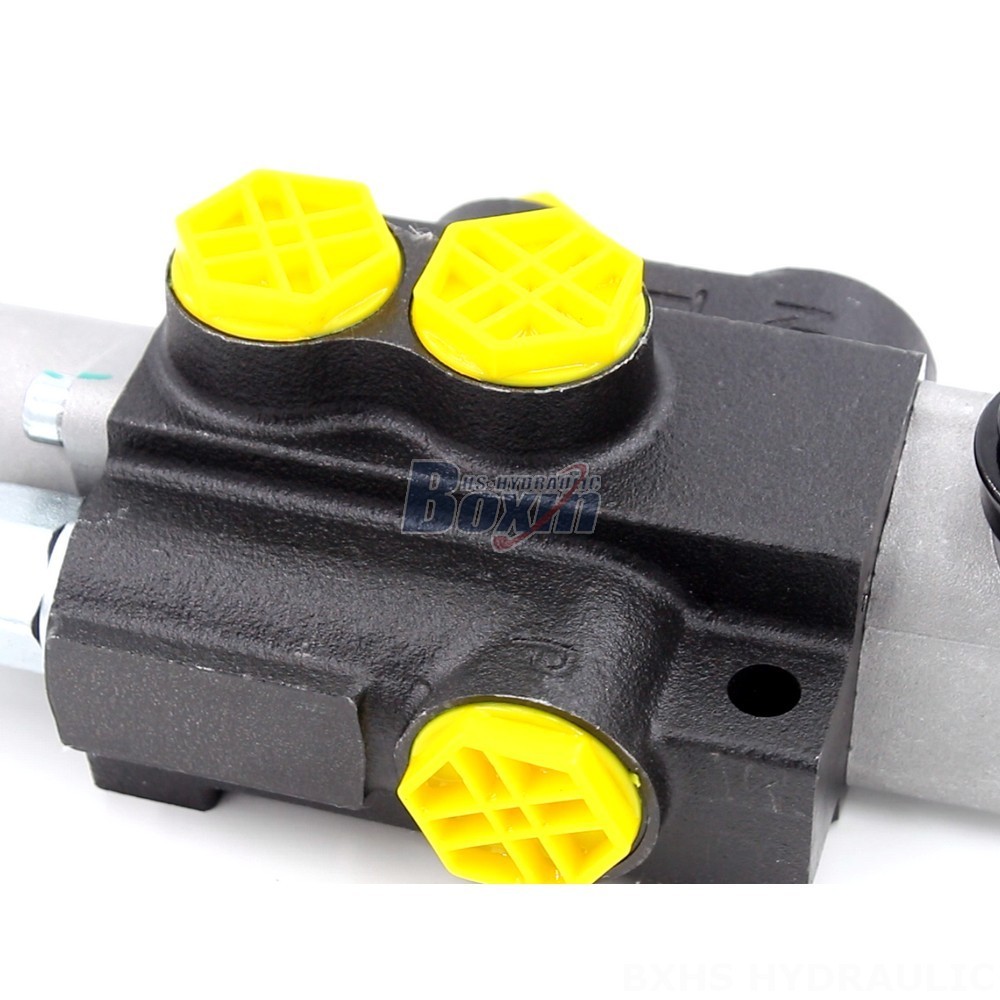

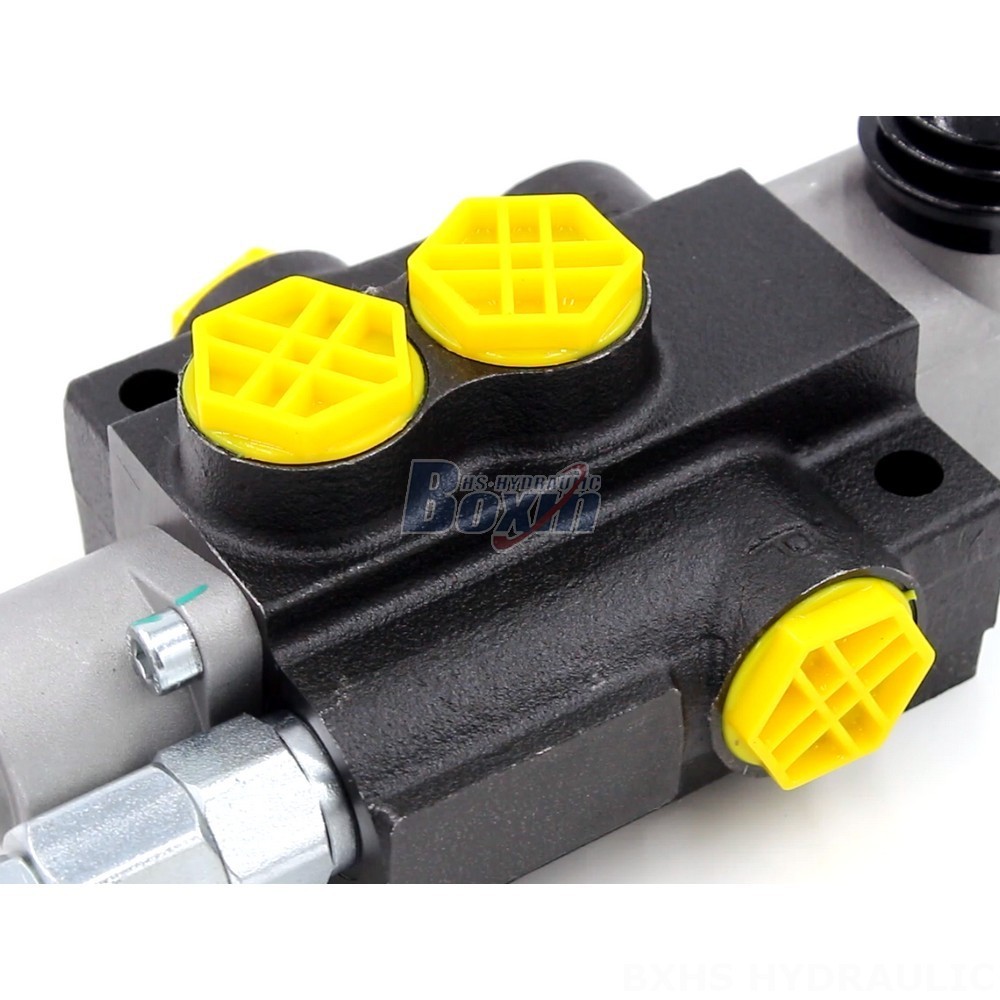

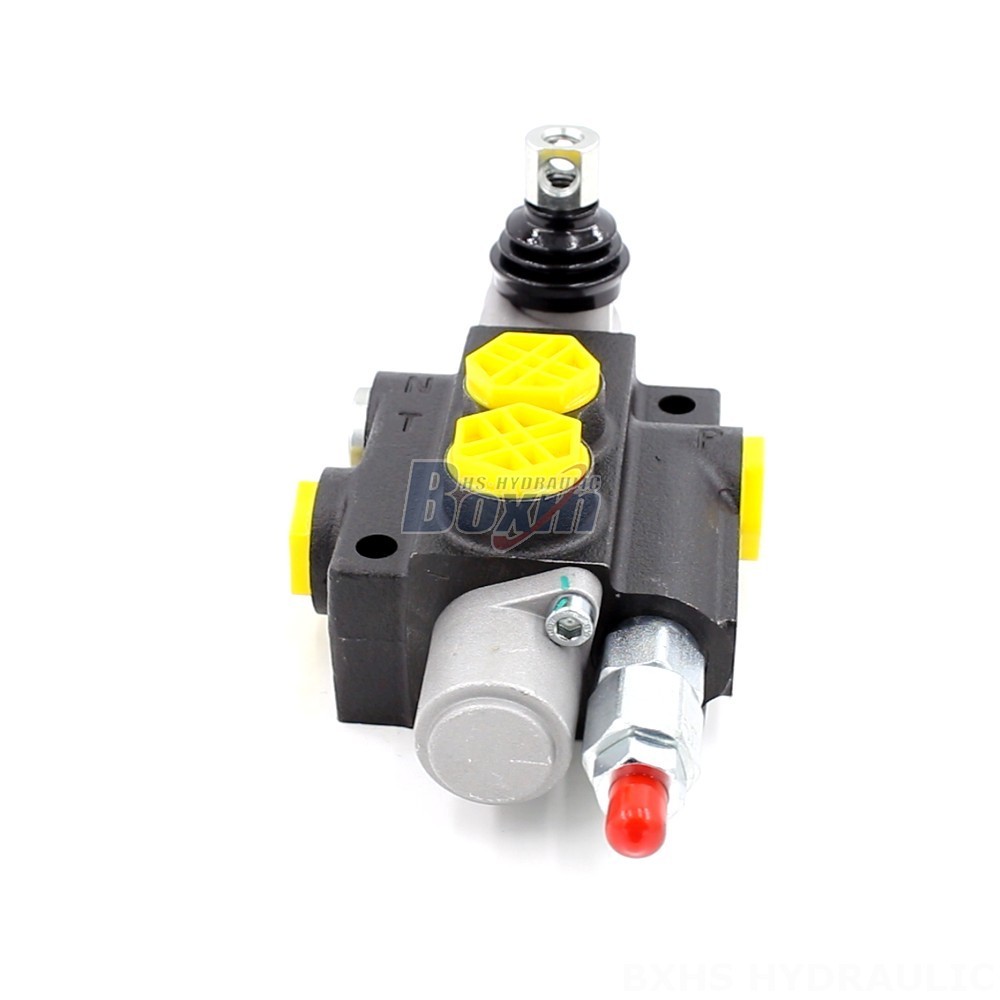

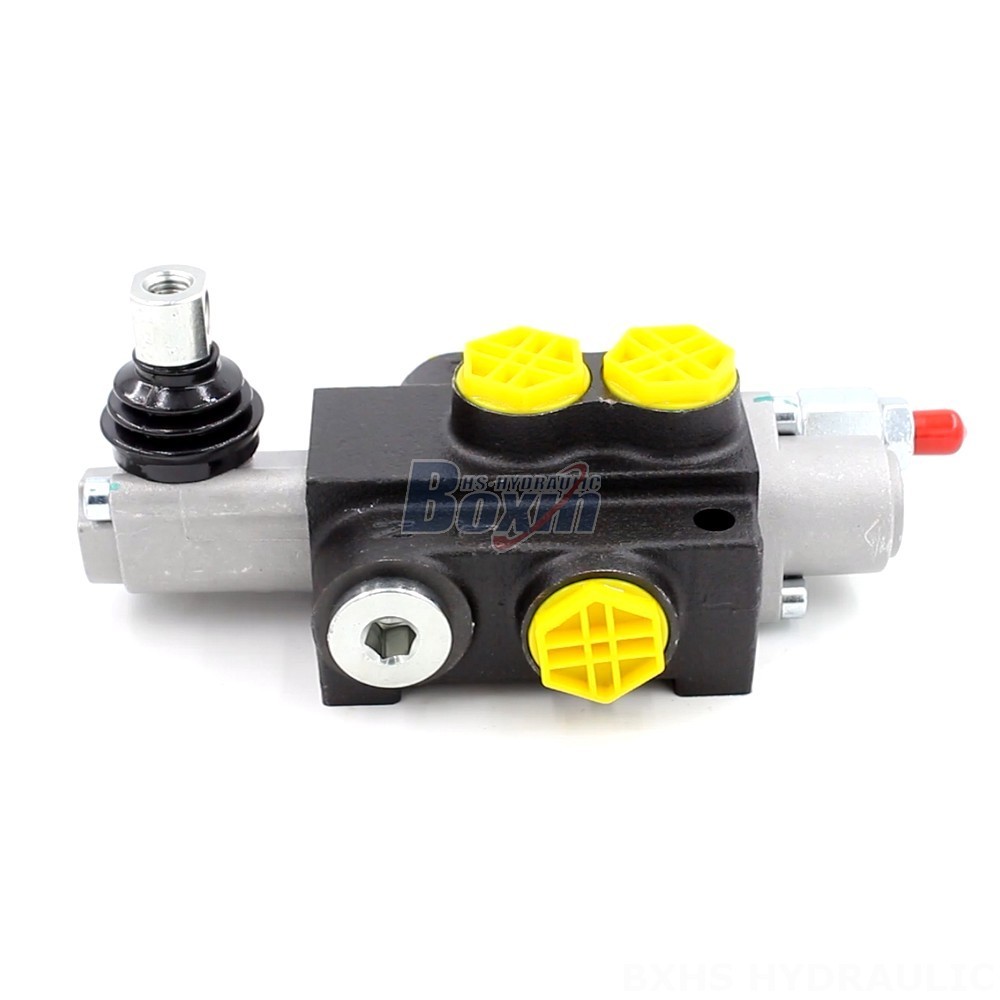

The Lkf Flow Valve P40-G12-1OT is a high-performance hydraulic directional valve designed for use in a wide range of applications, including construction equipment, material handling, industrial vehicles, and agriculture. This manual control monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding applications. It is also compatible with a variety of equipment, including telehandlers, forklifts, all-terrain cranes, and more.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The Lkf Flow Valve P40-G12-1OT is a reliable and durable hydraulic directional valve designed for heavy-duty applications. It features a robust monoblock construction and a single spool, providing a compact and efficient design. The valve is equipped with a manual control system for easy operation and offers a rated flow of 40 L/min (10.5 US gpm) with a maximum pressure of 250 bar (3600 psi). It is suitable for operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve is specifically designed for use in construction equipment, material handling, industrial vehicles, and agriculture. It is compatible with a wide range of applications and equipment models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This versatile and reliable hydraulic valve offers superior performance and durability, making it an ideal choice for a wide range of demanding applications.
