The P40-G12 2-Spool Hydraulic Directional Valve is designed for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. It features a rated flow of 40 L/min, a max pressure of 250 bar, and a manual control method.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

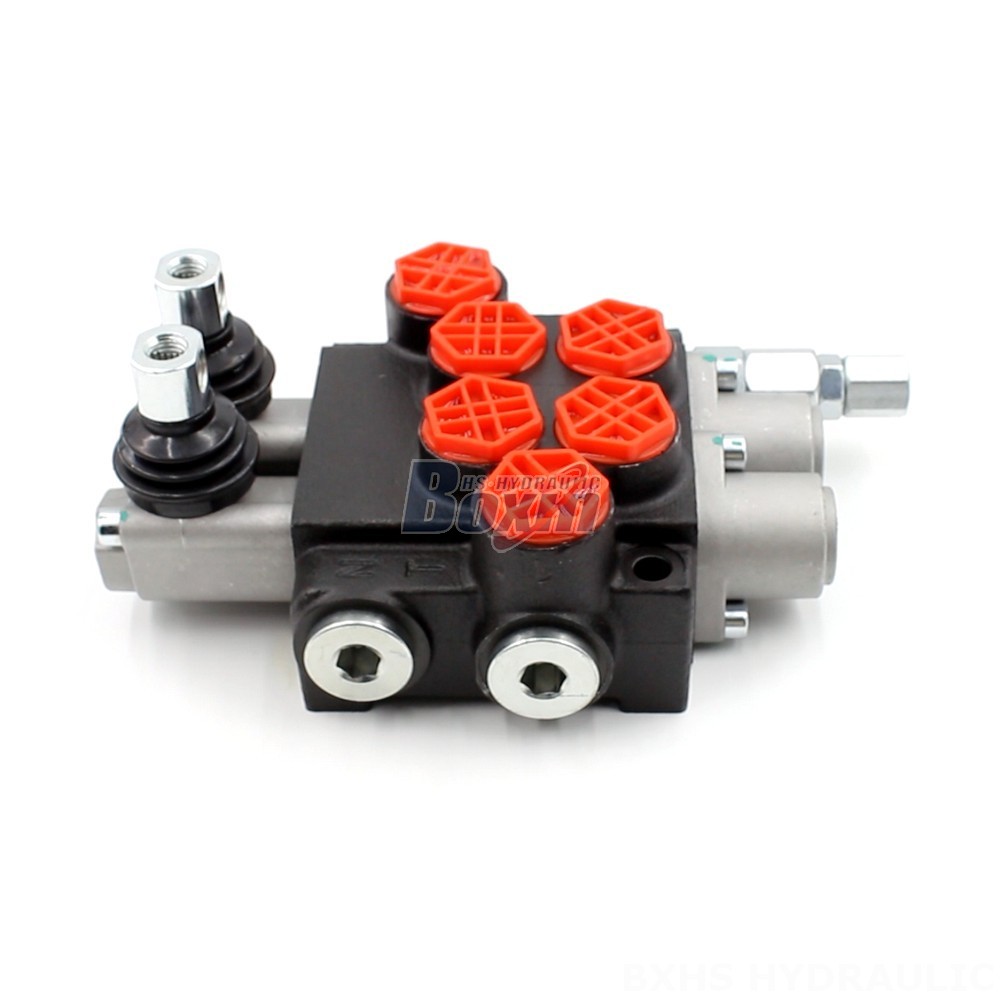

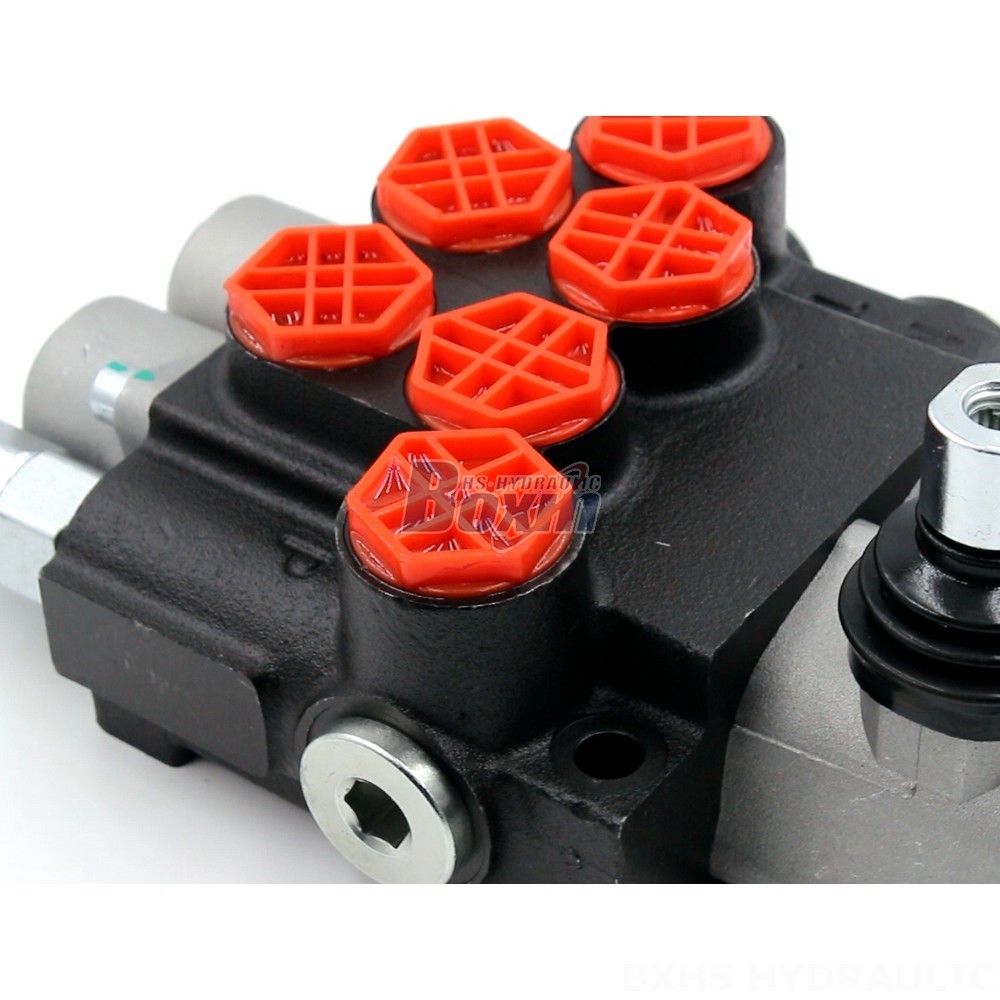

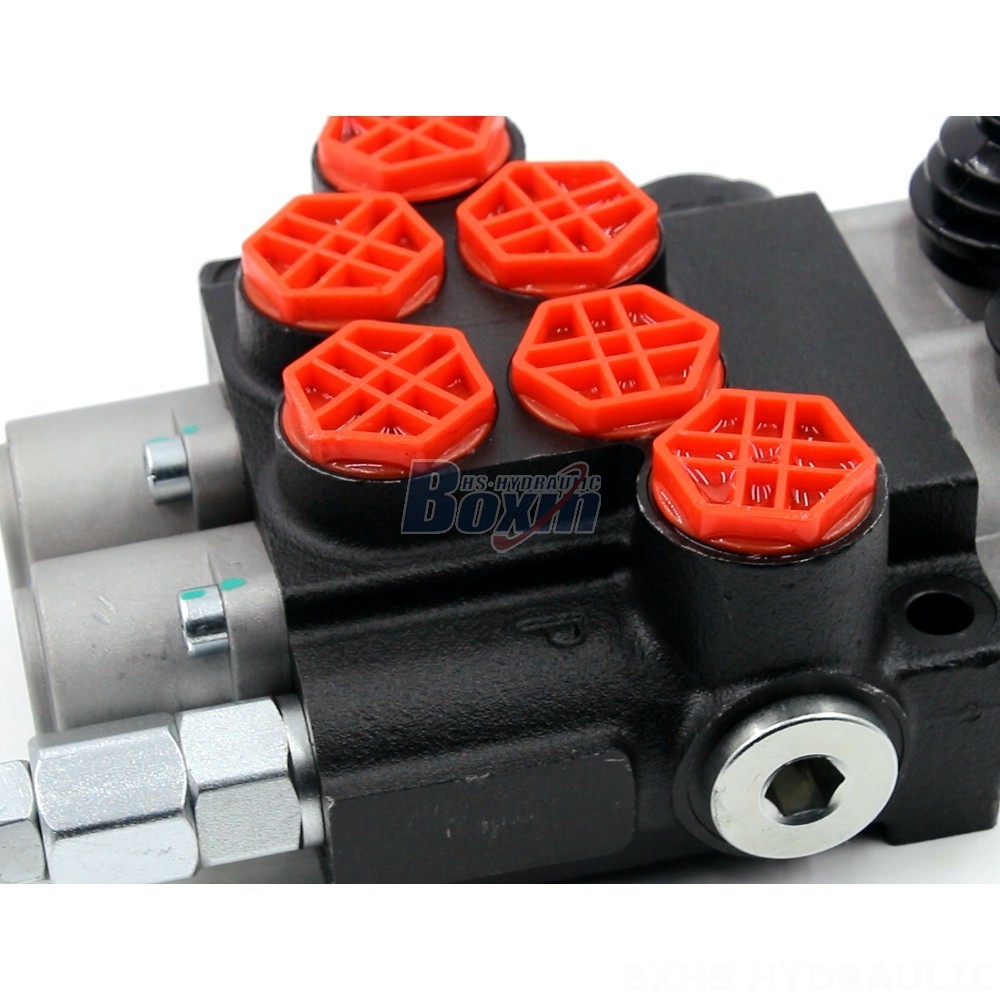

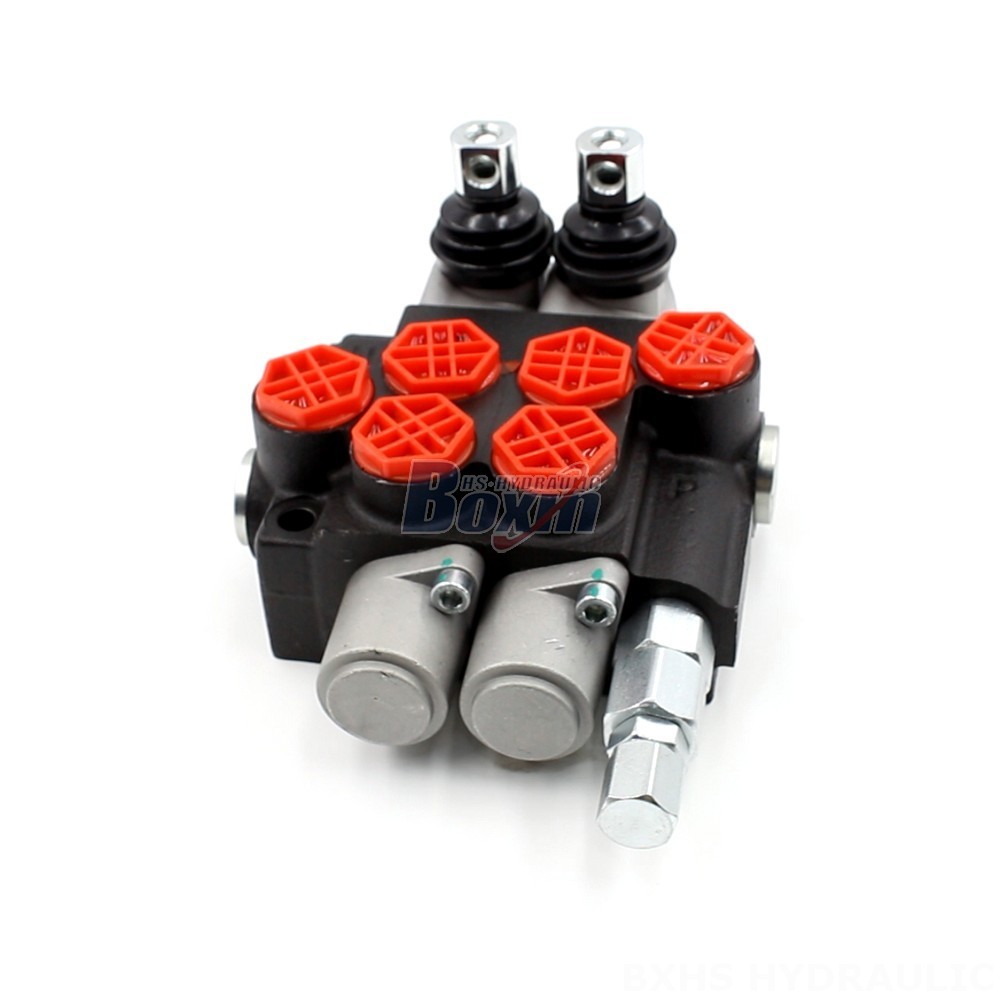

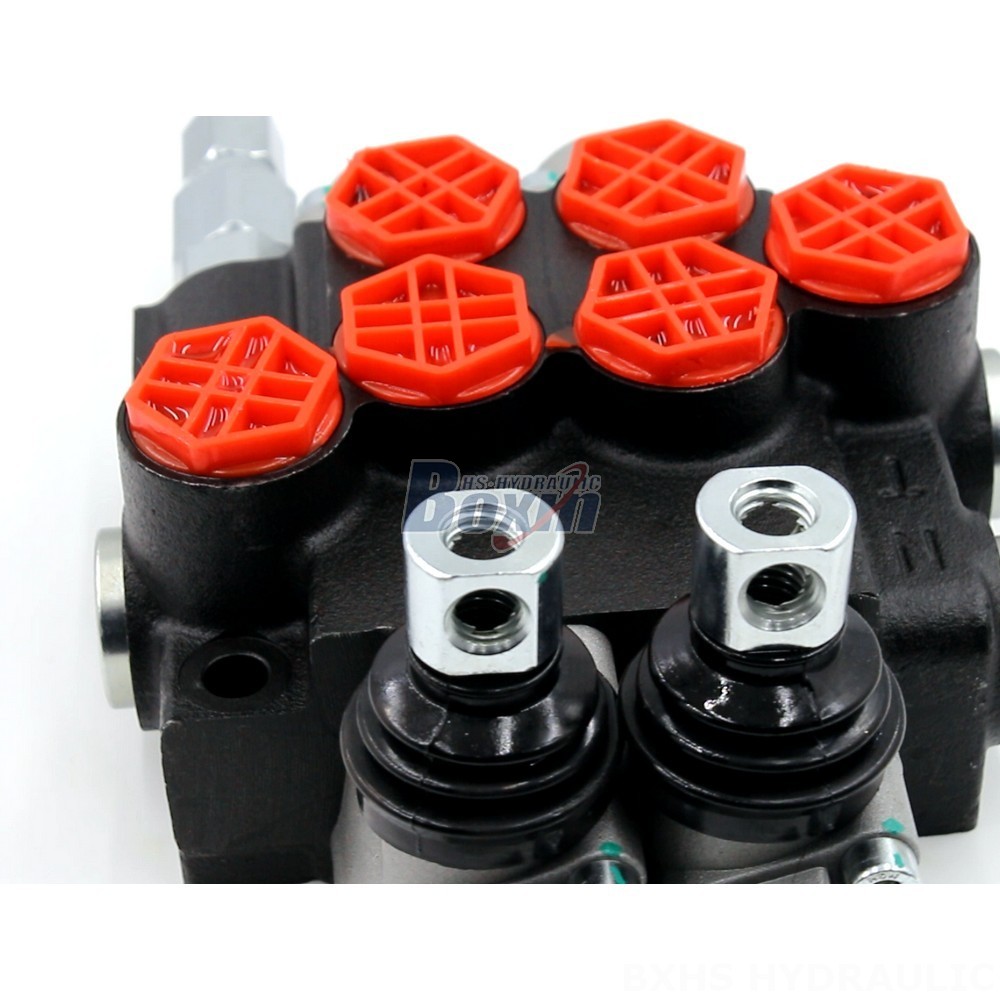

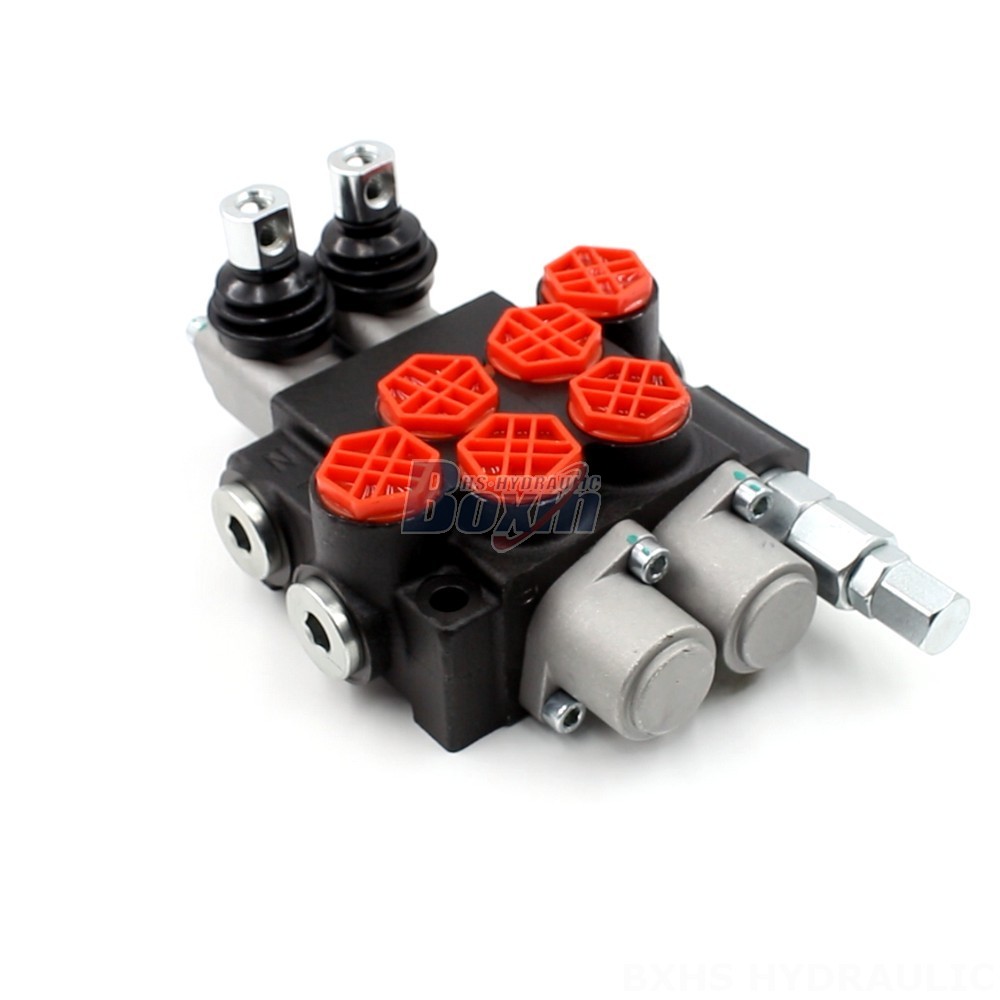

**P40-G12 2-Spool Hydraulic Directional Valve**
**Control Method:** Manual
**Section:** 2 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 40 L/min (10.5 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 2 Spool
**Series:** P40 Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- TELEHANDLER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
- WHEEL LOADER
- BACKHOE LOADER
- DUMPER
- FACE DRILL RIG
- CONCRETE BOOM PUMP
- PAVE ROLLER
- ROTARY DRILLING
- CRUSHER - STONE CUTTER
