P40-G12-2OT Hydraulic Valve System | Performance & Reliability

Metode Kontrol:Buku Panduan

Spul:2 Spool

Aliran Terukur:40 L/menit (10,5 US gpm)

Tekanan Maksimum:250 bar (3600 psi)

Port Masuk:G1/2

Port Keluar:G1/2

Ukuran Port:G1/2

Merek:BXHS

Tipe Produk:Katup Arah Monoblok

Seri Produk:Seri P40 Katup Arah Monoblok

Ukuran kemasan:23*18*13

Kelas kotor:5.00 kg

Ketersediaan: Tersedia

1169 Pandangan Mencari Produk Ini

P40-G12-2OT Hydraulic Valve System | Performance & Reliability

P40-G12-2OT Hydraulic Valve System | Performance & Reliability

P40-G12-2OT Hydraulic Valve System | Performance & Reliability drawing image

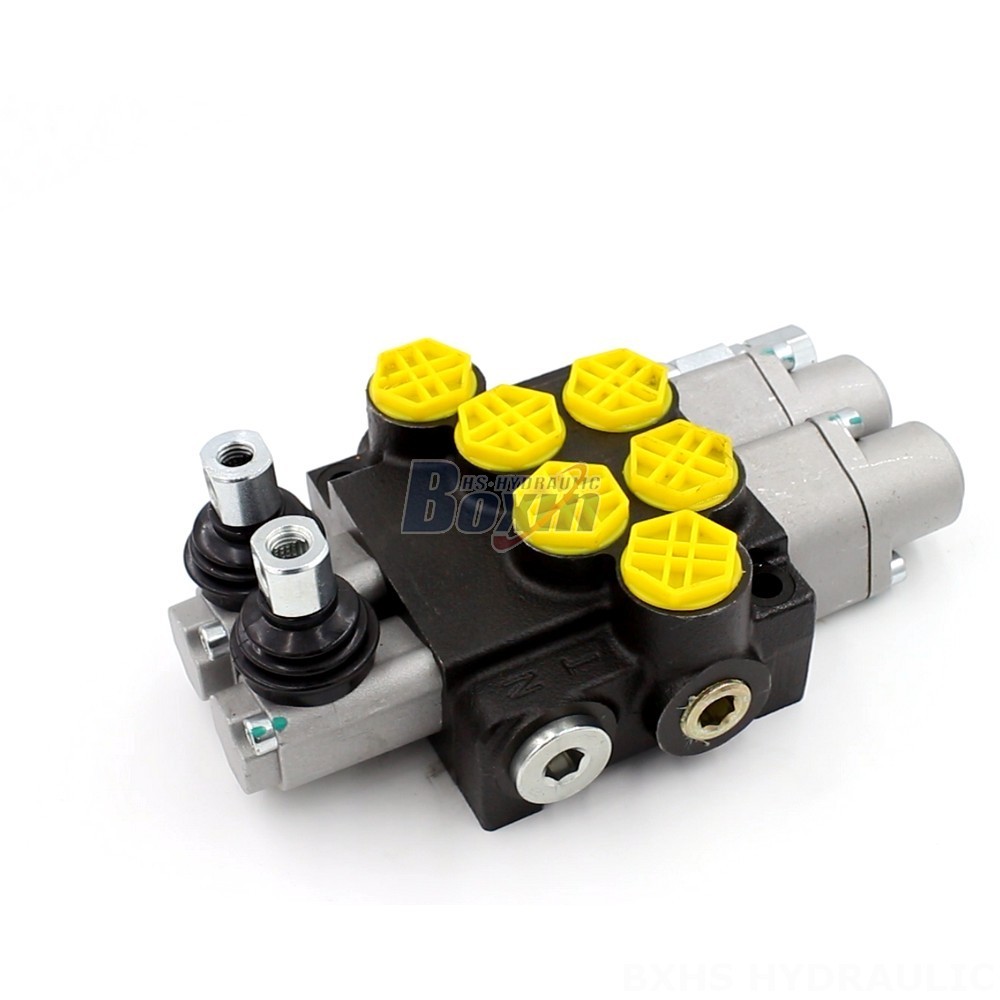

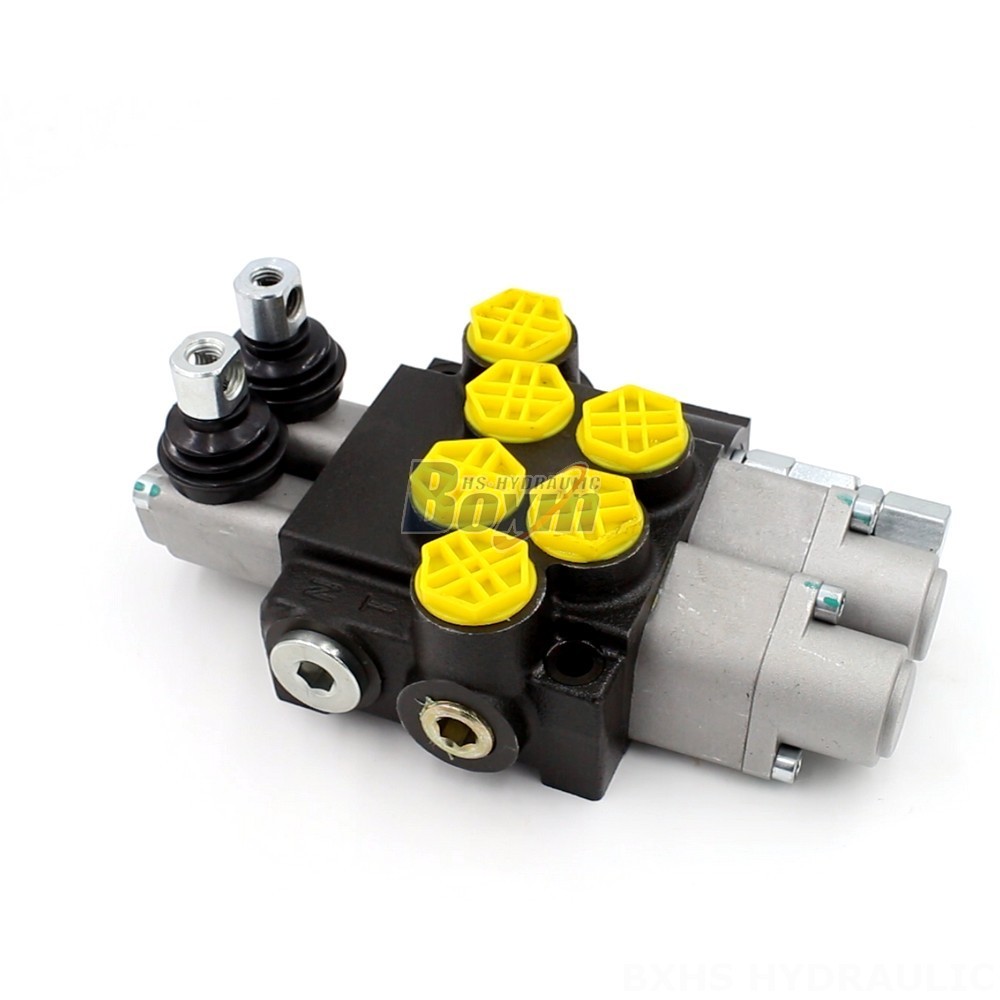

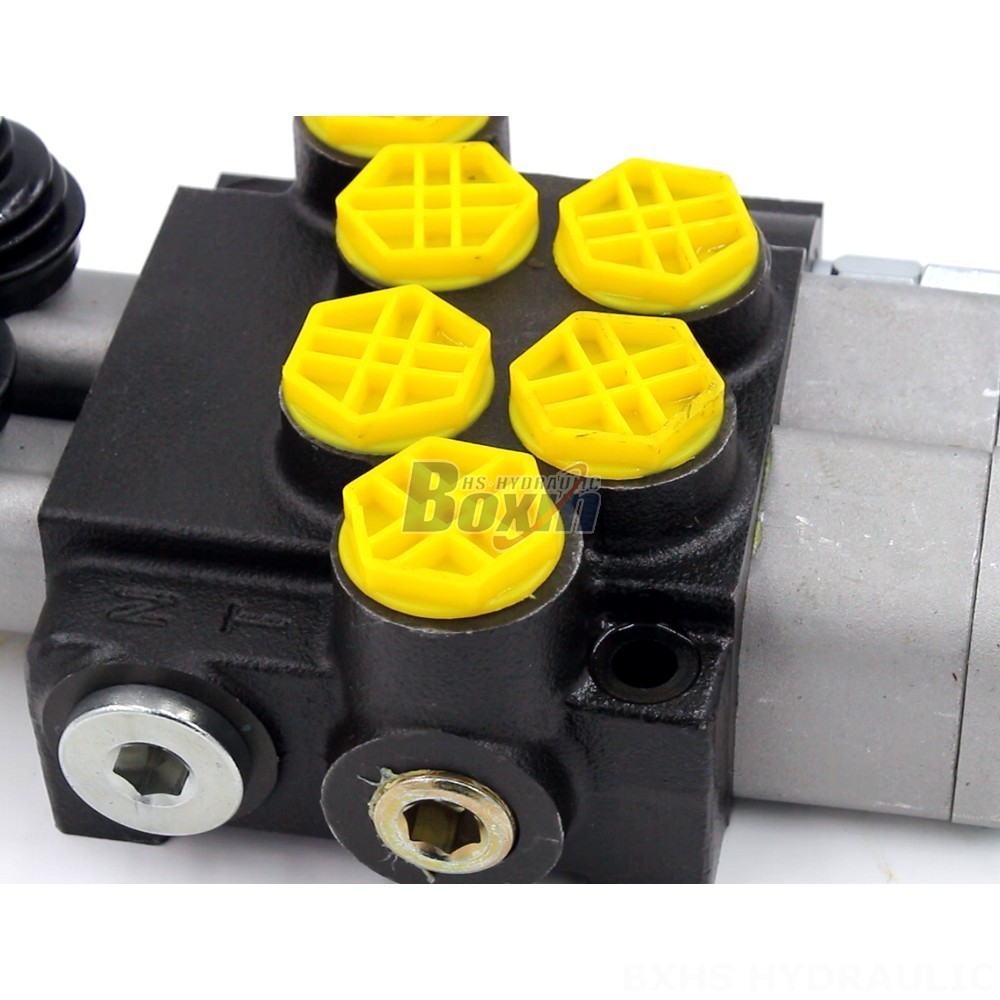

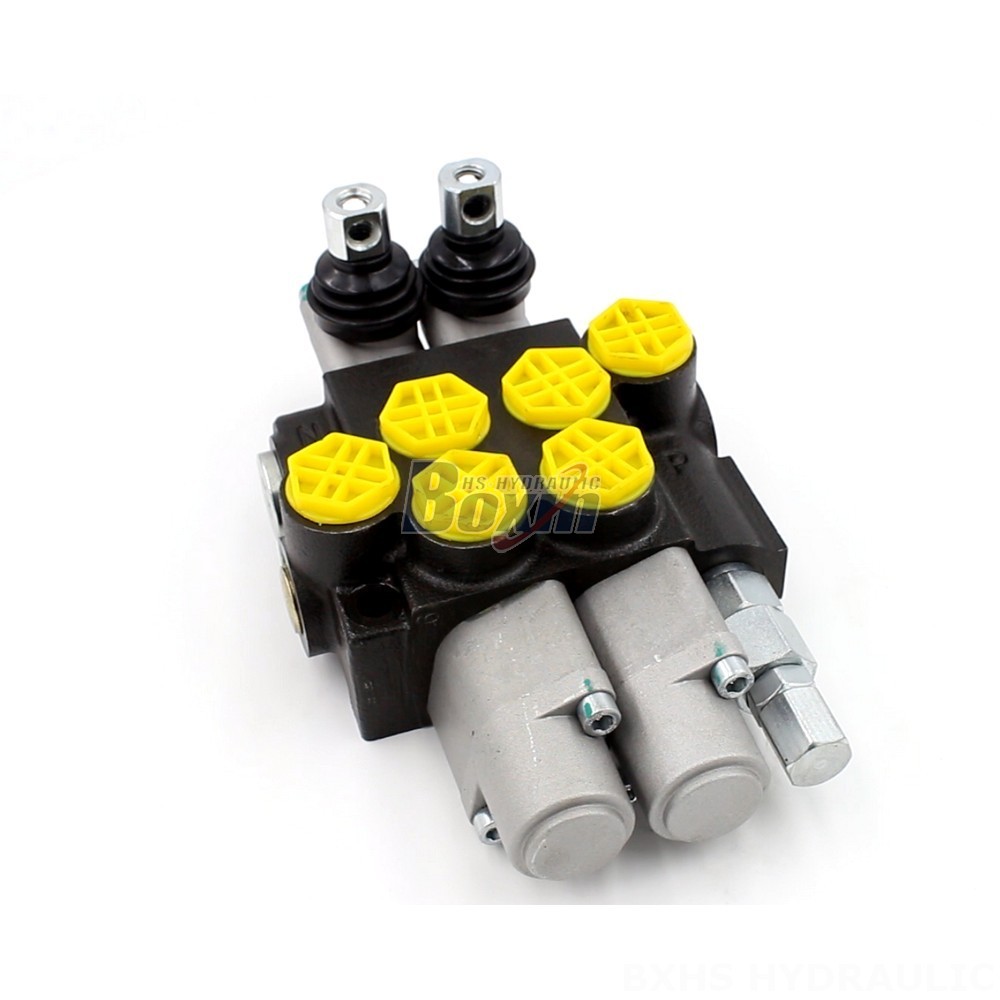

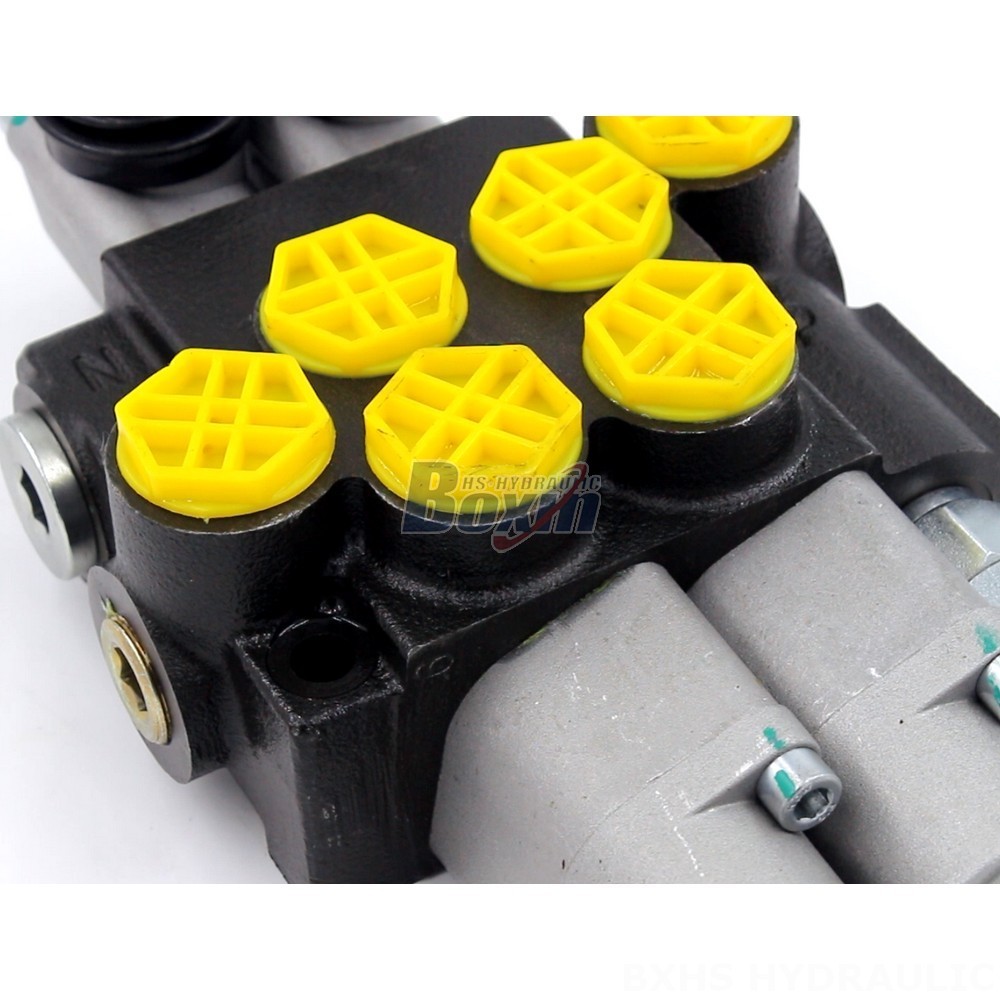

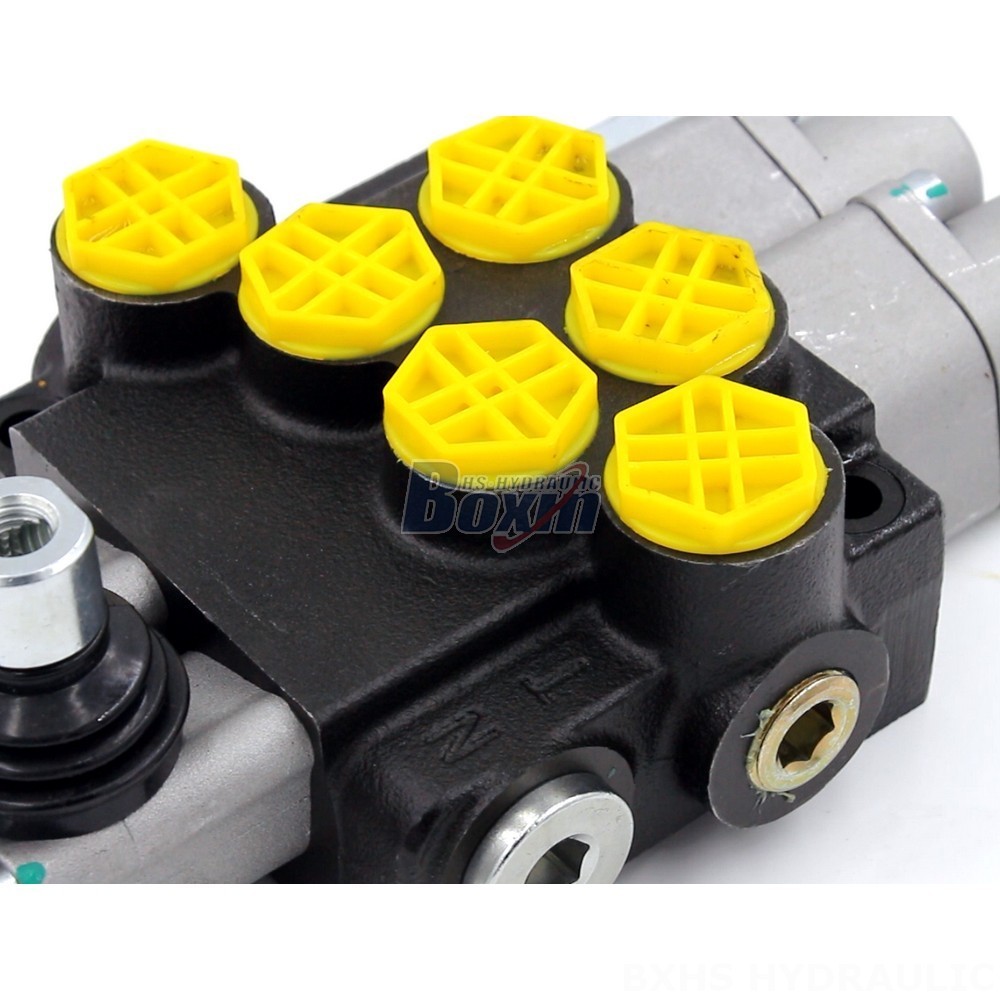

The P40-G12-2OT is a high-performance, reliable hydraulic pressure control valve designed for a wide range of applications, including construction, material handling, agriculture, and industrial vehicles. This 2-section, monoblock valve features a manual control method, rated flow of 40 L/min, and a maximum pressure of 250 bar.

Seri P40 Katup Arah Monoblok Parameter
Metode Kontrol Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel
Spul 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool
Kisaran Suhu Sekitar -40°C hingga +80°C (-40°F hingga +176°F)
Tipe Struktur Katup monoblok
Bagian 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian
Kisaran Viskositas Operasional 15 - 75 mm²/dt (15 cSt hingga 75 cSt)
Aliran Terukur 40 L/menit (10,5 US gpm)
Tekanan Maksimum 250 bar (3600 psi)
Port Masuk G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Port Keluar G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Ukuran Port G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-2OT hydraulic pressure control valve is a robust and efficient solution for various mobile equipment. It offers a compact design with a 2-spool configuration, providing precise control over hydraulic systems. This monoblock valve is built for durability and reliability, operating within a wide viscosity range and temperature range. Its manual control method allows for simple and intuitive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. Some examples of its applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
