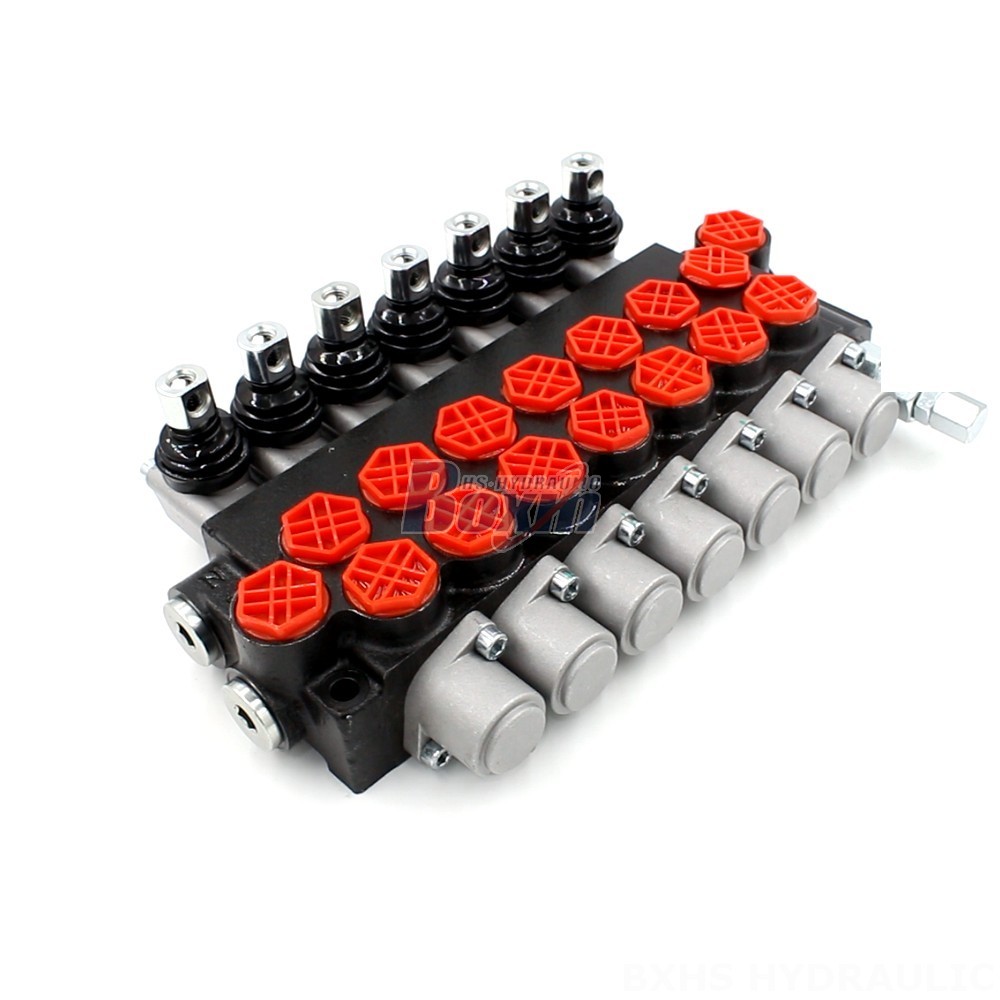

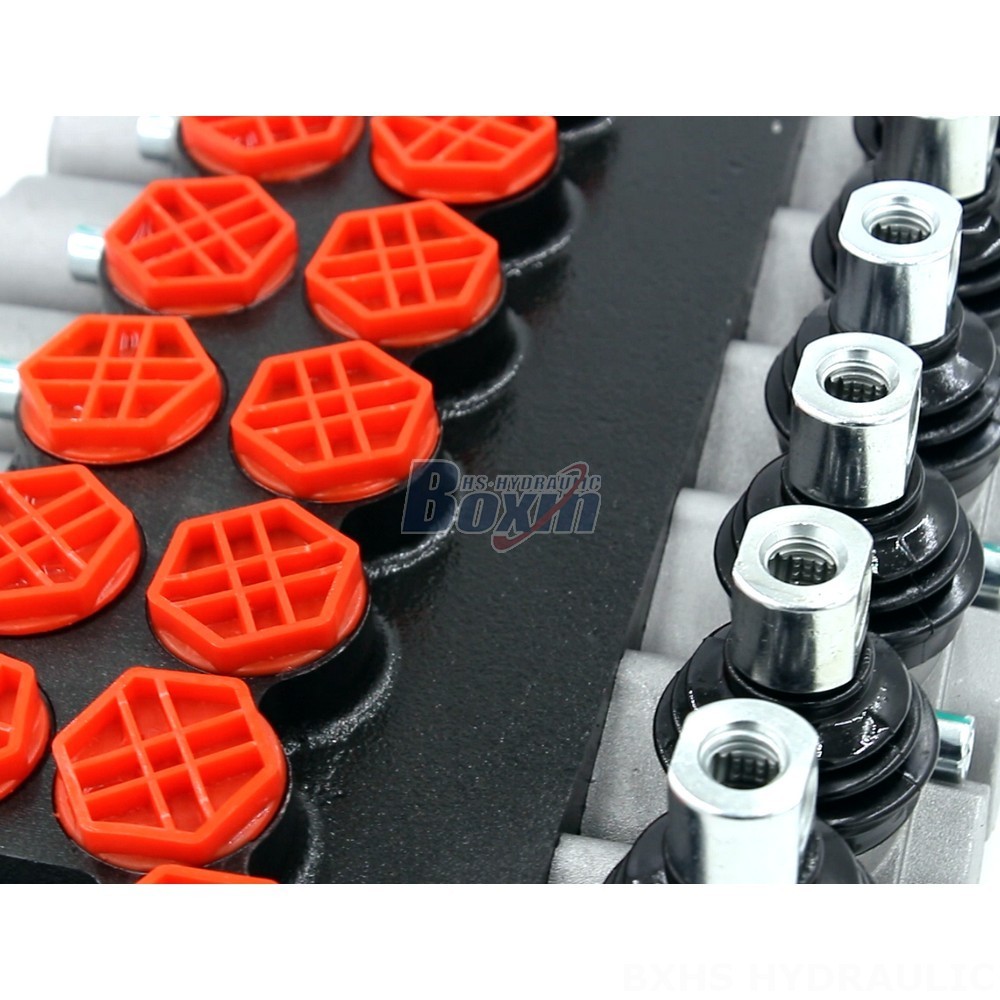

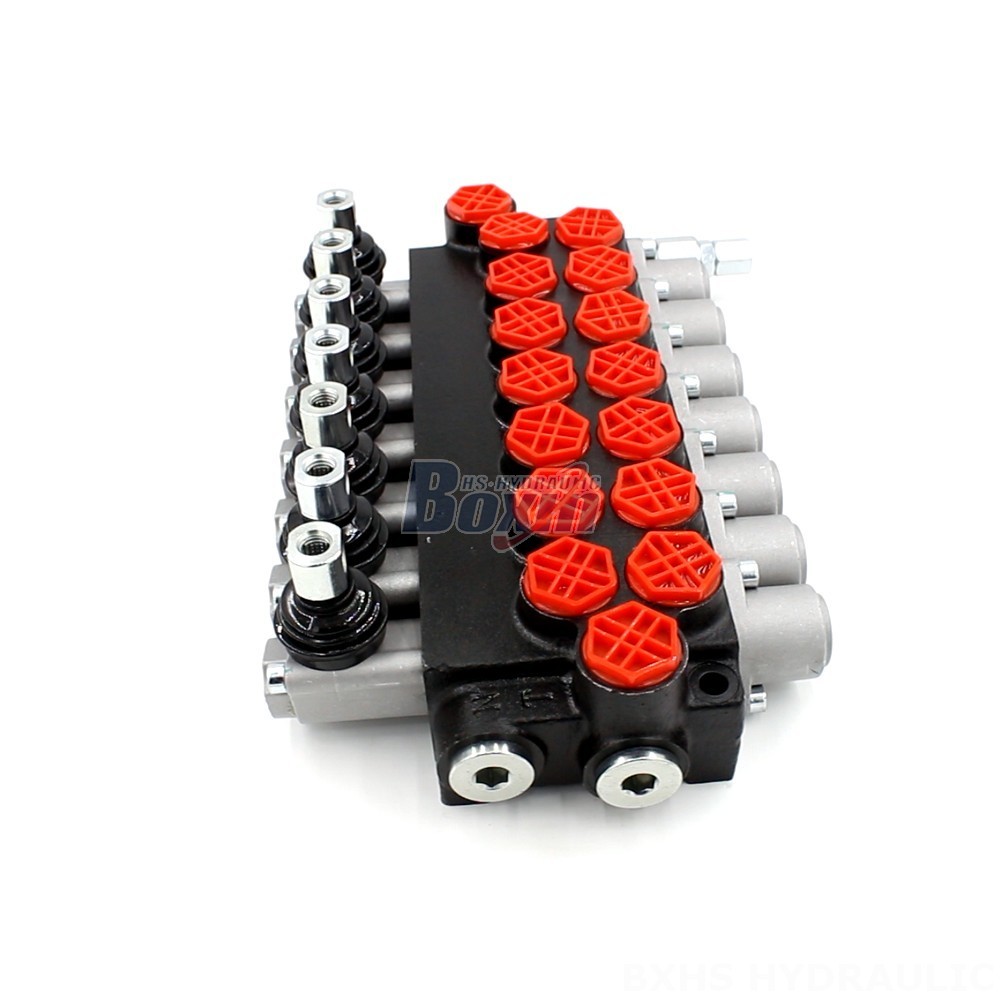

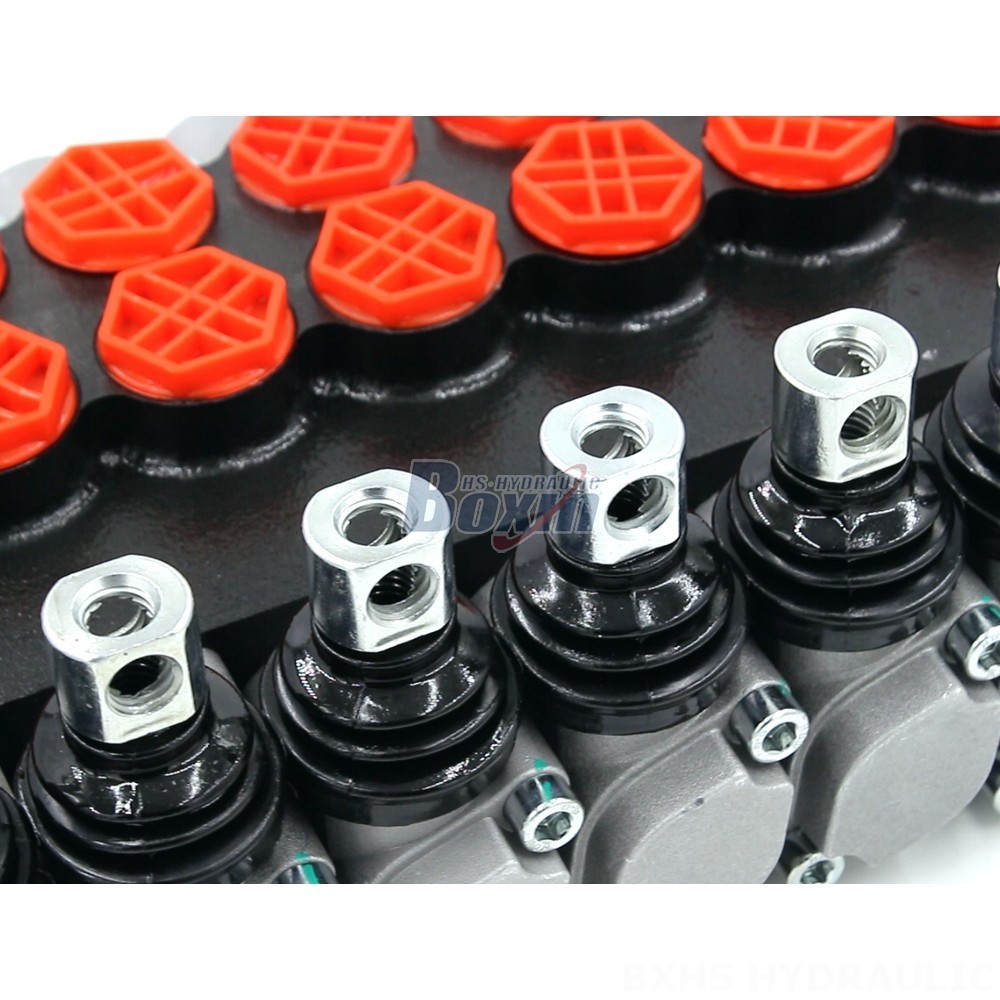

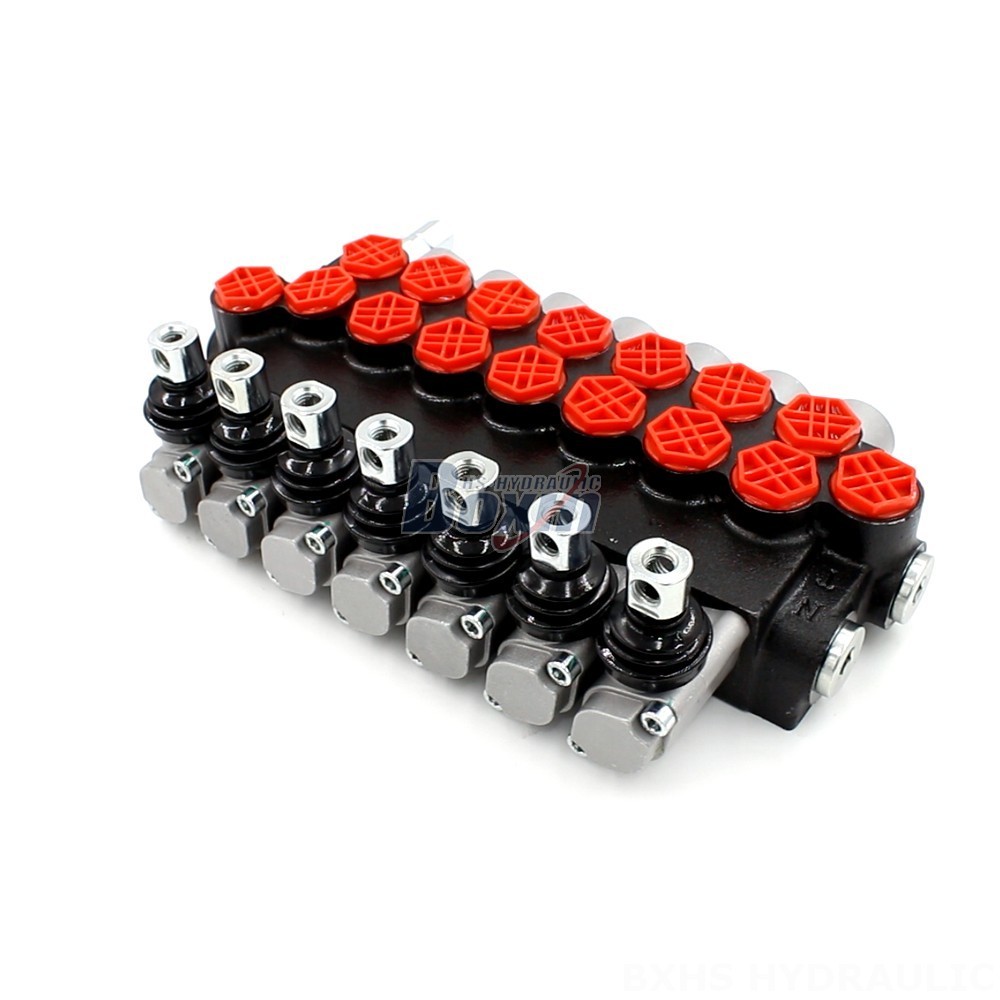

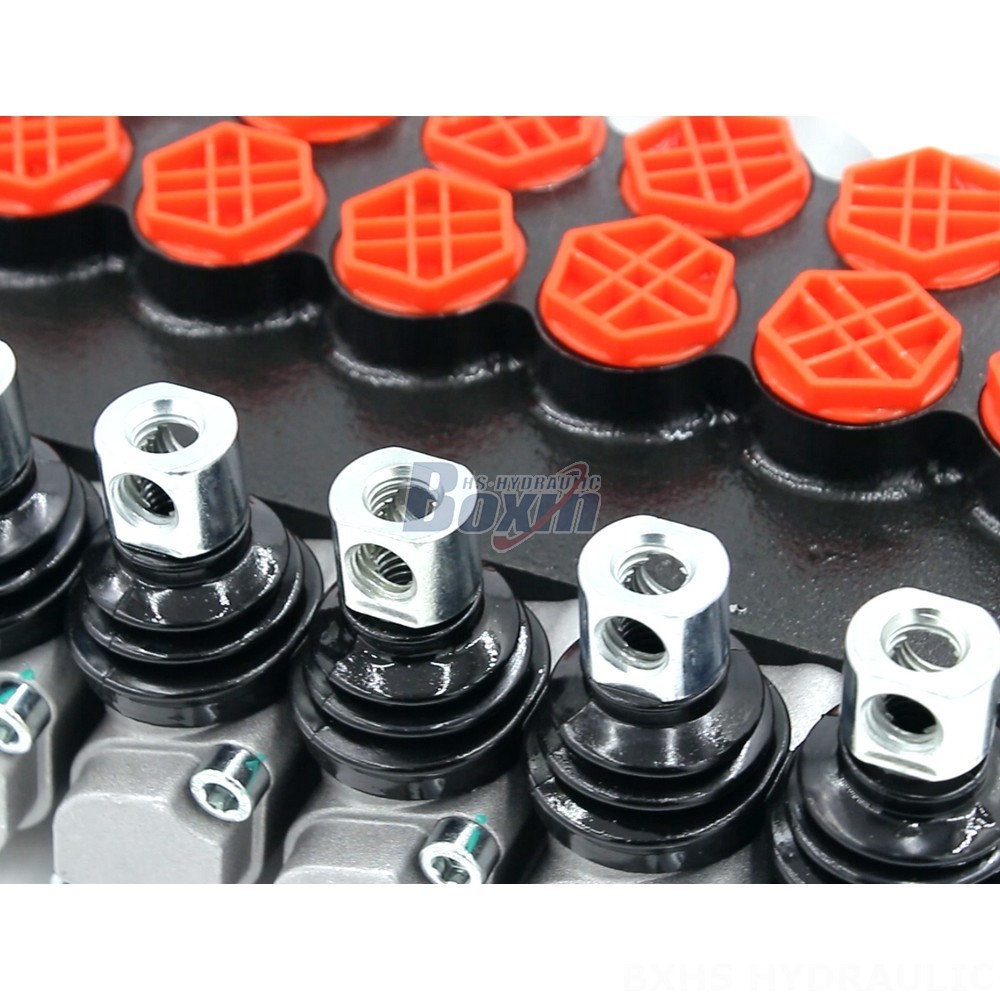

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a high-performance, reliable solution for controlling fluid flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a 7-section design, rated flow of 40 L/min, and maximum pressure of 250 bar, making it ideal for demanding environments.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a robust and versatile component designed for precise hydraulic control. Its monoblock construction ensures strength and durability, while the 7-section design allows for multiple flow paths and directional control. With a rated flow of 40 L/min and maximum pressure of 250 bar, this valve is capable of handling high flow rates and demanding pressures. Its operating viscosity range of 15 to 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of environments. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, among other applications. Its manual control method allows for simple and intuitive operation, making it a user-friendly solution for a wide range of hydraulic systems.
