Produksi & Pengiriman
Waktu Produksi 15-30 Hari

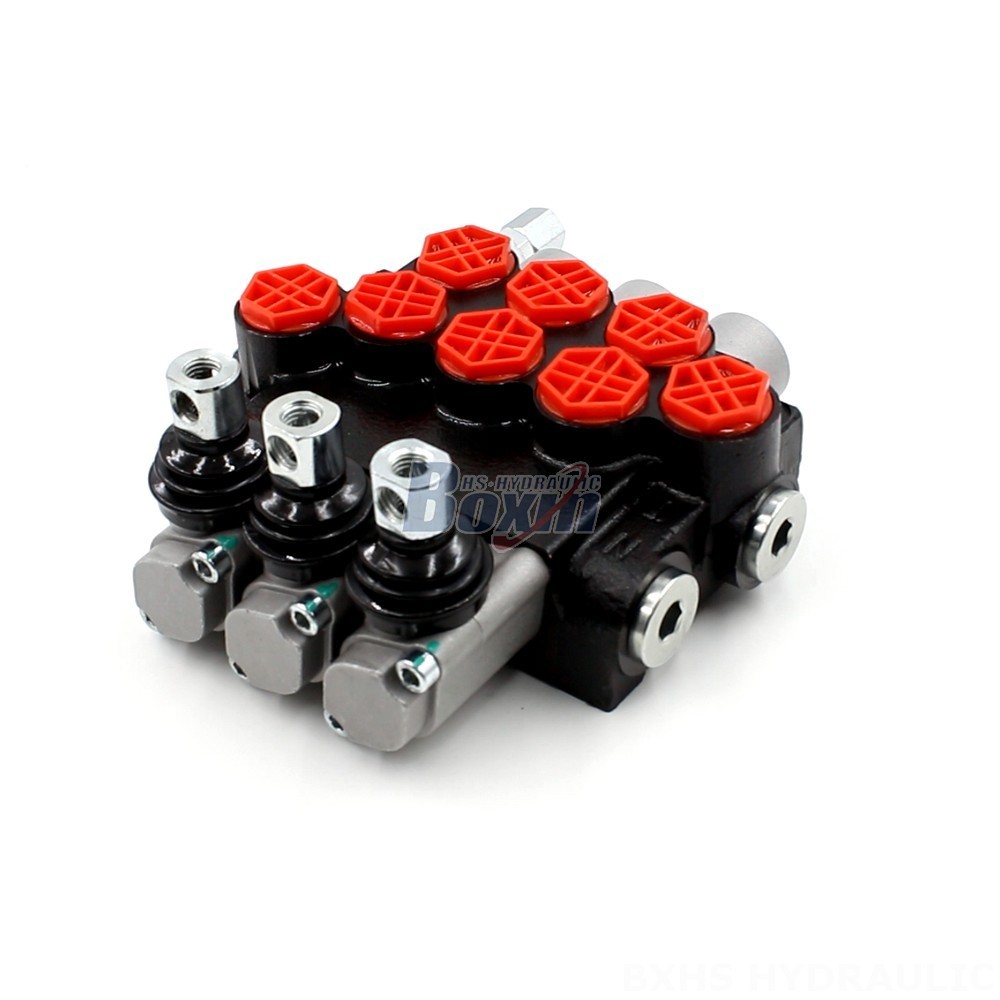

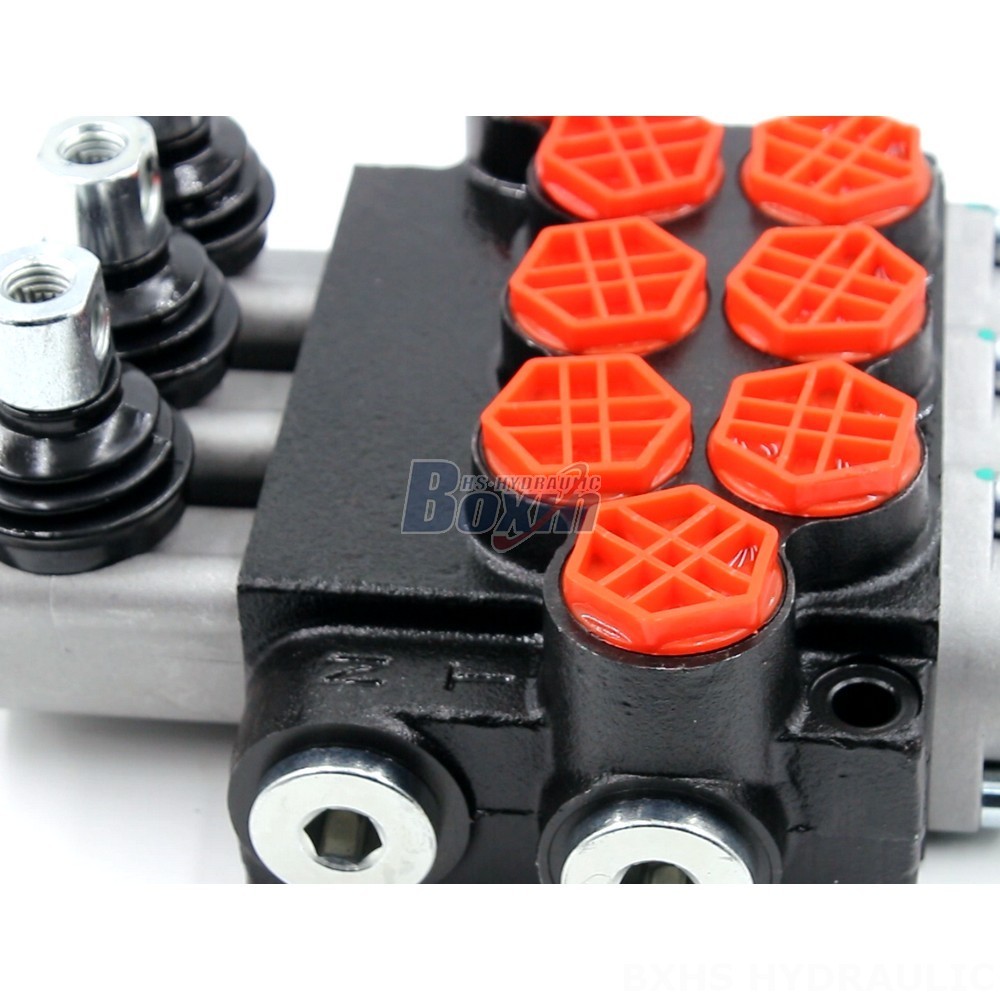

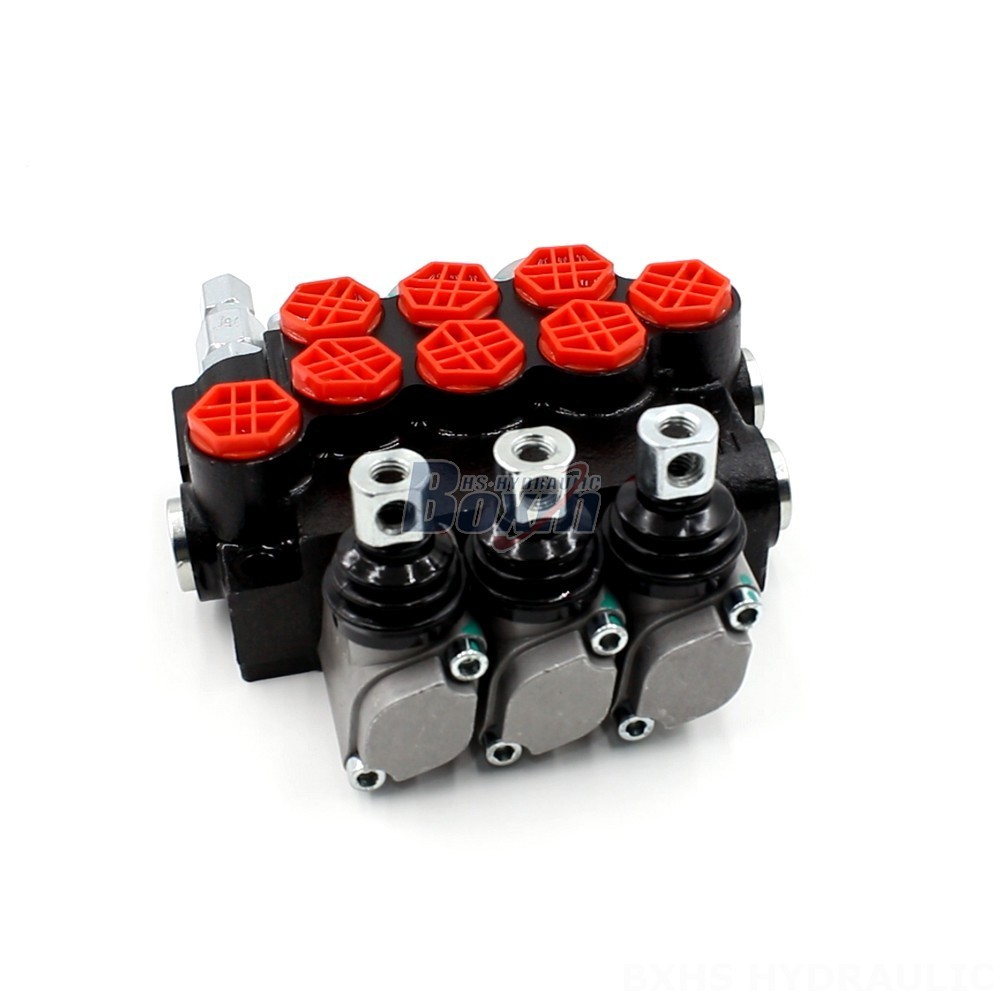

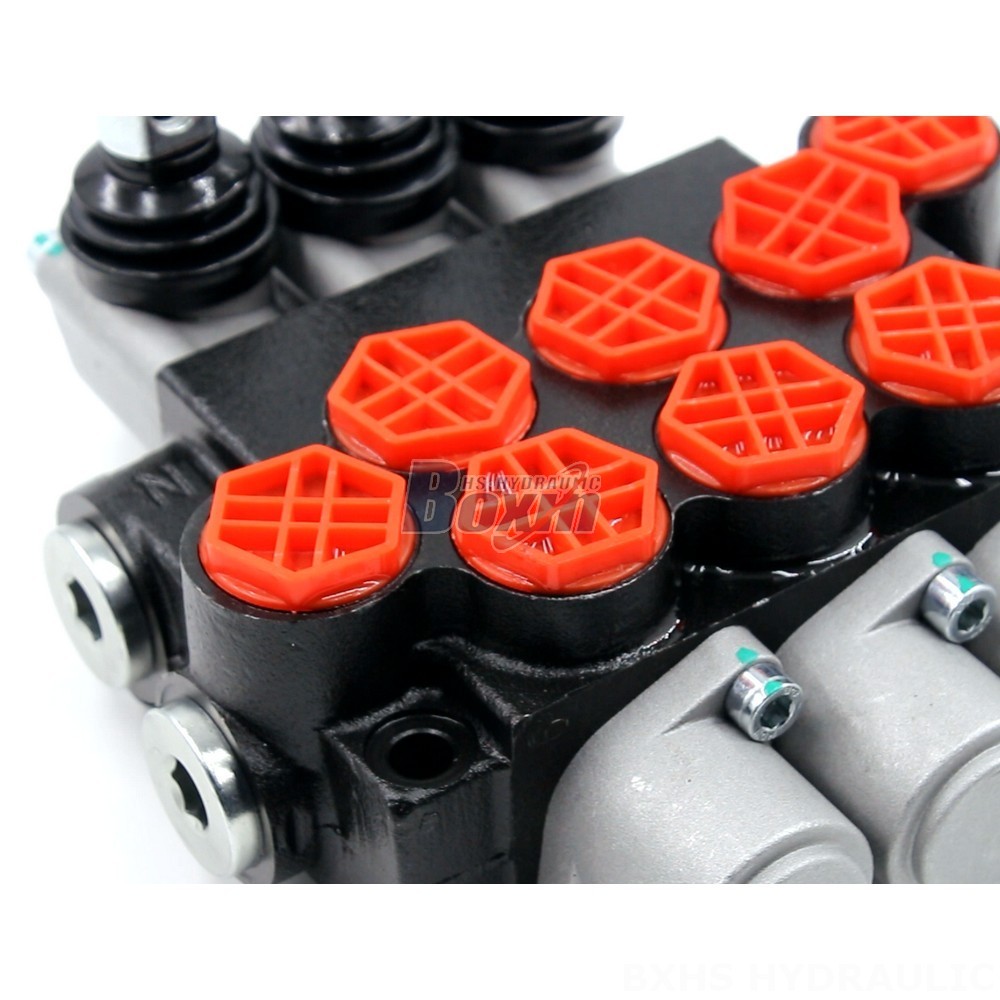

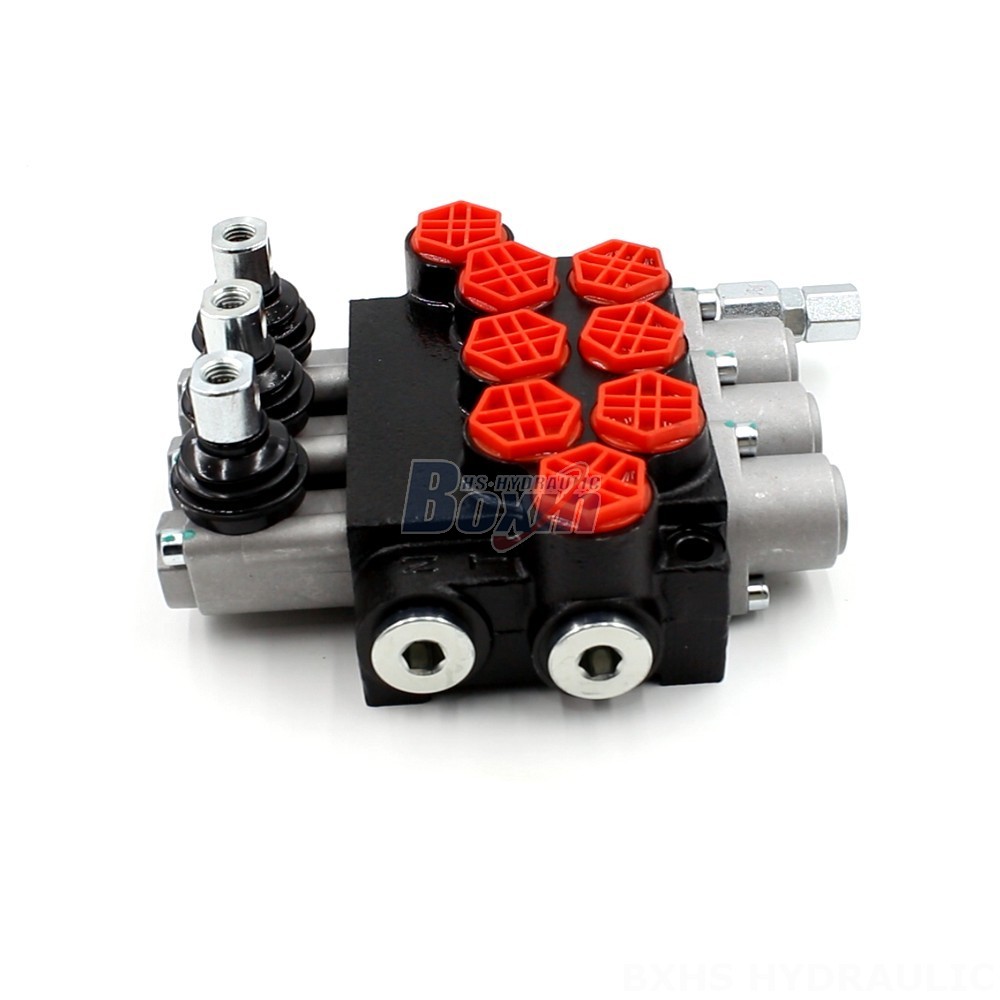

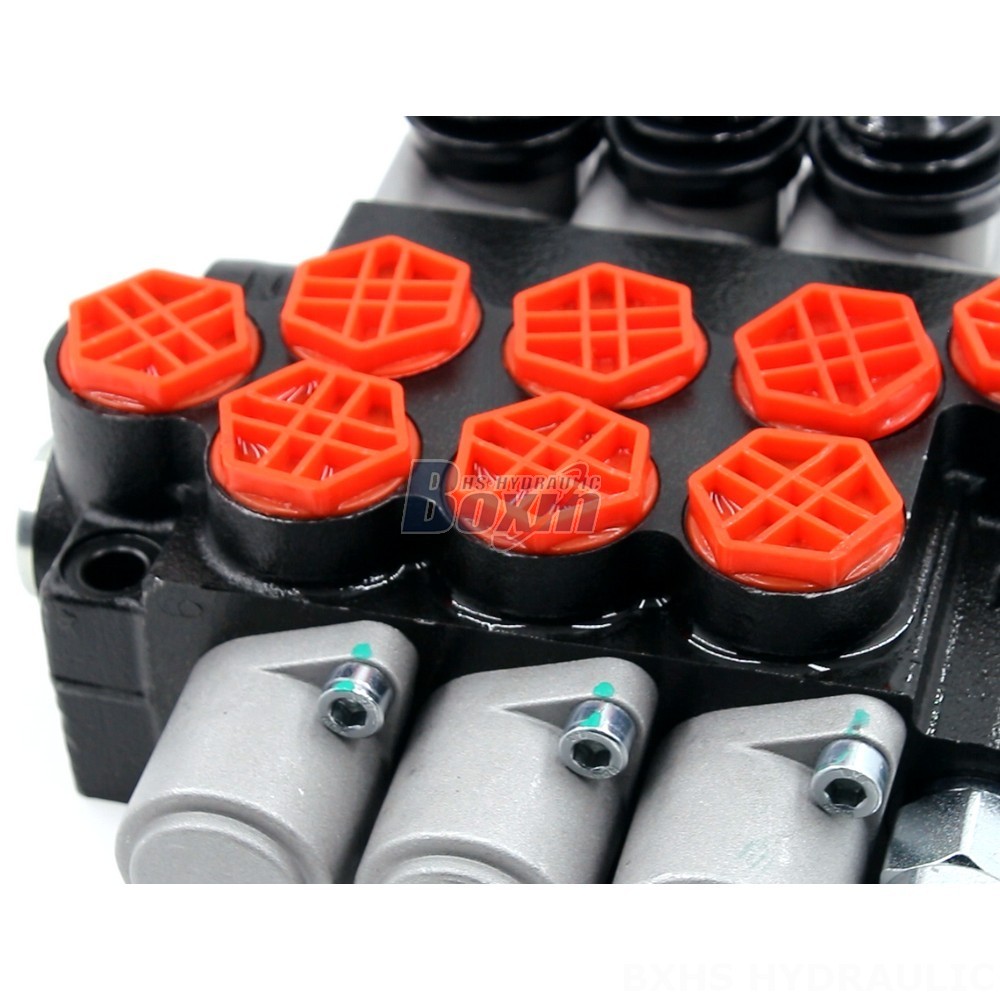

The P40-G12 4 Way Hydraulic Manifold Block is a robust and versatile directional control valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. Featuring a monoblock design, 3 sections, and manual control, this valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar. It is customizable to meet your specific needs.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This 4 Way Hydraulic Manifold Block from the P40 series is a reliable and efficient solution for controlling hydraulic circuits. Its monoblock construction ensures durability and compact size. The valve features 3 sections and manual control, providing precise and responsive operation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for demanding applications in various industries. The P40-G12 is designed to work with a wide range of operating viscosities and temperatures. It is ideal for use in telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. This valve is customizable to meet your specific requirements, making it a versatile choice for a variety of hydraulic systems.
