Produksi & Pengiriman
Waktu Produksi 15-30 Hari
1223 Pandangan Mencari Produk Ini

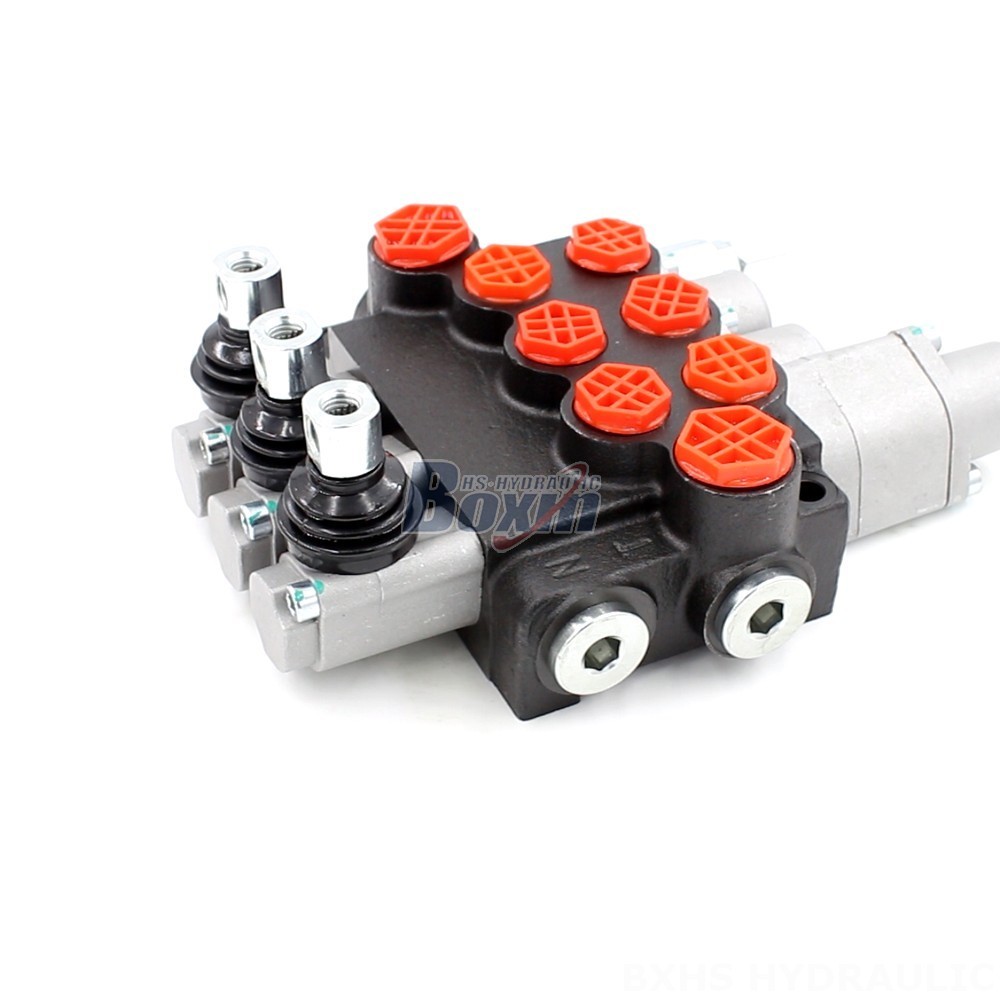

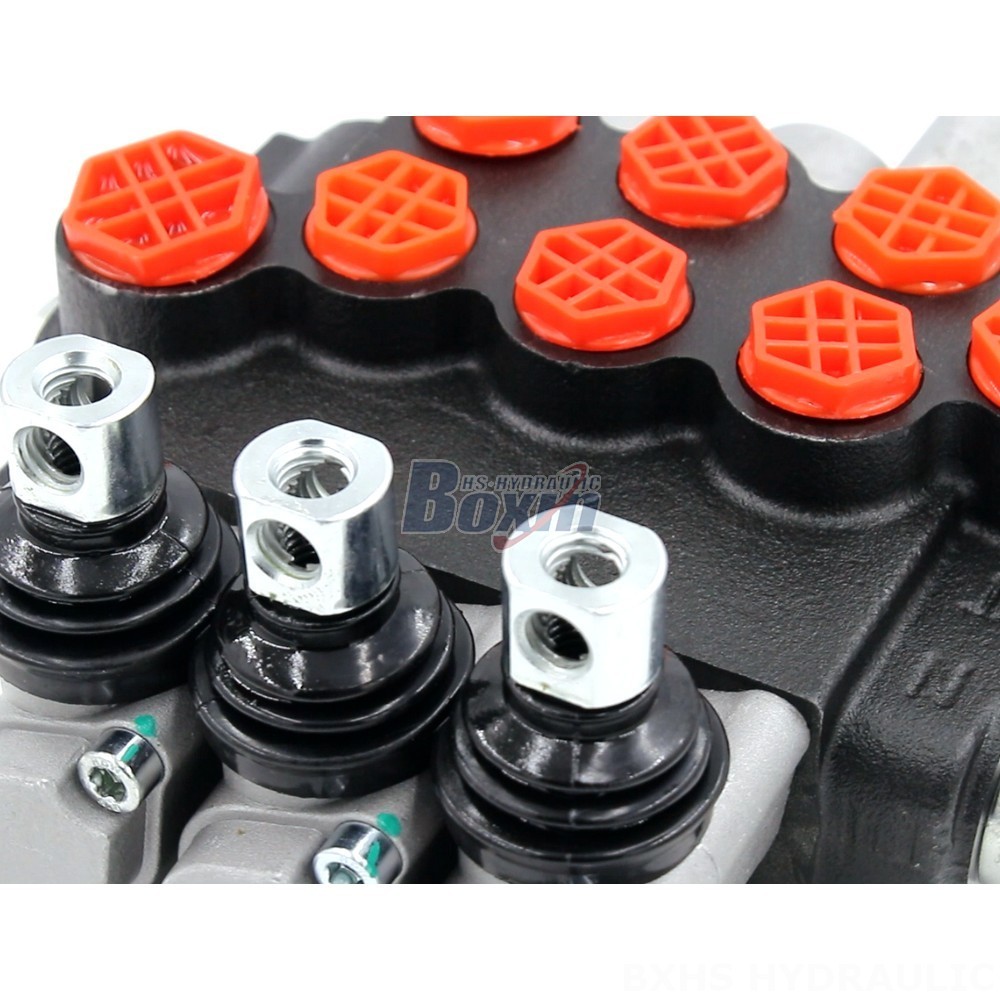

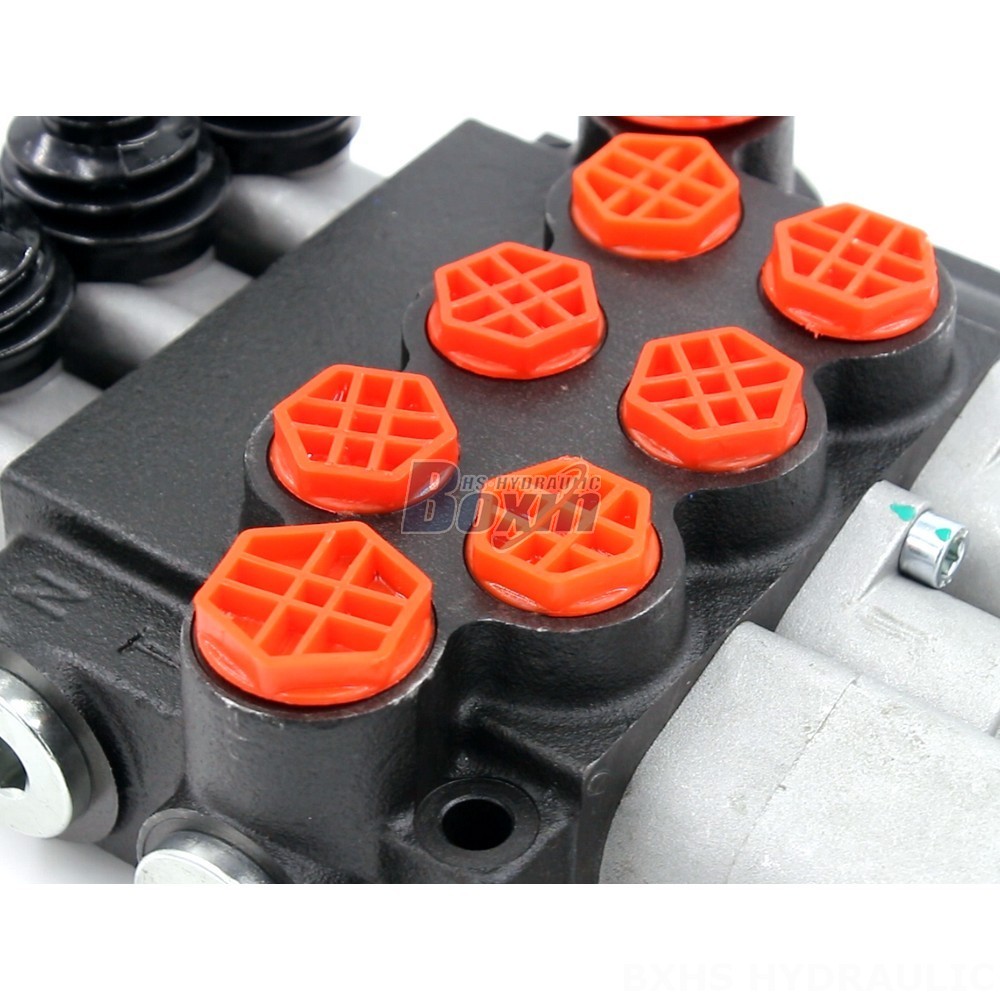

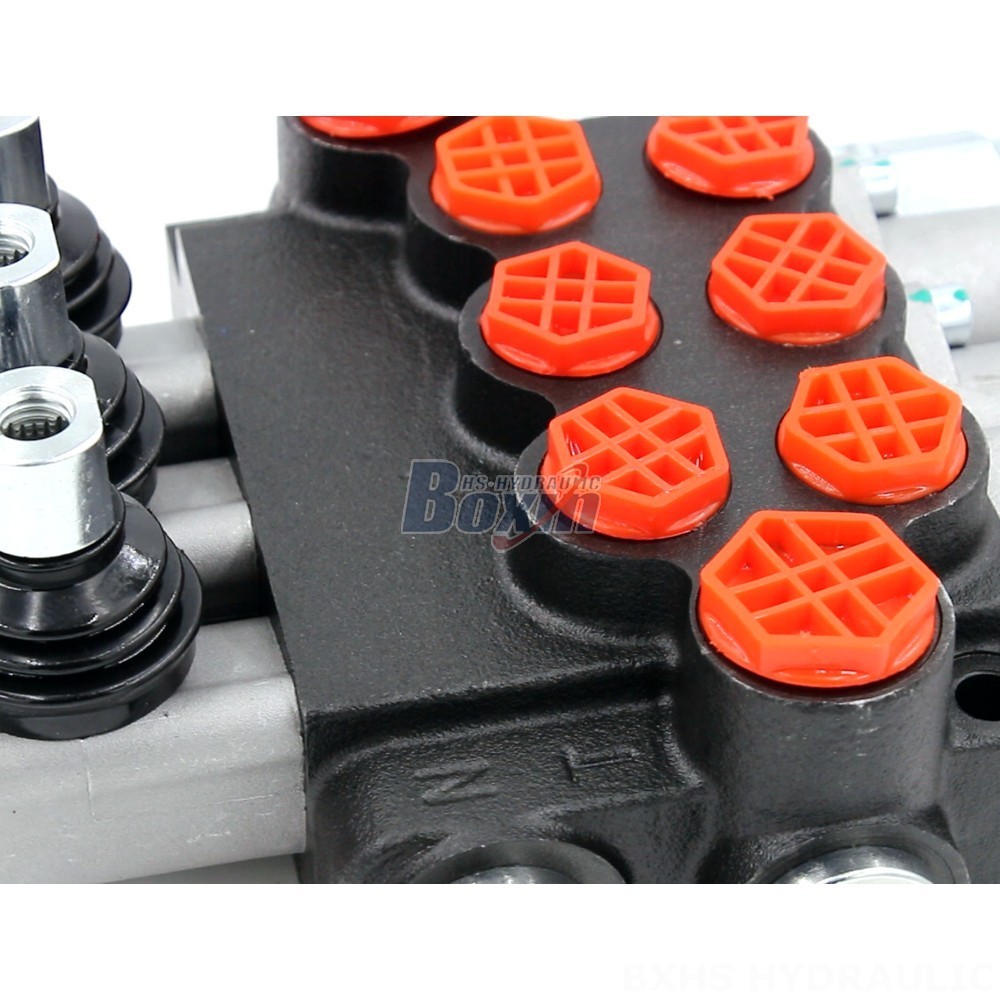

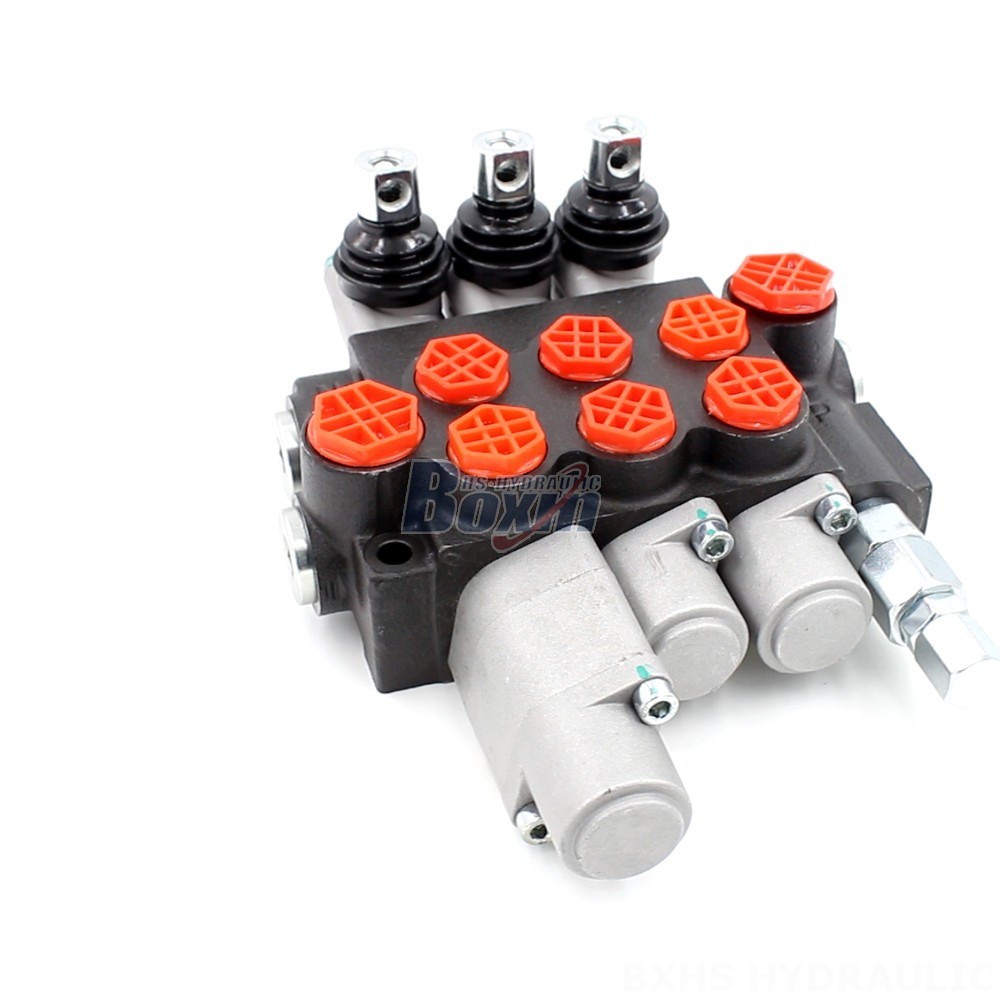

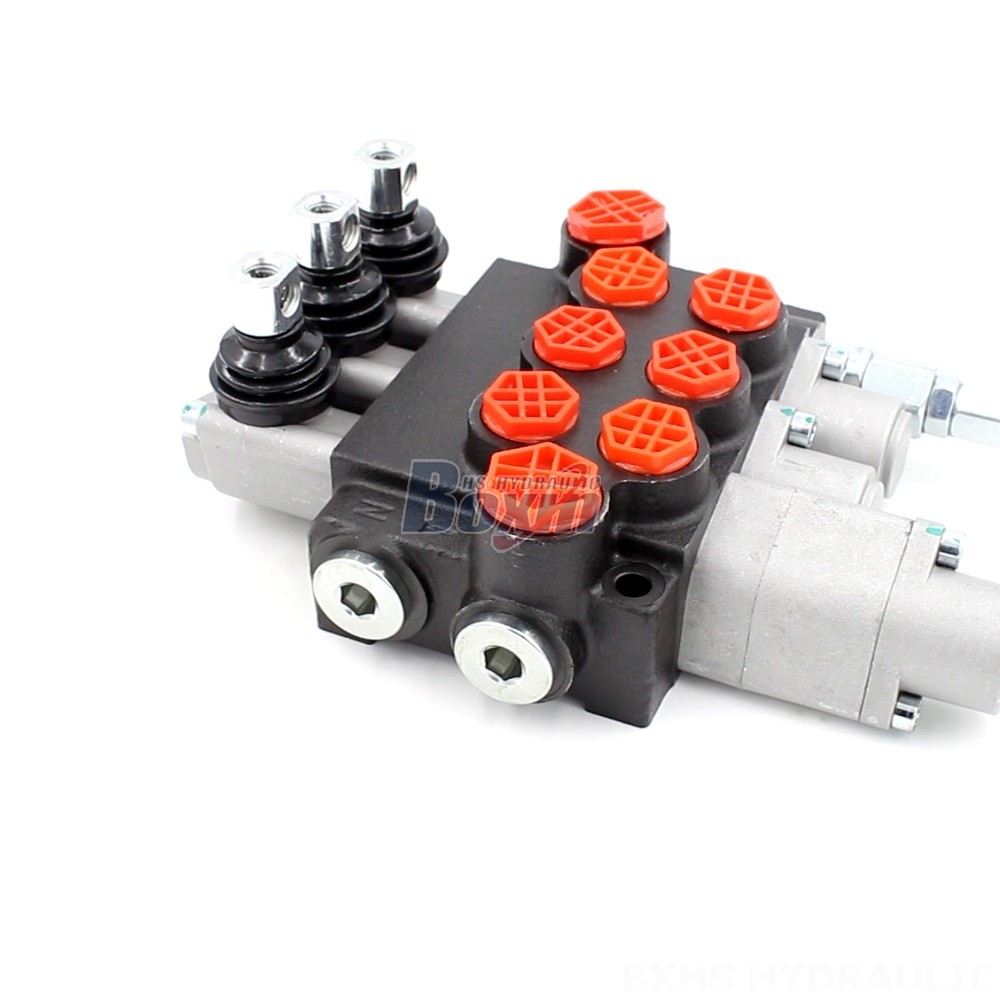

This P40 Series Hydraulic Flow Control Valve Block is a manual, 3-section, monoblock directional valve designed for use in various heavy-duty applications, such as construction equipment, material handling, and agriculture. It offers a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is available for OEM and ODM solutions.
| Seri P40 Katup Arah Monoblok Parameter | |
|---|---|
| Metode Kontrol | Buku Panduan, Pneumatik, Elektro-pneumatik, Elektro-hidraulik, Selenoid, Hidraulis, Hidraulik dan Manual, Kabel, Stik Kontrol, Selenoid dan Joystick, Manual dan Joystick, Solenoid dan Kabel |
| Spul | 1 Spool, 2 Spool, 3 Spool, 4 Spool, 5 Spool, 6 Spool, 7 Spool |
| Kisaran Suhu Sekitar | -40°C hingga +80°C (-40°F hingga +176°F) |
| Tipe Struktur | Katup monoblok |
| Bagian | 1 Bagian, 2 Bagian, 3 Bagian, 4 Bagian, 5 Bagian, 6 Bagian, 7 Bagian |
| Kisaran Viskositas Operasional | 15 - 75 mm²/dt (15 cSt hingga 75 cSt) |
| Aliran Terukur | 40 L/menit (10,5 US gpm) |
| Tekanan Maksimum | 250 bar (3600 psi) |
| Port Masuk | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Port Keluar | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Ukuran Port | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Hydraulic Flow Control Valve Block P40-G12-G38-2OT-QTW is a manual, 3-section, monoblock directional valve designed for controlling hydraulic flow in various applications, including construction equipment, material handling, and agriculture. It features a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). The valve operates with a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). With its 3 spools, this valve is suitable for a range of heavy-duty applications such as telehandlers, forklifts, cranes, excavators, loaders, tractors, and harvesters. The P40 Series valve is available for OEM and ODM solutions, allowing for customization to meet specific customer requirements.
